LIONWEI Laptop Docking Station 13-in-1 with Dual Monitor

This compact USB-C docking station turns a laptop into a multiport workstation, expanding connectivity for office work, streaming and casual gaming. It supports dual monitor and triple 4K display setups for increased screen real estate and includes fast data lanes and power delivery to keep a laptop charged during heavy use.

Key Points

The hub brings together HDMI, DisplayPort and a mix of USB-C and USB-A ports to connect monitors, external drives and peripherals without swapping cables. It includes a gigabit Ethernet port for faster wired transfers and a combined 3.5 mm audio/microphone jack for voice and media. For users who move between rooms, the plug-and-play design simplifies docking and undocking. ⚡️

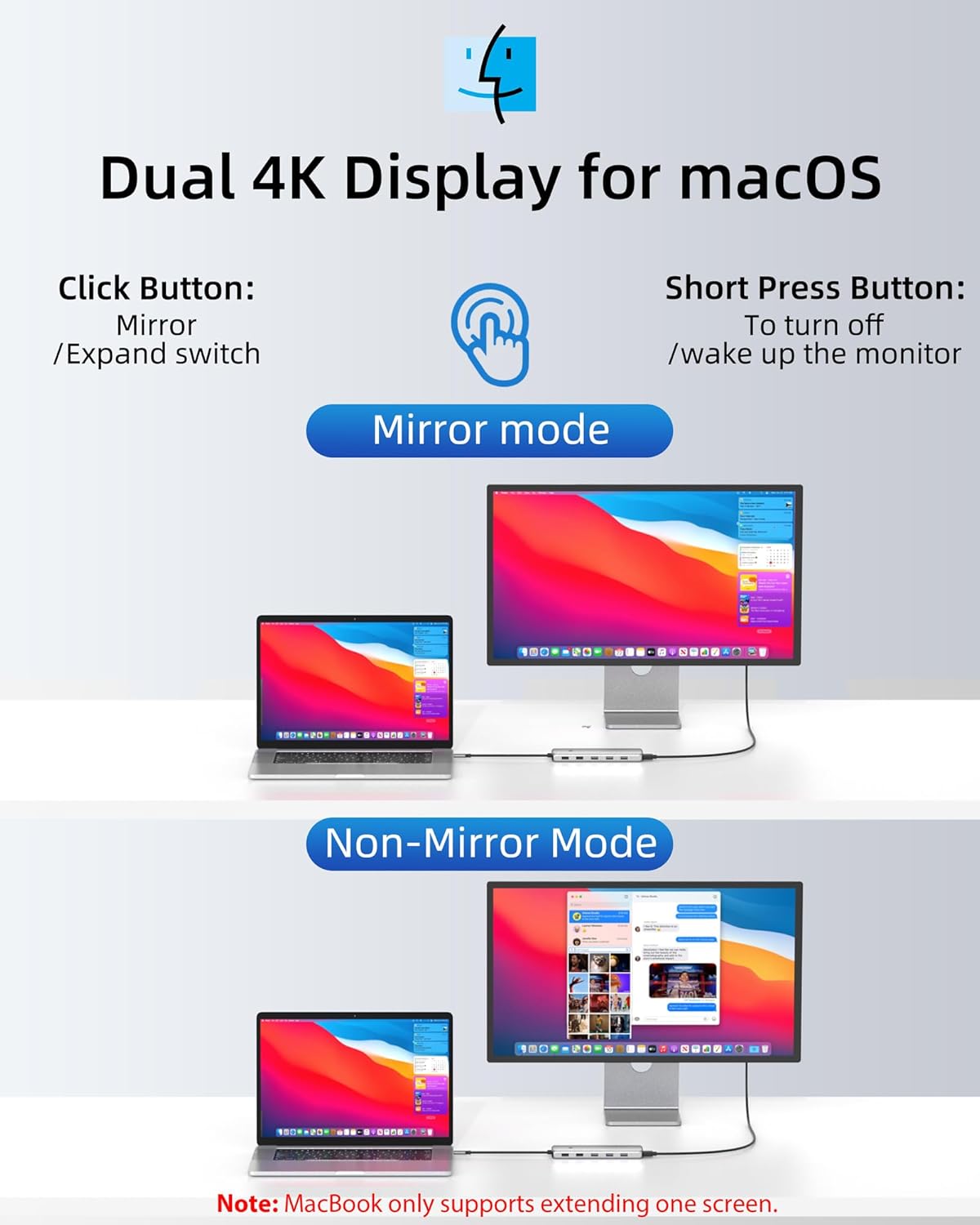

This dock uses MST on Windows to extend displays, while macOS may limit configuration to SST for certain monitor setups according to the manufacturer. Consider that the hub consumes some power during operation, which reduces the PD output available to the laptop.

Technical Specifications

• Name: LIONWEI Laptop Docking Station 13 in 1
• Video outputs: 2 x HDMI (up to 4K@60Hz for HDMI with DP1.4 source), 1 x DisplayPort (up to 8K@30Hz)
• USB ports: 2 x USB-C (PD 100 W support, 10 Gbps data), 1 x USB 3.1 (10 Gbps), 3 x USB 3.0, 2 x USB 2.0
• Network and audio: Gigabit Ethernet, 3.5 mm audio/microphone combo jack
• Power delivery note: Hub supports PD 100 W input but uses ~15 W for its own operation, leaving around 85 W for laptop charging.

Usage Recommendations

For extended desktop across multiple monitors, use a Windows laptop with MST enabled to access full multi-screen extension. When connecting high-resolution sources rely on the DisplayPort input for the highest single-display bandwidth and route HDMI from a DP1.4 source if you need 4K at 60 Hz. 🔌

Attach external storage to the 10 Gbps USB-C or USB 3.1 port for faster transfers and reserve the USB 2.0 ports for keyboards, mice or low-bandwidth accessories. If you require stable online multiplayer or large file downloads, the gigabit Ethernet connection reduces potential wireless lag and speeds up transfers.
