UGREEN Revodok Pro Docking Station 11-in-1

This compact USB-C docking station helps extend connectivity for modern laptops and workstations, offering dual-display support and fast data transfer for productivity and multimedia setups. If you need a USB-C docking station for dual 4K displays, this model provides HDMI and DisplayPort outputs plus plenty of ports for peripherals, storage and wired networking.

Key Points

The hub supports two external monitors, with an HDMI port capable of 4K at 60Hz and a DisplayPort that can reach up to 4K at 120Hz on a single screen for systems that support DP1.4 with DSC. It includes two high-speed USB-C data ports rated at 10Gbps for external drives, and additional USB-A ports for keyboards and mice. A built-in Gigabit Ethernet jack delivers a stable wired connection for latency-sensitive tasks, while the integrated SD and TF card reader speeds up photo and media transfers. ⚡️📺

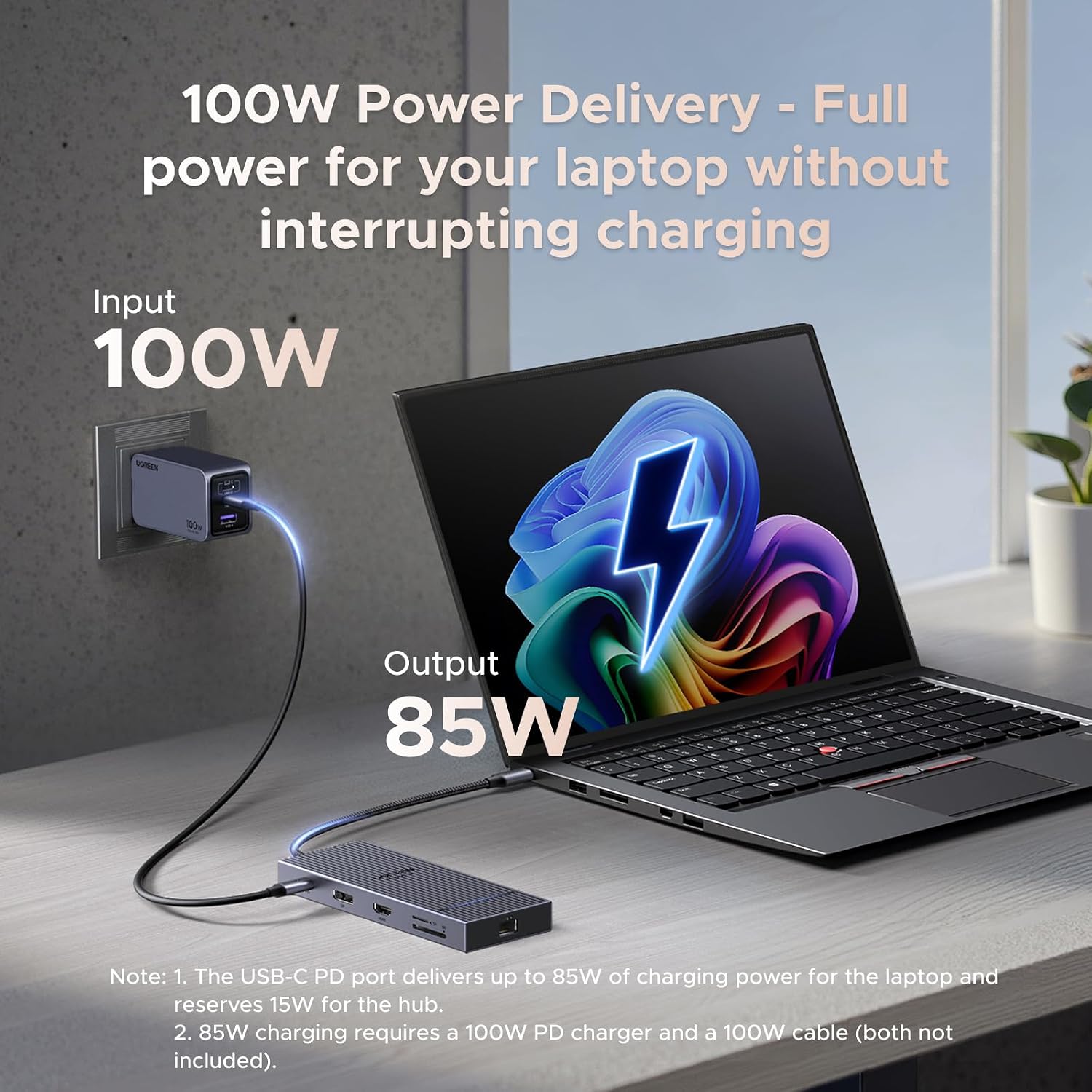

This dock also handles laptop charging via USB-C Power Delivery. When paired with a 100W PD charger it supplies up to 85W to a connected laptop according to the manufacturer, with the hub itself consuming about 15W. Note that the video outputs require a host device with USB-C video output or DP Alt Mode to function.

Benefits

Using external monitors can free up laptop screen space and streamline multitasking. The combination of HDMI and DisplayPort makes the hub versatile for different monitor types and resolutions. Fast USB-C data ports reduce backup and file transfer times when working with large media files. The metal aluminium casing keeps the hub robust while helping dissipate heat during prolonged use. For users who rely on stable internet, the Ethernet connection is a reliable alternative to wireless networks.

A few practical notes: the dock is compatible with Windows and macOS but not Linux according to the manufacturer, and some older Windows systems may need a network driver for the Ethernet port. It is also not recommended for charging phones or tablets as primary use.

Technical Specifications

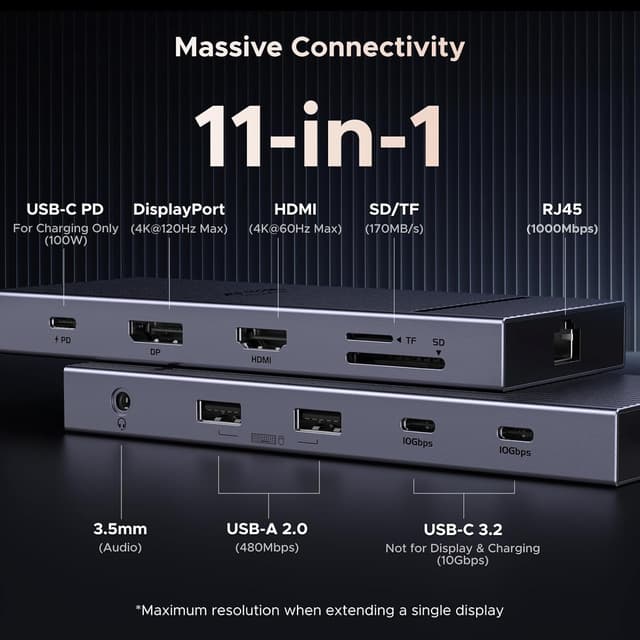

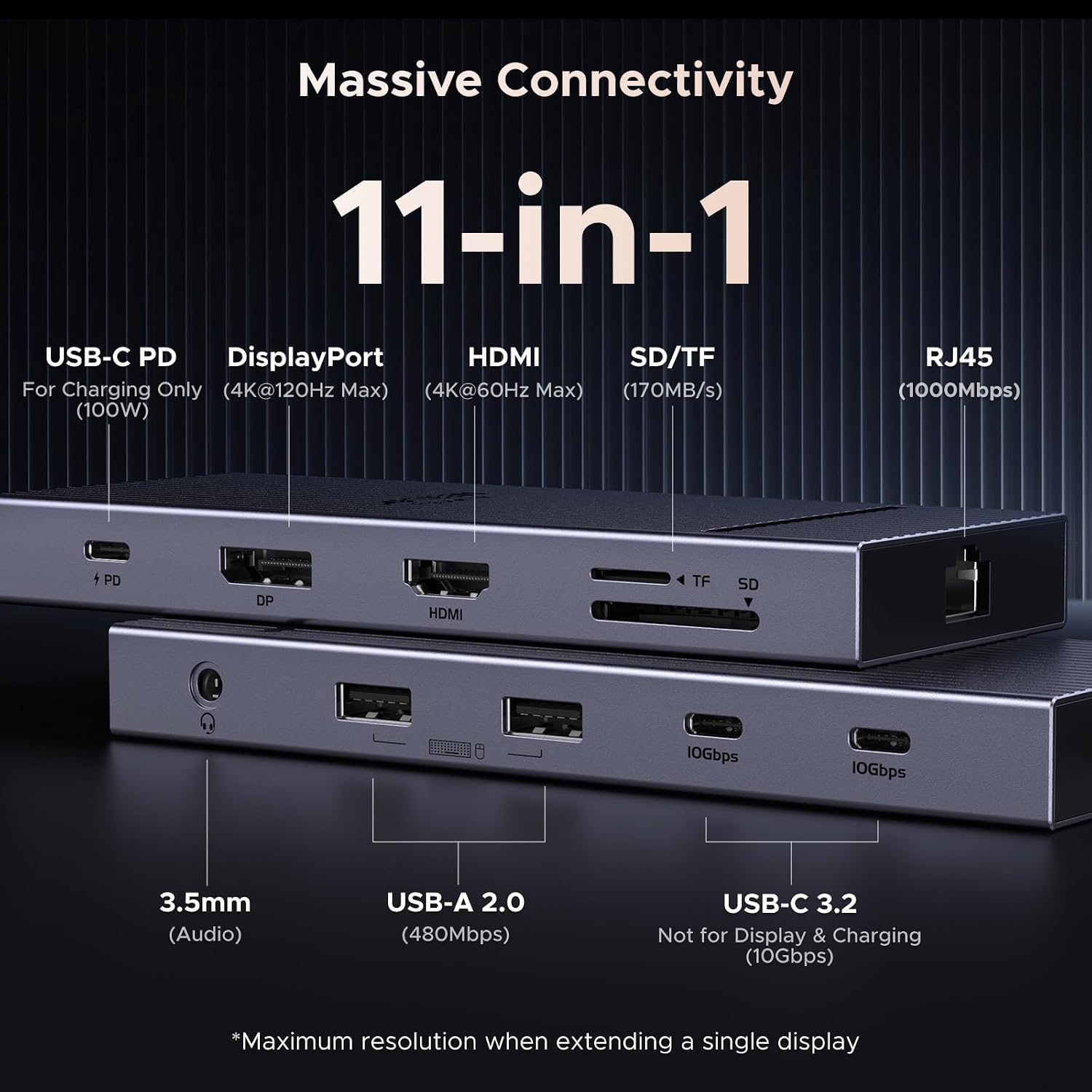

• Name: UGREEN Revodok Pro Docking Station (11-in-1)
• Video outputs: HDMI 4K@60Hz, DisplayPort up to 4K@120Hz (single-screen DP1.4 with DSC)
• USB data: 2× USB-C 10Gbps, 2× USB-A 2.0
• Power Delivery: 100W PD input, up to 85W output to laptop (hub uses ~15W)

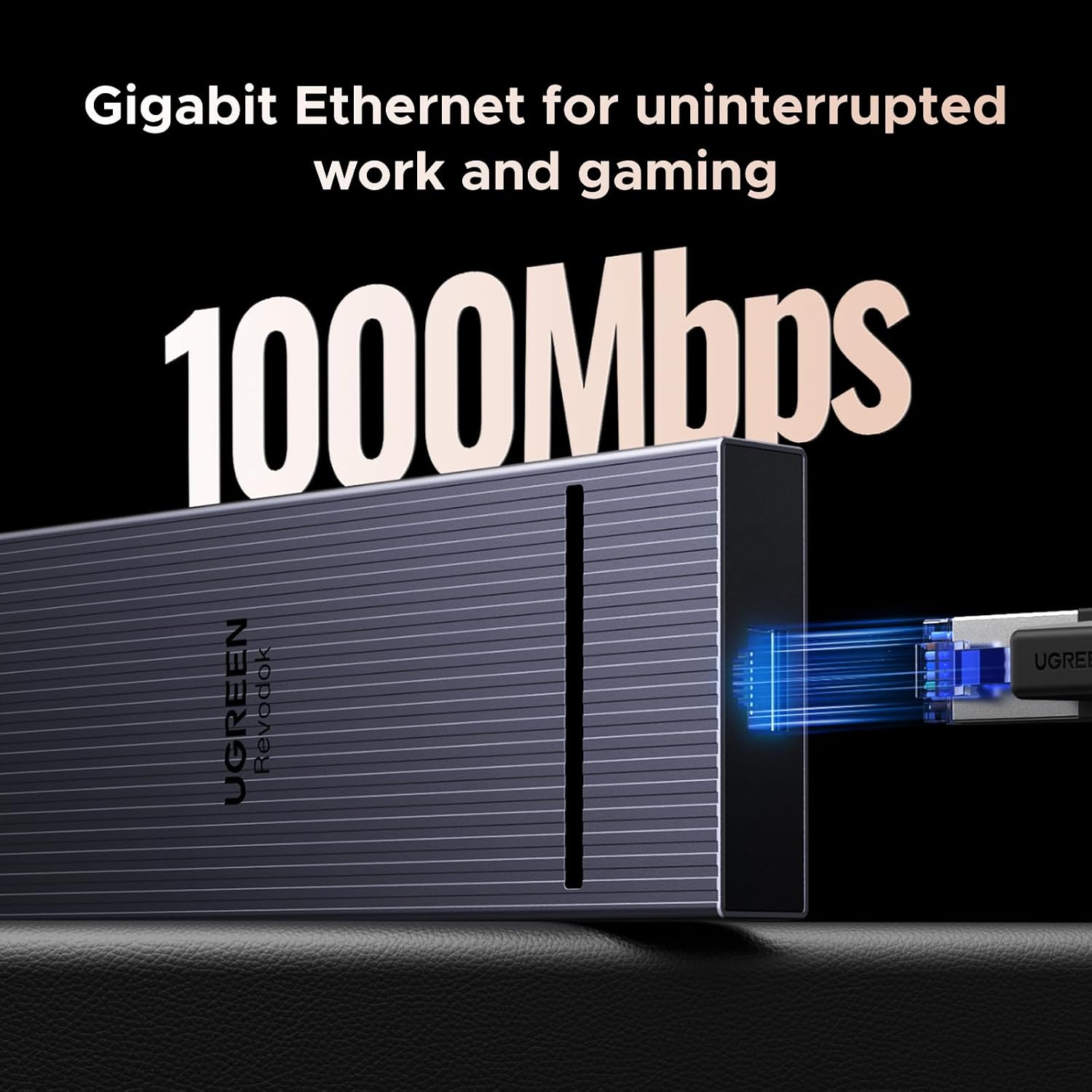

• Ethernet: Gigabit RJ45 (1000 Mbps)
• Card reader and speeds: SD and TF card slots, up to 170MB/s
• Cable length and build: 40cm integrated cable, aluminium housing.

Usage Recommendations

Connect the dock to a laptop USB-C port that supports video output to use the HDMI and DisplayPort simultaneously. For high-refresh gaming or demanding single-screen displays, use the DisplayPort to access 4K@120Hz where the host GPU supports DP1.4 with DSC. When multiple high-power devices are connected, plug in a 100W PD charger to maintain stable power for the dock and peripherals. For Windows 7 or XP users, install the network driver to enable Ethernet functionality.
