Reborn DisplayPort to Dual HDMI Splitter 4K@60Hz 📺
Description:

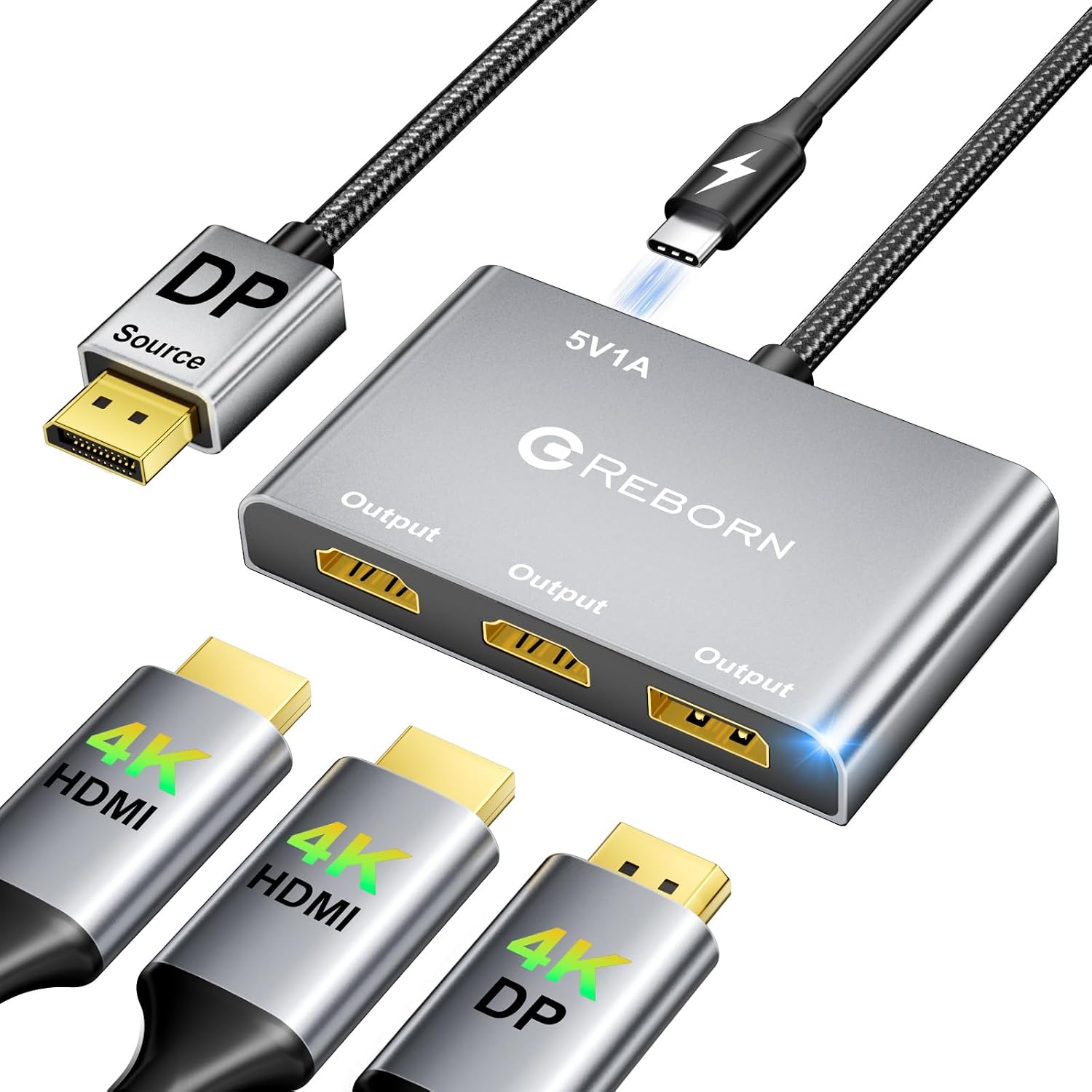

This compact DisplayPort adapter lets a single DP source drive up to three displays simultaneously, offering one DisplayPort and two HDMI outputs for expanded desktop or mirrored setups. It supports DP 1.2 and HDMI 2.0 standards to deliver higher-resolution output, with one HDMI capable of 4K@60Hz and dual HDMI together at 4K@30Hz, according to the manufacturer. The unit requires USB power and works with PCs and graphics cards that provide sufficient bandwidth.
Key Points

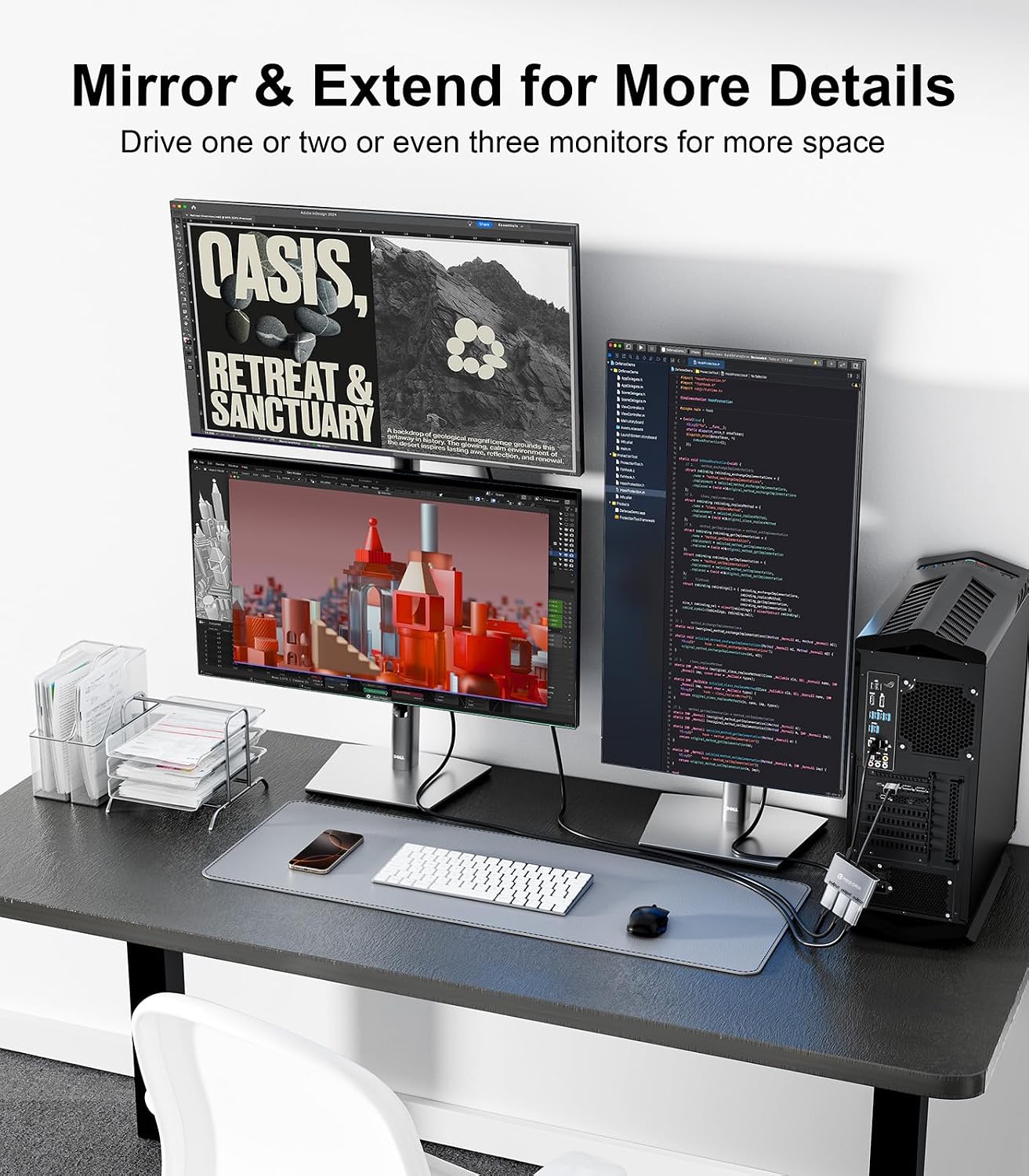

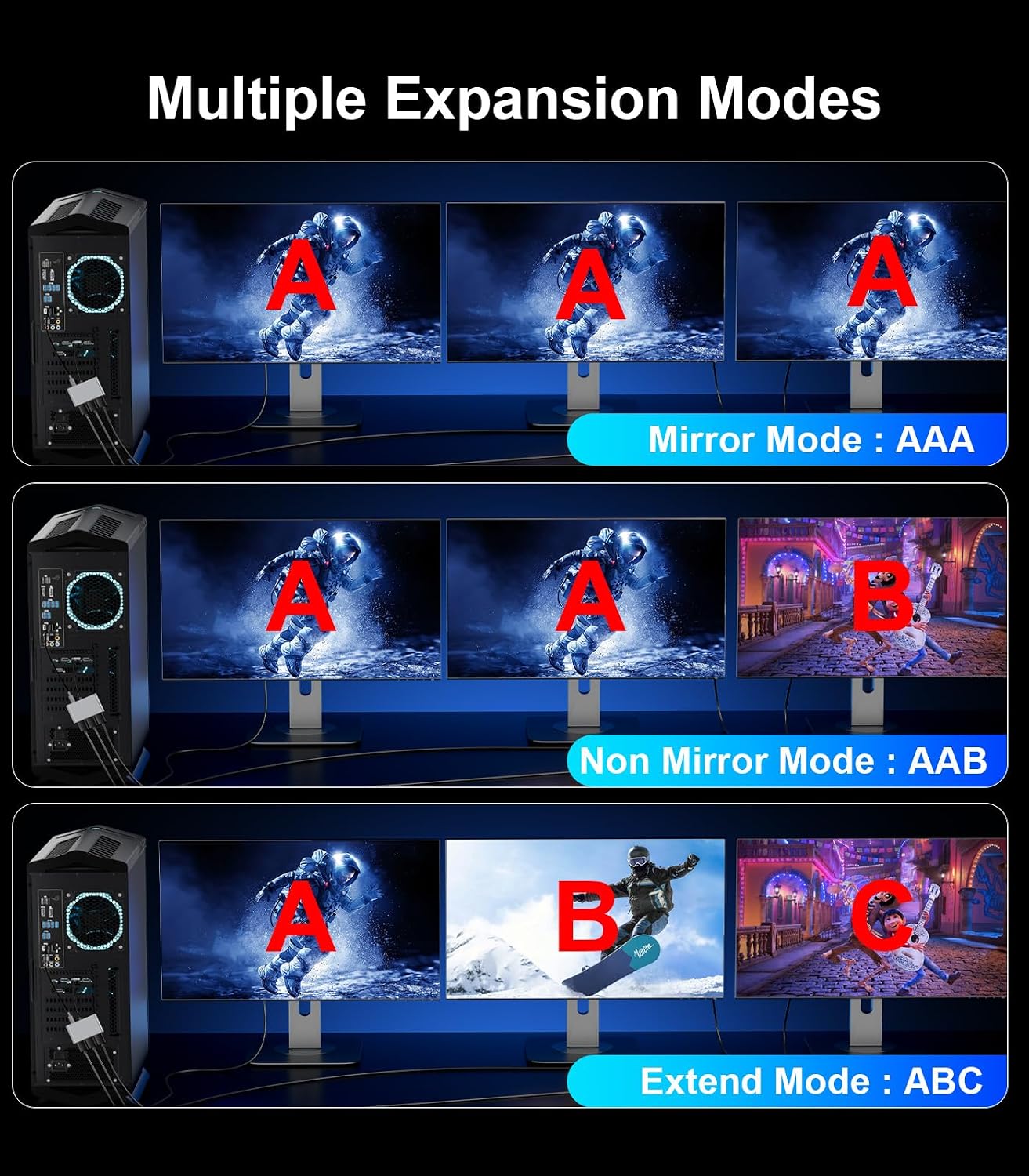

The adapter accepts DP/DP++/DisplayPort++ input and offers SST and MST modes to switch between mirroring and extended desktop configurations. It connects to two HDMI monitors and one DisplayPort monitor at the same time, which can simplify multi-screen workflows or provide extra viewing space for productivity and content creation. For reliable operation, the graphics card needs to supply enough bandwidth, and the product should not be connected through a hub, docking station, or KVM, as compatibility may be affected. ⚙️
Technical Specifications
- Name: Reborn DisplayPort to Dual HDMI and DP Splitter
- Video standards: DP 1.2, HDMI 2.0

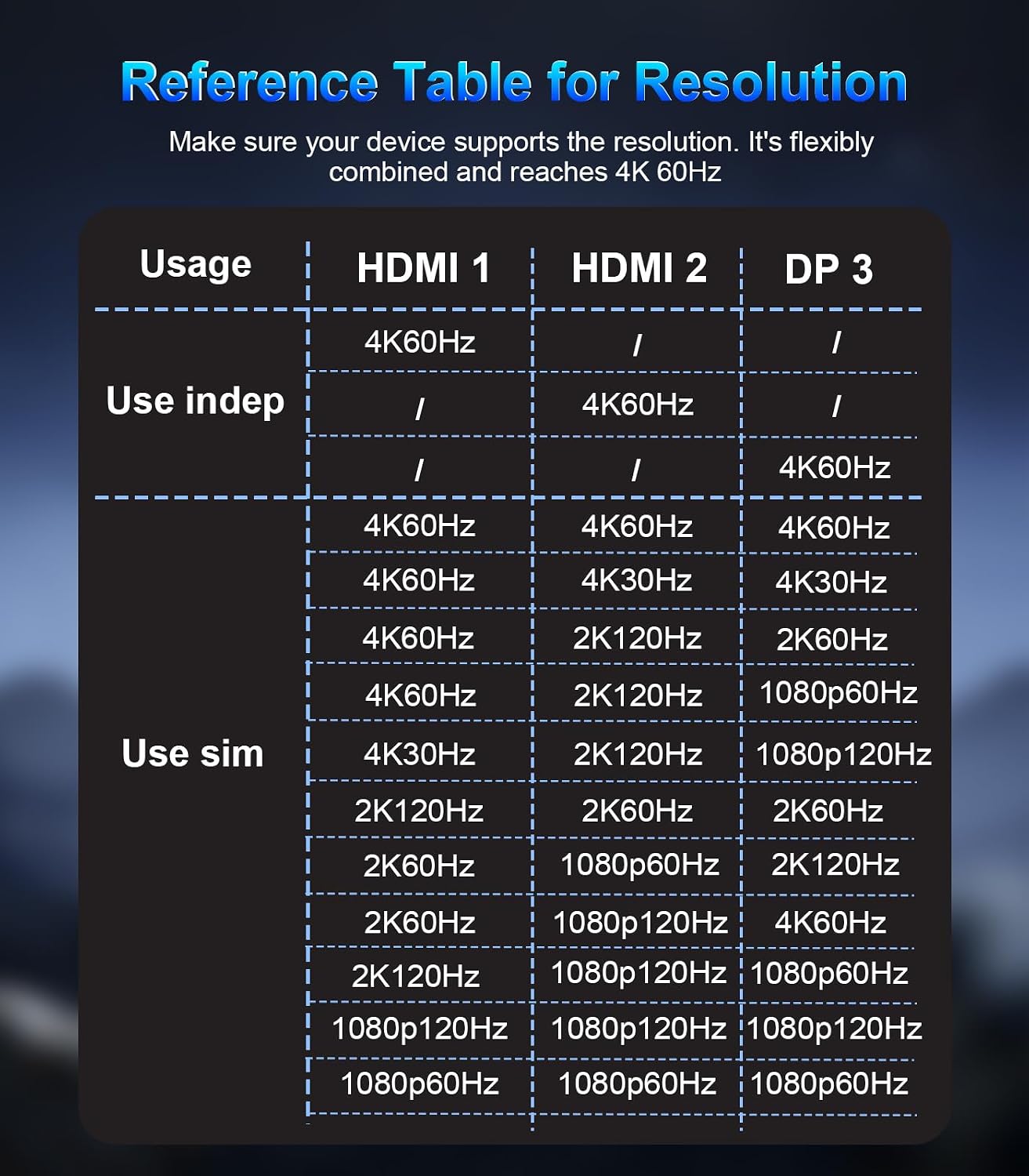

- Maximum single HDMI output: 4K@60Hz
- Dual HDMI simultaneous: 4K@30Hz (both HDMI)
- Power: USB 5V/1A required
Usage Recommendations

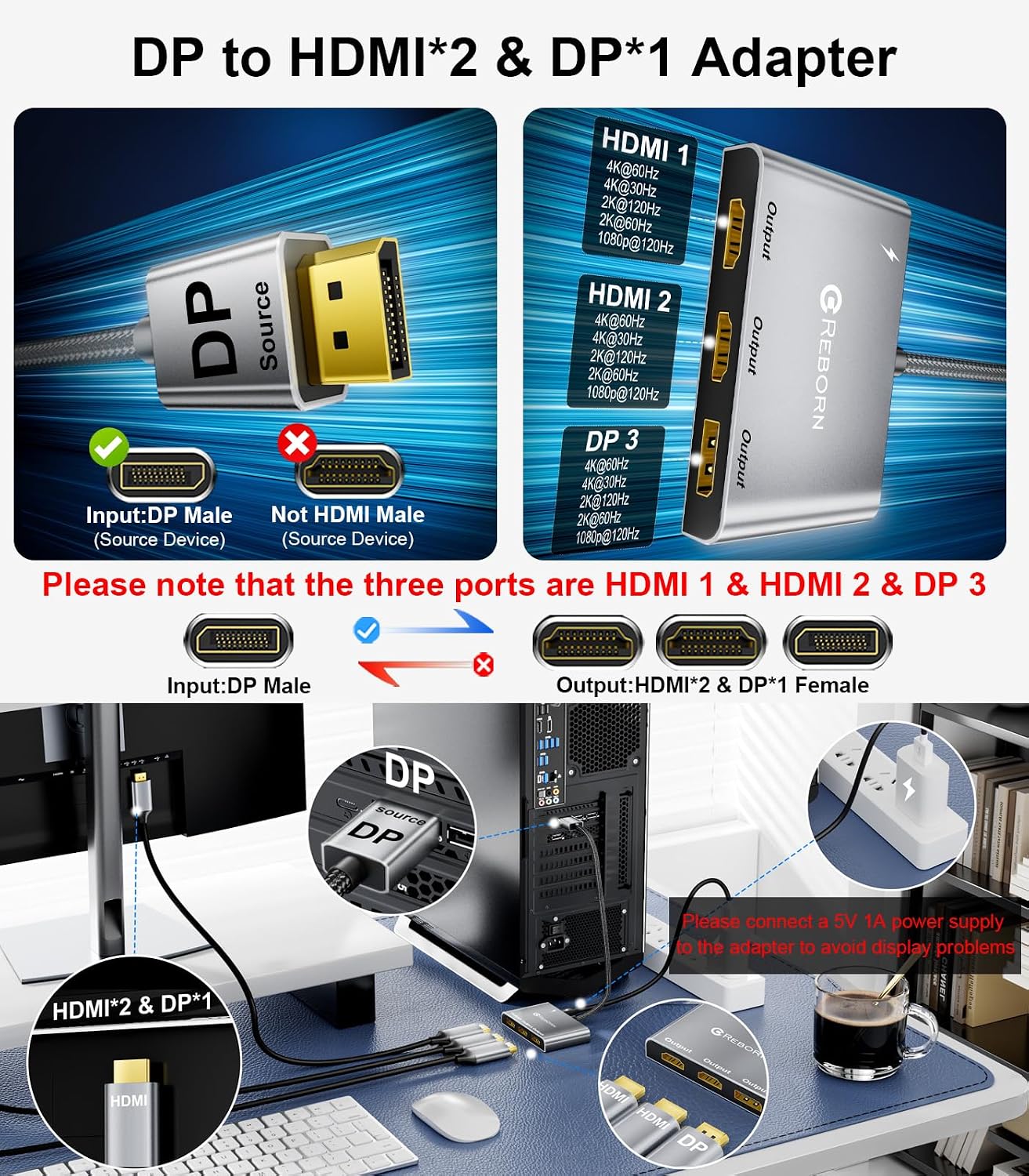

Connect the DisplayPort plug directly to the source device such as a dedicated graphics card, then attach monitors using DP1.2+ and HDMI2.0+ cables. Plug the supplied USB cable into a 5V/1A USB power source to ensure the adapter has enough power to drive three displays. If extended mode is unavailable, updating the graphics driver often resolves detection and mode switching issues. Note that all connected monitors should ideally support the same resolution to avoid unexpected scaling or downscaling effects. 🔌🖥️
Durability and Notes

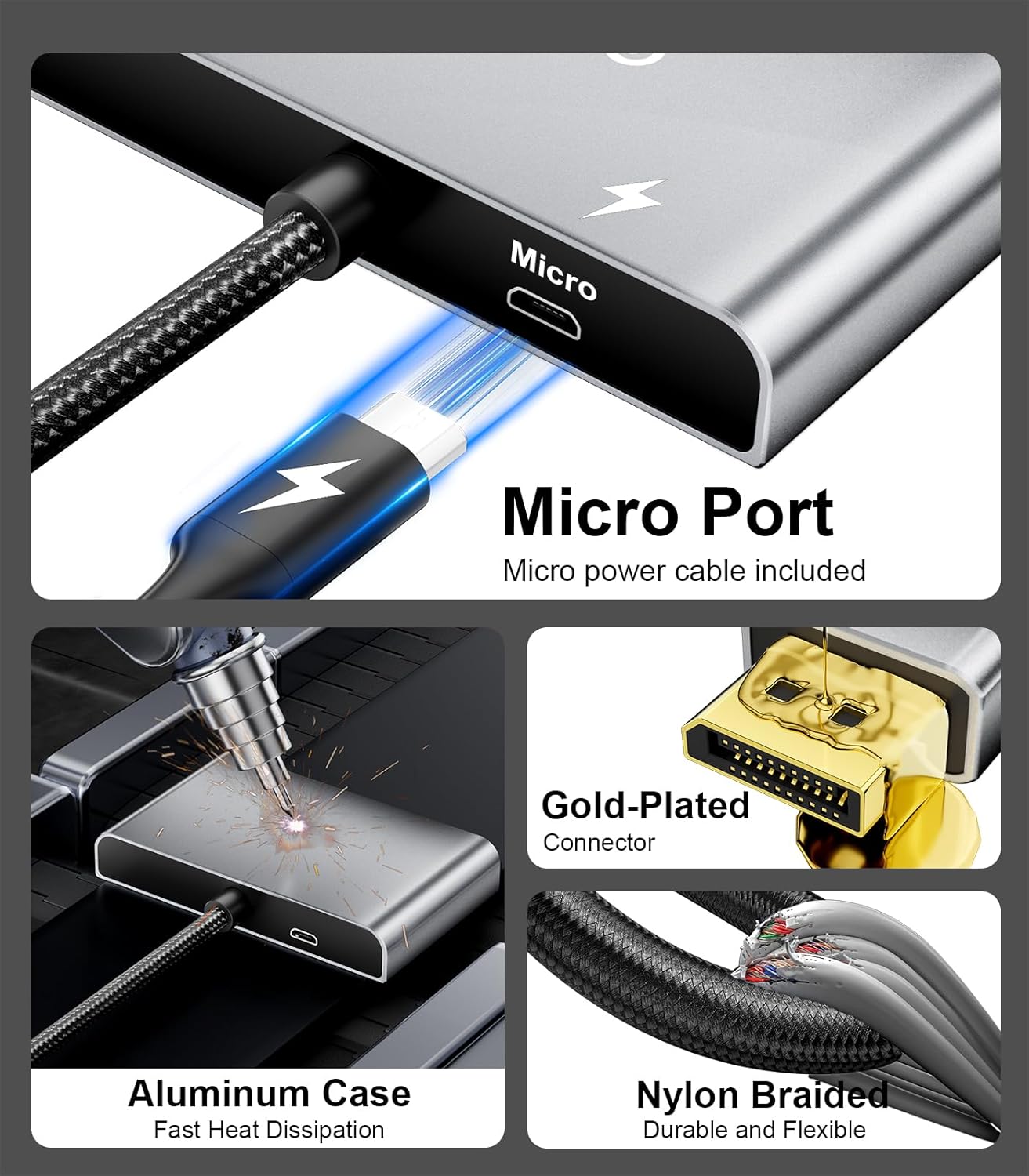

The cable assembly includes a nylon braid, gold-plated connectors, and 28AWG tinned copper wiring to promote stable signal transmission and reduce interference. The housing has an aluminum alloy element to help dissipate heat during sustained use. Consider that while one HDMI can run at 4K@60Hz, running three high-resolution displays simultaneously requires a graphics card with at least 18Gbps bandwidth per the manufacturer, and actual performance will depend on the source device and the specific monitor configurations.
Brand and Model
This model is listed as Reborn DisplayPort to Dual HDMI and DP Splitter, and it comes with manufacturer support that includes 24 months warranty and 7x24 customer service through the seller.
