Tripp Lite B126-1P0 HDMI Over Cat5/Cat6 Extender Receiver (Passive) — Extend up to 100 Feet
Product description
The essentials
If you need to send an HDMI video signal over Cat5/Cat6 cable without adding extra boxes or drivers, this Tripp Lite receiver is designed for that job. The B126-1P0 is a passive remote receiver meant to pair with Tripp Lite’s B126-series extender/splitter transmitter units (sold separately). In plain terms: it helps you move HDMI video and audio to a monitor farther away, using structured cabling instead of running a traditional long HDMI cable.
On paper, it’s built around a straightforward goal—reach up to 100 feet (30M) depending on the video mode, and keep setup simple with plug-and-play. That matters when you’re setting up a home theater, conference room, or classroom display and you’d rather not deal with software installs or external power.
That said, it’s not a complete “ready to go” system by itself. You’ll need a compatible Tripp Lite B126-series transmitter unit to make it function, and you’ll also want to pay attention to cable type and the video resolution/refresh expectations.
Key points: what you’ll notice day to day

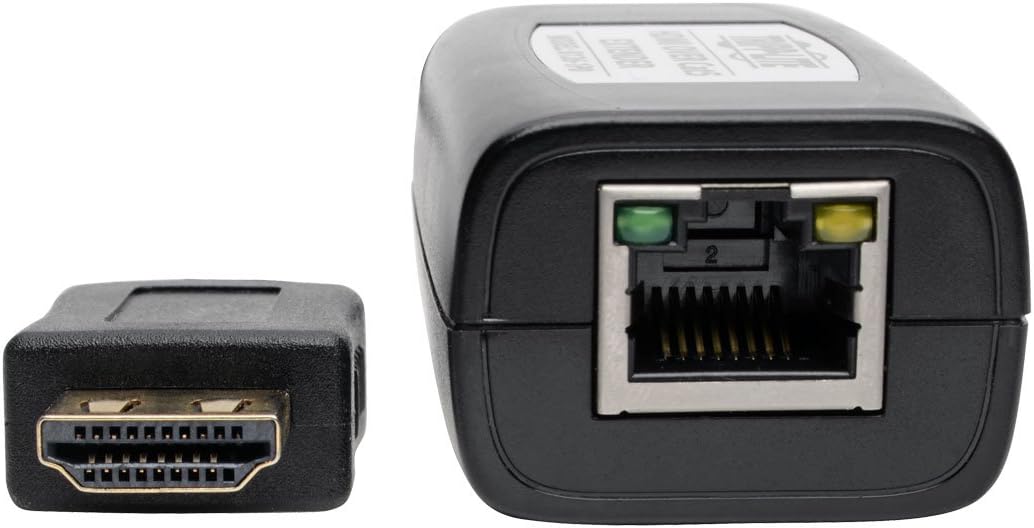

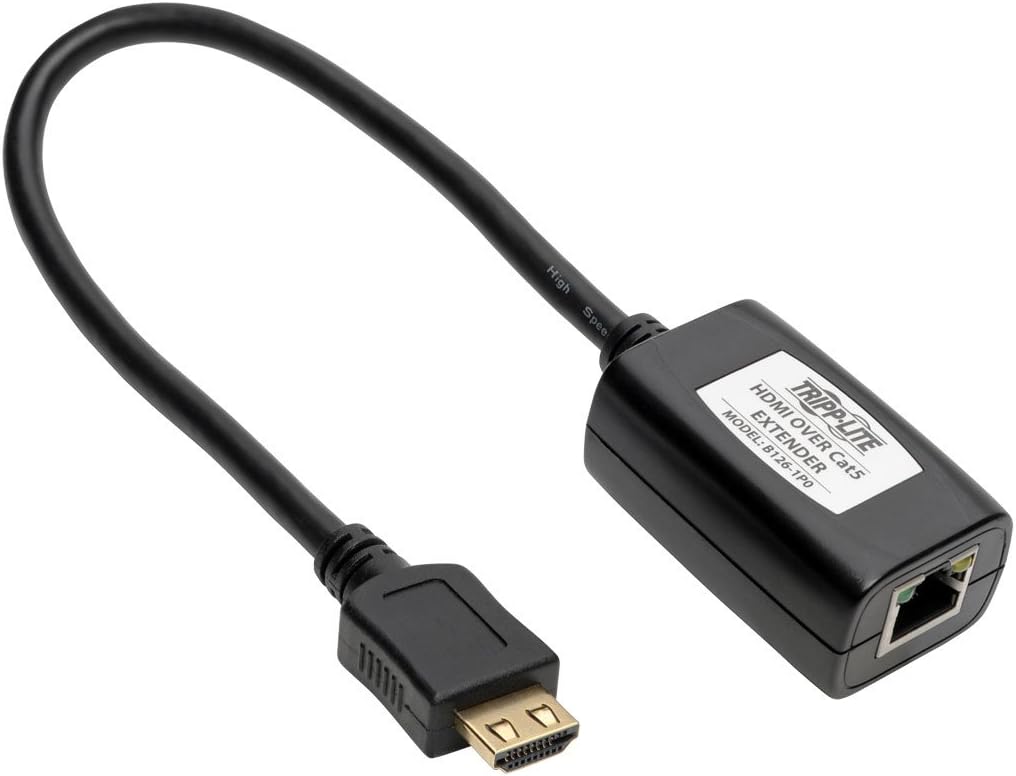

This receiver is the part that goes near your display. It includes a built-in HDMI male connector that plugs directly into a monitor, which is a small detail but a real convenience when your install space is tight.
Audio support is a meaningful advantage. The unit is compatible with both stereo audio and 7.1 channel surround sound audio when used with the compatible extender transmitter, the 7.1 signal is handled as multi-channel/PCM. If your setup includes a soundbar/receiver path and you care about more than just basic stereo, this is where the B126 approach shows its value.
One limitation to keep in mind: like many HDMI-over-Cat5/Cat6 solutions, results depend heavily on the cabling. The guidance for best results is to use 24 AWG solid wire Cat5e/6 cable (for example, Tripp Lite N202-Series). If your building wiring is older or mismatched, the system can still work, but you may not get the performance you were hoping for.
Tech specs
- Type: HDMI over Cat5/Cat6 extender receiver (passive remote receiver)
- Extend range: up to 100 ft (30M)
- Supported video: 1080i at 60Hz (up to 100 ft), 1080p at 60Hz (up to 50 ft)
- Built-in connection: HDMI male connector to plug directly into a monitor
- Audio compatibility: stereo audio and 7.1 channel surround sound (handled as Multi-Channel or PCM)
- Video color depth: supports 24-bit True Color (8-bits per channel)
- Compliance: HDCP compliant and 3D compliant
- Setup: plug-and-play, no drivers or external power required
- Compatibility: compatible with Tripp Lite B126-series extender/splitter transmitter units (B126-002 for 2-port or B126-004 for 4-port)
- Warranty: 1-Year Warranty
Where it shines (and where it may fall short)
This receiver fits best when you want a clean, reliable installation using Cat5/Cat6 runs. A typical micro-scenario: you mount or place your display at the far end of a room, then connect the receiver’s HDMI plug directly into the monitor. You’ve effectively created an HDMI link without relying on an extra-long HDMI cable, which is often where signal stability gets tricky.
The performance expectations are specific. The “up to 100 feet” figure lines up with 1080i at 60Hz, while 1080p at 60Hz is listed at up to 50 feet. If you’re targeting full 1080p60 over longer distances, that’s the part to take seriously—otherwise you may end up disappointed.
It also comes down to compatibility: you can’t treat this like a universal HDMI-over-Cat5 receiver. The base description is clear that it’s meant to work with Tripp Lite B126-002 or B126-004 transmitter units (sold separately). So if you already own a transmitter from a different ecosystem, it’s a gamble—worth checking before you commit.
Compatibility & requirements you should verify
Before buying, double-check three things: (1) you have a compatible B126-series transmitter unit (B126-002 or B126-004), (2) your Cat5/Cat6 cable is the right kind and quality (24 AWG solid wire Cat5e/6 is recommended for best results), and (3) your target resolution/refresh matches the distance you need. Depending on whether you’re going for 1080i or 1080p at 60Hz, your workable run length changes.
Also, it’s described as plug-and-play with no drivers or external power. That’s convenient, but it still means your best results will rely on correct physical setup and following the user manual and instructional video before use.
Is it worth it?
A solid pick if you’re building an HDMI-over-Cat5/Cat6 setup around Tripp Lite’s B126 extender/splitter transmitters and you want the receiver to connect directly to your monitor with minimal fuss. It’s especially worth considering if you care about stereo audio and even 7.1 channel surround sound over the link.
It may not be the best match if you need a receiver that works with non-B126 HDMI-over-Cat5 systems, or if your planned distance and video format don’t line up with the listed 1080i/1080p limits. And if your cabling isn’t close to the recommended 24 AWG solid-wire Cat5e/6 quality, expect performance to depend more on your wall wiring than on the receiver itself.
Mini FAQ
FAQ: common buying questions
Do I need an extra power supply for this receiver?
No—this unit is described as plug-and-play, with no drivers and no external power required.
Will it work with any HDMI over Cat5 transmitter?
It’s stated to be compatible with Tripp Lite B126-002 (2-port) or B126-004 (4-port) extender/splitter transmitter units. If the transmitter is outside that family, compatibility isn’t stated.
What video quality can I expect at longer distances?
The receiver is specified for up to 1080i at 60Hz up to 100 ft, and up to 1080p at 60Hz up to 50 ft. If you need 1080p60 farther than that, you should plan accordingly.
What audio formats are supported?
With the compatible B126 transmitter, it supports stereo audio and 7.1 channel surround sound audio (described as multi-channel or PCM).
Does it support HDCP and 3D?
Yes—HDCP compliant and 3D compliant are listed in the description.
