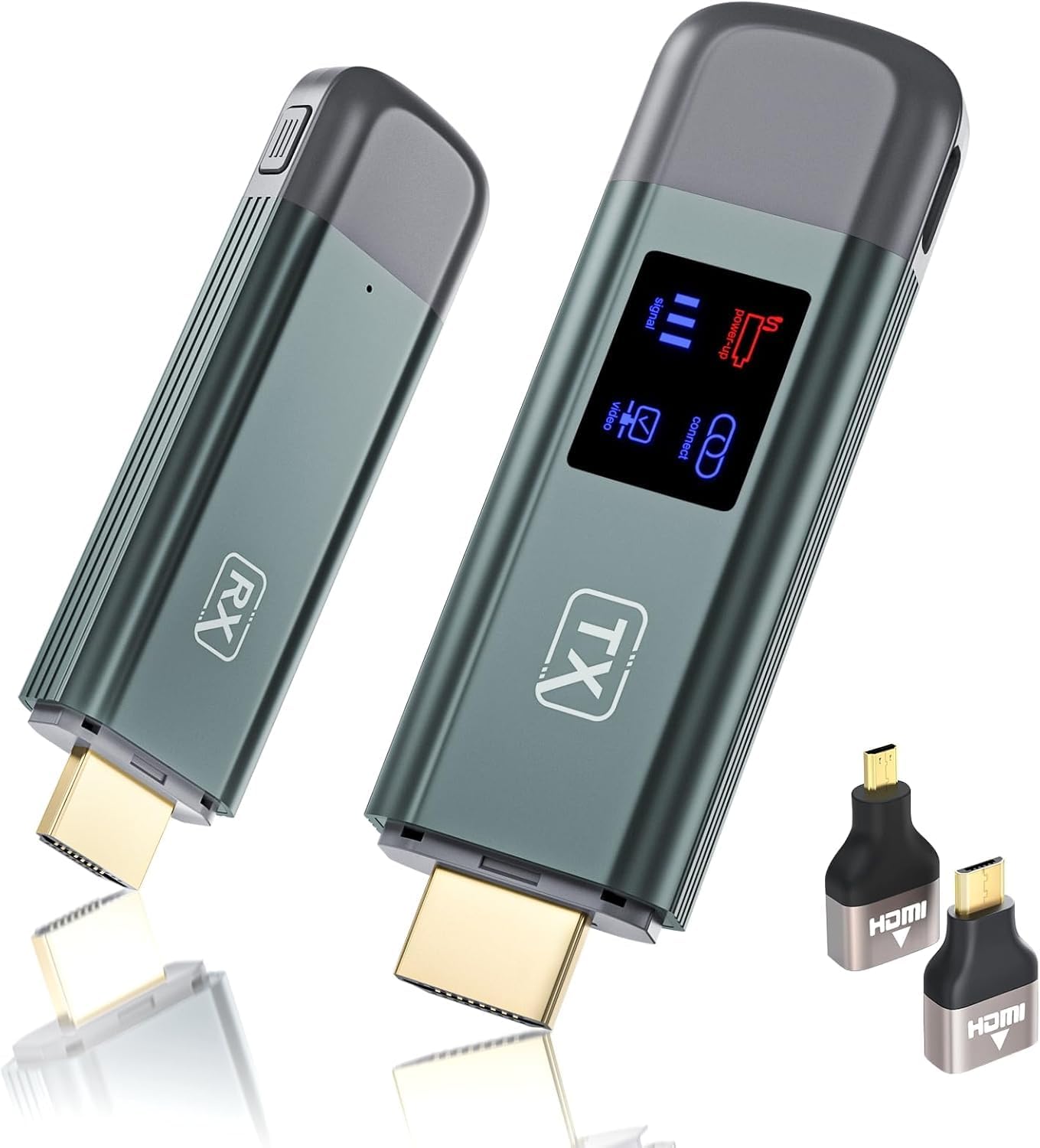

TTQ Wireless HDMI Extender 100FT 4K 📺
Description:

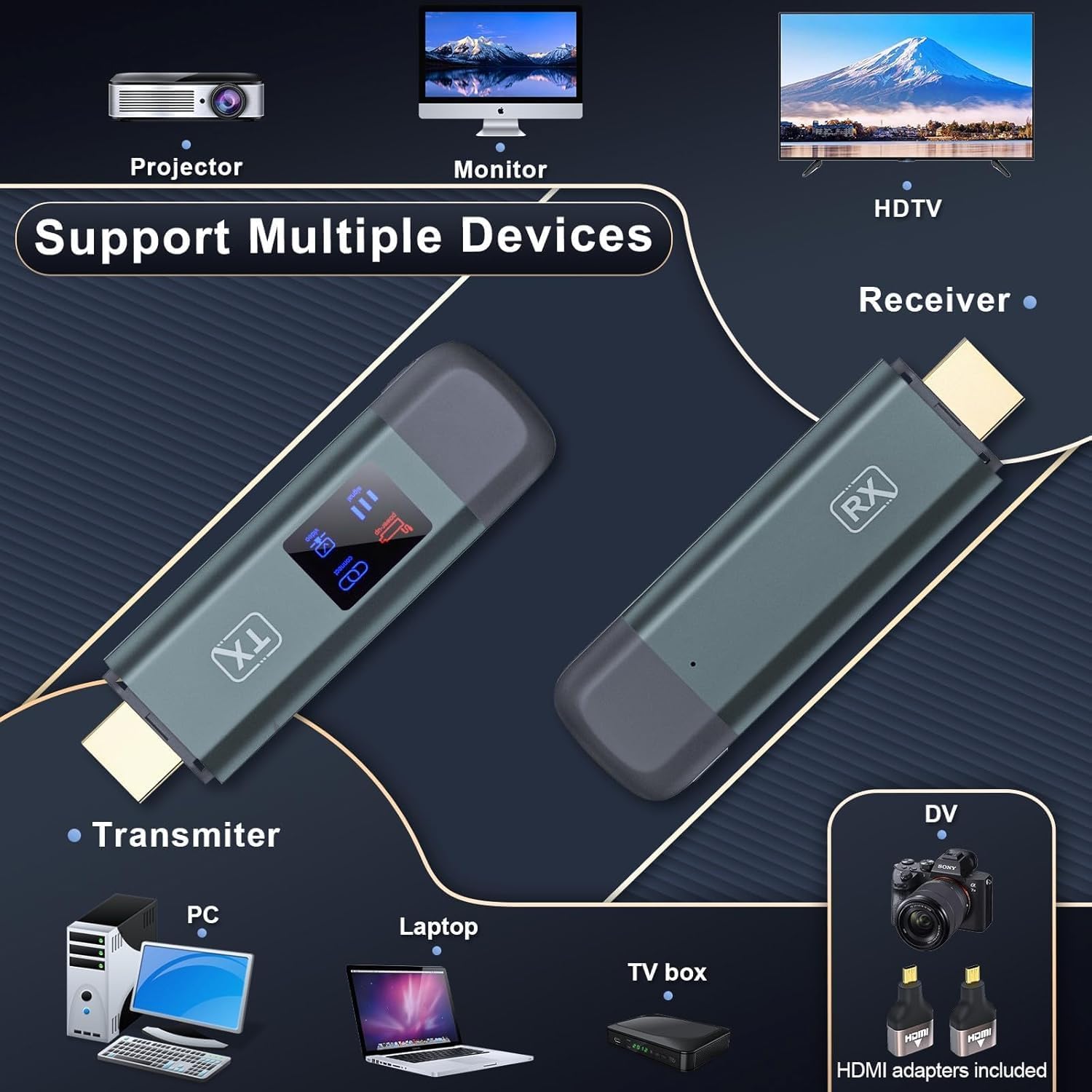

This compact wireless HDMI transmitter and receiver set from TTQ removes HDMI clutter and lets you mirror or extend video to a larger screen with fast setup and stable signal. It decodes up to 4K but streams at 1080p/60 Hz for smooth playback, which makes it useful for home cinema, presentations, and outdoor movie nights. If you need a cable-free connection between a PC, camera, or TV box and a projector or HDTV, this unit gets you running in about 10 seconds using plug and play.
Key Points
The kit works without WiFi, apps, or Bluetooth, so setup is straightforward and quick. It uses a dual-band 2.4G and 5G chip with an LDS antenna, aiming to deliver low latency transmission of less than 0.01 seconds according to the manufacturer, and the signal can reach approximately 100FT range through open spaces. The metal housing gives the units a more robust feel than typical plastic extenders and keeps the design compact for easy transport.

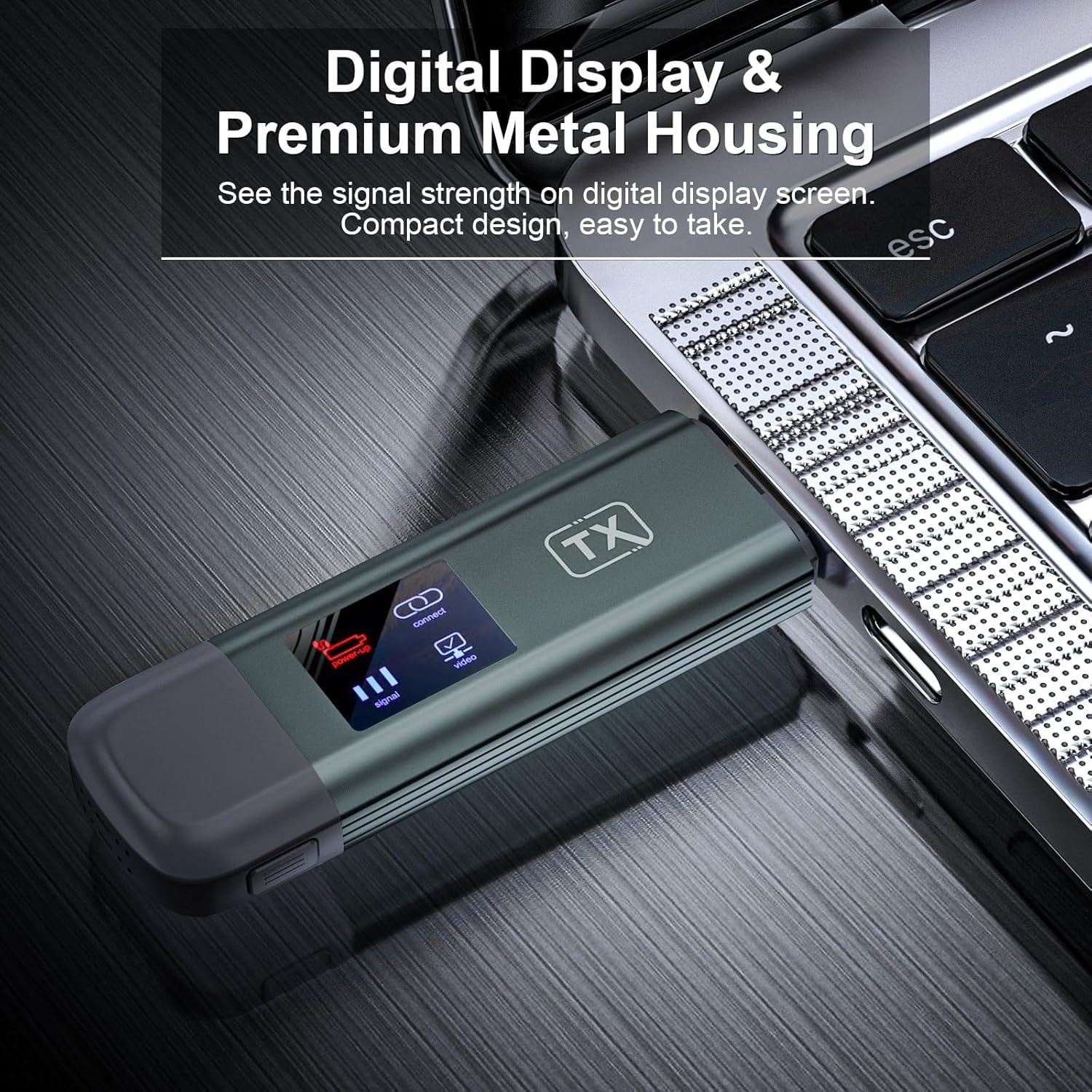

A small LED display on the transmitter shows signal strength and connection status in real time, which helps when placing the units during events or meetings. Note that the device decodes 4K sources but transmits up to 1080p at 60 Hz, and it is not compatible with smartphones or iPad models. You can connect cameras or camcorders using the included HDMI converters. ⚙️📺
Technical Specifications
- Name: TTQ TR60 Wireless HDMI Extender
- Video decoding: 4K input, outputs up to 1080P @ 60 Hz
- Wireless bands: 2.4G and 5G dual-band with LDS antenna
- Range: 100FT approximate line-of-sight distance
- Latency: <0.01s according to the manufacturer
- Housing: Metal chassis with LED signal display
- Included accessories: 2 HDMI converters, 2 USB-C charging cables, HDMI extension cable, user manual.
Usage Recommendations
Place transmitter and receiver within the specified distance and keep major obstructions to a minimum for best performance. If the connection appears unstable, check power delivery and use USB-C chargers rated above 5 V and 2 A to ensure both units have adequate voltage. For camera or DV inputs, use the provided converters and confirm the source resolution settings since the extender will output 1080p at 60 Hz even when a 4K source is present.
Switching between mirror mode and extended display is done with a one-click control on the device, which makes transitions during live presentations simple. Consider that walls, ceilings, and heavy electronic interference may reduce effective range and throughput, so test placement in the actual venue before important events.
