J-Tech Digital JTECH-18GAE2 HDMI Audio Extractor/Embedder (4K 60Hz, SPDIF + 3.5mm) with HDR10, HDCP 2.2 support
Product description
If your HDMI setup is almost right but the audio chain isn’t cooperating, an audio extractor/embedder is often the clean fix. The J-Tech Digital JTECH-18GAE2 is built for exactly that kind of “wait, why doesn’t this receiver get sound?” moment: it can de-embed audio from an HDMI 2.0 source, and it can also embed analog audio back into HDMI.
On paper, it’s the kind of device you buy when you want options—analog 3.5mm for older gear, or digital optical SPDIF when you need a more standard digital feed. It supports 4K 60Hz HDR10, and it’s also stated to support HDCP 2.2 compliance, with Dolby Digital/DTS passthrough and CEC features.
The essentials
The J-Tech Digital JTECH-18GAE2 is a dual-purpose HDMI audio solution. As an HDMI audio extractor, it pulls audio out of an HDMI input and converts it to either analog stereo (3.5mm) or digital optical (SPDIF). As an HDMI audio embedder, it can take analog audio from an external source and insert it into your HDMI signal.
That “extract or embed” combo matters because most home theater problems don’t stay in one direction. Sometimes your streaming box only has HDMI and your amp or speakers want something else. Other times, you have an analog audio source that you’d like to route through an HDMI chain. This unit is designed to give you that flexibility.
What it’s good at day to day

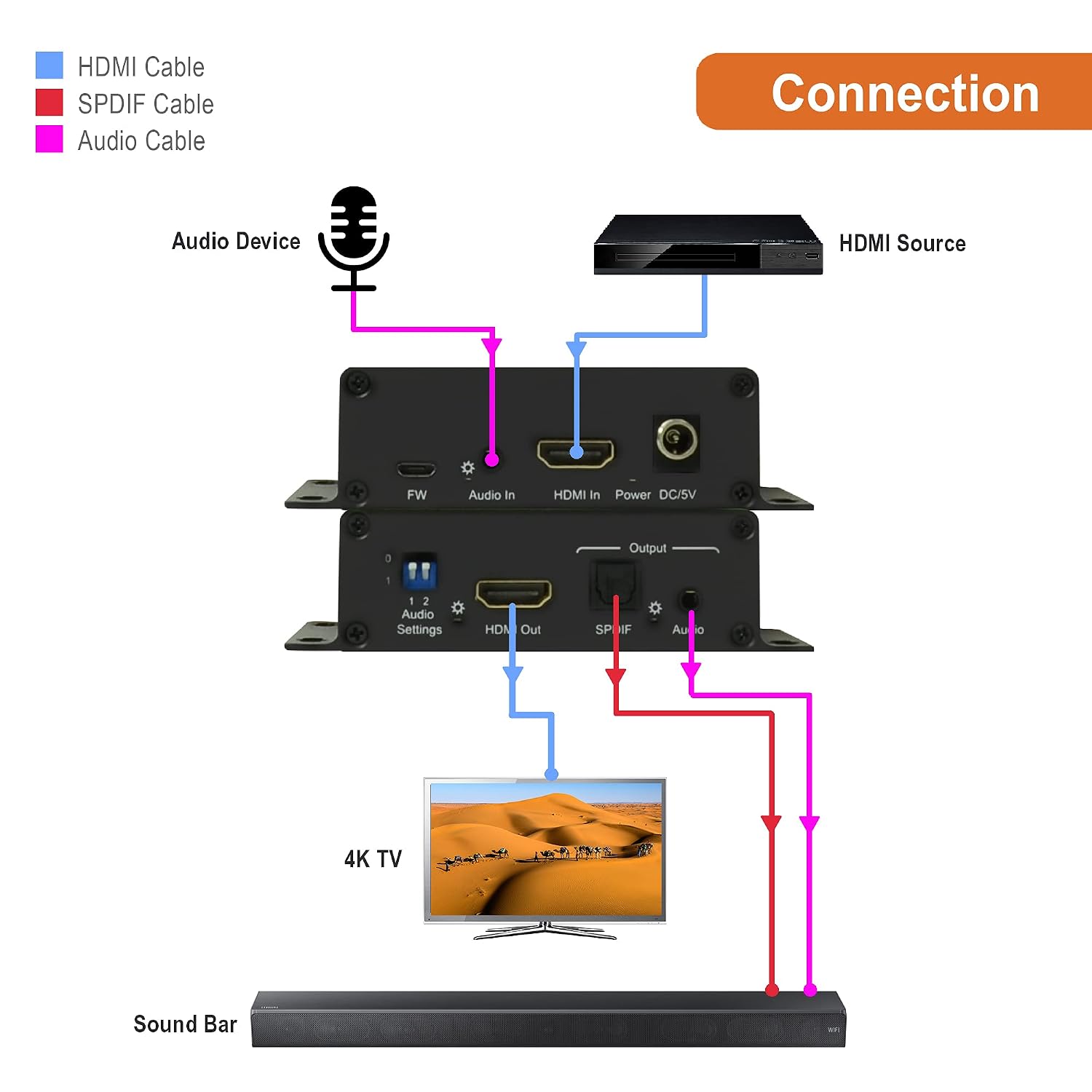

In real setups, you’ll usually notice it when you’re trying to match mismatched audio inputs. For example: you might have a newer HDMI source (like a TV-connected streaming device) and an AV receiver that doesn’t accept HDMI audio. With an extractor approach, you can route the HDMI audio into the receiver using the provided outputs.
You can also use the embedder idea when you’re trying to keep HDMI video flowing while feeding audio into that HDMI path from an analog source. The brand specifically calls out giving “second life” to older AV equipment that lacks HDMI input, which is a common reason people end up in this category.
Key features that affect buying decisions
This device is positioned around a few practical control points, not just outputs.
- Video/audio handling: It’s described as supporting 4K 60Hz HDR10, plus 1080p up to higher refresh rates (as listed). If your content mix includes fast 1080p and standard 4K streaming, the stated support is meant to cover it.
- HDCP compliance: It mentions HDCP 1.4 and HDCP 2.2 compatibility, which can matter when you’re dealing with newer streaming and protected content.
- Audio formats & passthrough: Dolby Digital/DTS passthrough is listed, which helps when you want the downstream audio system to handle decoding.
- CEC and EDID control: The included EDID dip switch settings are a big deal on paper. You can select 2CH or 5.1CH, or use an EDID pass-thru function (TV) to help the rest of your system negotiate the “correct” audio format for your use case.
One limitation to keep in mind: EDID/CEC behavior can depend on the rest of your chain, and not every TV/receiver responds the same way. The EDID options help, but if your goal is very specific audio formats, you may still need to spend a little time with the dip switch settings.
The technical overview (what’s explicitly supported)
Tech specs
- Type: HDMI audio extractor & HDMI audio embedder

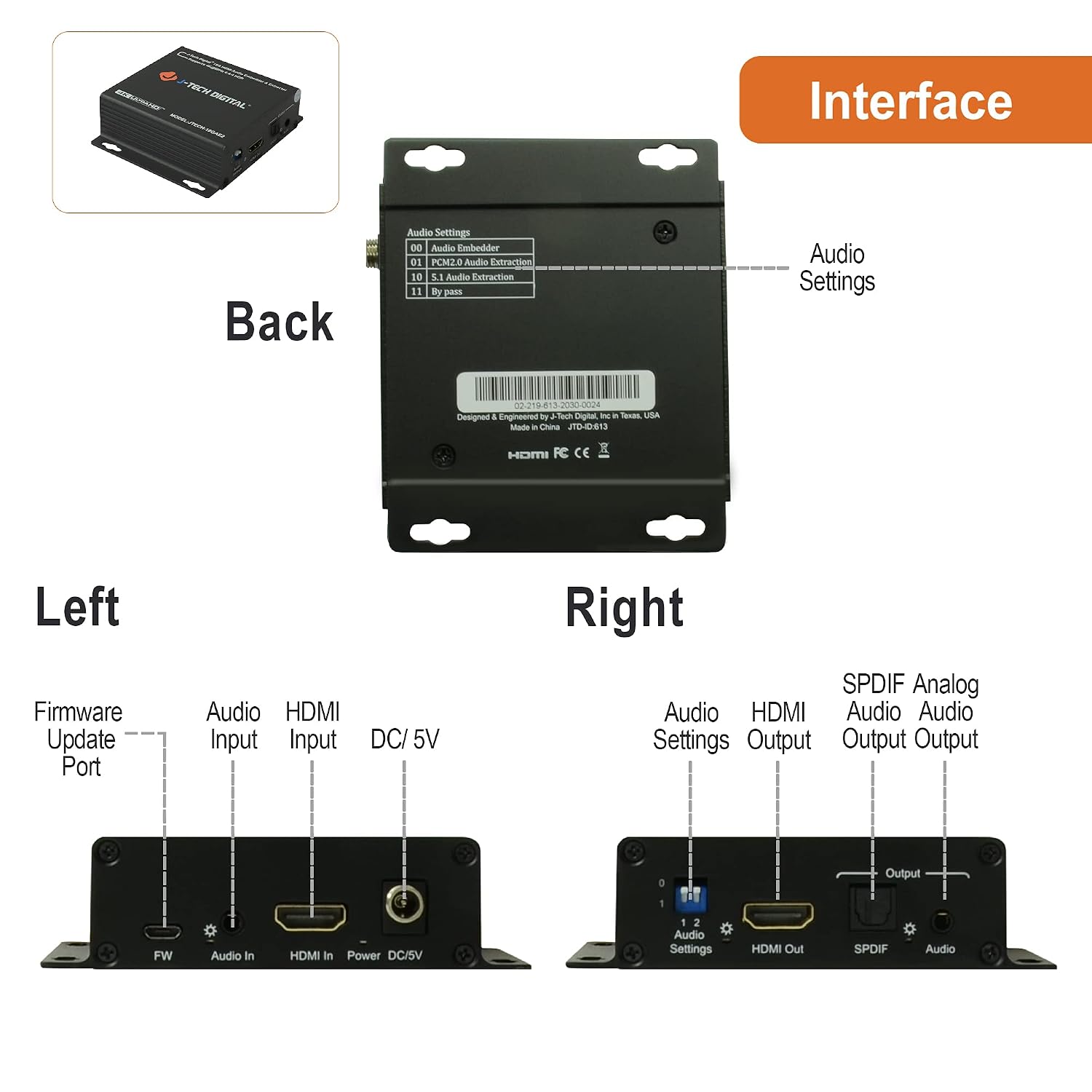

- Outputs: Analog stereo via 3.5mm and digital optical via SPDIF
- Input format support (as listed): HDMI 2.0 sources
- Video support (as listed): 4K 60Hz and HDR10, also 1080p at higher refresh rates (per listing)
- HDCP compliance: HDCP 2.2 and HDCP 1.4
- Audio support (as listed): Dolby Digital/DTS passthrough
- CEC: Supported (as listed)
- Bandwidth (as listed): 18Gbps
- EDID options: Built-in EDID settings (2CH | 5.1CH) or EDID pass-thru (TV)
Compatibility & requirements to check before buying
If you’re considering the JTECH-18GAE2, make sure the problem you’re solving matches what it’s designed for: HDMI audio de-embedding from HDMI inputs and/or embedding analog audio into HDMI.
Also, pay attention to your downstream audio gear. If you’re relying on the analog 3.5mm output, confirm your receiver/amp (or sound system) actually accepts a 3.5mm stereo input. If you’re relying on optical SPDIF, confirm your device supports optical SPDIF input.
Pros and where it might fall short
What stands out: - It’s genuinely flexible: extract HDMI audio to analog or optical, and embed analog audio back into HDMI. - EDID dip switch control (2CH vs 5.1CH) is included, which suggests the maker expects real compatibility tweaking to be part of the use. - HDCP 2.2 compliance is listed, which helps when you’re using newer protected streaming sources.
Where it may not be the best fit: - If you only need “simple HDMI audio in the same format” with no switching or conversion, this can be more box-than-you-need. - Any EDID/CEC-dependent setup can be a little finicky, even with the tools included, you may still need to test and adjust.
Is it worth it?
Worth buying the J-Tech Digital JTECH-18GAE2 if you’re trying to bridge an HDMI source to equipment that doesn’t match your audio inputs—especially when you need either analog 3.5mm or optical SPDIF outputs. It also makes sense if your setup includes both 4K HDR10 content and higher-refresh 1080p sources and you care about HDCP 2.2 compatibility.
Better avoided if your system already has the exact audio path you want and you don’t need extraction/embedding, or if you’re not willing to spend a bit of time on EDID settings when troubleshooting negotiation issues.
Mini FAQ
Quick overview
Does it only extract audio, or can it embed too? It’s described as both an HDMI audio extractor and an HDMI audio embedder.
What audio outputs are supported? The listing states analog stereo via 3.5mm and digital optical via SPDIF.
Is HDCP 2.2 supported? Yes, HDCP 2.2 compliance is specifically mentioned, along with HDCP 1.4.
What’s the EDID dip switch for? The built-in EDID settings (2CH or 5.1CH) and EDID pass-thru (TV) are meant to help your HDMI audio setup negotiate the audio format for your application.
Is Dolby Digital/DTS passthrough supported? Dolby Digital/DTS passthrough is listed.
Final verdict
If your audio setup is stuck because your HDMI source and your receiver/speakers don’t speak the same “language,” this unit is built to translate between formats. It’s not a magic wand for every possible configuration, but the extractor/embedder design, EDID options, and the stated support for 4K 60Hz HDR10 and HDCP 2.2 make it a solid choice for the kind of home theater fixes that actually come up.
