avedio links HDMI Splitter 1x2 4K 60Hz 📺

This HDMI splitter from avedio links mirrors a single source to two displays and is aimed at sharing the same screen image across rooms or zones. If you need an HDMI splitter 4K 1 in 2 out to show the same movie or presentation on two TVs at once, this compact unit offers straightforward plug-and-play operation and stable signal delivery for video and audio.

Key Points

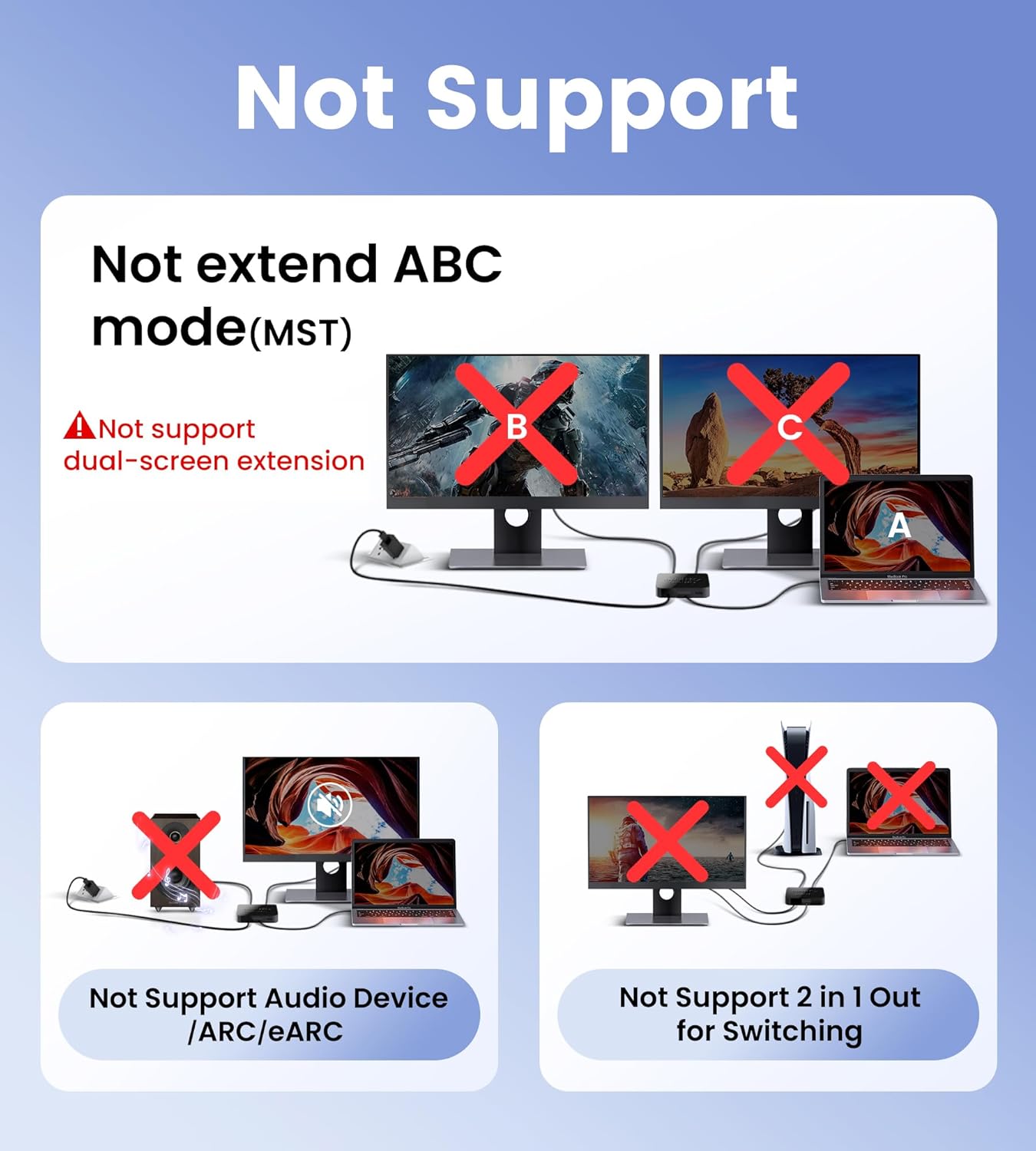

The splitter duplicates one HDMI input to two HDMI outputs, so both screens receive the same content simultaneously. It supports resolutions up to 4K at 30 Hz and 3D playback, which is useful for sharing high-definition video in living areas, classrooms, or small meeting rooms. The unit requires external 5 V USB power to maintain stable transmission and includes a USB power cable but not a wall adapter. Note that it does not extend displays; it only mirrors the source, and it is not compatible with HDCP 2.2 according to the manufacturer. ⚠️

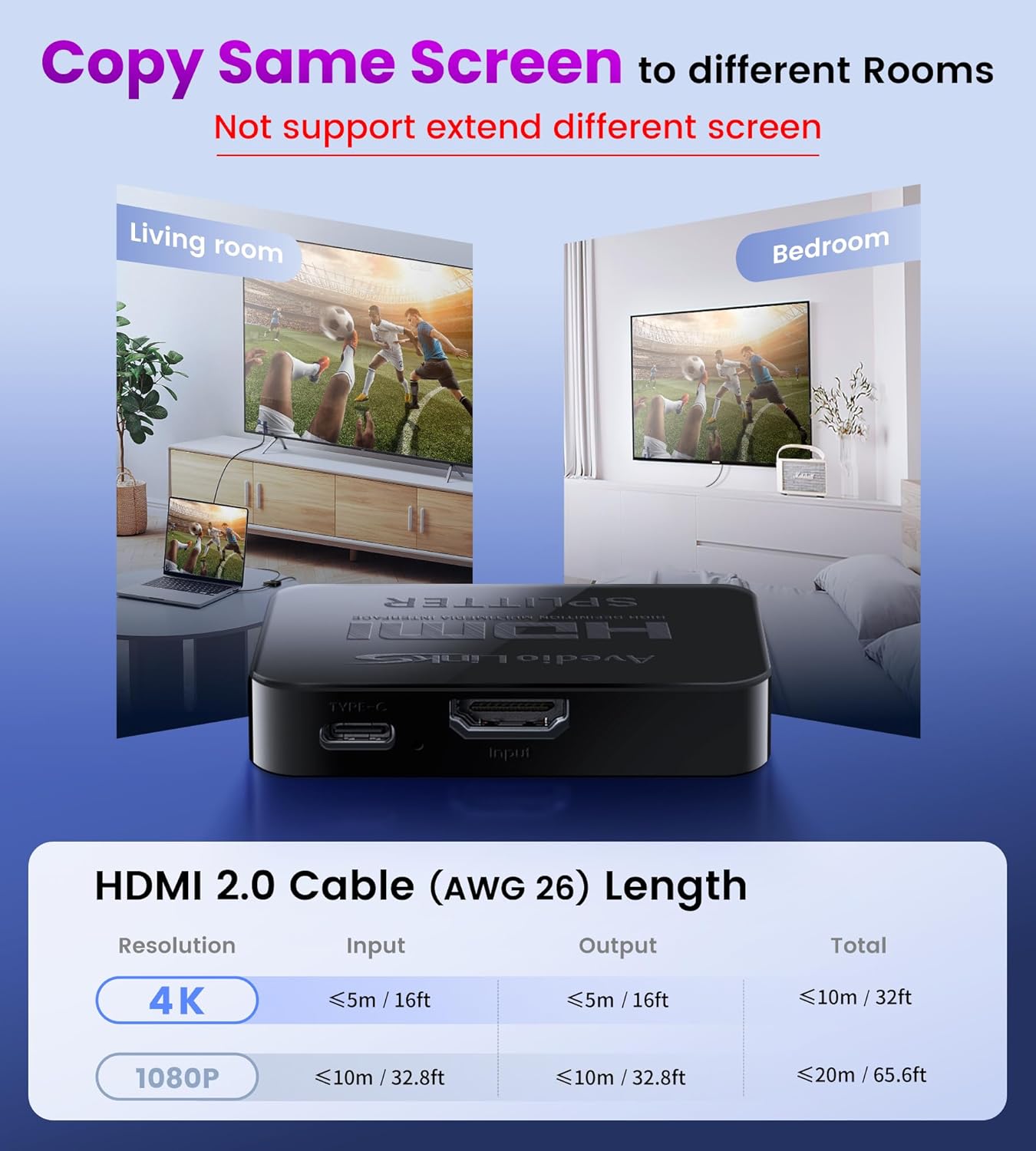

Portability is a strong point. The housing measures 6.3 x 5.3 x 1.2 cm, making the device easy to move between setups or to tuck behind equipment racks. A high-speed HDMI cable is included, and the seller recommends keeping HDMI cable runs under 25 feet for best results. The device supports a range of audio formats including DTS-HD and Dolby TrueHD for preserved multichannel sound on both outputs. 🎬

Technical Specifications

• Name: avedio links Divisor HDMI 1 en 2 salidas
• Resolution: 4K@30Hz (3840x2160p), 1080p@60Hz, 3D supported
• Compatibility: HDMI 1.4/1.3, HDCP 1.4 (not compatible with HDCP 2.2)
• Power: USB 5 V input, USB power cable included, AC adapter not included
• Size: 6.3 x 5.3 x 1.2 cm
• Package contents: 1 HDMI splitter, 1 high-speed HDMI cable, 1 USB power cable
• Supported audio formats: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC-3, DSD (HBR)

Usage Recommendations

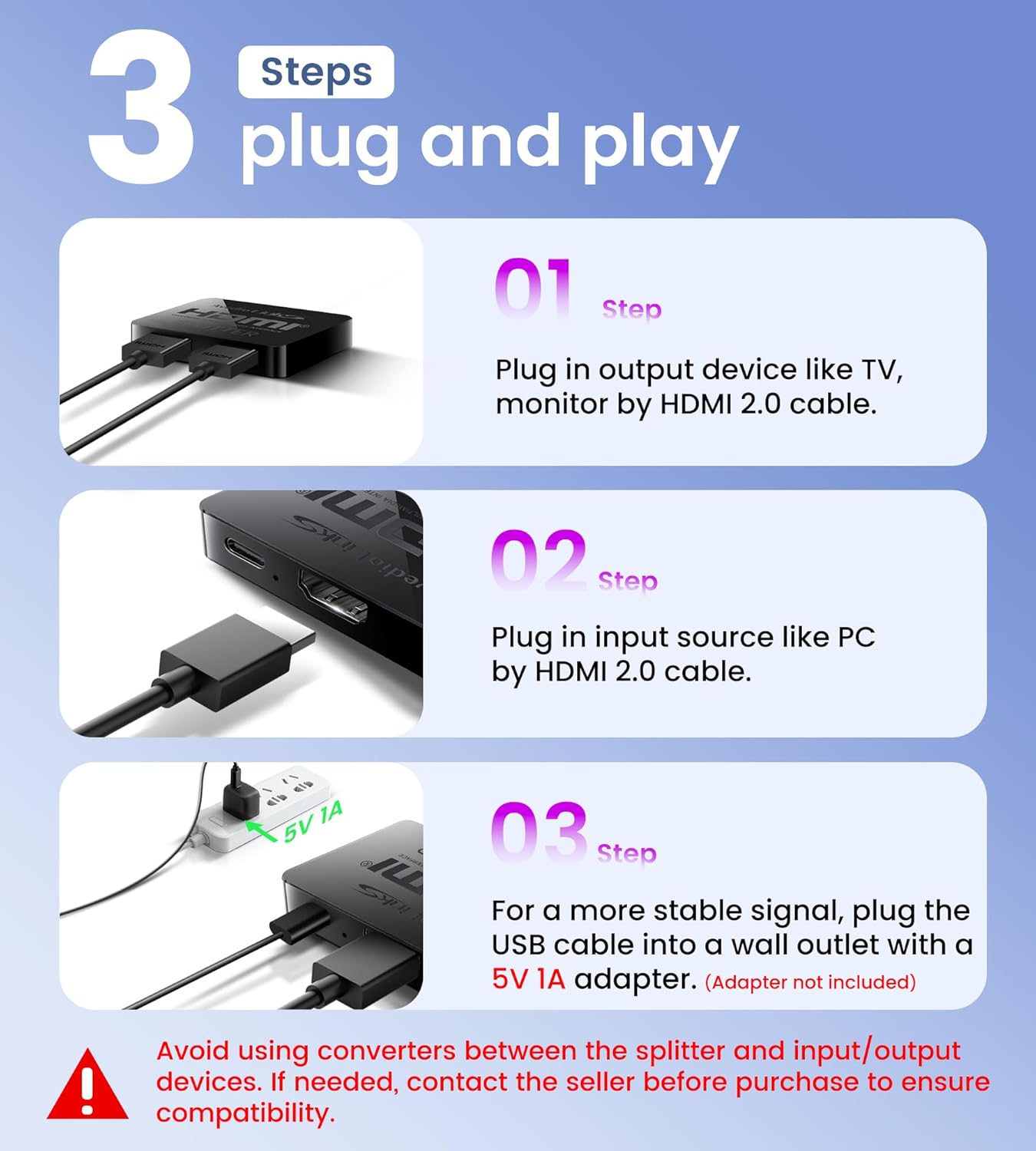

Connect your source device to the input, plug both displays into the outputs, and attach the USB cable to a reliable 5 V power source for consistent operation. Because the unit mirrors the signal rather than extending it, configure both displays to the same resolution when possible to avoid scaling artifacts. For longer cable runs, use high-quality HDMI cables and try to keep them under the recommended 25 feet. 🔌

Consider that this splitter does not handle HDCP 2.2 protected streams and it limits 4K to 30 Hz, so it may not be suitable for HDR 4K sources or certain modern streaming devices that require HDCP 2.2. Also be aware that a USB wall adapter is needed for powering the unit and is not included with the package.
