AV Access 1×2 HDMI 4K@60Hz splitter 📺
Product description
This 1-in-2 HDMI splitter from AV Access sends a single HDMI feed to two displays while keeping high-resolution and high-frame-rate signals intact. If you need a 4K HDMI splitter with auto downscaling to feed a 4K television and a 1080p monitor simultaneously, this unit handles the job and simplifies display management. 🎬
Key Points
The splitter distributes one HDMI source to two ultra HD screens with support for 4K at up to 60Hz in YUV 4:4:4, and it also accepts 1080p at 120Hz for smoother motion where supported. It includes automatic EDID management and auto downscaling, so when a 1080p display is connected the output will drop to 1080p without manual configuration. This makes it useful for mixed setups such as a 4K TV plus a Full HD projector or monitor. 🎮
Compatibility covers common consoles and media devices. The device works with mainstream players and consoles such as PS4 Pro and Xbox One X, and it supports a wide range of operating systems on connected sources. Note that this splitter is not designed to act as a dedicated audio extractor to a receiver or soundbar unless both endpoints support the same audio standards.
Technical Specifications
- Name: AV Access 1 in 2 Out HDMI Splitter
- Resolution support: 4K@60Hz (YUV 4:4:4), 1080p@120Hz
- Bandwidth: 18Gbps
- HDR and video formats: HDR10, 3D support
- HDCP: HDCP 1.4 compatibility
Usage Recommendations

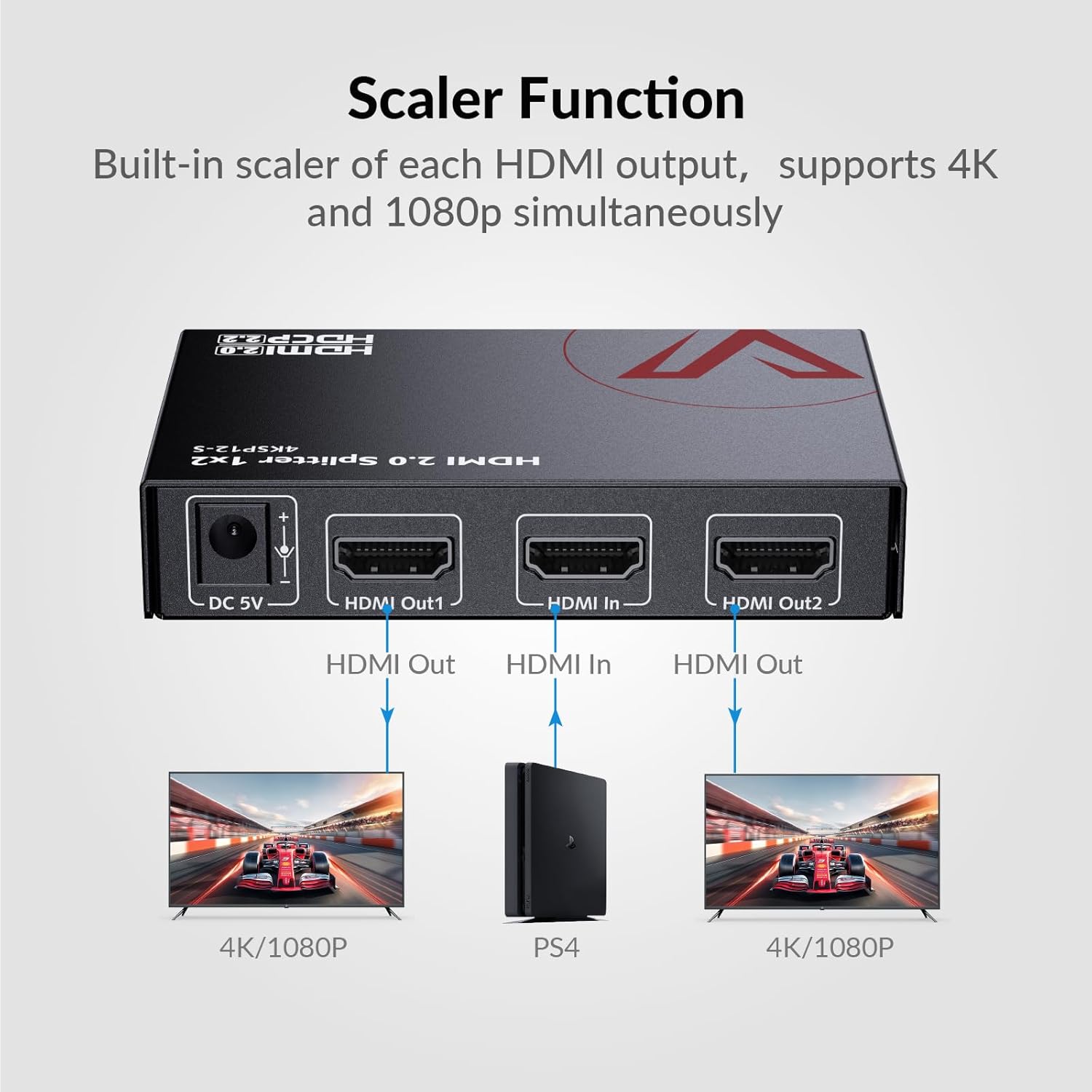

For best results with mixed-resolution displays connect the 4K screen to output 1 and the 1080p display to output 2, as the manufacturer indicates this arrangement helps preserve HDR when available. Allow a short time after connecting for EDID negotiation to complete before testing playback. If you use an AV receiver or soundbar, confirm that the audio device supports the same high-resolution formats; otherwise the splitter may not deliver Atmos or DTS:X to that endpoint.
Considerations and limitations are worth noting. The unit supports HD lossless audio formats such as Atmos, DTS:X and TrueHD according to the manufacturer, but downstream device compatibility may constrain available formats. Surge and ESD protection are built in to guard against lightning and static, however installers should still use appropriate surge protection for sensitive installations.
