VEDINDUST HDMI Extender Splitter 1 in 6 out 50M
Product description

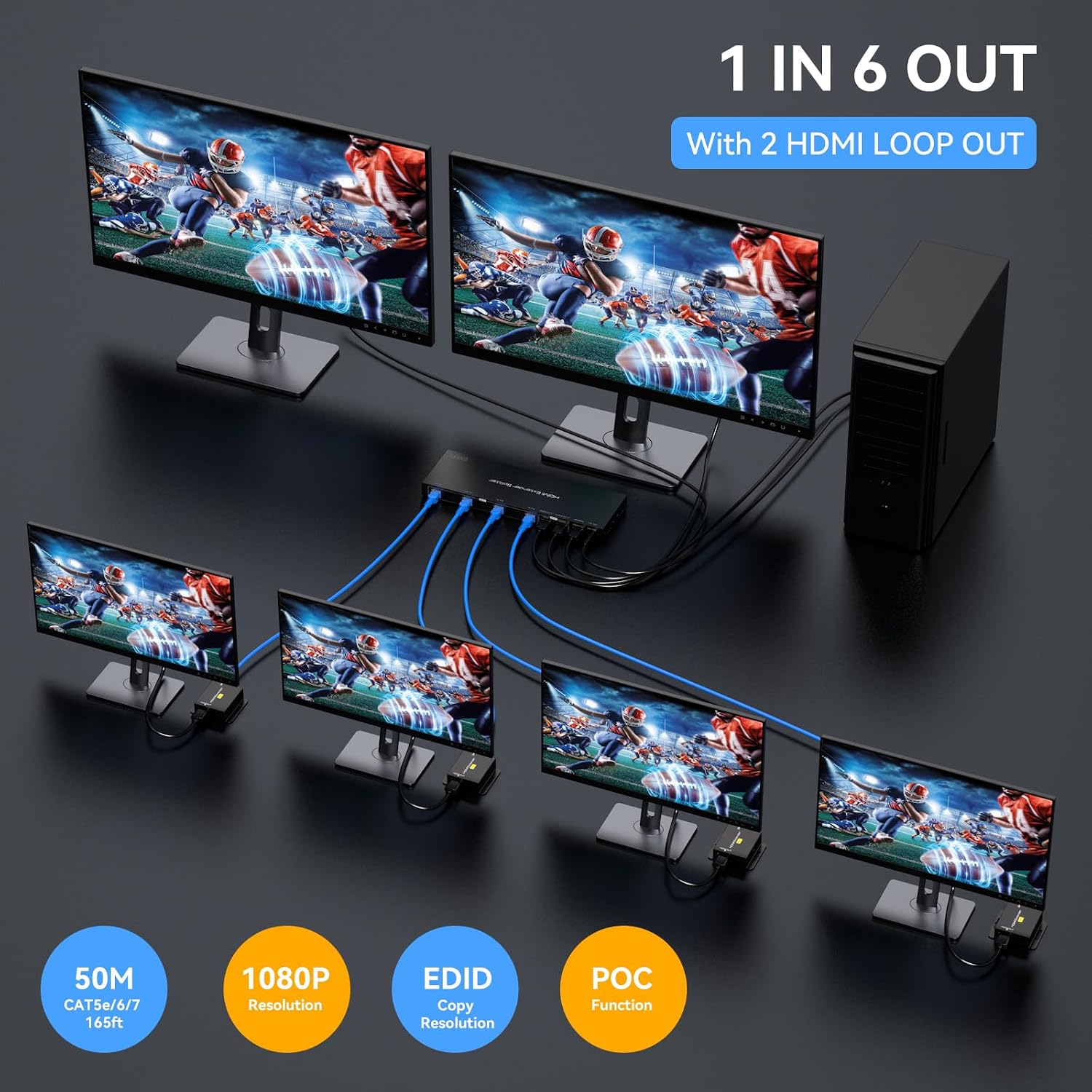

This HDMI extender splitter turns a single HDMI source into six identical outputs, making it practical for presentations, digital signage and multiroom setups. It handles Full HD signals at up to 1080P60Hz while keeping audio intact, and its plug and play design keeps installation straightforward.
Highlights

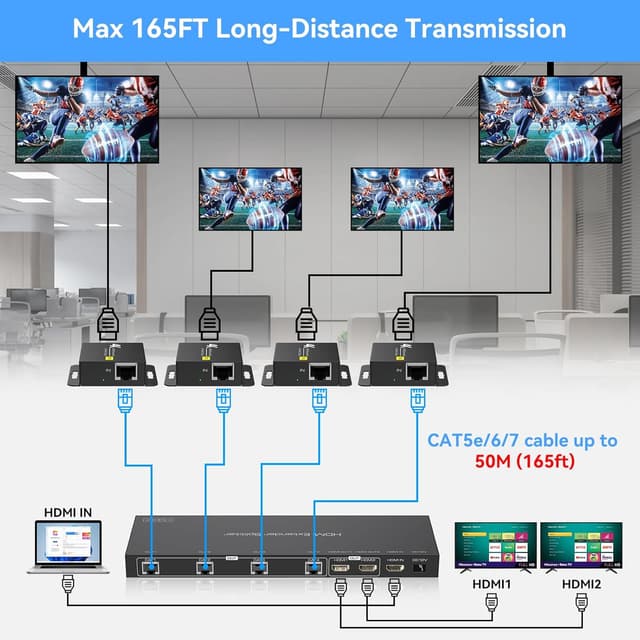

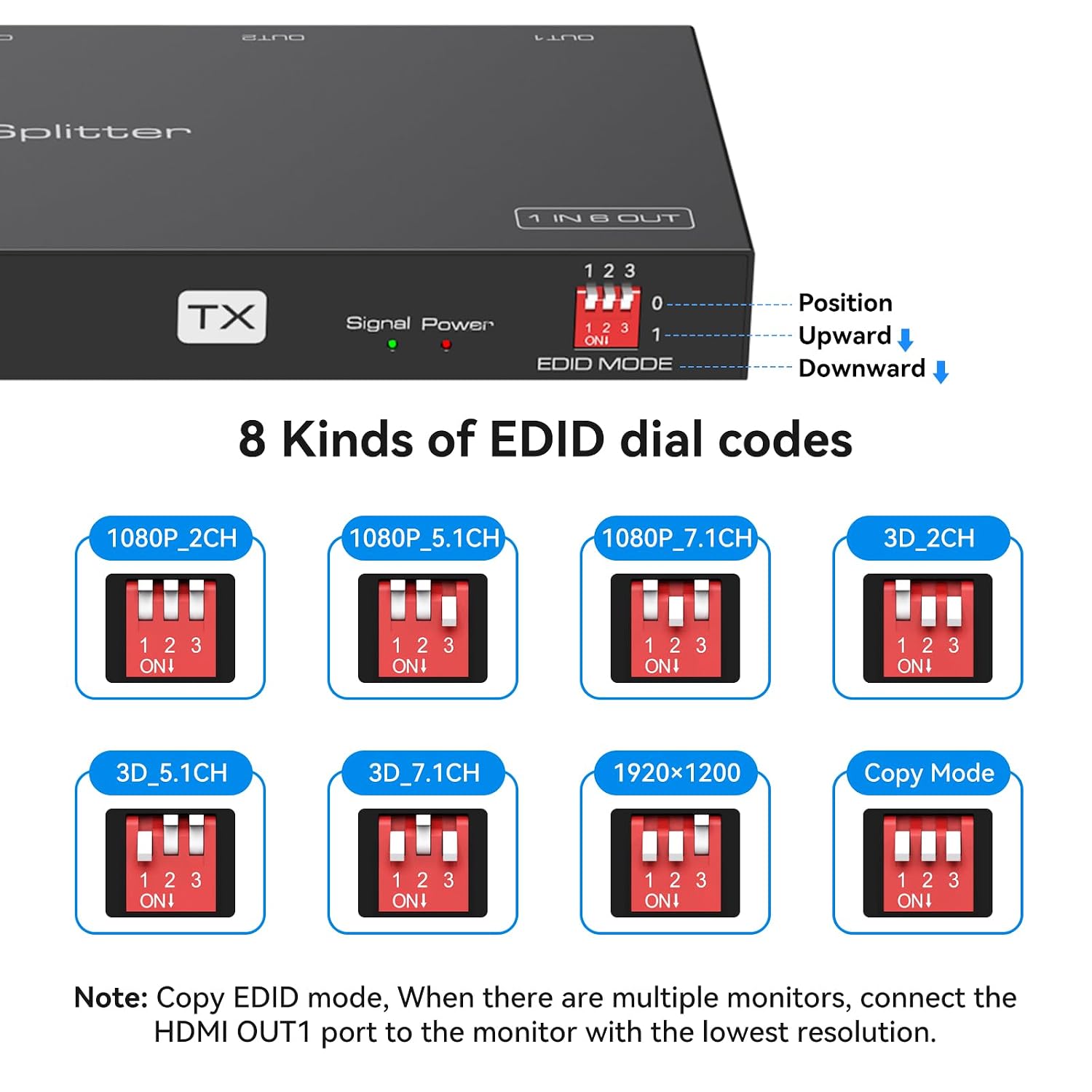

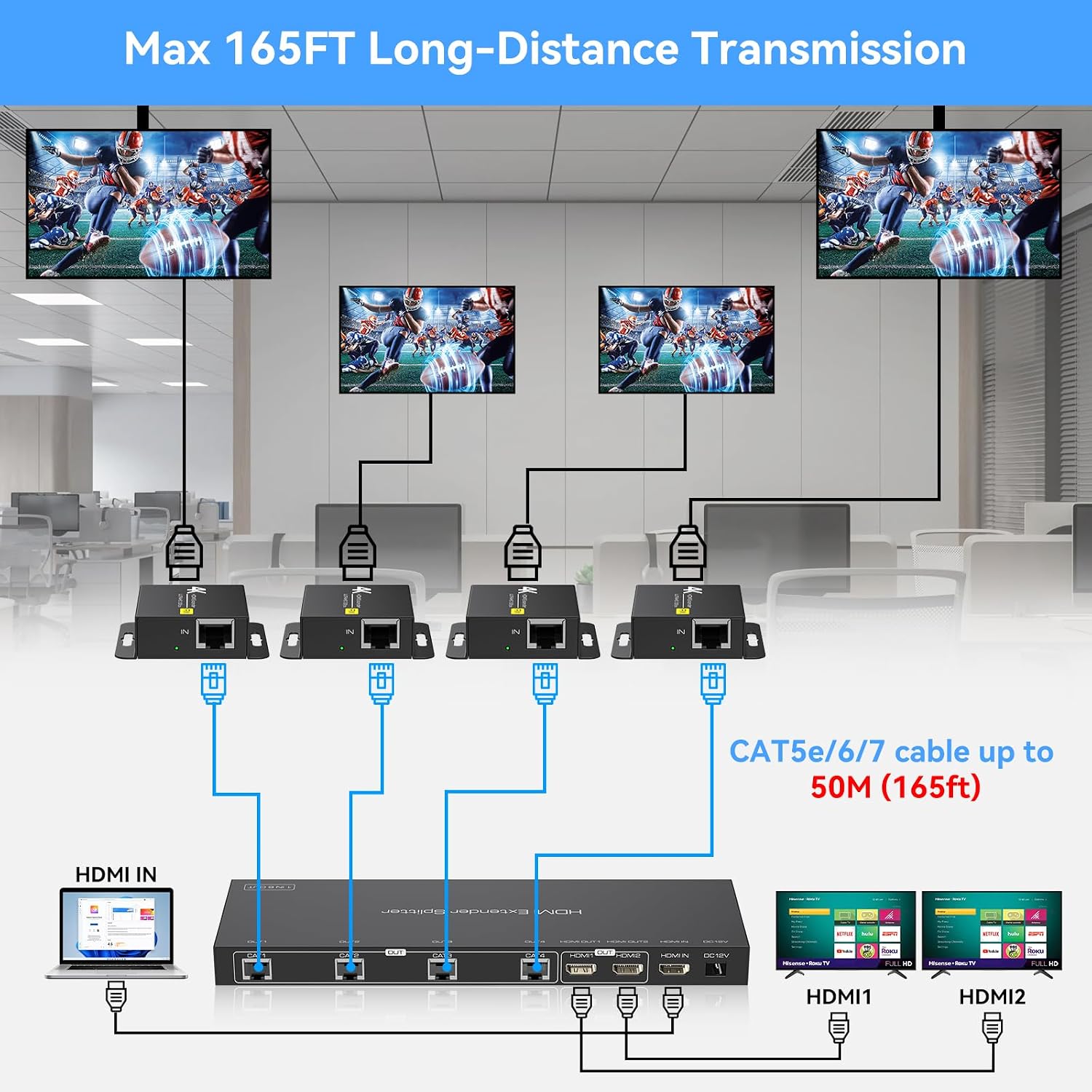

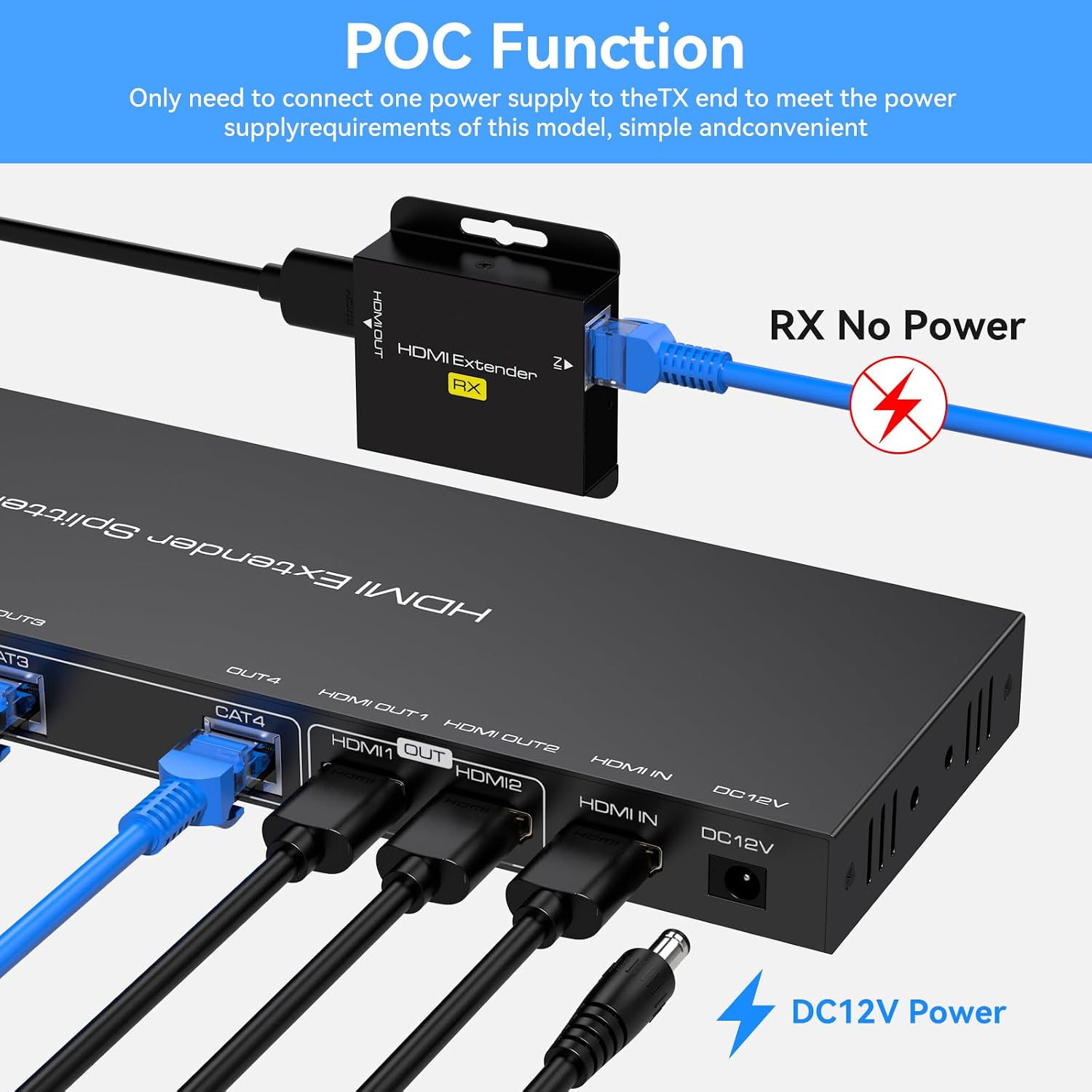

The unit offers four networked Cat6/7 outputs for long distance runs up to 50 metres and two HDMI loop outputs for nearby displays up to 10 metres. It supports lossless compressed audio formats such as DTS-HD and DSD and transfers data at up to 4.95 Gbps, according to the manufacturer. The included EDID management copies display EDID at the transmitter to improve compatibility with varied source and display combinations. Note that the product relies on the supplied DC12V adapter for power at the transmitter, while receivers draw power via POC.
Tech specs
- Name: VEDINDUST HDMI Extender Splitter 1 in 6 out over Cat6/7
- Format: HDMI over Ethernet
- Resolution: 1080P60Hz
- Capacity: 4 network outputs and 2 HDMI loop outputs
- Range: up to 50M for Cat6/7 network ports and up to 10m for HDMI loop outputs
Usage tips
A compact solution for meeting rooms and retail displays, this splitter simplifies routing a single source to multiple screens without complex switching. It makes sense if you need reliable 1080p distribution across several rooms using Cat6 or Cat7 cable, while keeping one transmitter powered by the supplied adapter. If long runs are intermittent or cable quality varies, test each link before permanent installation to ensure consistent performance.
What’s included

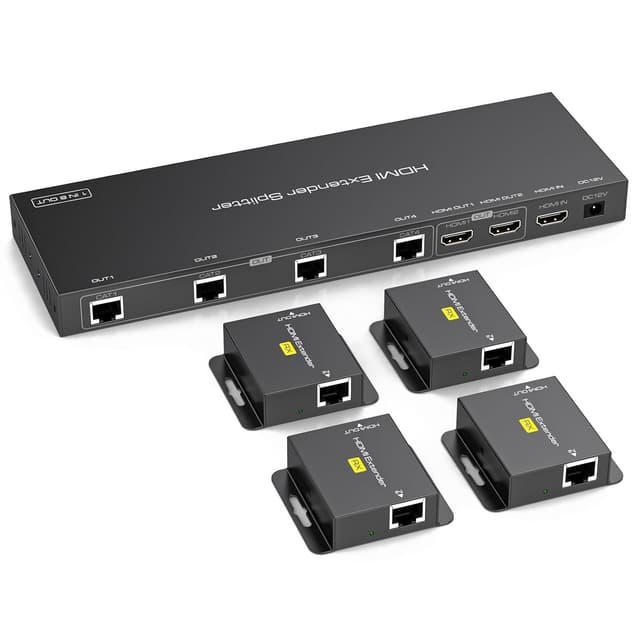

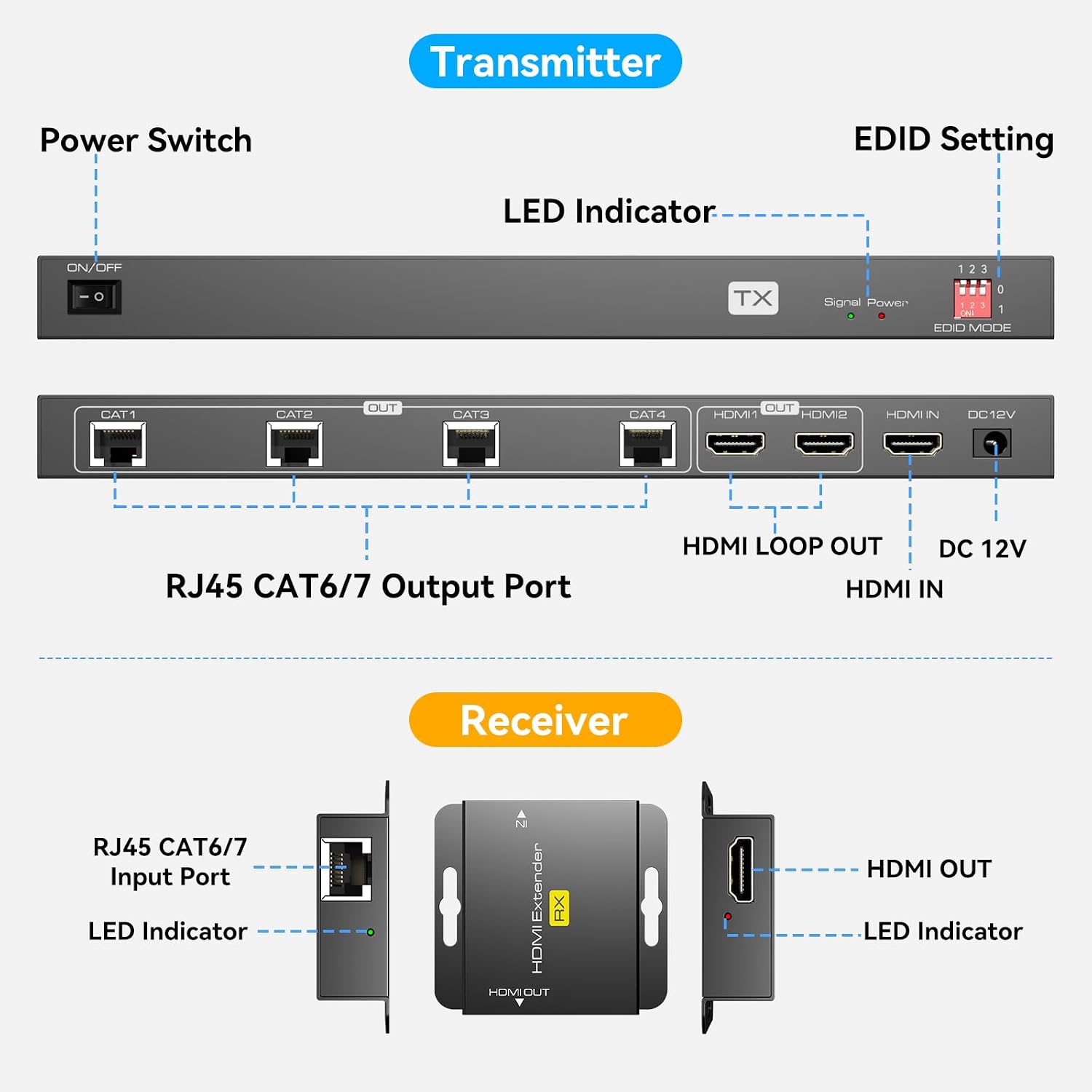

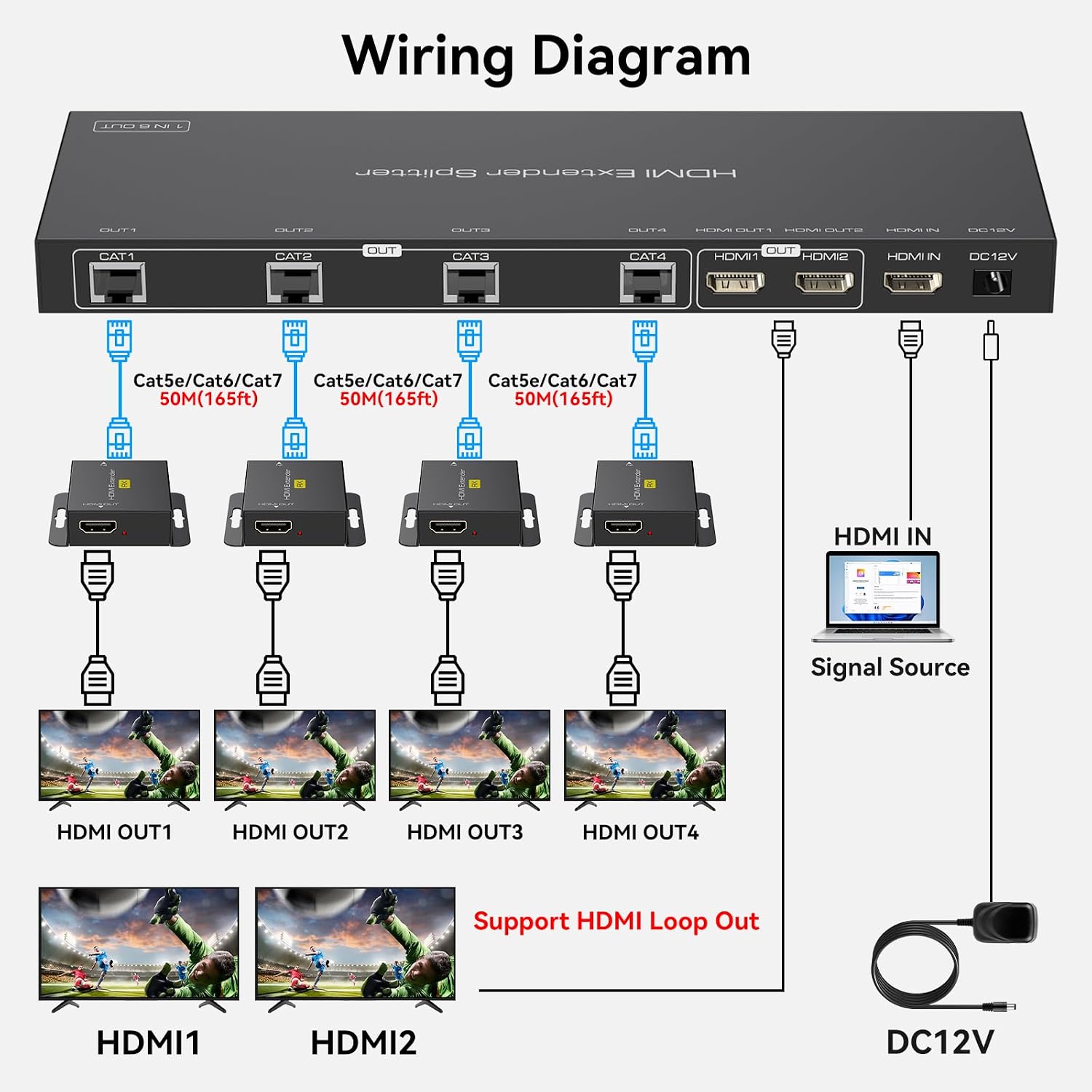

The package contains one transmitter, four receivers, a DC12V power adapter and a product manual. Follow the manual for wiring and the EDID copy procedure to reduce compatibility issues with different displays and sources.
