Kuject 120PCS solder seal wire connectors with heat-shrink butt splices (waterproof, self-solder)

What these connectors are for

Kuject’s 120PCS solder seal wire connectors are a type of insulated butt splice designed to help you join two wires while also creating a moisture-resistant seal. The basic idea is simple: instead of doing a traditional solder joint (and then trying to protect it), the connector uses solder material built into the sleeve, plus adhesive rings that melt when you apply heat.

On paper, this is meant to make wiring repairs and modifications faster than the older “solder + separate heatshrink + extra sealing” routine. You’re also supposed to be able to do it with less hassle in tight or awkward spaces, because there’s no separate crimping step and you don’t have to rely on accessing the joint itself once everything is positioned.

How they work in practice

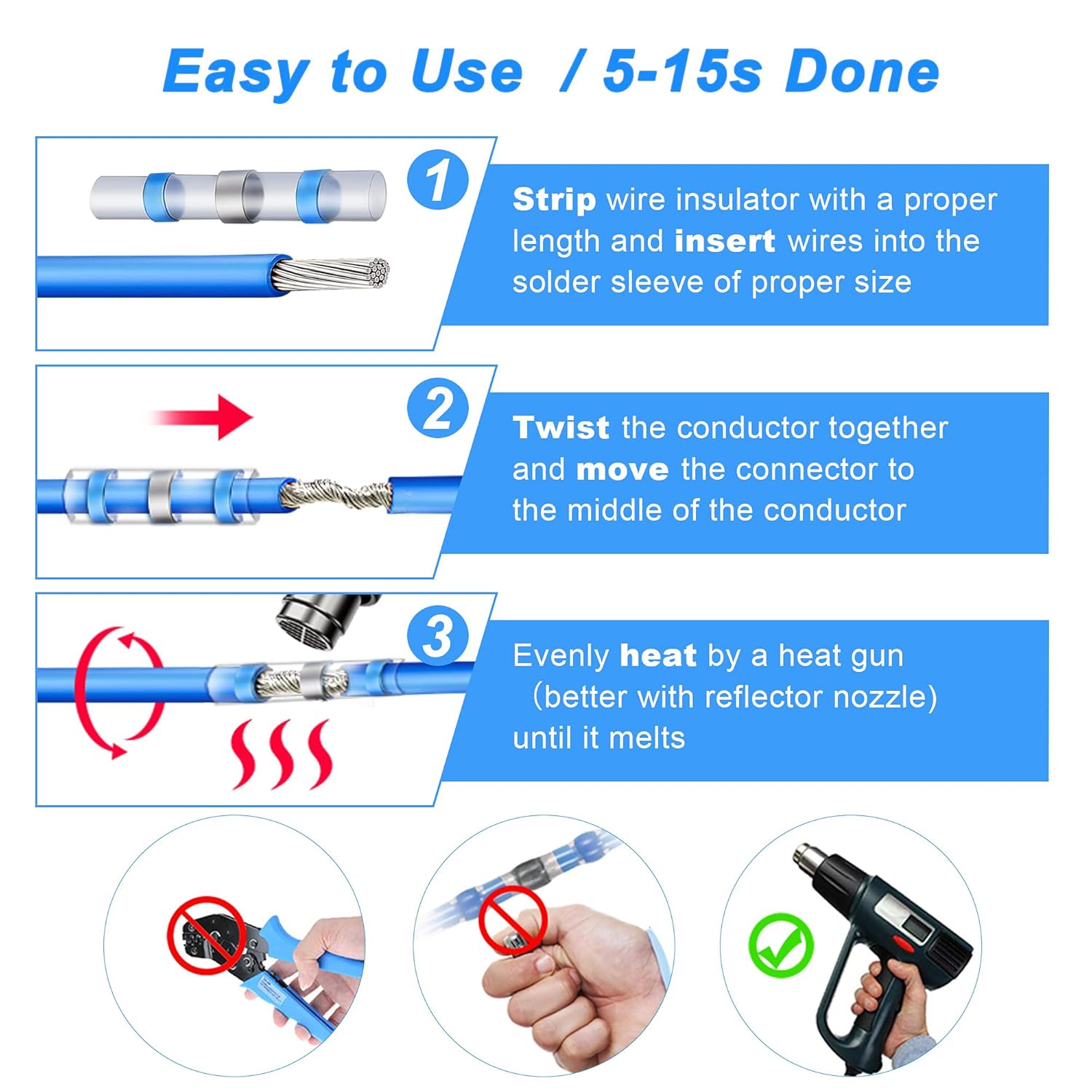

The workflow described for this kind of product is to align the two wire ends inside the butt splice, then use only a heat gun to finish the joint. As you apply heat, the tube shrinks around the connection, and the integrated solder portion is intended to flow to form the electrical connection. The waterproofing comes from the two adhesive rings included on the connector’s heat-shrink sleeve.

A realistic micro-scenario: imagine you’re fixing a marine-style light cable or a vehicle accessory wire in a confined area where you can’t easily clamp, crimp, and then solder comfortably. You cut back the damaged section, slide the sleeve/connector into place, and then heat it while keeping an eye on temperature. If your work area is really tight, the “no crimp, no open soldering” approach can be less fiddly than doing everything with bare hands and a soldering iron.

Waterproof sealing and heat resistance (what to expect)

The waterproof claim here is tied to “two waterproof adhesive rings” on each rear-butt connector, described as thermofusible (heat-activated). In everyday terms, that means the manufacturer is pitching these as joints that can better tolerate moisture exposure than a plain wrap.

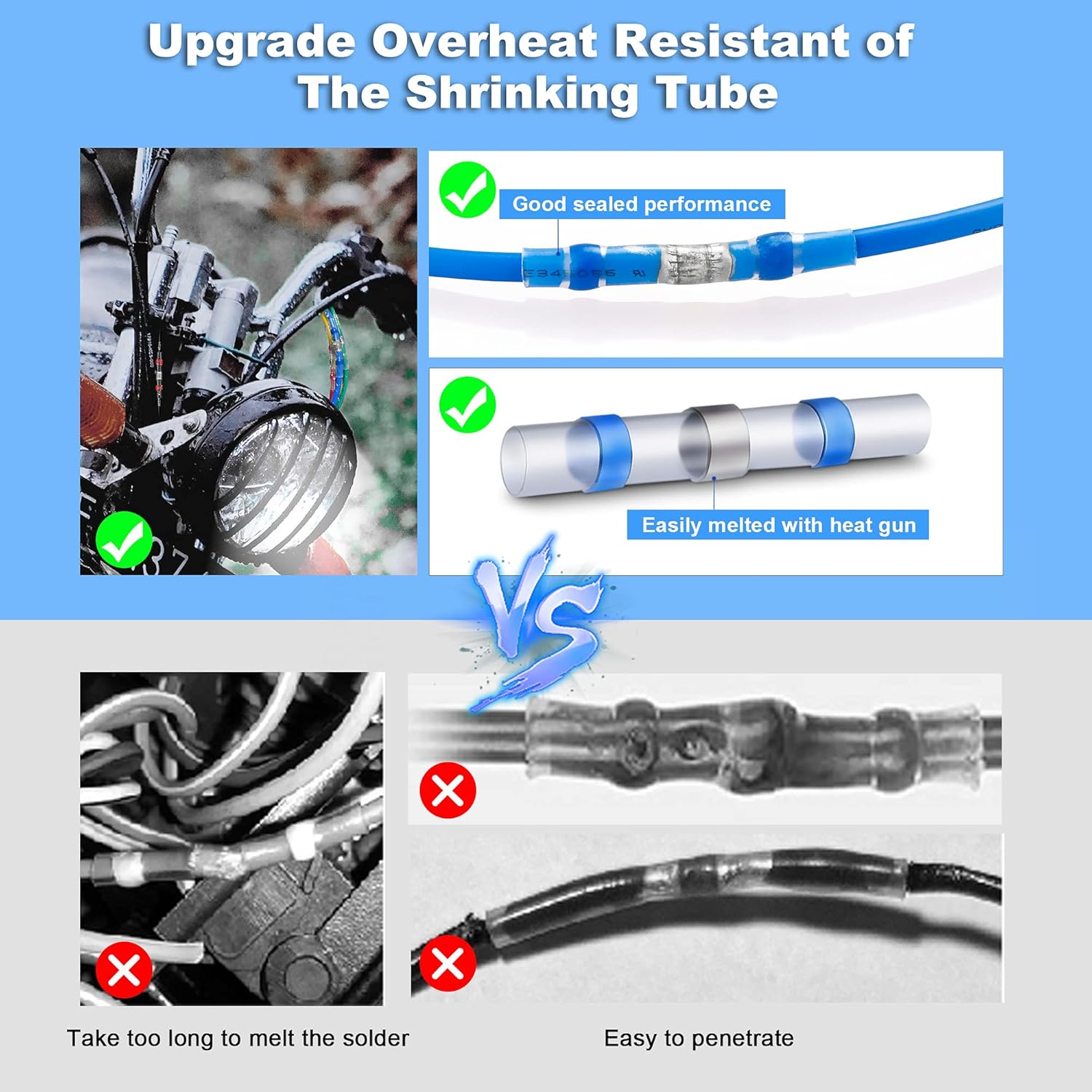

There’s also a heat-management angle: Kuject states it uses a connector material intended to avoid the heat-shrink tube melting before the solder seal forms. That’s a useful consideration because if you’ve ever tried to heat-shrink around a joint, it’s easy to overdo the heat and end up with a sleeve that looks melted before the internal seal does its job.

Still, take note: the description doesn’t specify the exact wire gauge range or the exact temperature guidance for the heat gun. So if you’re the kind of person who always wants tight, repeatable parameters, you’ll need to be careful and follow the instructions that come with the product.

Where they make the most sense

These solder seal wire connectors tend to suit anyone who:

• wants quicker installs or repairs than a full solder-and-seal routine
• works in awkward spaces where crimping/soldering access is limited
• prioritises a moisture-resistant joint for automotive, marine, boat, or truck wiring use cases
• prefers a “heat gun only” finish rather than a separate soldering step

They also fit well when you want a neat, insulated butt splice outcome without having to source extra heatshrink and sealant separately.

Limitations and who should skip them

They might not be the best choice if you:

• need confirmed compatibility for your exact wire type and gauge (the provided description doesn’t list wire-size specifics)
• don’t have a heat gun available, since the process relies on applying controlled heat
• expect an “any problem, any wiring situation” solution—because every job still depends on getting the wires aligned properly and applying heat consistently

It’s also worth being realistic: self-soldering heat-shrink connectors can reduce steps, but they’re not a magic fix if the wiring prep is poor (for example, if insulation removal is uneven or the joint isn’t positioned correctly).

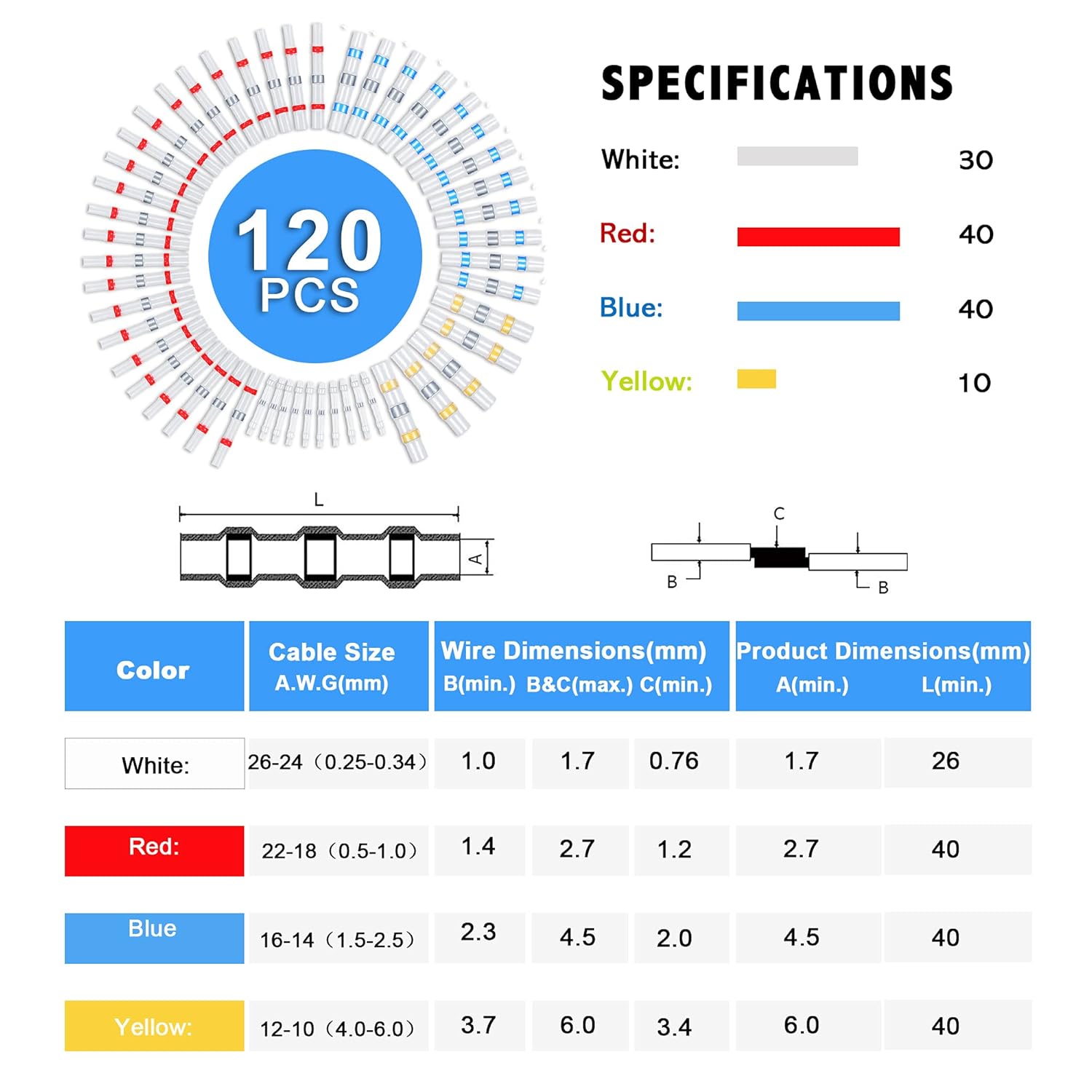

Tech specs (quick, from the listing)

Tech specs

• Type: solder sleeve / self-solder insulated electrical butt splice connector

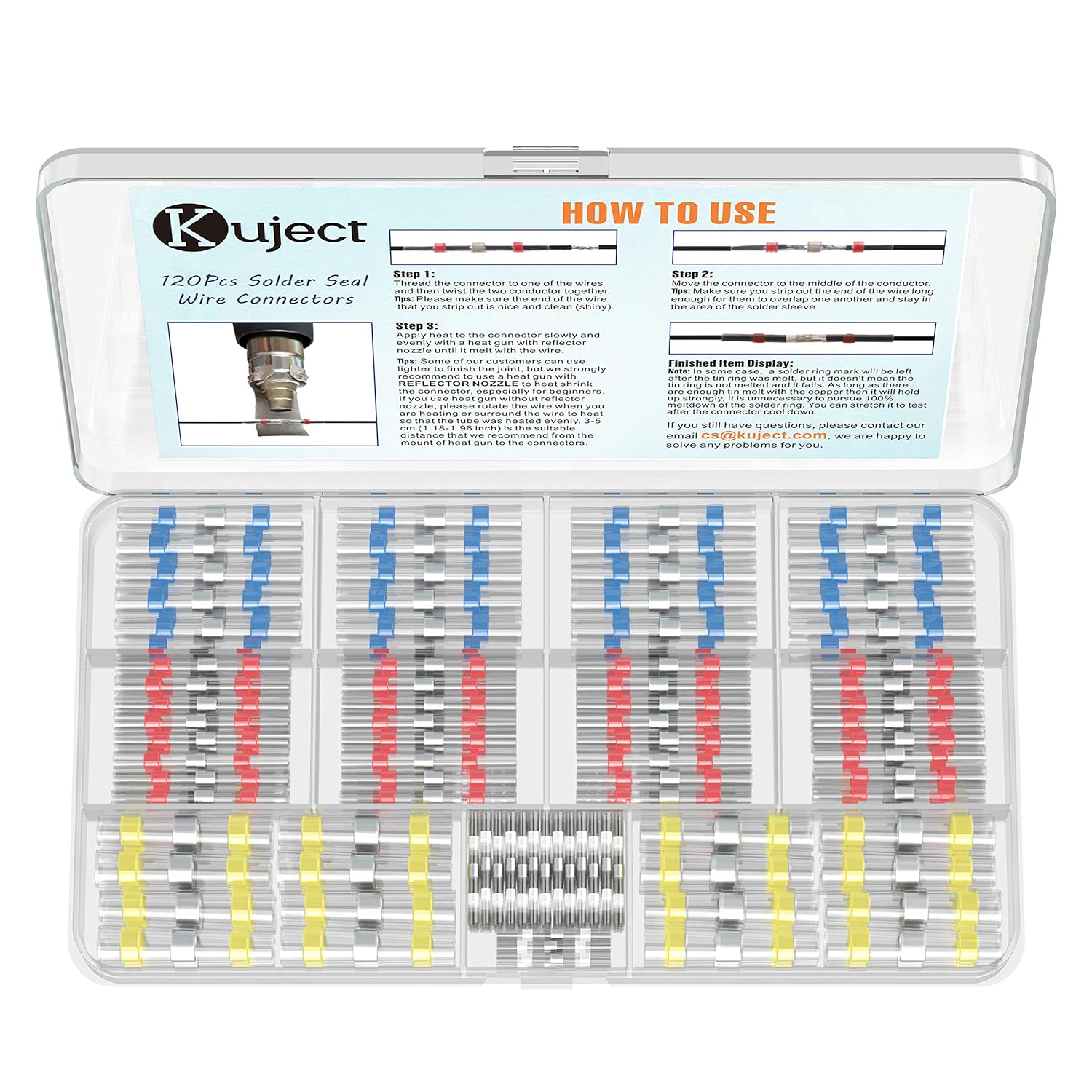

• Quantity: 120PCS
• Intended use areas mentioned: marine, automotive, boat, truck wire joints

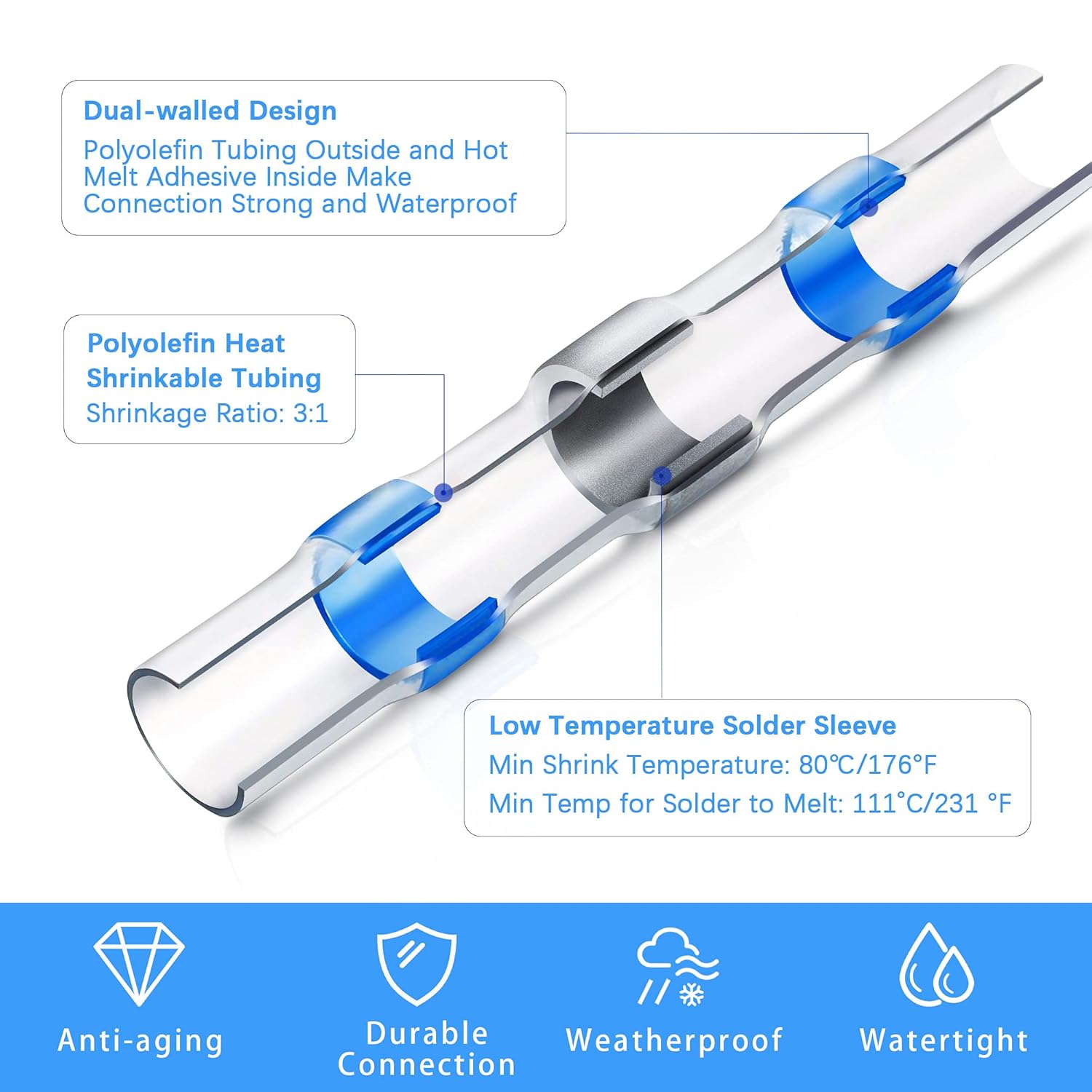

• Construction elements mentioned: waterproof heat-shrink sleeve, two waterproof adhesive rings per connector
• Heat handling claim: materials intended to prevent the tube melting before the solder ring seals
• Listed standard: IATF16949:2016 (as stated in the listing)

Should you buy it?

It makes sense to buy Kuject 120PCS solder seal wire connectors if you’re trying to speed up wiring repairs or modifications and you want a joint that’s designed to be both insulated and moisture-resistant—without relying on crimping or an exposed soldering step.

It might be better avoided if you don’t know whether these sleeves suit your wire gauge, or if you don’t have a heat gun and the patience to apply heat carefully. For many DIYers and technicians doing automotive/marine-style wiring where moisture sealing matters, this approach is a practical time-saver. For very specific installations where you need fully documented sizing and tight heating parameters, you may want to double-check the included guidance first.

Mini FAQ

Mini FAQ

Do these connectors require soldering with a soldering iron? The listing’s premise is “no soldering” and “only a heat gun” to finish the joint, because the connector includes the solder seal element.

Are they waterproof? They’re described as having two waterproof adhesive rings that are heat-activated to help seal against humidity.

Can you use them in tight spaces? That’s specifically called out: the process is described as workable in narrow or confined areas, reducing the need to crimp or solder where access is limited.

What temperature do I need to use with the heat gun? The description says you should control temperature, but it doesn’t provide a number. You’ll need to follow the instructions that come with the connectors.

Do they suit automotive and marine wiring? The listing mentions automotive and marine/boat/truck wire joints, so that’s the intended application.
