TOPDON TC002C Duo Thermal Camera, 512 × 384 TISR, 25 Hz

TISR image enhancement brings thermal details into a 512 × 384 view, helping you spot temperature patterns while inspecting a home, circuit board or mechanical system.

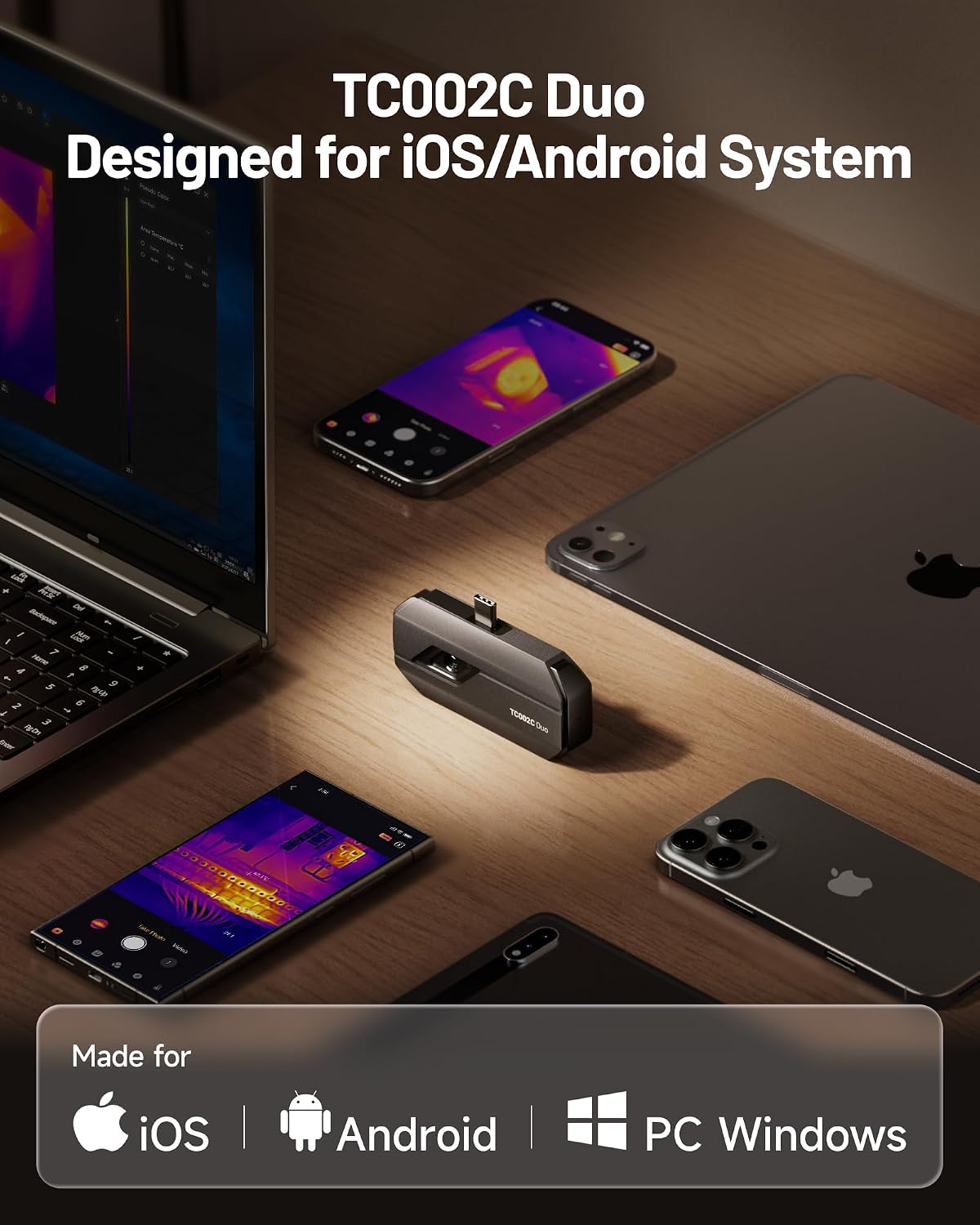

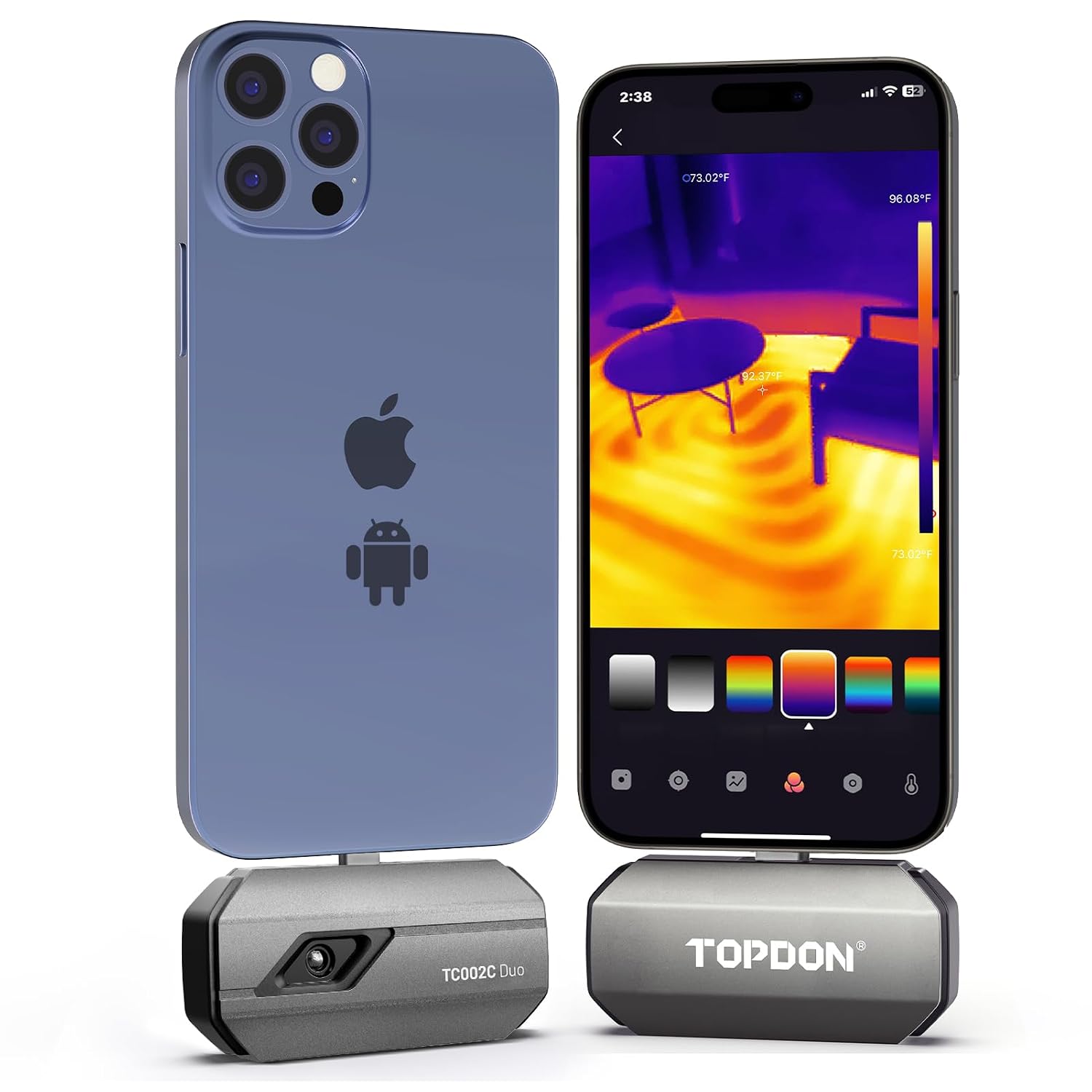

Connect the TC002C Duo to a compatible USB-C phone or tablet and use the free TopInfrared app to view thermal images on your mobile device. Its compact format makes it practical to carry between jobs or keep handy for household checks.

Choose a phone-connected imager when you want thermal readings alongside mobile capture and reporting. A standalone thermal camera may suit a different workflow, this model keeps viewing and analysis within the phone-based setup.

Tech specs

• Type: Smartphone thermal camera

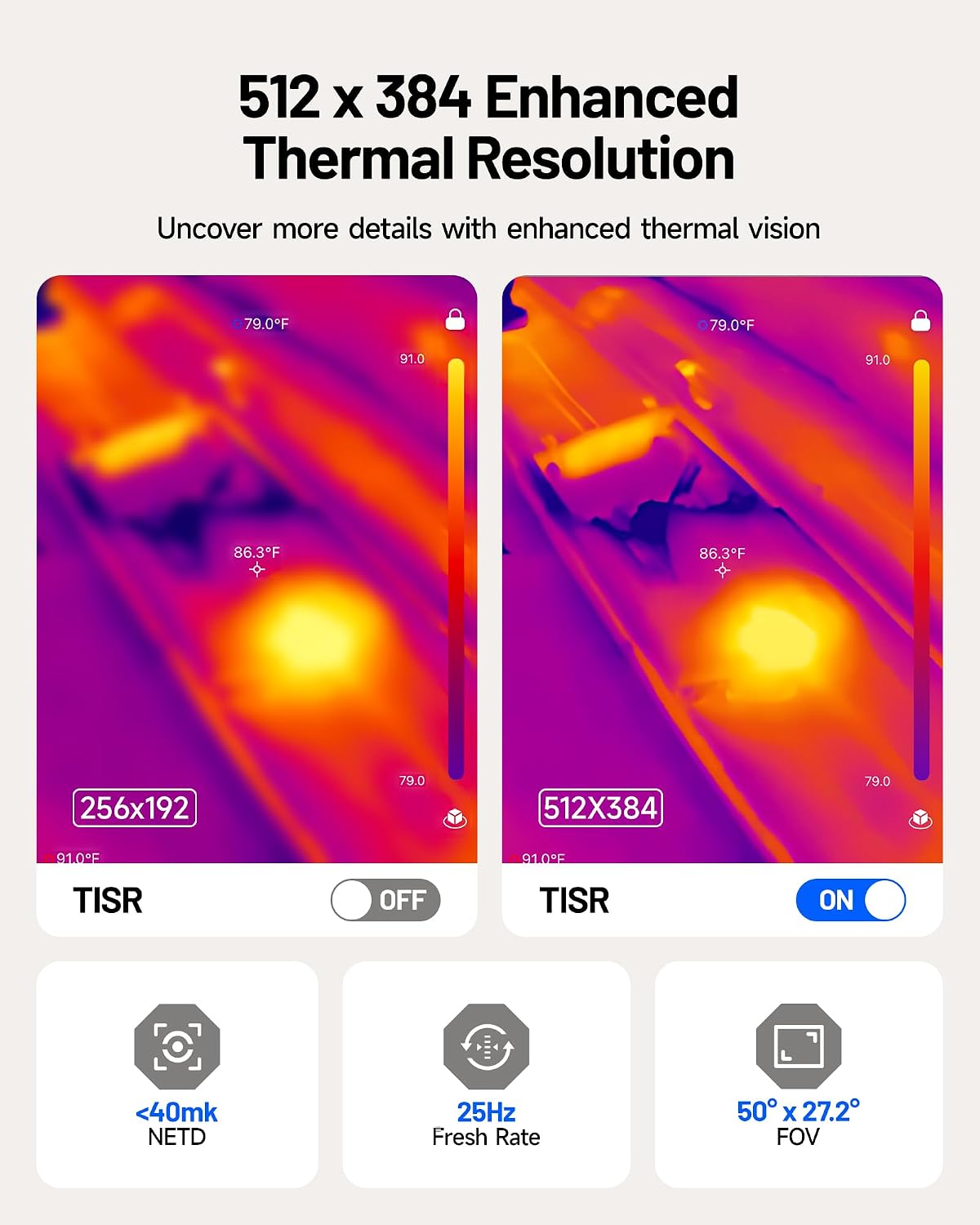

• Thermal resolution: 256 × 192 IR, enhanced to 512 × 384 with TISR
• Temperature range: -20°C to 550°C
• Temperature accuracy: ±2°C or ±2%
• Temperature resolution: 0.1°C
• Thermal sensitivity: 40 mK NETD
• Refresh rate: 25 Hz
• Effective distance: Up to 5 m
• Compatibility: Compatible USB-C smartphones and tablets, not compatible with Mac devices
• App: Free TopInfrared App
• Water resistance: Not water resistant
• Reference: TC002C Duo

Getting the most from it

Use the live thermal view to look for hot or cold areas while checking electrical components, tracing a suspected plumbing leak or troubleshooting HVAC equipment. The 25 Hz refresh rate supports smooth viewing as the scene changes, while the 40 mK sensitivity helps reveal subtle temperature differences. Temperature limits and hot- or cold-spot detection can help focus an inspection on areas that deserve a closer look.

For a home check, scan around a window or along a wall and compare the temperature pattern across the surface. The camera can also record thermal images and video, generate thermal reports, trigger temperature alerts and export data in an Excel-compatible format. Real-time waveform views provide another way to follow temperature changes during an inspection. Connect it to a compatible device and use the app to capture and organize findings for later reference. For the phone or tablet connection, use a compatible device and the supplied cable as appropriate.

What you get

The package includes the TC002C Duo thermal imager, an EVA case, an extension cable, a USB-C-to-Lightning cable and a quick guide. Keeping the camera and its accessories together in the case makes it easier to take the inspection setup from a toolbox to a home or job site.

What to clarify

Can the TC002C Duo measure both hot and cold temperatures? Yes. Its stated range runs from -20°C to 550°C, with an accuracy of ±2°C or ±2% and a resolution of 0.1°C.

Can I save inspection findings? The TopInfrared App supports thermal image and video capture, report generation and Excel-compatible data export, so readings can be recorded for review.

Does it work with a Mac? No. The camera is intended for compatible USB-C smartphones and tablets and is not compatible with Mac devices.

Is it worth it?

The TC002C Duo brings thermal viewing, temperature alerts and inspection records into a phone-connected tool. It makes sense if you want a compact imager for home checks, electrical or mechanical troubleshooting, plumbing inspections or HVAC work, with app-based capture and reporting to support the task.
