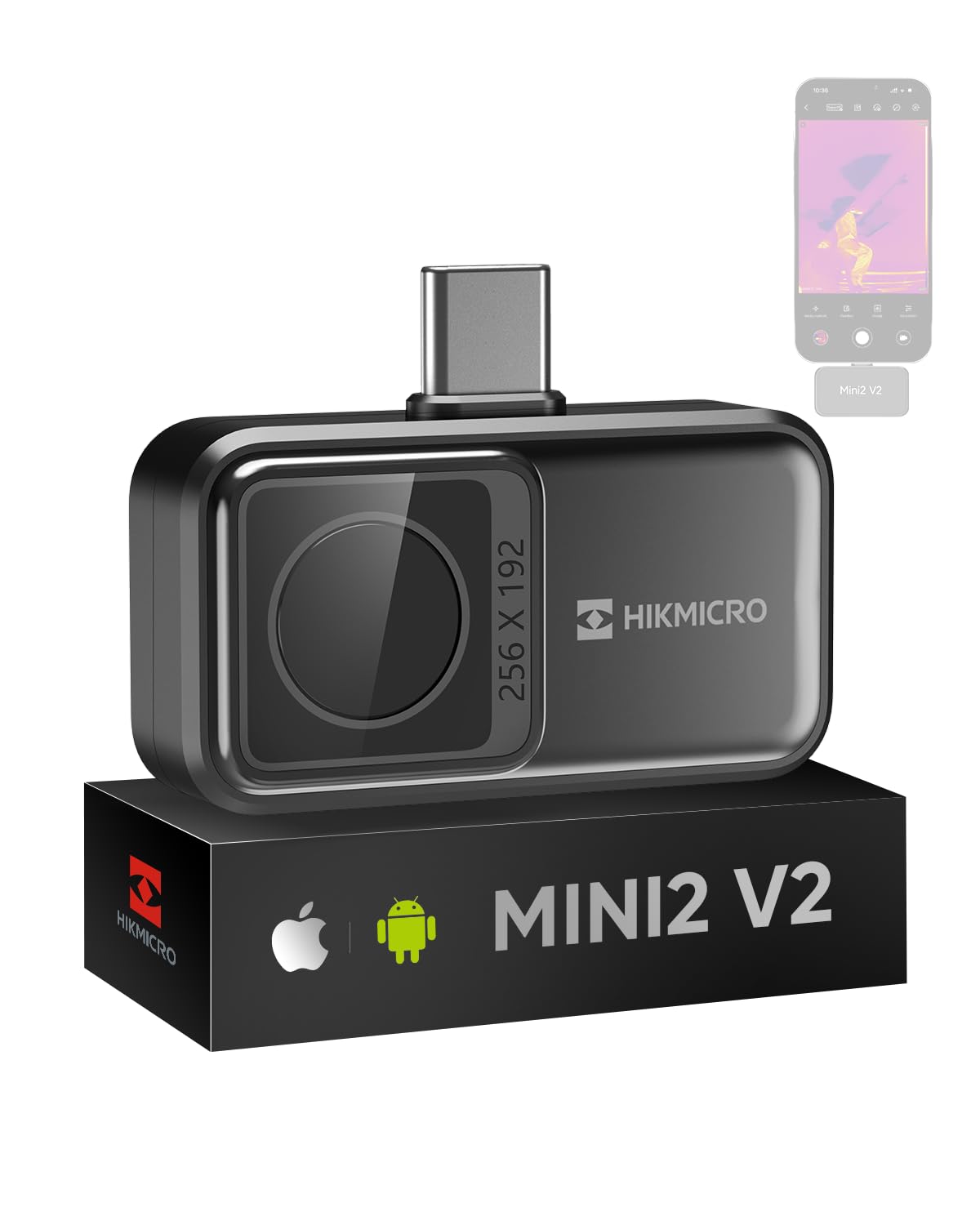

HIKMICRO Mini2 V2 Thermal Camera, 512x384 SuperIR, 25 Hz, USB-C

A 50° wide-angle lens gives the HIKMICRO Mini2 V2 a broad view for checking temperature patterns across walls, floors, electrical components and other surfaces. It connects to an Android or iOS phone or tablet, bringing thermal imaging to a device you already use.

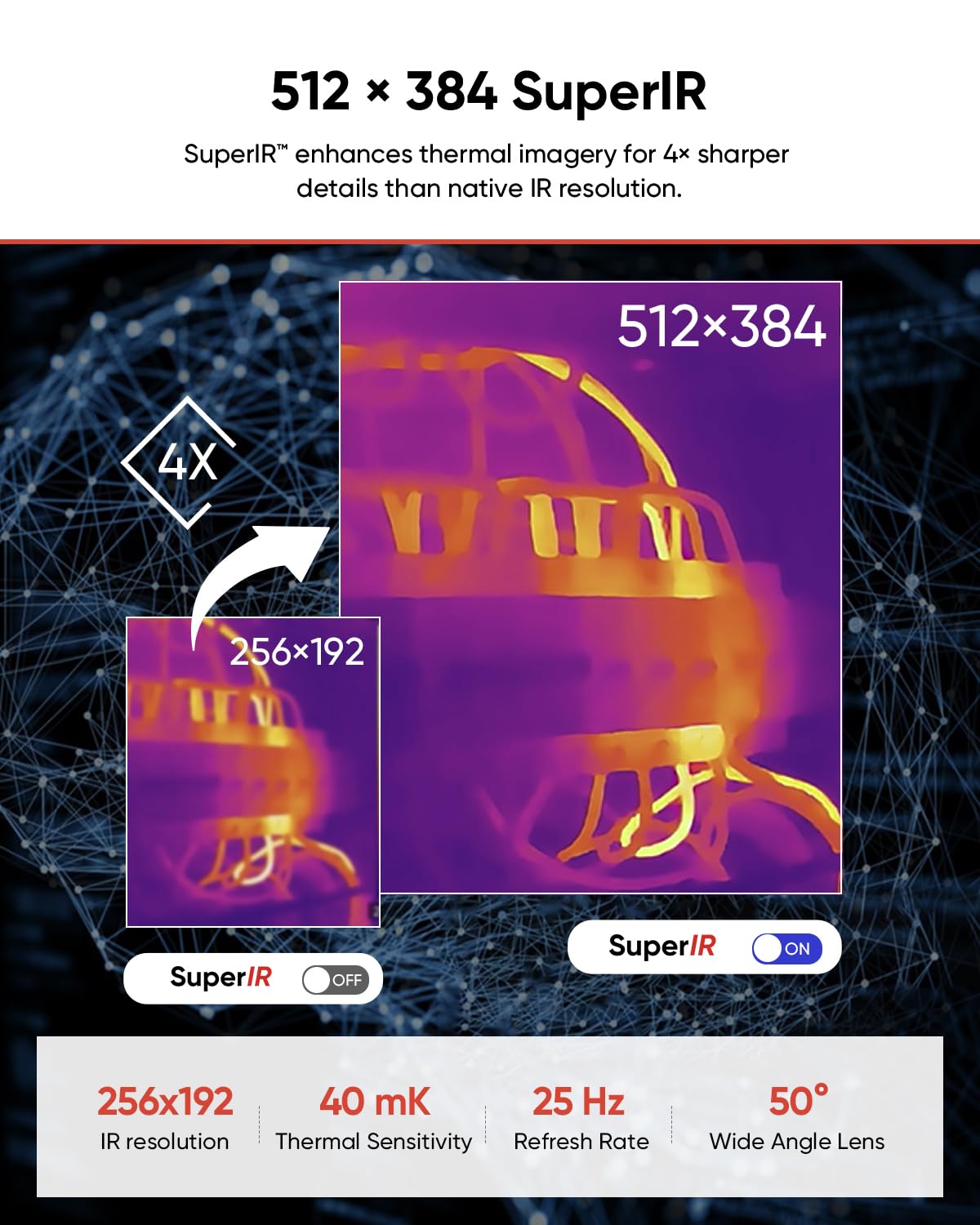

Its 256x192 infrared resolution is enhanced to 512x384 SuperIR, with a 25 Hz refresh rate for a smooth view as you pan across a scene. The camera uses a no-battery design and draws 0.36 W, so it does not need to be charged separately before an inspection.

Strengths

SuperIR enhancement combines noise reduction and improved edge detail to make temperature patterns easier to interpret. During a home check, for example, you can scan around a window, along a floor-heating area or near a suspected water leak, then use the image to identify spots that may need a closer look. Five preset scene modes cover applications such as water leaks, insulation, floor heating, electrical faults and solar panels.

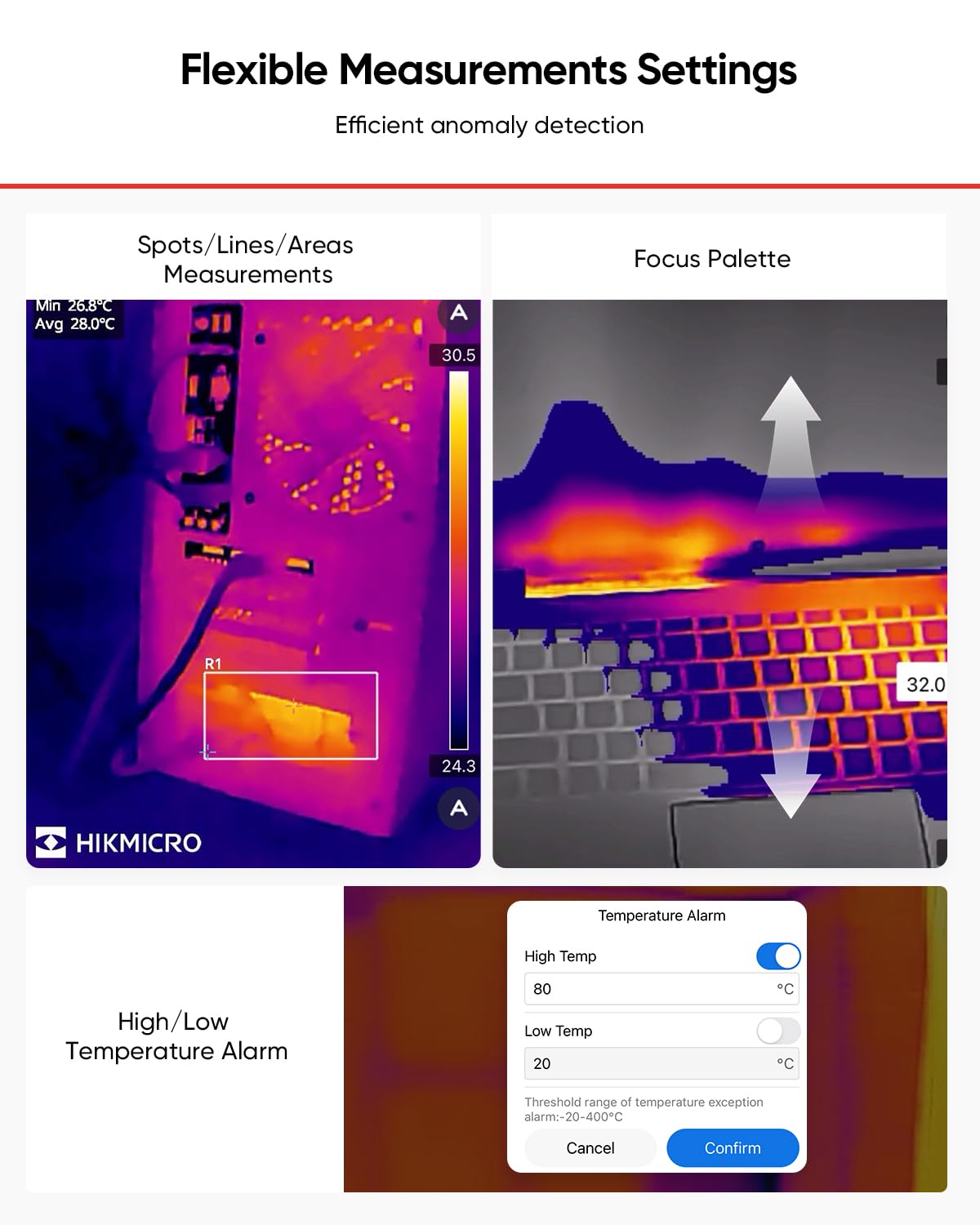

Temperature tools support practical comparisons as you inspect. The camera can detect temperature differences as small as 0.04°C, with stated measurement accuracy of ±2°C/±3.6°F or ±2%, whichever is greater. Automatic centre, hot-spot and cold-spot readings help highlight key points, you can also set custom spots or area measurements and adjust emissivity and distance for the object being measured. Fifteen colour palettes and controls for sharpness, contrast, brightness and colour distribution let you tailor the view to the task.

What matters most

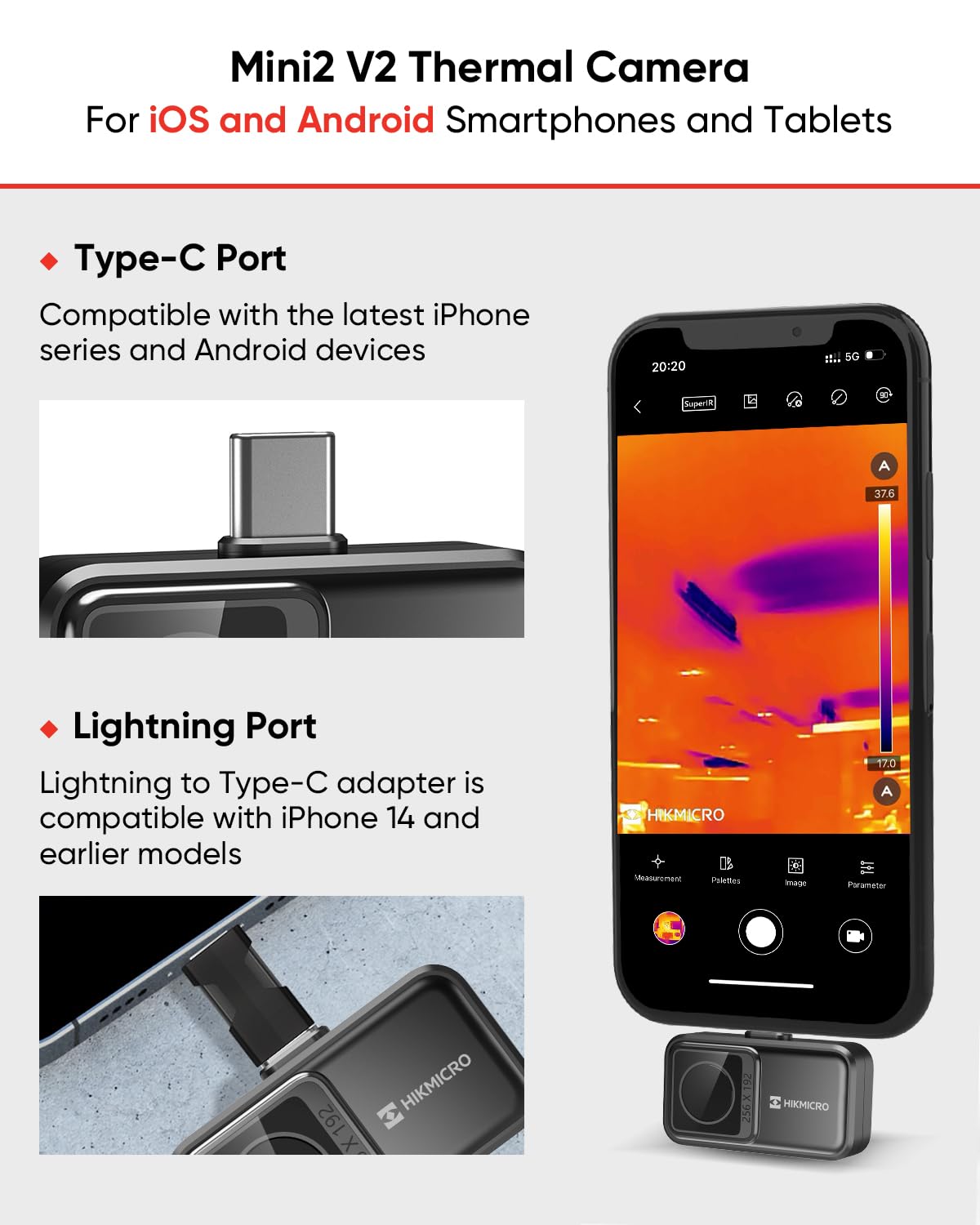

The phone-connected format is a different approach from choosing a separate handheld thermal imager: the Mini2 V2 uses your phone or tablet as the display, while the compact camera connects through USB-C. The wide-angle view suits broader scans, and the 25 Hz refresh rate helps keep the image fluid as you move from one area to another. For Windows workflows, HIKMICRO Analyzer Software supports image management, batch analysis, real-time data monitoring and customizable reports.

For setup, connect the camera and grant the requested permission in HIKMICRO Viewer. Android users should enable OTG on their phone or tablet. Buyers often highlight straightforward start-up and useful functionality, while comments on compatibility across different systems are mixed, matching the device’s connection and app setup to the intended workflow helps make inspections easier to begin. Avoid combining an extension cable with an adapter, as this can cause a connection failure.

Getting the most from it

Use a preset scene mode that matches the inspection, then scan steadily to compare temperature patterns across the area. For a more targeted reading, select the centre, hot or cold point, or configure a custom spot or area. Adjusting emissivity and distance for the object supports more accurate temperature readings. Thermal imaging shows temperature differences, it is useful for locating patterns associated with moisture or insulation issues, rather than producing a visual image through a wall.

Questions before you buy

What image resolution does the Mini2 V2 provide? Its infrared resolution is 256x192, enhanced to 512x384 SuperIR for real-time image improvement, with a 25 Hz refresh rate.

What is needed to use it with an Android phone or tablet? Connect the camera through USB-C, enable OTG on the device and grant permission when prompted in HIKMICRO Viewer.

Can it identify issues behind a wall? It can help reveal temperature patterns on a surface that may point to moisture or insulation concerns. It detects temperature differences, it does not show objects through the wall like a visible-light camera.

Buying verdict

The HIKMICRO Mini2 V2 is suited to home, HVAC and electrical inspections where a phone-connected thermal view can help locate areas for closer attention. Its 50° lens, SuperIR enhancement, preset scene modes and flexible temperature readings bring useful inspection tools together in a compact USB-C camera.
