TOPDON TC001 Max Dual-Lens Thermal Camera, 512 × 384 TISR, 25Hz, -4°F to 1,022°F
Product description

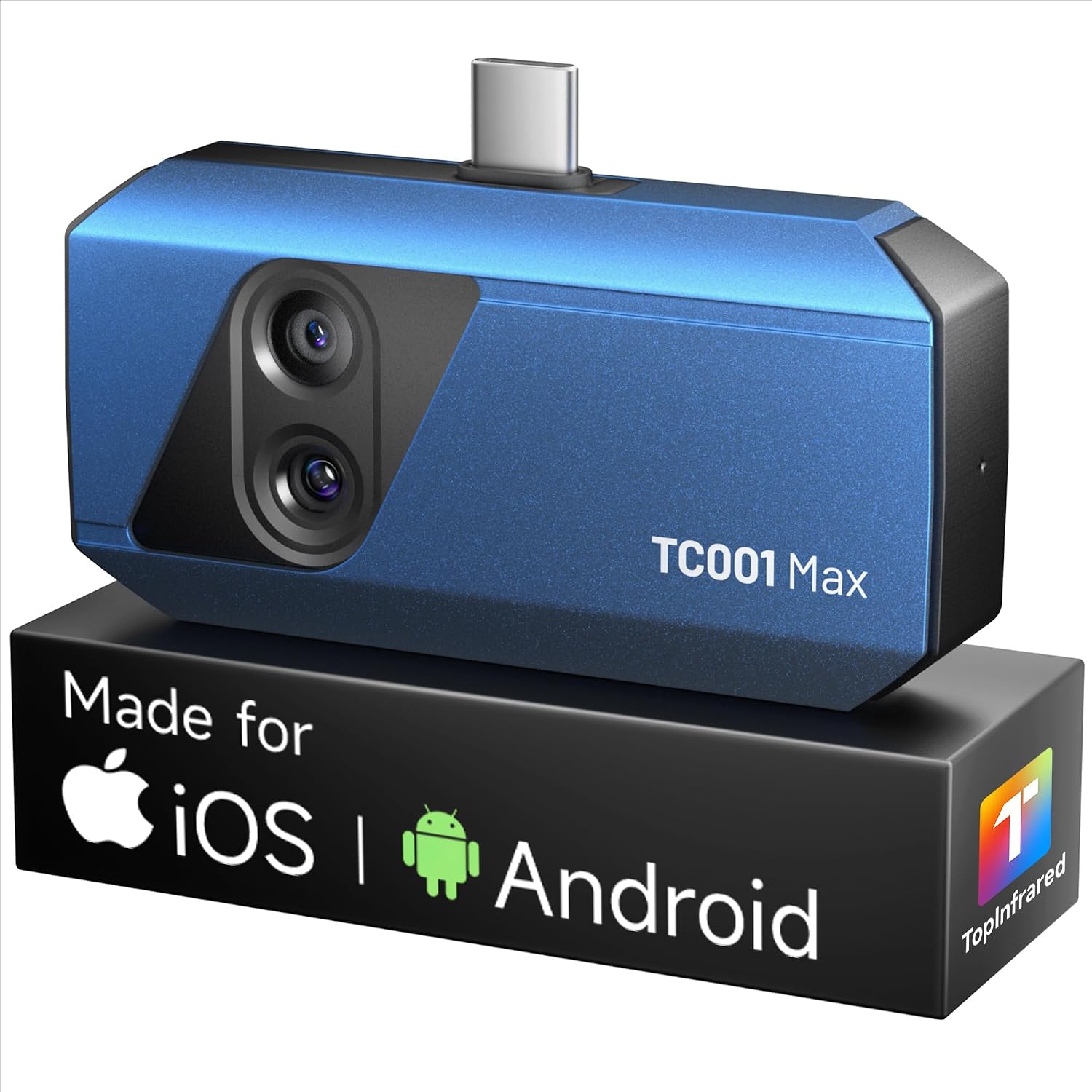

At 7.1 × 4.2 cm and 33 g, the TOPDON TC001 Max is a compact dual-lens thermal camera designed to connect to compatible phones and Windows devices. Its pocket-sized format makes it easy to bring along for inspections at home, in the workshop or on the road.
Thermal imaging is paired with a visible-light camera, giving you heat patterns alongside recognisable outlines and scene details. That combination can make it easier to locate the area you want to investigate during electrical diagnostics, HVAC checks, PCB analysis, leak detection or automotive maintenance.

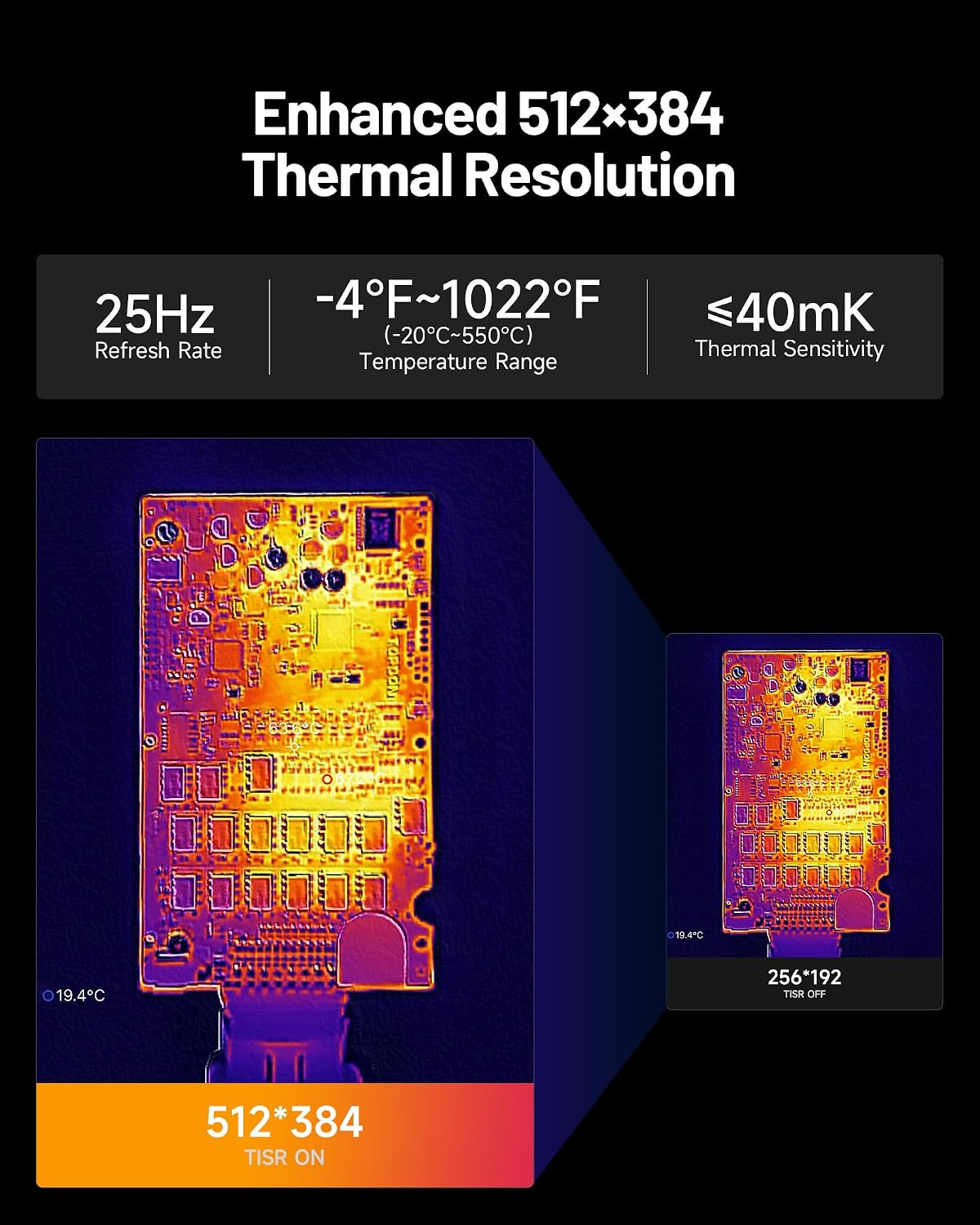

Need to spot more than an obvious hot or cold patch? TISR enhances the 256 × 192 infrared resolution to 512 × 384, while a 25Hz refresh rate supports smooth viewing and ≤40mK NETD helps reveal subtle temperature differences.
Spec sheet
- Name: TOPDON TC001 Max
- Type: Dual-lens thermal camera
- Dimensions: 7.1 × 4.2 cm
- Weight: 33 g
- Resolution: 256 × 192 IR, enhanced to 512 × 384 with TISR
- Refresh rate: 25Hz
- Temperature range: -4°F to 1,022°F
- Accuracy: ±2°C / ±2%
- Connectivity: USB-C and Lightning adapters, compatible with Windows devices
- Apps: TopInfrared or TopView

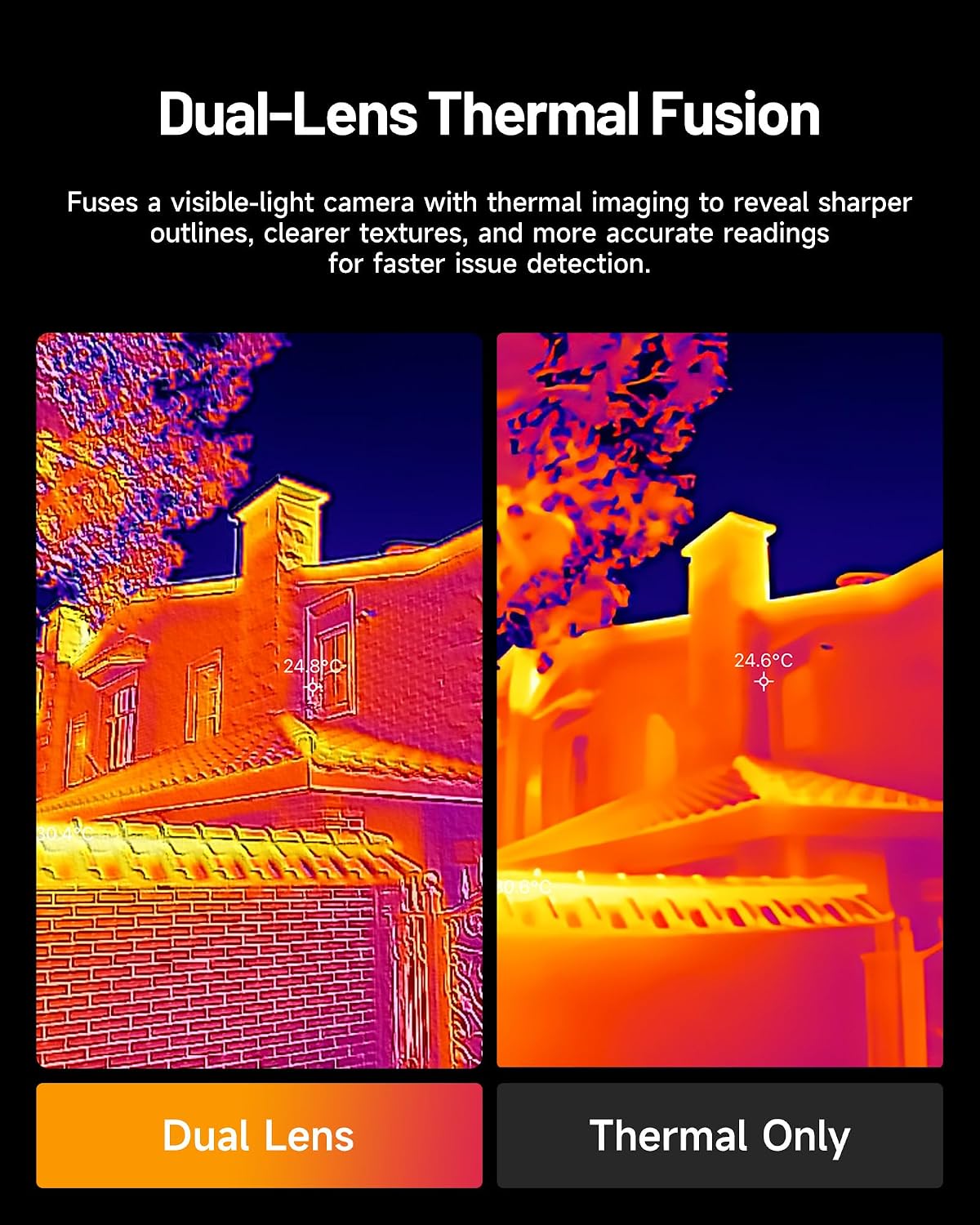

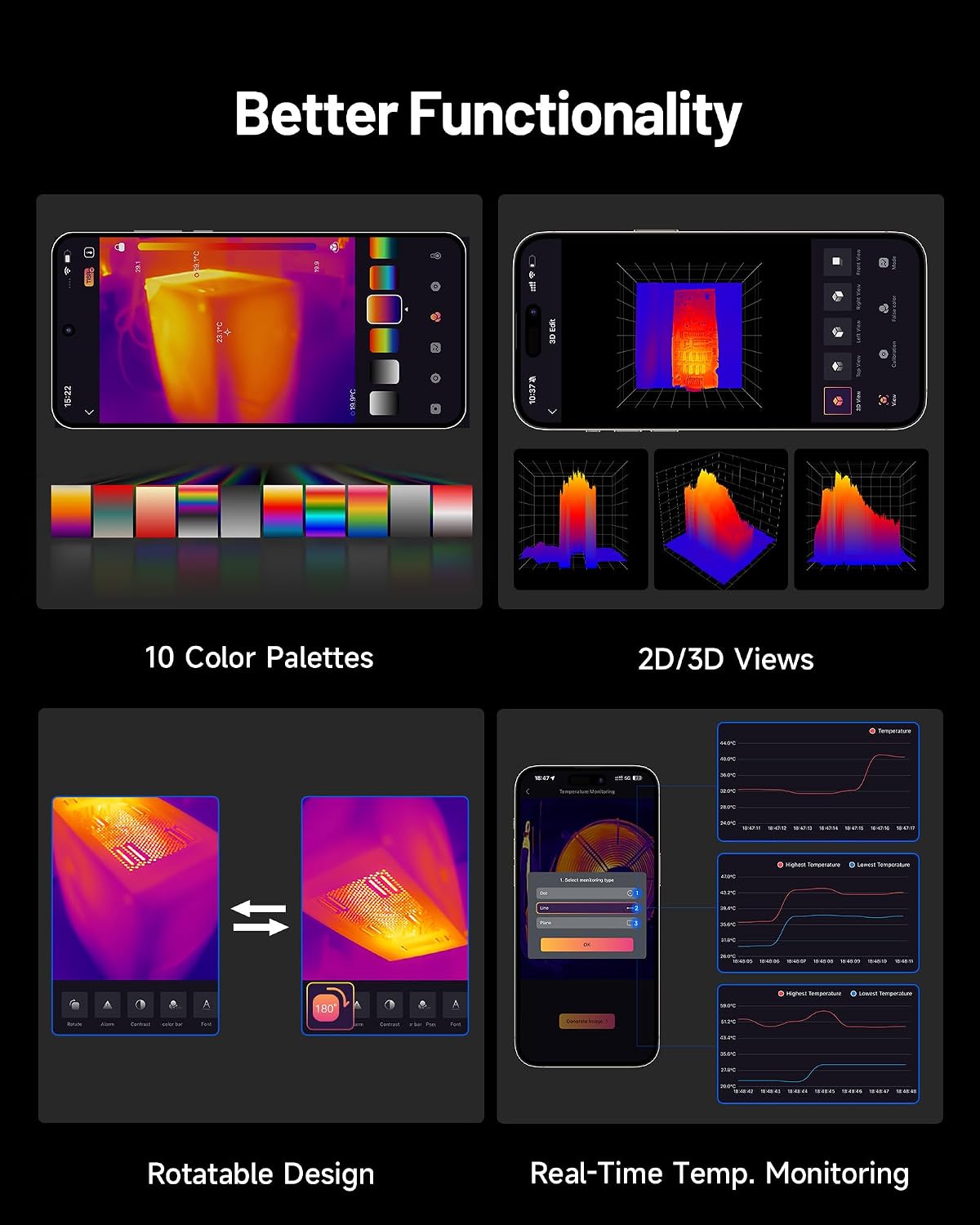

The dual-lens design combines infrared thermal imaging with visible light, helping put temperature readings in context. In practice, that means you can use the thermal view to scan a circuit board or check an HVAC area, then use the visible image to make the location easier to interpret. Multiple colour palettes, 3D temperature analysis and real-time graphs give you different ways to review the captured information.
How to use it

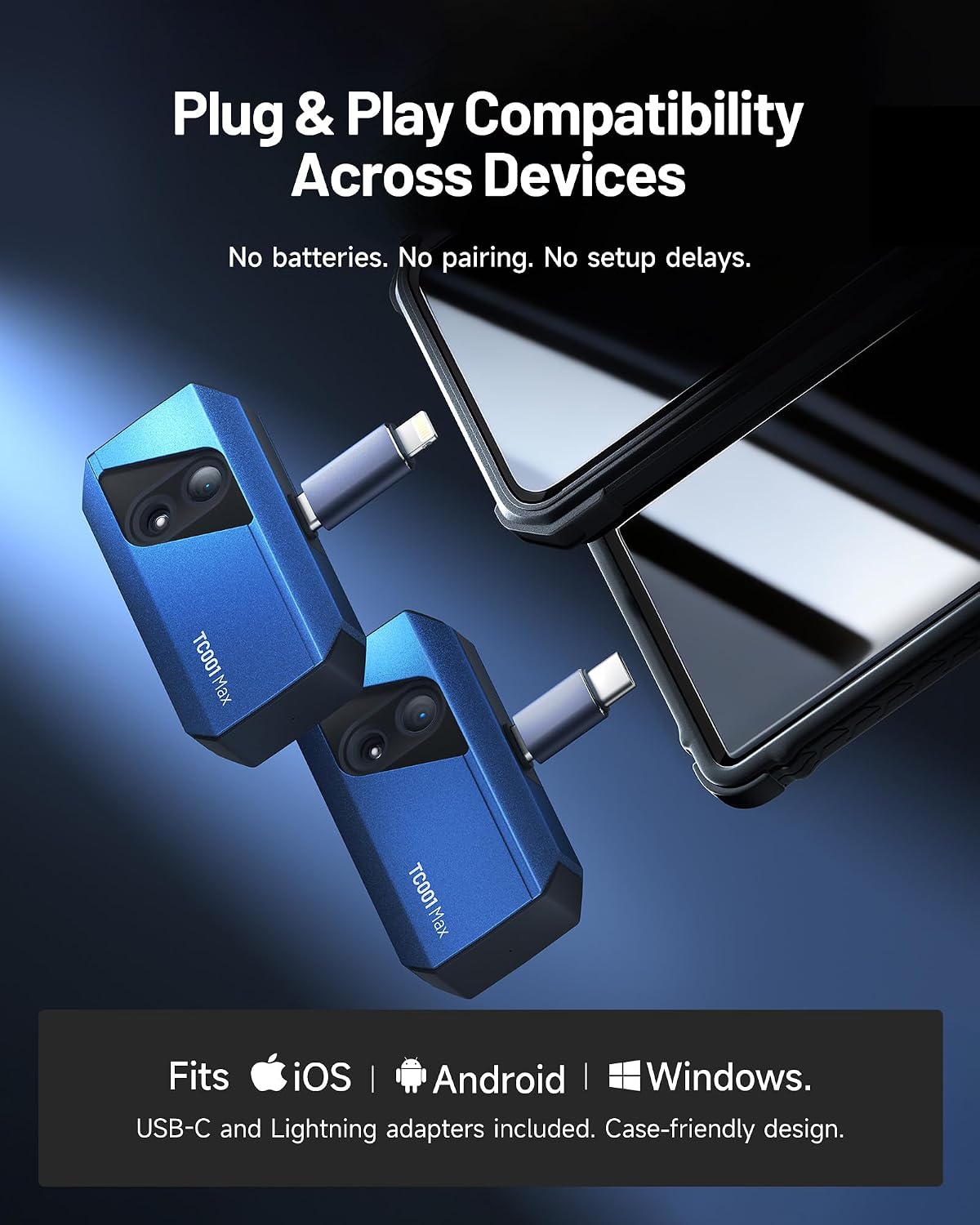

Connect the camera to a compatible phone using USB-C or the Lightning adapter, or use it with a Windows device. The plug-and-play connection requires no battery, charging or wireless pairing, and the case-friendly design works without removing most phone cases. Use the TopInfrared or TopView app to view thermal images, capture photos or video, and explore temperature information with the available analysis tools.
For a practical inspection, scan the area of interest and use the visible-light image to orient the thermal view. This approach is suited to tasks such as checking electrical components, tracing a possible leak or examining vehicle parts. The temperature range of -4°F to 1,022°F supports a broad variety of inspection scenarios, while the compact size is convenient when moving between locations.
Tips for day-to-day use
Keep the camera with your inspection kit so it is ready for quick checks around a home, workshop or vehicle. Choose a colour palette that makes the temperature pattern easy to read, then use the app’s photo or video capture when you want to review an observation later. Real-time graphs can help you follow temperature trends, and 3D analysis offers another way to examine the recorded data. For an inspection where a thermal-only image would leave the scene hard to identify, the visible-light lens adds useful visual context.
What to clarify
Which devices can it connect to? It is designed for USB-C and Lightning connections with compatible iPhone, iPad and Android devices, and it is also compatible with Windows devices. The appropriate connector depends on the device’s port.
What does TISR add to the image? The camera’s TISR technology enhances the 256 × 192 infrared resolution to 512 × 384, supporting a more detailed thermal view.

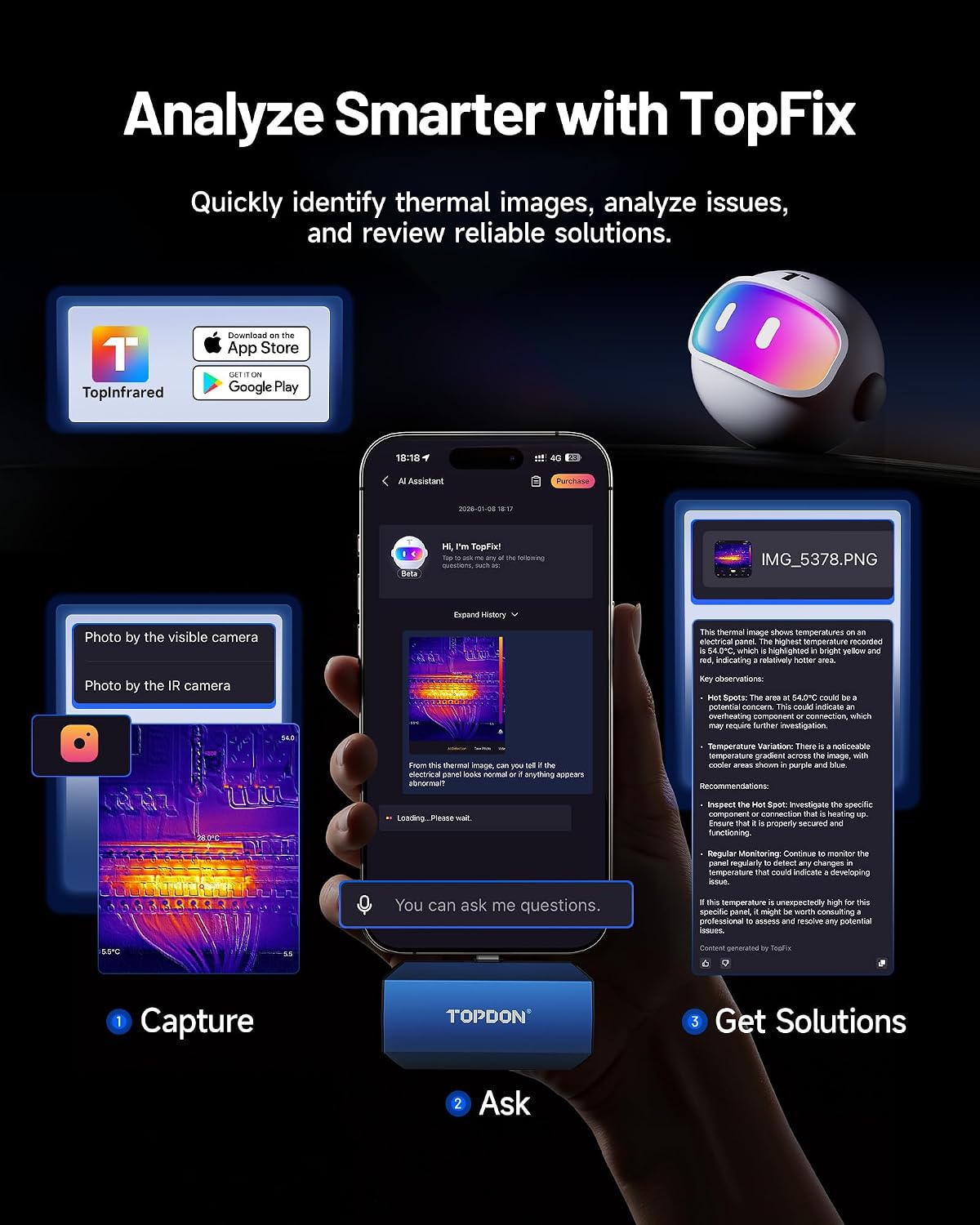

Can it save or analyse inspection results? The TopInfrared and TopView apps support photo and video capture, temperature analysis in 3D, real-time graphs and multiple colour palettes.
Final verdict
The TC001 Max is a practical fit for people who want a portable thermal camera that connects to their device and pairs heat imaging with a visible-light view. Its enhanced thermal resolution, broad temperature range and app-based capture and analysis tools make it useful for routine electrical, HVAC, PCB, leak and automotive inspections.
