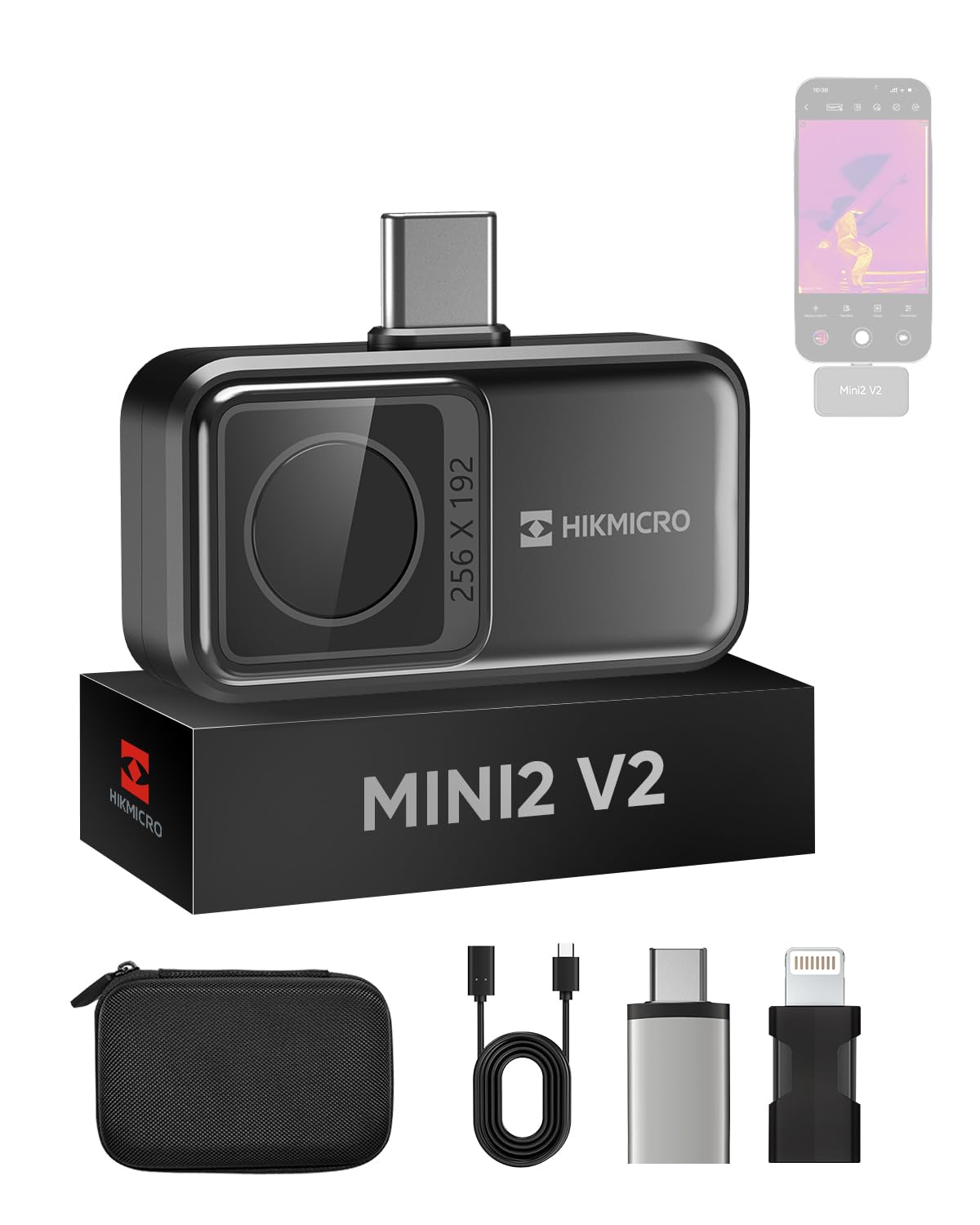

HIKMICRO Mini2 V2 Thermal Camera, 256 × 192 IR, SuperIR and 50° Lens

What you’ll notice day to day

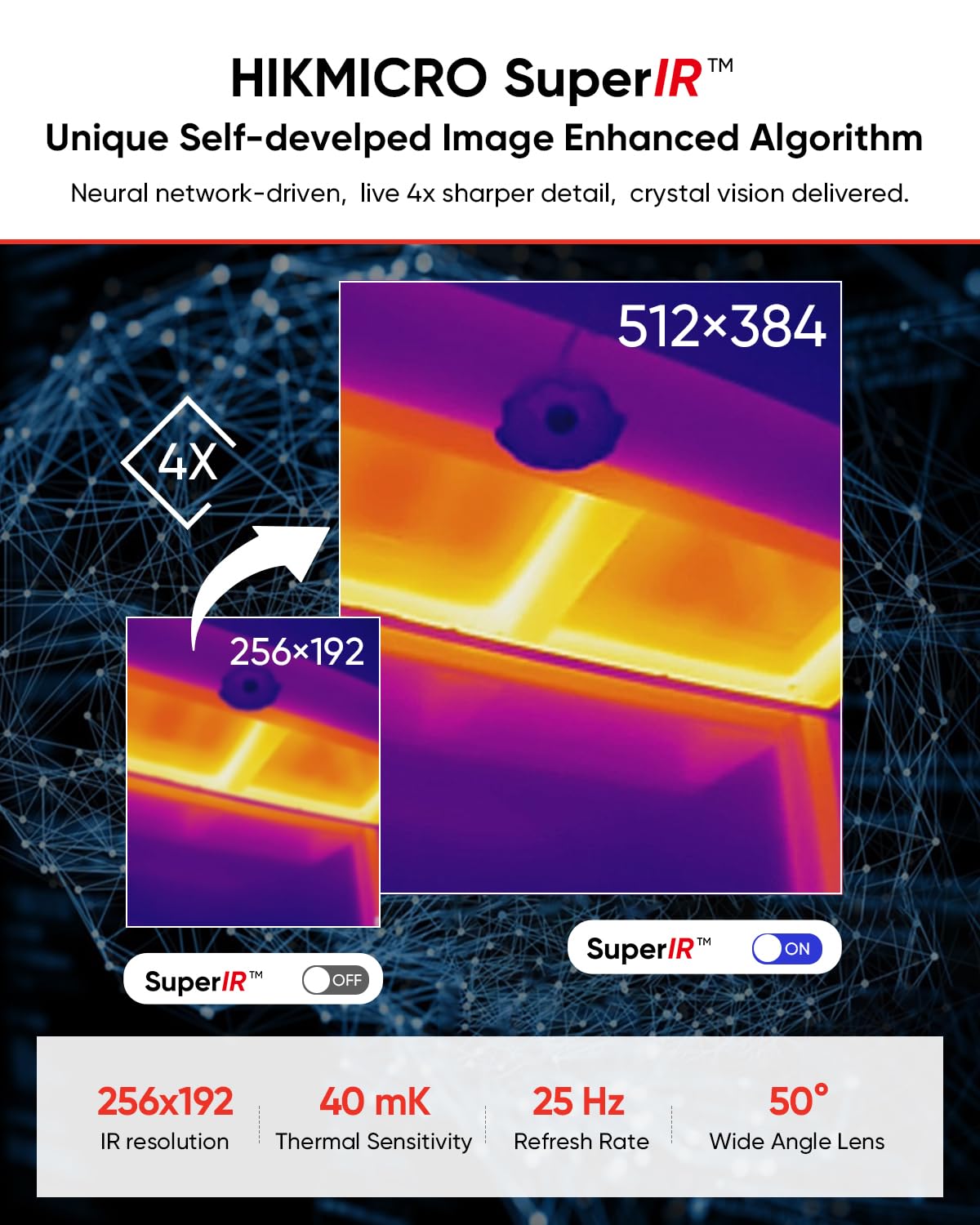

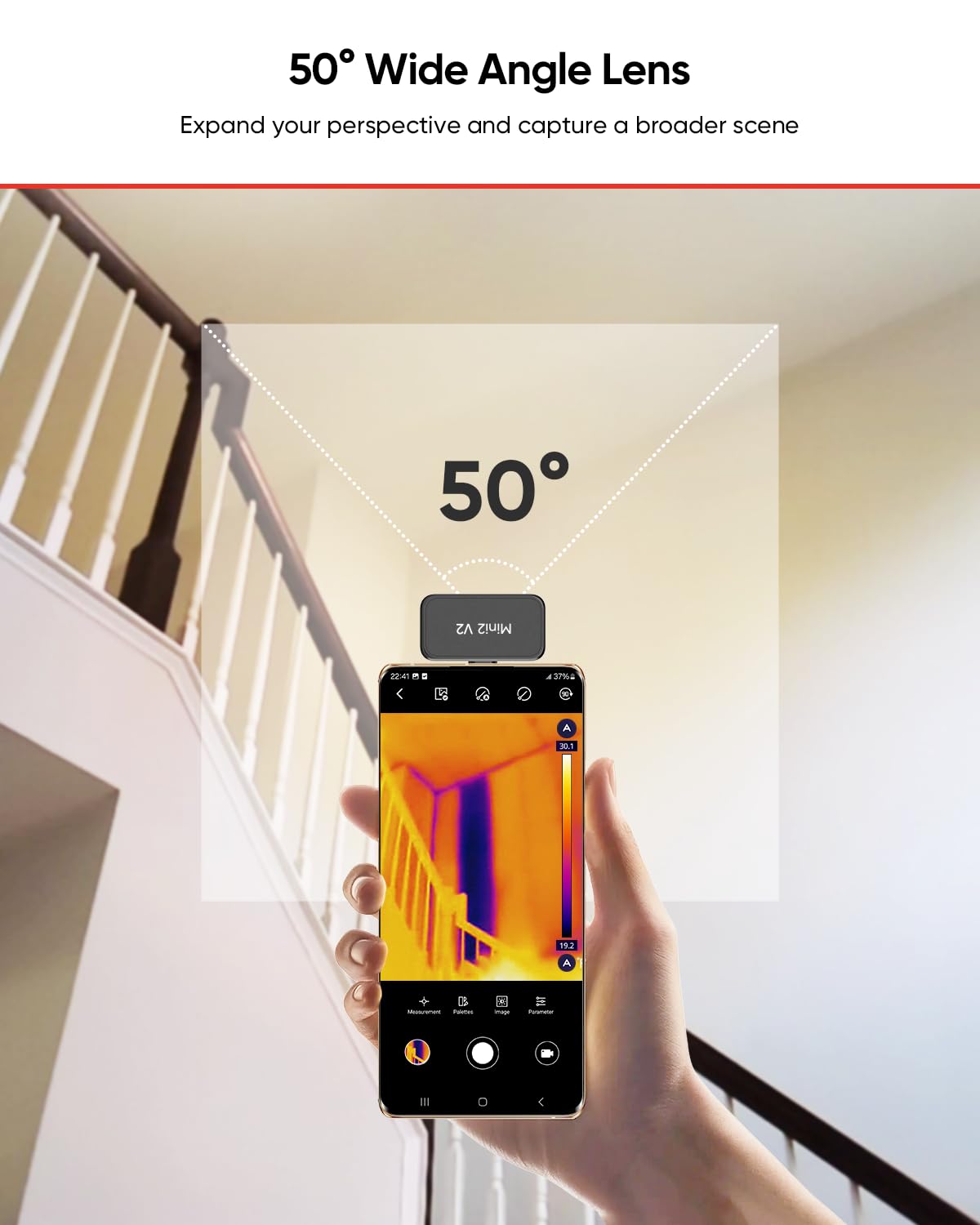

For home, automotive or electrical inspections where heat patterns can help guide a closer look, the HIKMICRO Mini2 V2 connects to a compatible phone or tablet to show thermal images as you work. Its 256 × 192 infrared resolution is enhanced to 512 × 384 with SuperIR, helping bring out edges and scene detail. The 50° wide-angle lens takes in a broader area, while the 25 Hz refresh rate supports a smooth view as you pan across a surface.

Use it to scan areas such as flooring, insulation, electrical equipment or solar panels for temperature differences that may warrant further inspection. SuperScene offers five preset scene modes, including options for water leaks, insulation, floor heating, electrical faults and solar panels. It is a practical alternative to a separate handheld thermal imager if you want to view and capture thermal images through a mobile device.

Worth noting

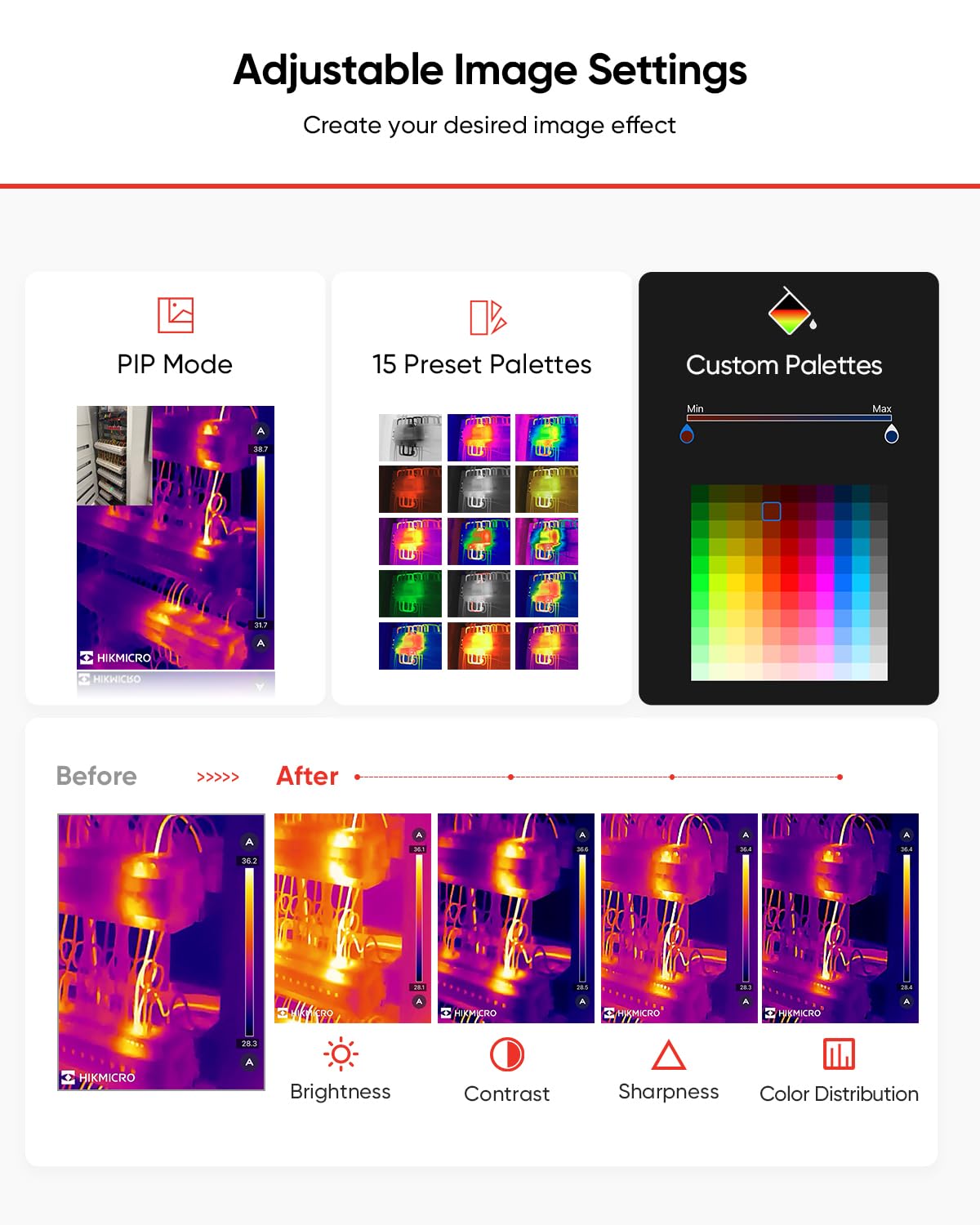

The camera measures from -20°C to 400°C, with stated accuracy of ±2°C/±3.6°F or ±2%, whichever is greater. Choose from 15 colour palettes and adjust sharpness, contrast, brightness and colour distribution to suit the scene. Measurement tools include automatic centre, hot-spot and cold-spot readings, along with custom spots and area measurements. Upper and lower temperature limits are also available.

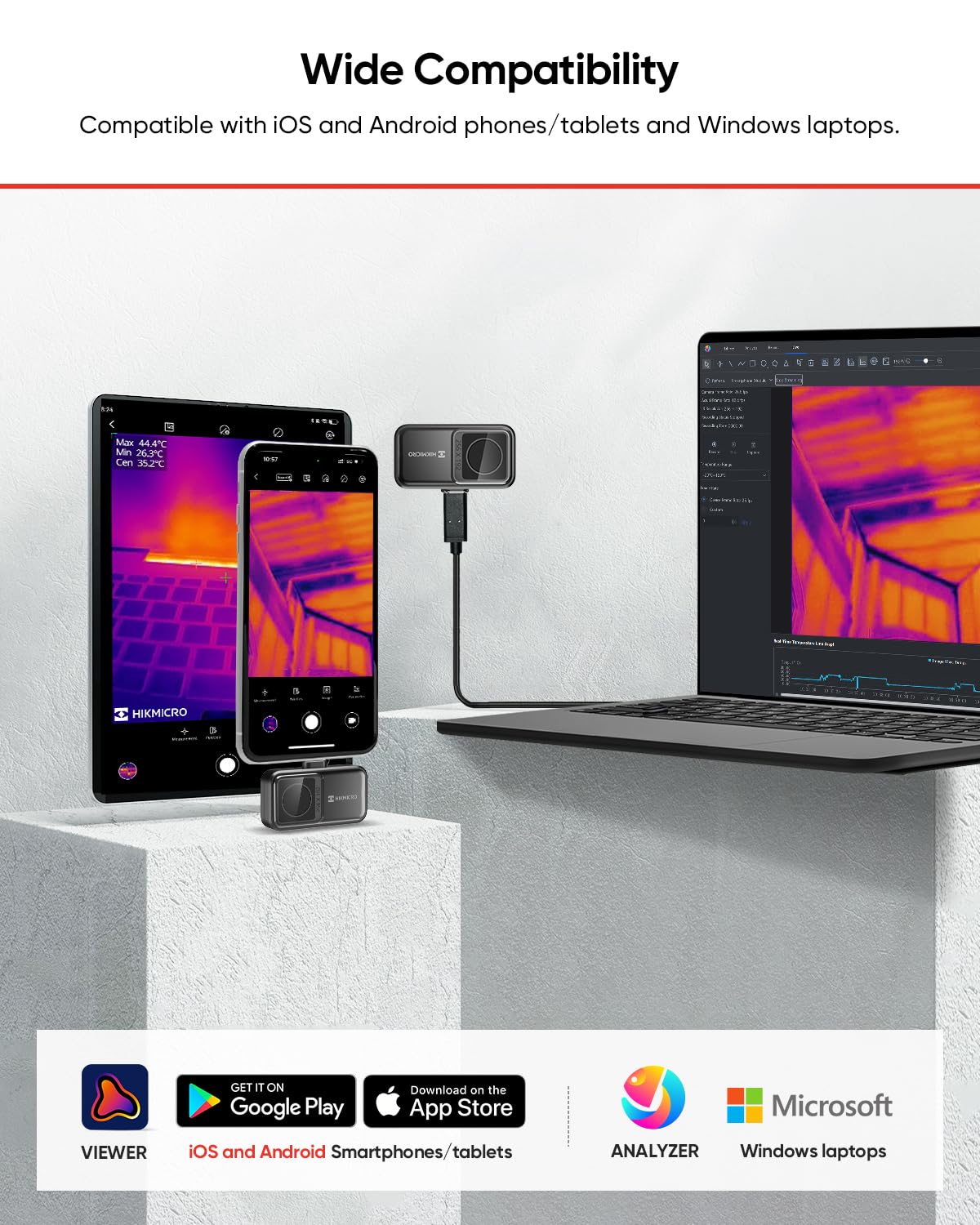

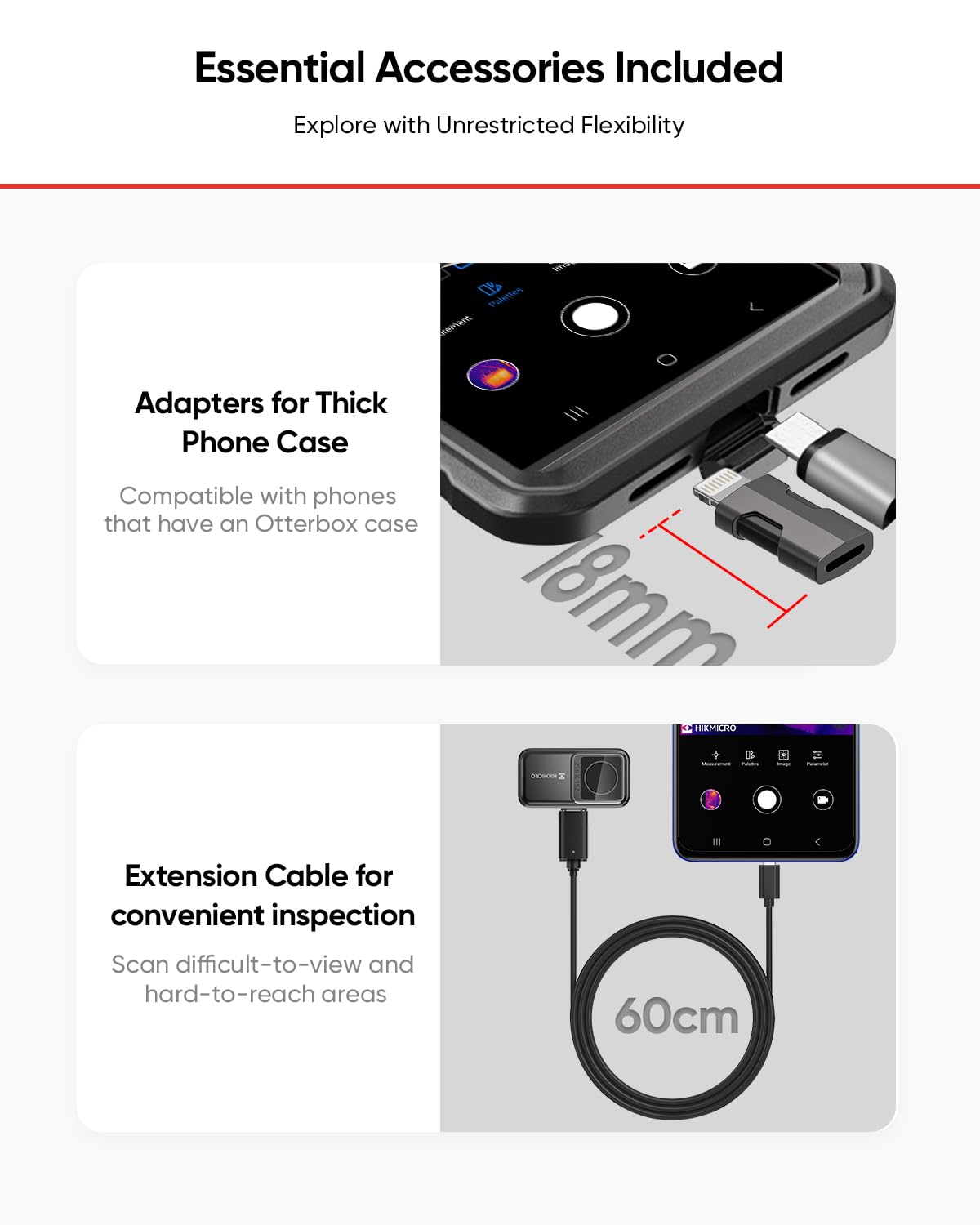

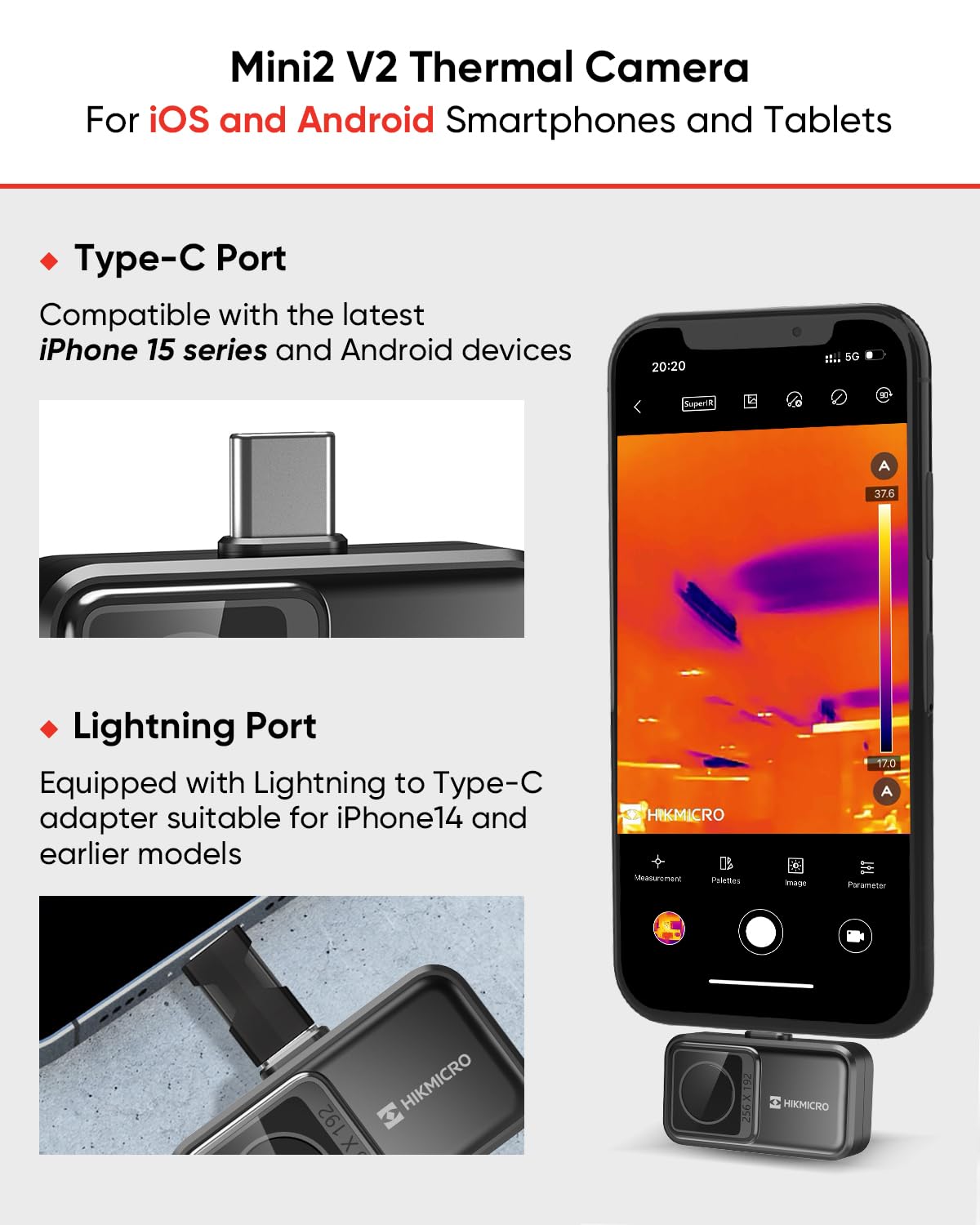

The Mini2 V2 has no battery and draws power from the connected device, its stated power consumption is 0.36W. It connects through USB-C or Lightning, with an adapter included, and supports Android and iOS phones and tablets. For the HIKMICRO Viewer app on Android, enable OTG, connect the camera and approve the connection permission. When using the extension cable, do not combine it with an adapter, as this can cause a connection failure. JPEG and video capture are available, and HIKMICRO Analyzer for Windows adds image management, batch analysis, real-time monitoring and report creation.

Buyers often praise the image clarity, thermal views and straightforward setup. Feedback is mixed on device compatibility and power draw, so match the connector to your device and follow the app’s connection steps before an inspection.

Practical tips

Start with a broad scan, then use the spot or area tools to examine a temperature difference more closely. For readings, adjust the object’s emissivity and distance as appropriate, these settings can help tailor measurement to the subject. Select a colour palette that makes the heat pattern easy to interpret, and use the scene presets to get started with common inspection tasks.

A thermal image shows temperature differences at the visible surface. Use it to help direct attention to an area, then assess the finding in context rather than treating a heat pattern alone as a diagnosis. During a scan, the camera may briefly pause and click while calibrating, this is a normal image-optimization process.

When it makes sense

It suits you if you want a compact phone-connected thermal camera for exploratory checks around a home, vehicle or electrical installation. The wide-angle view helps cover more of a surface at once, while SuperIR enhancement, adjustable palettes and measurement tools give you ways to inspect and record the thermal picture. For anyone comparing mobile thermal cameras with standalone units, the Mini2 V2’s clear appeal is using a compatible phone or tablet as the viewing and capture platform, with scene presets to make common inspection work more approachable.
