URAQT 12V LED Driver 200W 12V transformer for strip lights 🔌
Reviews
Product description

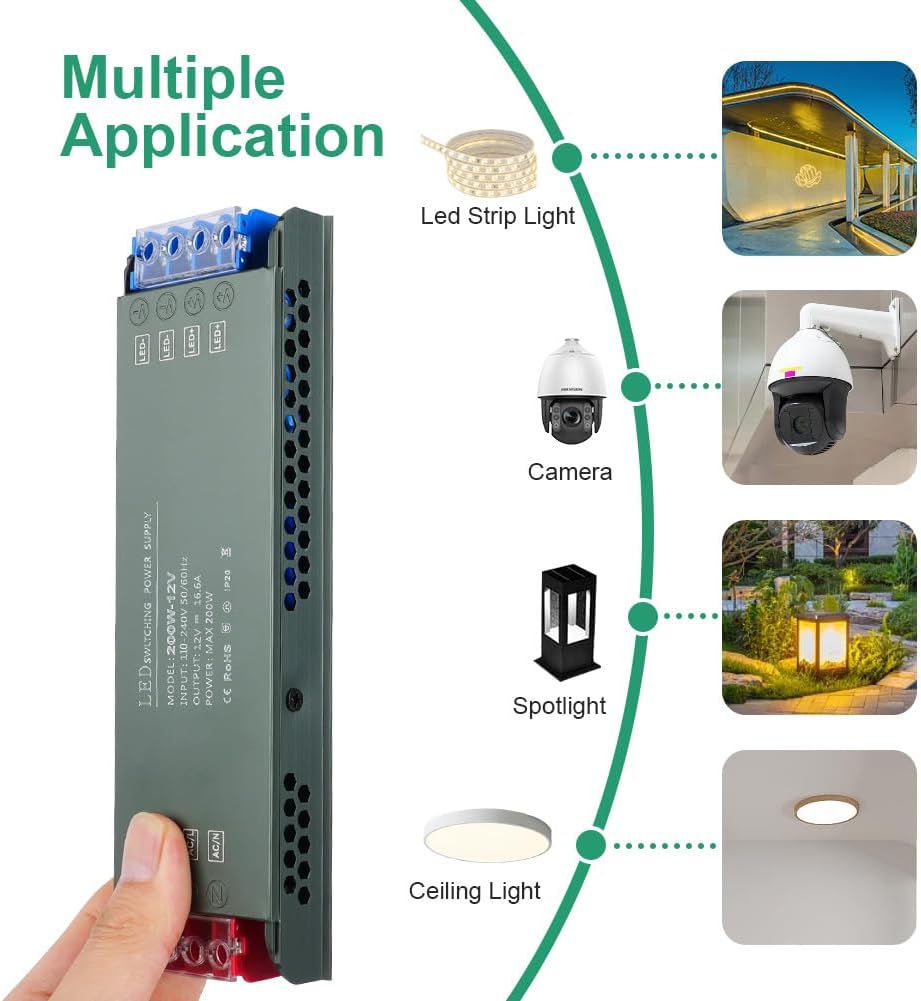

This compact 12V LED driver from URAQT delivers steady low-voltage power for strip lights and small LED installations, combining a 200W capacity with a slim aluminium housing that fits into tight spaces and concealed locations. It is intended for interior lighting, garden accent lights and signage where a reliable 12V DC supply and discreet installation are needed.
Key Points

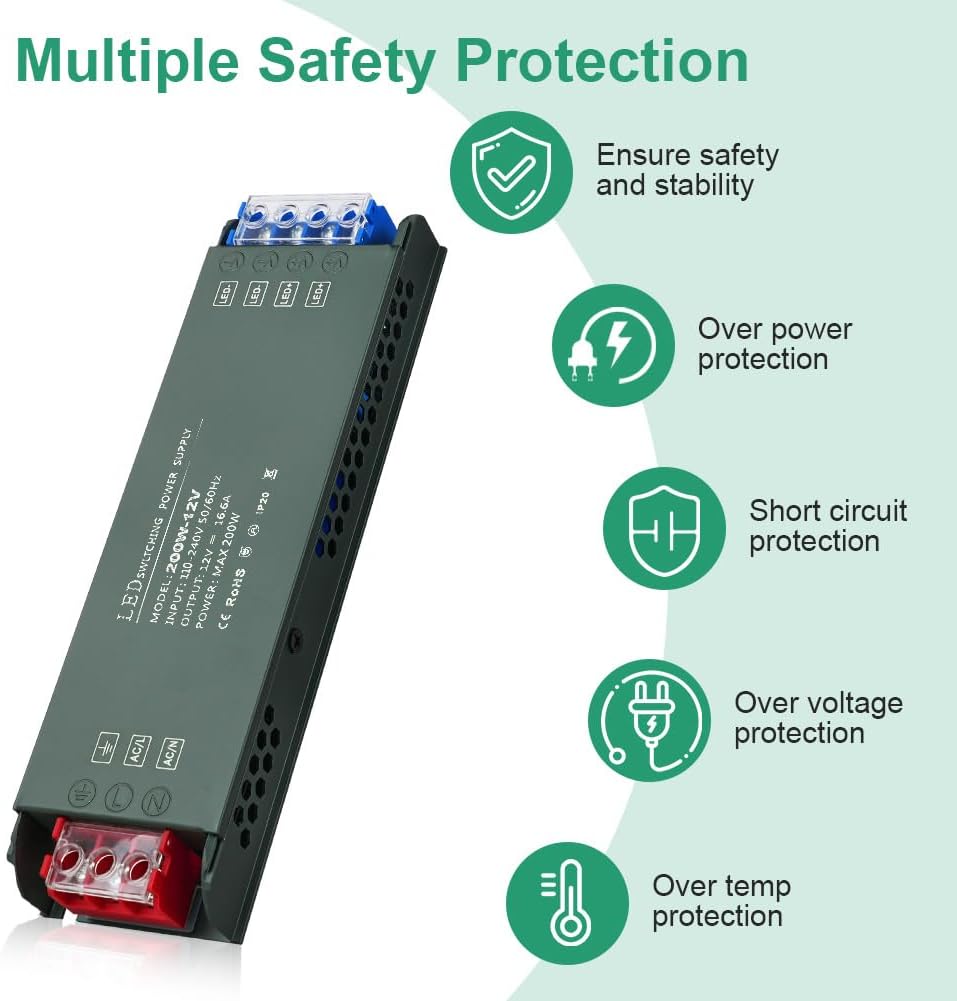

The unit accepts an input range of 110–240V AC at 50/60 Hz and provides a 12V DC output rated at 16.6A, with a maximum power of 200W. According to the manufacturer, this is a constant-voltage transformer and it is not dimmable. The driver includes protections against overvoltage, overheating, overcurrent and short circuits, which helps protect connected LED loads. Consider that the manufacturer recommends keeping the load below 80% of maximum capacity to preserve efficiency and extend service life.

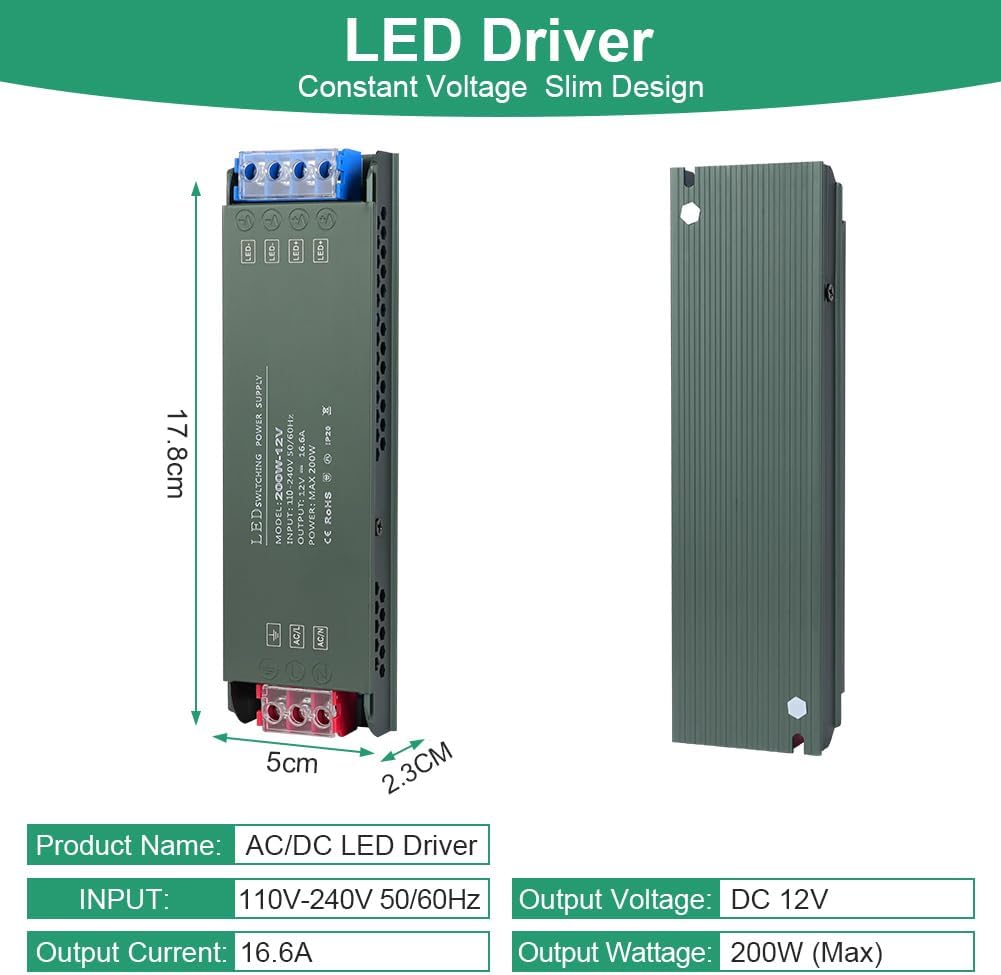

Technical Specifications
Name: URAQT 12V LED Driver 200W
- Input voltage: 110–240V AC 50/60 Hz
- Output voltage: 12V DC 16.6A
- Maximum power: 200W
- Thickness: 23 mm
Usage Recommendations

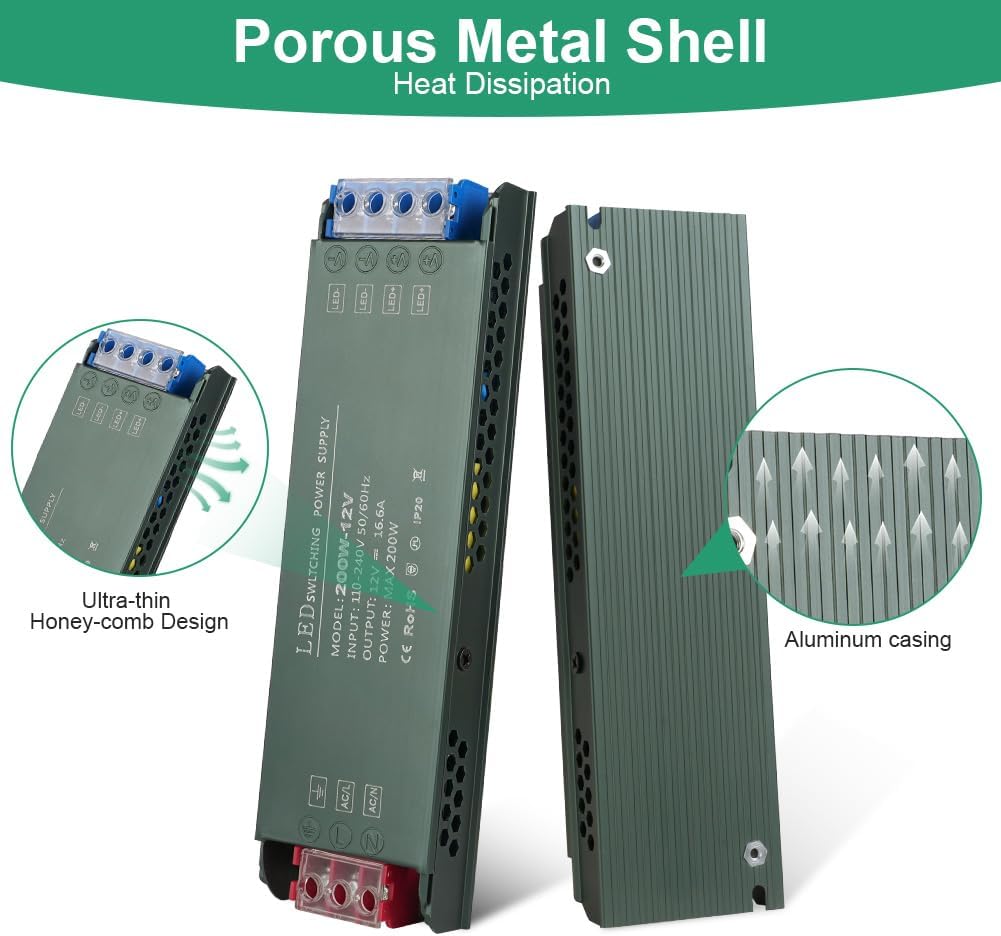

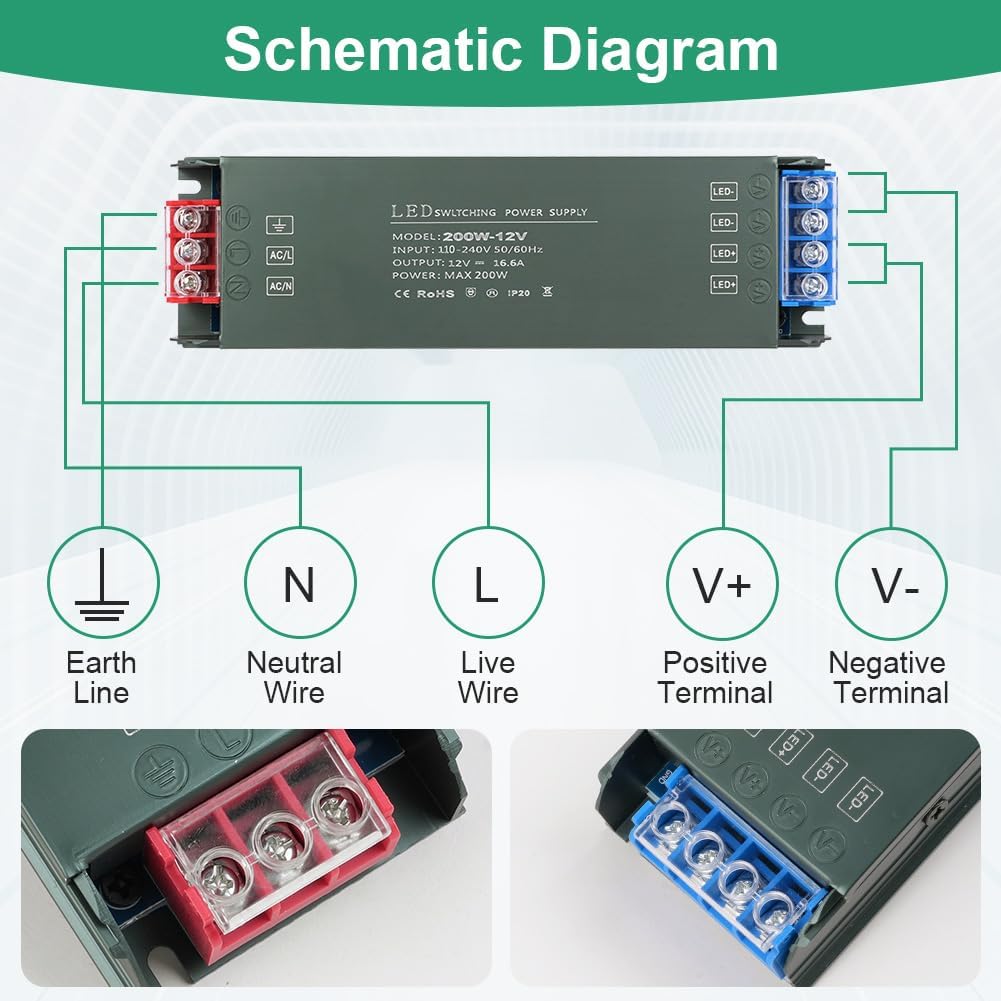

Install the transformer in a ventilated, dry area or mount it on a wall to benefit from the honeycomb-style ventilation and aluminium shell that aid heat dissipation. Wiring is parallel-friendly and the labelled input and output terminals make connections straightforward, which reduces installation time and confusion. For long-term reliability, allow space around the unit for airflow and avoid enclosing it in fully sealed cabinets.
Advantages

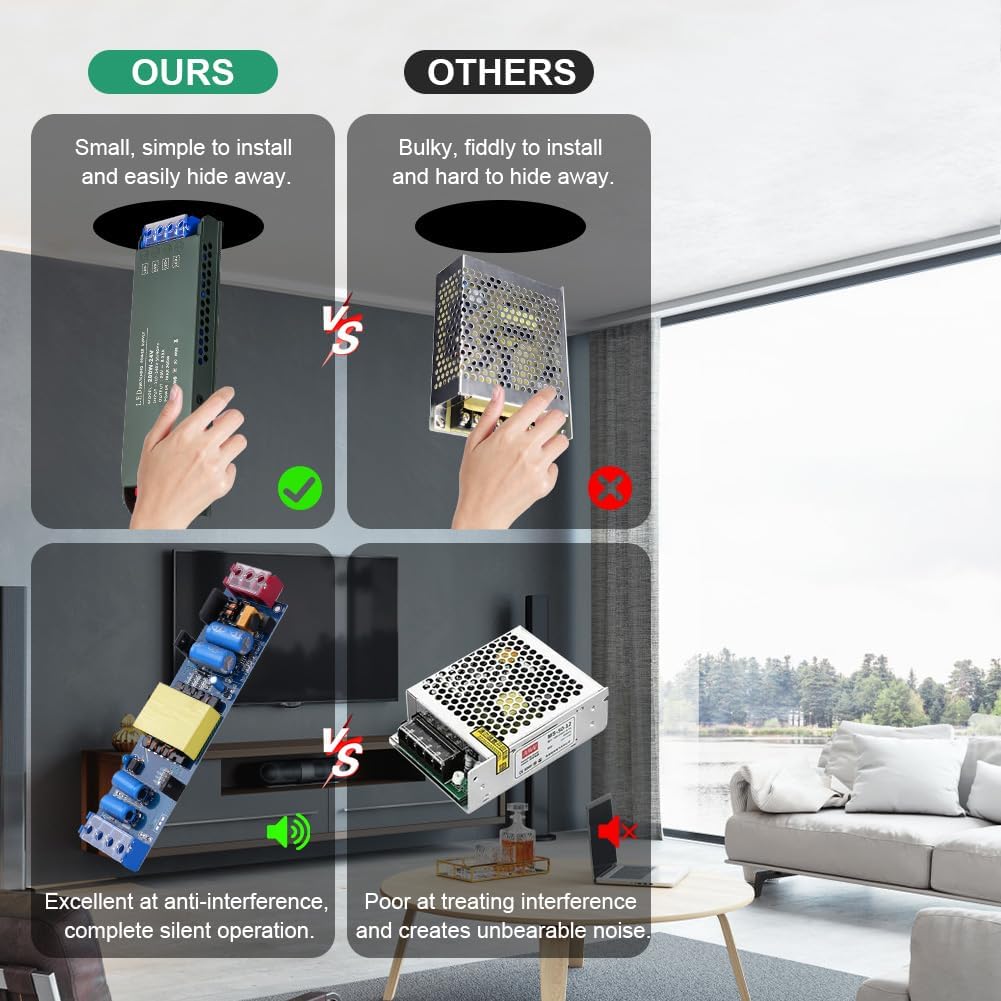

The slim profile makes it easy to hide behind cabinets or within solid fixtures while still providing a substantial power reserve for longer LED runs. Internal components include a copper coil for improved conductivity and expected longevity compared with cheaper aluminium-wound designs. There is minimal audible noise and no noticeable flicker reported according to the product details, which is useful for lighting used in living areas and camera-equipped spaces.
Price evolution
Description:
This compact 12V LED driver from URAQT delivers steady low-voltage power for strip lights and small LED installations, combining a 200W capacity with a slim aluminium housing that fits into tight spaces and concealed locations. It is intended for interior lighting, garden accent lights and signage where a reliable 12V DC supply and discreet installation are needed.
Key Points
The unit accepts an input range of 110–240V AC at 50/60 Hz and provides a 12V DC output rated at 16.6A, with a maximum power of 200W. According to the manufacturer, this is a constant-voltage transformer and it is not dimmable. The driver includes protections against overvoltage, overheating, overcurrent and short circuits, which helps protect connected LED loads. Consider that the manufacturer recommends keeping the load below 80% of maximum capacity to preserve efficiency and extend service life.
Technical Specifications
Name: URAQT 12V LED Driver 200W
- Input voltage: 110–240V AC 50/60 Hz
- Output voltage: 12V DC 16.6A
- Maximum power: 200W
- Thickness: 23 mm
Usage Recommendations
Install the transformer in a ventilated, dry area or mount it on a wall to benefit from the honeycomb-style ventilation and aluminium shell that aid heat dissipation. Wiring is parallel-friendly and the labelled input and output terminals make connections straightforward, which reduces installation time and confusion. For long-term reliability, allow space around the unit for airflow and avoid enclosing it in fully sealed cabinets.
Advantages
The slim profile makes it easy to hide behind cabinets or within solid fixtures while still providing a substantial power reserve for longer LED runs. Internal components include a copper coil for improved conductivity and expected longevity compared with cheaper aluminium-wound designs. There is minimal audible noise and no noticeable flicker reported according to the product details, which is useful for lighting used in living areas and camera-equipped spaces.
