PoE+ switch 5 ports 100Mbps PoE+ 52W

The essentials

A Goalake PoE+ switch is a practical way to power and connect compatible network devices with fewer wall adapters. With 4 PoE ports and a dedicated uplink, this 5 port 100Mbps switch is set up for mixed needs where you want PoE for devices like IP cameras and a separate path to your NVR or internet connection. It supports 802.3af and 802.3at standards, so it can work with a range of PoE devices, while still allowing you to pass data to non-PoE equipment.

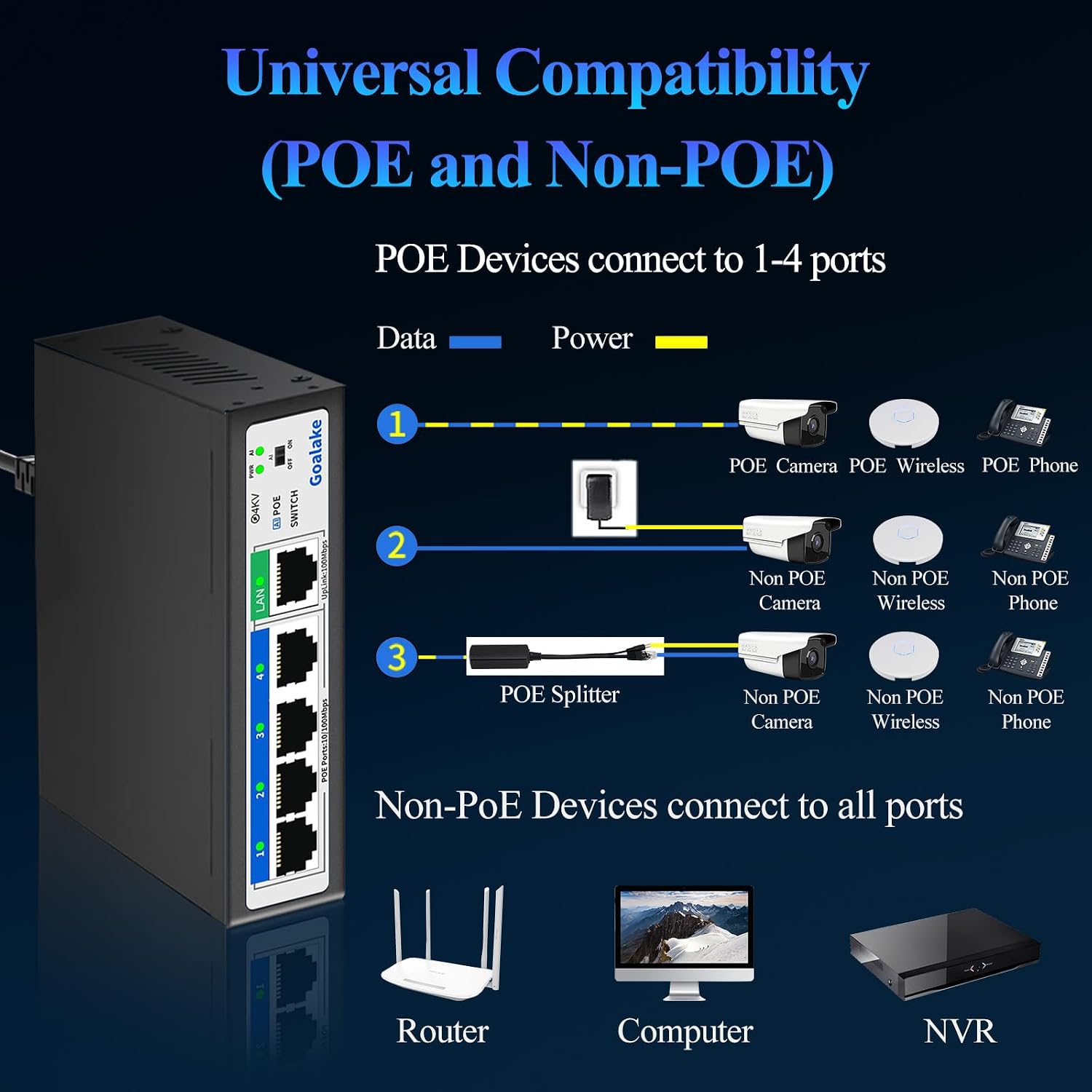

If you are building or expanding a small surveillance or access point setup, this model focuses on keeping things tidy and reliable. It also includes an AI extended reach mode that can increase distance beyond typical Ethernet runs, which is helpful when a camera point is not near a power socket. 🛡️ Keep in mind that PoE works only for compatible powered devices, and passive PoE devices or non-PoE devices need separate power.

Key features

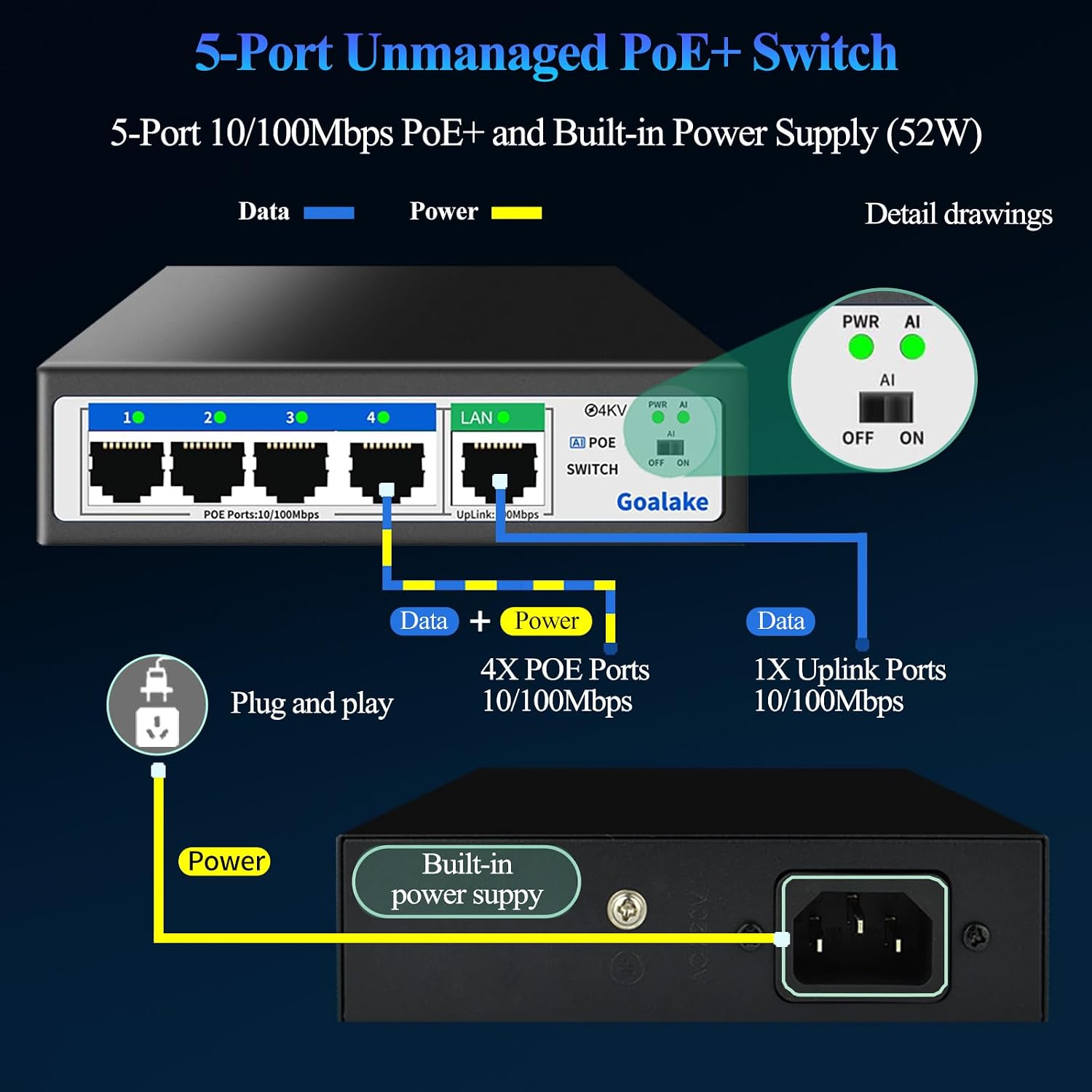

This is an unmanaged desktop or wall mount PoE switch, designed to be straightforward in everyday installations. It provides PoE power across the 4 PoE ports plus one uplink port, so you can connect end devices while sending traffic onward. The fourth port can be used either as a PoE port or as an uplink port, giving you flexibility when your layout is tighter or when you need the uplink option at the edge of the network. For setups that include NVR, the uplink port is described as a good fit for connecting your NVR and internet access.

Why the PoE budget matters

The PoE power budget is rated at 52W across all PoE ports, with up to 30W per port as stated for the 100M configuration. In practical terms, this helps you plan how many cameras or other PoE peripherals you can run from the switch at once. The switch supports 4KV lightning protection, with a professional lightning protection design described for both port and power supply. That kind of protection can be valuable in monitoring environments where cables may run outdoors or through exposed routes. ⚡

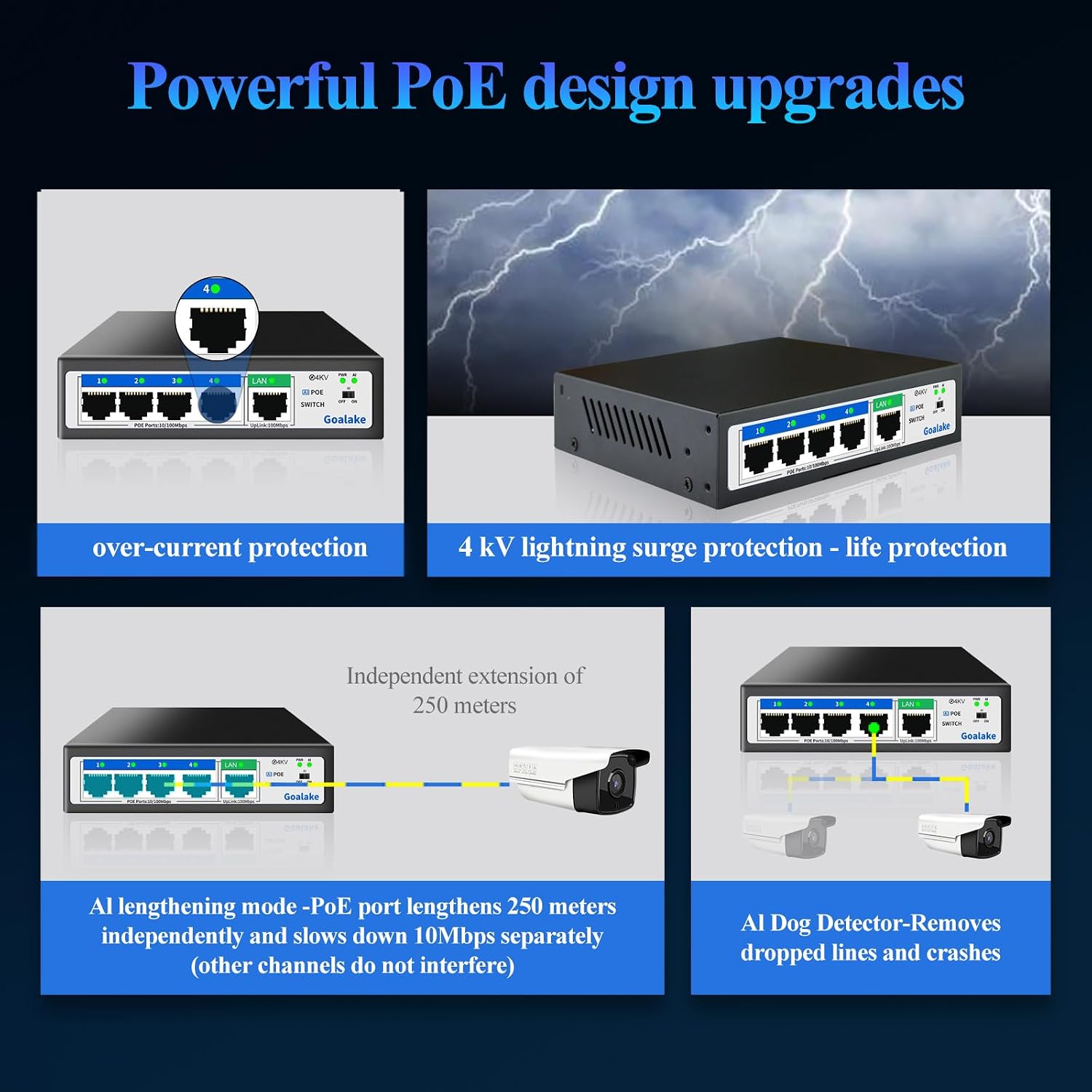

AI extended distance and watchdog behaviour

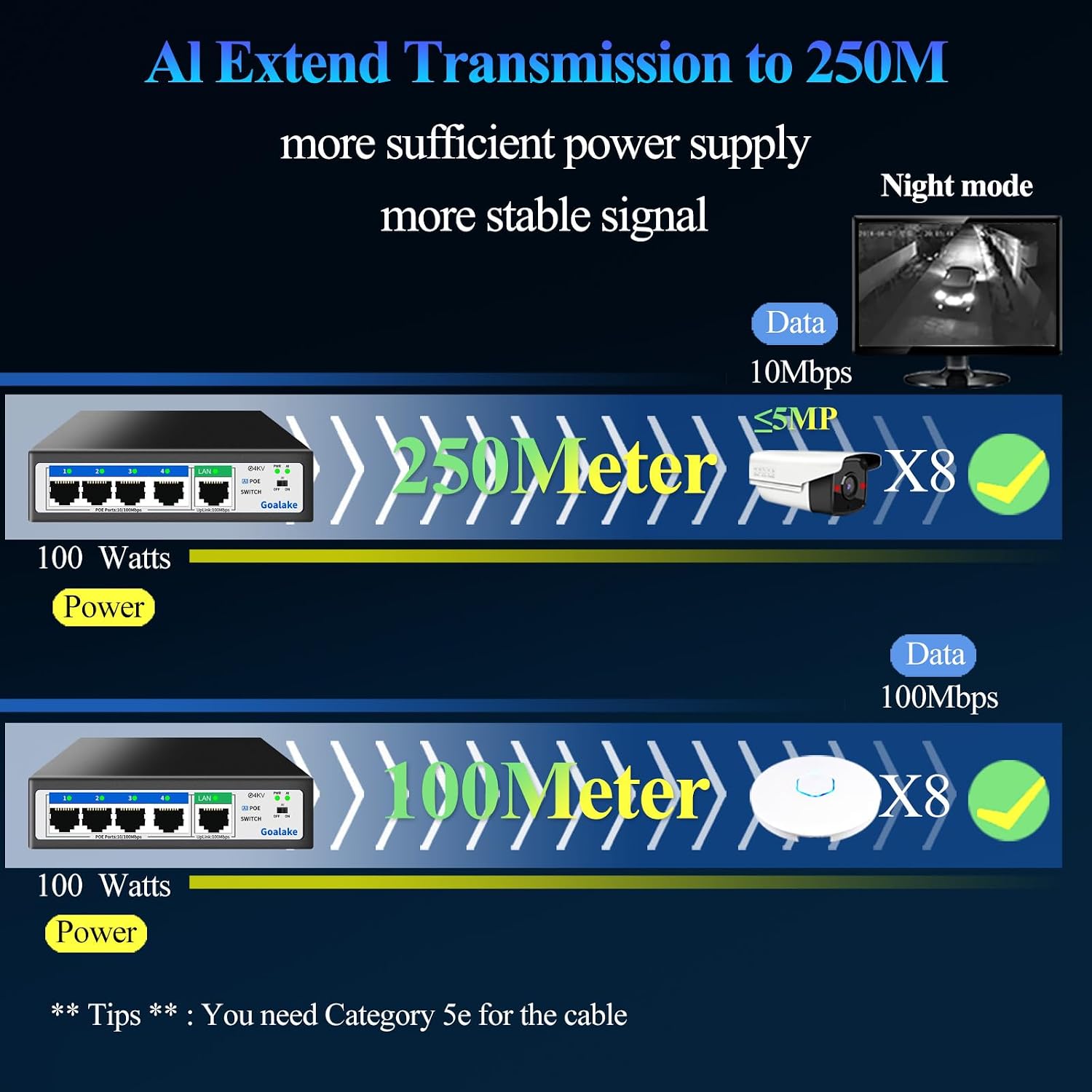

The switch includes an AI extended function that is said to extend max transmission distance from 100 metres to 250 metres when AI mode is enabled, based on the stated PoE port judgement and real-world conditions. The described AI mode uses an ultra-long distance mode at 820ft and 10Mbps, which can help when you are extending a cable run to places without a power supply but with fixed devices such as IP cameras. There is also an AI watchdog function, where the PoE port can automatically detect abnormal data or electrical transmission between the PoE port and the terminal device and restart the connection for that port. This can reduce manual intervention when a link becomes unstable.

A simple way to think about it is: use PoE ports for compatible powered devices, use the uplink for where the network needs to go next, and turn on AI mode when your run length is longer. It’s a sensible fit if you want an all-in-one PoE switch for small scale monitoring and access point setups, without extra configuration steps. 📷

Tech specs

• Name: Goalake PoE+ Switch 5 Port 100Mbps
• Type: PoE switch, unmanaged
• Supported PoE standards: 802.3af and 802.3at
• PoE ports: 4 PoE ports plus 1 uplink port
• PoE power budget: 52 W total PoE budget
• Data speed: 100 Mbps
• Lightning protection: 4KV port and power supply lightning protection design

Who it’s for

It’s a good fit if you are setting up or expanding a compact network monitoring system and you want PoE to power compatible devices and carry data over the same Ethernet connection. It suits practical installs where you need desktop use or a wall mount option, and where an uplink port is used to connect your NVR and internet path. It makes sense if your devices meet the 802.3af or 802.3at requirements, and you prefer a switch that is described as unmanaged for simpler deployment.

It may not suit you if you plan to connect passive PoE devices or non-PoE devices that require separate power, since the PoE power delivery will not apply in those cases. It might not be a great match if you need higher than 100Mbps switching, because this model is described around 100M Ethernet operation. If you are dealing with longer cable runs, the AI mode approach can be helpful, but the extended distance is tied to the stated ultra-long distance mode and real conditions.
