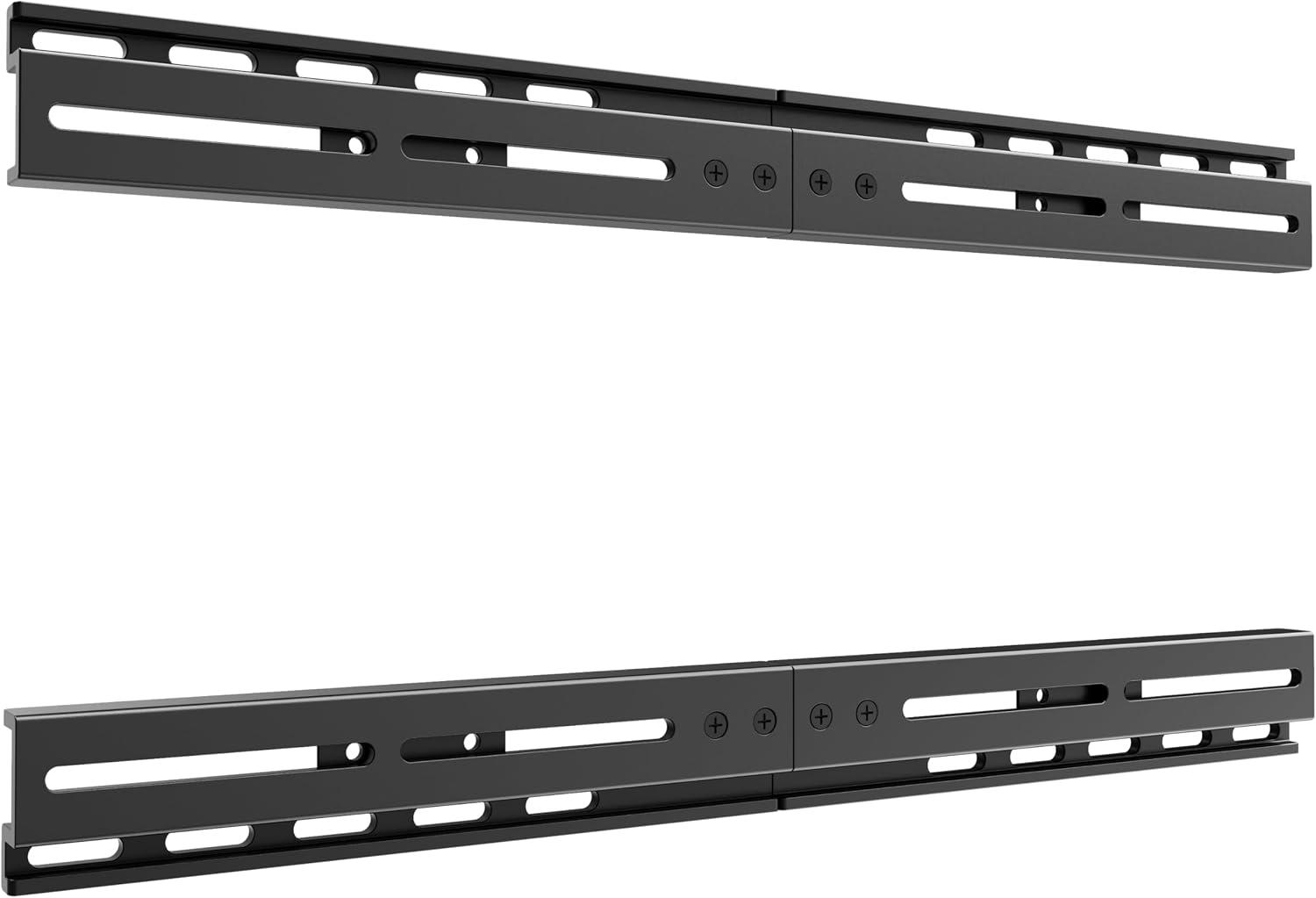

USX MOUNT XAS702 TV Mount Extension Bracket, 16–24-Inch Wood Studs
Product description
When an existing TV wall plate needs to work with a different stud spacing, an extension bracket can help adapt the installation without changing the focus to an entirely new mount. The USX MOUNT XAS702 is designed for wall plates 16 inches or smaller and wood studs spaced 16–24 inches apart.

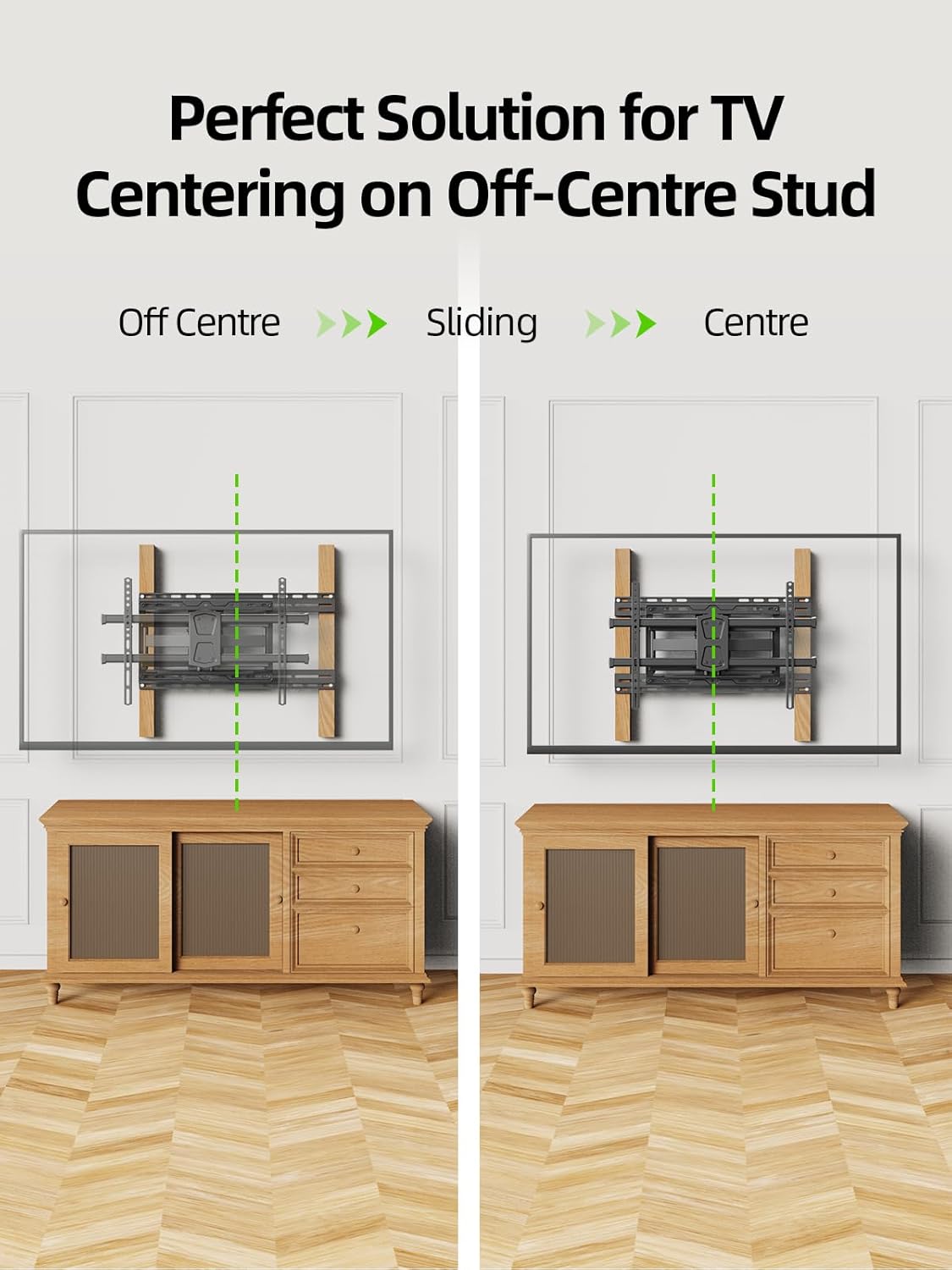

Its side-to-side adjustment helps position the TV more centrally, with 8 inches of space for centering. That added flexibility is useful when the stud layout and the preferred screen position do not line up neatly.
Need to align the screen while keeping the installation anchored to the studs? This bracket is made for wood-stud installation and supports a maximum load of 154 pounds.

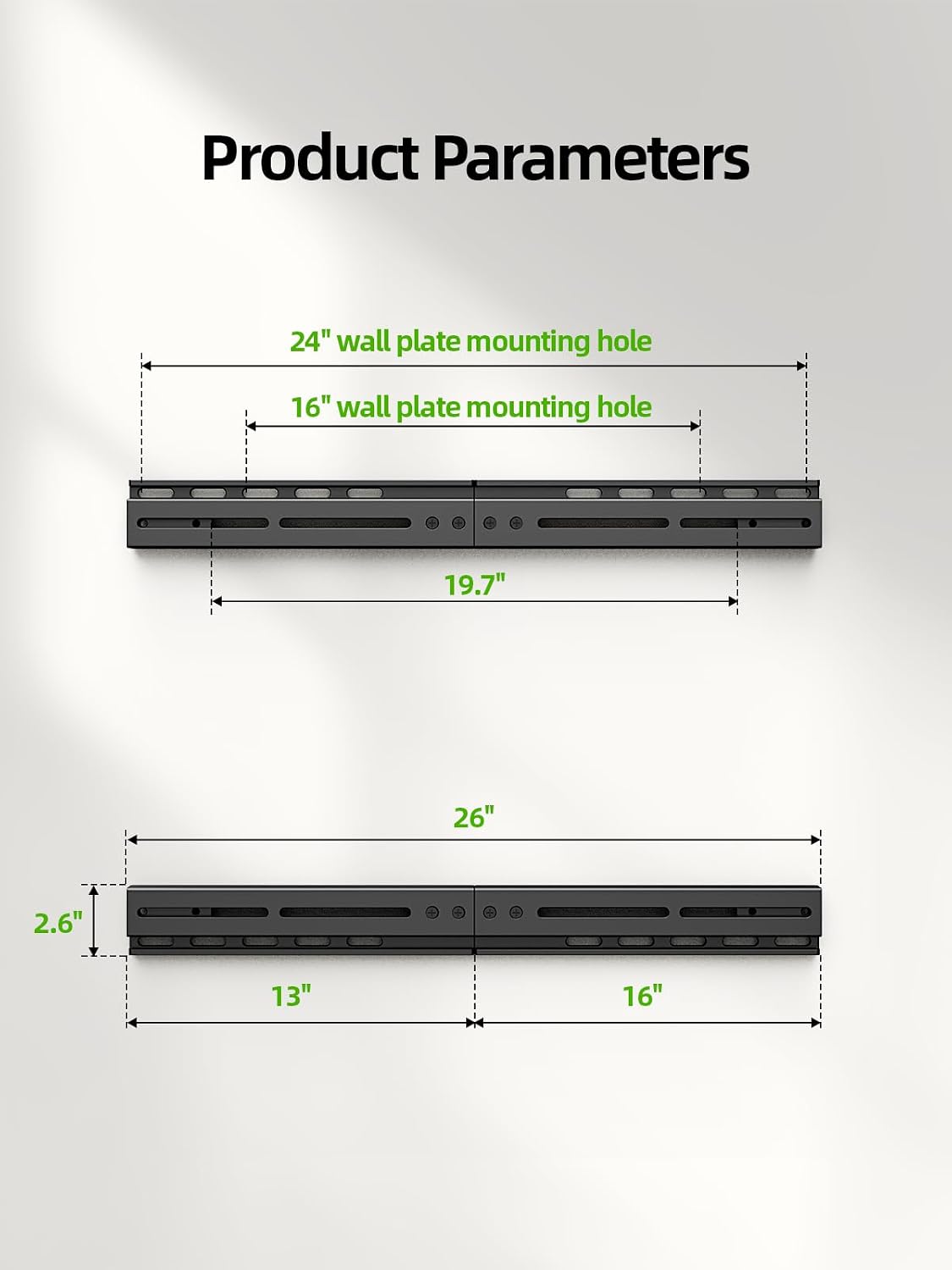

Tech specs
- Type: TV mount extension bracket
- Material: Alloy steel
- Color: Black
- Compatible wall plate: 16 inches or smaller
- Wood stud spacing: 16–24 inches
- Centering adjustment space: 8 inches
- Maximum load capacity: 154 pounds
- Model: XAS702
The key fit is the combination of a wall plate 16 inches or smaller and wood studs within the stated spacing range. The bracket is intended for wood-stud installation, it is not designed to be installed on drywall alone. Its stationary mounting type suits installations where the goal is to adapt the mounting position and center the TV, rather than add movement to the screen.
How to use it

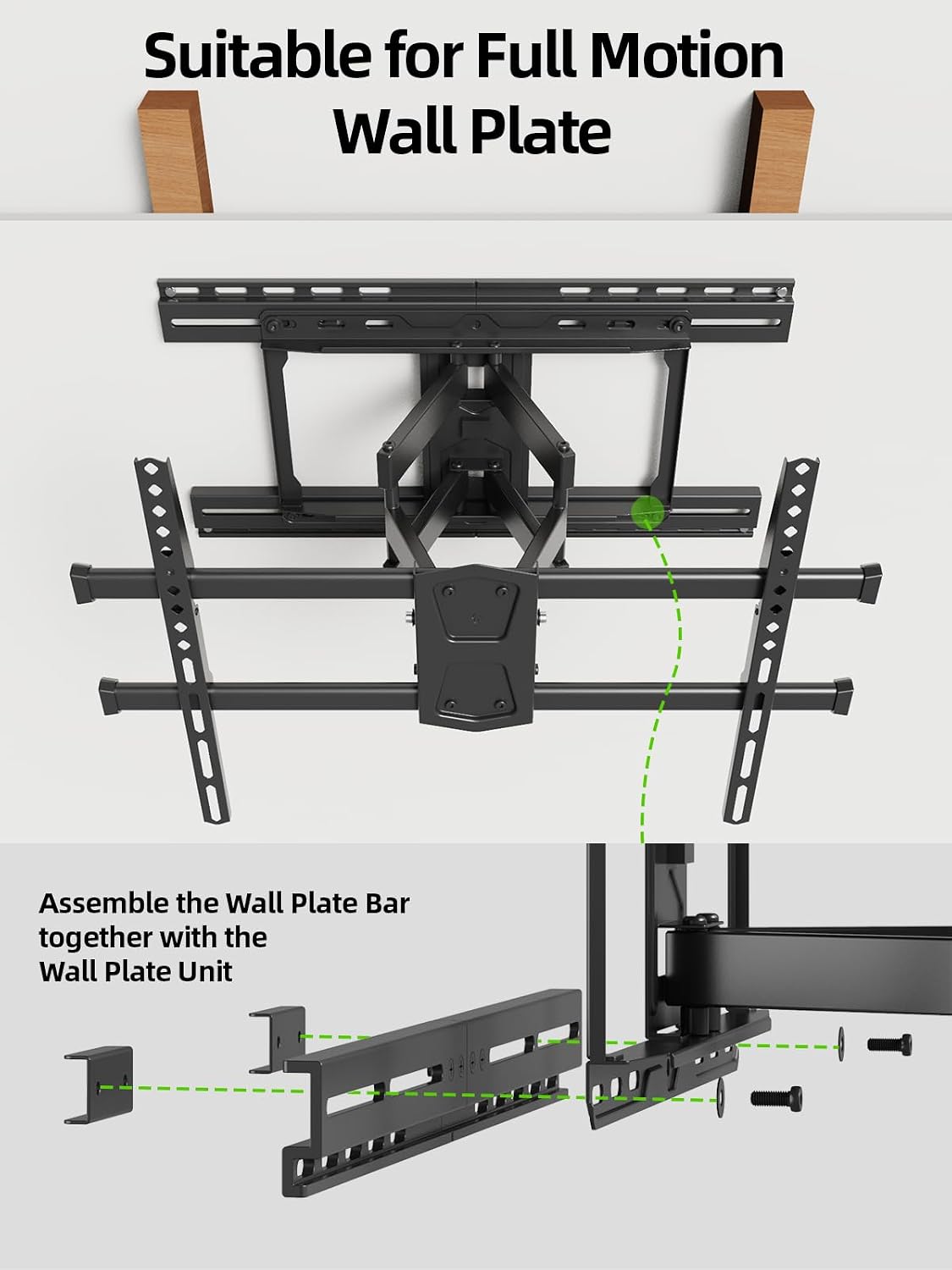

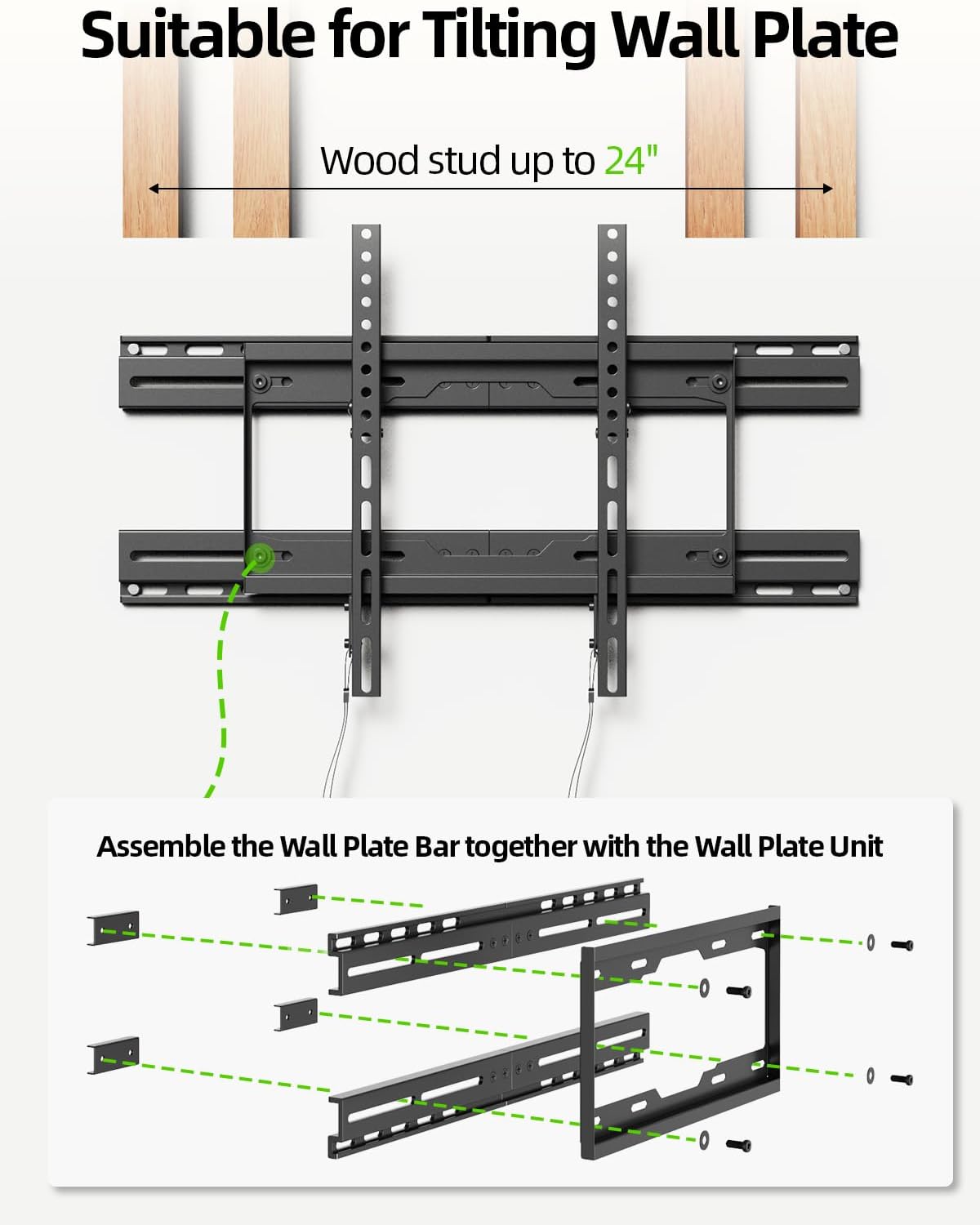

Use the XAS702 as an extension for a compatible TV wall plate when the available stud spacing calls for adjustment. Secure the installation to wood studs, then use the sliding block to adjust the position and center the TV. The pre-labeled hardware package supports a more organized installation process, while the available adjustment gives flexibility to place the screen where it works best in the room.

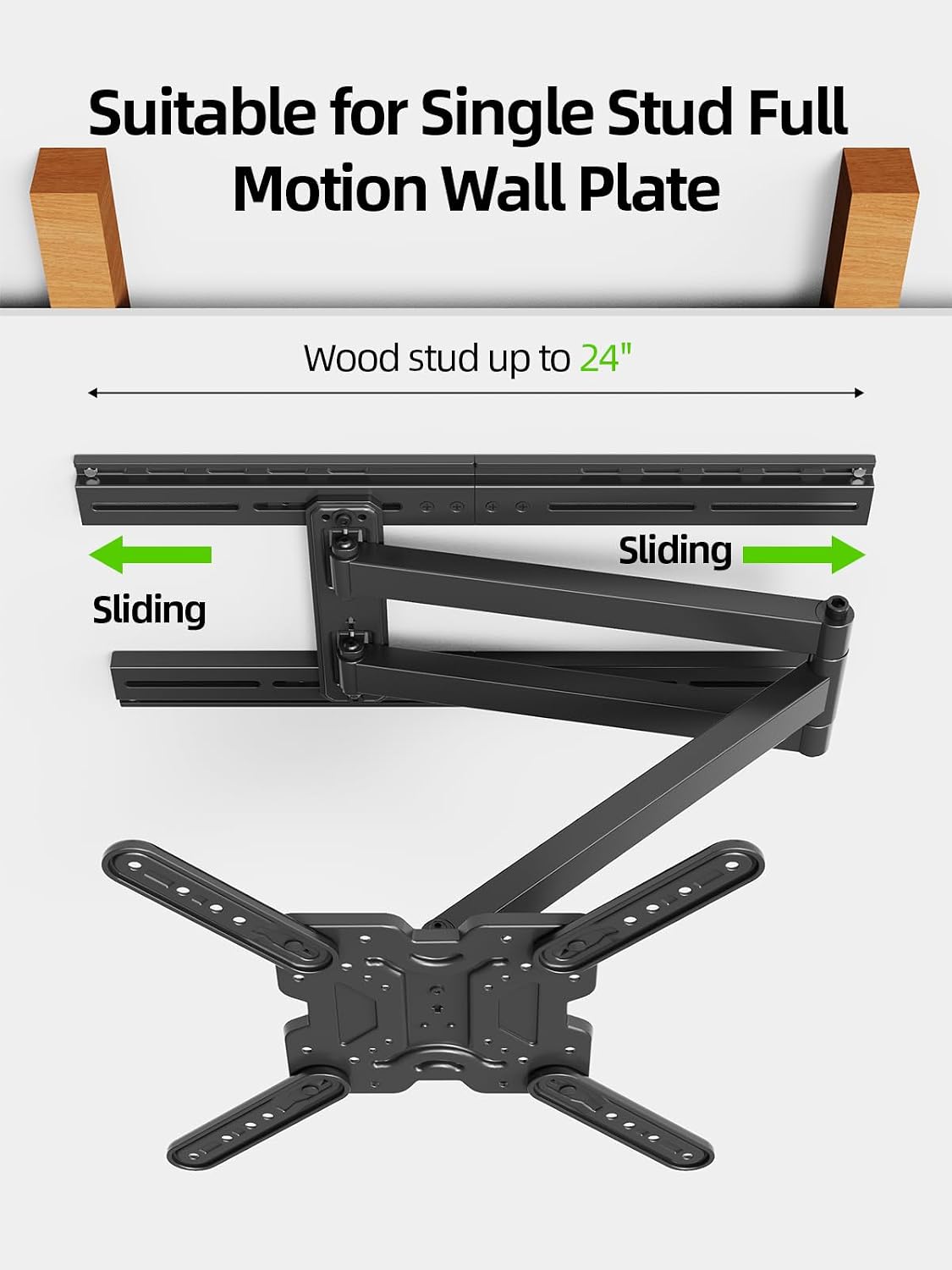

For example, if the studs are spaced farther apart than the wall plate’s own mounting points allow, this extension bracket is intended to bridge that fit requirement within its supported range. It can also suit a setup where the wall plate is already in place but the TV needs additional left-to-right positioning to sit centrally. The 154-pound maximum load capacity is an important part of matching the bracket to the intended installation, use it within the stated wood-stud setup.
What you get
The product is a USX MOUNT TV mount extension bracket, supplied as one count. A pre-labeled hardware package is described for installation, and a sliding block is available for adjustment. Together, these features focus the setup on practical fit and positioning: the bracket accommodates the specified stud spacing, while the adjustment helps align the TV without relying on a wall plate that matches the stud layout exactly.
Questions before you buy
What wall plate and stud spacing does the XAS702 support? It is designed for wall plates 16 inches or smaller and wood studs spaced from 16 to 24 inches apart.
Can I install it on drywall without wood studs? No. The specified installation is on wood studs, drywall alone is not suitable for mounting this bracket.
How much adjustment is available for centering the TV? The bracket provides 8 inches of space for left-to-right centering adjustment using its sliding block.
Is it worth it?
The XAS702 is a practical choice when a TV wall plate needs to accommodate 16–24-inch wood stud spacing and the screen needs room for side-to-side centering. Its alloy-steel construction, 154-pound maximum load capacity, and adjustment-focused design make it useful for adapting a compatible wall-mount setup while keeping the installation anchored to wood studs.
