USX Mount UL Listed Full Motion TV Wall Mount (42"–85") with Swivel, Tilt & Extension
Product description
The essentials
If you’re trying to make a wall-mounted TV feel like it’s actually in the right spot, a full motion mount is often the difference between “installed” and “works for real life.” The USX Mount UL Listed Full Motion TV Wall Mount is built for TVs in the 42"–85" range and supports VESA up to 600x400mm with a maximum load of 110lbs. It’s the kind of bracket that aims to help you center the screen, adjust viewing angles, and extend/retract without turning installation into a nightmare.
On paper, it also looks well thought out for homes where studs aren’t perfectly positioned for a simple fixed mount. It’s designed to work with stud spacing of 16", 18", or 24" (and specifically mentions drilling on studs that are 24" apart). That flexibility can matter quite a bit if you don’t want to use non-stud mounting as your default plan.
What it’s for (and what you’ll notice day to day)
This is a full motion wall mount with swivel, tilt, and an extension arm. The goal is straightforward: give you more control over the TV’s angle so glare and viewing comfort are less of a guessing game.
For everyday use, the practical value is that you can nudge the TV into a comfortable viewing position. The swivel range is listed as +/- 45º, and the tilt is +5/-15º. There’s also leveling mentioned at +/-4º angles. If you’ve ever mounted a TV and felt like the picture was “almost” right, these adjustments are the sort of details that can save you from living with a slightly off angle.

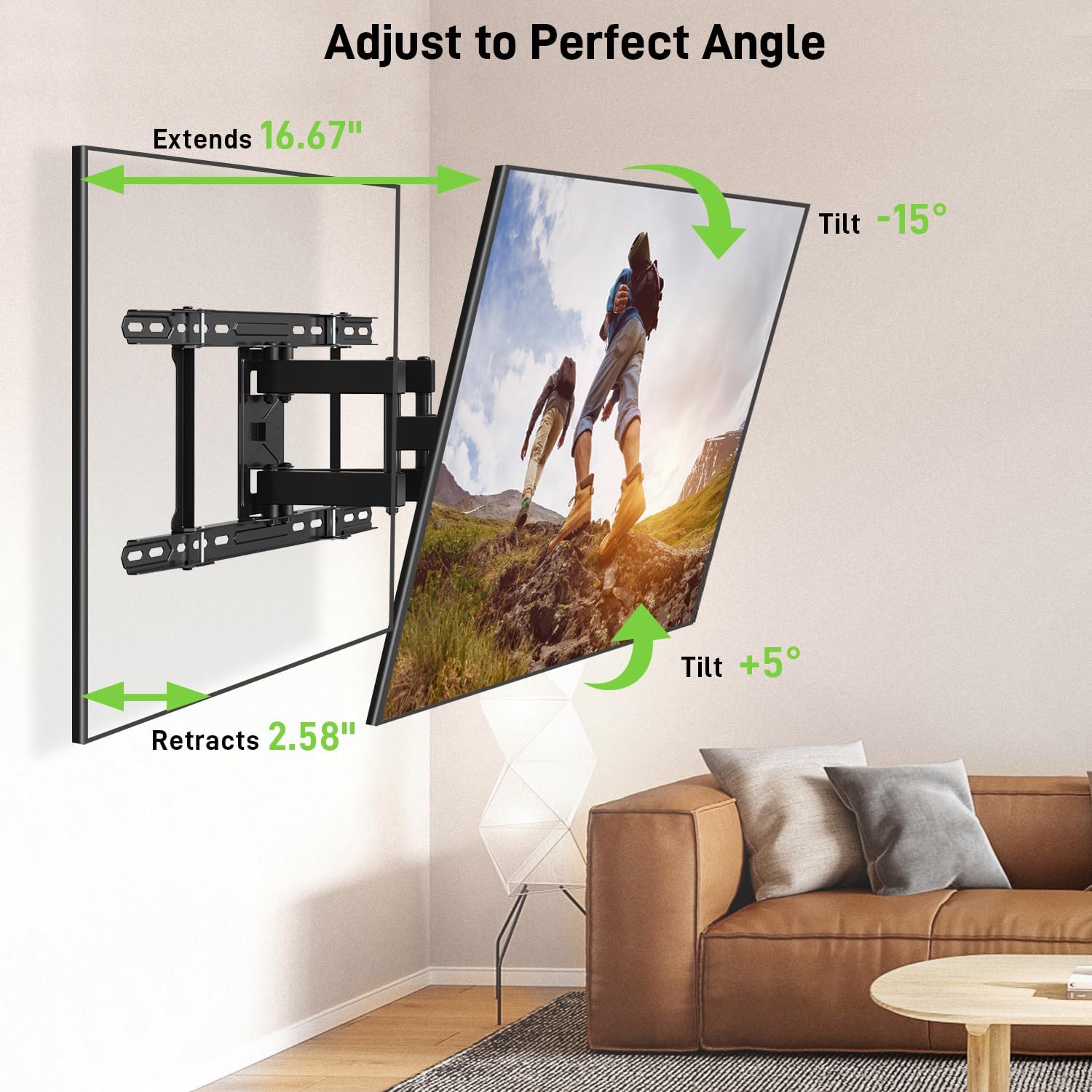

Extension is another big deal for accessibility. It extends up to 16.67 inches, then retracts back to a low profile of 2.58 inches. That means you can pull the TV out when you need to reach cables, then tuck it back closer to the wall when you’re done.
Key takeaways on compatibility and limits

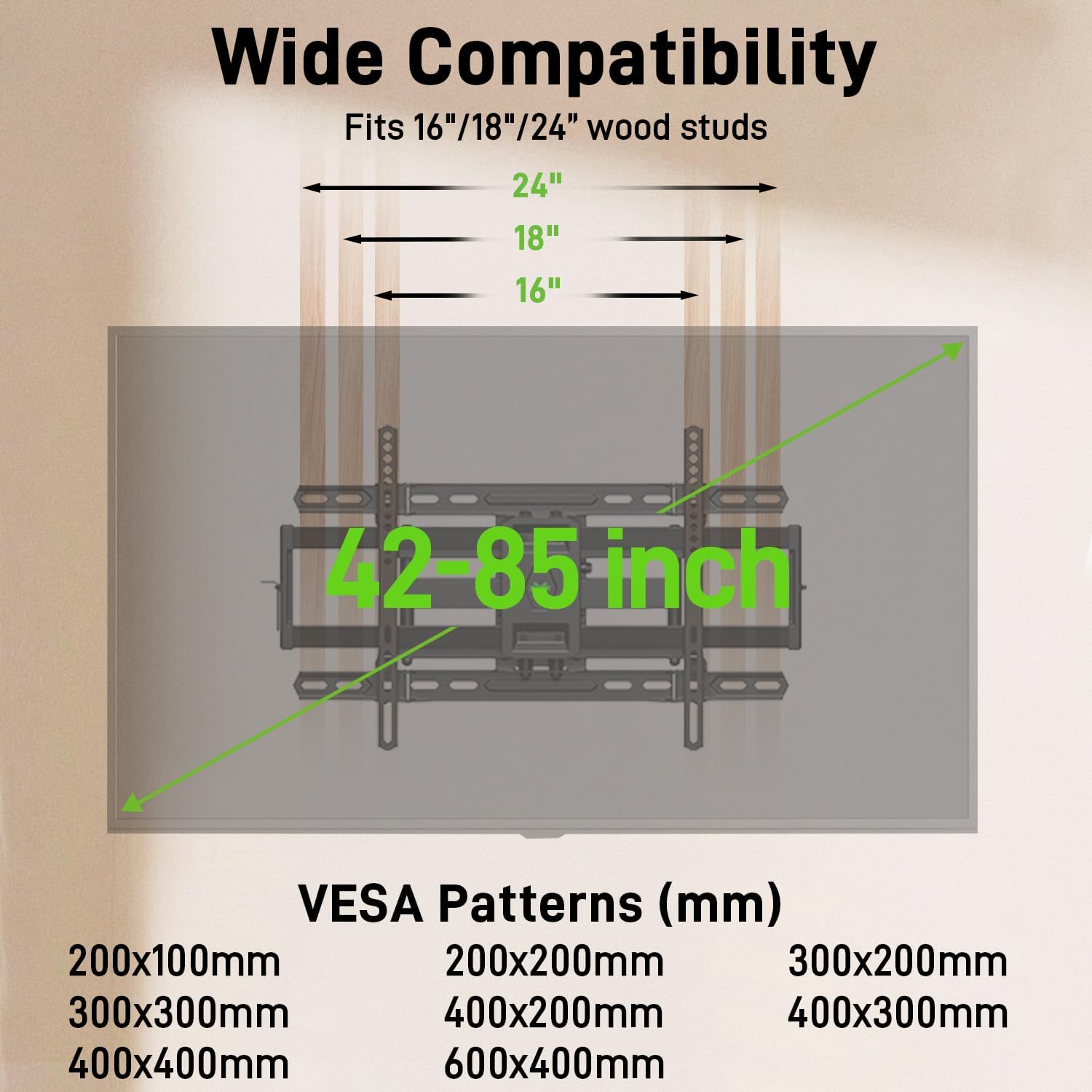

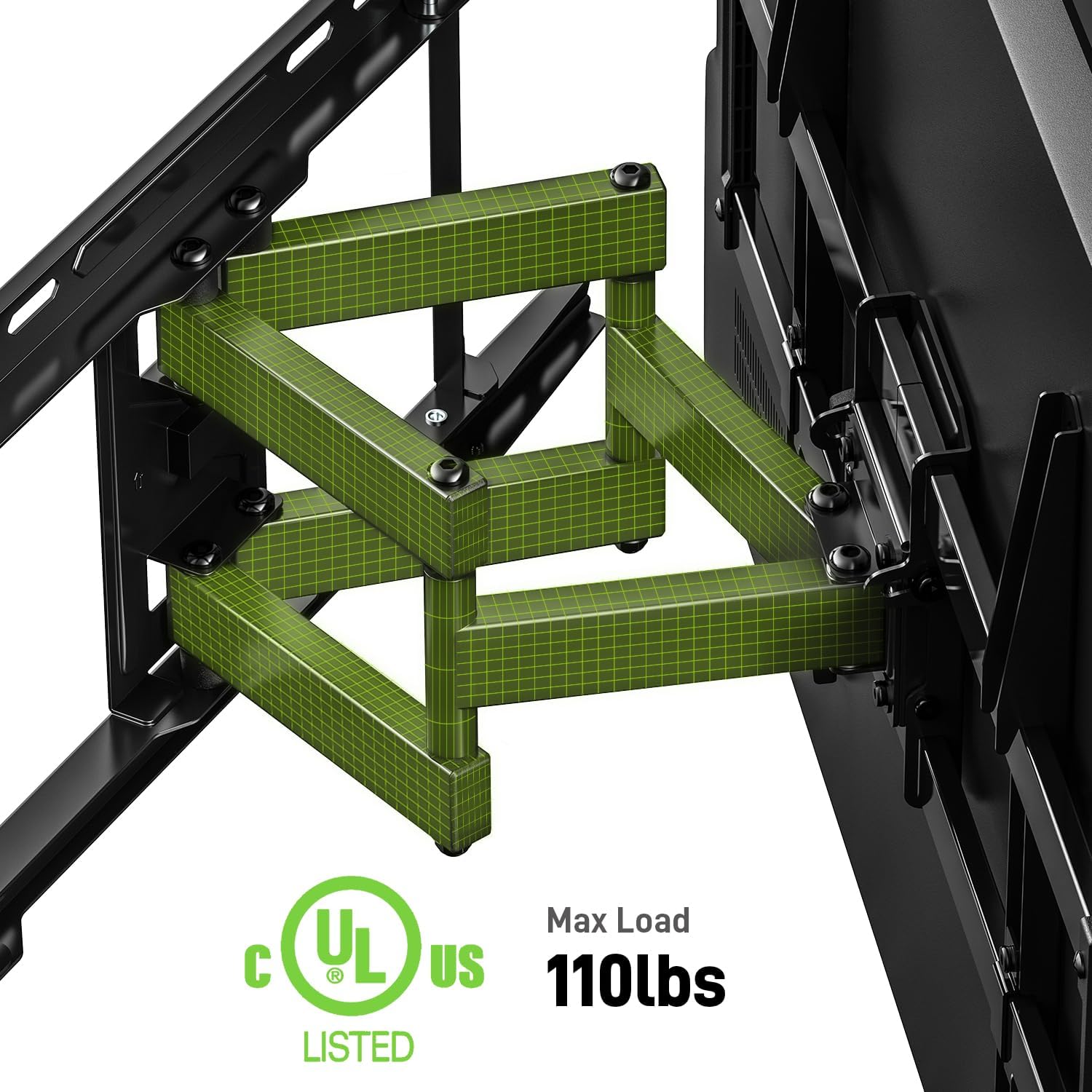

The compatibility headline here is size and VESA. It’s intended for most 42"–85" TVs, with VESA sizes “available from 200x100mm to 600x400mm.” It also states a maximum load of 110lbs.
There’s one limitation worth taking seriously: even with full motion, your TV still has to physically match the VESA pattern and stay within the stated load. If your TV is on the heavy side for its size or your VESA falls outside the listed range, this may not be the mount for you.
Also, the installation support includes a mounting template and a “full set of pre-labeled hardware packages,” but it’s still a wall-mount. If you’re not comfortable drilling into studs (or if your wall type is unusual), you’ll want to double-check your approach before committing.
Pros and the spots to be cautious about

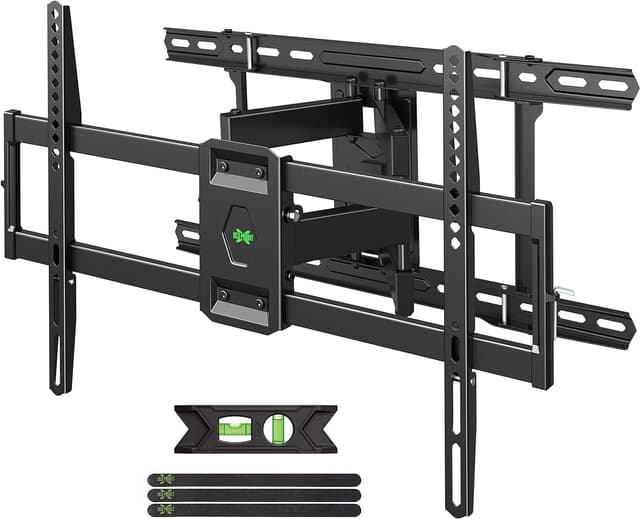

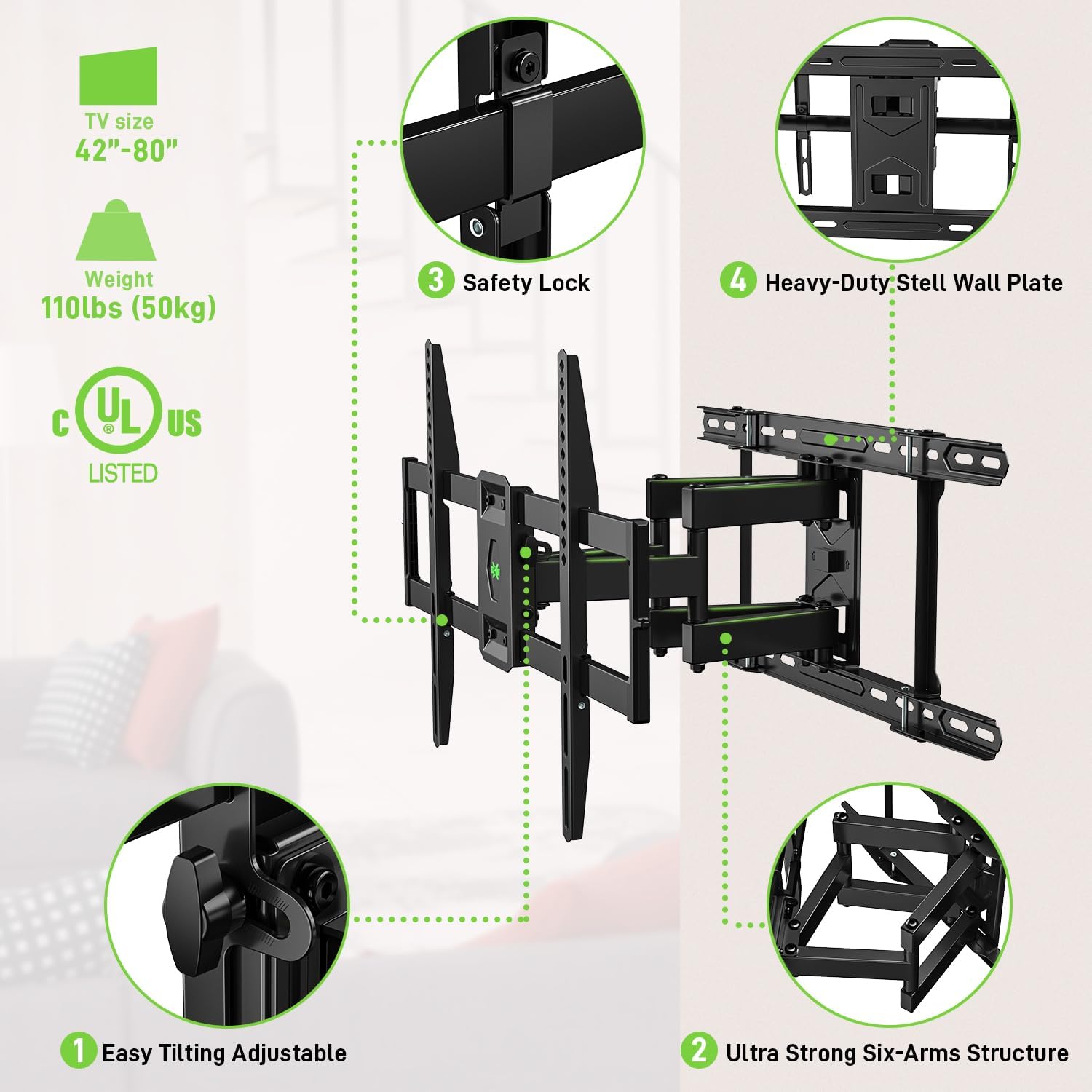

What stands out - Full motion adjustment: swivel and tilt plus leveling help dial in viewing angles. - Extension/retract design: makes cable access and repositioning easier. - Stud spacing flexibility: mentions working for 24" stud spacing (and also 16" and 18"), which helps when you’re mounting in real homes. - Includes useful setup items: bubble level, mounting template, and a pack of cable ties are included, along with standard mounting hardware.
What could feel limiting - Maximum load is 110lbs, so it’s not a “one-size-for-everything” mount—heavier TVs may require careful verification. - The extension and angle ranges sound great, but if you’re hoping to move the TV extremely far or in every direction, this is still a wall bracket with specified movement limits. - Concrete anchors are not listed as included, it says to message the seller if you need 10x50mm concrete anchors. If you expected them to be in the box, keep that in mind.
Installation, setup, and getting the best fit

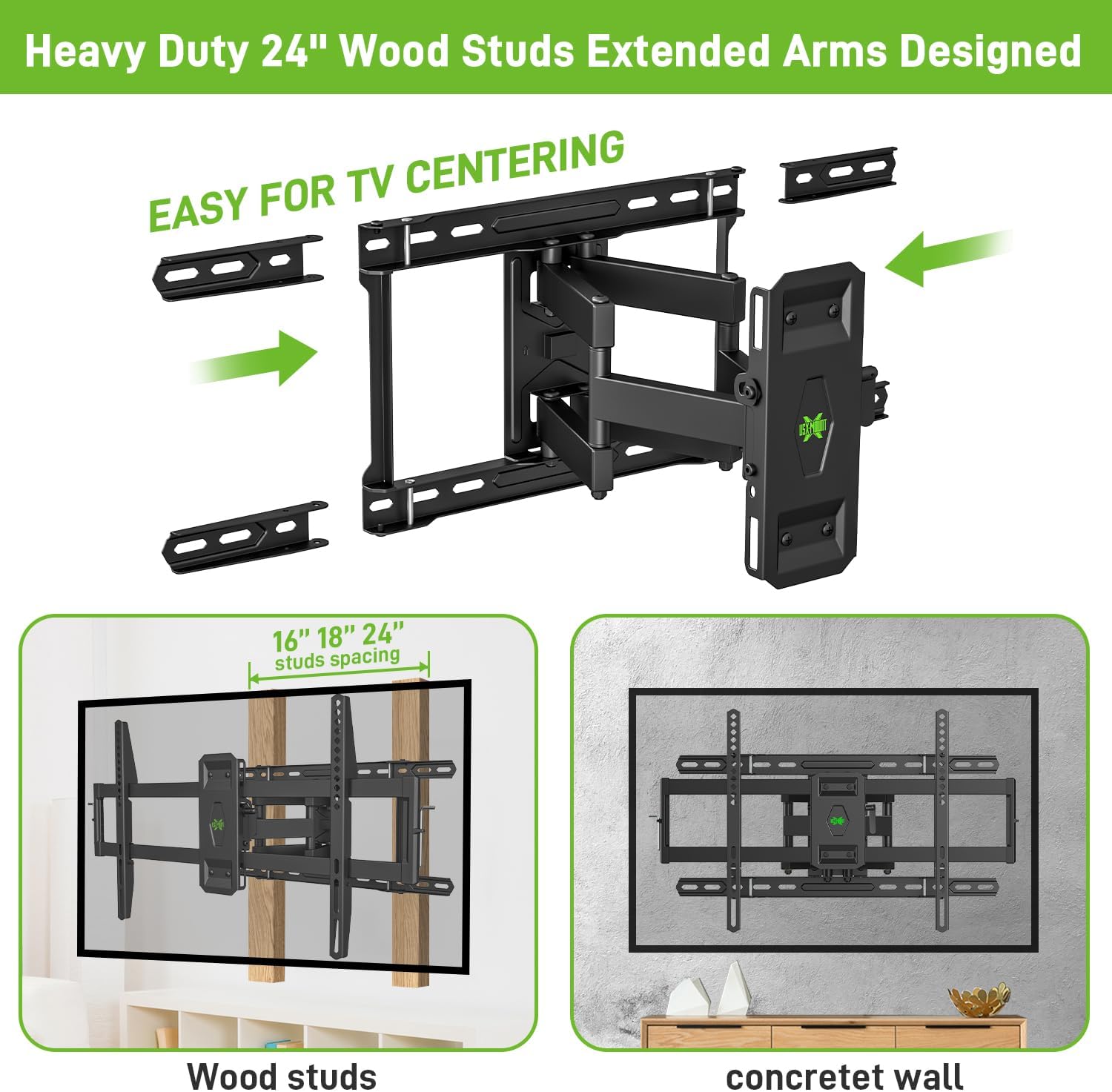

The mount is described as “easy for TV centering,” with a design that supports drilling on studs that are 24" apart. It also claims installation in “3 simple installation steps” and includes a mounting template.
A good way to think about setup: start with alignment before you fully tighten everything. Use the bubble level and template, mount to studs where possible, then attach the TV and fine-tune. The leveling adjustment (listed as +/-4º) can help correct minor misalignment without starting over.
Example scenario: imagine you mount the TV slightly high because of where the studs land. With a full motion setup like this, you can tilt to reduce glare and swivel to improve viewing from an angle in the living room, while extension helps you verify cable connections once everything is mounted.
What you should verify before buying
Before you decide this mount is the one, double-check a few things to avoid returns:
- TV VESA pattern: it supports VESA sizes from 200x100mm to 600x400mm.
- TV size range: it’s aimed at 42"–85" TVs.
- TV weight: max load is 110lbs.
- Stud spacing compatibility: it’s designed for 16", 18" or 24" studs.
- Wall type and anchors: it suggests reaching out if you need 10x50mm concrete anchors.
That’s the boring part, but it’s also the part that prevents the “why doesn’t it fit?” problem.
Is it worth it?
This USX Mount full motion wall mount is worth considering if you want real adjustability—swivel and tilt—for better viewing comfort, plus extension for easier cable access. It also makes sense if your stud spacing is 16", 18", or 24" and you’d rather anchor into studs than rely on guesswork.
You may want to skip it if your TV’s VESA pattern or weight doesn’t land within the listed range, or if you’re expecting a concrete-anchoring kit to be included for a non-stud install. In that case, you’ll need to confirm what you’re responsible for getting separately.
Mini FAQ
FAQ
Does this mount come with a template and level? Yes. It’s described as including a bubble level and a mounting template.
How far can the TV extend from the wall? It extends up to 16.67 inches and retracts to a low profile of 2.58 inches.
What motion ranges are listed? Swivel is listed as +/- 45º, tilt as +5/-15º, and leveling as +/-4º.
Is it UL listed? The product name states it is UL Listed.
Are concrete anchors included? The description says to message if you need 10x50mm concrete anchors, which suggests they may not be included by default.
