USX MOUNT Full-Motion TV Wall Mount, 28-Inch Extension
Product description
If your priority is keeping a very large TV close to the wall, a fixed bracket may suit the job. If you want to pull the screen forward and change its angle, this USX MOUNT full-motion mount is built for that kind of setup.
Its dual arms extend up to 28.11 inches, giving you room to angle the screen toward a seating area rather than leaving it fixed in one position.
The tradeoff is installation: a heavy-duty mount needs the right wall structure and a match between the TV’s weight, mounting pattern, and bracket limits.
Technical details

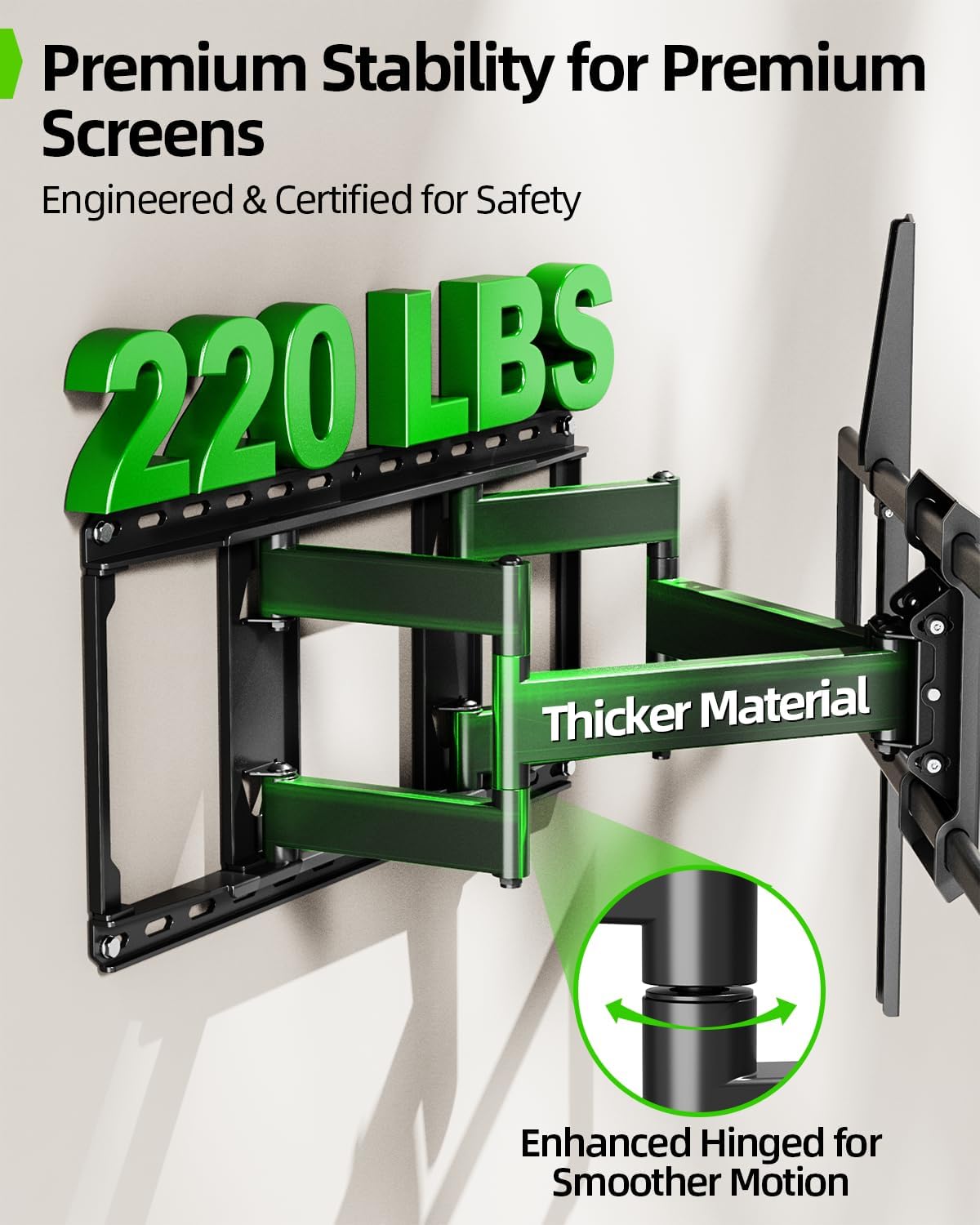

The mount is listed for TVs from 60 to 120 inches and supports up to 220 pounds. Its stated VESA range is 200 × 100 mm to 900 × 600 mm. Those figures are a starting point, not a substitute for checking the exact TV model: screen size alone does not confirm that its mounting pattern or weight will fit.

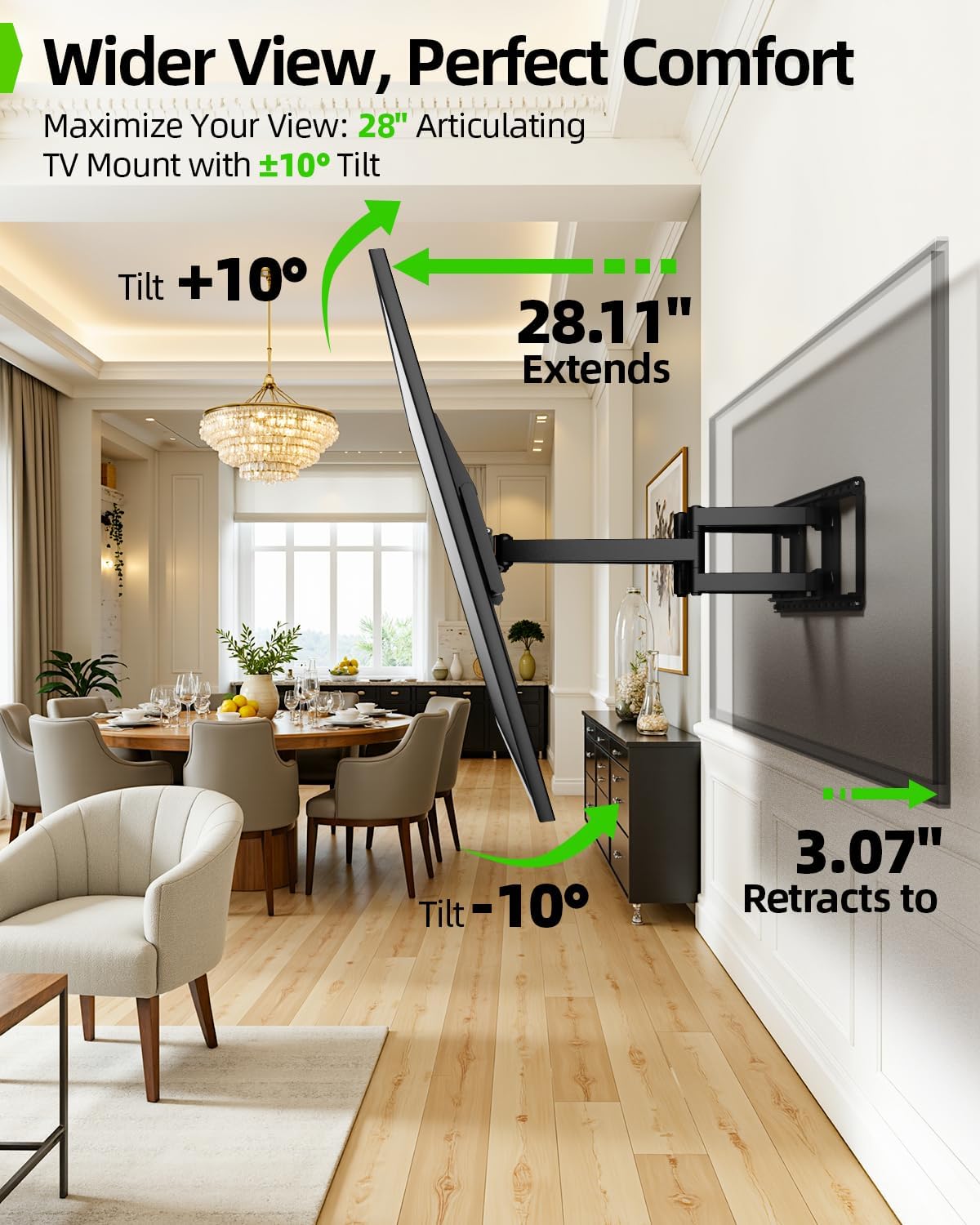

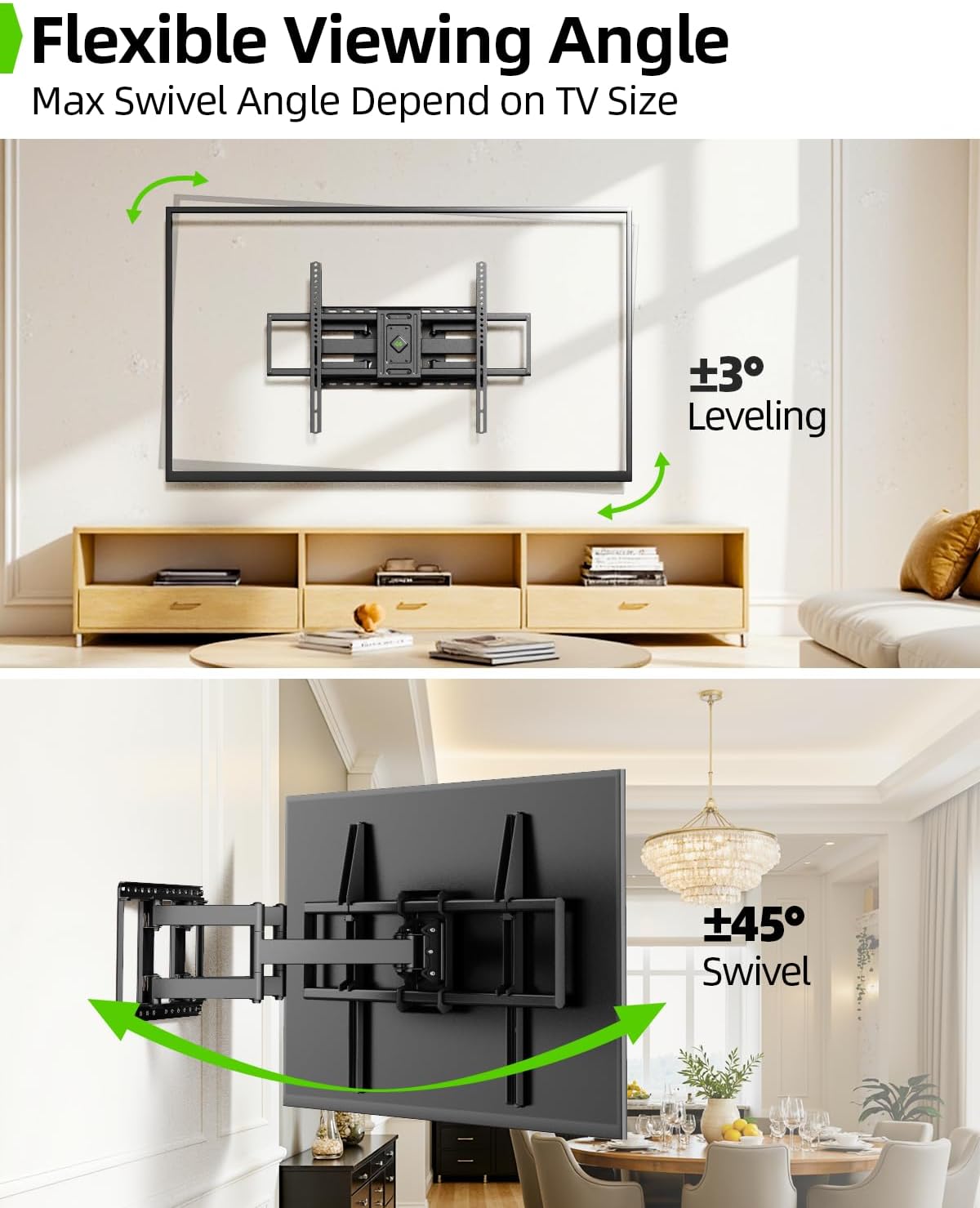

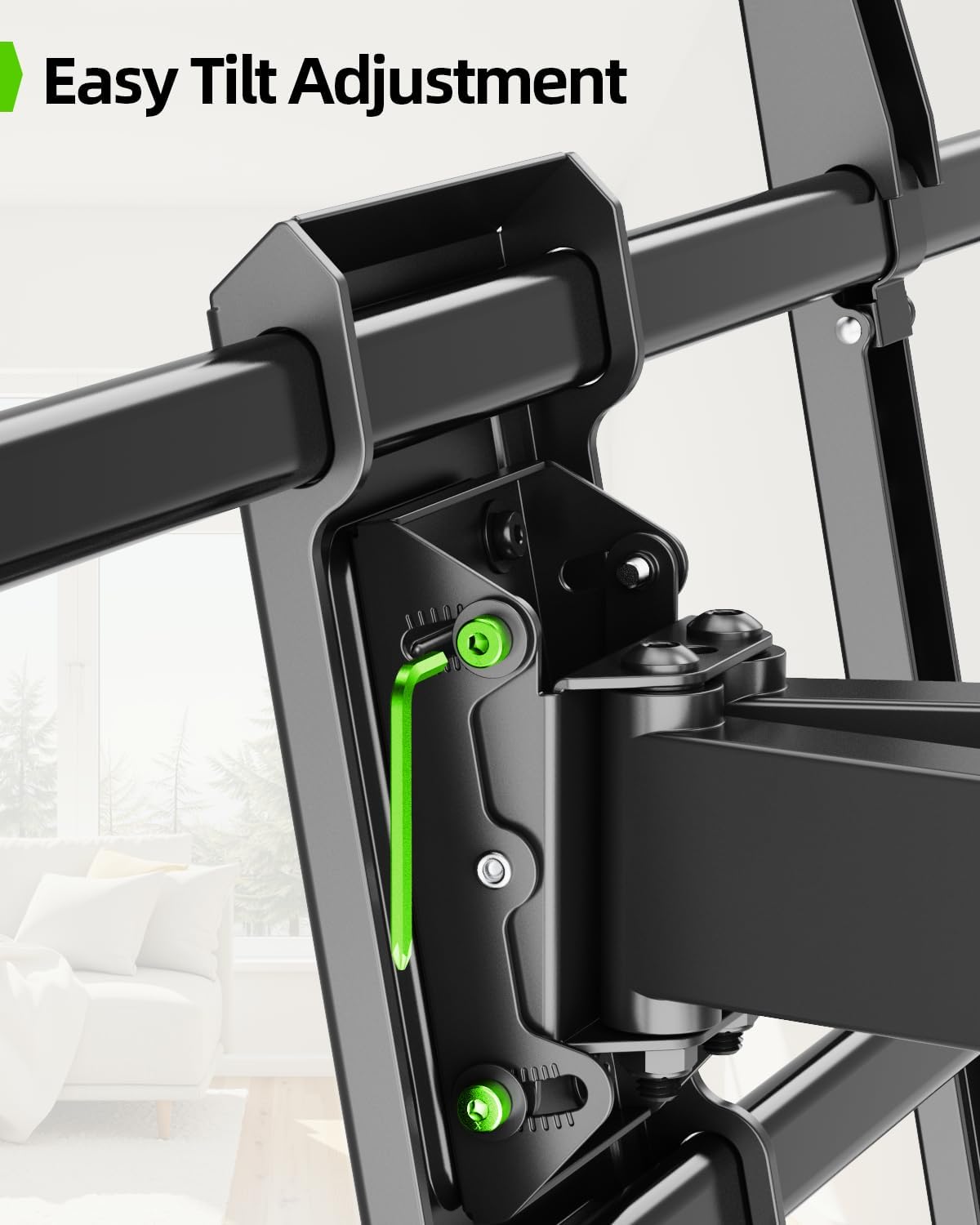

The arms extend to 28.11 inches and retract to 3.07 inches. The bracket offers up to 45 degrees of swivel in either direction and 10 degrees of tilt up or down. A horizontal adjustment of 3 degrees in either direction can help level the screen after mounting. A preassembled front support and included leveling device are intended to make setup more manageable, though positioning and securing a large TV still takes care.
Everyday compatibility

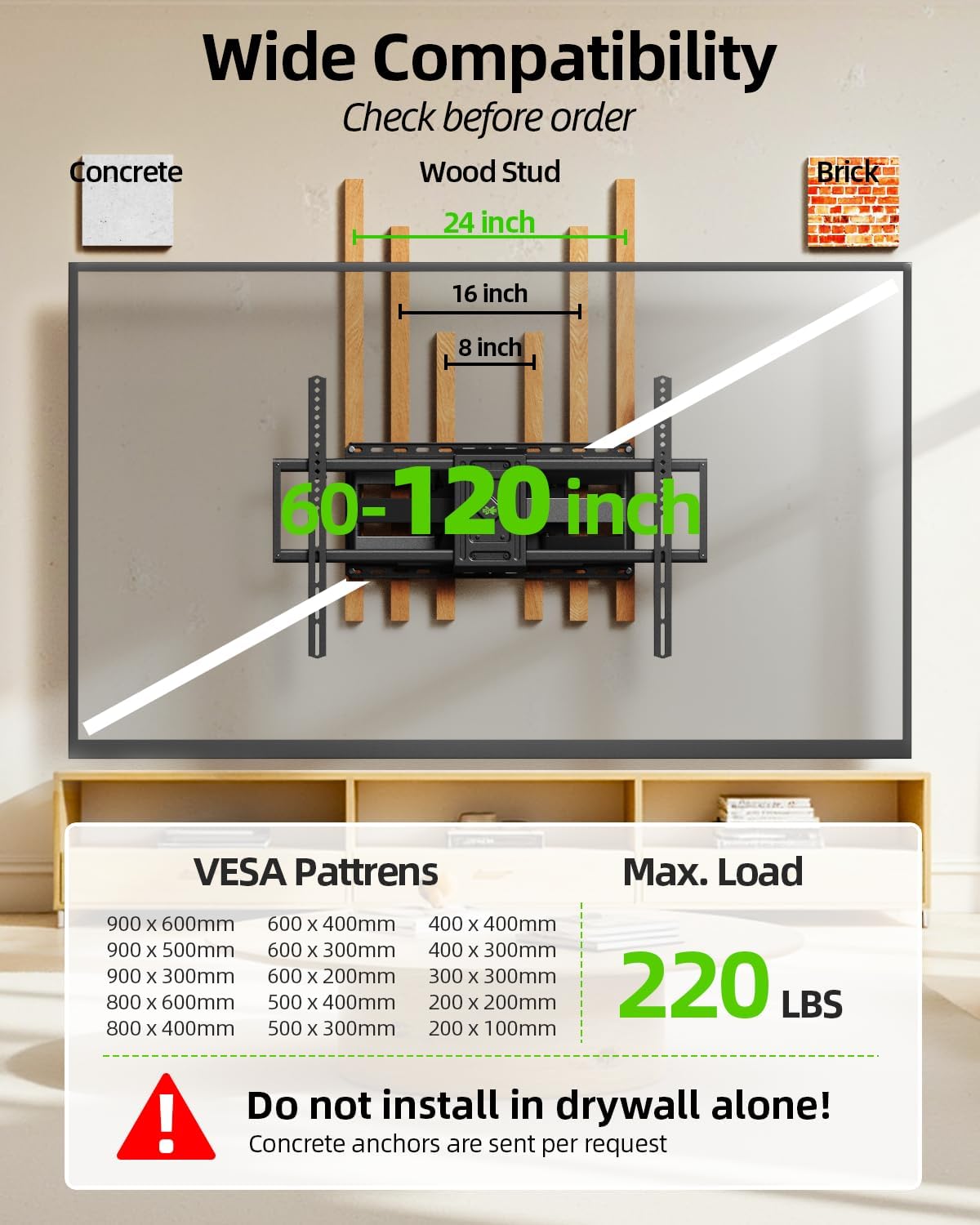

The mount is designed for 12-, 16-, 18-, and 24-inch wood stud spacing, as well as concrete or brick walls. It should not be mounted to drywall alone. For a concrete or brick installation, the maker says concrete anchors may need to be arranged separately, so confirm the required hardware before starting.
This setup can make sense in a living room where the TV needs to face different seats or angle away from window glare. It makes sense if you want more positioning flexibility than a fixed bracket provides and your TV falls within the stated weight and VESA limits. It might not be a great match if your wall has no suitable studs or masonry surface, or if you want a simple, low-profile mount with no moving arms.
Usage tips
Before installation, check the TV’s weight and VESA pattern in its manual or specifications, then compare both with the mount’s limits. Measure the wall and the intended screen position too: an arm that can extend far is useful only if furniture, nearby walls, and cables leave enough room for movement.
Plan the TV’s final height and viewing direction before securing the bracket. For a large screen, having another person help hold and position it is a sensible precaution. Use the included hardware only where it is appropriate for the wall type, do not treat drywall by itself as a mounting surface. The front support arrives preassembled, but that does not remove the need to locate and fasten the wall plate correctly.
Before you decide
Can it be mounted on drywall alone? No. The listed wall options are wood studs, concrete, or brick, drywall alone is not suitable.
How far can the TV pull away from the wall? The arms extend up to 28.11 inches and retract to 3.07 inches.
What should I check on my TV? Confirm that its weight is no more than 220 pounds and its VESA pattern falls between 200 × 100 mm and 900 × 600 mm.
Final verdict
Choose this mount when a large TV needs a broad range of viewing angles and the wall can support a properly secured articulated bracket. Its extension, swivel, and tilt offer more flexibility than a fixed mount, but the fit depends on exact TV measurements and suitable wall structure. If either is uncertain, a simpler mount or professional installation may be the more practical route.
