ELIVED Full Motion TV Wall Mount for 42–82-Inch TVs, 110 lb, VESA 600x400
Product description
If you need to position a large TV for more than one viewing spot, the ELIVED full-motion wall mount offers swivel, tilt, and extension rather than a fixed screen position.
It fits most 42–82-inch TVs weighing up to 110 lbs, with supported VESA patterns from 200x100mm to 600x400mm. The arms extend 13.8 inches and retract to a 2.36-inch profile.
The key installation constraint is the wall: this mount is designed for wood studs, concrete, or solid brick—not drywall alone or metal studs. Its supported wood-stud spacing is 8, 12, or 16 inches.
Size & fit
This bracket is aimed at larger flat or curved LED, LCD, and OLED TVs, but screen size alone does not establish fit. The TV also needs to stay within the 110 lb weight limit and have a VESA mounting pattern between 200x100mm and 600x400mm. Those checks matter before choosing a mount, especially if your TV is near either end of the stated size range.

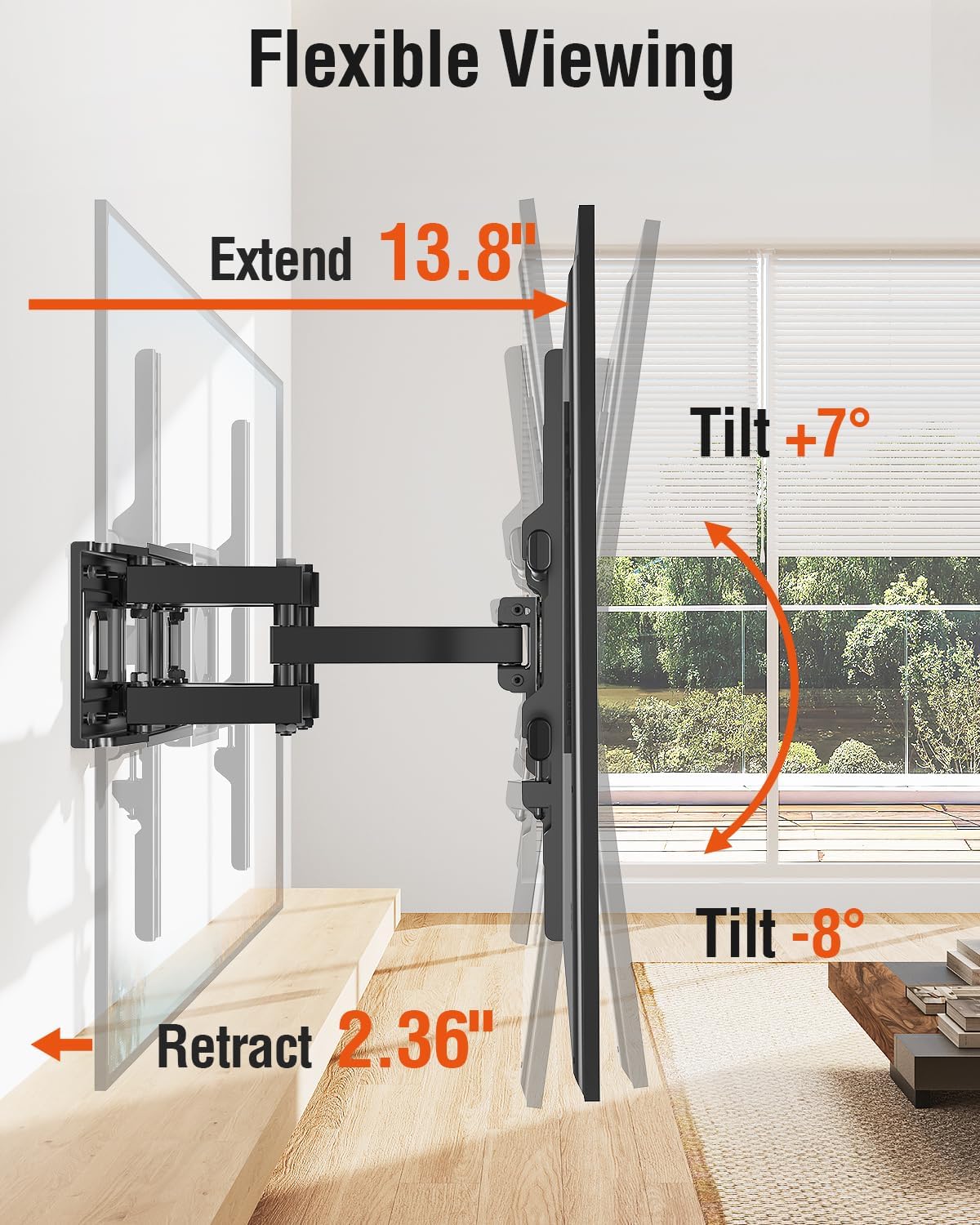

The arm movement is useful when a screen needs to face different parts of a room: it swivels up to +/-45° and tilts +7/-8°. After installation, the screen can be leveled by ±3°. For a couch setup where the TV usually stays in one position, a simpler fixed bracket may be enough, the articulating design is more relevant when seating or viewing angles vary.
Wall compatibility is a firm boundary, not a minor installation preference. Use the supplied hardware only for wood studs at 8, 12, or 16 inches on center, or for concrete and solid brick. The manufacturer says it is not intended for drywall alone, metal studs, or 24-inch stud spacing. If the available wall does not match those options, this is not the right bracket for that installation.
Pros

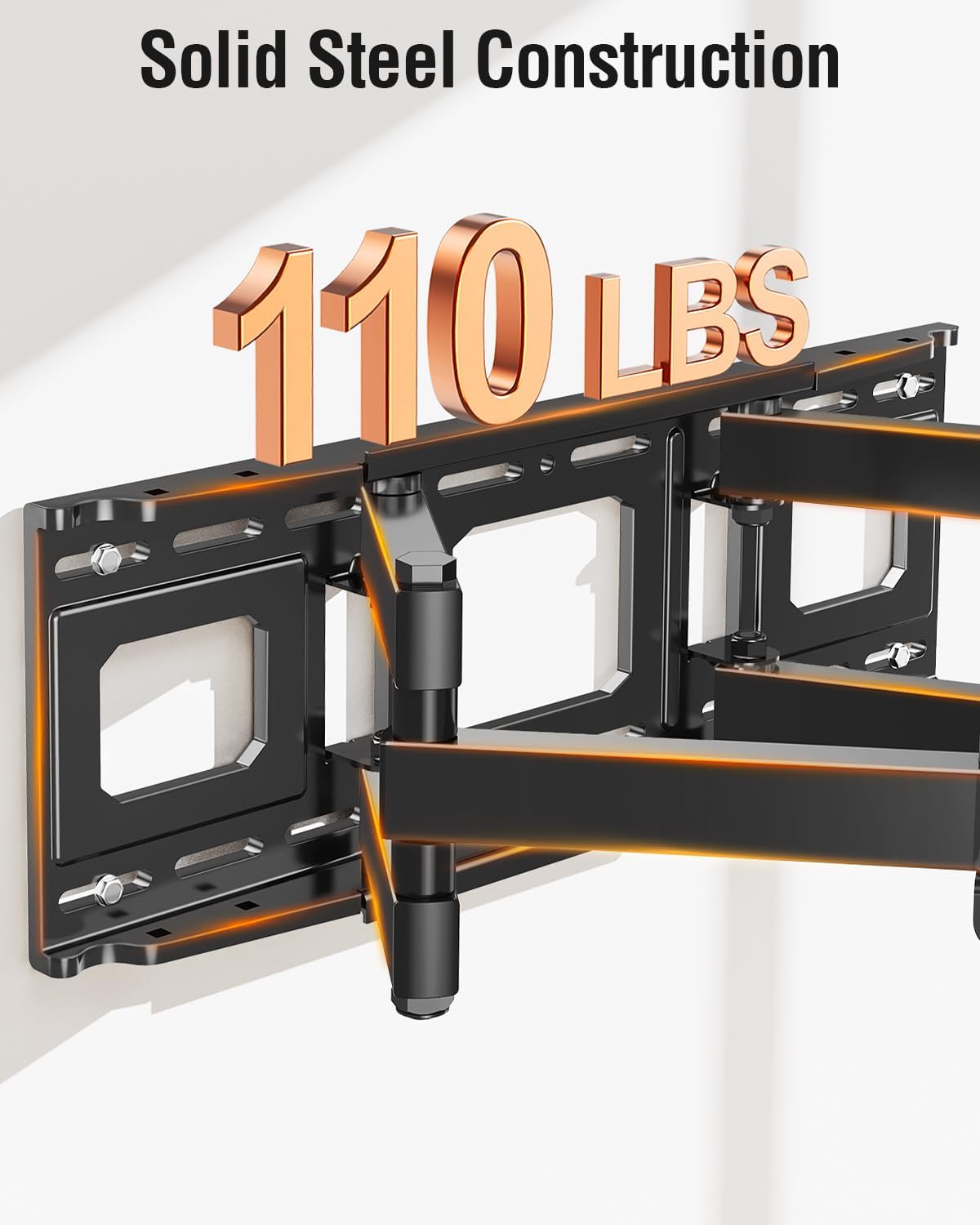

The extend-and-retract range gives some flexibility: pull the TV out when you need to angle it, then push it closer to the wall when that position is no longer needed. A 2.36-inch retracted profile keeps the bracket relatively close to the wall, while the included cable ties help organize cords. The metal construction and stated 110 lb limit make it suitable for supported larger screens without assuming that every TV in the size range will fit.
The package includes an instruction manual, bubble level, drilling template, screws, anchors for concrete or brick, spacers, and Velcro straps. Spacers and longer screws are provided for cases where the bracket would otherwise obstruct cable ports. That is a practical detail to consider if the TV’s connections sit close to its mounting area. It makes sense if you want adjustable viewing angles and your TV and wall both meet the listed requirements.
Tech summary
- Type: Full-motion TV wall mount
- Compatible screen size: Most 42–82-inch TVs
- Maximum supported weight: 110 lbs
- VESA range: 200x100mm to 600x400mm
- Movement: 13.8-inch extension, +/-45° swivel, +7/-8° tilt, ±3° leveling
- Retracted profile: 2.36 inches
- Wall compatibility: 8-, 12-, and 16-inch wood studs, concrete, solid brick
- Material: Metal
- Included items: Bubble level, drilling template, screws, concrete/brick anchors, spacers, Velcro straps, and cable ties
Is it worth it?
This ELIVED mount is worth considering when a fixed bracket would make it harder to aim the screen toward different seats, and when you can install it on one of the specified wall types. For example, in a living room with seating at an angle, the swivel and tilt give you adjustment options that a flat wall bracket does not. The extension can also help when you need to reach the back of the TV, while the included spacers address potential port clearance issues.
It might not be a great match if your wall has metal studs, 24-inch stud spacing, or only drywall available, or if your TV exceeds the weight or VESA limits. Those constraints determine whether the bracket can be installed as intended. If your setup is compatible, the main buying decision is whether you will use the extra movement, if the TV will always face the same seat, a fixed mount is the more straightforward approach.
