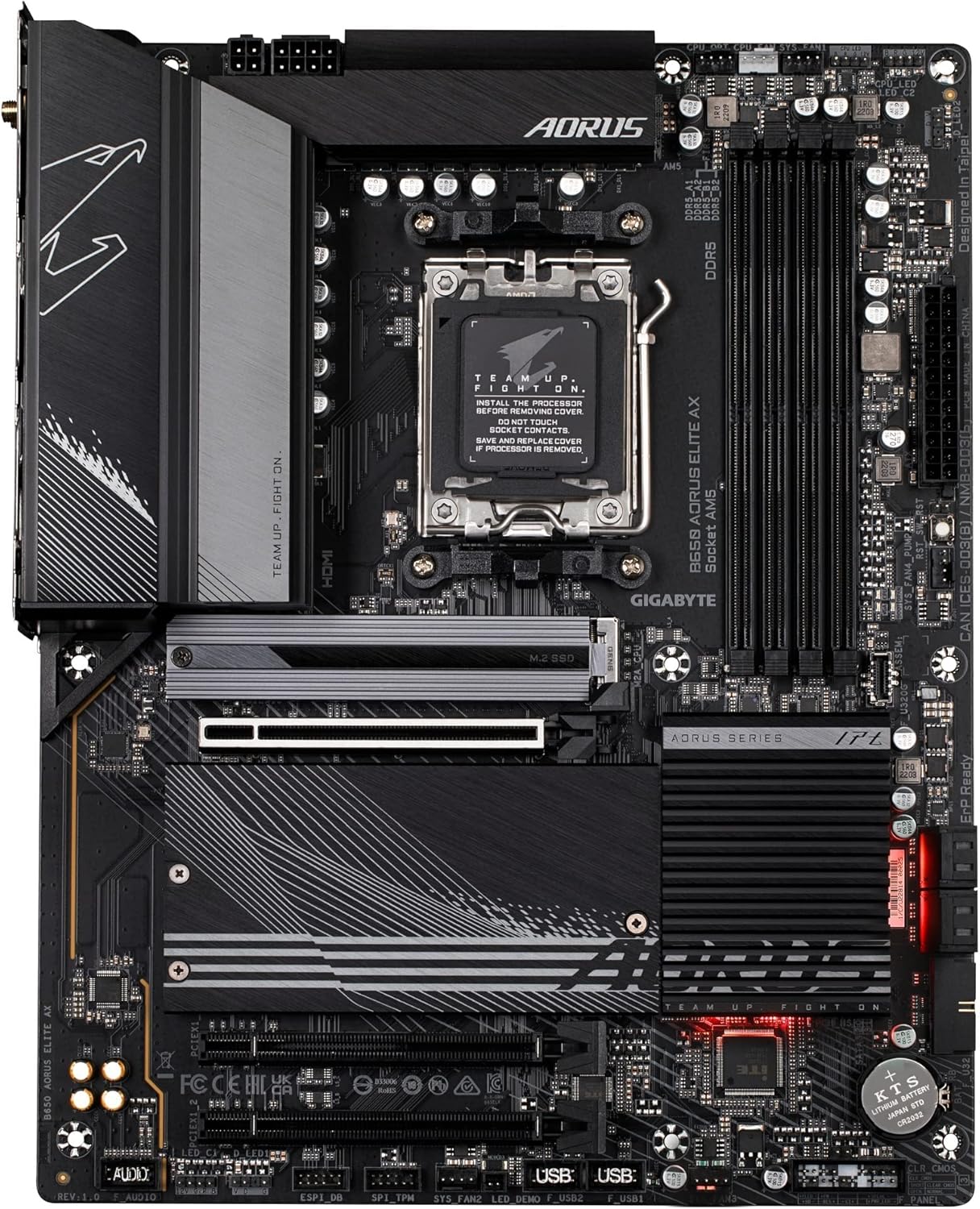

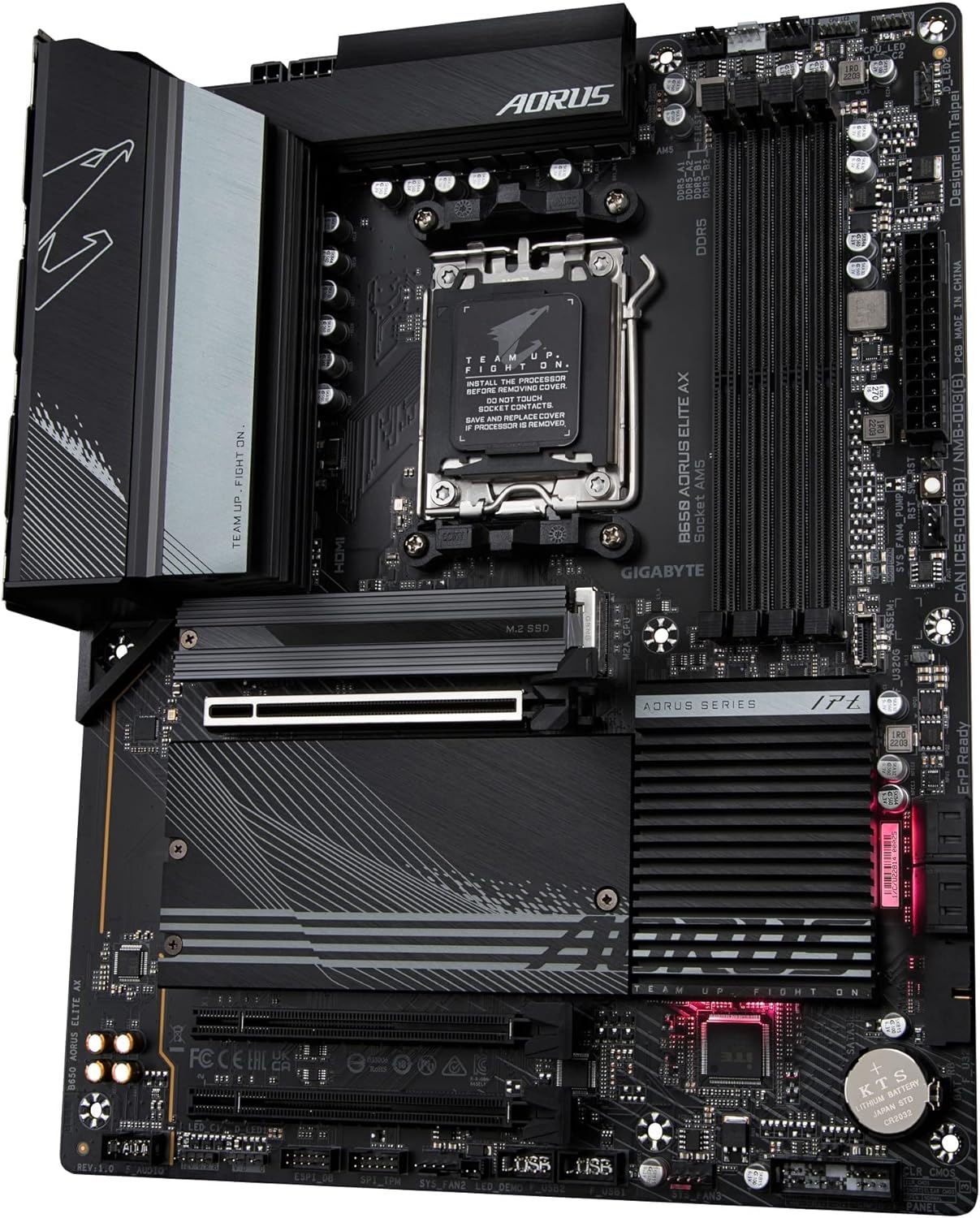

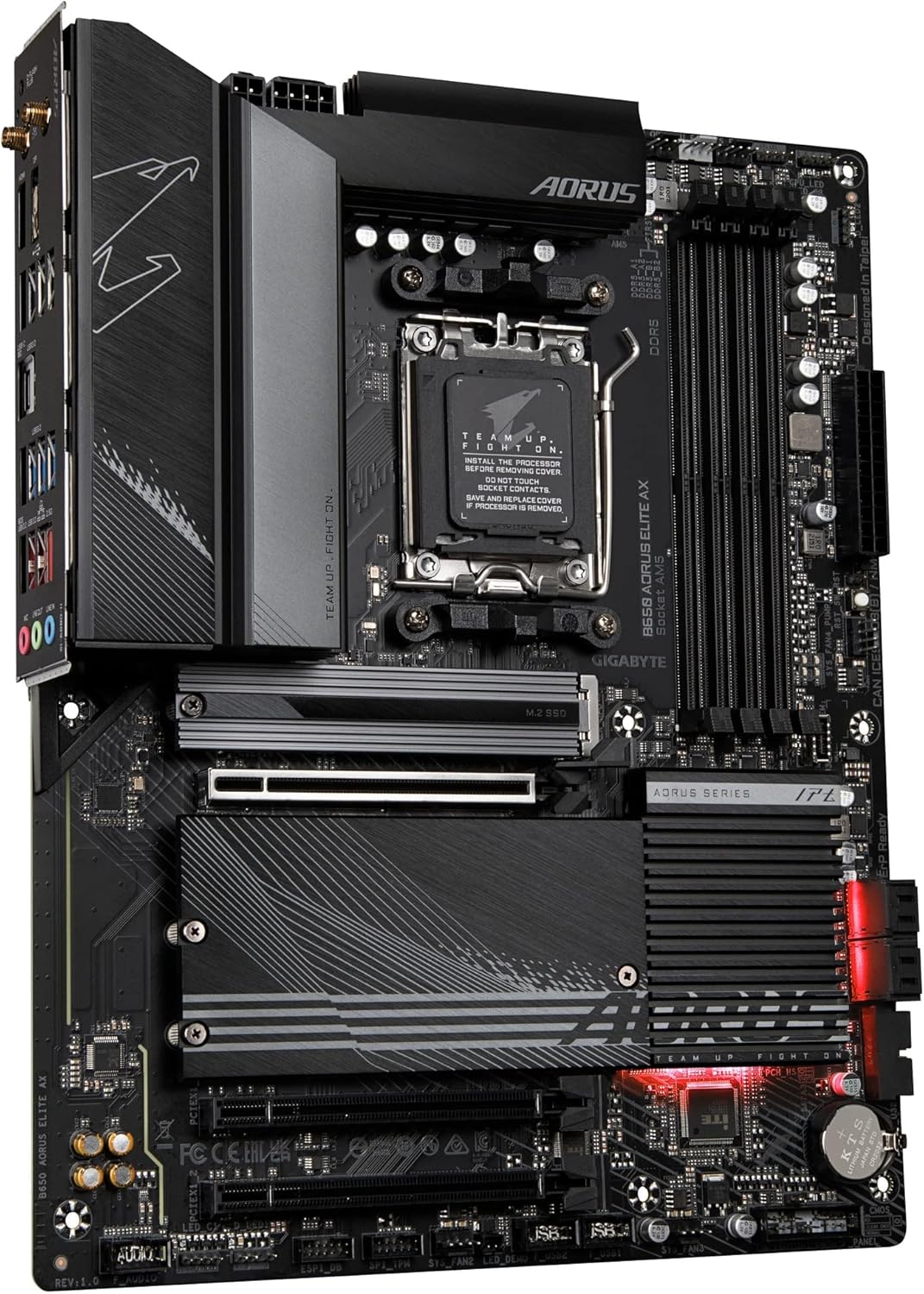

Gigabyte B650 AORUS Elite AX (AM5) ATX DDR5 Gaming Motherboard with WiFi 6E and 2.5GbE
Reviews
Price
Product description
If you’re building an AMD AM5 gaming PC around DDR5, the Gigabyte B650 AORUS Elite AX is the kind of board that tries to cover the boring essentials well—then adds enough modern connectivity to keep your build feeling current. It’s not just a “plug it in and hope” option, the feature set is clearly aimed at mainstream gaming builds that want PCIe 5.0 support, fast storage options, and practical BIOS updates.
That said, it’s still a B650-class platform. So it’s a strong fit if you want dependable day-to-day performance and solid expansion, but you may want to think twice if you’re chasing the absolute top tier of upgrades or very specific I/O needs. On paper, it sits in a busy, well-equipped midrange lane.
The essentials: what it is and what it solves
This is an ATX motherboard designed for AMD AM5 CPUs and DDR5 memory. The “AORUS Elite AX” framing matters because it’s built for gaming-oriented builds, not just basic office setups—especially with WiFi 6E, 2.5GbE LAN, PCIe 5.0 support, and multiple M.2 storage-oriented features.
If you’re planning a Ryzen 7000-series build, the AM5 socket compatibility and DDR5 support are the big starting points. From there, the goal is straightforward: give you fast connection options (network + storage) and a smoother building/maintenance experience (like BIOS updates without needing a fully working setup).
What you’ll notice first in use
The motherboard’s “convenience” features are the ones that tend to pay off over time. Q-Flash Plus is called out specifically for updating the BIOS without installing a CPU, memory, or GPU. That’s genuinely helpful when you’re troubleshooting compatibility or assembling in stages.
Also, the board includes an EZ-Latch approach for PCIe 5.0 and M.2—advertised as a release mechanism without screws. That kind of design choice can save time and reduce friction when you’re swapping parts or adding storage.
And if you care about visuals, RGB FUSION support includes addressable LED strip support and RGB features. It won’t make your games faster, but it does make the build look finished.
Connectivity and expansion that feel modern
This is where the “AX” angle comes through. You get WiFi 6E and Bluetooth 5 alongside 2.5GbE LAN, which is a practical mix for gaming setups—wireless is faster and less dated than older WiFi generations, while 2.5GbE is a solid step up from standard gigabit Ethernet.
For storage and bandwidth, the board supports PCIe 5.0 and PCIe 5.0 NVMe x4 M.2. If your plan includes high-speed NVMe drives, this is the kind of foundation you’d want to avoid outgrowing quickly.

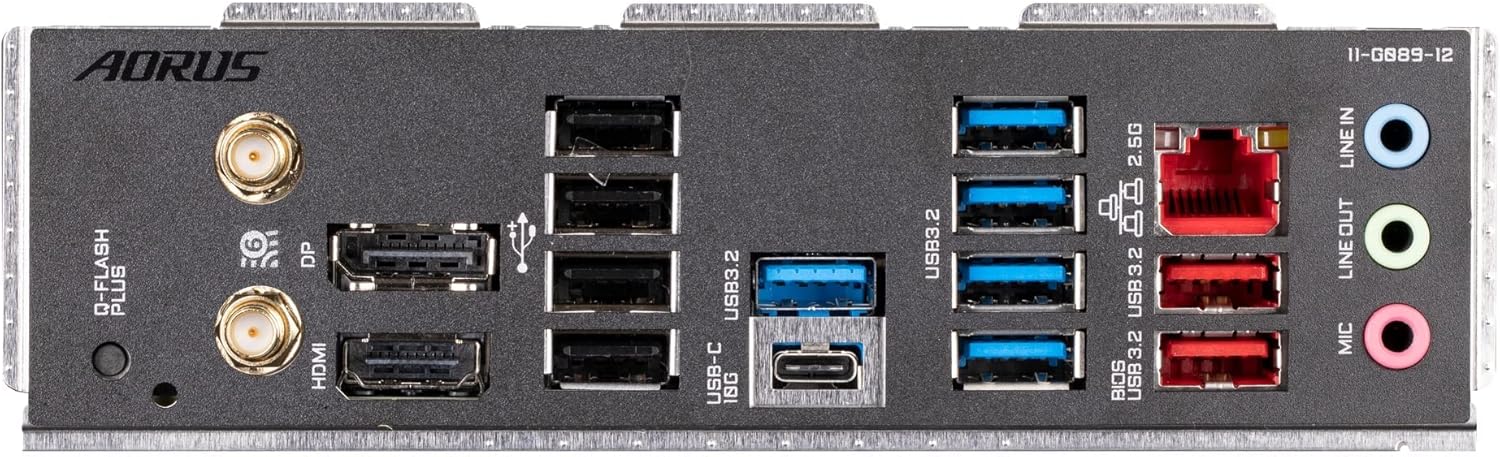

You also get a front and rear USB-C option (USB 3.2 Gen2x2 Type-C is mentioned), which is the sort of port most people end up using sooner than expected—controllers, fast external drives, or even VR/streaming accessories.
Power, thermals, and the parts you don’t want to babysit
Gigabyte highlights a “commanding power design” with a 14+2+1 phase setup and a VRM digital power solution, including mention of a 70 A power stage solution. It also references a copper PCB (8 layers) and thermal design elements like a 6 mm heat pipe, MOSFET heatsinks, and an M.2 thermal protector.
In plain terms: this is aimed at keeping the board stable and cool during sustained loads—exactly what you tend to see in gaming sessions, shader compiles, or heavy multitasking. It’s not a guarantee of silence or perfection, but it’s a reasonable set of safeguards for a gaming build.
Tech specs you can use to sanity-check compatibility
- Name: Gigabyte B650 AORUS Elite AX
- Type: ATX gaming motherboard for AMD AM5
- Chipset: AMD B650
- Memory: DDR5 (4 DIMM), supports AMD EXPO and Intel XMP
- Expansion/Storage: PCIe 5.0, PCIe 5.0 NVMe x4 M.2
- Network: WiFi 6E, Bluetooth 5, 2.5GbE LAN
- USB: USB 3.2 Gen2x2 Type-C (front and rear mentioned)
- BIOS help: Q-Flash Plus (update BIOS without CPU/memory/GPU)
Where it makes sense—and where it may not
It makes sense if you’re building around an AMD Ryzen 7000-series CPU and you want a DDR5 ATX board with modern connectivity. The combination of WiFi 6E + 2.5GbE, USB-C (Gen2x2 Type-C), and PCIe 5.0 NVMe support is a strong “future-friendly” foundation for a gaming PC.
Worth considering if you’re the type of builder who updates BIOS more than once, swaps storage drives, or just doesn’t want to deal with fiddly screw-based installs.
It might not be a great match if you need very specific front-panel headers, niche expansion layouts, or you’re aiming for a specialized enthusiast build where ultra-targeted features matter more than broadly useful ones. Also, if your build is intentionally budget-minimal, a B650 board like this can feel like more capability than you strictly need.
Buying verdict
It’s a solid pick when AM5 + DDR5 is your plan and you want a gaming-focused ATX motherboard that covers the practical stuff: fast network options, PCIe 5.0 NVMe support, and a BIOS update path that doesn’t require a full working install. If you like the idea of smoother M.2/PCIe installation with EZ-Latch and you care about thermals, it’s the sort of board that should keep the build process and maintenance less annoying.
But if you’re not using the features (or you’re very particular about exact I/O/compatibility details beyond what’s listed here), you may end up paying for capabilities you won’t fully leverage.
Mini FAQ
Is this motherboard compatible with AMD Ryzen 7000 CPUs?
Yes—it's listed as compatible with AMD AM5 processors, specifically mentioning Ryzen 7000-series support.
Does it support DDR5 memory profiles?
It supports DDR5 with AMD EXPO and Intel XMP memory module support.
Can you update the BIOS without a CPU installed?
Q-Flash Plus is described as allowing BIOS updates without installing CPU, memory, and GPU.
Does it include WiFi?
Yes. WiFi 6E and Bluetooth 5 are mentioned, along with 2.5GbE LAN.
Does it support high-speed M.2 storage?
PCIe 5.0 NVMe x4 M.2 support is mentioned, along with an M.2 thermal protector.
