Thermalright Wonder Vision 360 Turbo 6.67in CPU cooler

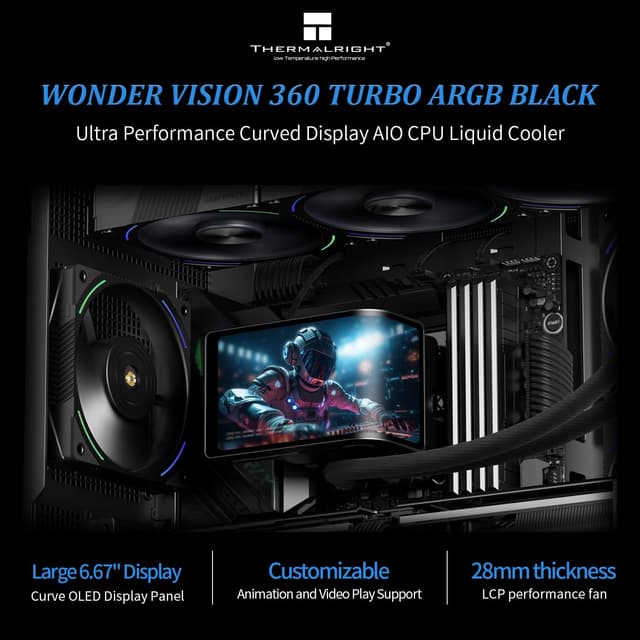

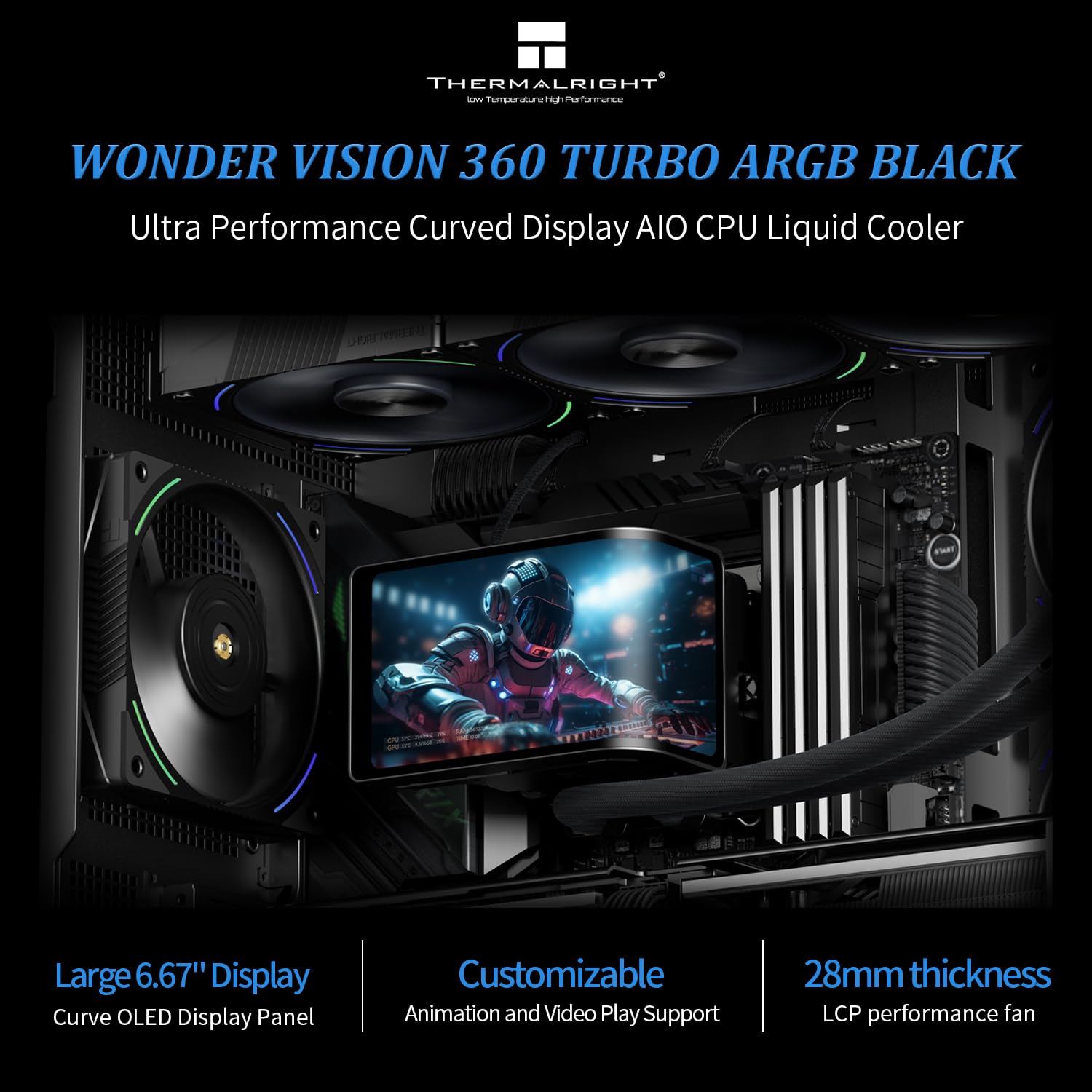

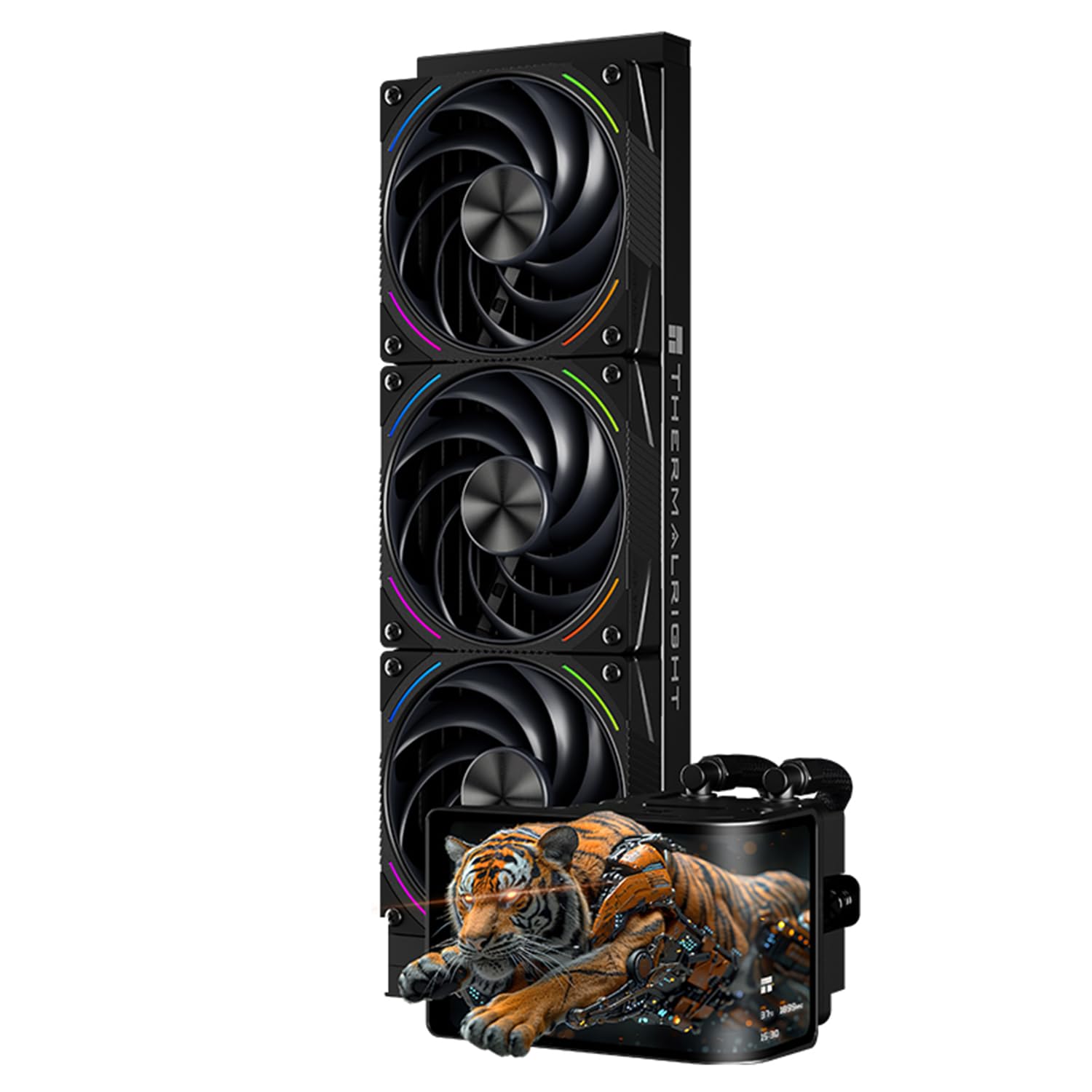

This CPU liquid cooler combines a 6.65-inch curved 3D OLED display with a 360 mm radiator and high-performance cooling components to support modern desktop builds where monitoring and visual flair matter. It is suitable for systems using AMD AM4/AM5 and Intel LGA115x/1200/1700/2011/2066/1851 sockets, and it pairs a 60 Hz curved screen with ARGB lighting for a mix of thermal management and customizable aesthetics.

Key Points

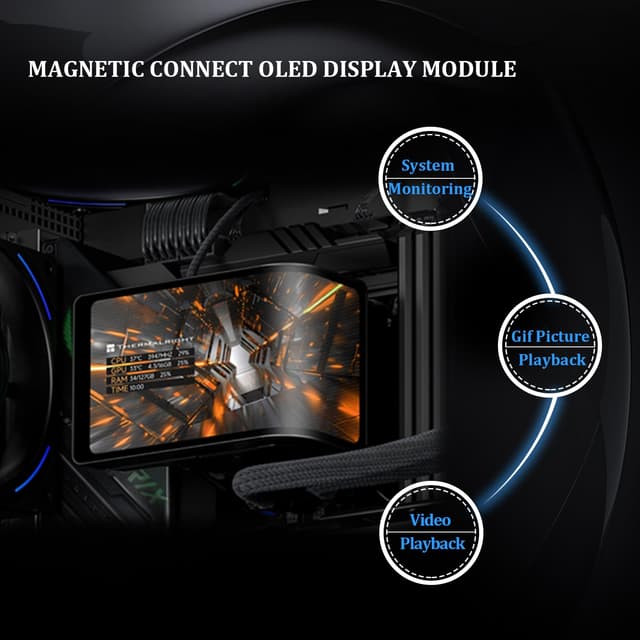

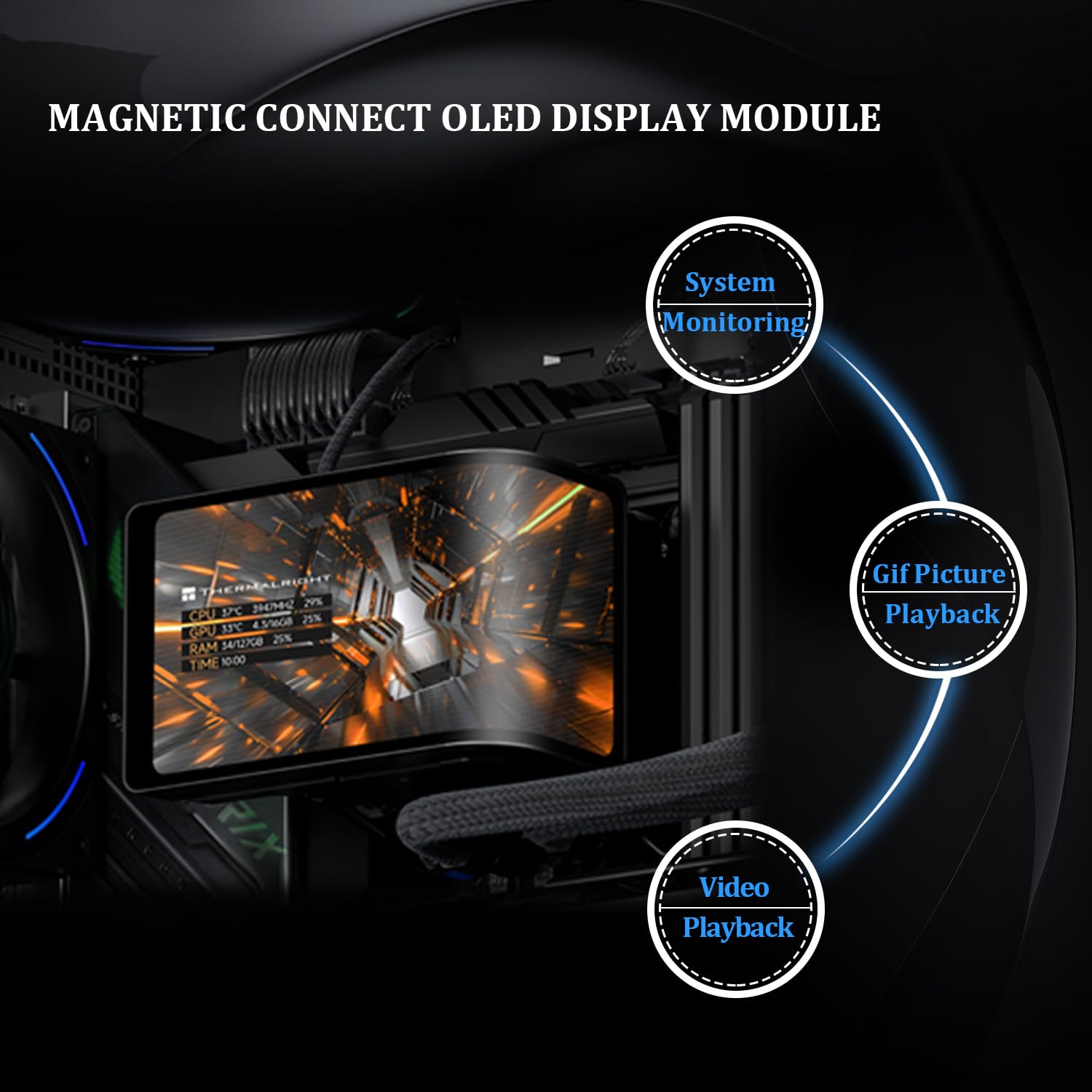

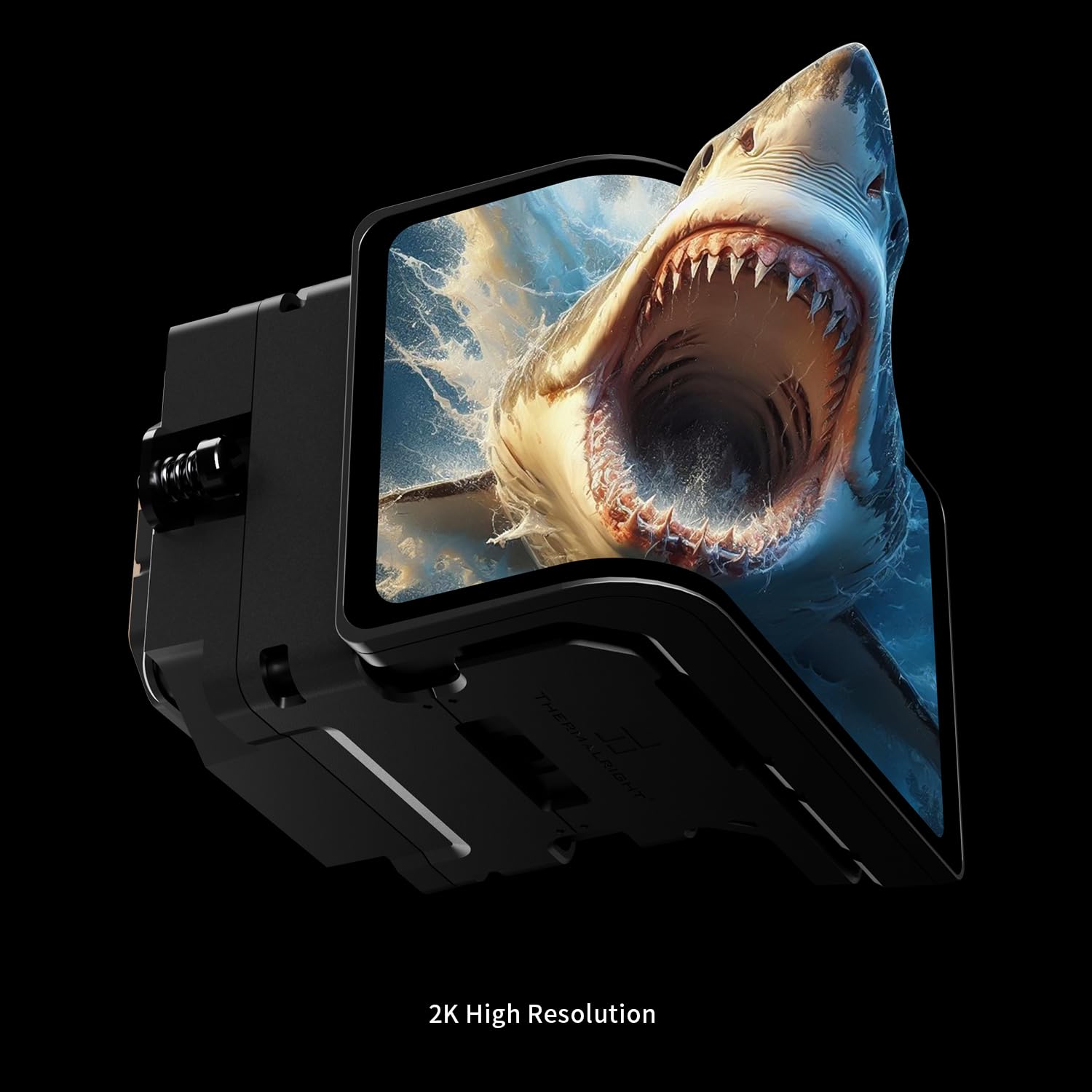

The curved 3D screen offers a 2400 x 1080 resolution at 60 Hz and can display dynamic or static imagery, system monitoring readouts, and user-created themes using the vendor software. The cold plate includes a magnetic removable screen head that simplifies access and allows users to swap visuals without disassembling the whole loop. The pump and head integrate a USB Type-C control connection and require the TRCC software for full customization and data display.

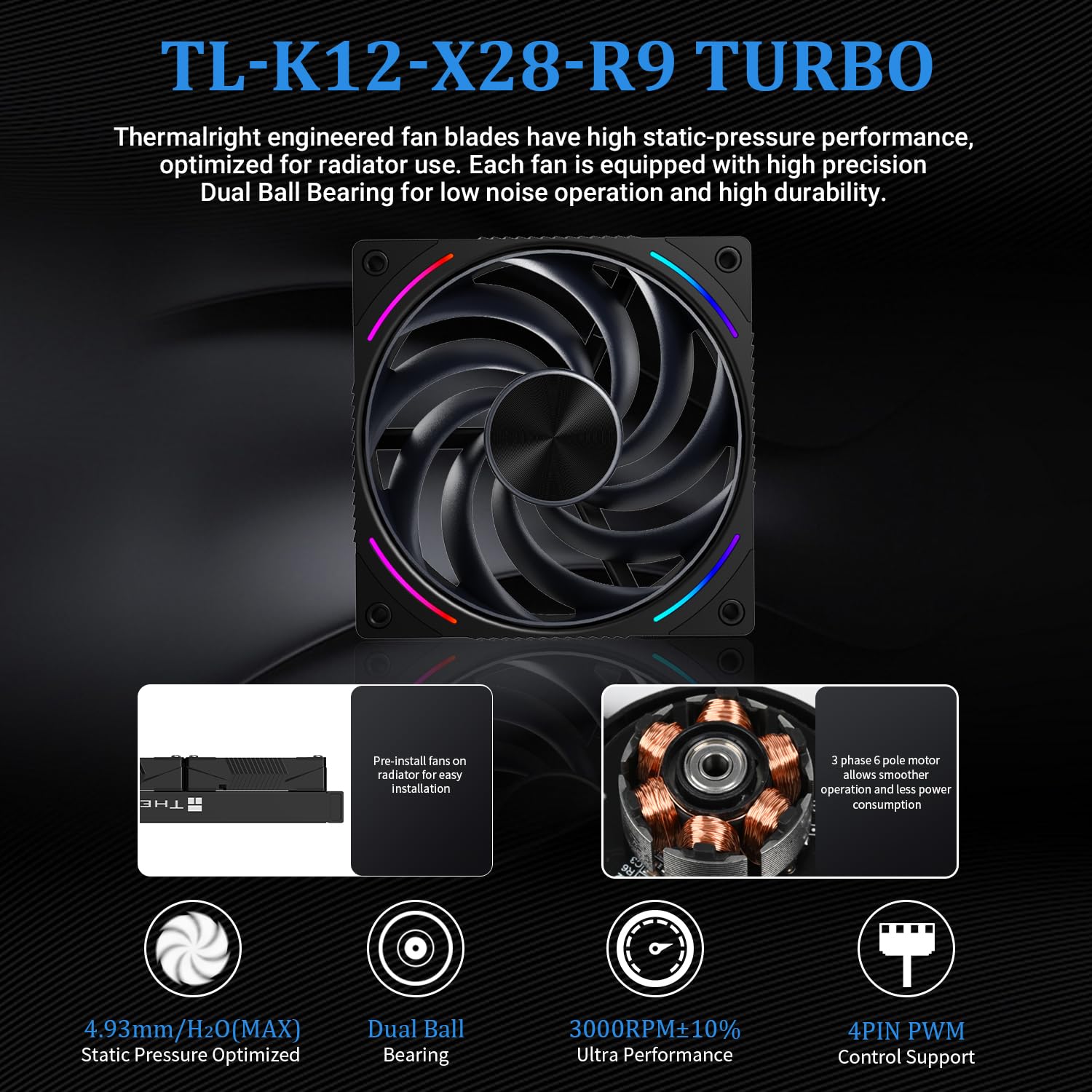

Three high-performance 120 x 120 x 28 mm PWM fans provide strong airflow and pressure, with a maximum rated speed of 3000 RPM according to the manufacturer. These fans use dual ball bearings and include an anti-vibration noise-reduction ring plus a dual-sided ARGB light strip across the corners. Fan speed is adjustable via PWM so it can respond to CPU temperature changes.

Technical Specifications

• Name: Thermalright Wonder Vision 360 Turbo ARGB

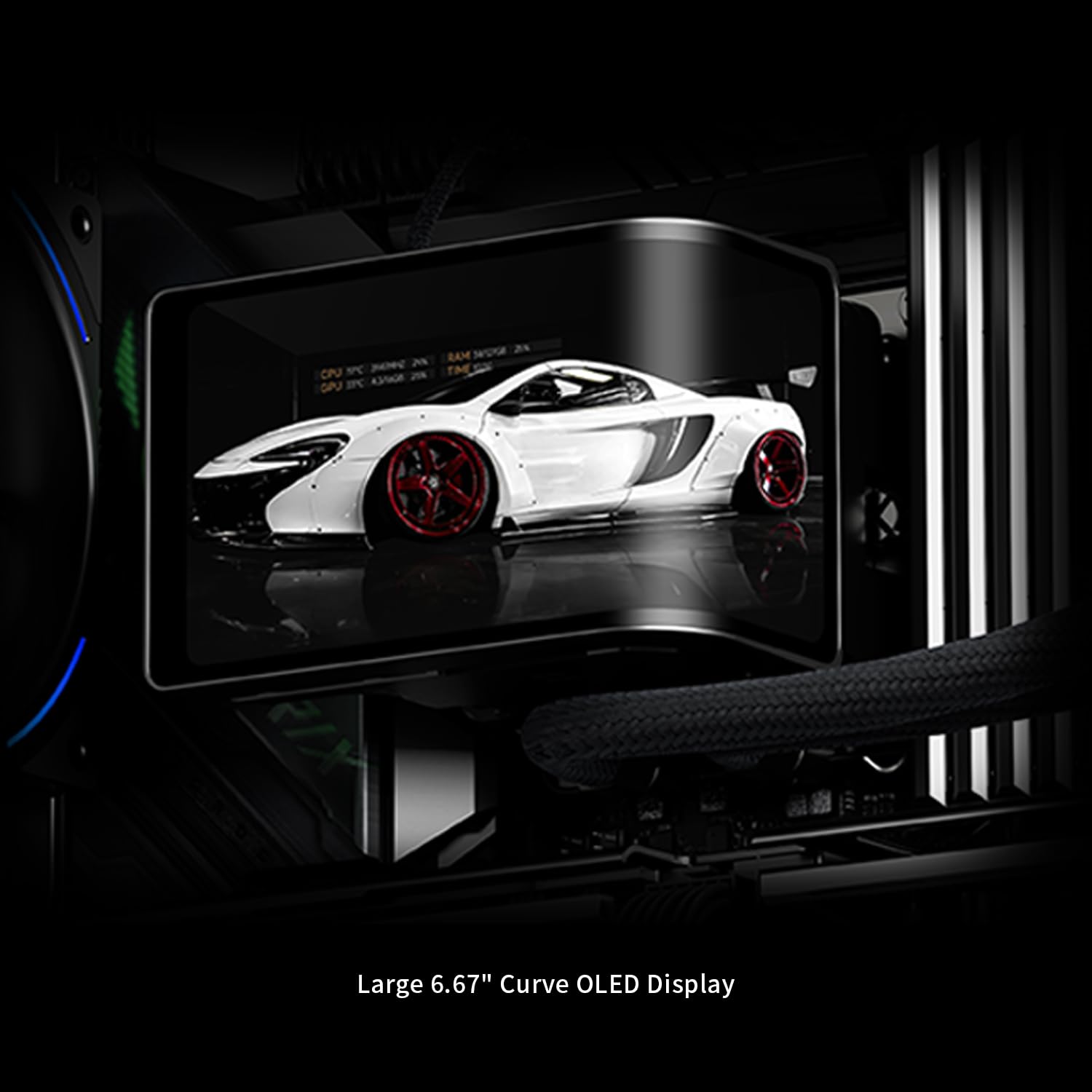

• Display: 6.65 in curved 3D OLED, 2400 x 1080, 60 Hz
• Fan model and size: - TL-K12-X28-R9 TURBO, 120 x 120 x 28 mm
• Fan speed and noise: - 3000 RPM ± 10%, noise ≤ 44.7 dBA

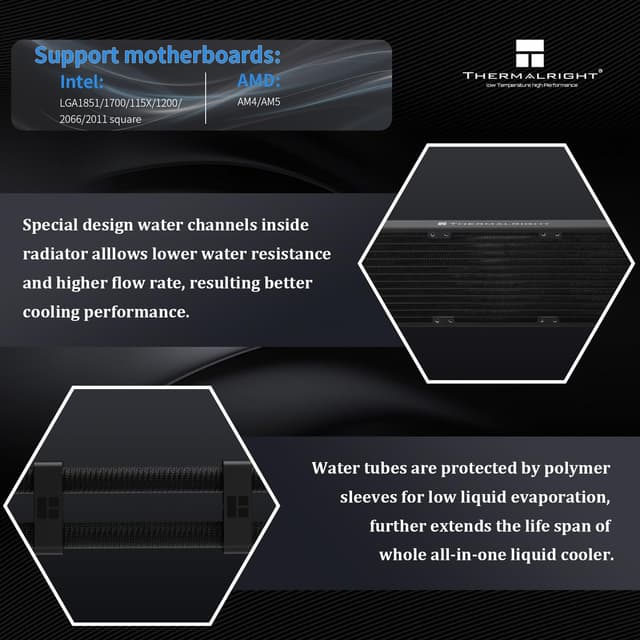

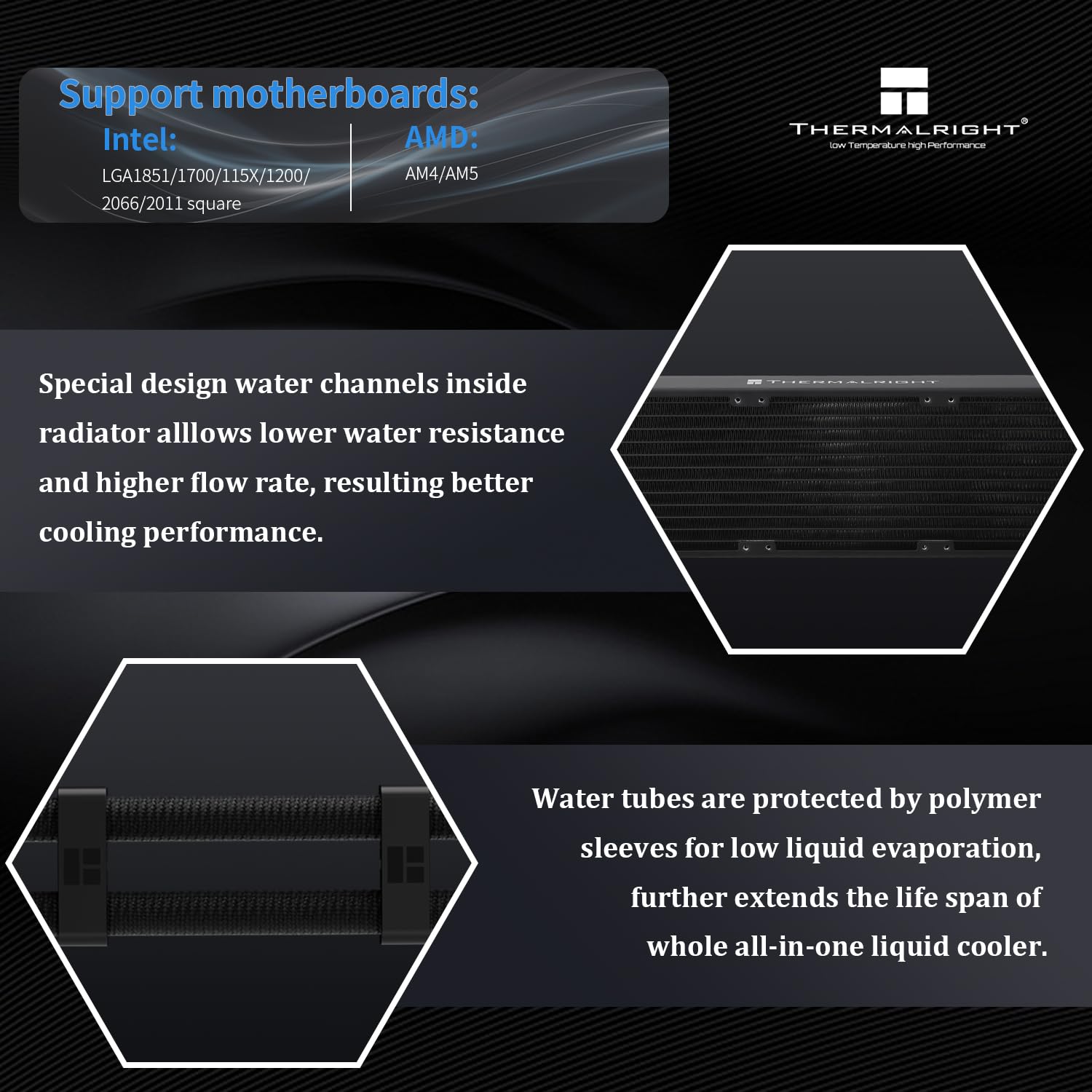

• Compatibility: - Intel LGA1150/1151/1155/1156/1200/1700/2011/2066/1851 and AMD AM4/AM5
• Pump/fan airflow and pressure: - Airflow up to 120.3 CFM, static pressure up to 4.93 mmH2O

Advantages

The integration of a high-resolution curved screen distinguishes this cooler by letting users display system telemetry and custom visuals directly on the CPU block. Lighting and visual customization are extensive thanks to the ARGB accents and TRCC software support. Fans with thicker 28 mm profiles aim to balance airflow and static pressure for better radiator performance, and the inclusion of vibration-damping hardware helps reduce operational noise while maintaining longevity.

Usage Recommendations

Installers should review motherboard headers and routing before setup because the curved display and TRCC interface require a 9-pin USB connection on the board plus the Type-C head connection for resets. According to the manufacturer, AMD platform installation may require using the original motherboard backplate and included dual-platform metal brackets. The TRCC software must be downloaded from the official source to enable full screen control and monitoring features. Note that while the screen supports 3D and video playback, playback performance and compatibility depend on correct software configuration and available USB bandwidth.
