UGREEN HDMI Switch 4K@60Hz bi-directional splitter

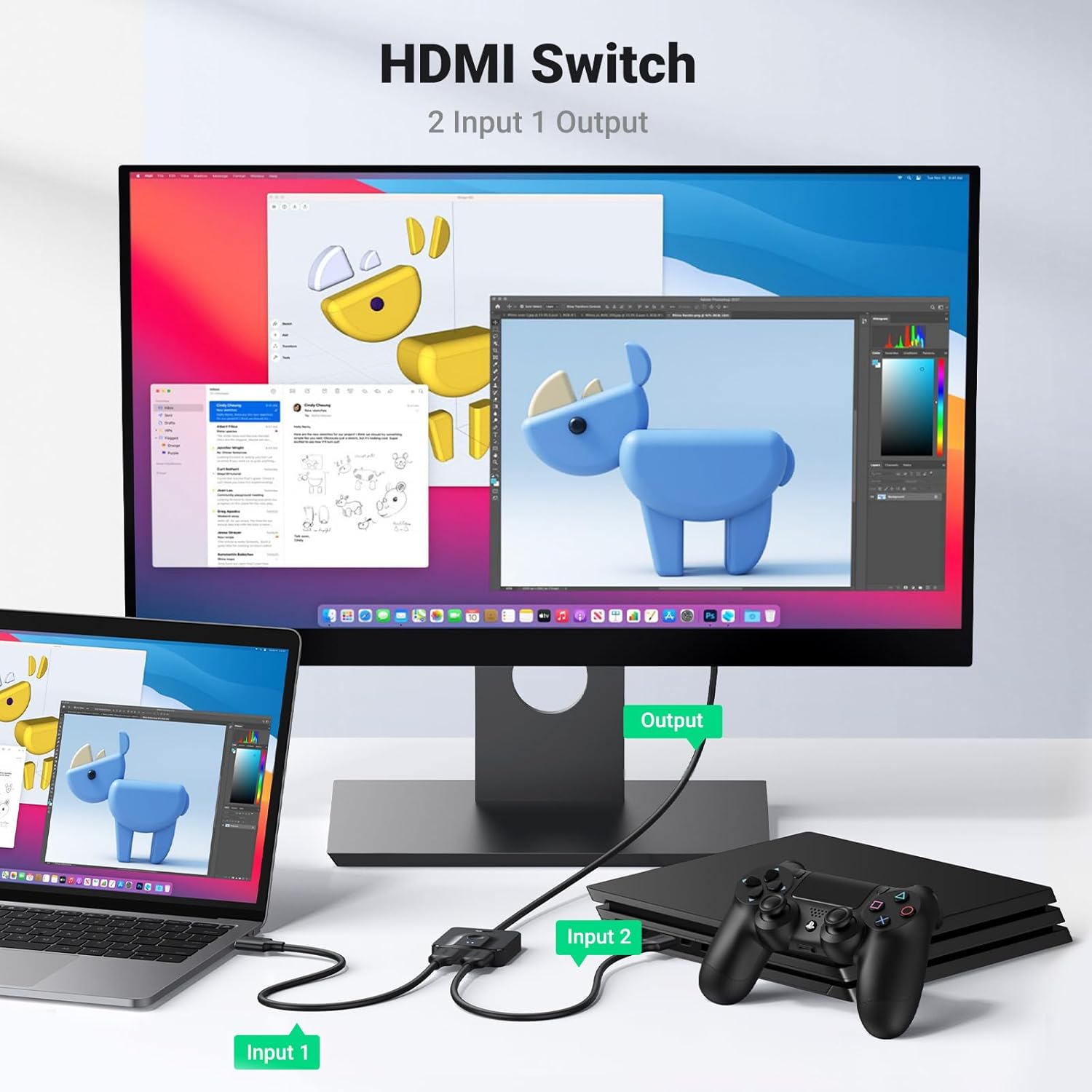

This UGREEN HDMI switch lets you connect two HDMI sources to one display or switch a single source between two screens with minimal signal loss, making it practical for compact setups and sharing a single monitor between a console and a media player. It supports HDMI switch 4K 60Hz for crisp UHD playback, and the plug-and-play design keeps operation simple 📺.

Key Points

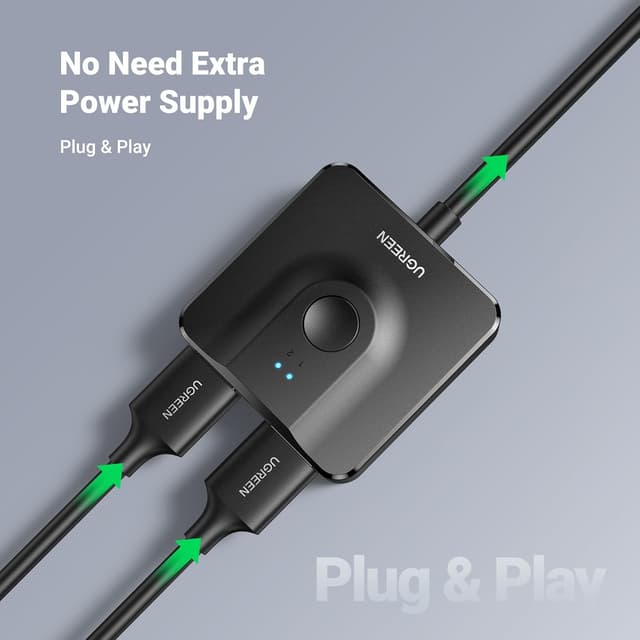

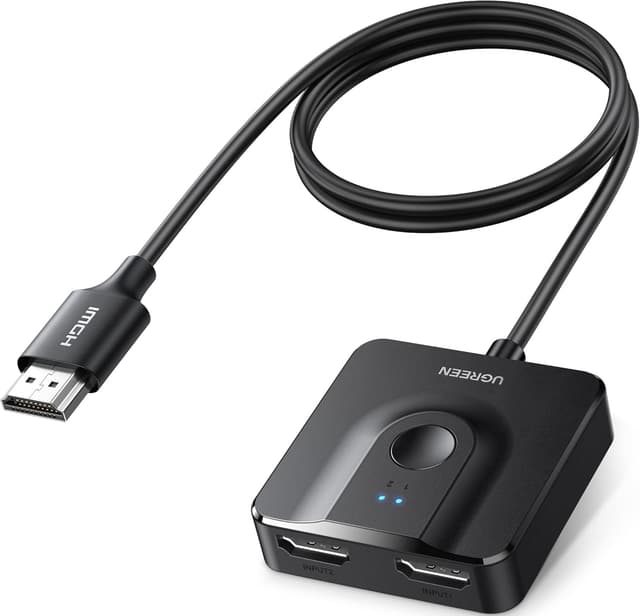

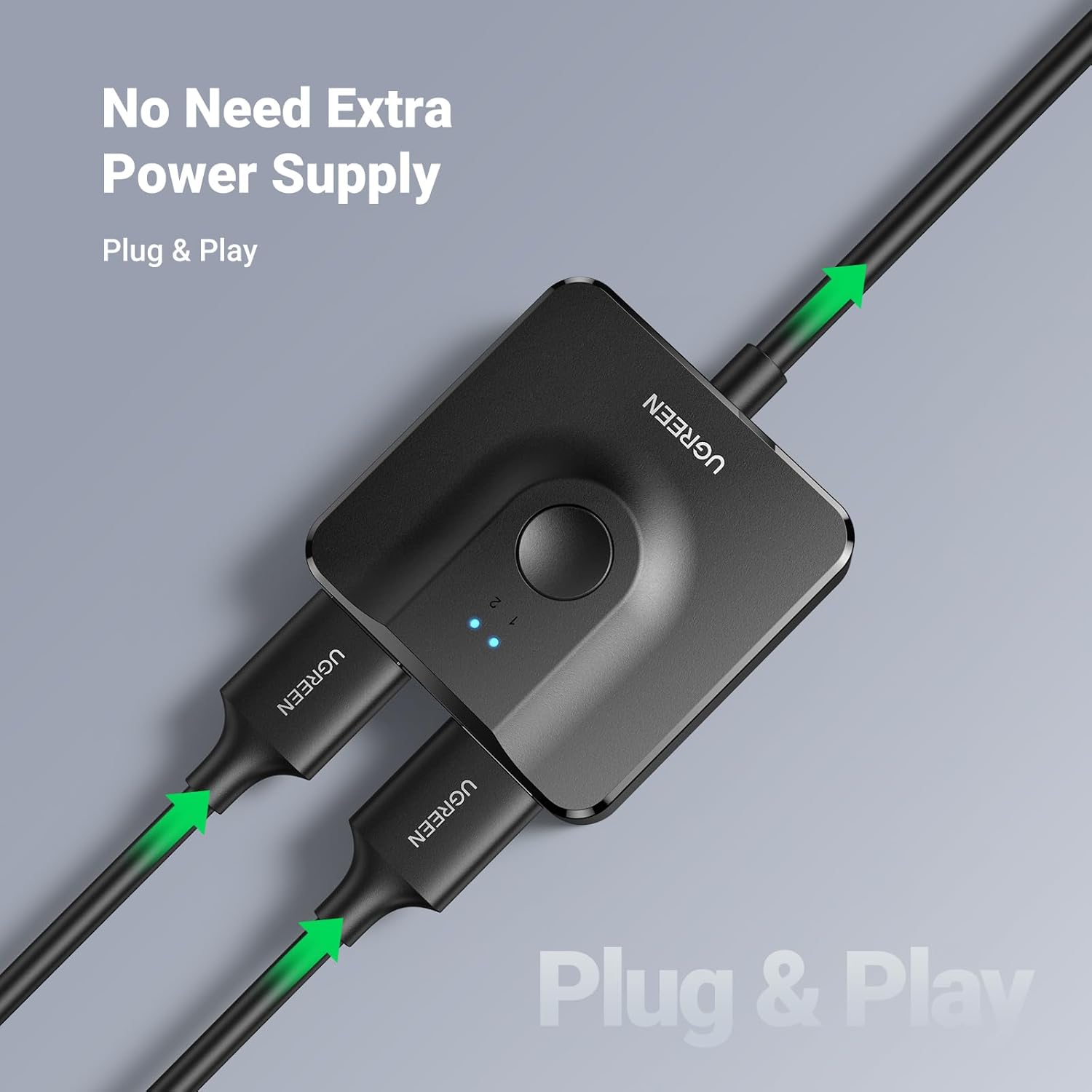

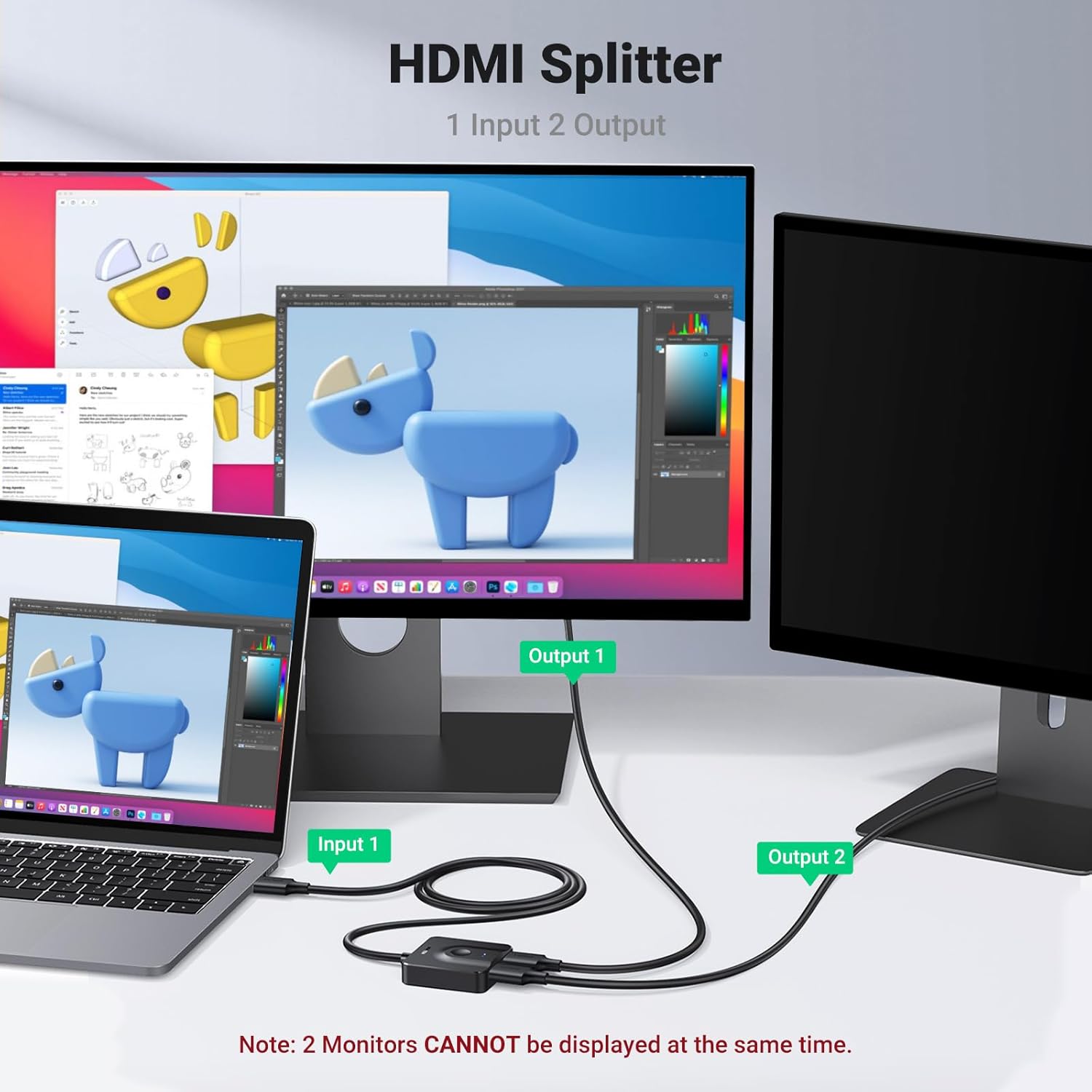

The unit is a bi-directional HDMI splitter and switcher that works without an external power supply according to the manufacturer, so setup is straightforward and tidy. A single button toggles between inputs or outputs, and a built-in LED indicates which port is active. The integrated 1 m HDMI cable reduces clutter and keeps one connection ready at all times. Note that the device does not mirror two screens simultaneously; only one screen can receive the active signal at a time.

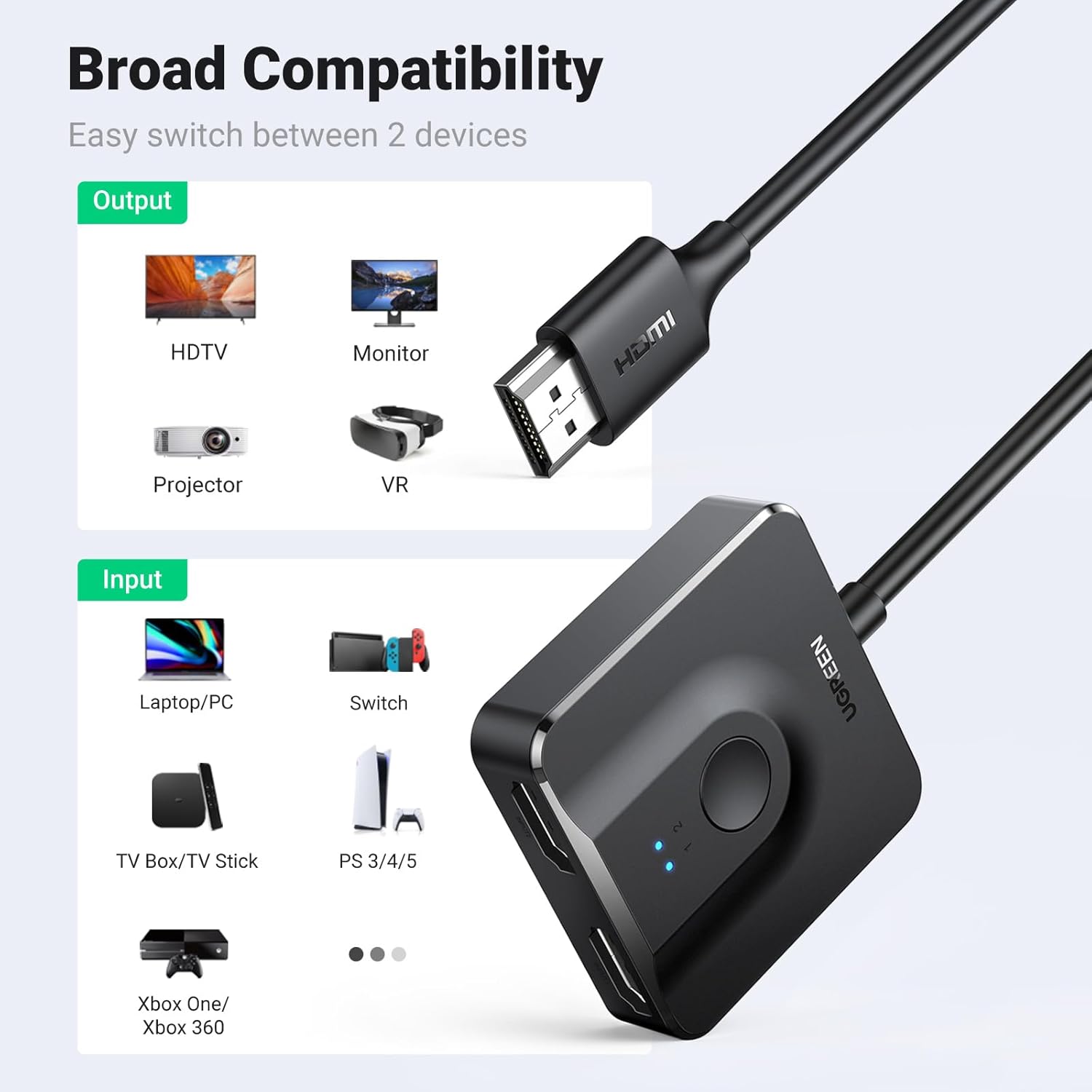

Compatibility covers a broad range of HDMI equipment including PS5, PS4, Xbox consoles, Blu-ray players, streaming sticks and HDTVs. It supports HDR and 3D content as well as CEC control, which can help maintain some remote control functions through compatible TVs. For very high refresh rates or long cable runs, the manufacturer suggests using a suitable HDMI 2.0 cable of 1 m or shorter for best results.

Technical Specifications

• Name: UGREEN HDMI Switch 4K@60Hz
• Resolution support: 3840 x 2160 at 60 Hz, also compatible with 2560 x 1440 at 120 Hz and 1920 x 1080 at 144 Hz
• Bandwidth: 18 Gbps
• Supported standards: HDR, 3D, HDCP 2.2/1.4, CEC, 48-bit Deep Colour
• Cable included: 1 m HDMI cable

Usage Recommendations

For stable 4K@60Hz performance, keep the cable length short and use high-quality HDMI 2.0 cables when replacing or extending leads. When switching between a console and a set-top device, allow a few seconds after pressing the button for the display to lock to the new resolution and handshake. If you plan to use HDR content frequently, verify that your display and source both support HDR and HDCP 2.2 to avoid compatibility issues. For multi-monitor setups where simultaneous display is needed this unit will not provide a duplicate output, so consider a dedicated splitter if mirroring is required 🎮.
