VEDINDUST HDMI Extender Splitter 50m 1080p

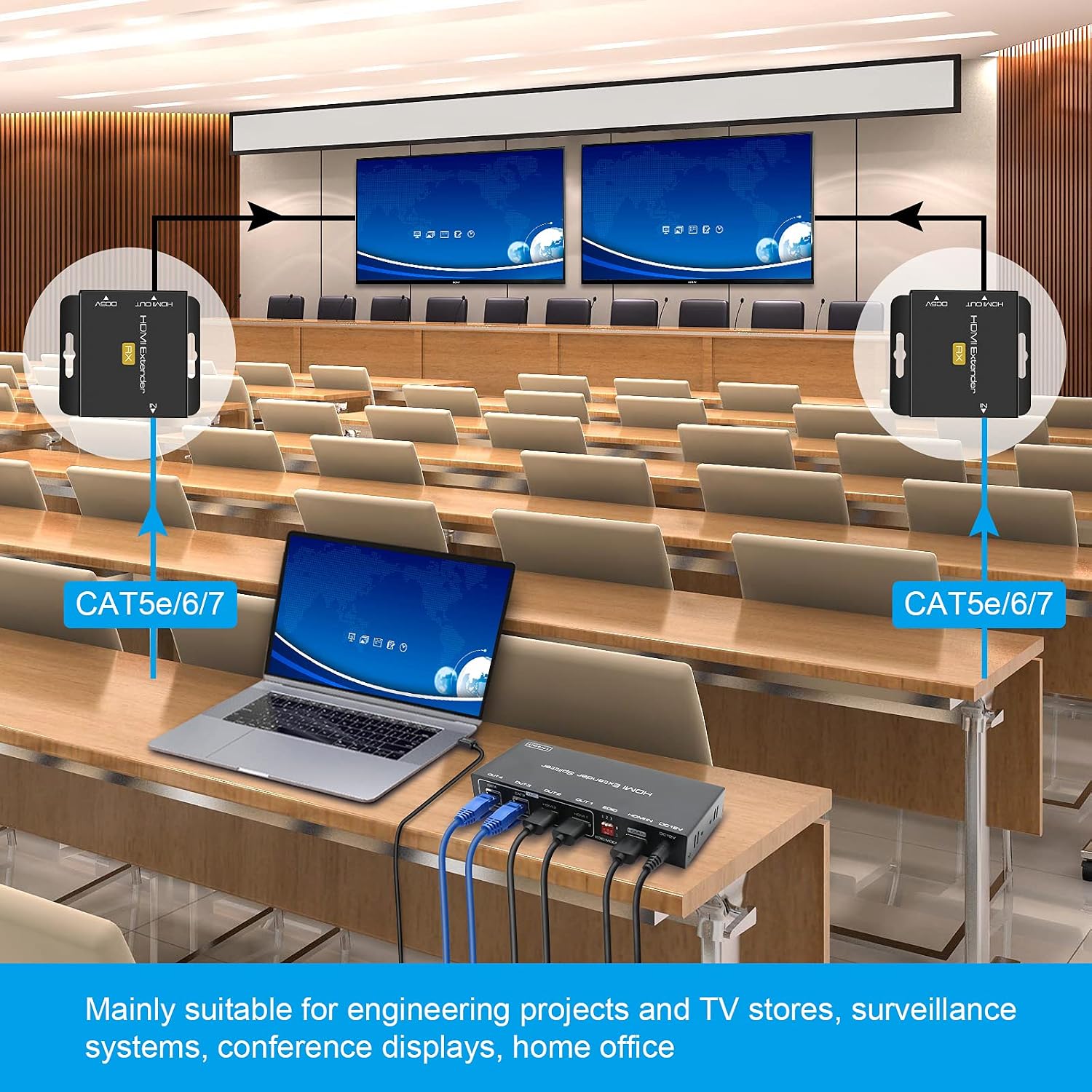

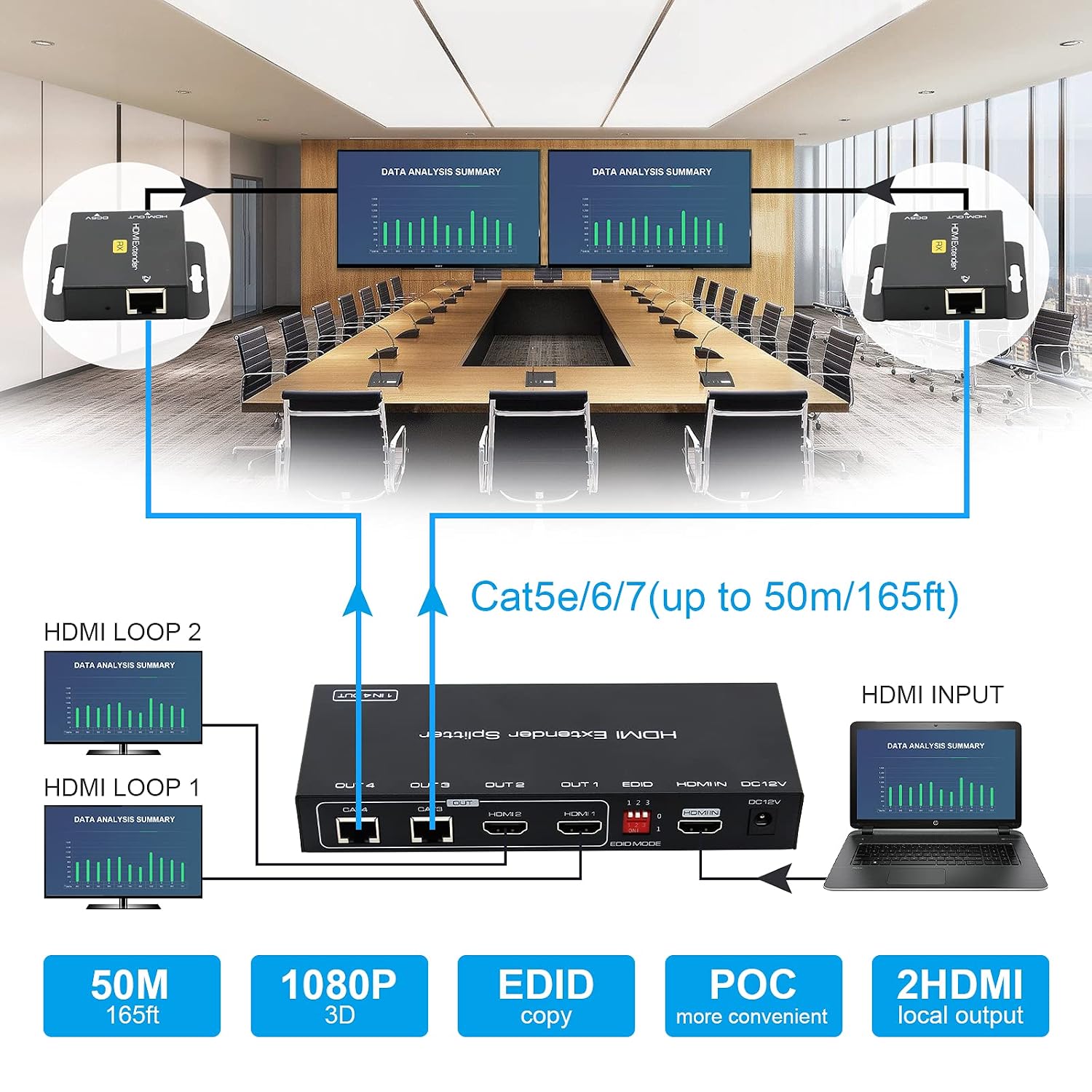

The VEDINDUST HDMI Extender Splitter is a compact AV solution that sends one HDMI source to two displays over a single Cat5e/6/7 cable up to 50 metres. It combines HDMI splitting, long distance transmission and power‑over‑cable convenience, making it suitable for classrooms, meeting rooms, digital signage and simple home setups.

Key points

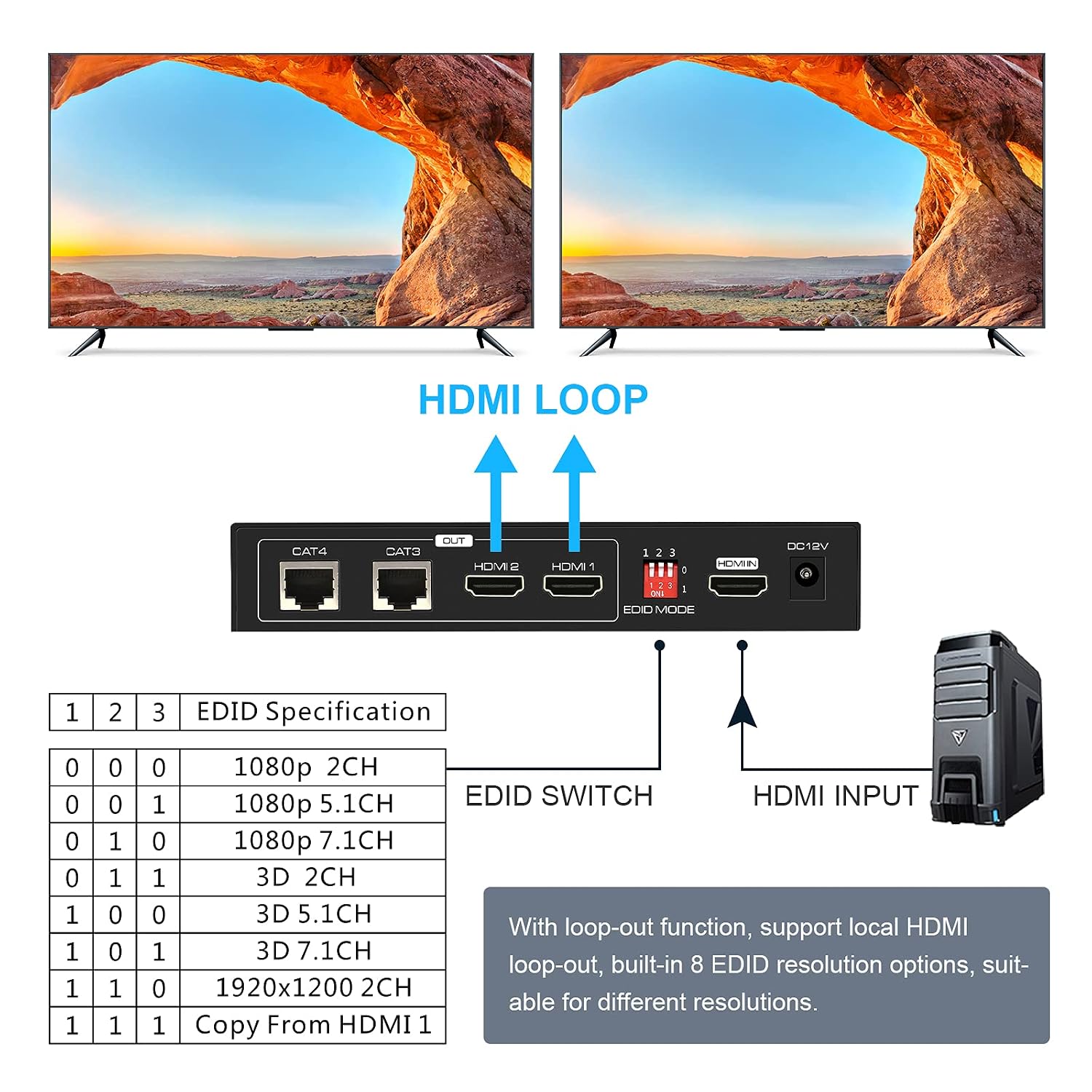

This kit supports full HD 1080p at 60Hz and handles common audio formats such as DTS‑HD and LPCM7.1, according to the manufacturer. EDID presets are included to improve compatibility between source and screens, and the built‑in equalisation adjusts automatically to help maintain a stable picture across different cable lengths. Note that TX requires a 12 V supply while RX can be powered via POC, which adds installation flexibility but requires attention to the correct wiring and power arrangement.

Specifications

• Name: VEDINDUST HDMI Extender Splitter
• Type: 1 in 2 out HDMI over Cat cable
• Format: 1080p 60Hz
• Capacity: up to 50m over Cat6
• Resolution: supports 720p 576p and 3D

Why it’s worth it

The unit is a practical choice when you need to mirror a single source to two displays without running multiple HDMI leads. The EDID management reduces trial and error when pairing different screens, and POC means fewer power points at the far end. Expect no fancy extras, but a straightforward, function‑first product that suits routine AV installs.

How to use it

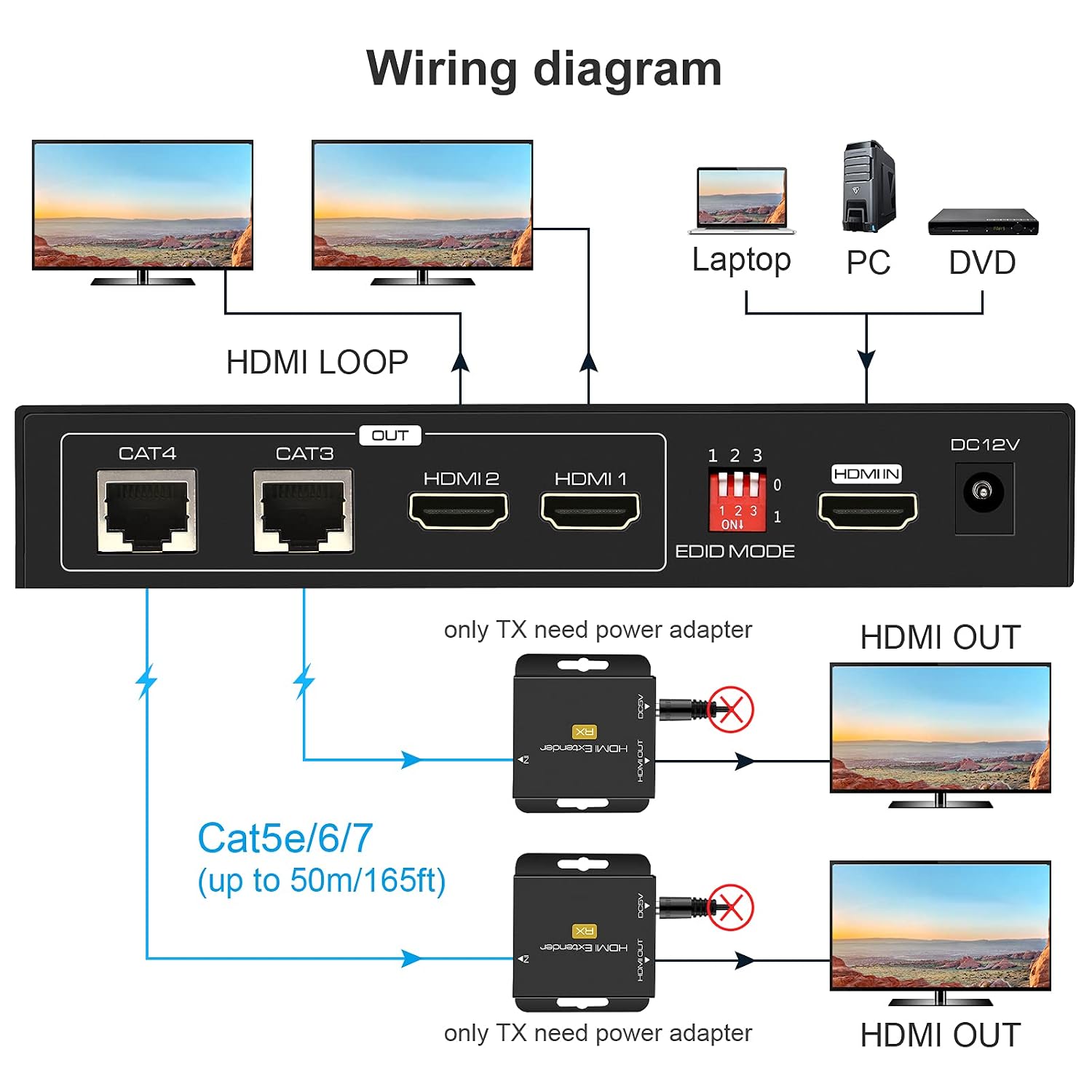

Connect the transmitter to your HDMI source and power it with the 12 V adapter, then run a Cat5e/6/7 cable to each receiver. If you use POC follow the wiring notes carefully so the transmitter provides power to the receiver safely. If you prioritise very long runs check cable quality, and if you need 4K do note this model is limited to 1080p. VEDINDUST HDMI Extender Splitter is a useful fit when you want simple duplication of a 1080p source to two screens with minimal cabling. 🎯🔌📺.
