OREI 1x8 HDMI Extender Splitter 165 ft 📺

This HDMI extender and splitter sends a single HDMI source to eight screens over standard network cable, letting you run displays across a venue without long HDMI runs. It is designed for meeting rooms, digital signage and events where distributing 1080P content across multiple screens with low latency matters.

Key Points

The unit combines an 8-port CAT6 transmitter with eight receivers and a local HDMI loop out so you can drive a nearby monitor directly. It supports up to 1920 x 1080 at 60 Hz and also accepts 2K at 60 Hz according to the manufacturer, making it suitable for Full HD presentations and video playback. The system includes Power over LAN on the receiver side which removes the need for a separate power adapter at each display in many setups, and it offers IR pass-back so remote control signals can travel back to the source for centralised operation 🎯.

Installation is mostly plug and play which simplifies setup in rooms or temporary installations. Cabling options include CAT6, CAT6a and CAT7, and the transmitter provides eight CAT6 outputs plus an extra HDMI output for a local monitor. Consider that this product is focused on 1080P distribution; it does not replace a dedicated 4K extender for ultra-high-definition requirements.

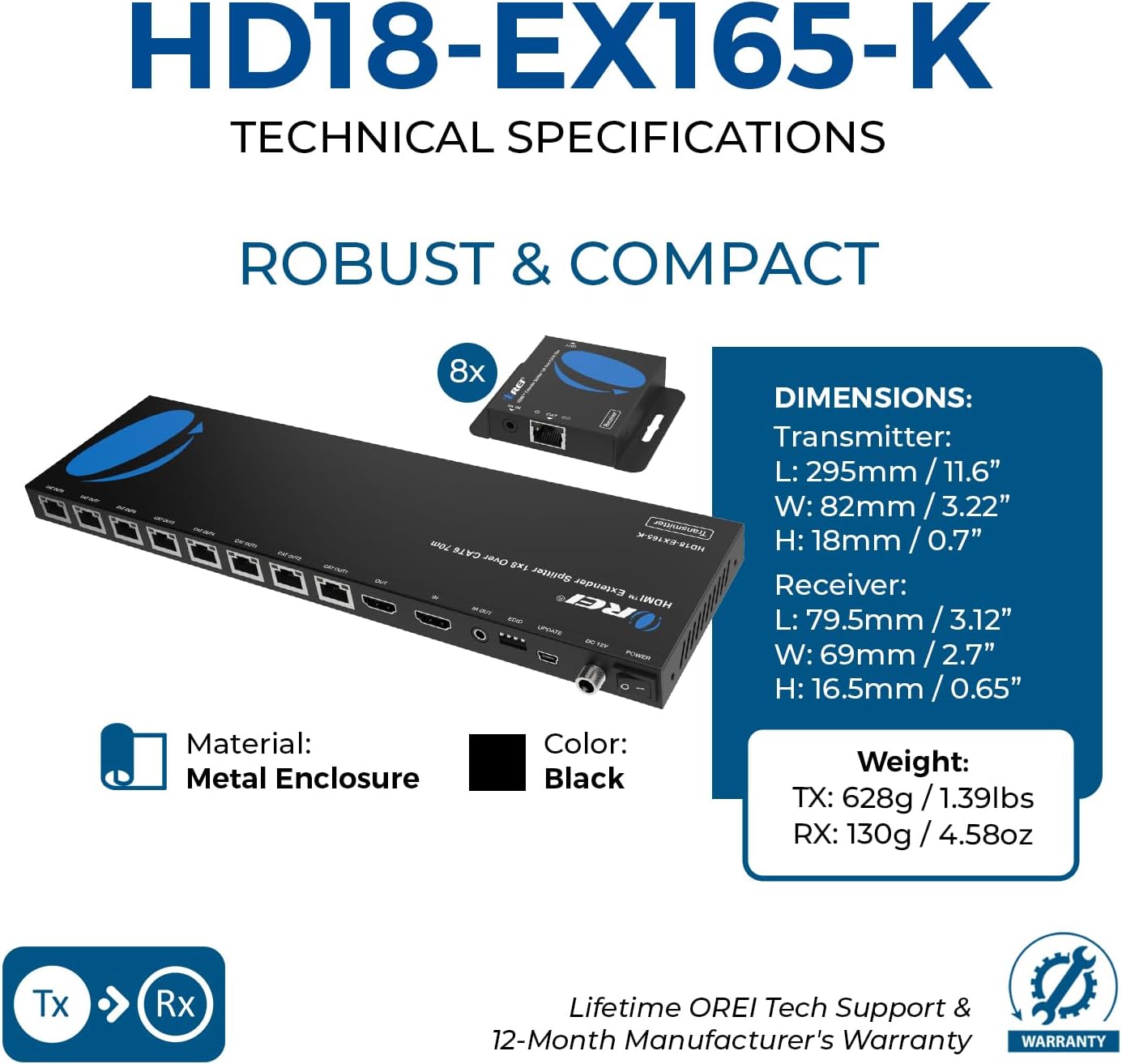

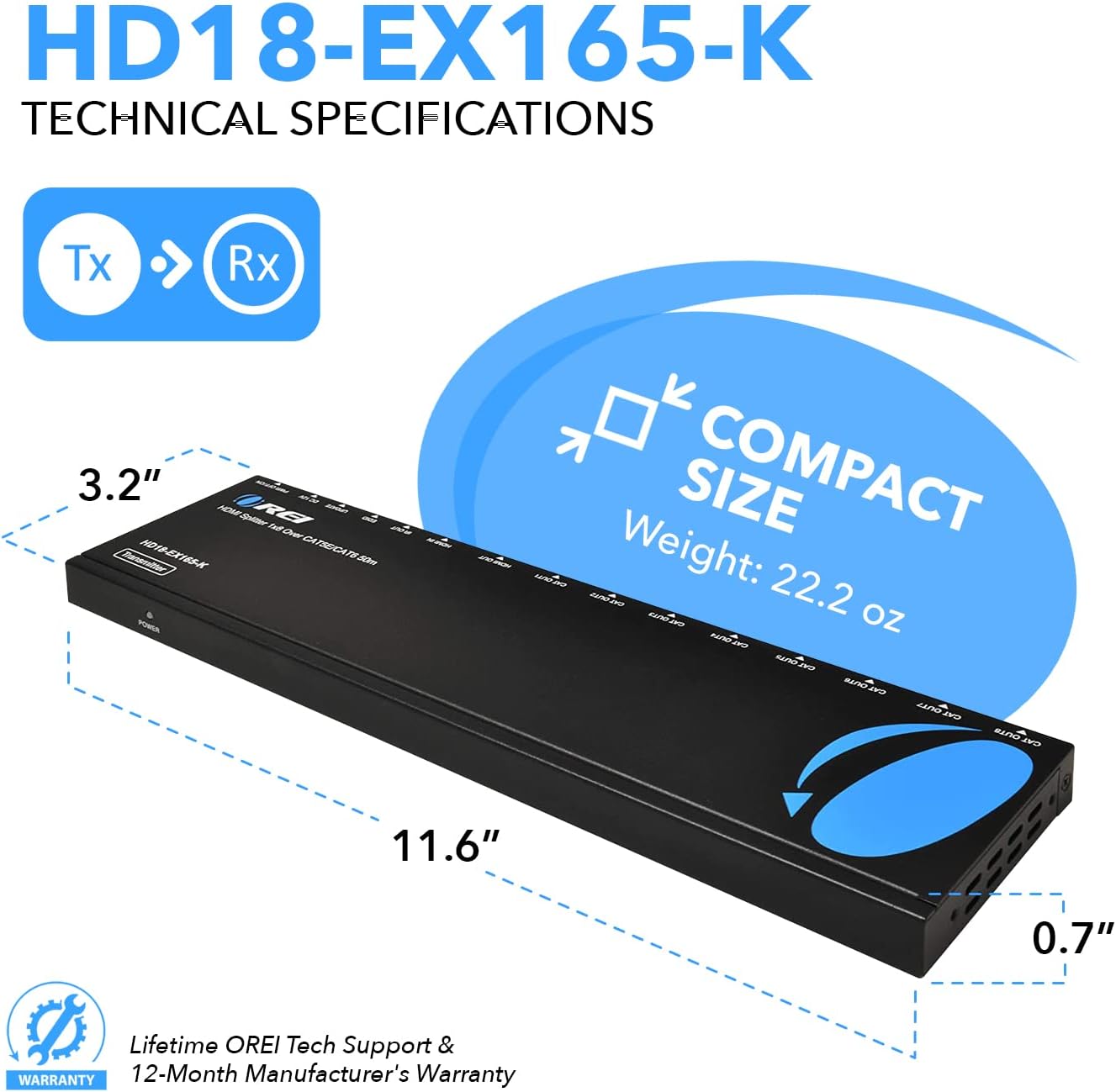

Technical Specifications

• Name: OREI 1x8 HDMI Extender Splitter
• Resolution support: 1920 x 1080 @ 60 Hz, 2K @ 60 Hz
• Outputs: 8 × CAT6 outputs, 1 × HDMI loop out
• Range: Up to 165 ft (approx 50 metres) over network cable
• IR support: 20 to 60 Hz IR pass-back with included IR blaster and receiver cables

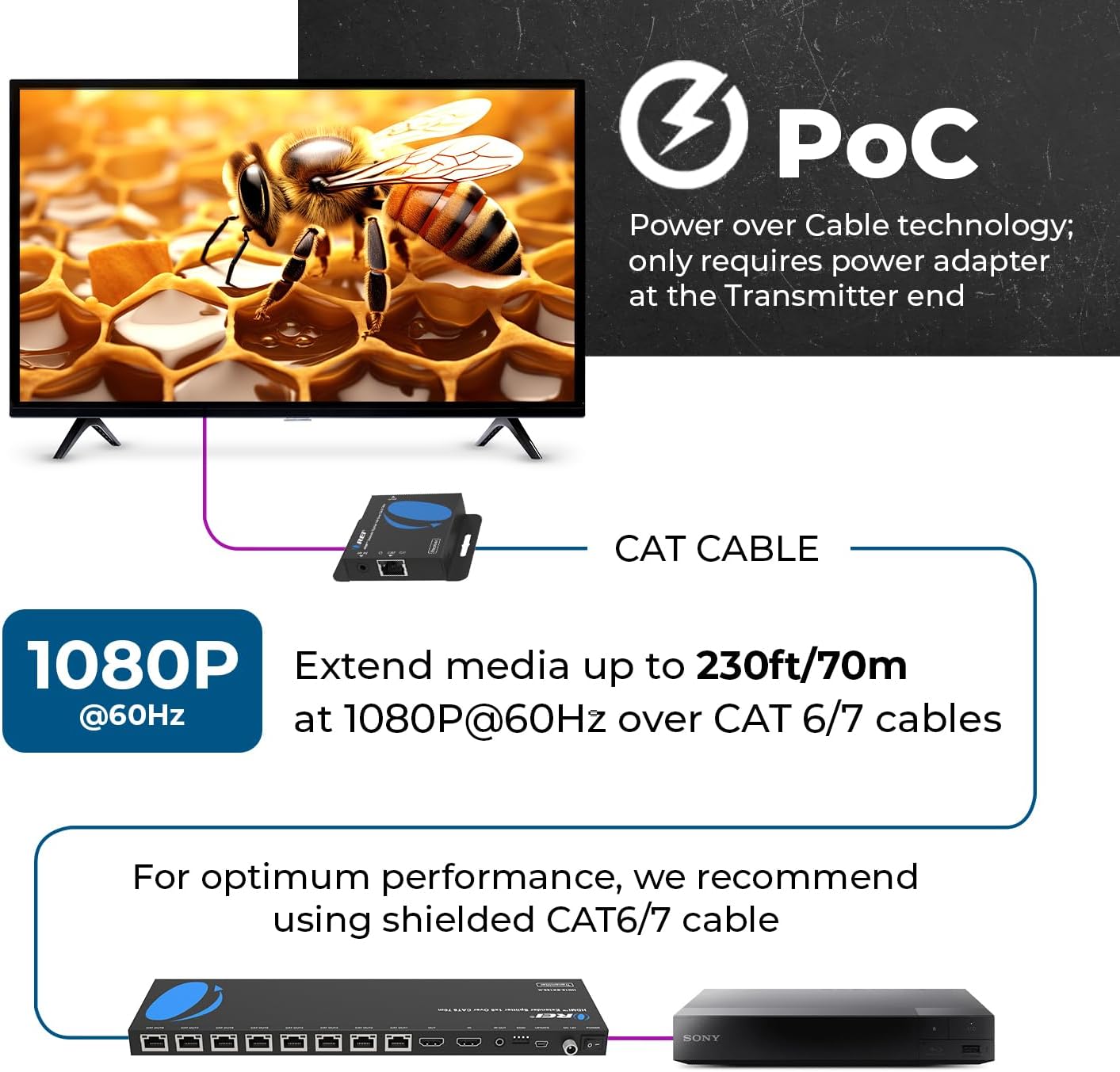

• Power: Transmitter mains adapter with international converter included, Power over LAN on receivers
• Warranty: 1 year manufacturer warranty

Usage Recommendations

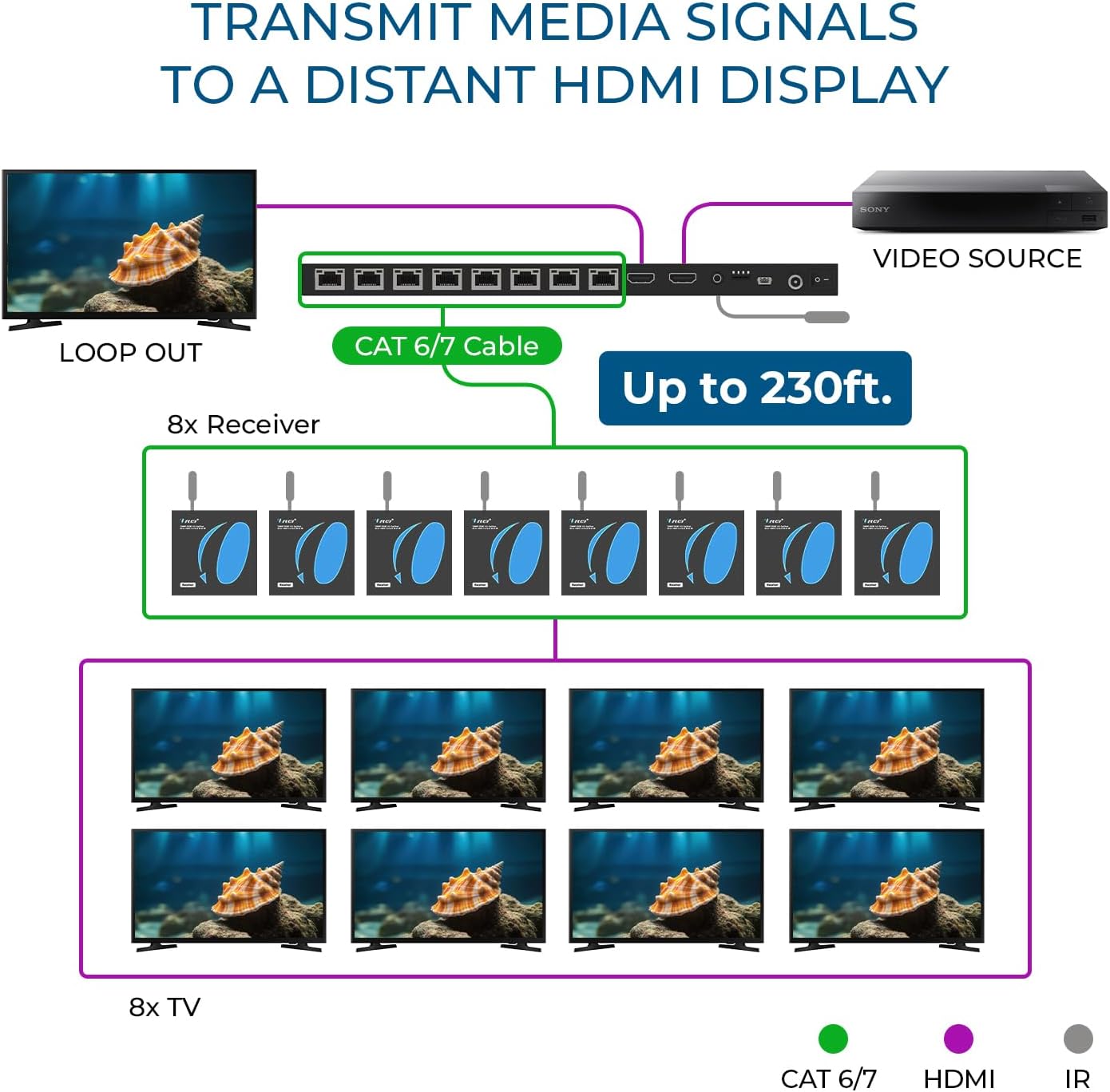

Run each receiver to its display with a single CAT6/6a/7 cable and place the transmitter near the HDMI source for the simplest layout. If you need a local monitor at the source, use the HDMI loop out for immediate visual feedback while the remaining eight ports feed remote screens. For installations where receiver power outlets are limited, the Power over LAN feature can reduce cabling clutter, although verify that the network cable length and quality meet the specified maximum to avoid signal degradation. For remote control of the source, connect the included IR blaster and receiver cables to enable IR commands to travel over the dedicated DDC channel.

Benefits

The system keeps latency low which helps for slide presentations and live video where audio‑visual sync matters. It removes the need for an external distribution amplifier because the splitter function is integrated, allowing a neater rack or AV cabinet. The kit ships with the transmitter, eight receivers and all IR accessories, so you get a complete distribution solution without sourcing extra modules. Note that the user manual language availability may vary and the documentation provided may not be in English according to the original packaging details, so plan on simple testing during installation.
