MSI Z790 Gaming Plus WiFi ATX motherboard for Intel 12th–14th Gen (LGA 1700) with DDR5 up to 7200+MHz/OC
Product description
The essentials (and who this board is for)
If you’re building (or upgrading) a mainstream-to-enthusiast Intel system and you want a motherboard that’s ready for modern connectivity and storage, the MSI Z790 Gaming Plus WiFi is worth a close look. It’s an ATX Z790 board built around an LGA 1700 platform, and it’s positioned around performance-focused features like PCIe 5.0 support, multiple M.2 Gen4 slots, and DDR5 overclocking (the listing mentions DDR5 up to 7200+MHz/OC).
On paper, it also covers the practical basics well: built-in Wi‑Fi 6E with Bluetooth 5.3, 2.5G LAN, and a sensible set of rear I/O including HDMI 2.1 and high-speed USB-C (USB 3.2 Gen 2x2 Type‑C is mentioned). If your priority is a stable, flexible ATX platform rather than chasing the absolute top tier, this is the kind of board that can make sense.
Key features that matter in real builds
What stands out most is the mix of “speed options” and “control” around them. The board includes:
- DDR5 overclocking support via MSI Memory Boost, with the listing calling out 7200+MHz/OC and specific board layout notes (the text mentions 1DPC 1R).

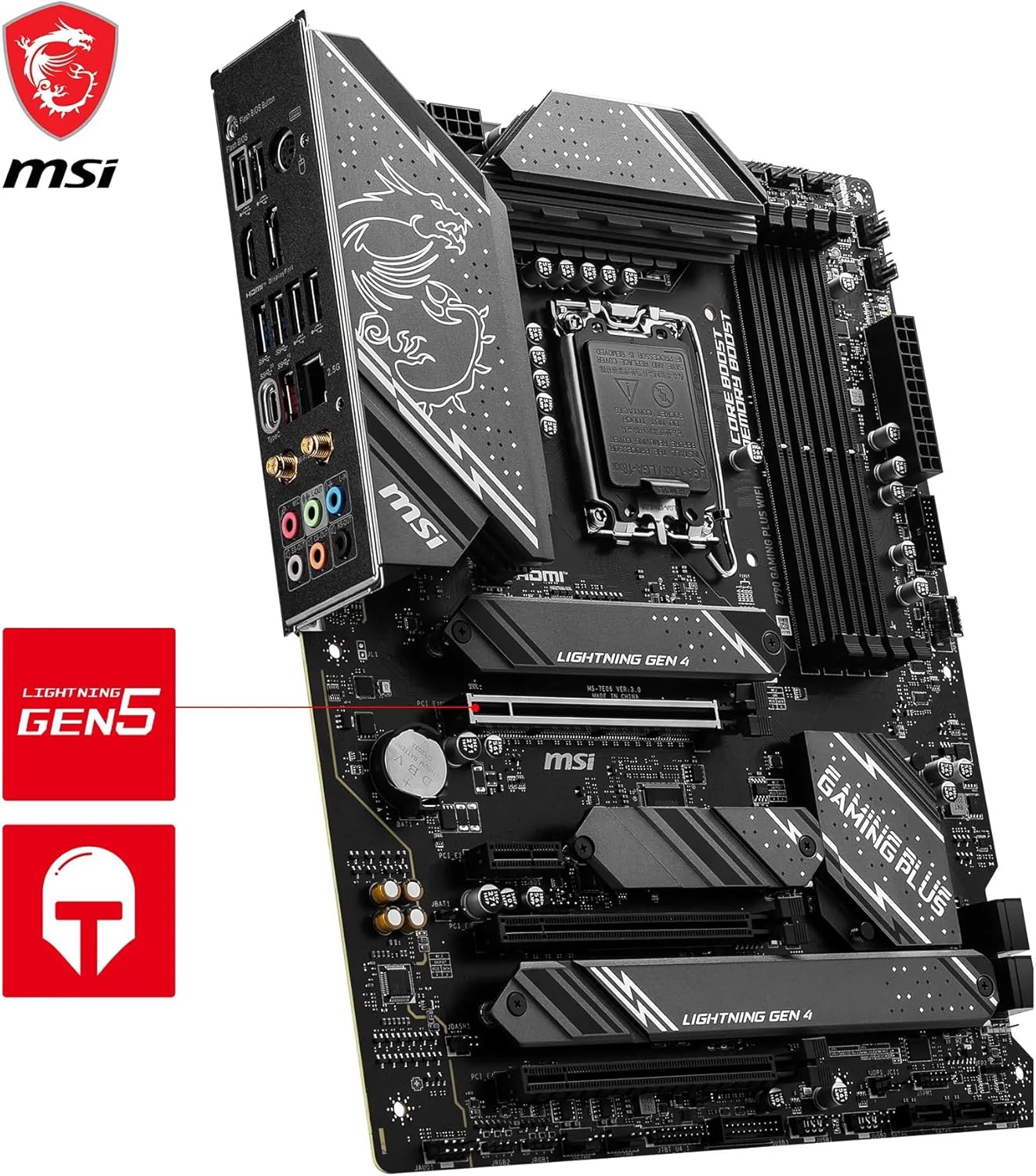

- A single PCIe 5.0 x16 slot reinforced with Steel Armor for graphics-heavy builds.

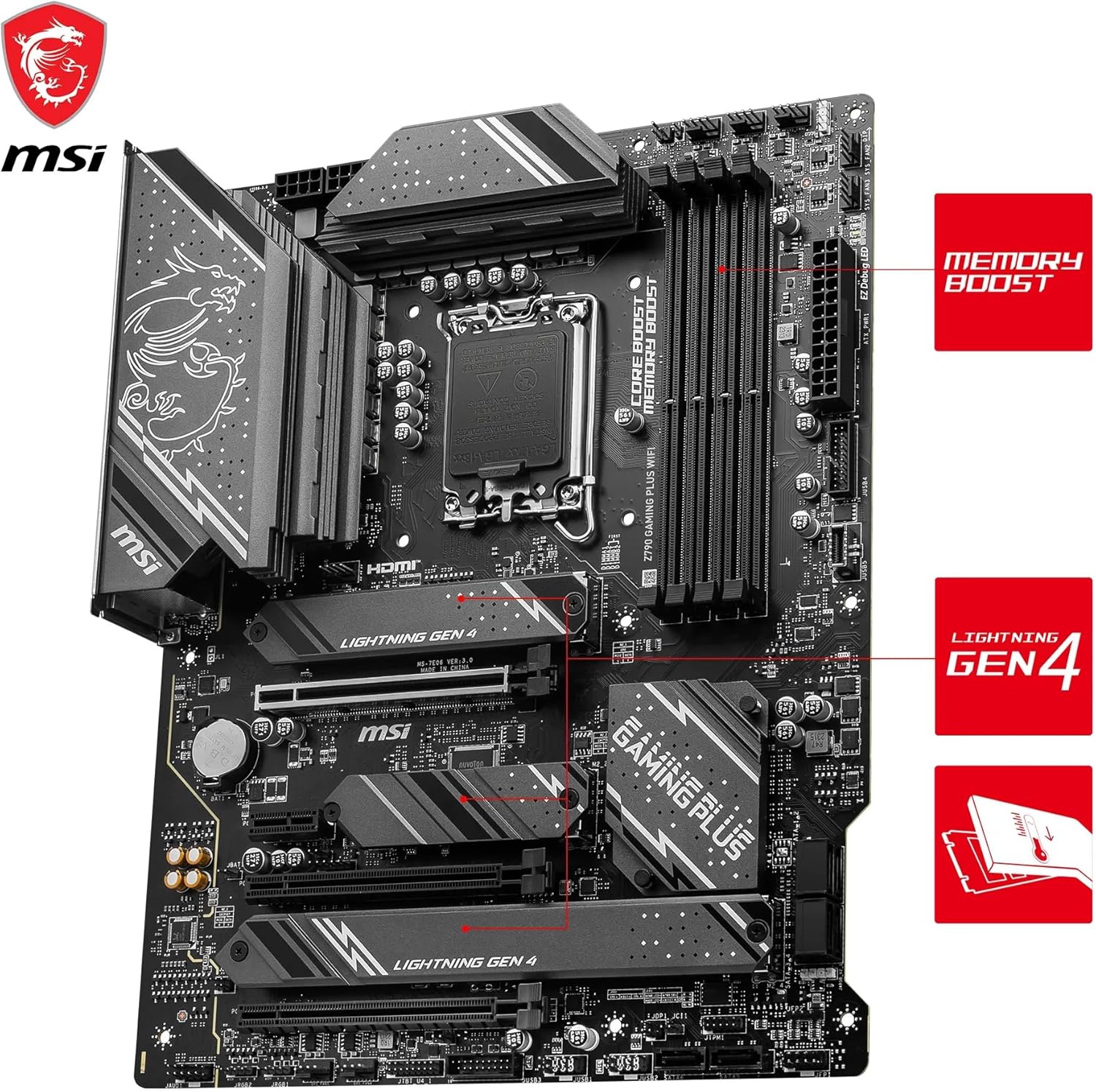

- Four M.2 Gen4 x4 slots, described as 64 Gbps with a heatsink approach (Shield Frozr on the primary slot) to help reduce thermal limitations during fast SSD access.
- VRM cooling with thermal pads and chipset/chipset+M.2 cooling elements, including “Frozr AI MEMORIA” for DDR5 cooling, plus a heatsink for the chipset.
None of this guarantees miracles—high-end stability still depends on the rest of your parts and airflow—but the design clearly aims to keep typical loads under control.
What you’ll notice day to day
For many buyers, the day-to-day experience is less about headline specs and more about whether the board feels “complete”. With this MSI Z790 Gaming Plus WiFi, you get built-in wireless networking (Intel Wi‑Fi 6E with Bluetooth 5.3) so you aren’t forced into adding an extra card just to get online. You also get 2.5G LAN, which is a nice step up from standard gigabit if your router/switch supports it.
In a practical scenario: imagine you’re assembling a PC for gaming and general use, then transferring a large game library to an NVMe SSD. The four M.2 Gen4 slots and the “Shield Frozr” style cooling on the main slot are there to help with sustained SSD access, rather than just the first few minutes.
And if you care about build neatness, the “reinforced” PCIe area and multiple onboard cooling elements are the sort of touches that make cable routing and component installation feel a bit more deliberate.
Connectivity and expansion: the useful checklist
If you’re trying to sanity-check compatibility before you buy, focus on these areas mentioned in the listing:
- Wireless: Intel Wi‑Fi 6E with Bluetooth 5.3.
- Network: Intel LAN rated at 2.5G.
- Storage: 4 × M.2 Gen4 x4 slots. The primary slot is called out as having Shield Frozr to reduce thermal limitation.
- Expansion: 1 × PCIe 5.0 x16 slot.

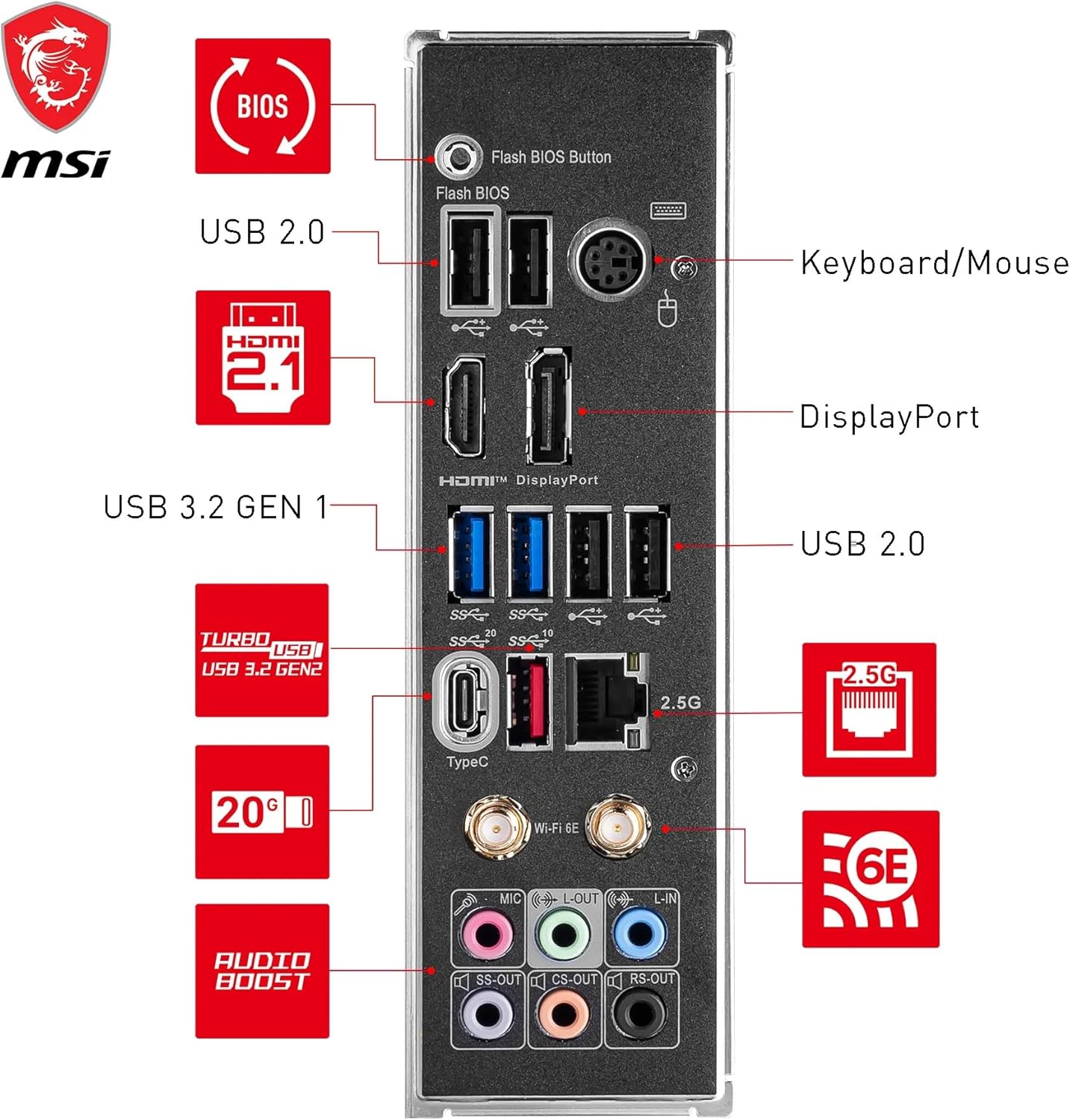

- Rear ports (examples given): USB 3.2 Gen 2x2 Type‑C (20 Gbps), HDMI 2.1, and 7.1 HD audio via Audio Boost.
It’s not a board that screams “minimal budget”, but it also doesn’t read like a stripped-back entry Z790. It sits in the practical-performance lane.
Cooling and stability: the good parts (and the limits)
MSI highlights Core Boost VRM technology for stability and performance, plus integrated cooling details: thermal pads for MOSFETs, a chipset heatsink, and the M.2 Shield Frozr approach.
Here’s the limitation to keep in mind: even with heatsinks and thermal pads, results vary with case airflow and the exact CPU power draw you run. If you plan on sustained heavy workloads (long rendering sessions, heavy compute, or prolonged high-load gaming), you’ll still want to make sure your case has sensible front-to-back airflow.
Tech specs (as listed by the product)
Product specs
- Name: MSI Z790 Gaming Plus WiFi
- Type: ATX motherboard
- Socket: LGA 1700
- Chipset: Intel Z790
- CPU support (stated): Supports Intel 14th, 13th and 12th Gen Core processors
- Memory type: DDR5
- Memory overclocking (stated): DDR5 Memory Boost 7200+MHz/OC (listing mentions 1DPC 1R)
- Expansion: 1 × PCIe 5.0 x16
- Storage: 4 × M.2 Gen4 x4 (listed as 64 Gbps), with Shield Frozr on the main slot
- LAN: 2.5G (Intel)
- Wi‑Fi/Bluetooth: Intel Wi‑Fi 6E, Bluetooth 5.3
- Rear video output: HDMI 2.1
- Rear USB (stated): USB 3.2 Gen 2x2 Type‑C (20 Gbps)
- Audio (stated): 7.1 HD audio with Audio Boost
When it makes sense (and when it might not)
It’s a good fit if you want an ATX Z790 motherboard with built-in Wi‑Fi 6E, 2.5G LAN, and enough modern storage/expansion flexibility for an NVMe-heavy build. If you’re aiming to pair an LGA 1700 Intel CPU from the 12th/13th/14th Gen range with DDR5 and you care about reducing thermal bottlenecks around SSDs and the VRM, this board’s cooling approach is the kind of detail that can pay off.
It may not suit you if you’re building around a platform that doesn’t match LGA 1700, or if you only need very basic connectivity and would rather spend less. Also, if you’re expecting “set-and-forget” behaviour at extreme DDR5 speeds, it’s worth tempering expectations—overclocking results depend on memory kit and setup, and the listing only confirms the headline target as an overclocking capability.
Mini FAQ
FAQ
Will I need to add a Wi‑Fi card? No, the listing states Intel Wi‑Fi 6E with Bluetooth 5.3 is built in.
How many M.2 SSDs can I use? The board includes four M.2 Gen4 x4 slots.
Does it support PCIe 5.0 for graphics? The listing mentions 1 PCIe 5.0 x16 slot.
Is it suitable for Intel 12th Gen CPUs? Yes—support for Intel 14th, 13th and 12th Gen Core processors is stated.
Buying verdict
Final verdict
Should you buy it? The MSI Z790 Gaming Plus WiFi looks like a solid choice if you want a full ATX Z790 platform with modern wireless, 2.5G networking, and room for multiple Gen4 NVMe drives, while also getting VRM and SSD cooling design details aimed at keeping things stable under load.
Skip it if your build doesn’t use LGA 1700, or if you simply want the cheapest possible Z790 option and won’t benefit from the extra connectivity and expansion headroom. If you’re building with sensible case airflow and you’re buying for day-to-day stability rather than chasing every last overclock number, this board’s feature mix is the kind that generally earns its place.
