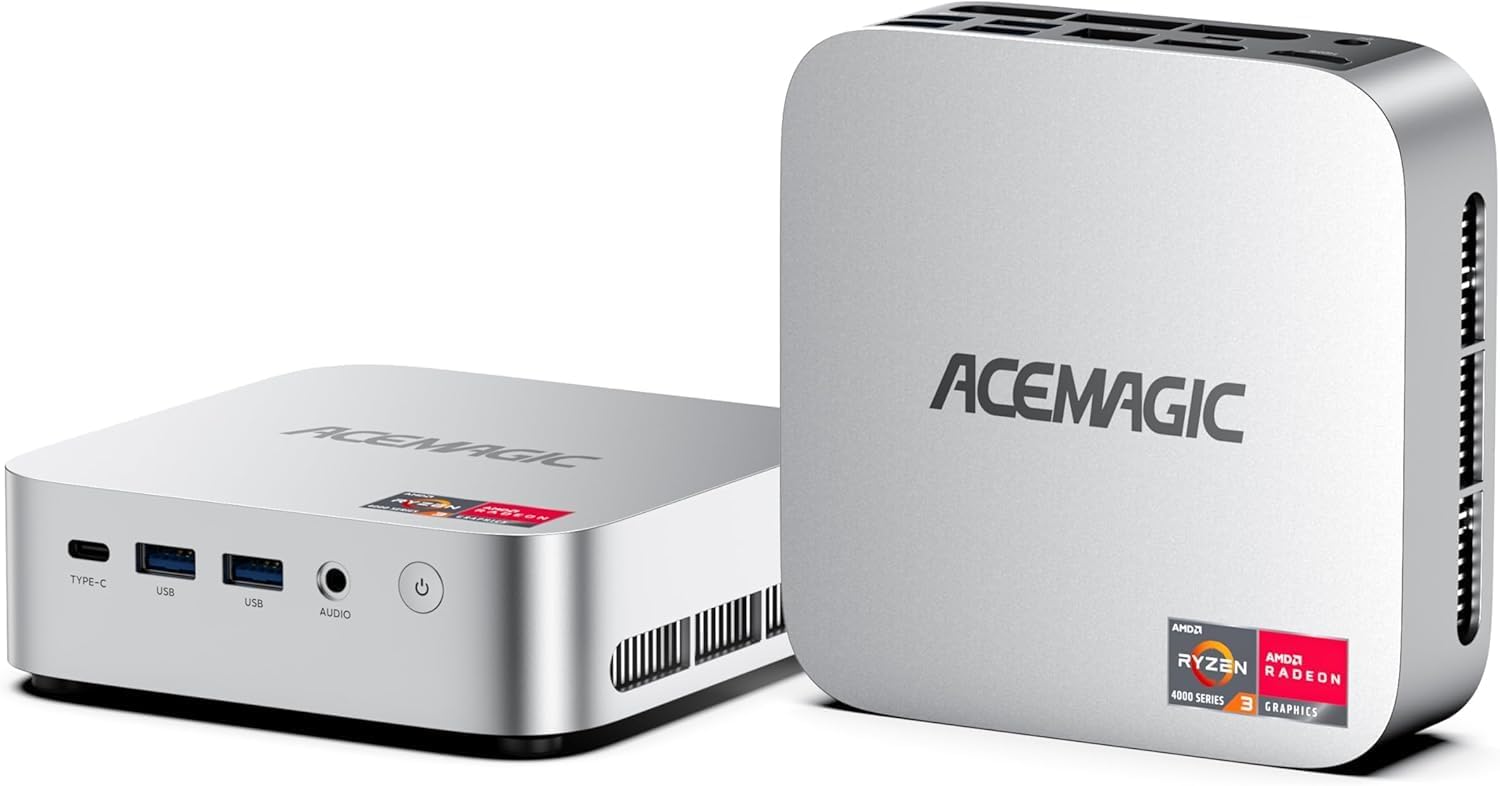

ACEMAGIC Mini PC Ryzen 3 3300U with 16GB RAM, 256GB SSD and triple 4K output
Product description
The essentials
If you’re looking for a small desktop that can cover everyday work, web browsing, and light creative tasks without feeling slow, this ACEMAGIC mini PC is built around an AMD Ryzen 3 3300U and includes 16GB of DDR4 RAM plus a 256GB M.2 SSD. On paper, the point of this machine is simple: lots of connectivity and the ability to drive a multi-monitor setup, while keeping day-to-day performance practical for office use, home productivity and home entertainment.
The spec also leans towards “do more with less space”. The integrated Radeon Vega 6 graphics are there for basic graphics needs and everyday media, it’s not positioned as a hardcore gaming system, but it should suit typical office workloads and casual entertainment. If you’re planning a compact HTPC-style setup or a small workspace, that’s where it makes the most sense.
Key features that matter for buying
The stand-out angle here is the display and port coverage. The mini PC supports triple 4K display output using HDMI 2.0 (4K@60Hz), DP 1.4 (4K@60Hz) and USB 3.2 Type-C (4K@60Hz). That’s useful if you want a desk that’s not cramped—spreadsheets on one screen, documents on another, and a video feed on the third.
One important nuance: when you use multiple screens at the same time, the refresh rate may be adjusted to 30Hz. So if you’re very sensitive to smooth motion across a three-monitor setup (for example, fast scrolling or gaming-style motion), you’ll want to factor that in before buying.
On the storage and memory side, 16GB RAM and a 256GB SSD should feel comfortable for multitasking in typical use. There’s also expansion support mentioned for the M.2 SSD up to 4TB (M.2 PCIe 3.0 X4 NVMe), and RAM is on one SO-DIMM DDR4 slot with support up to 32GB. In other words, it isn’t just a “buy it and forget it” box—there’s room to grow if your needs expand.
Tech specs
- Name: ACEMAGIC Mini PC Ryzen 3 3300U
- Type: Mini desktop computer
- Processor: AMD Ryzen 3 3300U (4-core, 4-thread)
- Processor base clock: 2.1GHz
- Processor max boost clock: Up to 3.5GHz
- Graphics: Integrated Radeon Vega 6 (up to 1200MHz)
- Memory: 16GB DDR4
- Memory slot: 1 SO-DIMM DDR4 slot (supports up to 32GB)
- Storage: 256GB M.2 SSD
- Storage expansion: Up to 4TB on M.2 PCIe 3.0 X4 NVMe SSD
- Display outputs: HDMI 2.0 (4K@60Hz), DP 1.4 (4K@60Hz), USB 3.2 Type-C (4K@60Hz)
- Multi-screen note: Refresh rate may be adjusted to 30Hz when multiple screens are used simultaneously

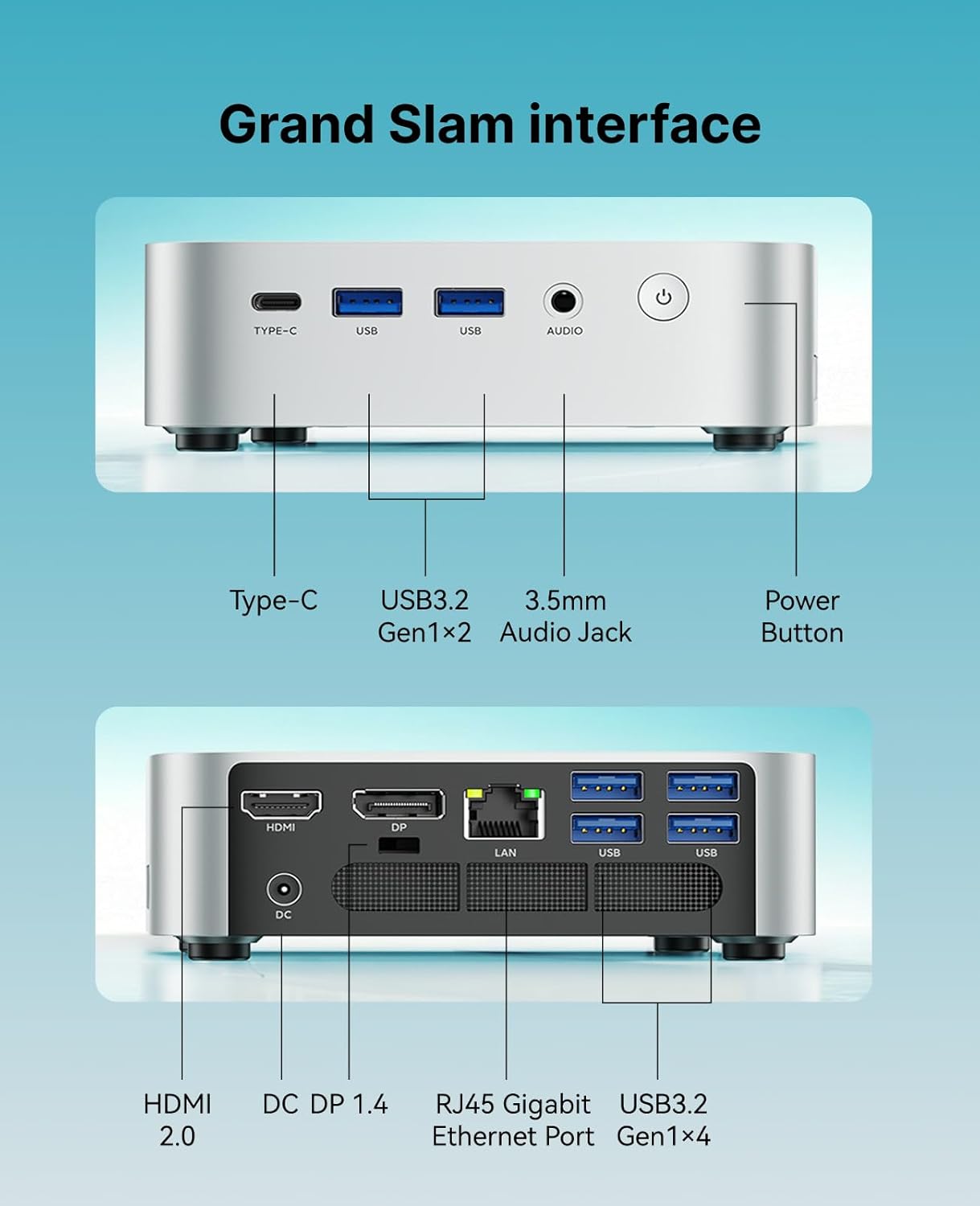

- USB ports: Six USB 3.2 Gen1 Type-A ports (5Gbps)
- USB-C: One USB Type-C port (data + DP output)
- Network: Gigabit Ethernet
- Wireless: Wi-Fi 5 and Bluetooth 4.2
- Audio: 3.5mm audio jack
- Power: DC power connector, USB-C PD mentioned
- Cooling: 28W cooling design with an 80mm × 10mm fan (over 2000 RPM) and a large aluminium heatsink
What you’ll notice day to day
For day-to-day use, the combination of Ryzen 3 3300U, 16GB RAM and an SSD is the main story. Expect quicker boot times and faster app loading compared with older hard-drive-based systems, and the CPU setup is aimed at handling multitasking and web browsing comfortably.
A practical example: imagine a home office morning where you have browser tabs, a document editor, and a video call running. With 16GB RAM and an SSD, this type of workload should feel responsive enough for typical office rhythms. If you’re using it as an HTPC-style box, the triple display support also helps if you want one screen for playback and another for controls or browsing.
That said, it does depend quite a lot on what you ask of the graphics. Integrated Radeon Vega 6 graphics are there for everyday entertainment and light gaming, but if you’re expecting demanding 3D workloads or heavy creative rendering, you may find more powerful desktops (or a different class of mini PC) are a better match.
Where it shines, and where it may fall short
This mini PC feels strongest when your priorities are compact footprint, multi-monitor capability, and sensible connectivity. The port spread—multiple USB 3.2 Type-A ports, Ethernet, Wi‑Fi 5, Bluetooth 4.2, and video outputs—helps with the “plug in and set up” reality of home workstations.
Where it might not suit you is if you’re chasing maximum smoothness in a three-screen setup (because the multi-screen refresh rate may drop to 30Hz), or if your workloads are heavily GPU-dependent. Also, because the details provided mention a 28W cooling design, sustained heavy load use may not be its most natural home compared with higher-spec machines designed for longer, more intensive tasks.
Care & maintenance
Because this is an actively cooled mini PC (fan plus aluminium heatsink with dual exhaust vents), it’s worth keeping airflow in mind. Dust build-up can gradually affect cooling performance over time. If you’re using it in a desk setup, just give the vents the occasional check and avoid blocking the intake/exhaust with clutter or soft furnishings.
Should you buy it?
A solid pick if you want a compact desktop for office/home use, need 16GB RAM and a 256GB SSD to start with, and you specifically care about triple-screen 4K output for a multi-monitor workstation or entertainment setup.
It might not be a great match if you’re very sensitive to high refresh behaviour across three displays, or if your plans rely on high-end graphics performance for demanding gaming or GPU-heavy creative work.
Mini PCs like this tend to work best when you choose them for the jobs they’re designed for: everyday productivity, light creative tasks, media, and a tidy desk with lots of display options.
Mini FAQ
Is the triple 4K output suitable for three monitors at once?
The PC supports triple 4K output via HDMI 2.0, DP 1.4 and USB-C, but it notes that refresh rate may adjust to 30Hz when multiple screens are used simultaneously.
How much RAM can it support?
It comes with 16GB DDR4 and uses one SO-DIMM DDR4 slot, with support up to 32GB (based on the information provided).
Can the SSD be upgraded?
Yes, the description states support for M.2 PCIe 3.0 X4 NVMe SSD expansion up to 4TB.
What wireless connections are included?
It includes Wi‑Fi 5 and Bluetooth 4.2.
What kinds of tasks is it best for?
The provided details point to multitasking, web browsing and light creative tasks, plus everyday entertainment and light gaming.
