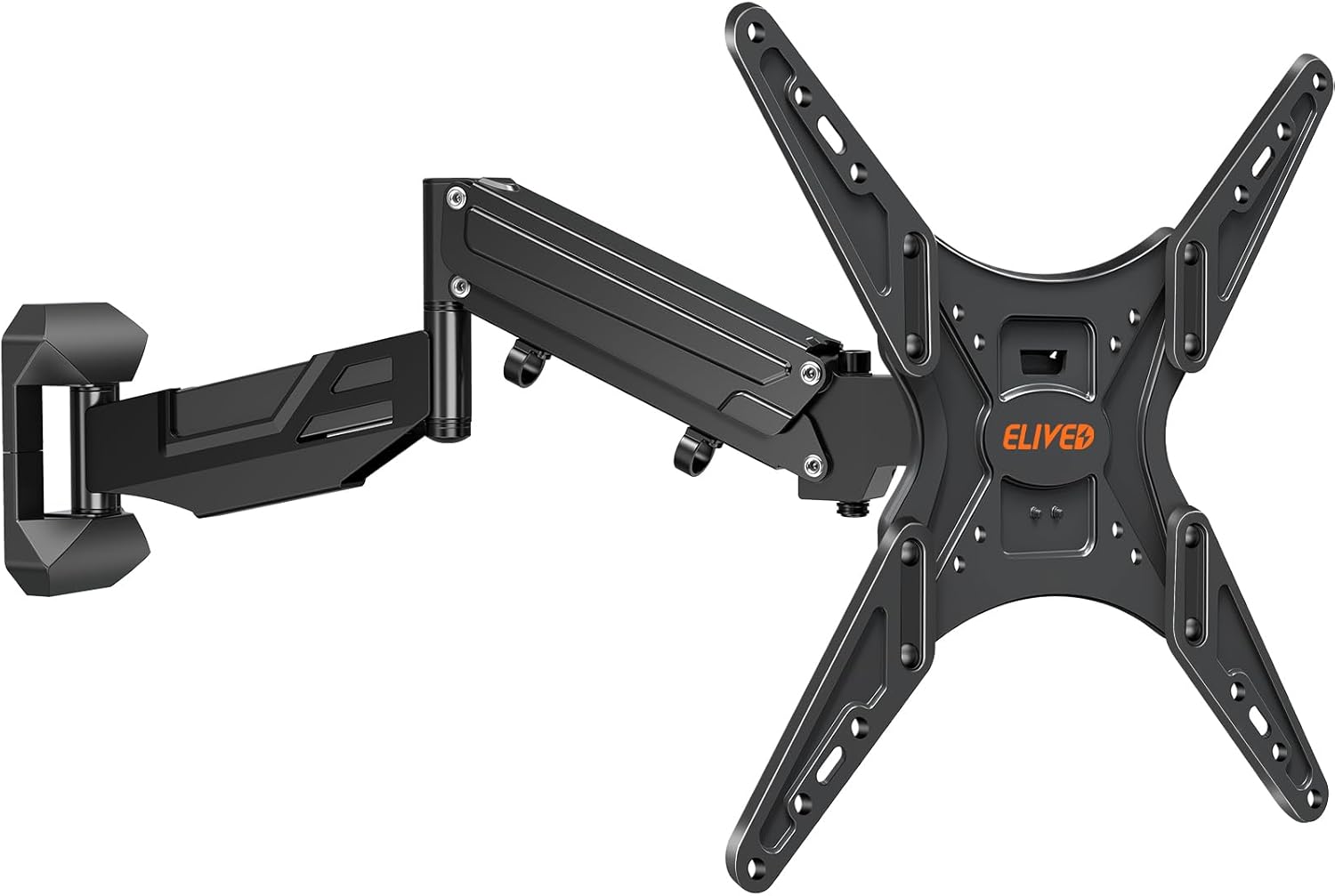

ELIVED EV031 23-55in TV Wall Mount 25KG

The ELIVED EV031 wall mount brings height adjustability and full motion to most 23–55 inch flat or curved TVs, helping you find a comfortable viewing position in living rooms, bedrooms or meeting spaces. The gas spring arm allows smooth vertical and horizontal movement, while integrated cable management keeps the installation tidy.

Key features

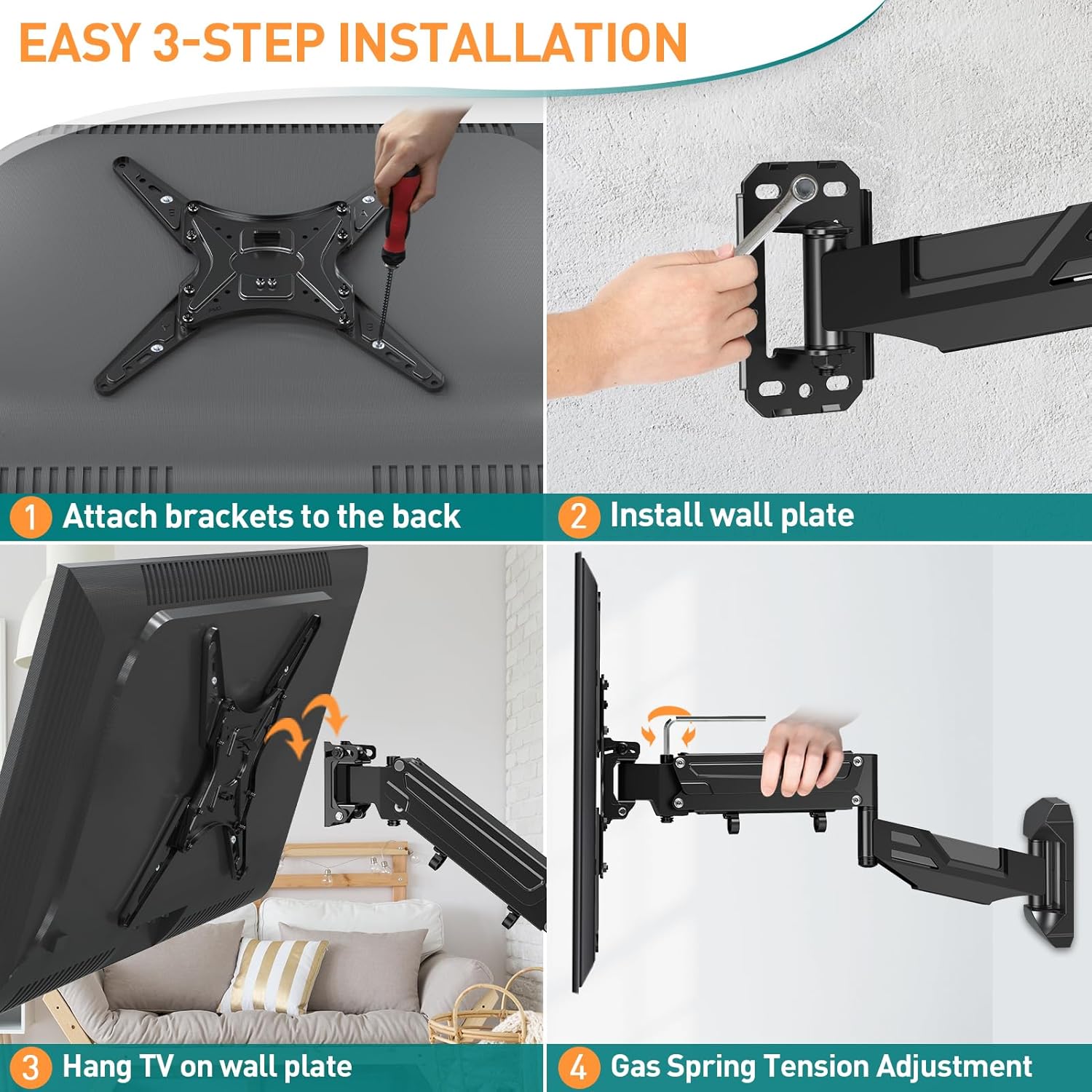

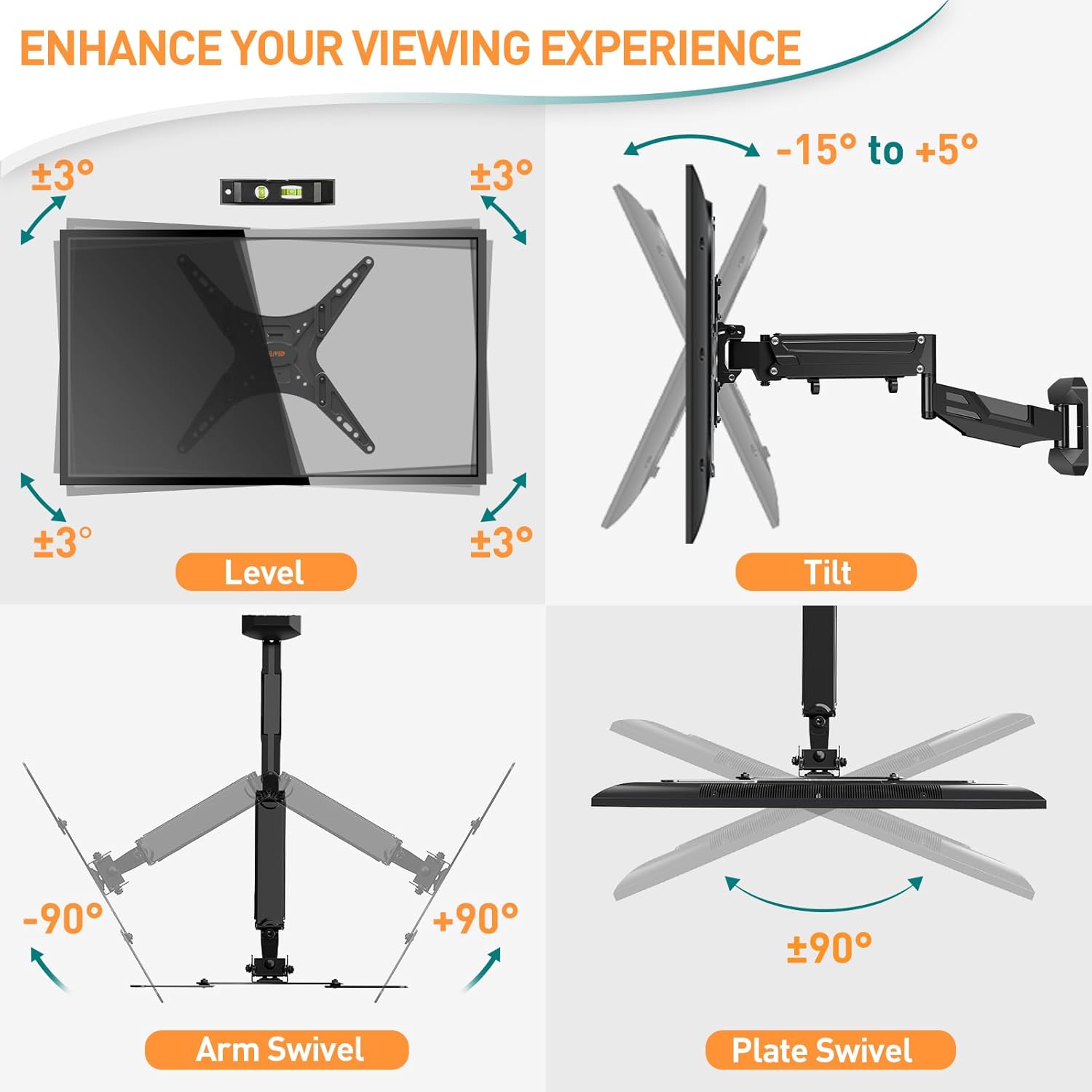

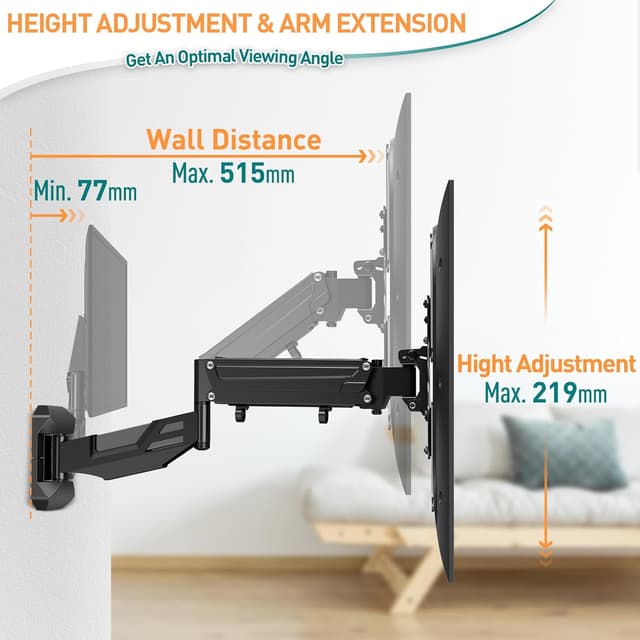

This mount offers a 219mm height adjustment range measured centre to centre of the VESA plates, a 515mm extension for flexible positioning and a compact 77mm retracted depth to save space. Tilt range is 5° up and 15° down to reduce glare, and combined swivel movement reaches 180° in total so you can angle the screen for different seating arrangements. It supports TVs with VESA patterns from 100x100mm to 400x400mm and weights up to 25KG, according to the manufacturer. There is a ±3° post-install levelling adjustment to correct minor drilling offsets, and the pack includes mounting hardware for a straightforward fit.

Technical details

• Name: ELIVED EV031
• Type: Full motion gas spring arm wall mount
• Size: For 23" to 55" TVs

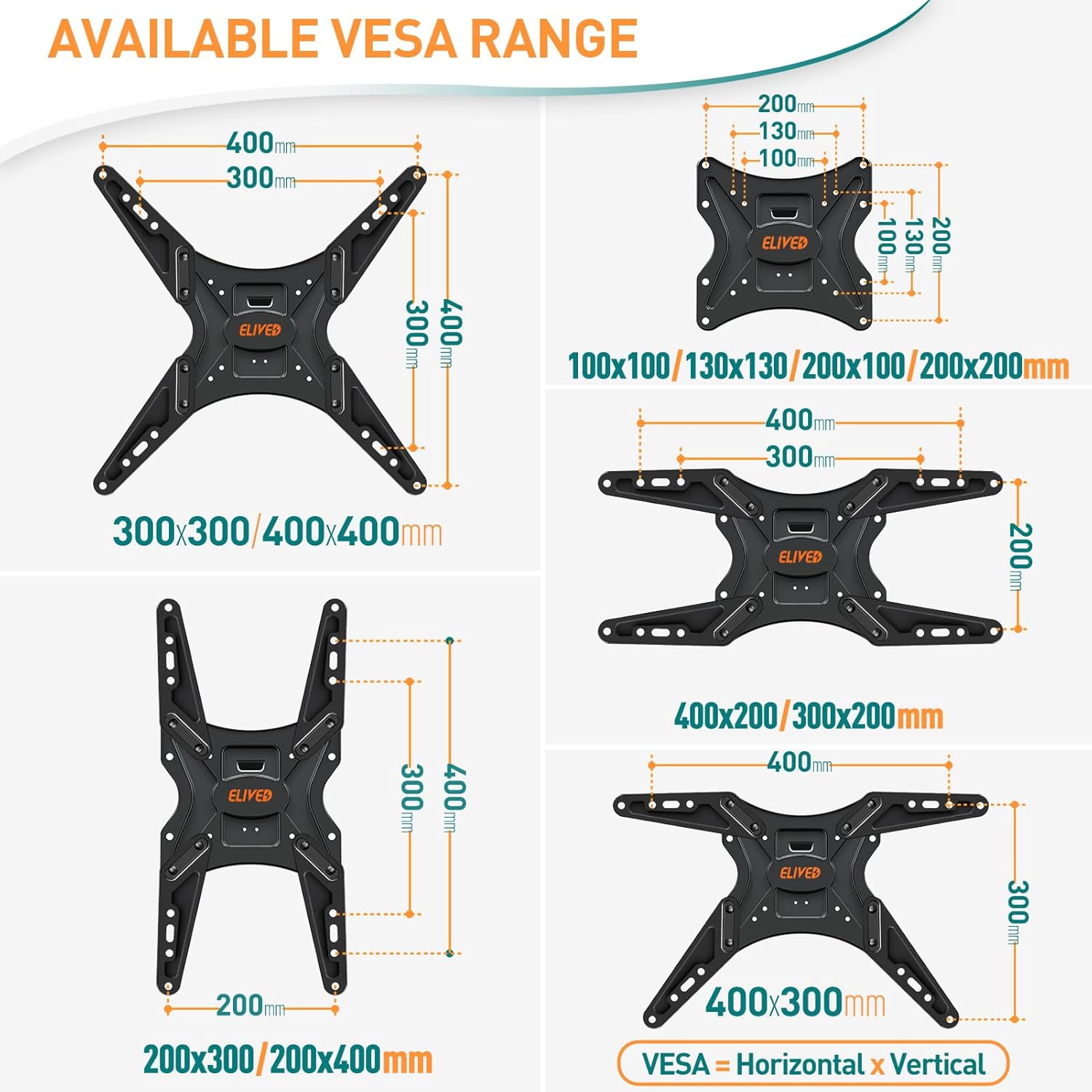

• VESA: 100x100mm to 400x400mm
• Capacity: Up to 25KG

Usage tips

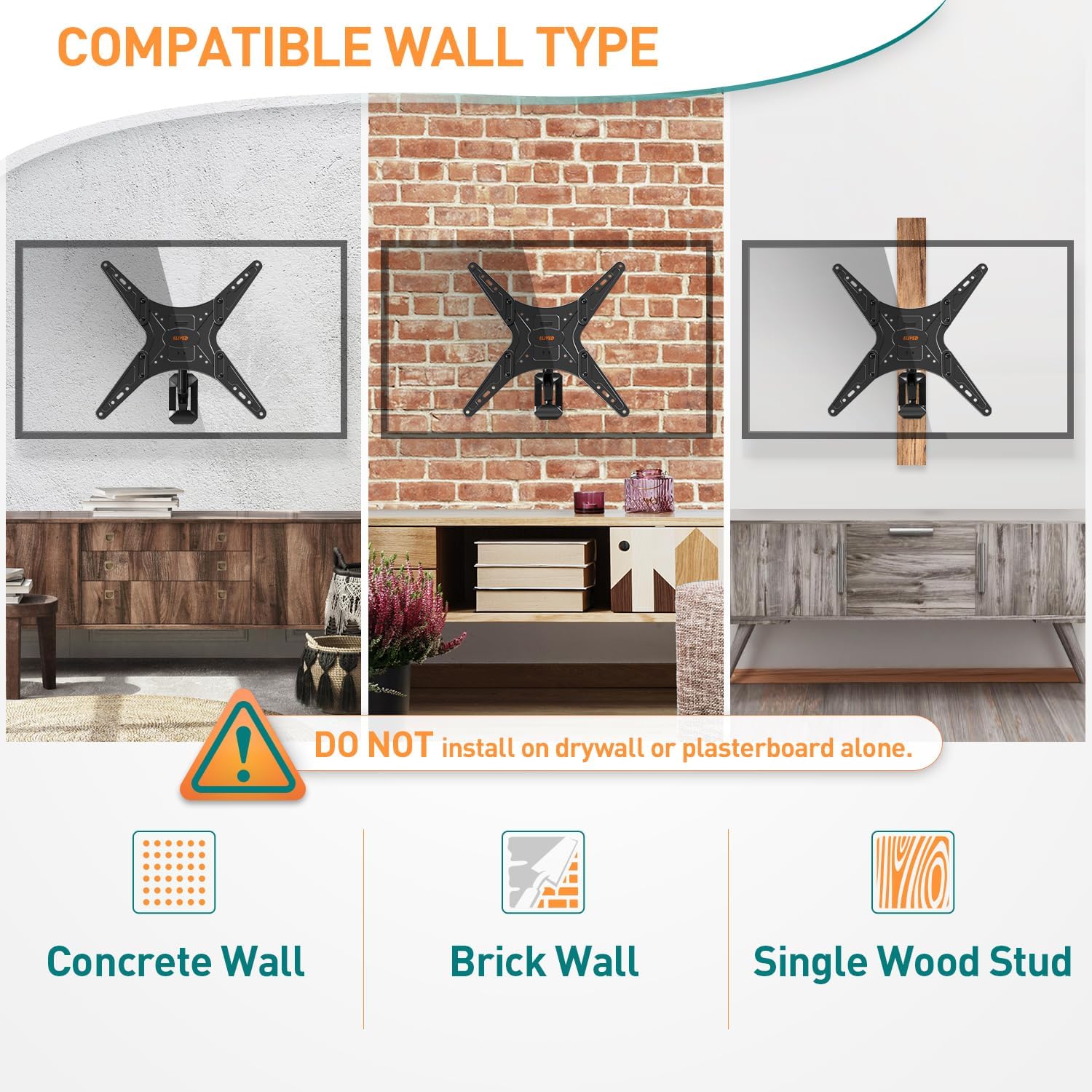

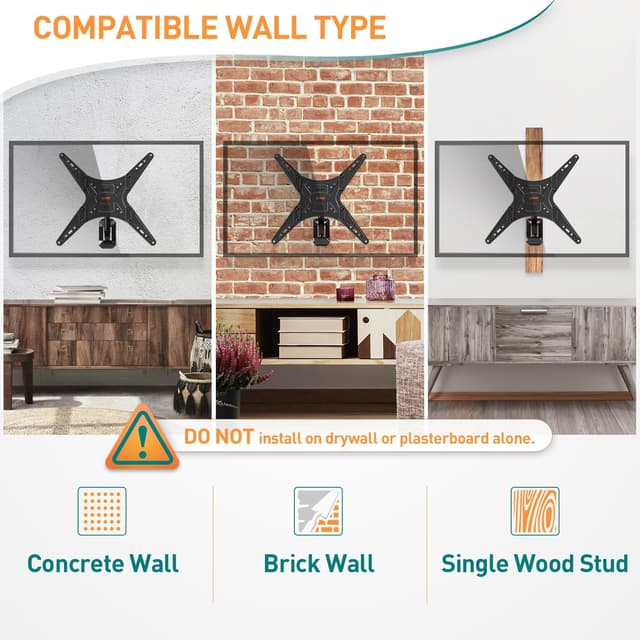

It’s a good fit if you need frequent repositioning of your screen for mixed uses, such as TV viewing and screen sharing in small rooms. Take care to confirm your TV’s VESA pattern and weight before purchase, and do not install into a non-load bearing drywall. If wall structure is uncertain, consult a qualified fitter or use suitable anchors for solid mounting.

Care & maintenance

Wipe the mount with a soft dry cloth to remove dust and check fastenings after initial installation and periodically thereafter. Keep cables organised within the integrated management channels to avoid strain on connectors and to preserve a neat appearance.
