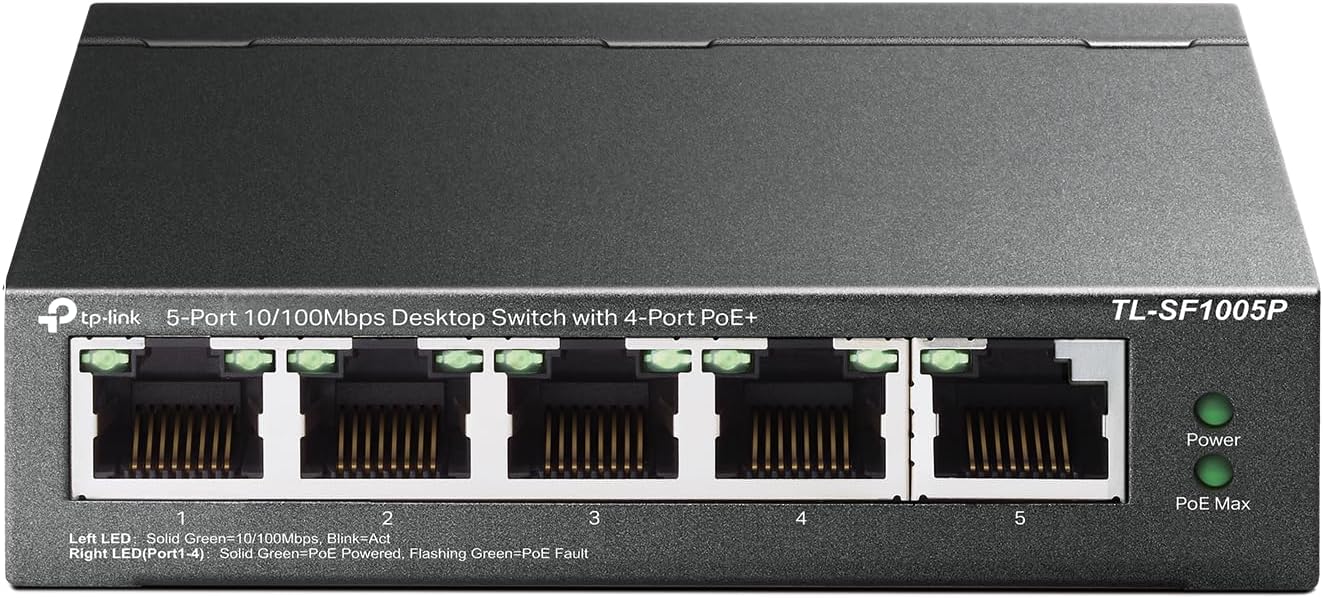

TP-Link TL-SF1005P PoE Switch 67W

This compact 5-port Fast Ethernet PoE switch supplies both data and power over a single cable, making it practical for connecting IP cameras and VoIP phones in small offices or homes. Its plug-and-play design means quick setup for expanding a network without configuration, and the built-in QoS helps prioritize traffic for smoother voice and video performance.

Key Points

The unit includes four PoE+ 10/100 Mbps ports that deliver power and data to compatible devices while one additional port is for uplink. It has a total PoE budget that supports multiple powered devices simultaneously, which simplifies installations where separate power supplies would be inconvenient. The metal housing and shielded ports improve durability and cable grounding for more stable connections. ⚙️

This model is fanless, so it operates silently and can be placed in shared spaces without added noise. For deployments where Gigabit speeds are required, consider that this switch provides Fast Ethernet 10/100 Mbps rather than 1 Gbps, and that may limit throughput on heavier networks. 📷

Technical Specifications

• Name: TP-Link TL-SF1005P
• Ports: - 4 x PoE+ 10/100 Mbps ports, 1 x 10/100 Mbps uplink port
• Total PoE Power: - 67 W maximum for all PoE ports
• PoE Standard Supported: - IEEE 802.3af for powered devices, up to 15.4 W per PoE port according to the manufacturer
• Housing: - Sturdy metal enclosure with shielded ports

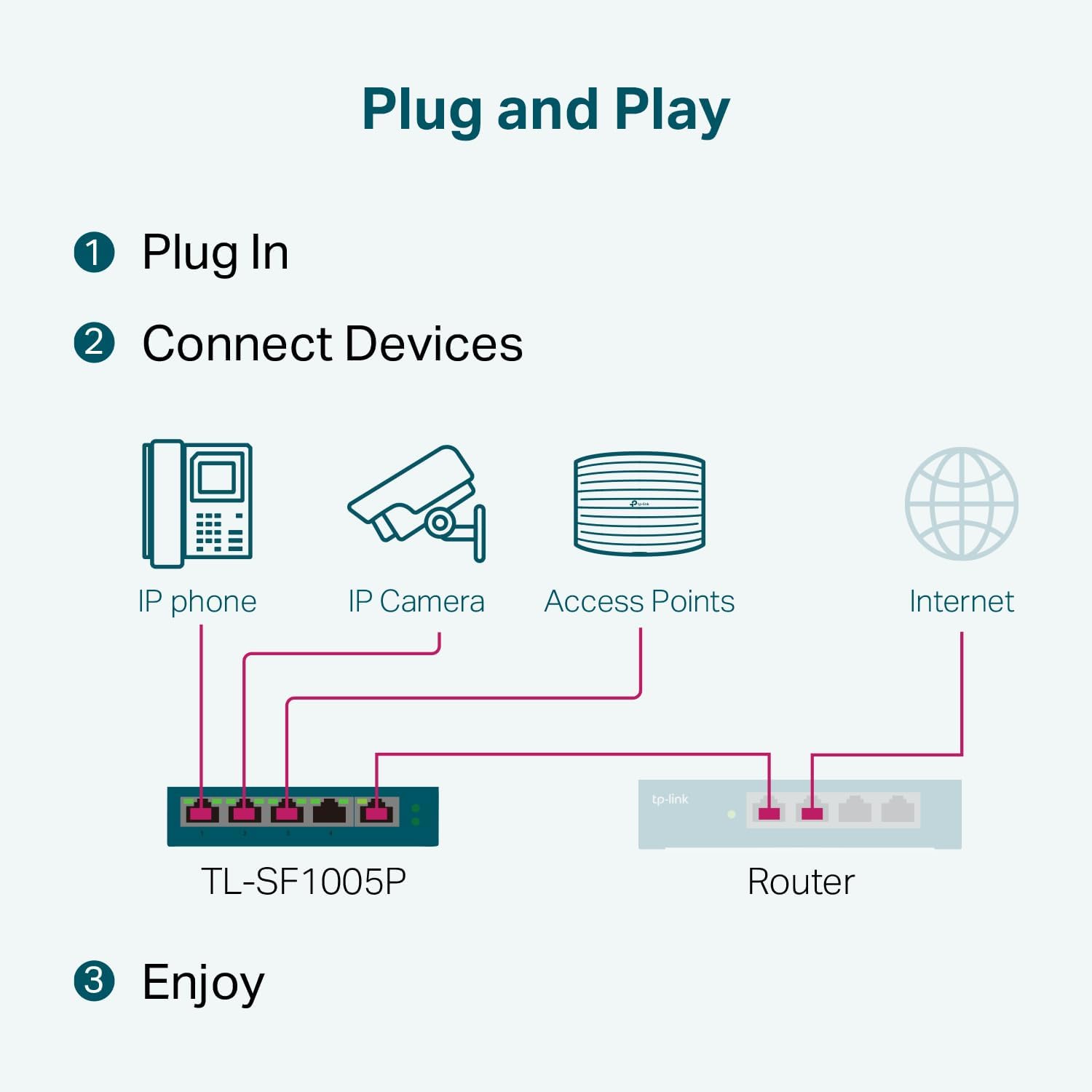

• Operation: - Fanless desktop design, Plug and Play

Usage Recommendations

Place the switch near the devices it needs to serve to minimize cable runs and to take advantage of PoE over a single Ethernet cable. For surveillance setups, connect cameras to the PoE ports and configure your recorder or NVR on the uplink port to keep video traffic local. When using IP phones, enable QoS on your network equipment to reduce latency for voice packets, as the switch supports 802.1p/DSCP tagging to prioritize critical traffic. 🔌

Consider that the Fast Ethernet bandwidth is suitable for many IP cameras and phone systems, but may not meet needs where multiple high-resolution streams or heavy file transfers occur simultaneously. The silent, fanless operation and metal chassis make it a practical choice for closets, small racks, or desktop placement where low noise and robustness are desired.
