Thermalright Wonder Vision 360 UB 360mm AIO Cooler

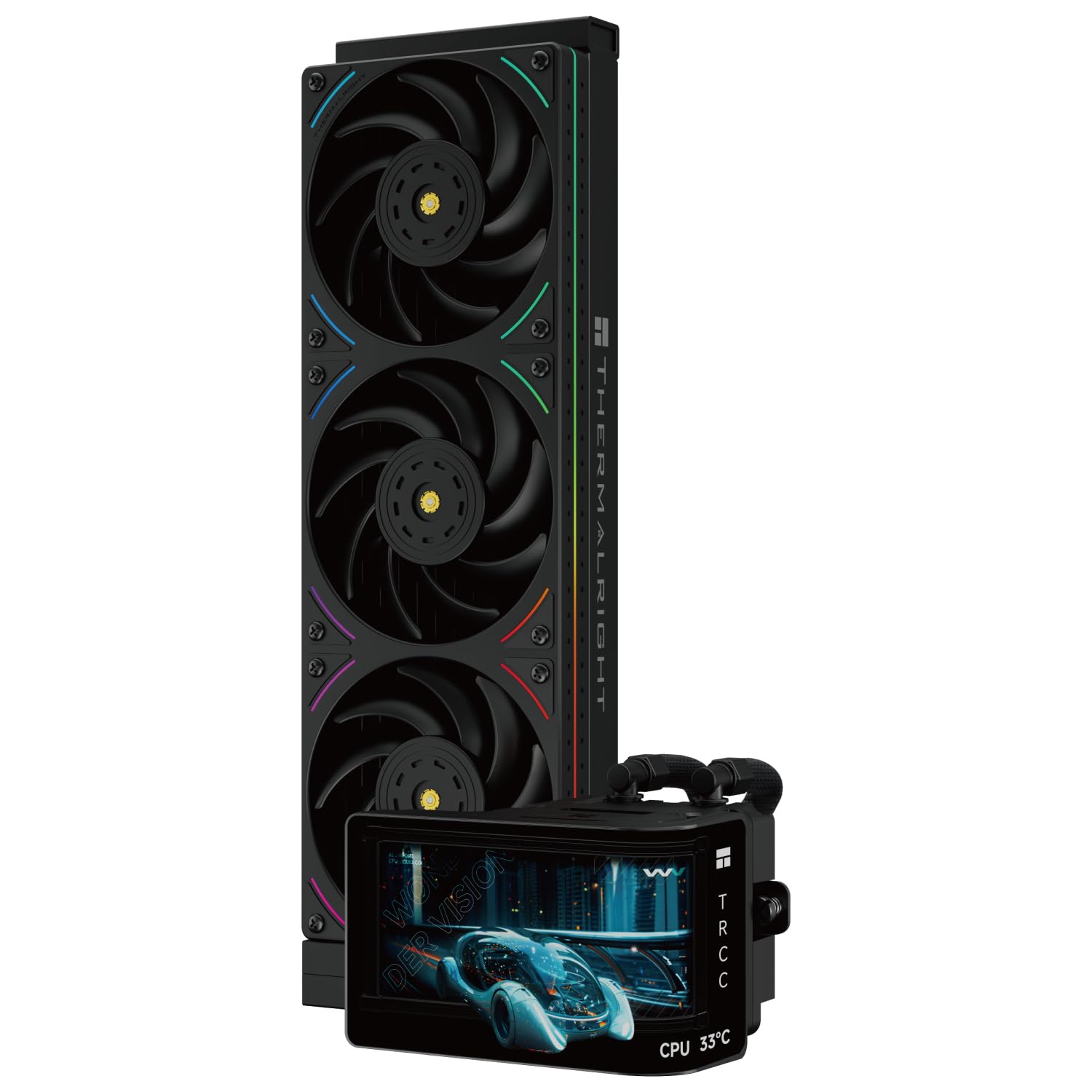

This all-in-one liquid CPU cooler from Thermalright combines a high-capacity 360 mm radiator with a curved 6.67-inch 3D AMOLED display on the pump head, aimed at builders who want strong cooling performance and customizable visual monitoring. The assembly pairs three high-speed fans and a 6400 RPM pump to keep CPU temperatures under control during demanding tasks, while the curved screen lets you display system stats, animations, or personalized images.

Key Points

The cooler is built around a 360 mm radiator measuring 403 x 120 x 52 mm and a compact pump head sized 120.1 x 80 x 107 mm. According to the manufacturer, the pump operates at about 6400 RPM ± 10% and the three included fans reach up to 2150 RPM, which together deliver substantive heat dissipation for high-performance CPUs. The curved AMOLED display supports 2K resolution at 60 Hz and can be customized with dynamic or static themes through the vendor software. Note that the screen requires a 9-pin USB header connection on the motherboard for full functionality.

Technical Specifications

• Name: Thermalright Wonder Vision 360 UB ARGB
• Radiator size: 403 x 120 x 52 mm
• Pump head size: 120.1 x 80 x 107 mm

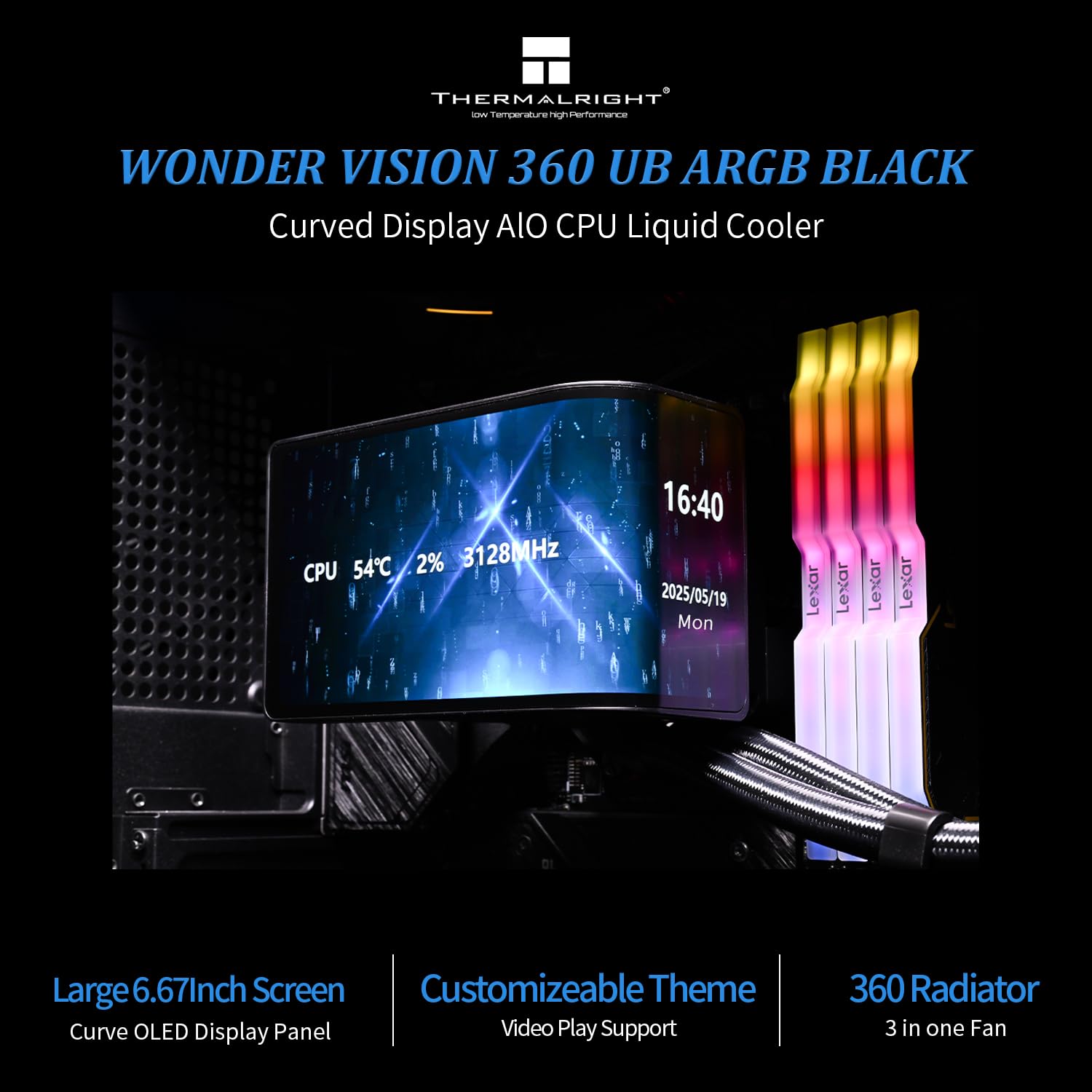

• Display: 6.67 in curved AMOLED, 2400 x 1080, 60 Hz
• Pump speed: 6400 RPM ± 10%

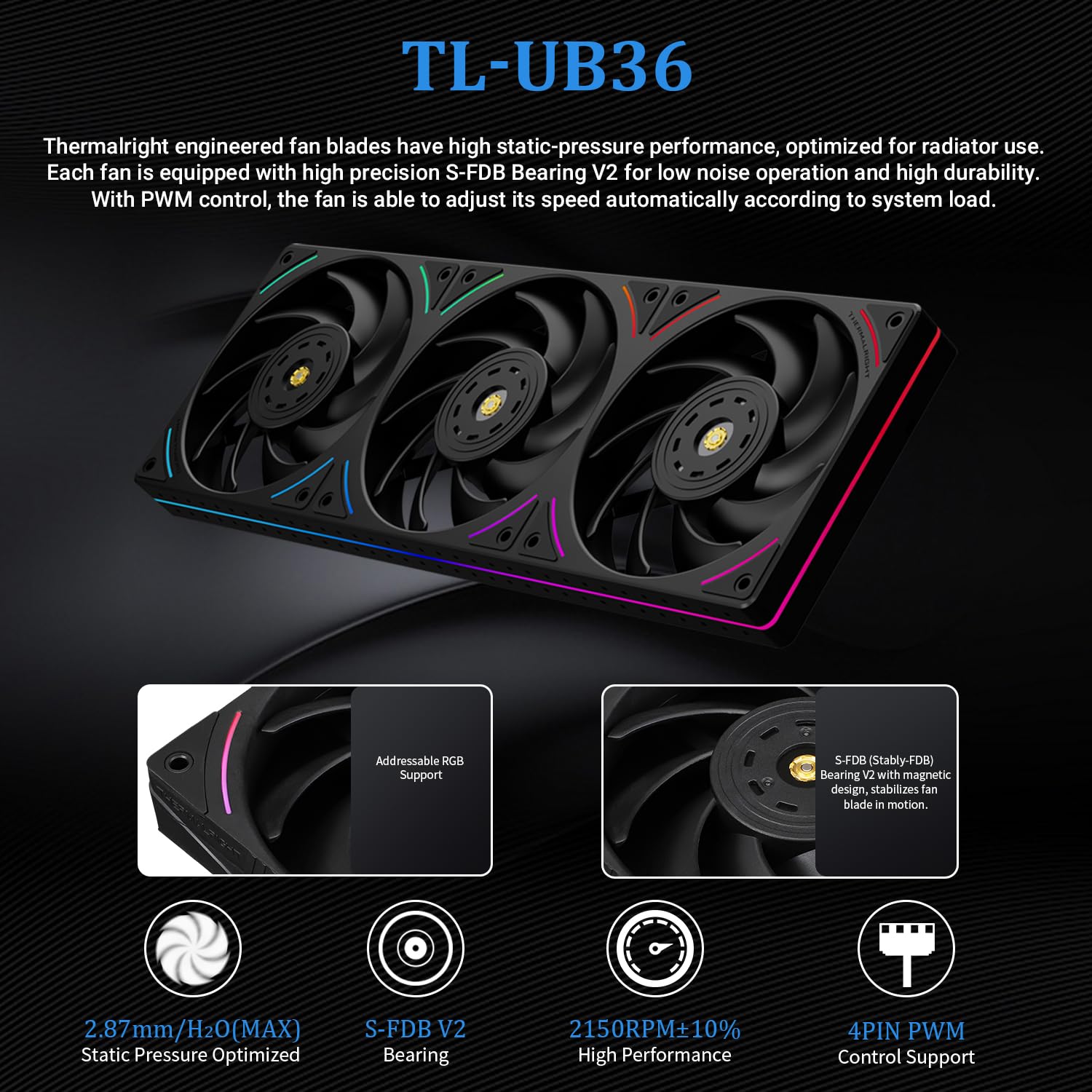

• Fan speed: up to 2150 RPM

Usage Recommendations

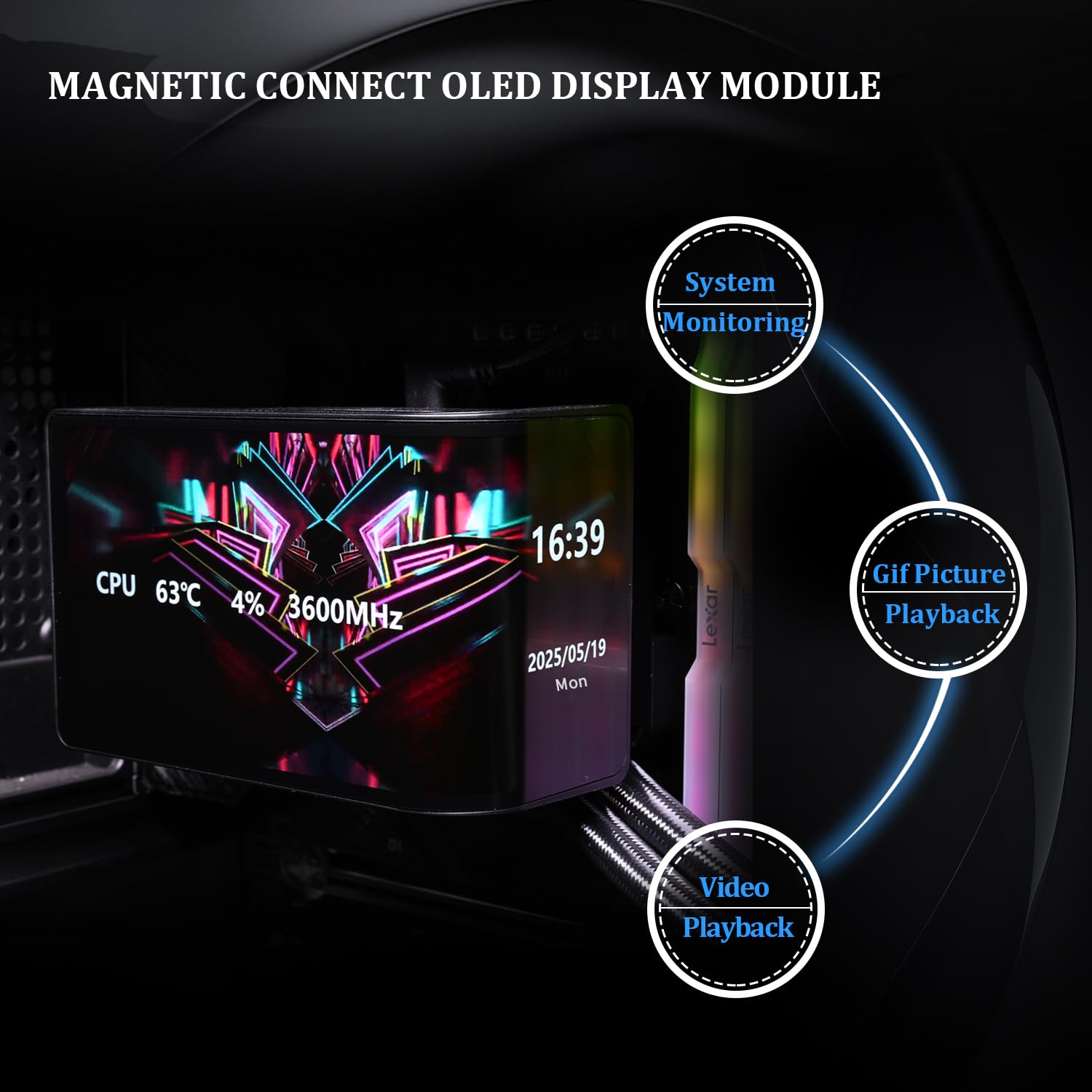

Installers should confirm motherboard wiring and the availability of a 9-pin USB header before fitting the cooler, because the TRCC software requires that connection to enable screen control and data monitoring. The pump module detaches magnetically, which simplifies access for setting up the display or replacing the unit. For systems where display customization is important, use the software to preload monitoring widgets and background themes, and remember that some functions may need a software restart or a hardware reconnect via the Type-C connector if the display becomes unresponsive.

Advantages

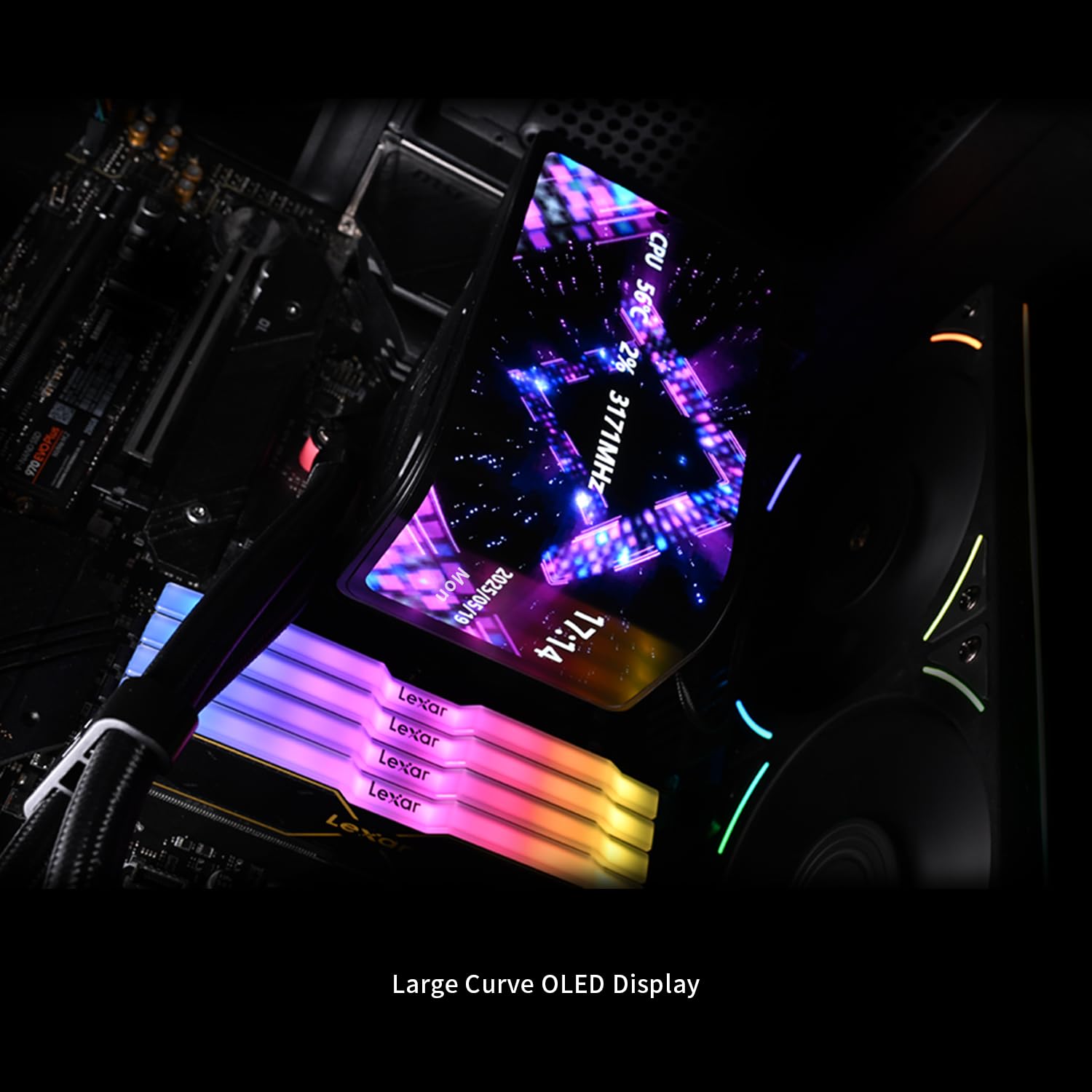

The combination of a 360 mm radiator with high-RPM fans and a fast pump makes this AIO a solid option for sustained heavy loads such as rendering or intensive gaming. The curved 2K AMOLED provides accurate color reproduction and a wide viewing angle, allowing you to show real-time temperatures or custom visuals directly on the pump head. The unit supports a broad range of sockets, including Intel LGA 1150/1151/1155/1156/1200/1700/2011/2066 and AMD AM4/AM5, and it ships with dual-platform metal brackets for easier mounting when following the provided instructions.

Consider that AMD installations may require the original motherboard backplate for correct assembly and that the screen's advanced features depend on the TRCC application, which must be downloaded from the manufacturer’s site according to the provided instructions. The ARGB lighting and the display customization add visual flair, but they also introduce a slight complexity during setup for users who prefer plug-and-play simplicity.
