VEDINDUST 4K HDMI extender 4K30Hz
Product description
Key points
A VEDINDUST HDMI extender is a practical way to move your HDMI audio and video signal further without switching to a more complex setup. Using a single CAT6 or CAT7 cable, it supports transmission over longer runs and aims to keep audio and video in sync, so your viewing or presentation feels natural rather than delayed. It also supports 4K at up to 30Hz, which makes it a sensible option when you want Ultra HD clarity on compatible sources.

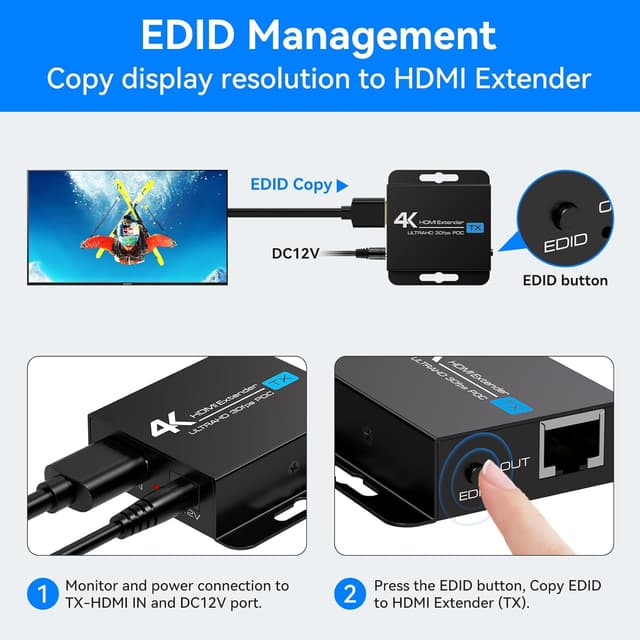

If you often need to place a source device near a display in a different room, in a workshop, or for an event style layout, this kind of extender can reduce the pressure to keep everything next to each other. It uses POC technology so you only need a power supply at the TX end, helping reduce cable clutter on the desk. It also includes EDID copy functionality, which helps match display parameters with the connected source for improved compatibility across varied setups.
This unit is described as an HDMI Ethernet adapter style extender, with RJ45 connections for the CAT cable link. Video formats mentioned include 4K30Hz, as well as 1080p, 1080i, 720p, and several SD resolutions. For audio, it supports formats listed as DTS-HD, DTS, and DSD. 😊
Tech specs
- Name: VEDINDUST 4K30Hz HDMI Extender
- Type: HDMI extender over CAT5e/CAT6/CAT7 with RJ45

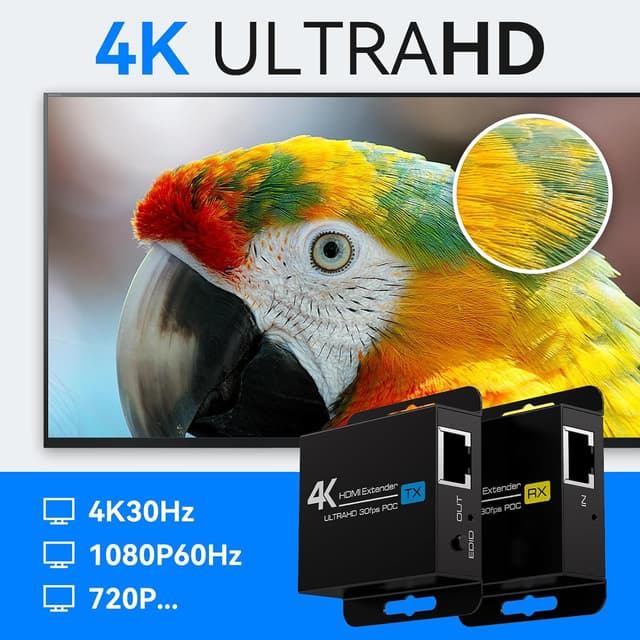

- Resolution: 4K 30Hz maximum resolution

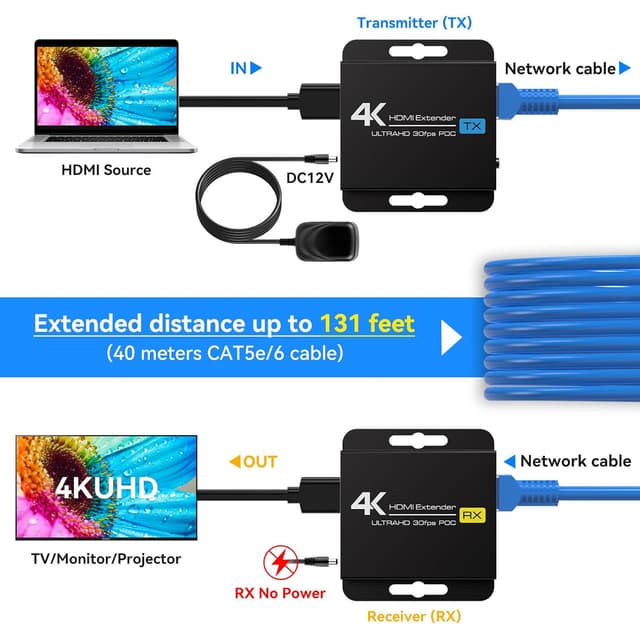

- Transmission distance: up to 131ft or 40m over a single CAT6/CAT7 cable at 4K30Hz

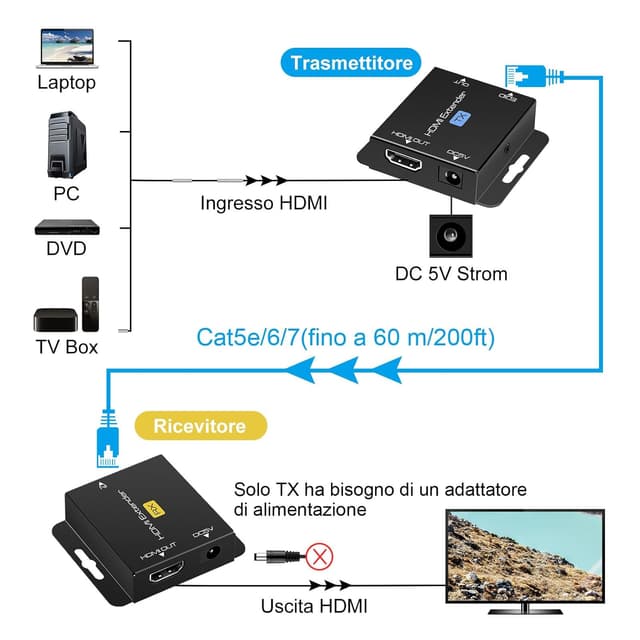

- Transmission distance: up to 60m at 1080p 60Hz

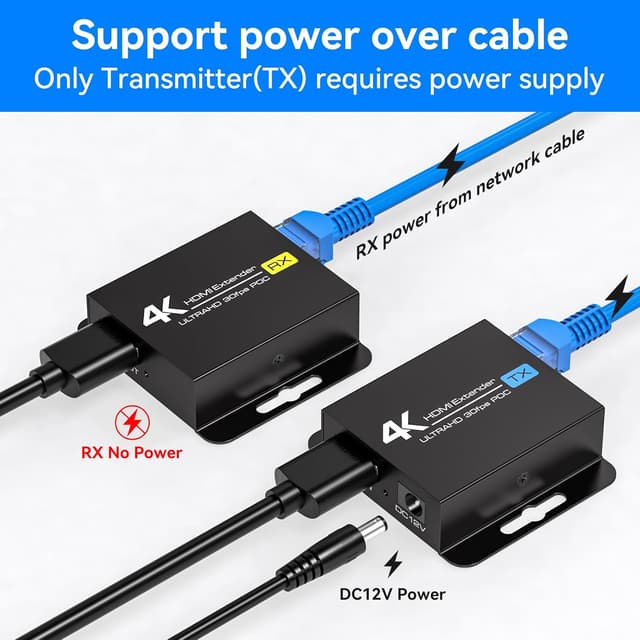

- Power over cable: POC technology requiring a power adapter at the TX end
- Video support: 4K30Hz, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Benefits
What stands out here is the combination of reach, format support, and practical installation details that aim to keep the system tidy. The extender is described as using HDMI lossless transmission with an auto adjustment system and ESD protection, which is useful where stability matters. It also includes EDID copy, so the display and the signal source can communicate in a way that helps produce a matching image and sound, reducing the risk of mismatched settings in more complex environments. 👍
There is also a clear convenience angle with POC technology, since the TX side provides power through the cable. That means you do not need a separate power feed at the RX end, which can simplify cable management and lower the number of adapters you need to place near the display. For everyday setups, that can make a noticeable difference when you are working around desks, stands, or display placements. It is particularly helpful in education and conference style environments where neat routing matters.
For use in media rooms or show floor setups, the support for common video formats and audio formats listed makes it easier to keep one consistent HDMI workflow. It is also noted that using oxygenated copper CAT6 or CAT7 cable is recommended to ensure transmission quality. Take that into account if your existing network style cables are older or not in good condition, as the extender’s performance depends on the run and cable quality.

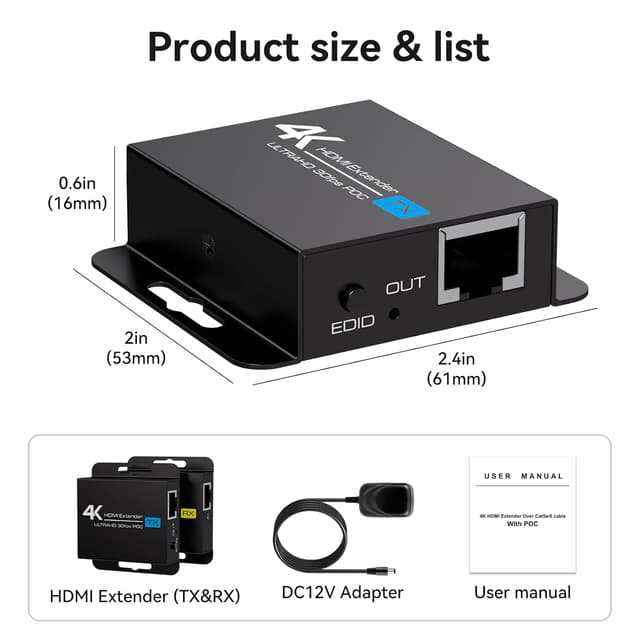

What’s included

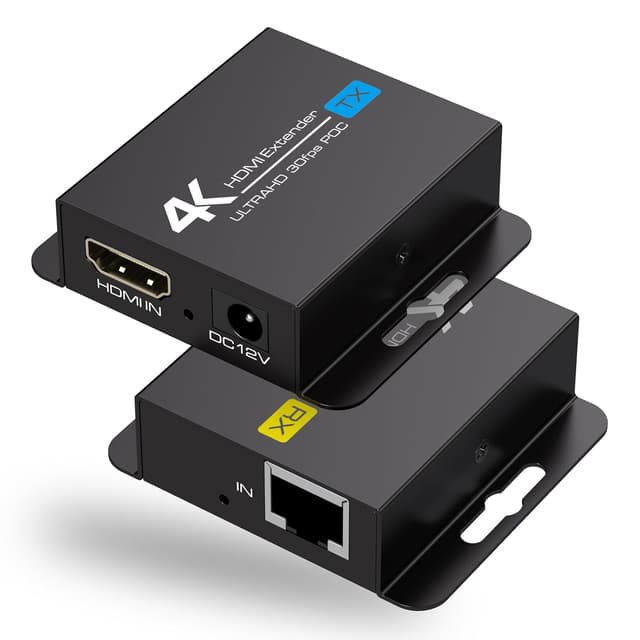

The product is described as an HDMI Ethernet extender set with a transmitter and receiver, using an RJ45 CAT cable link. It supports the TX end receiving power via a power adapter, while the RX end works without needing a driver or separate software installation. It is also specified as an HDMI extender and Ethernet adapter that includes EDID copy functionality. 🎛️
It is intended to work with a range of sources such as PCs, game consoles, Blu-ray players, and media players, and it can be used with education, indoor or outdoor LED display scenarios, video conferencing, and multimedia home theatre. If you plan to install it, ensure you have suitable CAT6 or CAT7 cabling available, since the HDMI link is carried over a single CAT cable run. This approach is often easier than long HDMI cables across rooms, especially where you cannot route a traditional HDMI lead cleanly.
Spec sheet
A key consideration for fit is the maximum supported signal format, since the extender is described as supporting up to 4K at 30Hz. It also notes a distance difference depending on the video mode, with 4K30Hz up to about 40m and 1080p at up to about 60m, so your final outcome will depend on the exact format you send. If your priority is a longer run at 1080p 60Hz, the stated distance figures may be particularly relevant.
It also makes sense if you want EDID copy and compatibility handling as part of the setup, especially when the display and source can otherwise negotiate imperfectly. You may want to skip it if you need a transmission mode beyond the mentioned 4K30Hz maximum resolution, or if your expected cable run and source setup do not match the stated distances. With the right CAT6 or CAT7 cable, it is positioned as a straightforward way to extend HDMI video and audio for everyday installations.
