GMKtec NucBox G10 Ryzen 5 3500U Mini PC (16GB RAM, 512GB SSD) with Triple 4K Output, 2.5GbE LAN, WiFi/BT
Product description
What you’re really getting with this mini PC
This GMKtec NucBox G10 is a compact desktop built around an AMD Ryzen 5 3500U with Radeon Vega 8 graphics, aimed at people who want a real workstation feel at mini-PC size. On paper, it’s positioned for home office work, light gaming, video playback, and multitasking—basically the stuff you do all day—without needing a bulky tower.
The “triple 4K” angle is a big part of the pitch here. If your workflow involves multiple windows across multiple screens, having HDMI 2.1, DisplayPort 1.4, and USB-C video output gives you more ways to build your setup. It’s not perfect for everyone (more on that later), but it does look like a strong small-form-factor option for everyday productivity.
Key points for decision making
The core specs that matter for buying are the CPU, RAM, storage, display outputs, and networking.
You’re getting 16GB dual-channel DDR4 (preinstalled as 2×8GB) and a 512GB M.2 PCIe SSD (listed as PCIe 3.0). That combination typically supports smooth day-to-day use like office apps, spreadsheets, web workloads with lots of tabs, and general media tasks. There’s also an upgrade path noted: up to 32GB RAM and dual M.2 2280 PCIe 3.0 SSDs (up to 2×8TB), which is useful if you expect storage needs to grow.
On networking, the included 2.5GbE RJ45 port is a practical step up from the “standard” gigabit-only setups—handy if you care about faster wired transfers or you’re building something server/router-adjacent.

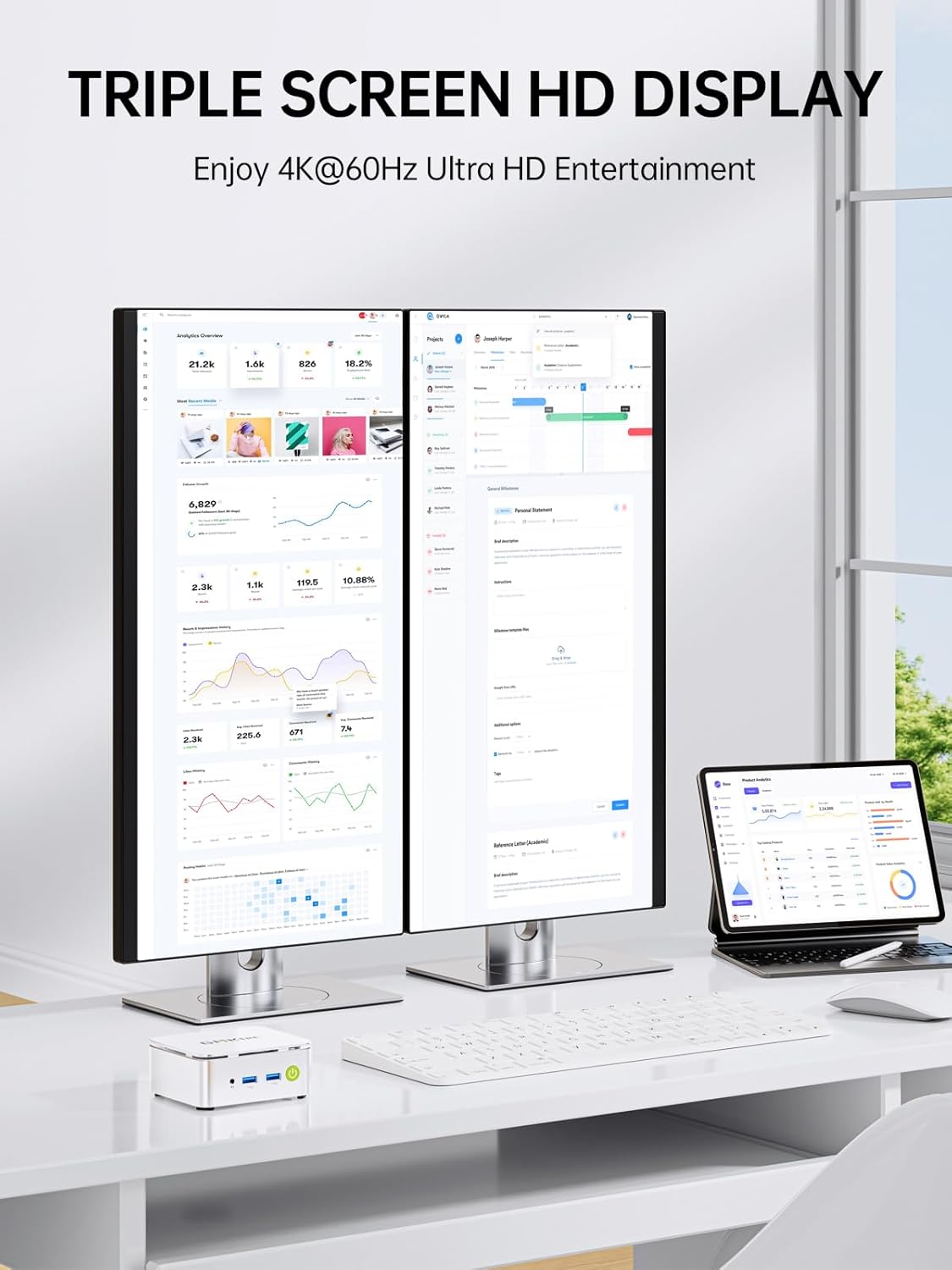

And for displays, it supports triple-display output, with “4K@60Hz” called out for the HDMI 2.1 TMDS, DisplayPort 1.4, and USB-C route. The Radeon Vega 8 handles GPU-side graphics for video and office visuals, it can be a solid match for casual design work, but don’t expect it to behave like a fully maxed-out gaming rig.
Where it shines in daily use

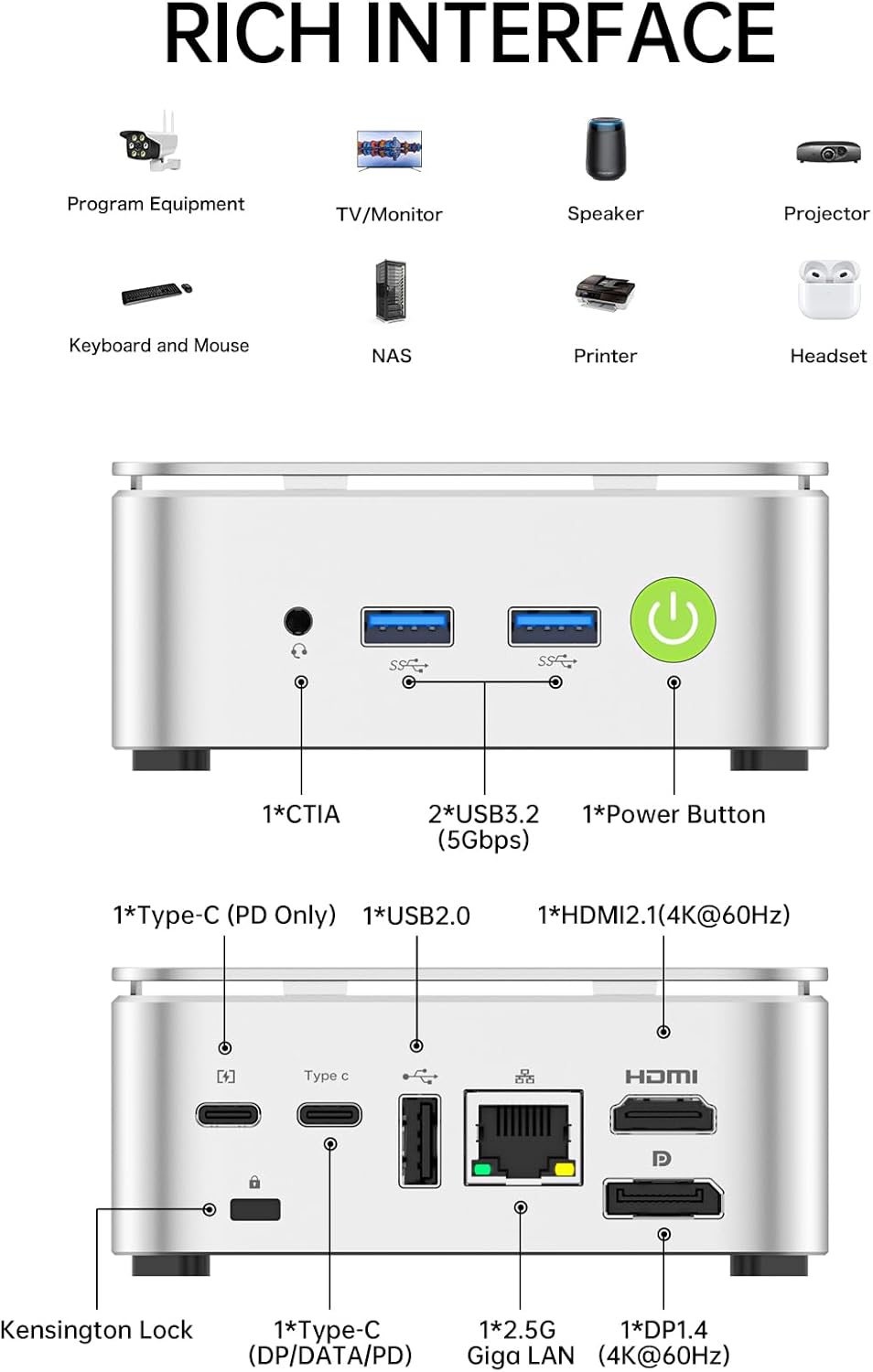

A lot of buyers look at mini PCs because they want less clutter. This one is palm-sized, with a full set of I/O ports packed into a small frame. The listed ports include dual USB 3.2 Gen1, USB 2.0, USB-C (full-function with PD/DP/Data), plus DisplayPort, HDMI, and a 3.5mm audio jack. Wireless support is included with WiFi 5 and Bluetooth 5.2.
A realistic “micro” scenario: you dock this mini PC at your desk, connect a main monitor and a secondary screen for spreadsheets and reference tabs, then use USB peripherals for keyboard/mouse and an audio output. With the triple-display support, the setup goal is clear—more screen real estate without needing a traditional desktop footprint.
Networking and “server-ready” positioning
The 2.5GbE LAN port is one of the more meaningful differentiators in this price/performance style of device. If your home network supports faster wired speeds, you can take advantage of that for smoother media transfers or quicker access to files/services on your network.
The description also frames it for use cases like office networking gear, and mentions scenarios such as Pfsense, Untangle routers, or secure network appliances. That doesn’t automatically mean it’s the only right choice for those tasks, but it does suggest the hardware is being marketed with network appliances in mind.
One nuance to keep in mind: real-world performance for “server-style” deployments depends a lot on your specific software and how much you expect to push through the box. If you’re planning heavy virtualization and constant high throughput, you’ll want to sanity-check whether your software stack is a fit.
Tech specs that affect compatibility (quick overview)
- Name: GMKtec NucBox G10 Ryzen 5 3500U Mini PC
- Type: Mini PC / desktop computer
- Processor: AMD Ryzen 5 3500U (4C/8T, up to 3.7GHz)
- Graphics: Radeon Vega 8 (up to 1200MHz)
- Memory: 16GB dual-channel DDR4 (2×8GB), upgradable up to 32GB
- Storage: 512GB M.2 PCIe 3.0 SSD, dual M.2 2280 PCIe 3.0 slots
- Display outputs: HDMI 2.1 TMDS, DisplayPort 1.4, USB-C (DP support) for triple display
- Video support noted: 4K@60Hz
- Networking: 2.5GbE RJ45 LAN port
- Wireless: WiFi 5, Bluetooth 5.2
- Ports listed: Dual USB 3.2 Gen1, USB 2.0, USB-C (PD/DP/Data), DisplayPort, HDMI, 3.5mm audio jack
Limitations and who should be cautious
This mini PC is best understood as a capable office-and-entertainment machine with light gaming potential—not as a “top-tier performance” powerhouse.
You’ll likely get the most value if your priorities are multi-window productivity, media playback, and a multi-monitor desk setup with triple 4K support. It can work for casual design tasks and video work in a typical home workflow.
But if your expectations are centered on demanding modern gaming performance or extremely heavy creative workloads, the Radeon Vega 8 integrated graphics may leave you wanting more. Also, if you’re going to rely on a specific combination of three displays, double-check your exact monitor inputs (HDMI vs DisplayPort vs USB-C video) and cable plan before buying—triple output sounds great, but the details matter.
Finally, mini PCs can be compact in ways that affect airflow and long-session noise/heat dynamics. The listing emphasizes warranty and support, but it doesn’t provide thermal/noise specifics here—so it’s worth considering your usage patterns.
Is it worth it?
It’s a solid pick if you want a compact desktop that focuses on daily productivity, multitasking, and a triple-display workstation setup, while still offering upgrade flexibility (RAM up to 32GB and storage expansion via dual M.2 slots). The 2.5GbE LAN port is also meaningful for wired performance at home or for network-adjacent builds.
You may want to skip it if your top priority is high-end gaming or GPU-heavy creative performance, since the integrated Radeon Vega 8 is aimed at light gaming and everyday graphics rather than pushing demanding titles. And if you’re very picky about matching specific three-monitor arrangements, confirm your monitor input types and how you’ll connect them.
Given what’s included here—16GB RAM, 512GB PCIe SSD, triple 4K output support, and 2.5GbE—this GMKtec looks like a buy-worthy home office or HTPC-style mini desktop for people who want “more desktop” without the footprint.
Mini FAQ
What kinds of tasks does this mini PC fit best?
It’s marketed for home office work, light gaming, video playback, multitasking, productivity dashboards, and general multi-window workflows.
Does it support three monitors?
Yes, the listing states triple-display output support using HDMI 2.1 TMDS, DisplayPort 1.4, and USB-C video output.
Is there room to upgrade RAM and storage?
Yes. The description says it comes with 16GB and a 512GB PCIe SSD, and it’s upgradeable up to 32GB RAM and dual M.2 2280 PCIe 3.0 SSDs.
How fast is the wired internet connection?
It includes a 2.5GbE RJ45 LAN port, which is positioned as faster wired networking than standard gigabit setups.
Should I consider it for a network appliance or server use?
It’s described as “server ready” for use cases like Pfsense/Untangle-style setups, but you’ll still want to confirm your software requirements and expected workload match what you plan to run.
