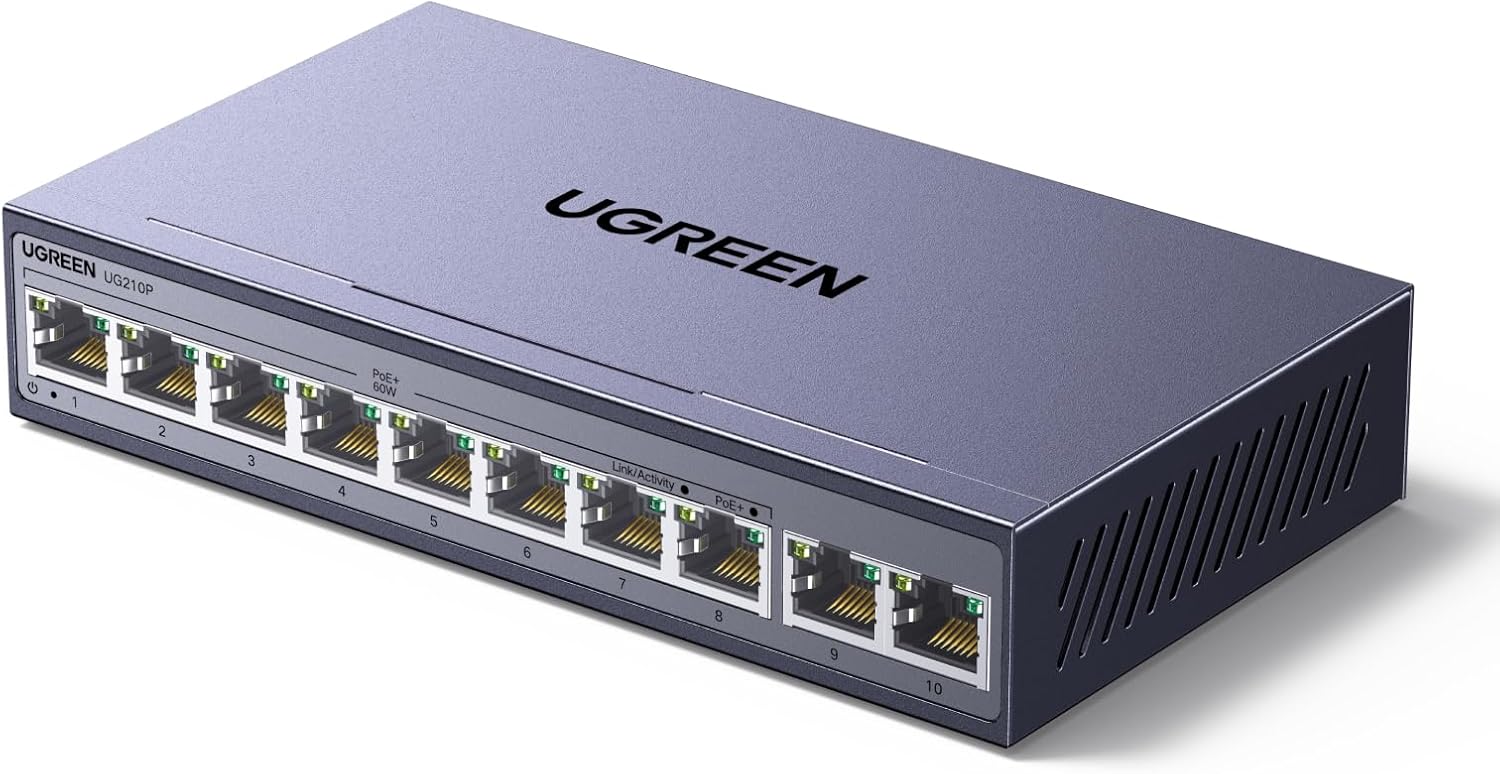

UGREEN 10 Ports POE Network Switch 60W ⚙

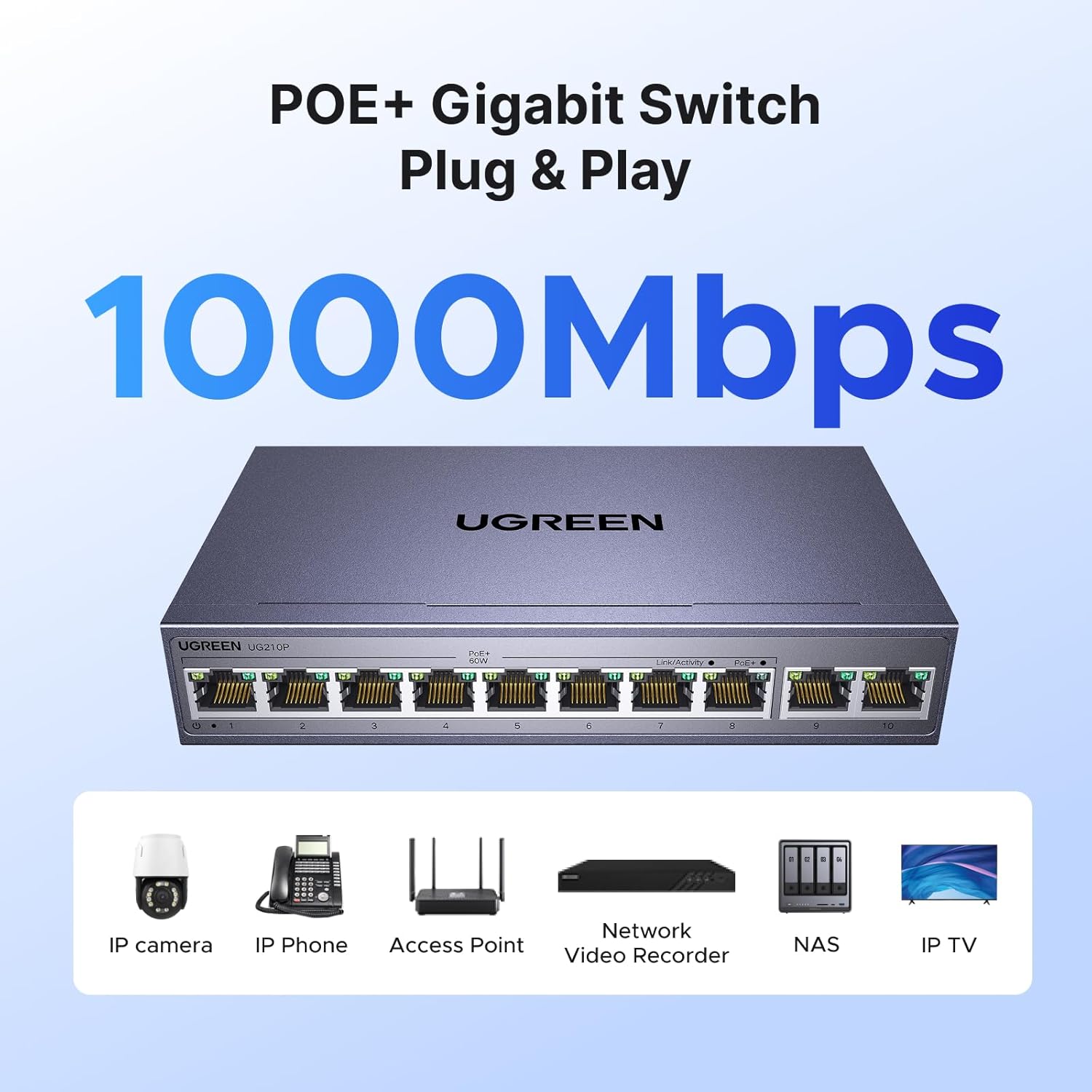

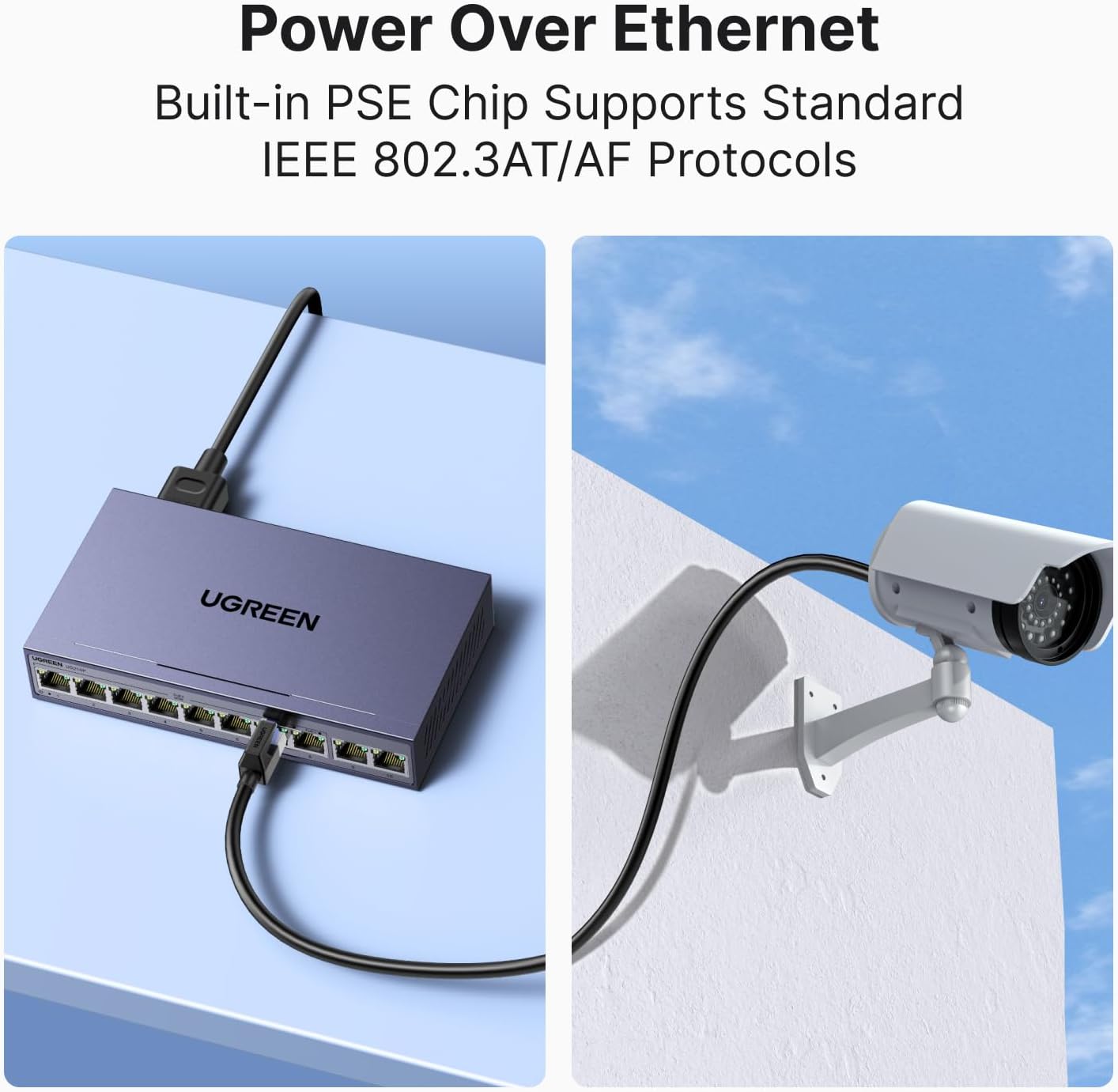

This PoE network switch delivers both power and data over a single cable for connected devices such as IP cameras, access points and VoIP phones, making it a practical choice for small surveillance and office networks. It combines eight PoE+ gigabit ports with two additional gigabit uplink ports, offering extended transmission and centralised power distribution for installations that need fewer power outlets and cleaner cabling.

Key Points

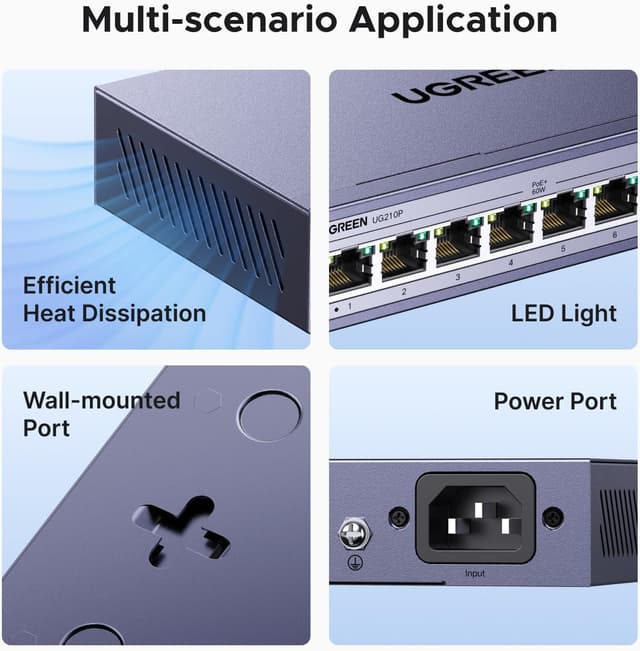

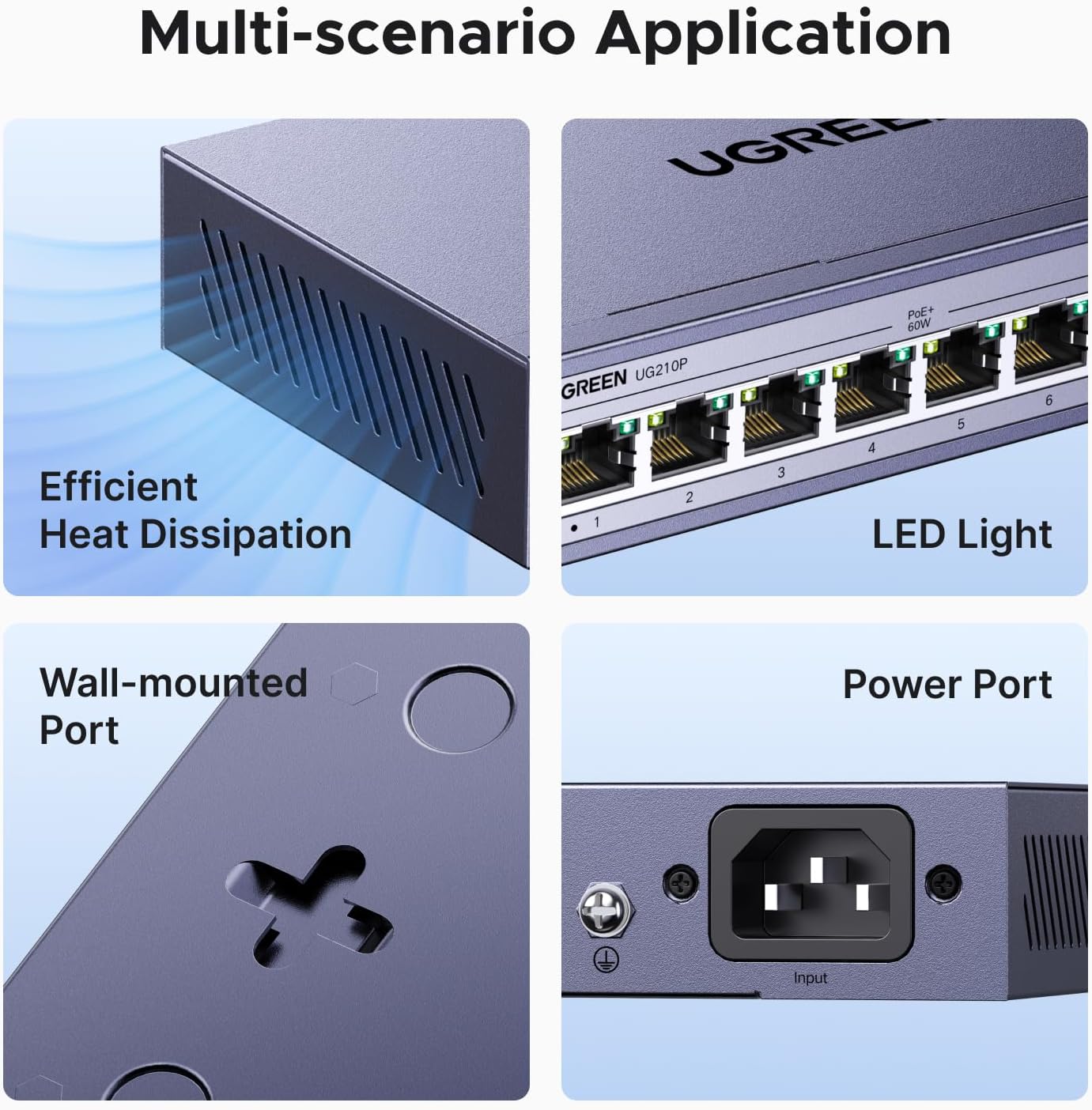

The unit offers eight 10/100/1000 Mbps PoE+ ports with per-port support up to 30W, and a total power budget of 60W according to the manufacturer. It is plug and play, so no configuration is required to start powering and connecting devices. The metal housing aids heat dissipation and supports wall mounting or desktop placement for flexible deployment. 📡

This switch supports extended Ethernet reach up to 250 metres for both power and data, which can cut down on the number of repeaters or intermediate equipment in widely spread camera setups. There is also surge protection rated at 6 kV to help protect connected equipment from voltage spikes during storms or unstable power conditions. ⚡

Technical Specifications

• Name: UGREEN 10 Ports POE Network Switch

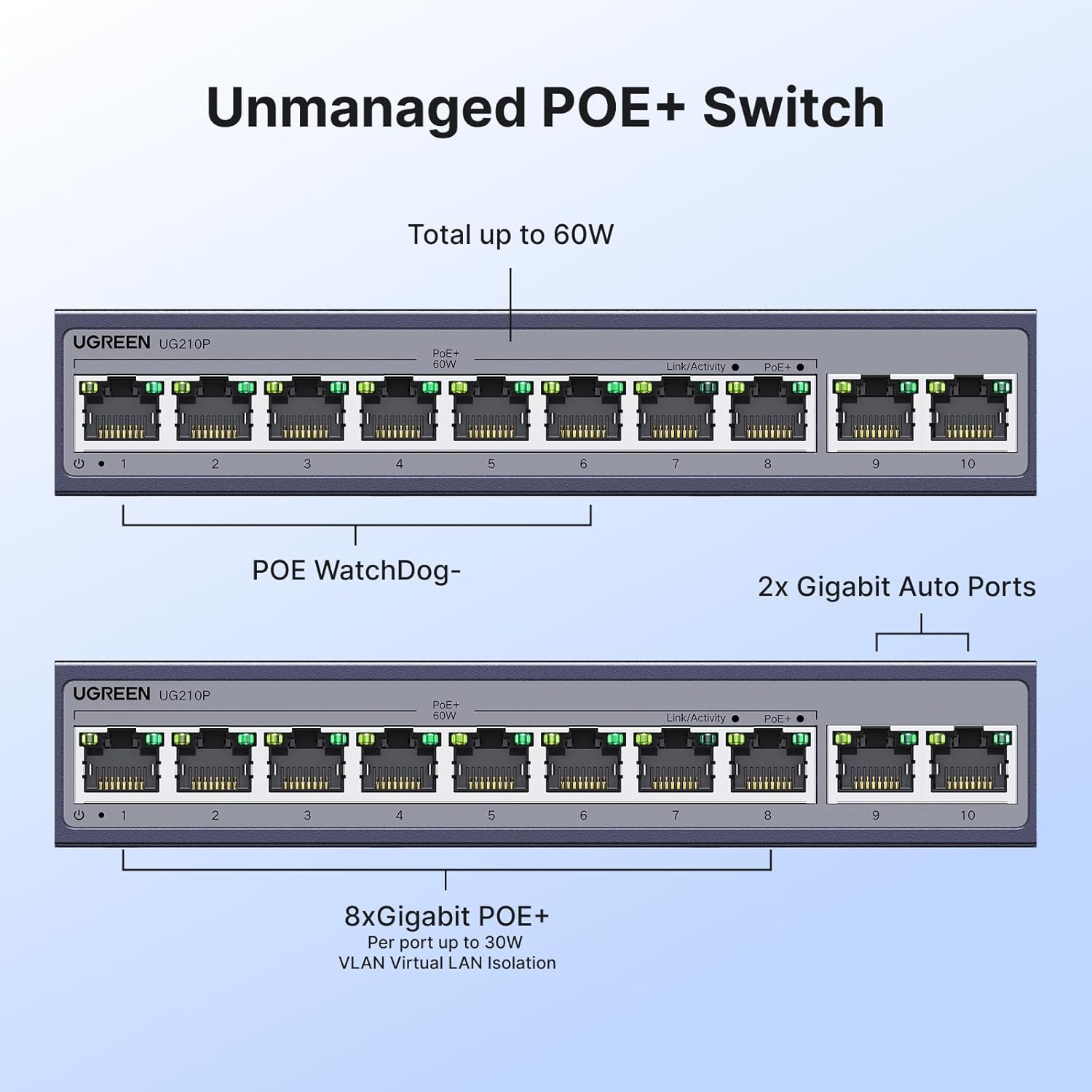

• Ports: - 8 x Gigabit PoE+ ports, 2 x Gigabit uplink ports.
• PoE Standard: - 802.3af/at, up to 30W per PoE port.
• Total Power Budget: - 60W.

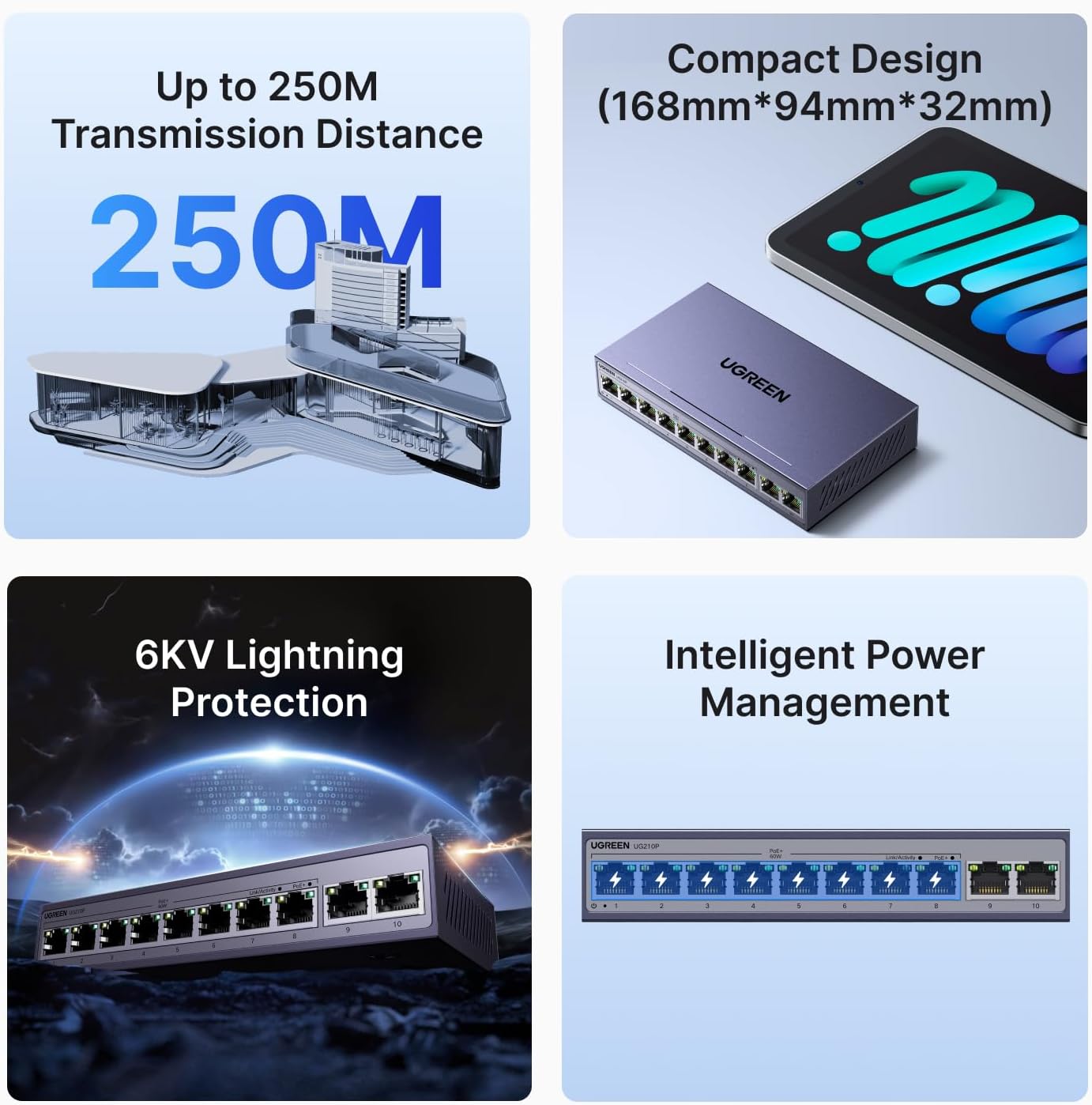

• Transmission Distance: - Supports up to 250 m PoE long-distance transmission.
• Housing: - Metal case with wall-mount and desktop options.
• Protection: - 6 kV surge protection.

Usage Recommendations

For CCTV and perimeter camera installations, place the switch centrally to reduce cable runs and take advantage of the 250 metre PoE reach. When using several high-power devices at once, check the combined power draw so the 60W total budget is not exceeded, otherwise some ports may not receive full power. For indoor office or retail deployments, the compact metal unit can be mounted on a wall behind equipment racks or set on a shelf to keep cabling tidy. 🛠️

Advantages

The model is straightforward to install since it requires no configuration and supports common PoE standards for broad compatibility with existing networked devices. Its metal construction and built-in surge protection add a degree of robustness for environments where electrical transients or elevated temperatures are a concern. Consider that the total 60W budget limits how many high-draw devices can be powered simultaneously according to the manufacturer, so plan port usage accordingly. 📷
