ELIVED EV012 TV wall bracket 14–42 inch, 20 kg capacity 📺
Description:
This full motion wall bracket lets you mount most 14 to 42 inch flat or curved displays with flexible tilt and swivel to improve viewing from different seating areas. It reduces glare and neck strain by offering small tilt adjustments and wide swivel range, making it useful for living rooms, bedrooms or compact media rooms.
Key Points
The bracket supports a range of VESA patterns from 75x75mm up to 200x200mm and holds displays up to 20KG, according to the manufacturer. The arm extends to allow the screen to be pulled out from the wall and retracts close for a low-profile look when not in use. Installation hardware is supplied to help with mounting, and the design includes an articulating arm for versatile positioning. Note that mounting directly on drywall without adequate support is not recommended and additional fixings or a stud mount will be needed for secure installation. 🔧📺
Technical Specifications
- Name: ELIVED TV Wall Bracket EV012
- Screen compatibility: 14–42 inches

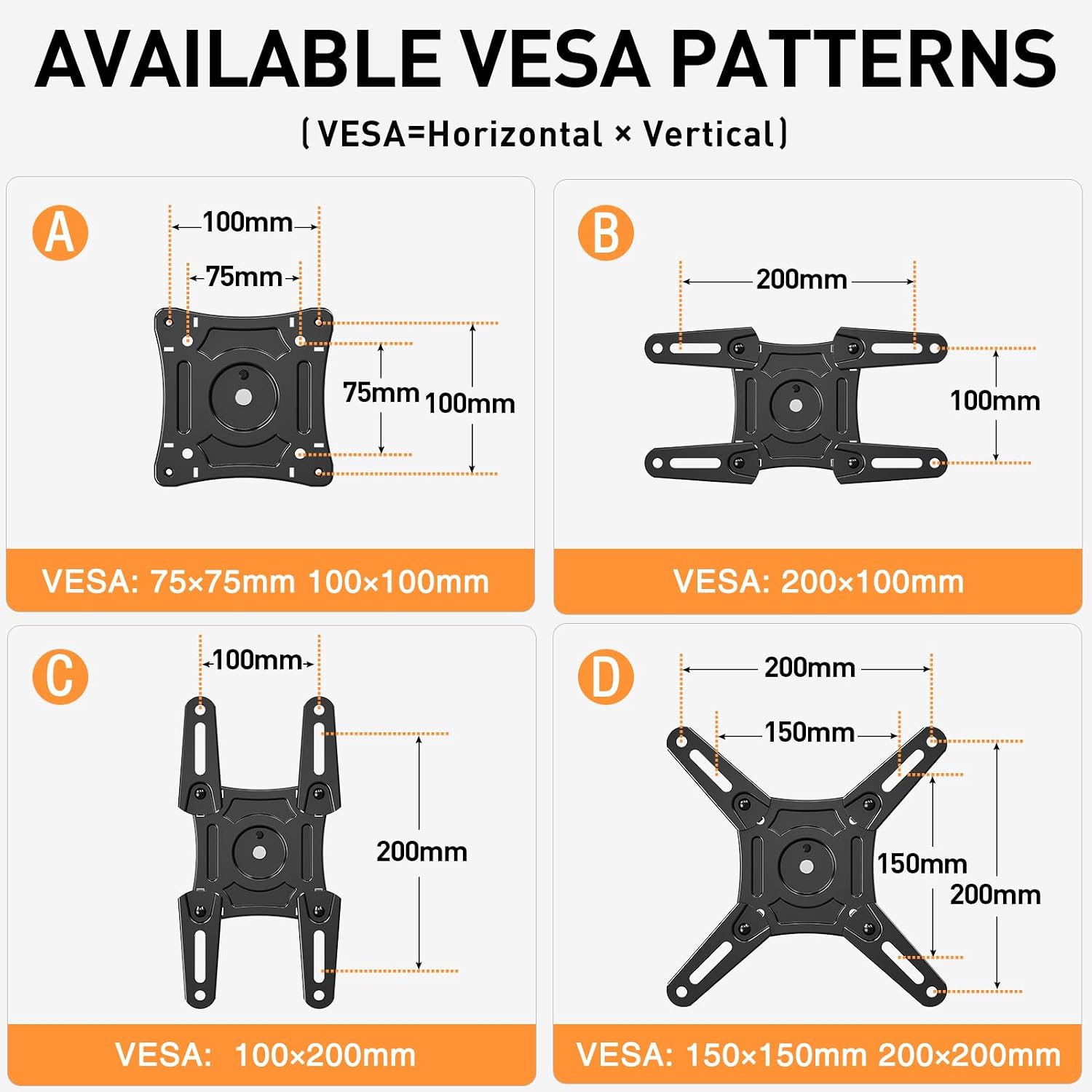

- VESA compatibility: 75x75mm to 200x200mm
- Maximum load: 20KG

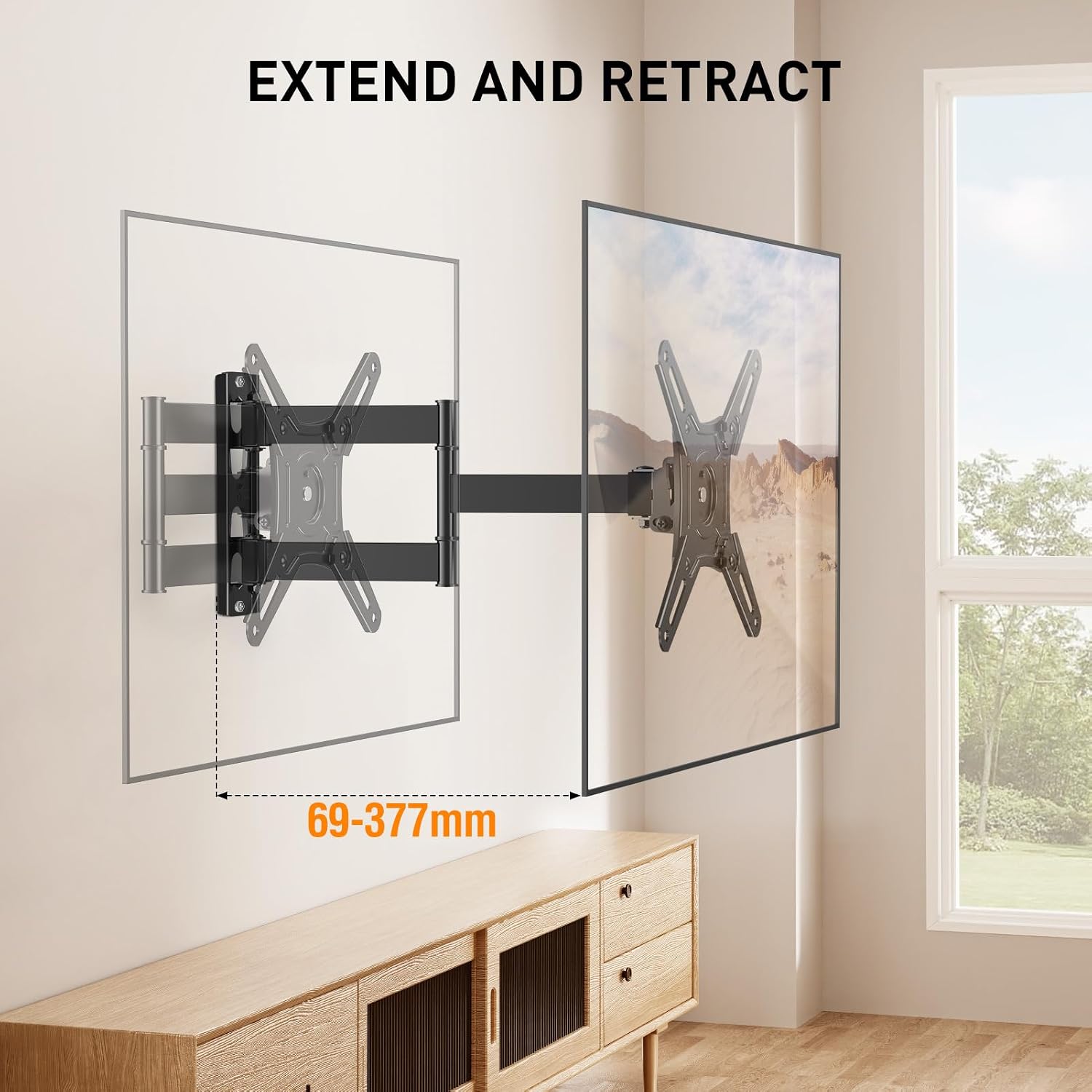

- Extension range: 69mm retracted to 377mm extended

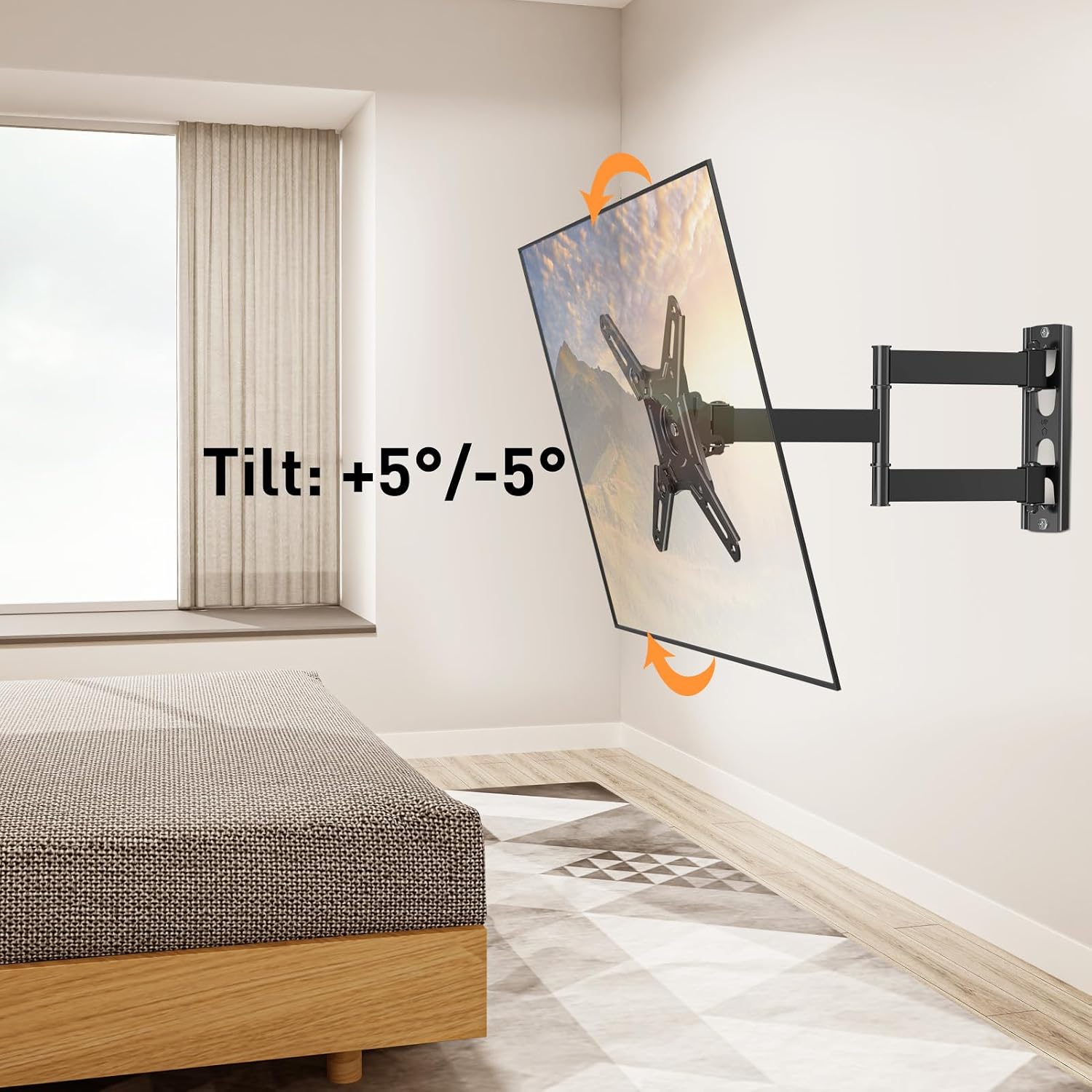

- Tilt range: +5° up, -5° down

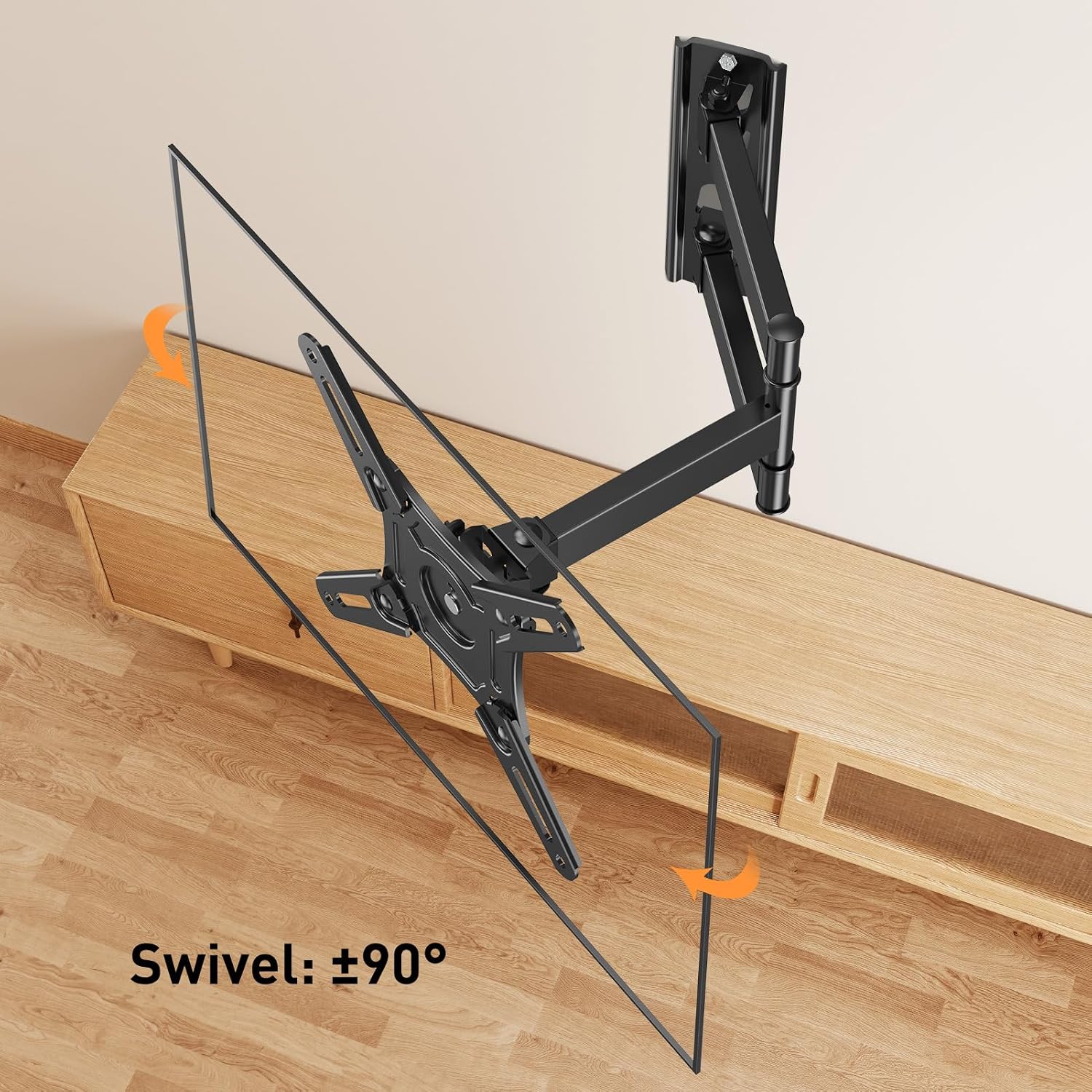

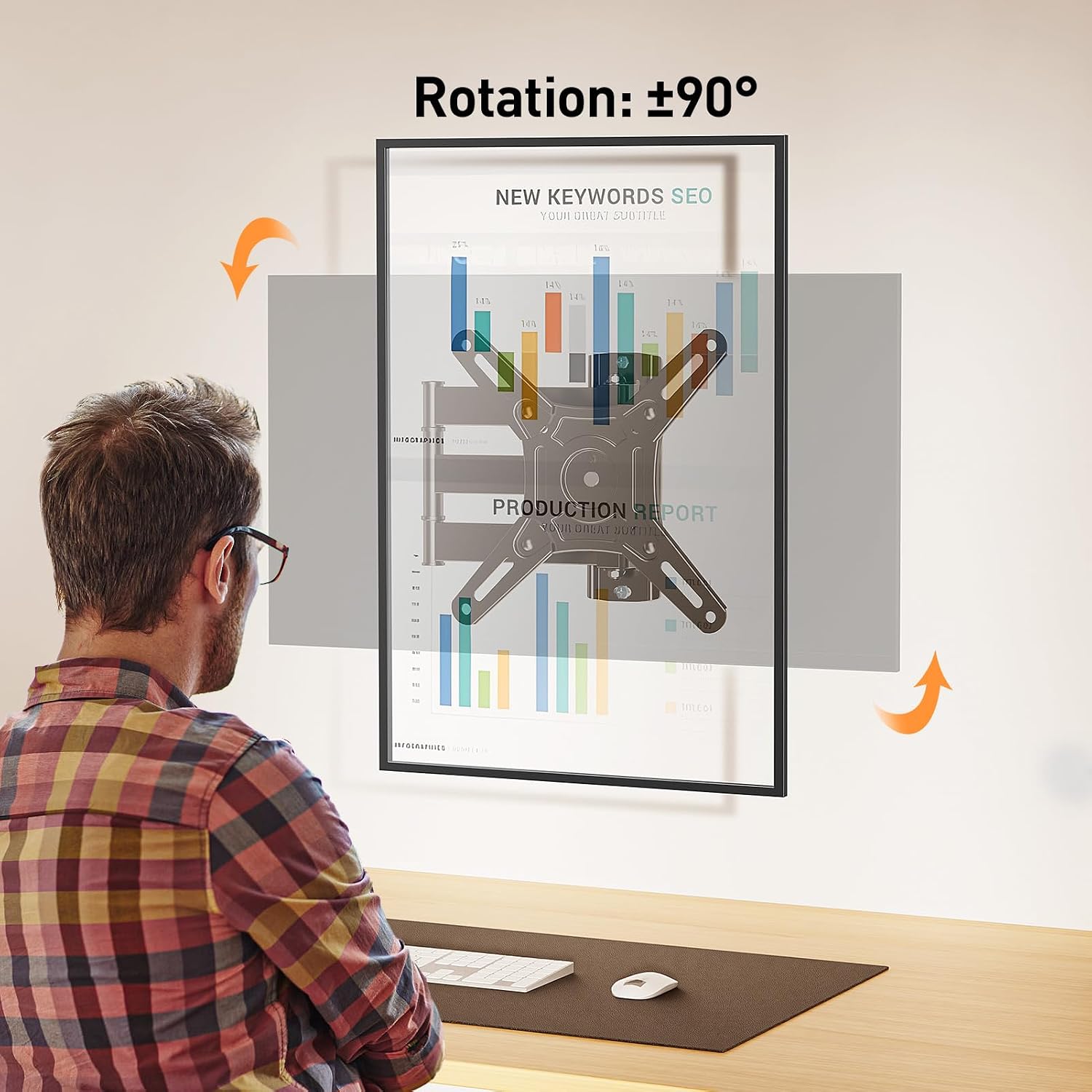

- Swivel range: ±90° and rotation ±90°.
Usage Recommendations

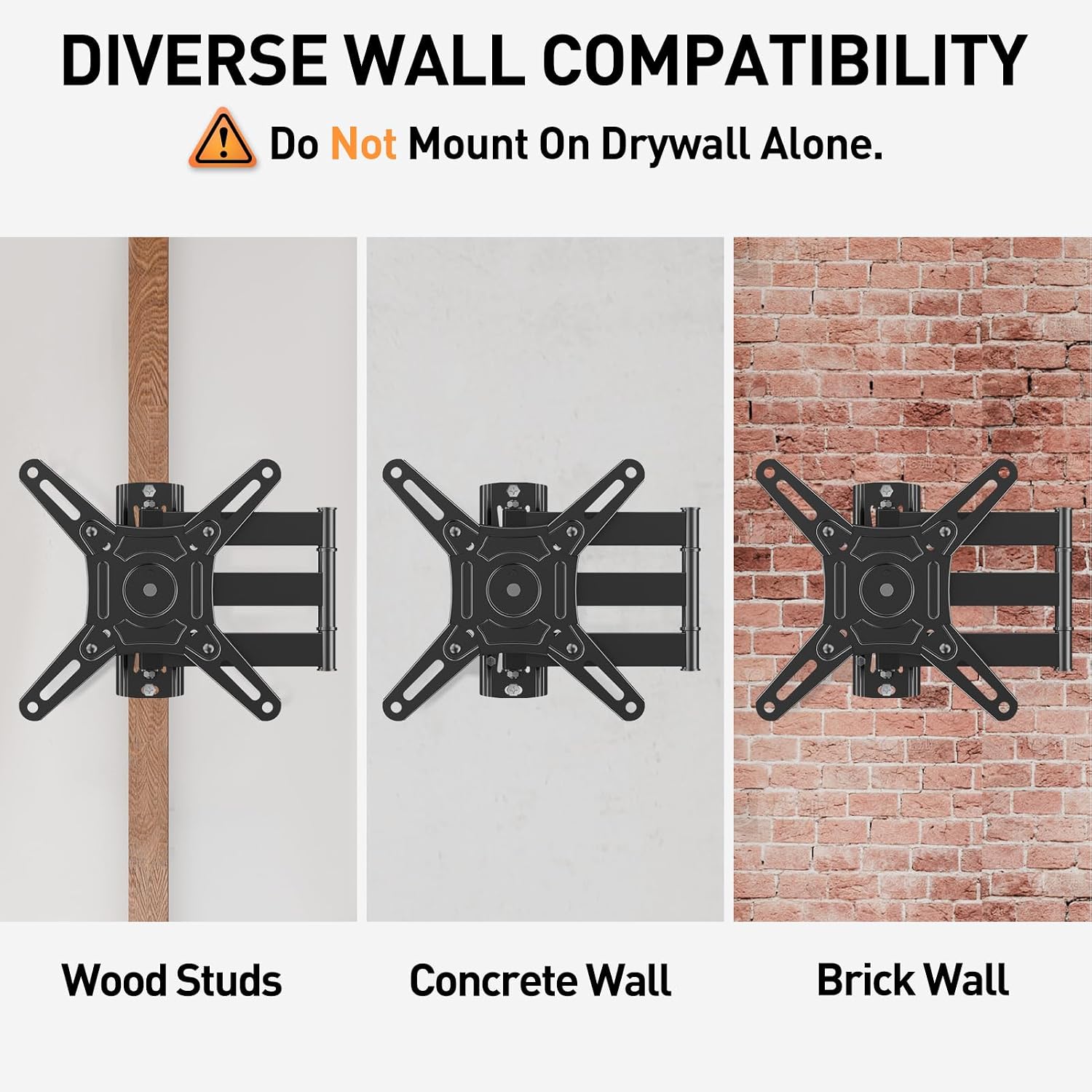

For best results, locate wall studs or a masonry surface to attach the bracket, as it is not intended for drywall-only installation. When positioning the mount, consider cable management and leave space for the arm to extend fully if you plan to access ports or rotate the screen often. If you use the portrait orientation frequently, check that the display supports portrait mode and that cables have slack for the rotation movement. 🔩
Practical Notes
The tilt range is relatively modest, so this mount helps reduce minor glare but will not substitute for large vertical adjustments in a high or low installation. The manufacturer notes that the package contains common mounting bolts and spacers, but some TV models may require alternate screws or additional washers for a secure fit. The swivel and rotation features are useful for shared spaces where viewers may be seated at different angles. 🎯
