TJCXELE USB-C KVM Docking Station for 3 Computers and 4 4K Displays

A USB-C KVM docking station for sharing a multi-monitor setup across three computers. It brings display connections, USB peripherals, Ethernet, and audio together in one workstation hub.

Connect up to four HDMI displays for extended or mirrored viewing. With DisplayLink technology, it supports multi-monitor setups on compatible Mac systems, including M1, M2, M3, and M4 models.

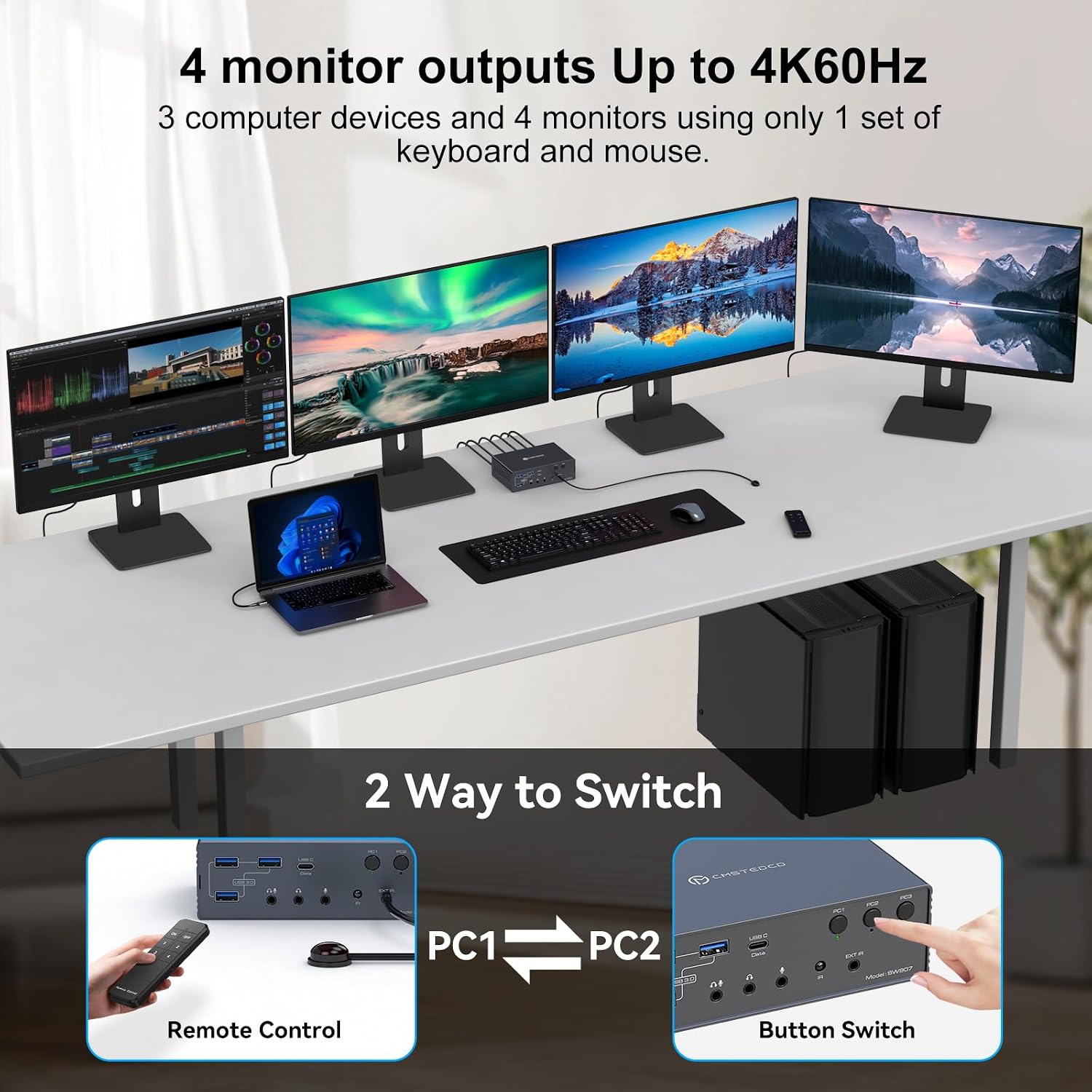

A remote controller makes it possible to switch between connected computers while keeping shared displays and peripherals in one place. It suits a desk used for work across multiple laptops or desktops.

Spec sheet

• Type: USB-C KVM switch and docking station
• Computer connections: Up to 3 computers
• Display outputs: 4 HDMI ports, up to 4K at 60Hz on four displays, or up to 4K at 120Hz when using two displays

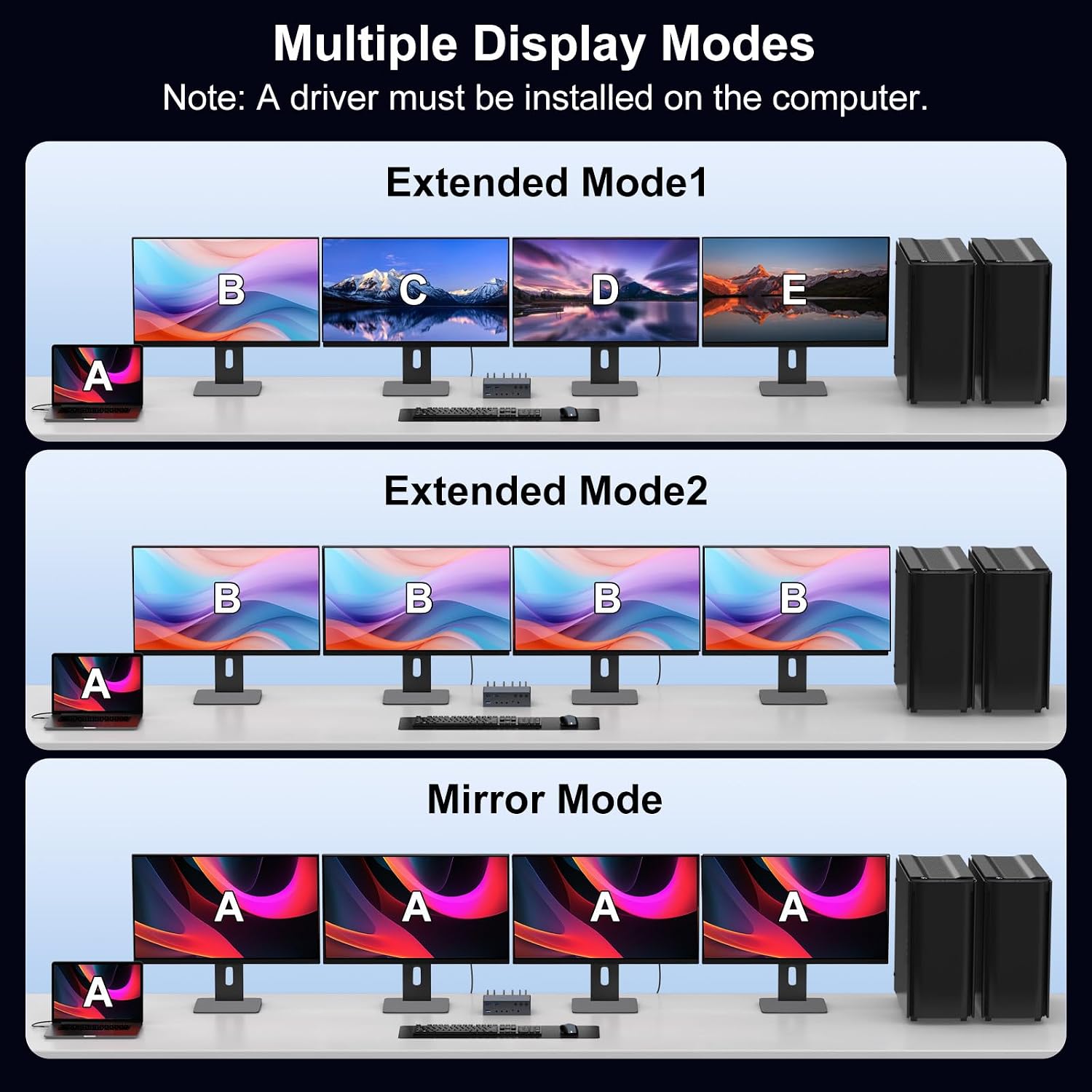

• Display modes: Extended and mirrored

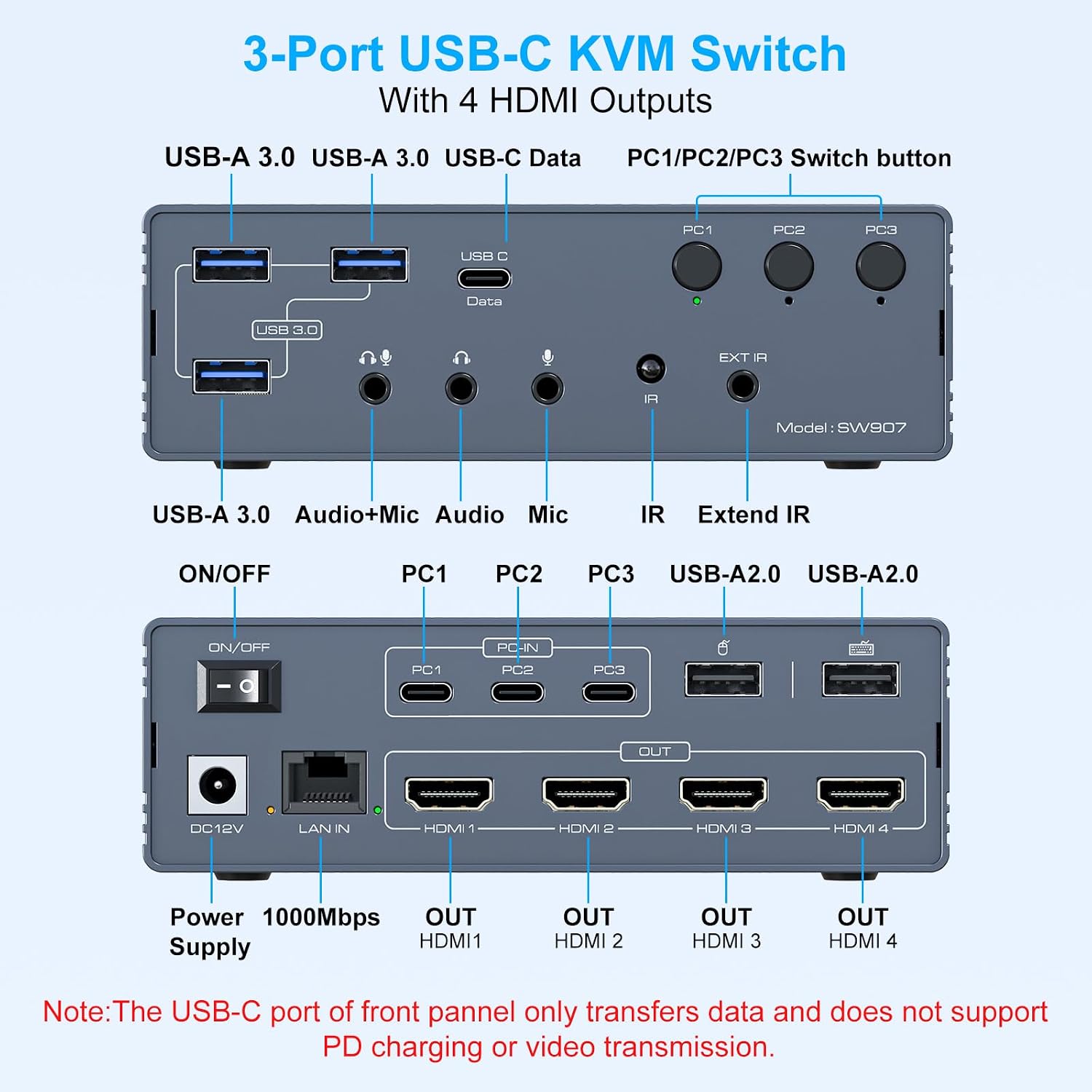

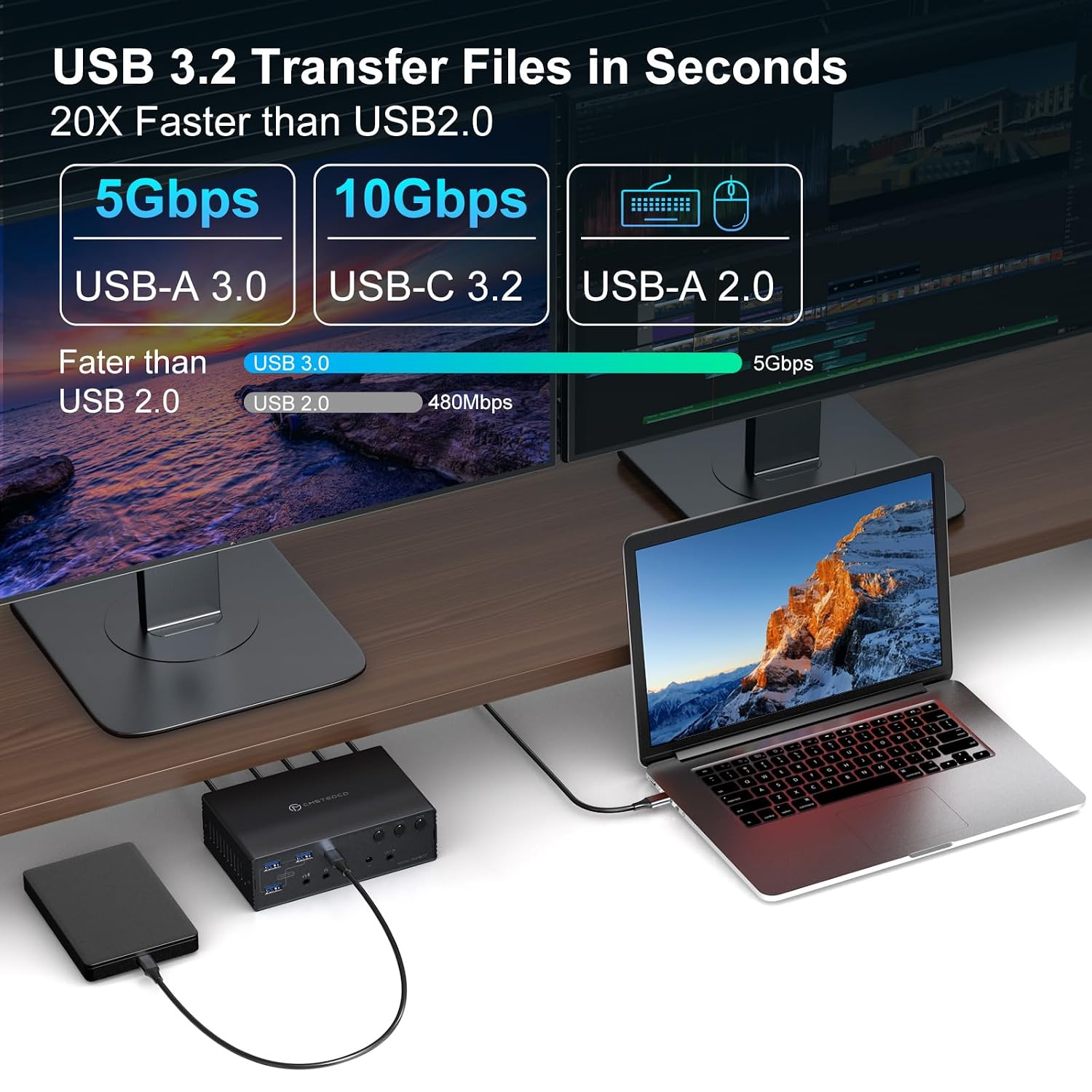

• USB ports: 1 USB-C at 10Gbps, 3 USB-A 3.0 at 5Gbps, and 2 USB-A 2.0 at 480Mbps
• Networking: Gigabit Ethernet up to 1000Mbps
• Compatibility: macOS, Windows, Chrome OS, Linux, and Android
• Power input: 12V DC
• Reference: YQUS-SW223J-250918

Getting the most from it

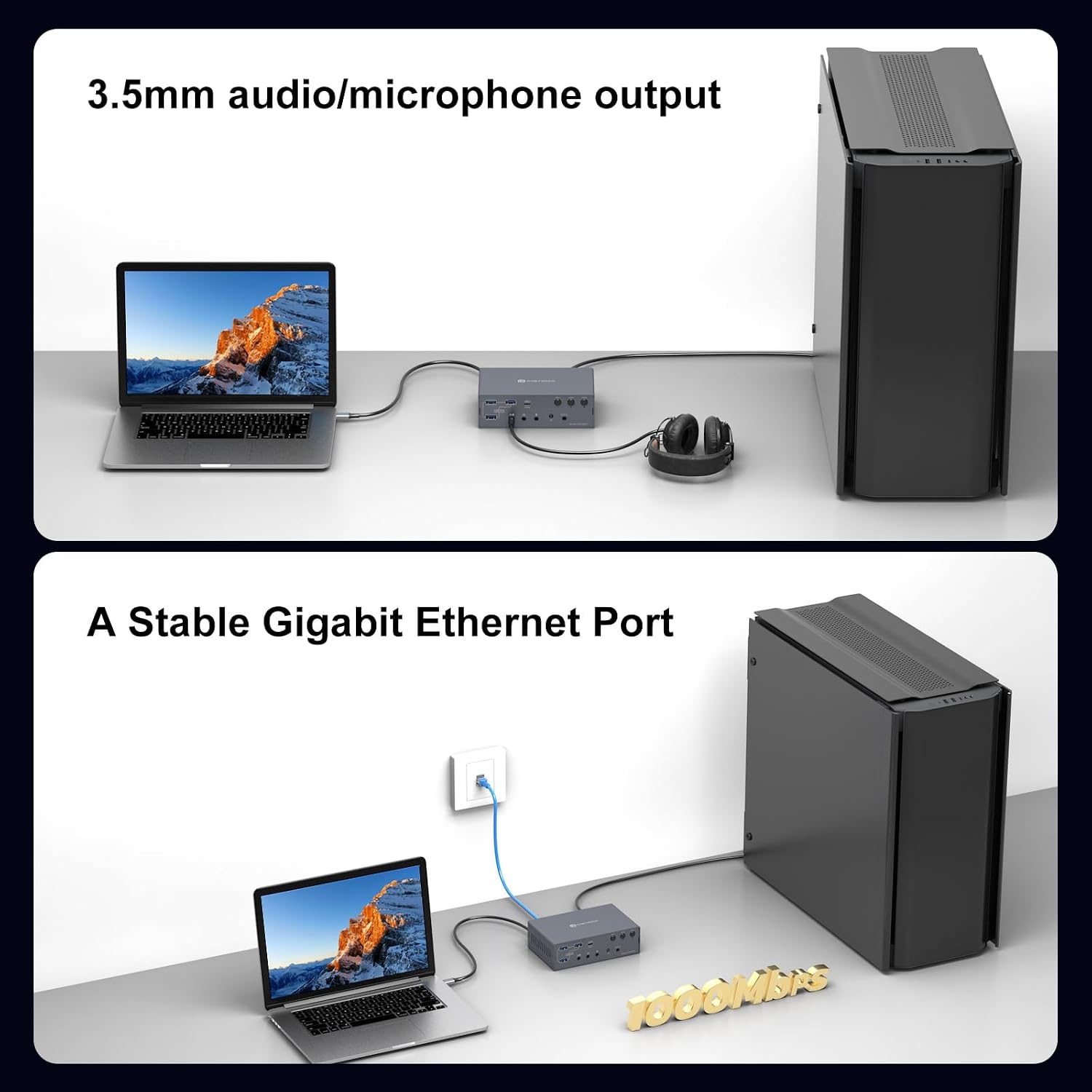

Use the switch to share connected HDMI displays and USB accessories between computers rather than building a separate set of peripherals for each machine. For example, a desk with a work laptop and a desktop can use the same monitors, keyboard, and other connected USB devices, with the remote controller available for switching between computers. The dock also provides Ethernet and audio connections, helping bring common desk connections together.

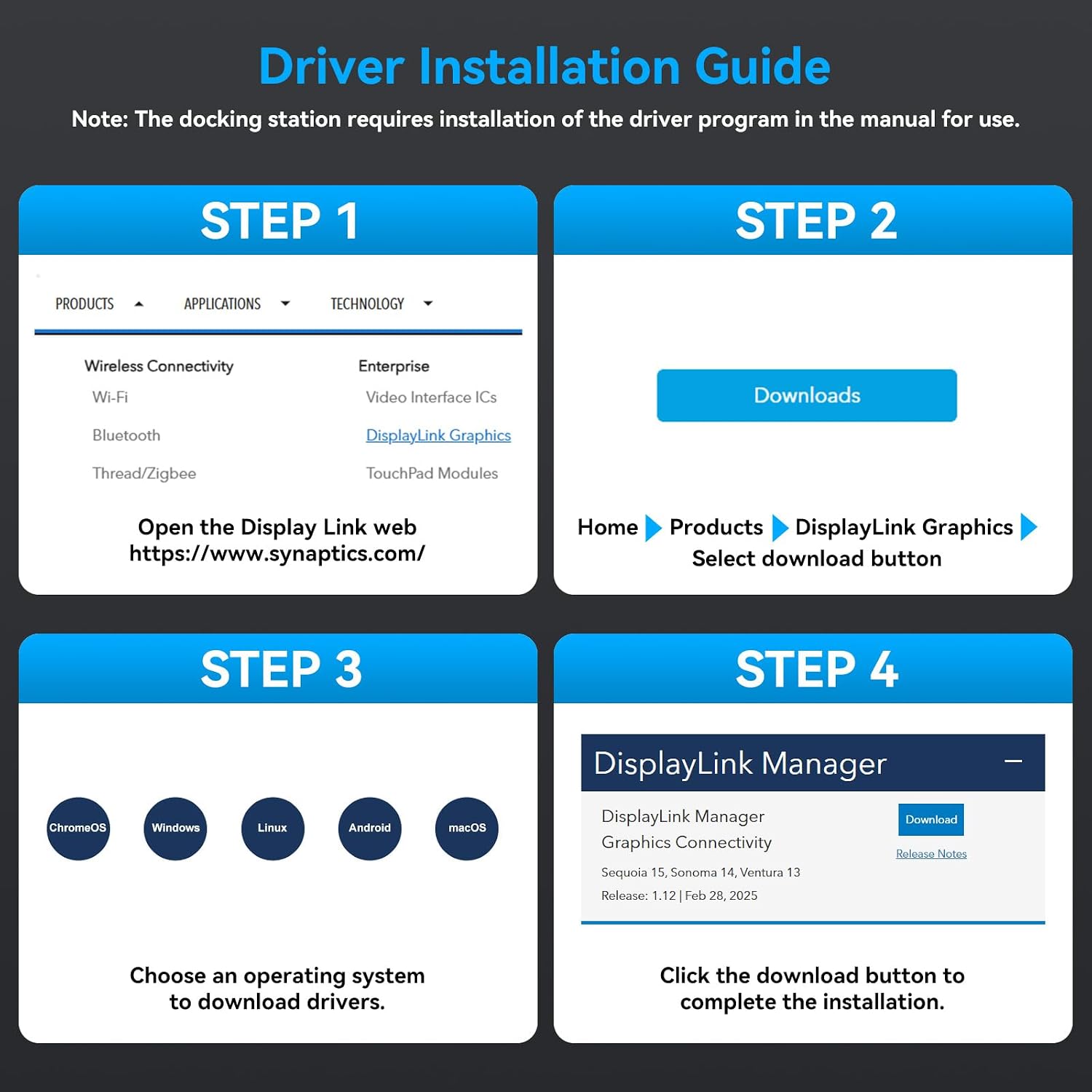

DisplayLink drivers are required for the monitors to output an image, so install the driver on each computer that will use the dock and set it to start automatically with the system. Computers need a USB 3.0-or-higher connection. The product is not designed to charge laptops. Since operation uses computer system resources, the manufacturer recommends an i7-or-higher CPU and at least 16GB of memory. For the listed display modes, the computer, monitors, and cables must support the corresponding resolution and refresh rate, cables under 3 feet are recommended for 4K at 60Hz.

This setup is especially useful when the priority is switching a shared multi-monitor workspace between computers. A simpler USB hub may suit a desk with only one computer or without multi-display switching, while this KVM dock combines switching with four HDMI outputs and several peripheral connections.

What’s included

The package includes the USB-C KVM switch, three USB-A-to-USB-C cables, a 12V charger, an external controller, and a remote. Use the included cables to connect computers to the switch, then connect the displays and shared peripherals. Install DisplayLink on the computers before using the monitor outputs.

Is it worth it?

For a workstation shared by several computers, the main advantage is having one set of up to four HDMI displays and connected accessories available through a single KVM dock. Extended or mirrored display modes support different desk layouts, while Gigabit Ethernet and audio add useful connections alongside USB. It is a practical fit for users who want a multi-monitor setup for compatible computers, including supported M1–M4 Macs, and prefer to switch between machines without rebuilding the desk around each one.
