UGREEN HDMI Switch 4K@60Hz bi-directional HDMI switch
Product description
This compact HDMI switch from UGREEN lets you toggle sources or displays with a single press, making it useful for living rooms, desks and meeting rooms where devices need to be shared. It is a bi-directional 2 in 1 out unit that supports 4K playback at 60 Hz and HDR, so you can switch between a console and a media player without unplugging cables, improving convenience and keeping setups tidy. 🎮📺
Key Points

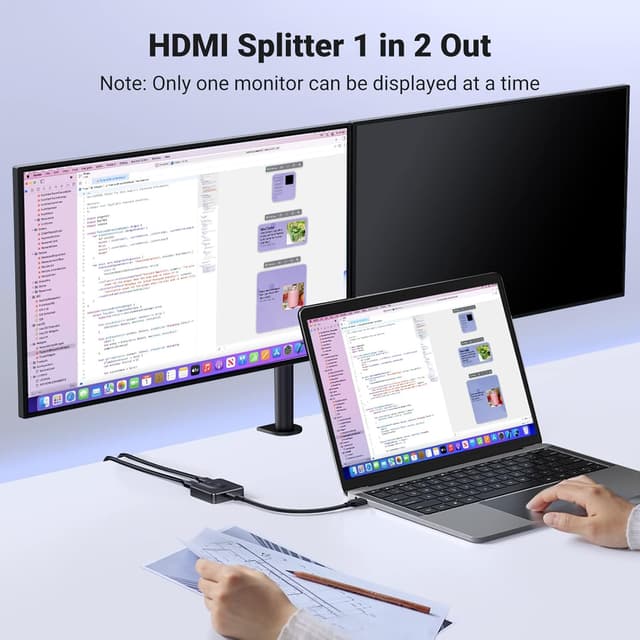

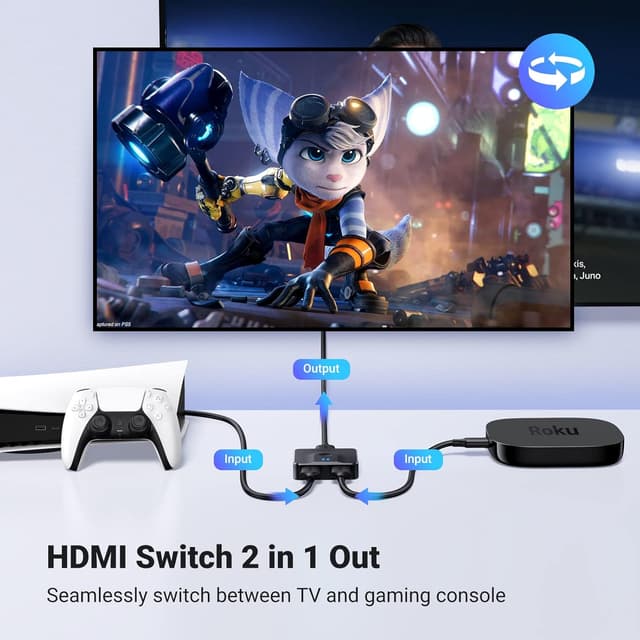

The switch works in two modes: connect two HDMI sources to one screen, or connect one source to two screens and select which display receives the signal. It does not output to both screens simultaneously according to the manufacturer, so this is not a solution for mirrored dual-screen presentations. The front LED indicates the active port and the physical button provides immediate manual control without the need for software.
Compatibility covers a wide range of equipment with standard HDMI ports, including PS5, PS4, Xbox One, TV boxes, laptops and Blu-ray players. It handles common resolutions and accepts older formats such as 1080p and 720p. For stable transfers and best results the maker suggests using short HDMI cables, ideally no longer than 1 metre.
Technical Specifications
- Name: UGREEN HDMI Switch 4K@60Hz
- Resolution: 3840 x 2160 @ 60 Hz
- Protocols: HDCP 2.2, HDMI 2.0, HDR10+ compatible
- Bandwidth: 3.4 Gbps per channel
- Inputs/Outputs: 2 in / 1 out, bi-directional switching
Usage Recommendations

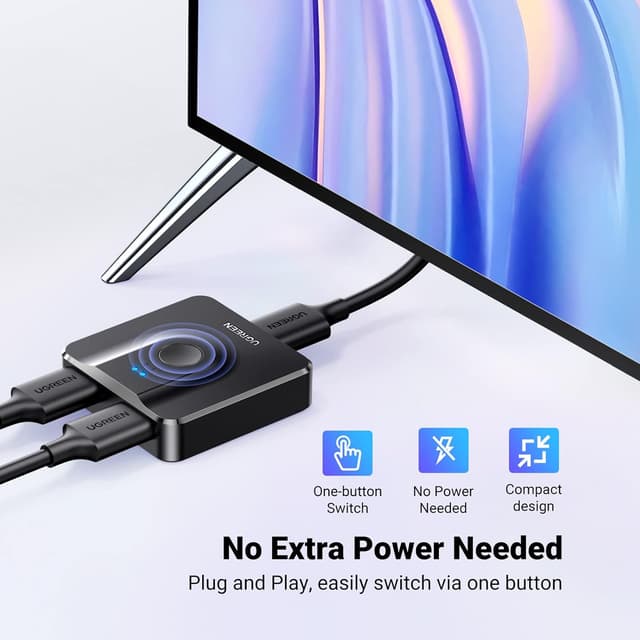

Plug and play operation means no drivers or external power are required for most setups, simply connect the cables and press the button to change sources. If you plan to use one input to feed two displays, be aware that only one display can be active at a time when using the 1 in 2 out mode. For the clearest picture and reliable HDR playback keep cable lengths short and use cables rated for 4K@60Hz performance. 🔌
Positive Aspects
The unit is a space-saving alternative to swapping leads repeatedly, and it helps reduce wear on device ports. Support for HDR and 3D content adds versatility for both gaming and home cinema. One nuance to note is that handover between some devices may depend on how the connected equipment manages HDCP and signal negotiation, so behaviour can vary slightly from one TV or console to another according to the manufacturer.
