VPFET SW223-Deep Blue Dual-Monitor DisplayPort KVM Switch, 8K and USB 3.0

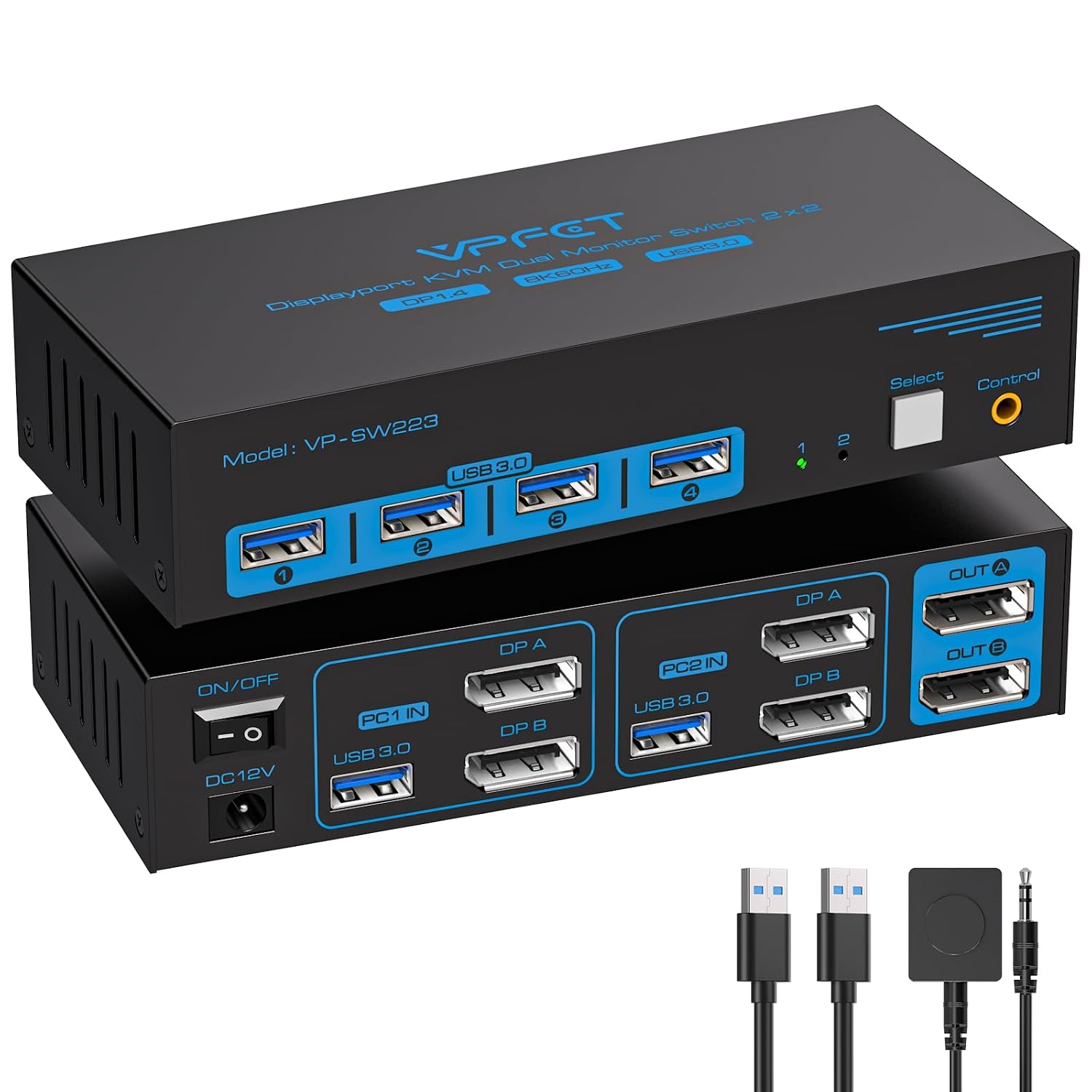

The metal VPFET SW223-Deep Blue is a dual-monitor DisplayPort KVM switch for sharing two screens and USB peripherals between two computers. Its 5.91 x 2.56 x 1.42-inch housing puts the switching hardware in one place, while the included USB cables connect each computer to the KVM for shared peripherals.

For a desk that uses two computers, it offers a way to switch the display and connected USB devices without moving those connections by hand.

Best use cases

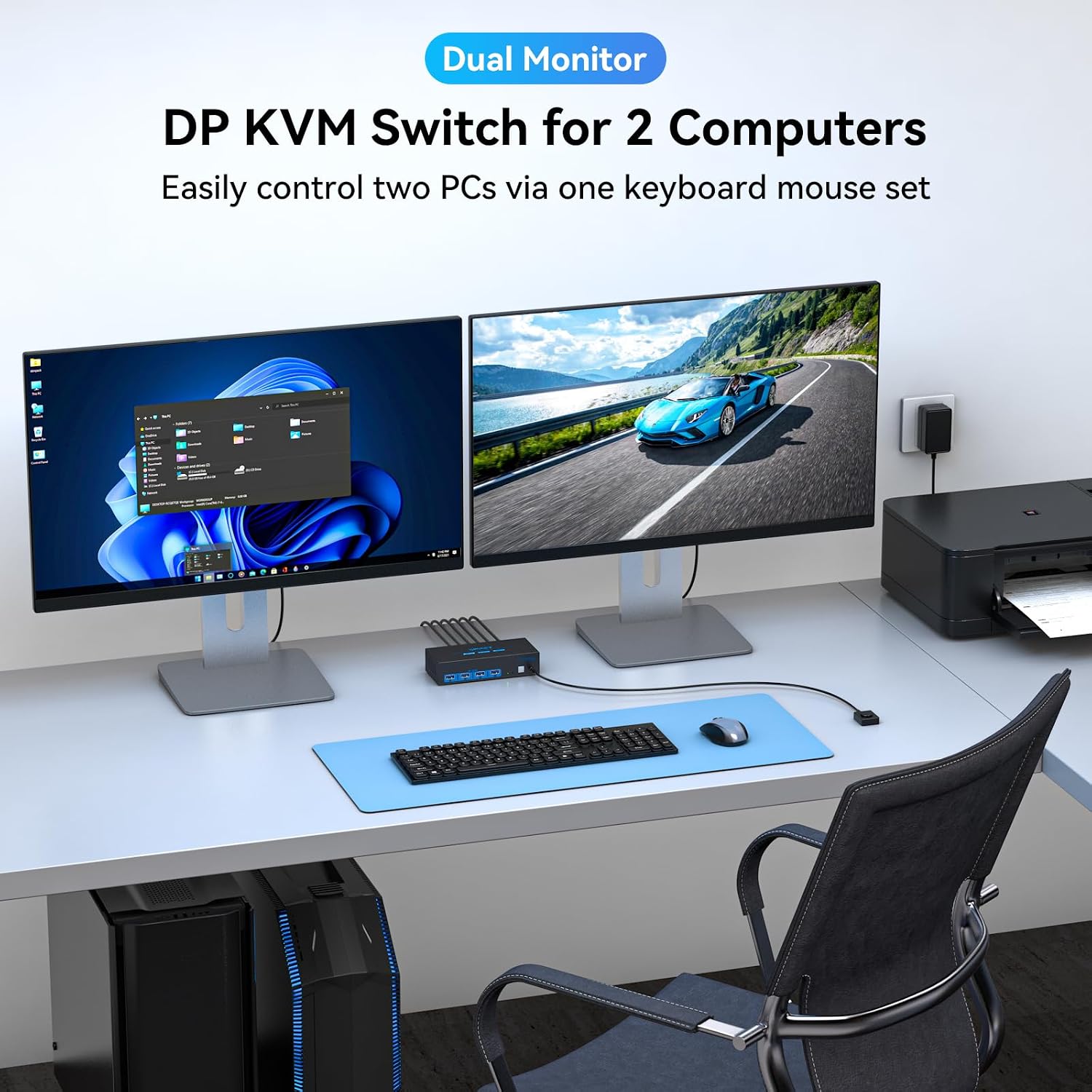

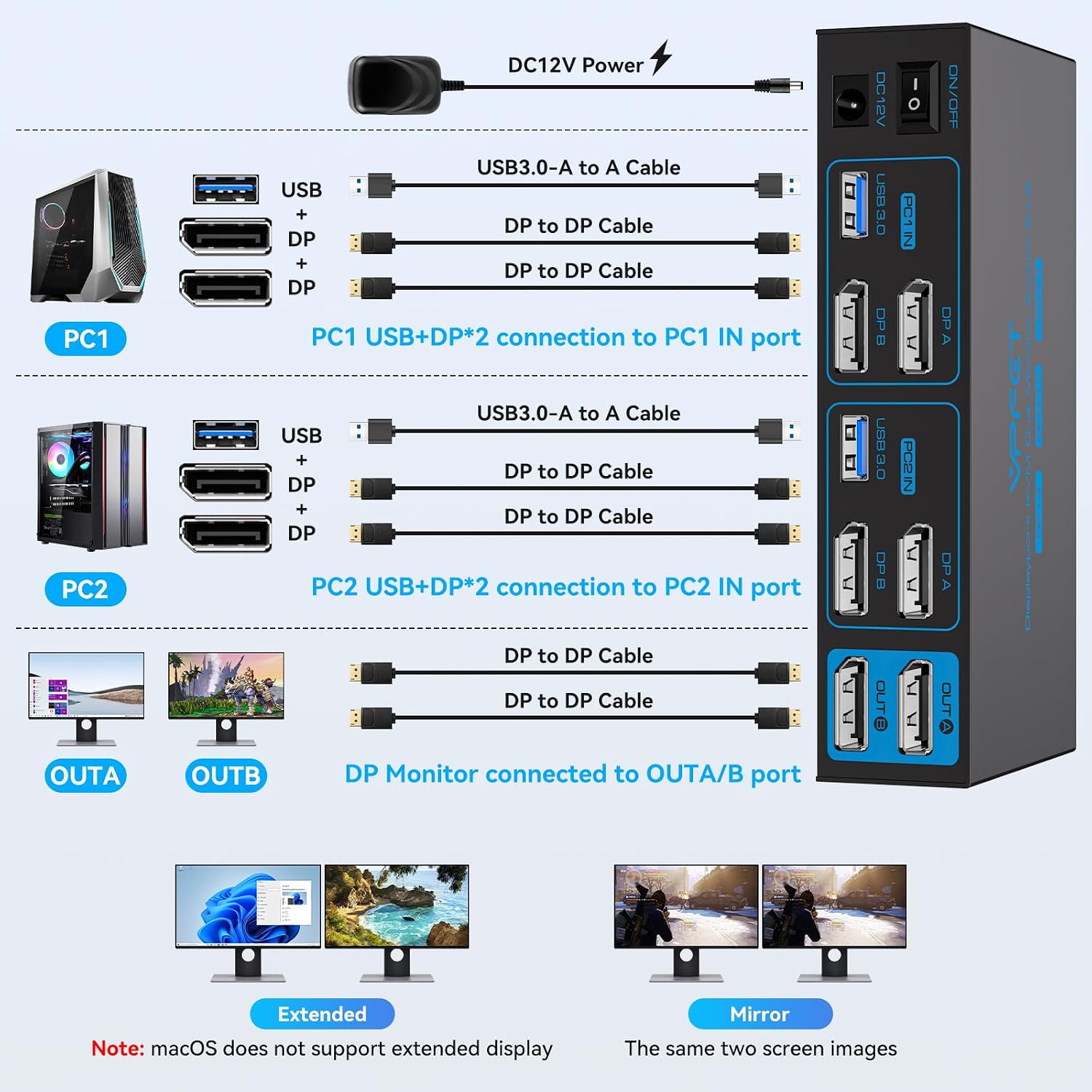

This setup suits a home office or workstation where two computers need access to the same pair of DisplayPort monitors, keyboard, mouse, printer, or other USB devices. You can choose extended mode to spread windows across both screens, or copy mode to mirror the main screen for a presentation. The computers need two DisplayPort outputs each, and each monitor needs a DisplayPort input. The source computer must support the selected display mode as well.

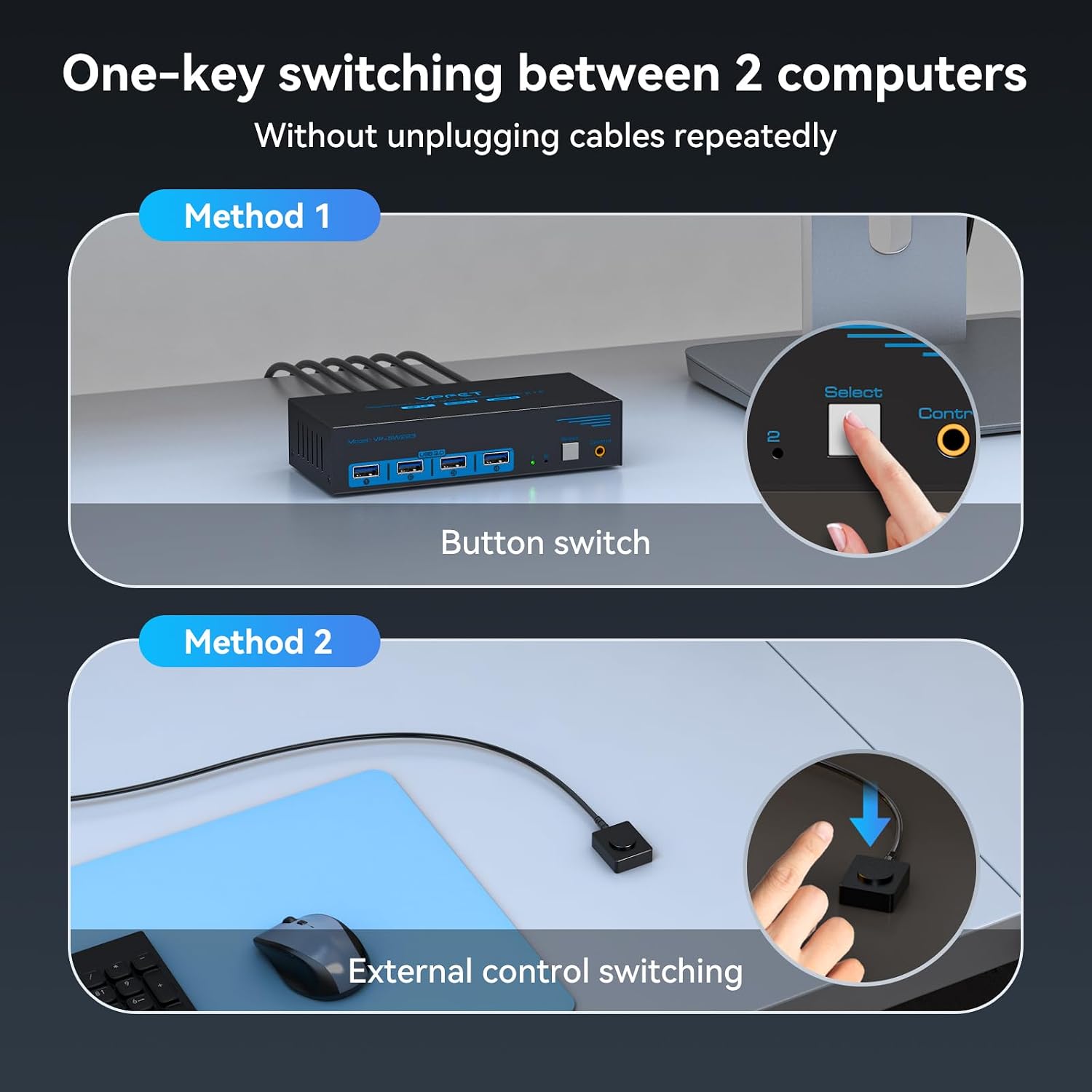

Would a single button be more convenient than reconnecting display and USB cables whenever you change computers? The SW223 has a button on the unit, an indicator for the active channel, and a separate wired extension button that can be positioned within reach. Keyboard hotkeys are not supported, so switching is by button rather than a keyboard shortcut.

Why it makes sense

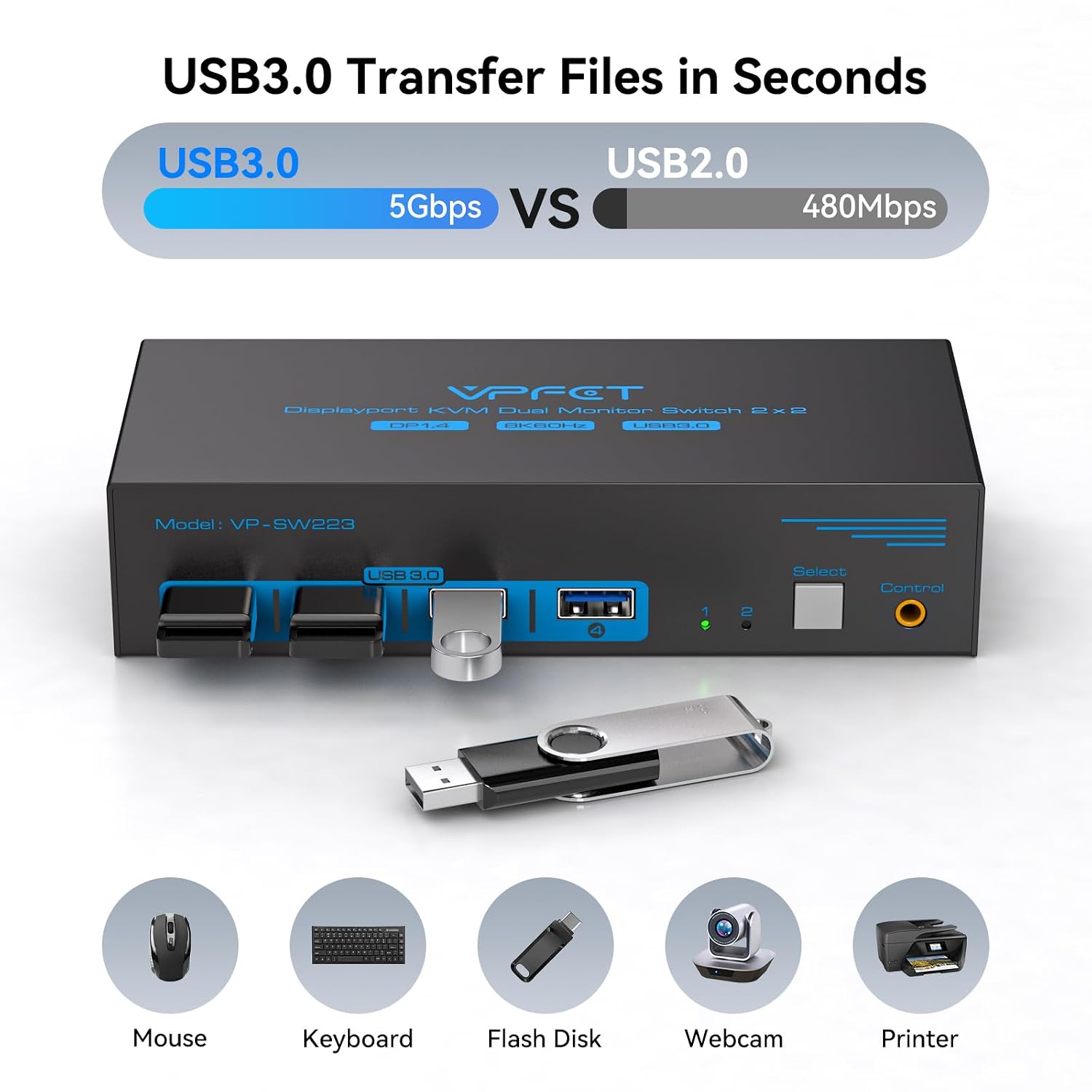

The switch combines video routing with USB 3.0 peripheral sharing, which is useful when the same desk accessories serve both systems. USB 3.0 is listed at up to 5Gbps and is backward compatible with USB 2.0. Two USB cables are included, each computer needs a USB connection to the KVM for its shared USB devices to be recognized. You’ll appreciate it if you want one set of desk peripherals to serve two computers instead of repeatedly unplugging them.

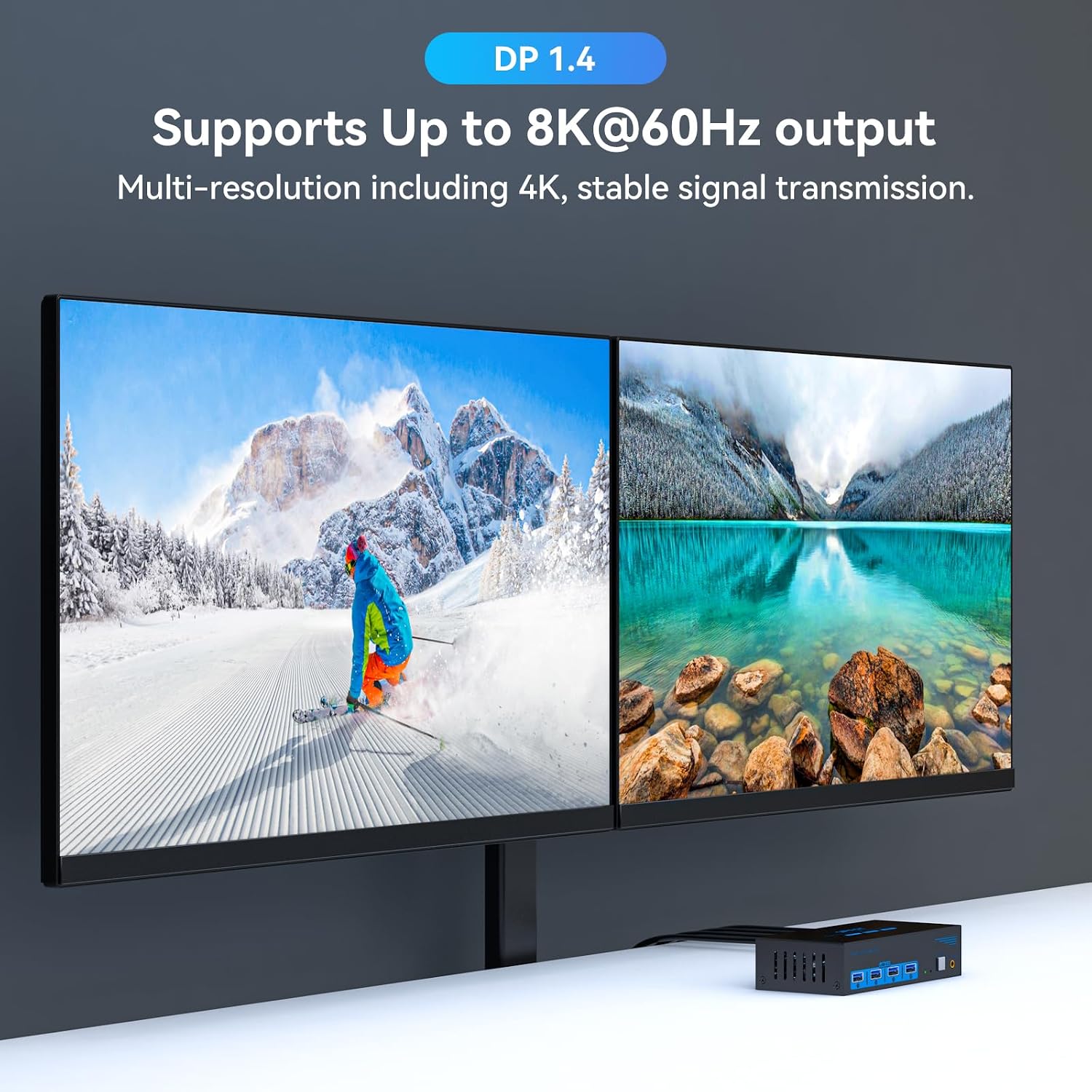

The video modes listed include up to 8K at 60Hz and 4K at 120Hz, with backward compatibility for 2K at 144Hz and 1080p. Achieving a particular resolution and refresh rate depends on the computer, monitors, and cables supporting it. The listed cable recommendation is no longer than 1.5 meters. The unit also requires a DC 12V adapter to function, the product information does not list that adapter among the included components.

The essentials

• Name: VPFET SW223-Deep Blue
• Type: Dual-monitor DisplayPort KVM switch
• Connectivity: DisplayPort and USB 3.0
• Capacity: Two computers, two monitors, and up to four shared USB devices
• Video modes: Up to 8K at 60Hz or 4K at 120Hz, also lists 2K at 144Hz and 1080p

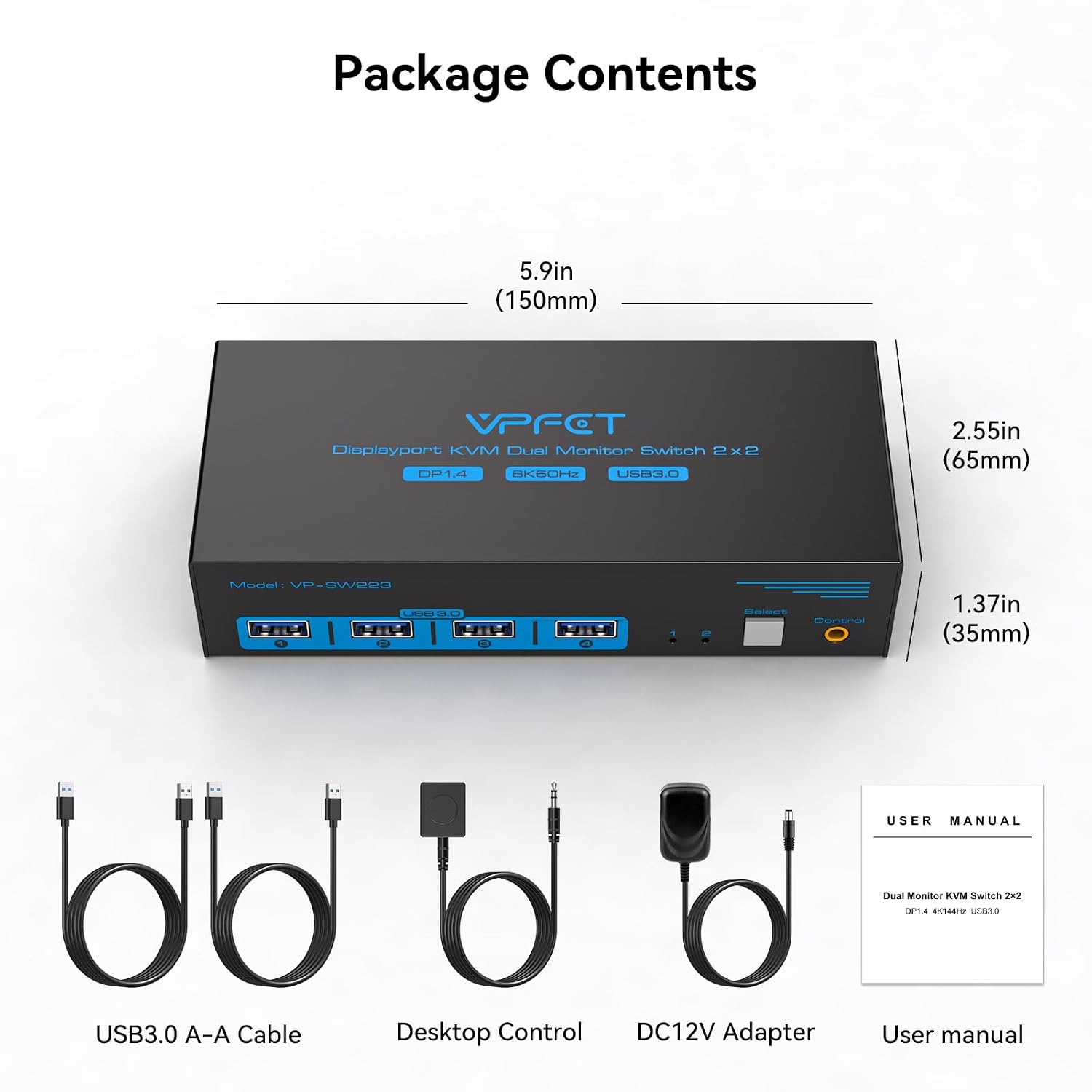

• Dimensions: 5.91 x 2.56 x 1.42 inches
• Material: Metal
• Color: Deep Blue
• What’s included: Two USB 3.0 cables

Compared with a simpler USB-only switch, this model also routes dual-monitor DisplayPort video. That added function is relevant if both screens need to change over with the computer, a basic USB switch would not handle that display setup. It might not be a great match if your computers lack two DisplayPort outputs or your monitors do not have DisplayPort inputs.

Should you buy it?

Choose the SW223 if your desk has two DisplayPort-equipped computers, two DisplayPort monitors, and shared USB accessories, and you want to switch them together using a physical button. Its main buying consideration is the required connection setup: supported computers, monitors, cables, and a DC 12V adapter are needed for the intended operation. If you only need to share USB accessories and do not need to switch video, a USB-only switch is a more focused alternative.
