OREI 4K 1x8 HDMI Extender Splitter (Cat6/7), 4K@60Hz, HDCP 2.2 with IR Remote & EDID Management
Product description
What it is and what it solves
If you need one HDMI source to reach multiple rooms or screens without running a new HDMI cable for each display, an HDMI extender splitter like this OREI unit is built for that job. On paper, it takes a single 4K HDMI input and distributes it to eight HDMI displays over a network cable setup (Cat6/7/8 listed in the description), so you can keep cabling cleaner and reduce the “spaghetti HDMI” problem.
This is also the kind of device you look at when you want practical control from a distance. It includes IR support for pass-back/control, plus EDID management, which can help reduce common handshake issues in multi-display setups.
That said, it’s not magic. The performance you get depends a lot on your cabling choices and how long each run is. If your setup is close-range and simple, you might not need this. But for a conference room, exhibition space, or bar with multiple screens, it’s the more structured approach.
The essentials (quick overview)

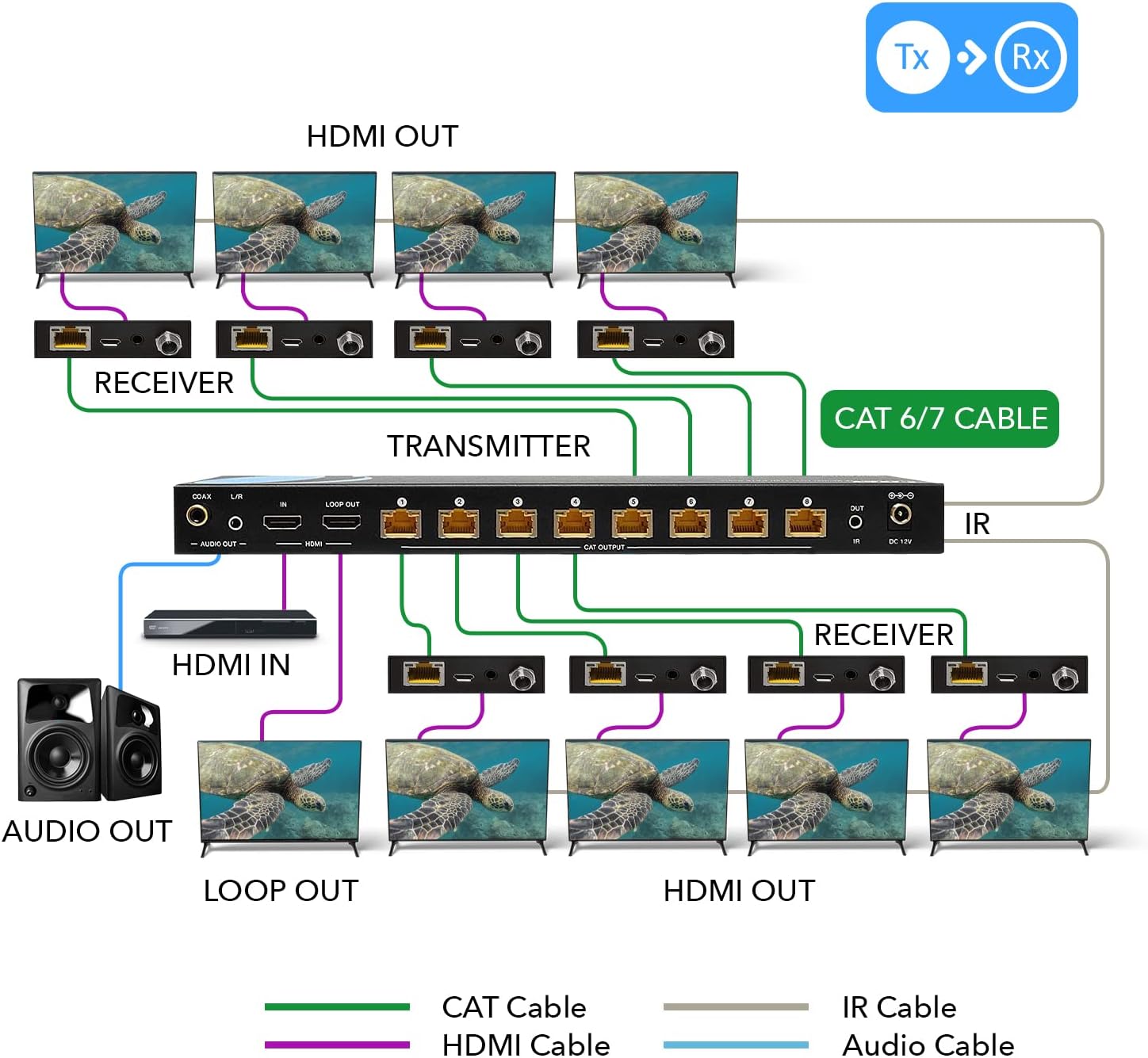

This OREI extender/splitter is designed to distribute one HDMI 1 source to eight HDMI outputs at the same time (eight receivers are included). The description also mentions an extra/local connection: the transmitter has 8 HDMI over-CAT outputs plus an additional HDMI output intended for a local display/monitor.
Key positioning from the specs provided: - Signal distribution uses network cabling (Cat6/7/8 referenced). - It supports 4K up to 60Hz with 4:4:4, and also lists a broader set of HDR formats. - It supports HDCP 2.2. - It includes EDID management and an IR remote control input with loop/forwarding behavior over a dedicated DDC channel.
For daily use, imagine this: you place your HDMI source (like a media player or computer) in a back office or equipment rack, then run a single cable approach to eight TVs around a meeting space. When you hit play from the IR remote, the commands are sent back so the source can be controlled remotely.
Where it shines in real setups
The “why” behind buying an HDMI extender splitter is usually space and simplicity: one input, many outputs, and long cable routing using Cat network cabling.
What stands out here based on the provided details: - Multi-display distribution: one HDMI source to eight displays simultaneously, plus a local HDMI output for an additional nearby monitor/display. - Long-run capability: the description lists different distance limits depending on resolution (4K up to a stated maximum distance, 1080P up to a longer one). That matters if you’re planning a ceiling run or perimeter layout. - IR control support: you can control a DVD player or other HDMI video source from a remote location, with IR cables included (IR blaster at the transmitter side and IR receivers at the display side). - Low-latency focus: the description calls out low latency and “full support,” which is the kind of detail you care about if you’re using it for video playback or presentations where timing matters.

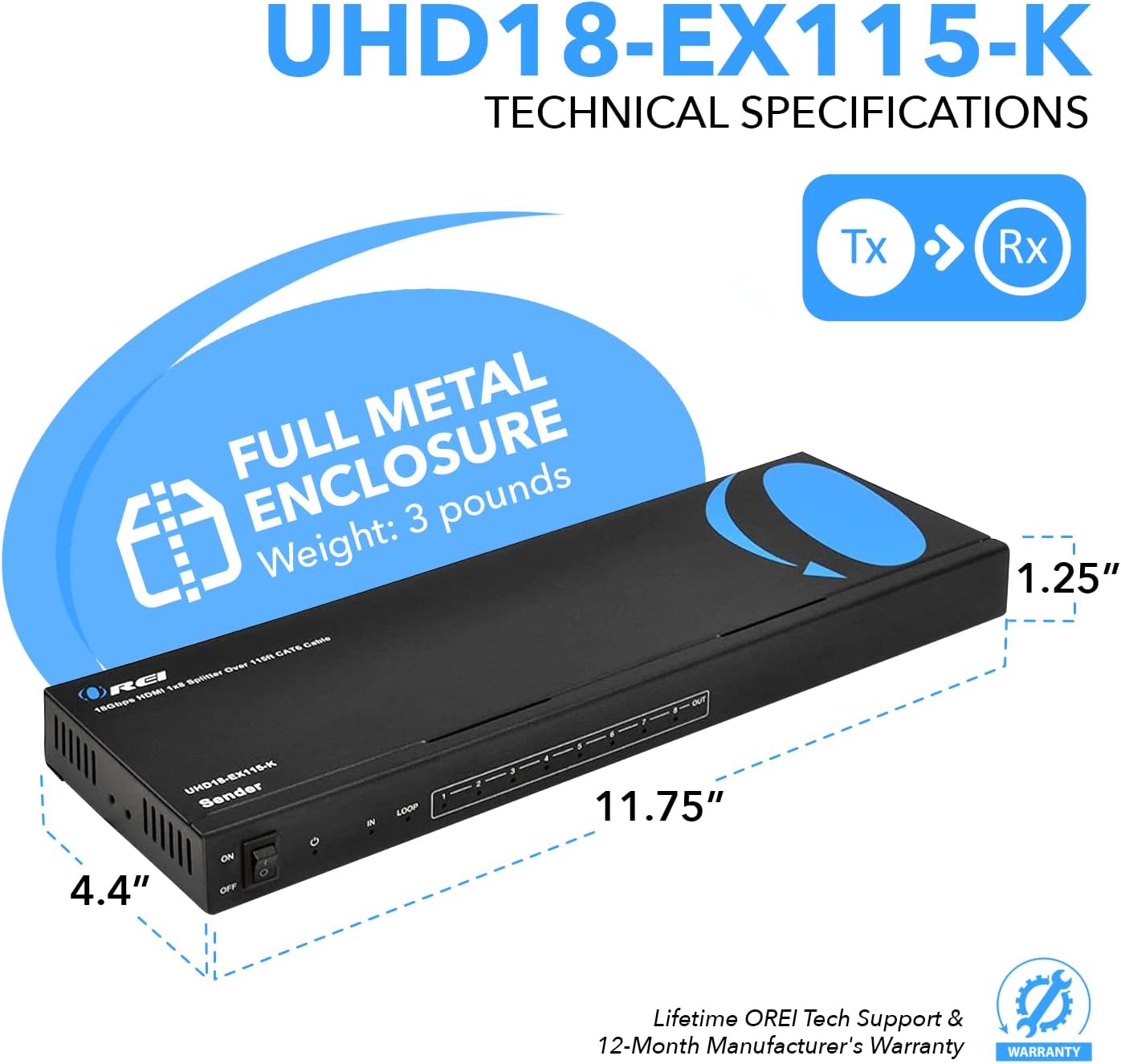

Tech specs you should pay attention to
Here’s the technical side that can make or break a purchase:
- Resolution support: up to 3840x2140p @60Hz is listed as the highest resolution supported.
- Frame rate and color format: 4K@60Hz with 4:4:4 is stated.
- Refresh/HDMI timing compatibility: it mentions 20~60Hz IR pass back.
- HDCP: HDCP 2.2 support is included.
- Bandwidth: 18Gbps bandwidth is listed.
- HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG are listed.
- EDID management: explicitly included (useful when displays/inputs negotiate signals).
- Connectivity for video distribution: compatible with CAT6/6a/7 network cables is stated.

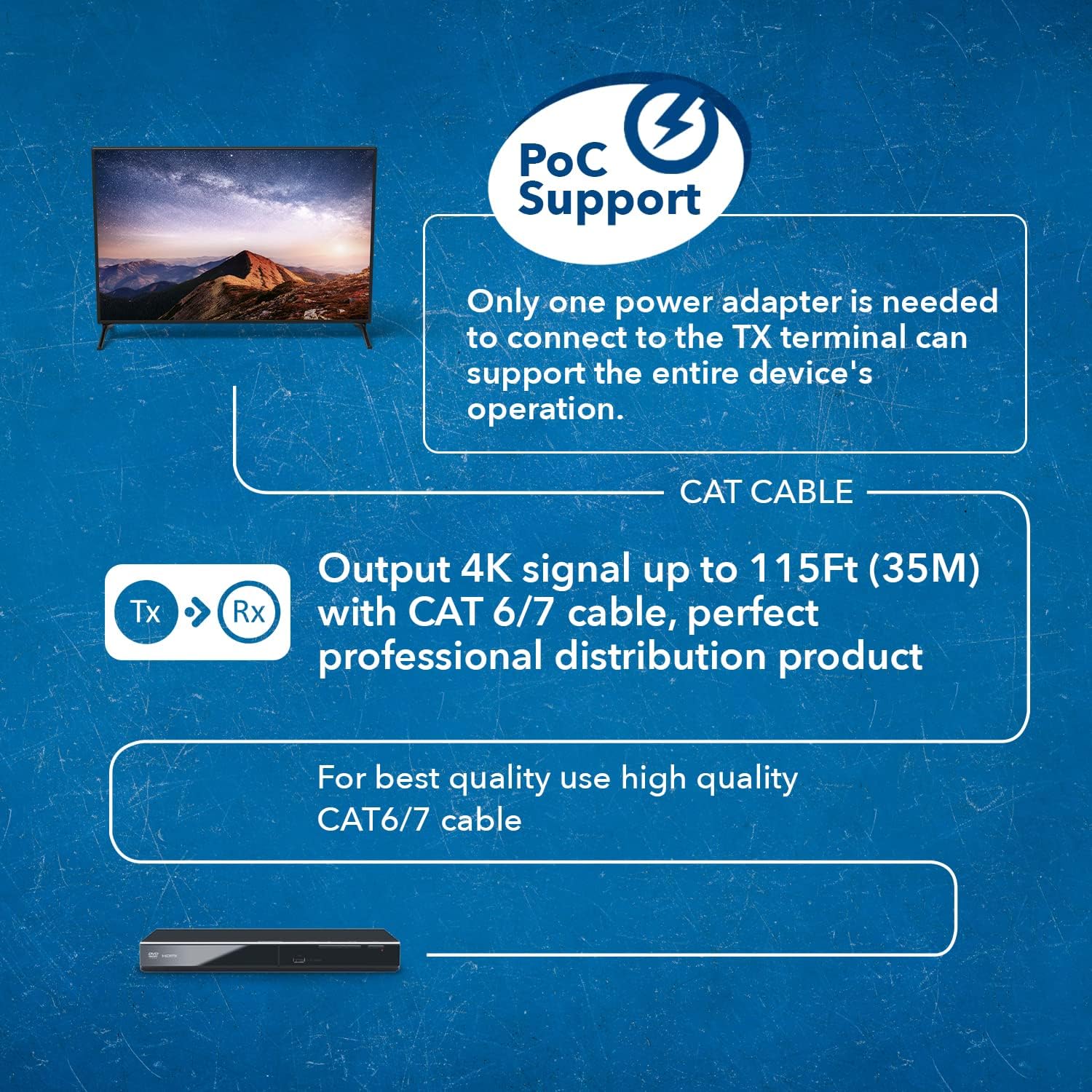

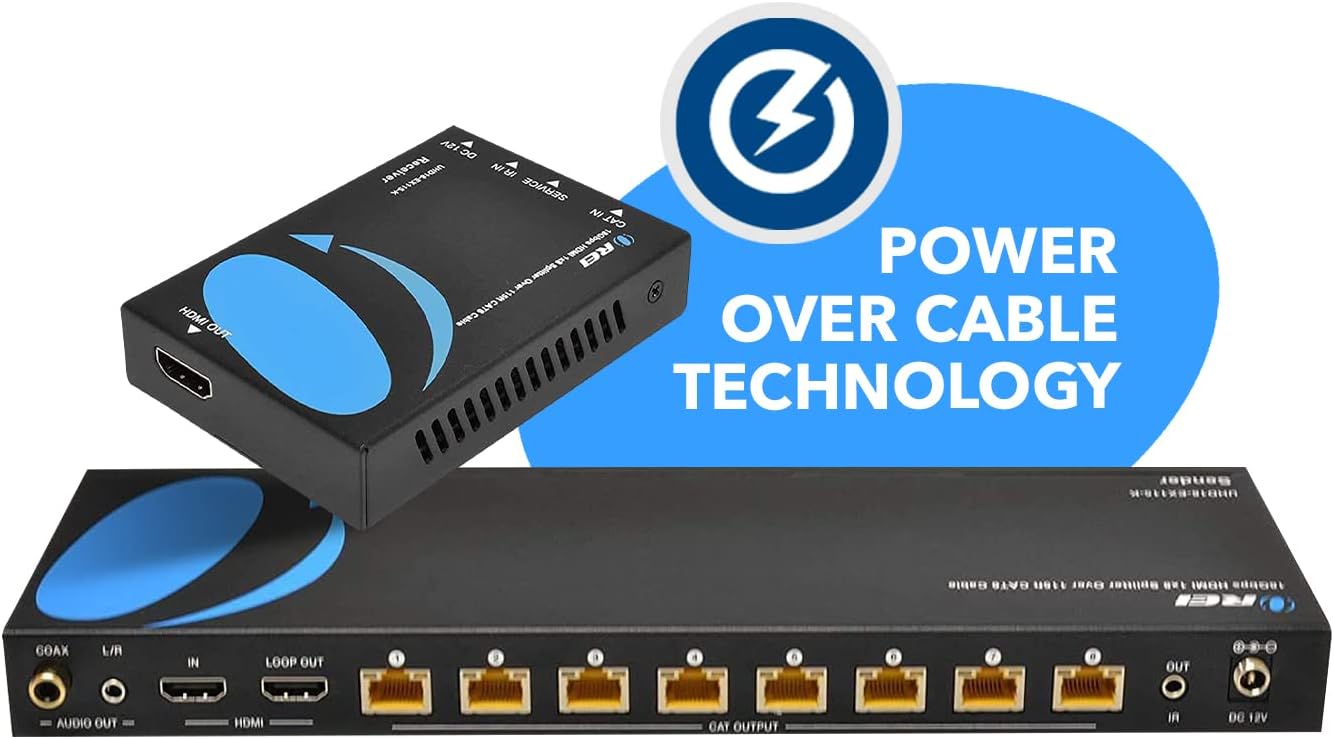

- Power: it “requires only one power adapter to work,” and it includes a dual-voltage supply approach with a US plug plus an international adapter/converter.
One limitation to keep in mind: the distance ratings depend on the resolution mode. If you expect full 4K performance across your maximum cable run, you’ll want to double-check that your layout lines up with the stated distance for 4K.
What you get in the box (and why it matters)
This kit is positioned as a mostly plug-and-play package. The description says there’s no software installation needed.
Included items (as listed): - 1 transmitter - 8 receivers - 1 power adapter - 1 IR blaster cable - 8 IR receiver cables - 1 user manual
Buying a kit like this is easier than piecing together separate extenders and IR components, especially if you’re setting up multiple screens and want everything to line up the first time. Still, make sure your installation plan includes enough Cat cable runs where each receiver will go.
Pros and possible drawbacks before you commit
On the “works well for” side, this OREI extender splitter is built for distributed video where you want one source driving several displays, with remote control options. It’s also the sort of device that tends to fit AV roles in meeting rooms, exhibition/retail display walls, and venues where sources live in one place.
On the “watch out” side, here are realistic concerns: - If your setup doesn’t need multi-screen distribution or long routing, you may be paying for functionality you won’t use. - Extenders can be picky about installation details. Even with EDID management and IR support, signal stability is still influenced by cable quality and the actual run length for your chosen resolution. - You’ll want to confirm your expectations around HDR formats and compatibility with your specific source and displays, since the description lists support but doesn’t spell out behavior for every device combination.
When it makes sense to buy it
Worth considering if you want one HDMI source sent to eight displays using Cat network cabling, and you want IR control back to the source without needing to relocate the playback device. It also makes sense if your environment benefits from a structured AV setup—like a conference room or bar layout—where displays are spread out and you’d rather avoid multiple HDMI runs.
When it may not be the best match
It may not suit you if: - You only need to connect one display or two displays at short distances. - You’re not confident about your cabling plan or you don’t have a clear path to place receivers at each screen. - Your priority is simple local HDMI with no need for EDID management, IR pass-back, or multi-output distribution.
Mini FAQ
Getting the most from it
Final verdict
This OREI 4K 1x8 HDMI extender splitter looks like a practical “one source, many screens” solution with the right extras for real venues—IR control support, EDID management, and long-distance capability depending on resolution. It’s not the simplest approach for a single-TV home setup, and it can fall short if your cabling plan doesn’t match the distance/resolution targets. But if your goal is a multi-display layout driven from one location, it’s the kind of kit that usually saves time compared with improvising multiple connections.
Final verdict
Worth buying if you’re planning a multi-screen run with Cat6/7-style cabling, need simultaneous distribution to eight displays, and want remote control to reach the HDMI source. Better avoided if your use case is one display, very short runs, or you can’t align your installation with the provided distance limits for 4K versus 1080P.
