OREI 1x2 HDMI Extender Splitter 115 Ft 📺
Description:
This HDMI extender and splitter lets you send a single 4K source to two displays over a single Cat6/7 cable while keeping local loop-out for monitoring, making it useful for conference rooms, digital signage, and home theater setups. It supports HDR formats and low-latency transmission, so picture quality and responsiveness are preserved across runs up to 115 feet with compatible cable.
Key Points

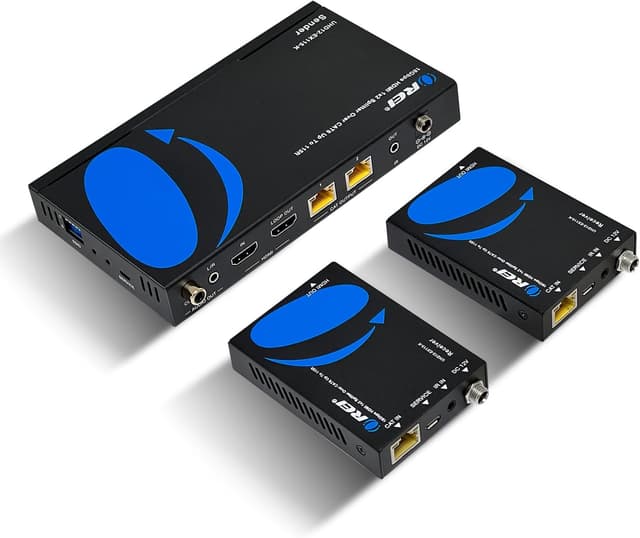

The unit combines a transmitter with two receivers and includes a built-in splitter so you do not need an extra switcher. It supports 4K at 60 frames per second with full chroma 4:4:4 and HDCP 2.2 compliance, which helps maintain color fidelity for high-resolution sources. The transmitter has a dedicated HDMI loop-out for local display and four Cat outputs for flexible cabling. 🔌

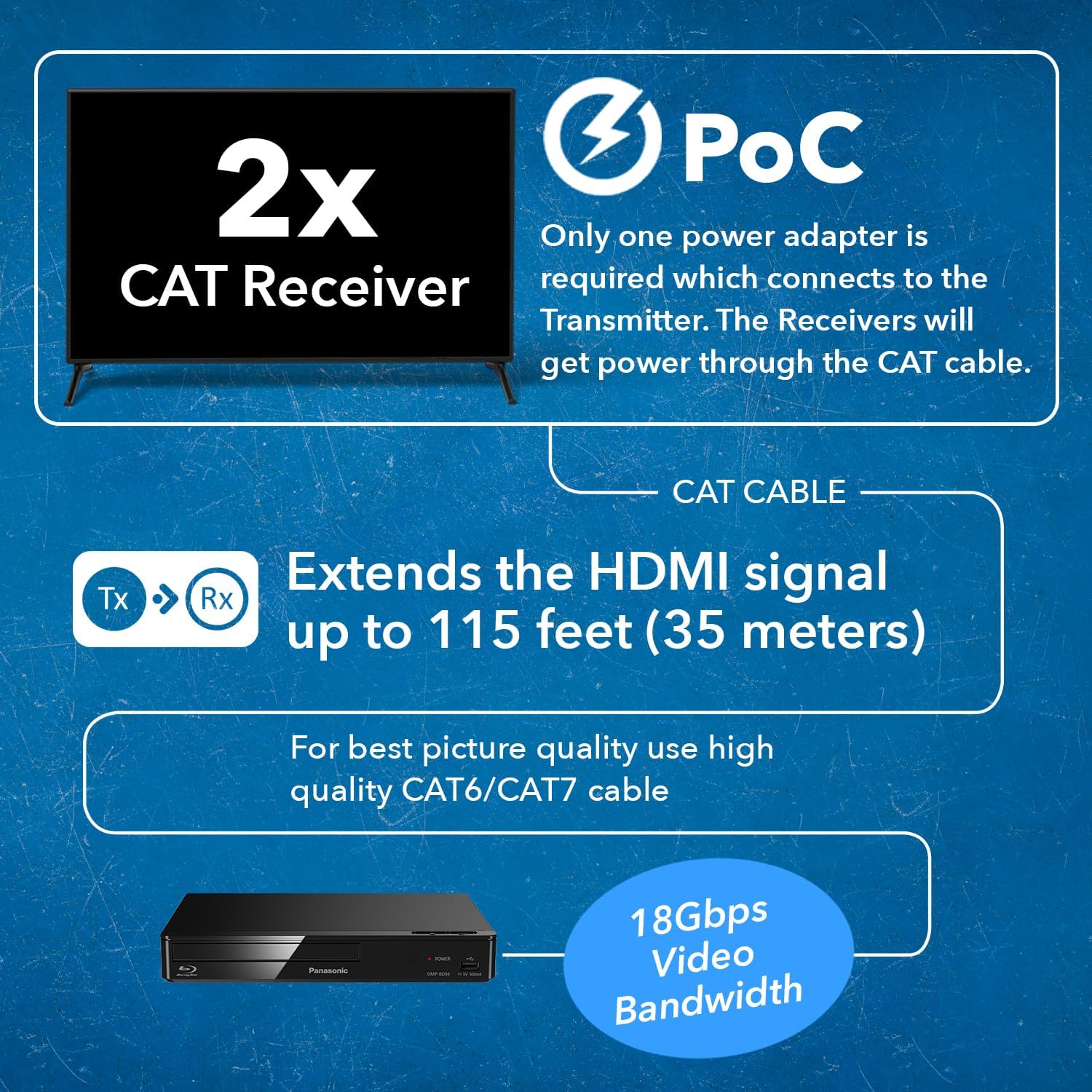

IR pass-back is available to control the source remotely through the extender system. The kit is powered by a single adapter on the transmitter, and the receivers do not require separate power connections when Power over LAN is active, reducing cable clutter. For international use the package includes an adapter for the dual voltage power supply. 📺
Consider that maximum range depends on cable quality and environmental conditions. For runs beyond the stated distances, performance may vary according to installation and cable type.

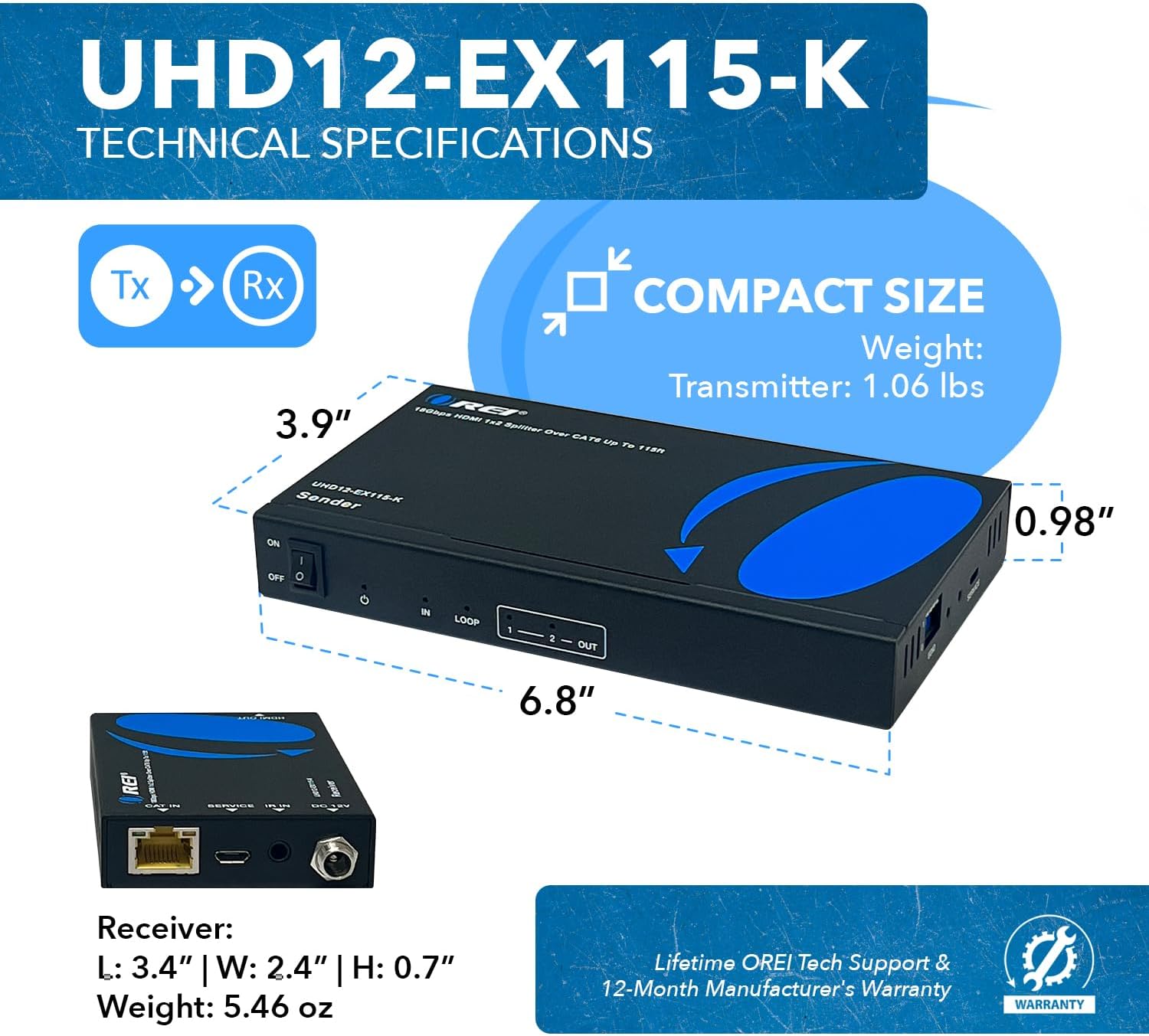

Technical Specifications
- Name: OREI 1x2 HDMI Extender Splitter 4K
- Bandwidth: 18 Gbps
- Maximum Resolution: 3840×2140 @ 60Hz, 4:4:4, HDR, HDR10, HDR10+, Dolby Vision, HLG
- Maximum Range: Up to 115 ft at 4K using Cat6/7, up to 165 ft at 1080p
- Inputs/Outputs: 1 HDMI input on transmitter, 4 Cat6 outputs on transmitter, 2 Cat6 receivers, 1 HDMI loop-out on transmitter
- IR Support: IR pass-back 20–60 kHz with included IR blaster and IR receiver cables
- Power: Single transmitter power adapter, dual voltage with international adapter included
Usage Recommendations

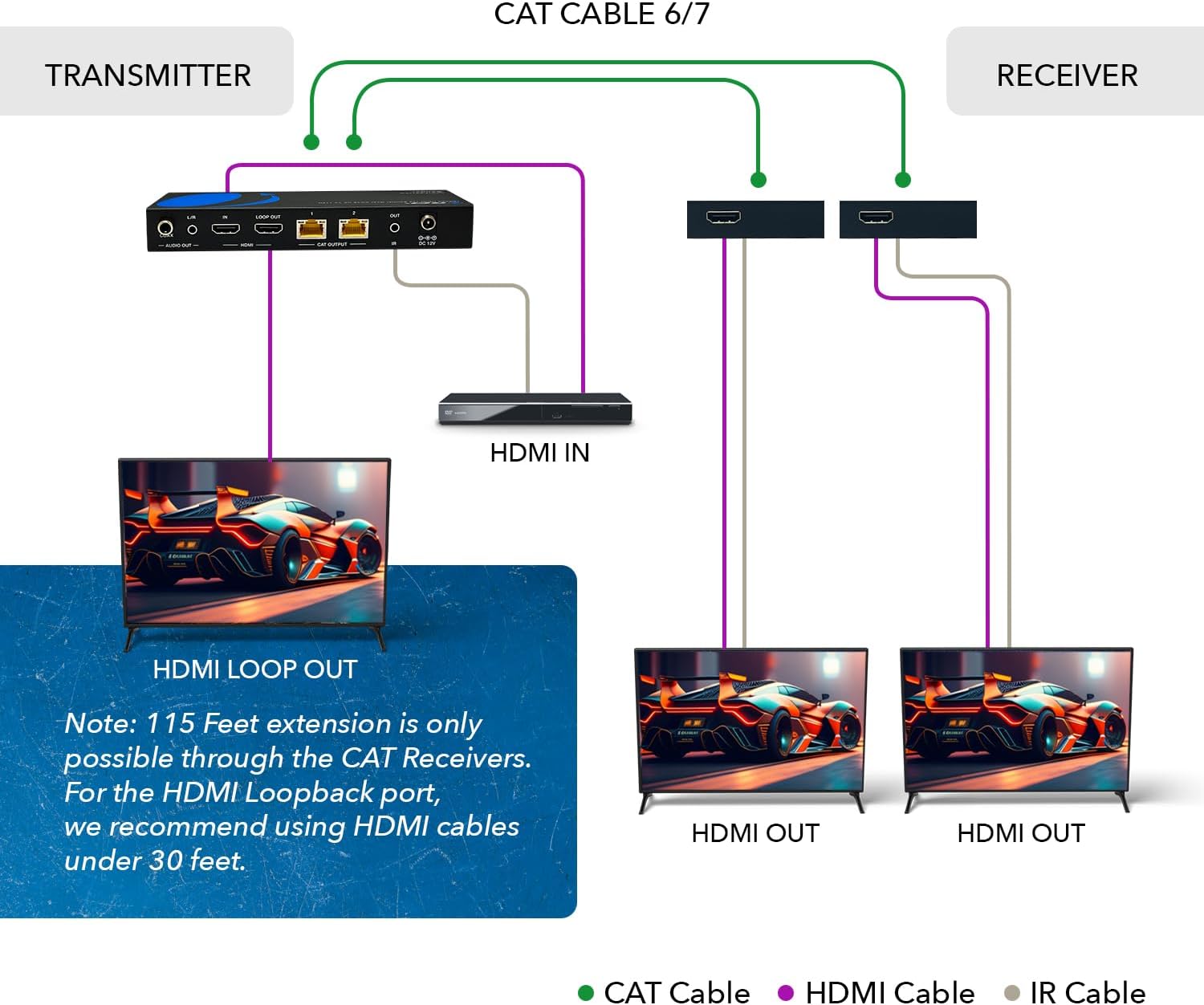

Install the transmitter near the source and run quality Cat6 or Cat7 cable to the receivers for the best results. For local monitoring, connect the HDMI loop-out on the transmitter to a nearby screen. When using long runs, test each cable segment for signal integrity before finalizing cable management. ⚙️
If your setup requires strict timing or game-level responsiveness, note that the system is designed for low latency, though manufacturer testing conditions may differ from real-world environments. Also review the available HDR profiles on your displays since tone mapping can vary between brands and sources. 🔍
The Essentials

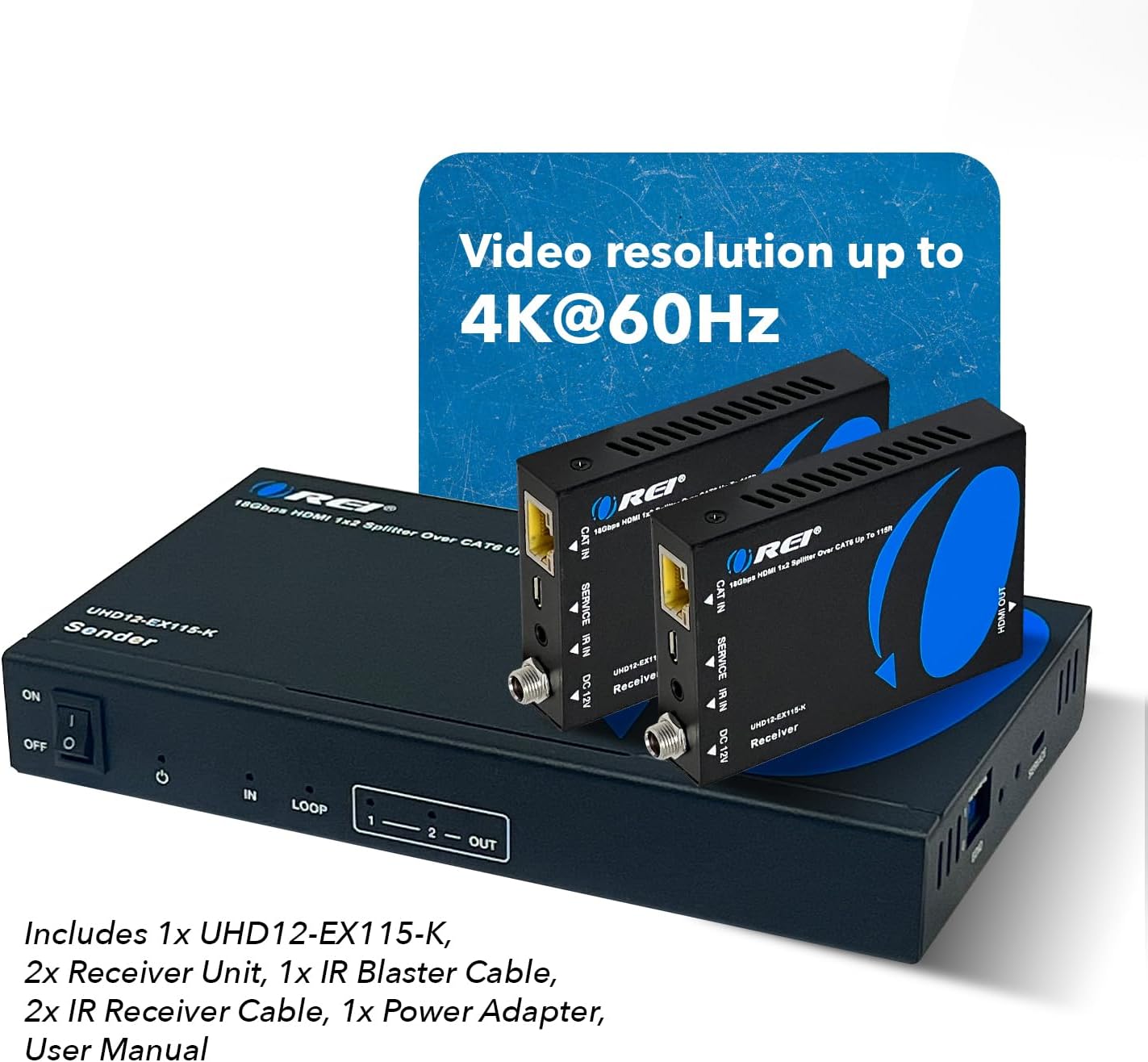

The package includes one transmitter, two receivers, one power adapter, one IR blaster cable, two IR receiver cables, and a user manual. The system comes with a one-year manufacturer warranty according to the seller information.
