Product description
What this is

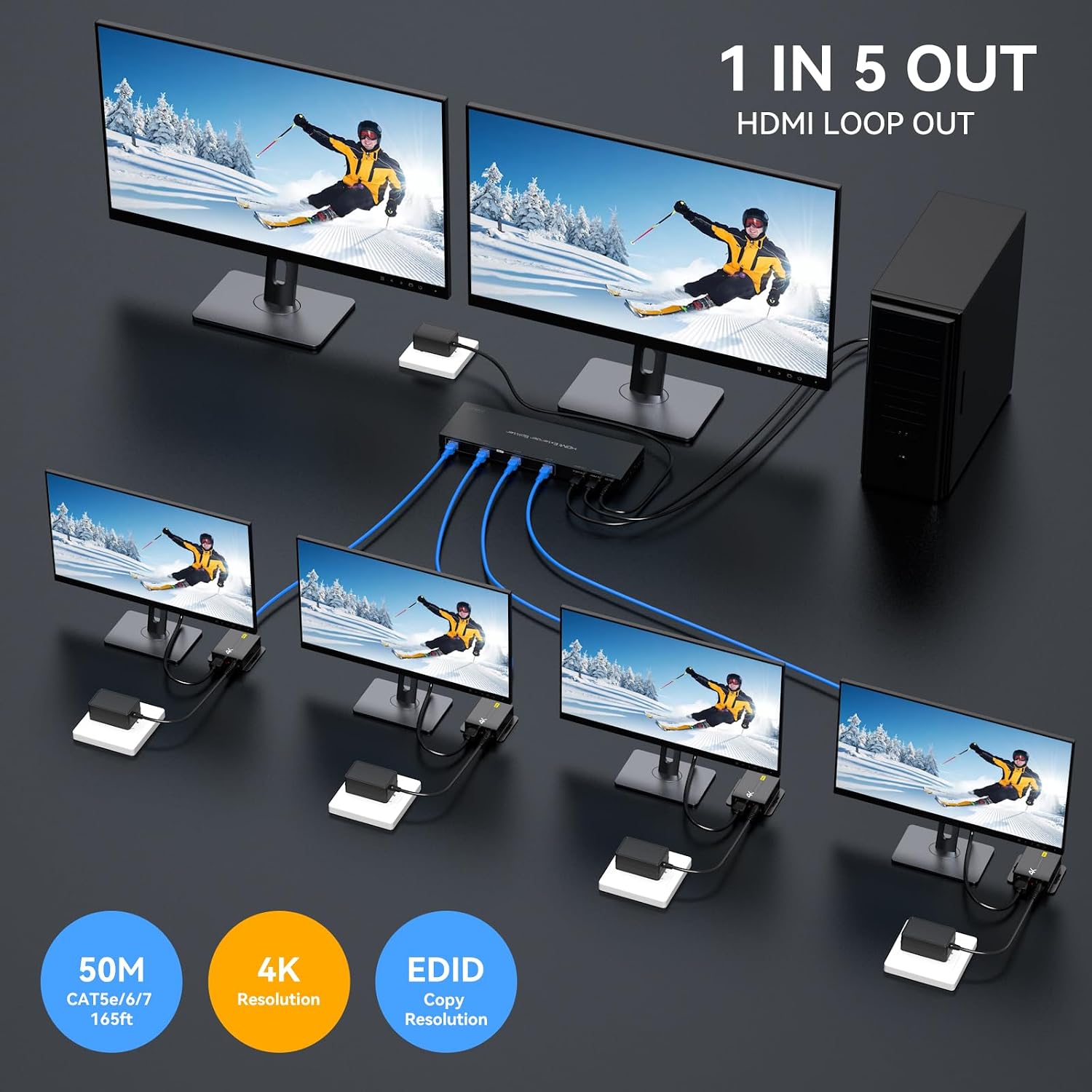

The VEDINDUST HDMI Splitter Extender is a multi-output HDMI solution designed to push 4K30Hz video, audio, and control signals over Ethernet cabling. It splits a single HDMI input to four remote displays via Cat6/7 network cables and provides a fifth local HDMI output through a loop-out port. This makes it suitable for digital signage, classrooms, houses of worship, conference rooms or small event venues where running long HDMI cables would be impractical.
How it works

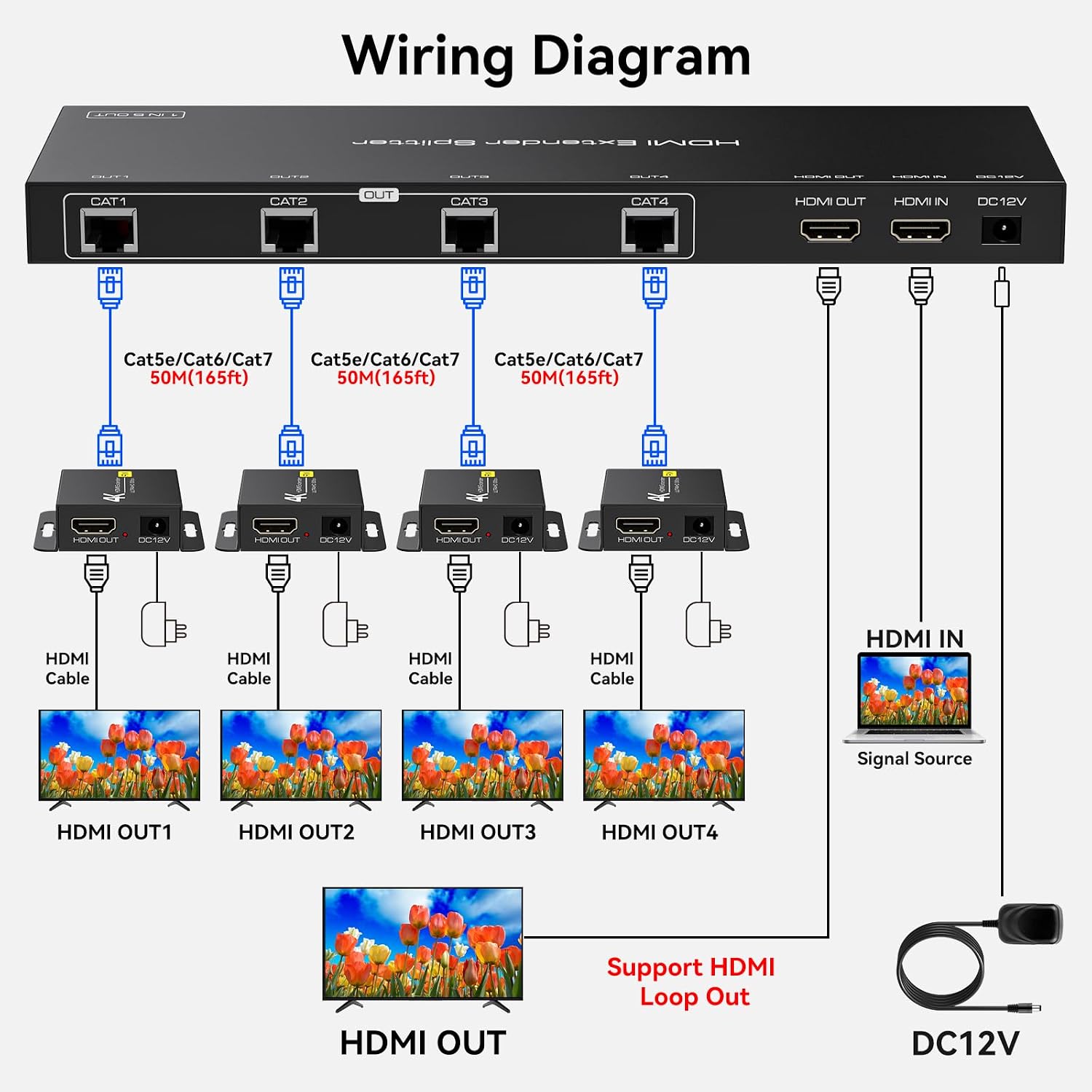

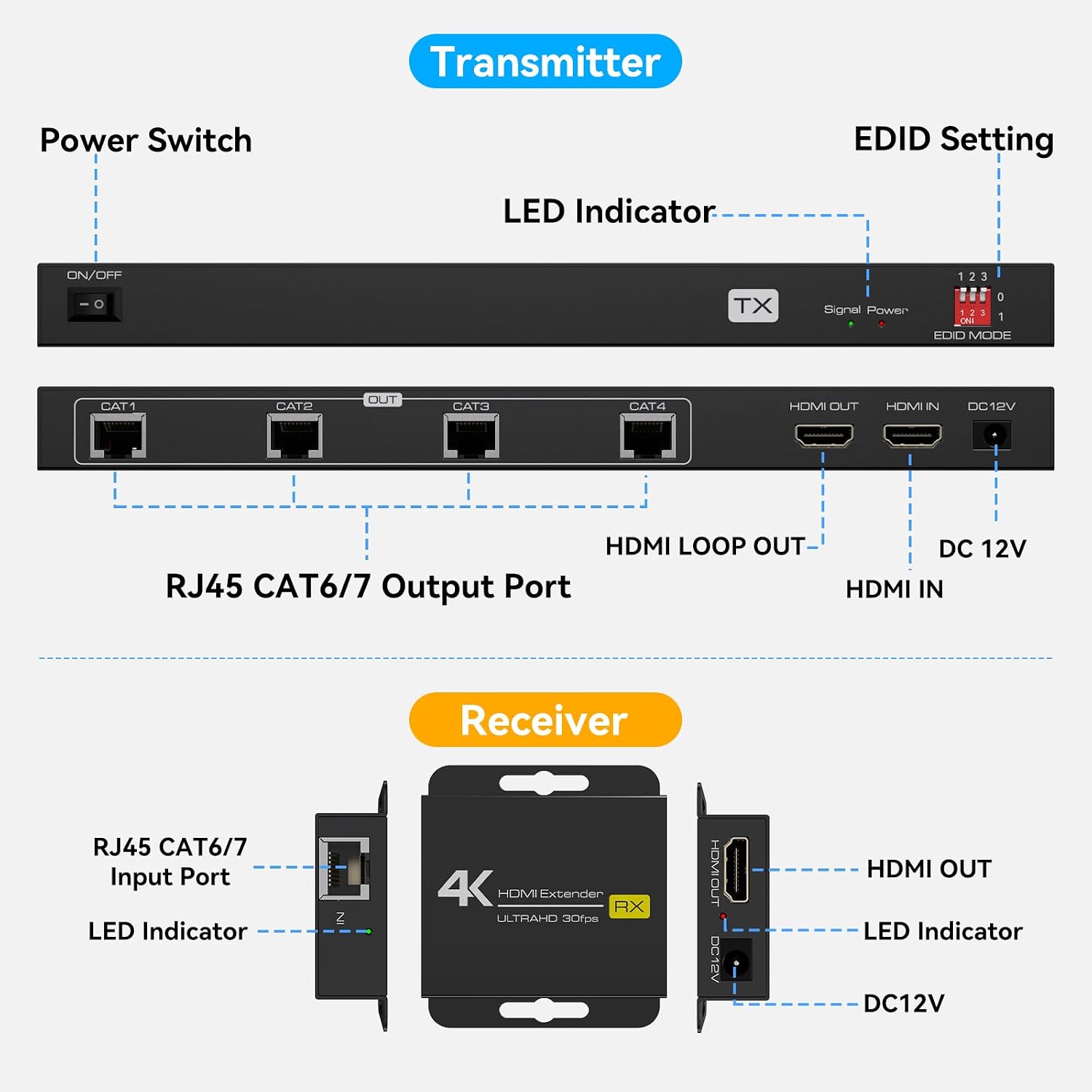

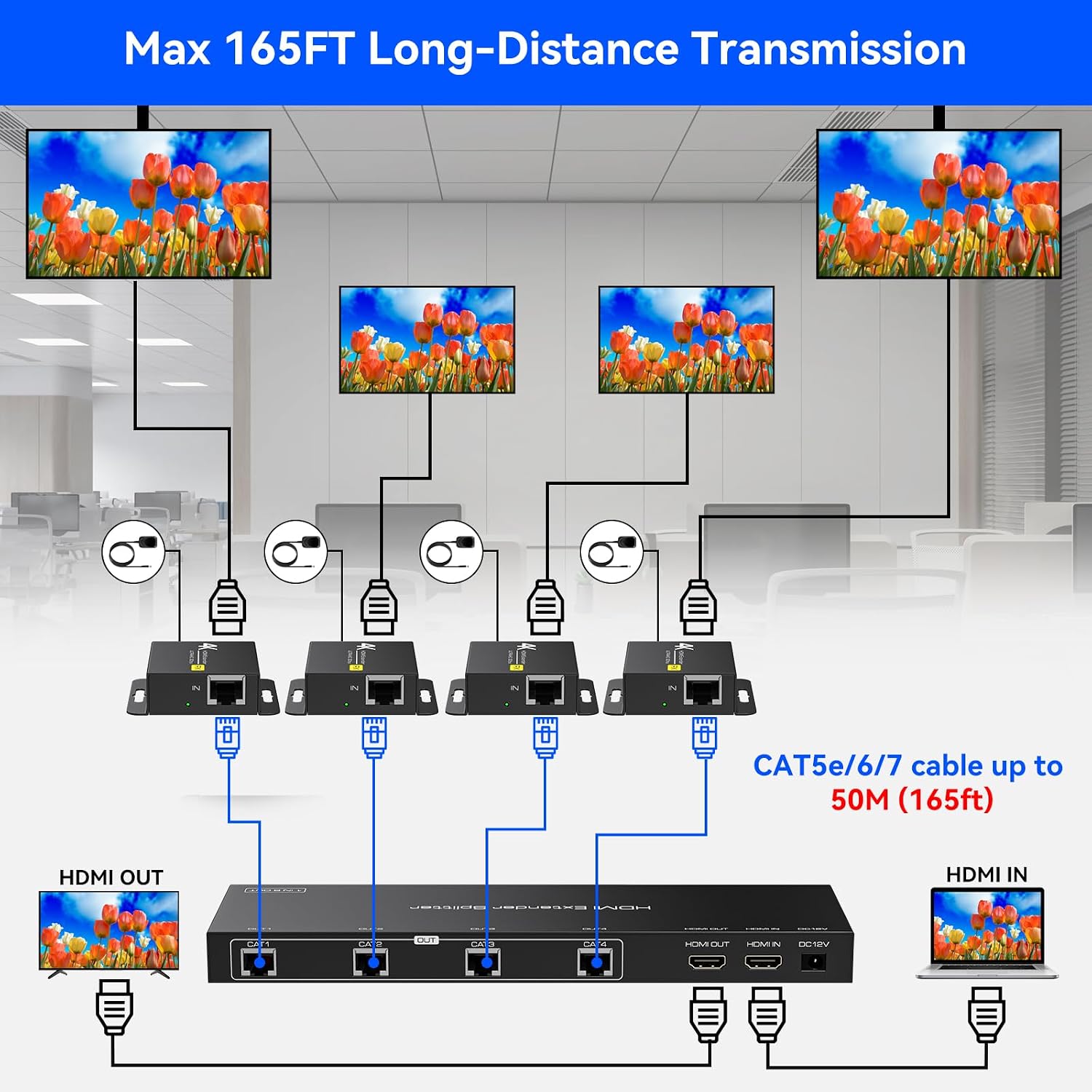

The transmitter sends the source signal through four independent HDMI over Ethernet links to four receivers, each of which is powered separately to help maintain signal integrity over long distances. A fifth HDMI output keeps a direct connection to a nearby display. The system supports up to 4K30/3D/1080p resolutions over Cat6/7, with a stated transmission distance of up to 50 metres (165 feet) to the receivers and up to 10 metres for the HDMI loop-out port. EDID management allows the splitter to lock the resolution to match the source, or copy the EDID from the main monitor to ensure consistent output across all screens.
What stands out
On paper, the setup is pragmatic: multiple displays from one source without reconfiguring video cables. Independent power for each receiver helps stabilise the signal across long runs, which can be a critical factor in busy environments where multiple screens are in play. The inclusion of EDID copy mode can help avoid out-of-sync pictures and optimise the video and audio signal for each display.
Limitations to consider
The system is designed for 4K30 and HDMI 1.4 bandwidth (roughly 4.95 Gbps). That means you won’t get higher refresh rates or newer feature sets found in HDMI 2.0/2.1 with this configuration. Distance claims depend on using Cat6 or better and adhering to proper wiring standards (568B). If you’re aiming for higher resolutions or faster frame rates, this solution may feel limited.
Who this is for
This product targets venues and use-cases where you need several displays from one source without running multiple long HDMI cables: digital signage in offices or schools, event spaces, presentation rooms, or places where wall-mounted displays must stay in sync.
Who it isn’t for
If you require 4K at 60Hz, HDR, or more modern HDMI feature sets, or you’re wiring over particularly challenging environments, this setup may not meet those needs. It also isn’t a compact plug-and-play for casual home use where a single TV is enough.
When it makes sense to buy
Consider this if you need one source feeding multiple displays over ethernet-friendly distances, you want a wall-mounted, space-saving solution, and you’re comfortable with the 4K30/HDMI 1.4 bandwidth limitation. The 50 m maximum distance to receivers and separate power per receiver are strong points for larger rooms.
What to check before buying
- Confirm you will run four displays from one source over Cat5e/6/7 without needing higher bandwidth than 4K30.
- Ensure each receiver can be powered individually from its supplied adapter.

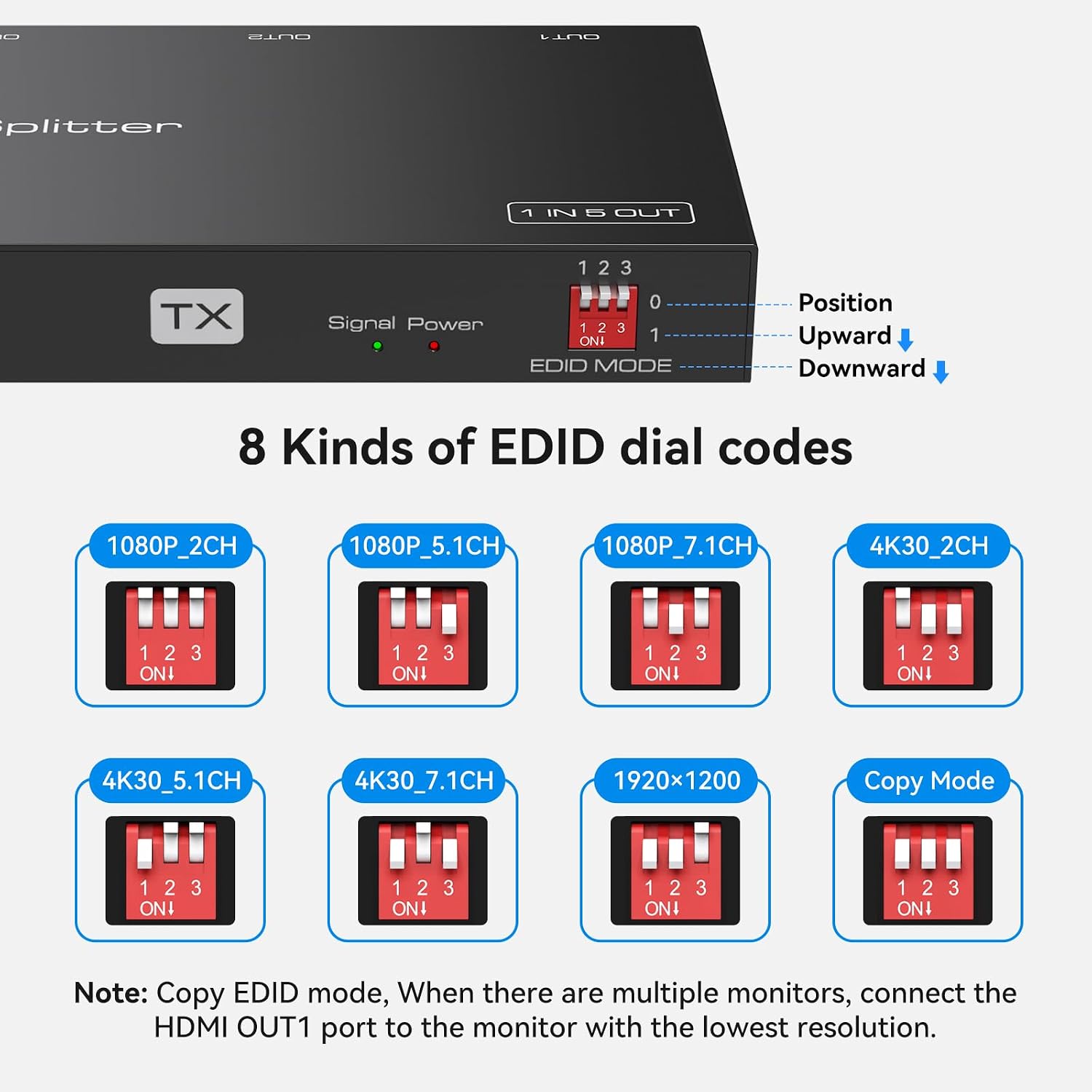

- Plan for EDID management: decide whether to use the main monitor’s EDID or a copied profile to avoid sync issues.
- Use proper Cat6 or better for 50 m runs and follow a 568B wiring scheme to maximise distance.
Practical usage example
In a lecture theatre, you can connect a laptop to the transmitter and have four project displays placed around the room, all showing the same presentation with consistent audio. If a wall is unfriendly to HDMI cabling, the Ethernet runs minimise cable clutter while keeping the signal stable.
Alternatives and buying approach
If your priority is simply mirroring one source to a single display at short distance, a basic HDMI splitter would be more compact. For higher resolutions, higher refresh rates or more flexible layouts, you’d likely need different HDMI-over-IP solutions or direct HDMI extenders with higher bandwidth.
Decision of purchase
Is it worth it?
Worth considering if you need a practical, space-efficient way to distribute a single source to multiple displays over Ethernet at up to 50 m, with independent receiver power and EDID management. If your use requires 4K60 or HDR, you may need to explore alternatives.
FAQ
- Can I use this if my displays are at different distances? Yes, the four receivers are individually powered, helping maintain signal quality over varied runs.
- Does it support HDR or higher refresh rates? The listed specs reference 4K30 and HDMI 1.4 bandwidth, HDR or 4K60 isn’t indicated.
- Is a driver installation required? No, it’s described as driver-free and easy to install for wall mounting.
Final note
If you value a clean installation with a scalable multi-display layout and you’re operating within the 4K30/HDMI 1.4 envelope, the VEDINDUST setup offers a coherent, budget-conscious solution for distributing a single source across several screens.
