urcianow RF Coaxial Cable SMA Male to UHF Female 100 cm cable 📡

This RF coaxial adapter cable links an SMA male plug to a UHF (SO-239) female socket, offering a compact 1 metre lead for connecting routers, external antennas and radio equipment where space is limited. It aims to reduce signal loss with a true 50 ohm impedance and flexible RG316 construction, making it useful for lab work, wireless communications and field setups.

Key Points

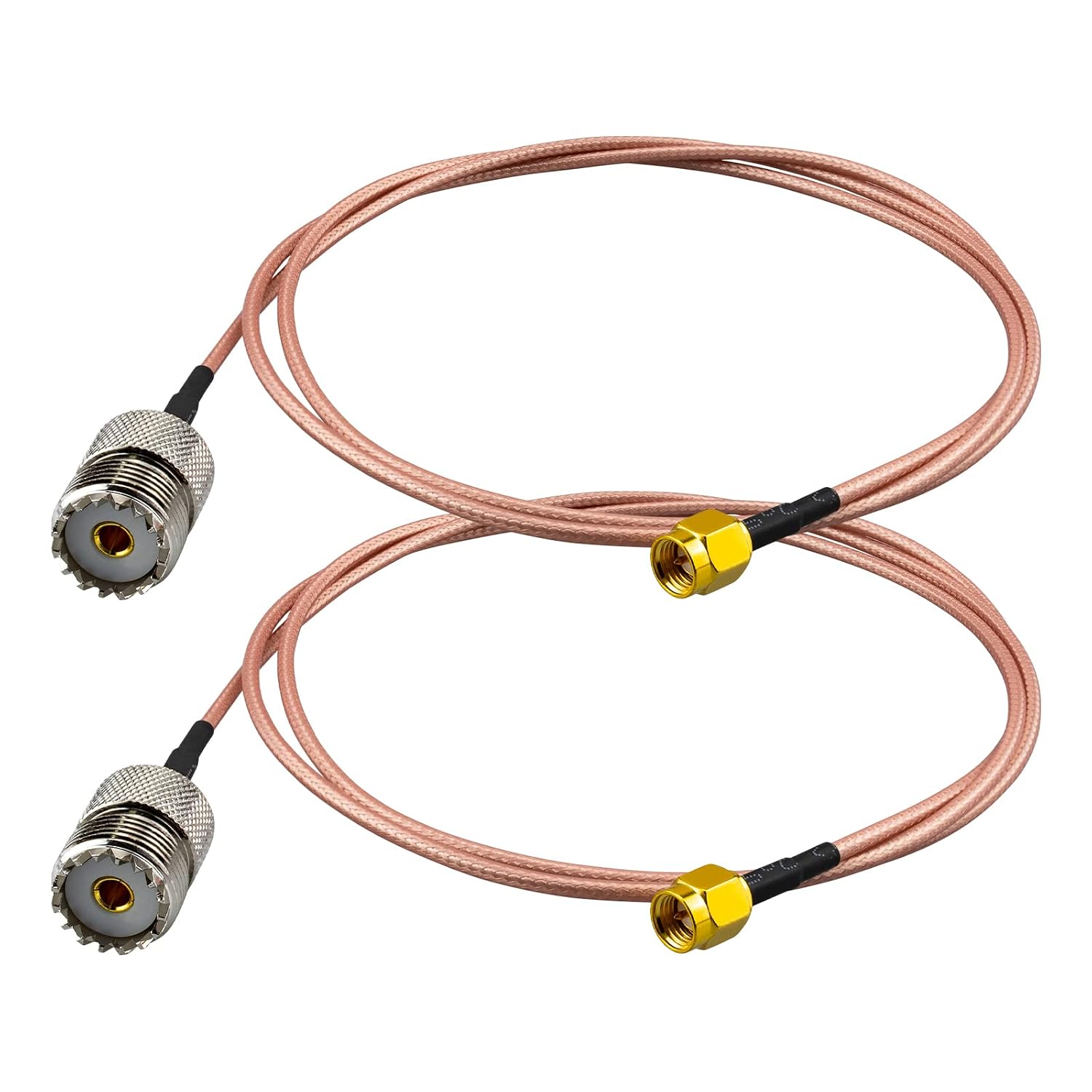

This product is sold as a two-pack of 1 metre cables, which makes it handy for setting up multiple devices or keeping a spare on hand. The cable assembly combines an SMA male connector and a UHF female connector to bridge common antenna and transceiver interfaces, helping to avoid the need for bulky adapters. For clarity, the urcianow RF Coaxial Cable SMA Male to UHF Female is described by the manufacturer as low loss and designed for maximum signal protection in standard radio frequency applications. 📡

The outer jacket and internal materials are chosen for durability in varied conditions. The RG316 core uses silver plated copper conductors and PTFE insulation, while the SMA contacts are gold plated. These choices improve conductivity and corrosion resistance, and the UHF connector is nickel plated for mechanical robustness. Consider that performance in extreme environments may still depend on installation quality and mating connectors on both devices.

Technical Specifications

• Name: urcianow RF Coaxial Cable SMA Male to UHF Female

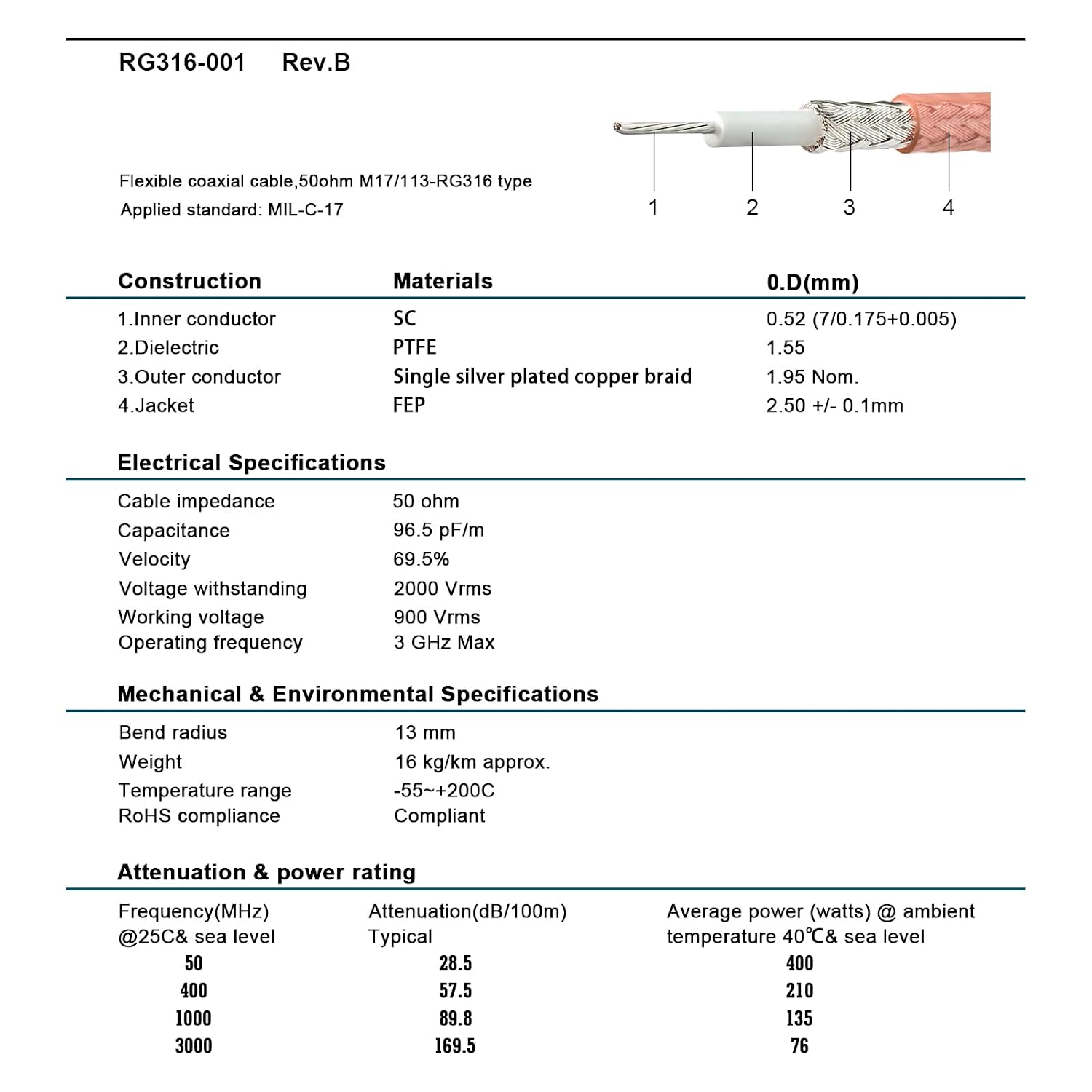

• Cable type: RG316
• Length: 1 m (3.2 ft)
• Impedance: 50 ohms

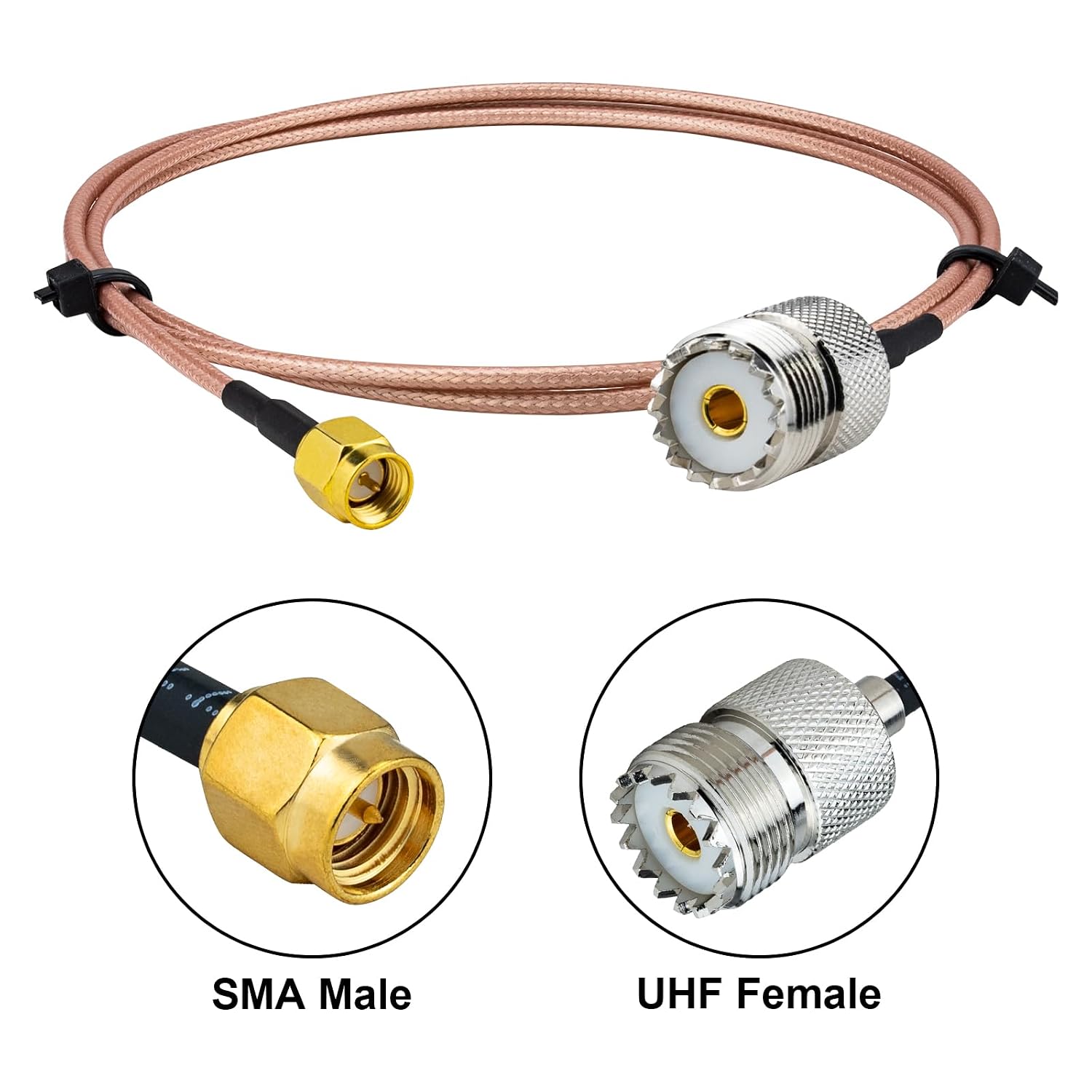

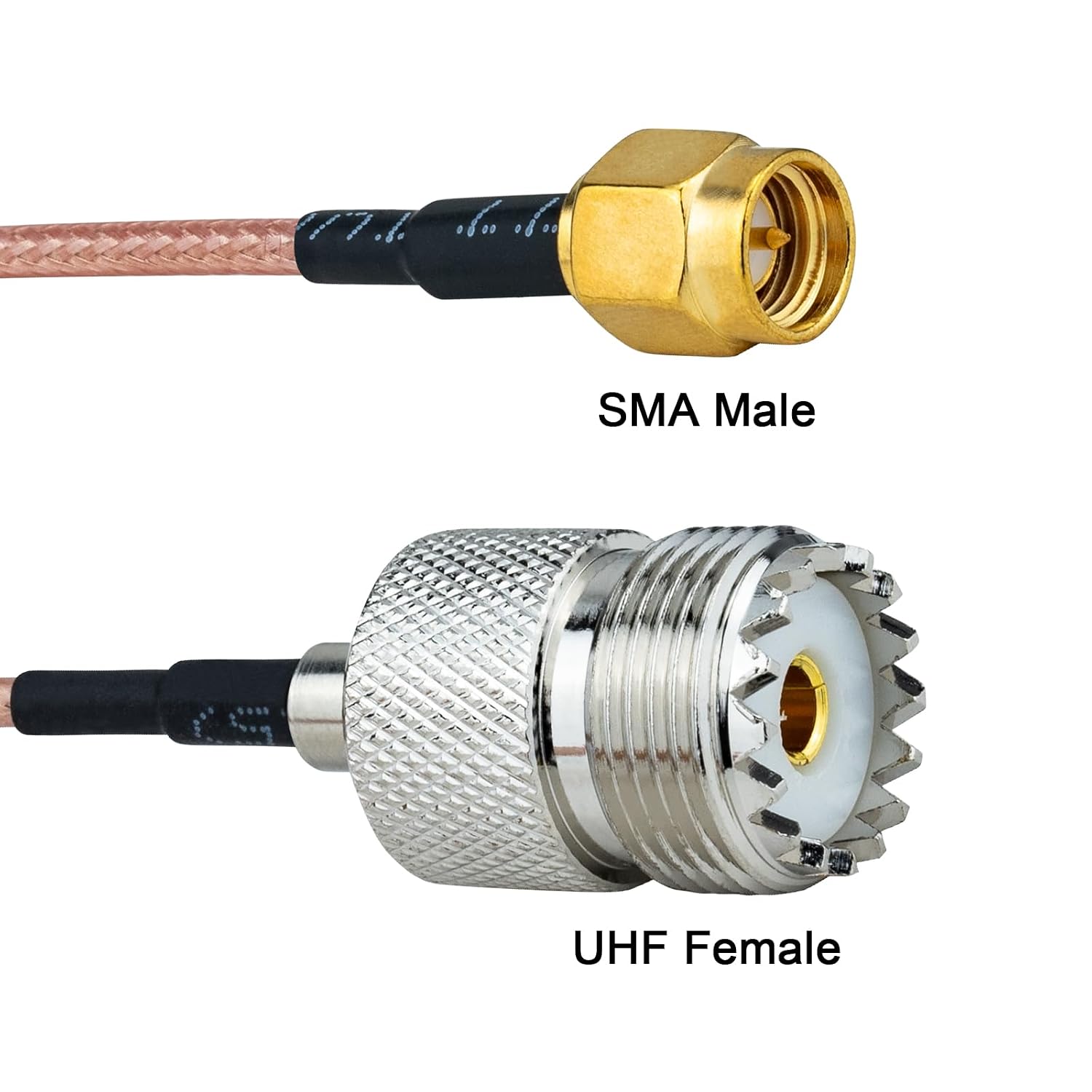

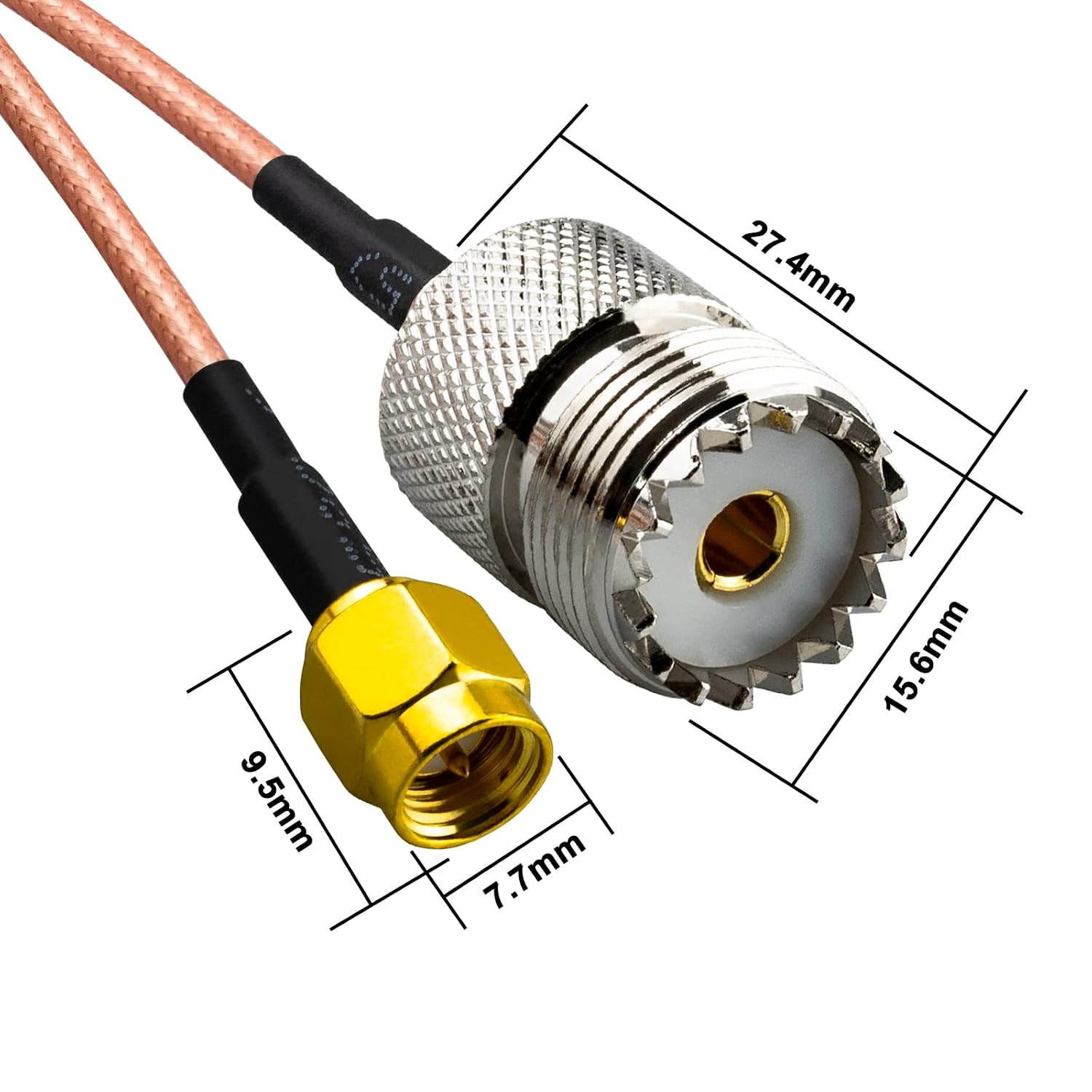

• Connector 1: SMA male, gold plated brass
• Connector 2: UHF (SO-239) female, nickel plated brass

Usage Recommendations

Use this cable where a short, flexible connection is required between equipment with SMA and UHF interfaces, for example linking a router antenna to an external mast or joining test instruments in a bench setup. When routing the cable, avoid sharp bends close to the connectors and maintain gentle curves to preserve the PTFE insulation and minimise any additional insertion loss. 🔧

For applications involving outdoor exposure or prolonged vibration, check that both mating connectors are weather-sealed on the equipment side because the cable itself is resistant to heat, corrosion, dust and moisture but does not include integral weatherproof boots. This product is suited to wireless projects, RFID and GPS setups, cellular experiments and satellite test rigs, keeping connections compact and electrically sound. 🛰️.
