Intel AX210 WiFi 6E PCIe 5400Mbps network card
Product description
This WiFi 6E PCIe network card brings desktop wireless up to date with access to the 6GHz spectrum, higher throughput and integrated Bluetooth for peripherals. It is aimed at users wanting lower latency for gaming and smoother streaming while keeping a compact PCI Express form factor for modern PCs.
Key Points
The adapter supports triple-band operation across 6GHz, 5GHz and 2.4GHz, helping to reduce congestion on crowded networks and allow faster transfers for compatible routers. Two external antennas improve reception and stability, which is useful in rooms with variable signal strength. 😊

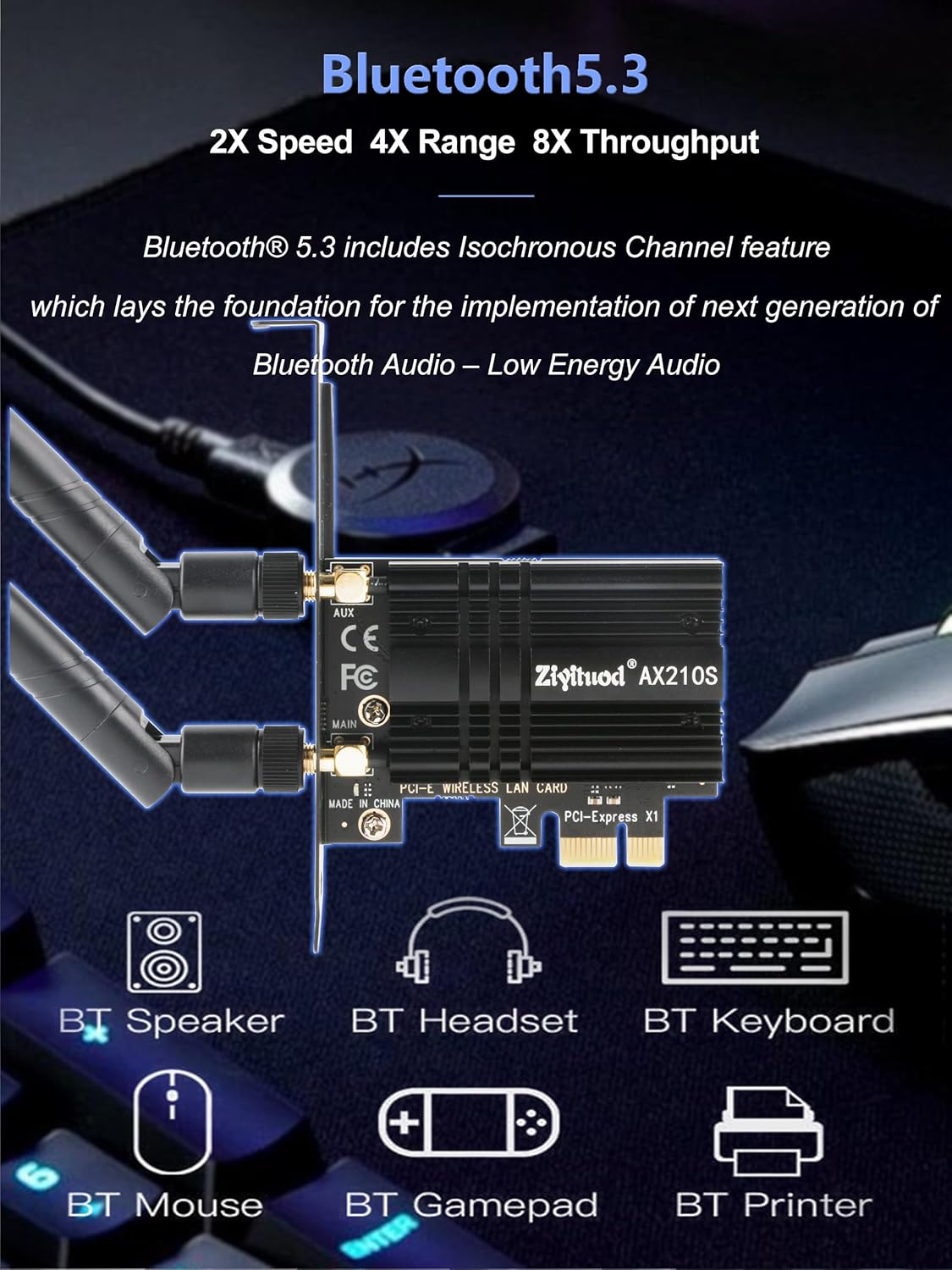

Bluetooth 5.3 support enables wireless connections to controllers, headsets and keyboards with wider range and improved transfer rates compared with earlier Bluetooth versions. Note that peak speeds depend on the router and network conditions, and you may need to update drivers from Intel for full functionality. 🔧
Security is handled with WPA3 support according to the manufacturer, offering stronger protection for wireless authentication and data encryption than previous standards. The card is compatible with Windows 11 and Windows 10 64-bit systems, and fits into any available PCI Express slot in a desktop PC.
Technical Specifications
- Name: Intel AX210 WiFi 6E PCIe Card

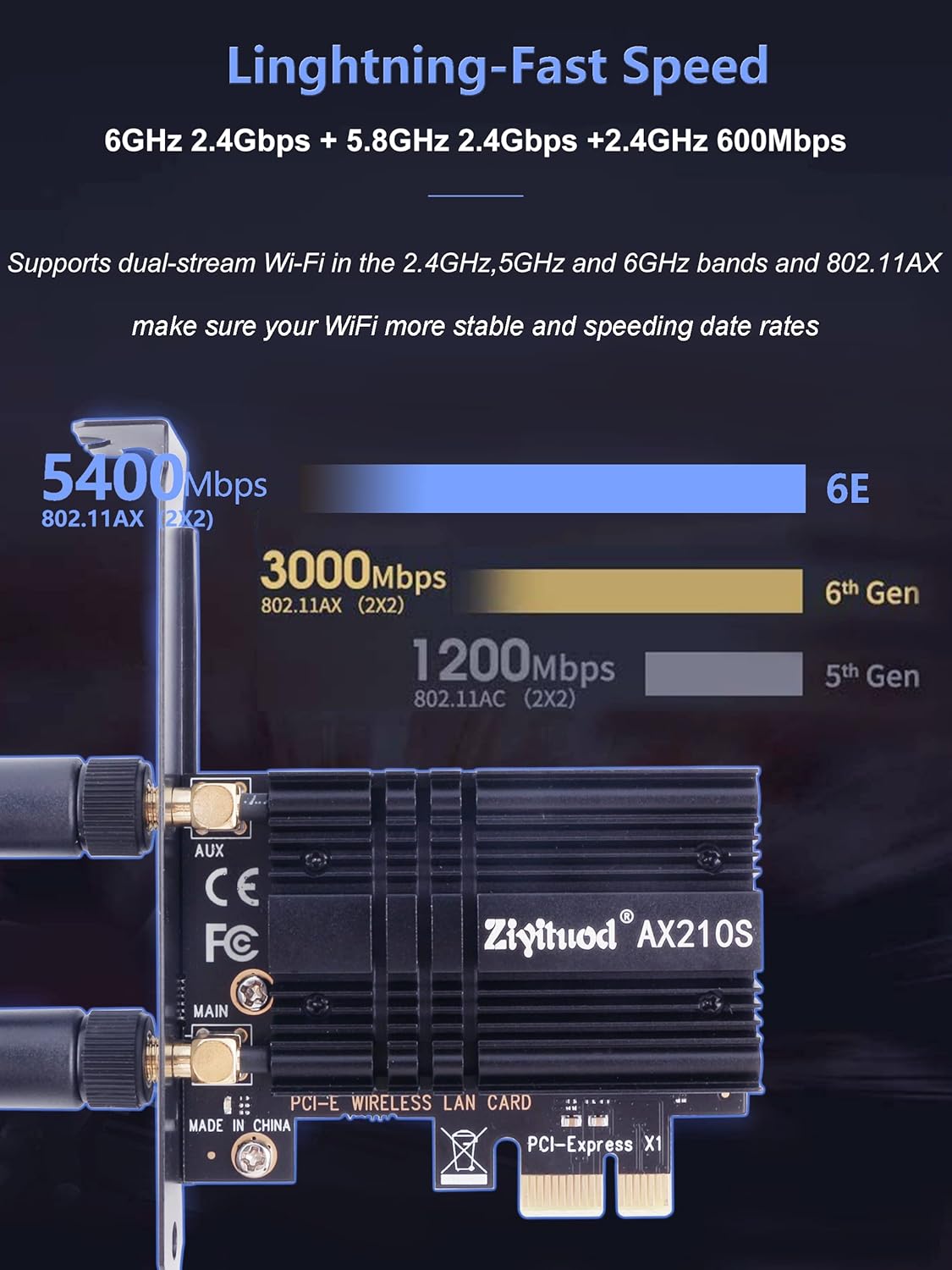

- Maximum theoretical throughput: 5400 Mbps (2402 Mbps on 6GHz, 2402 Mbps on 5GHz, 574 Mbps on 2.4GHz)

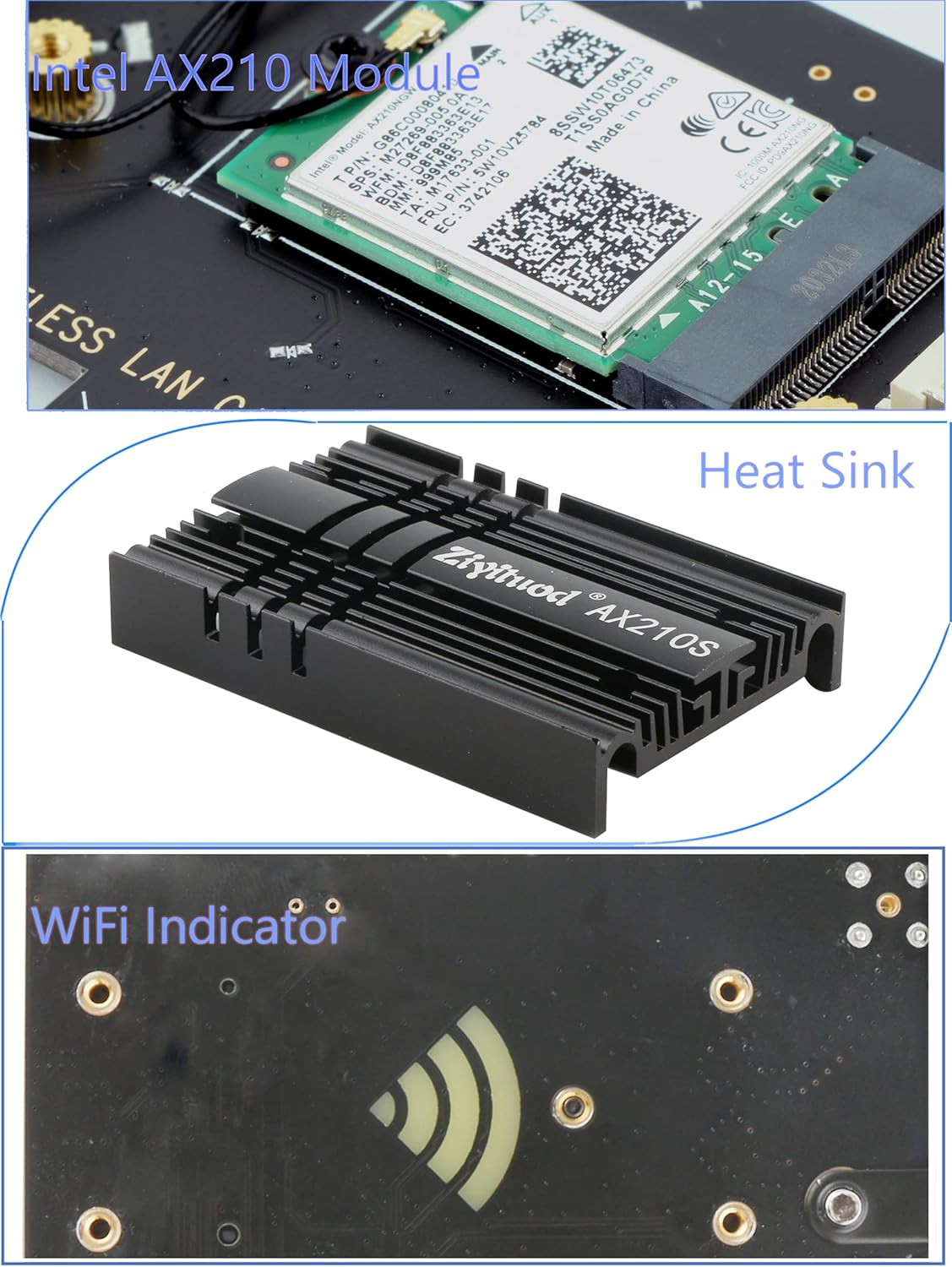

- Chipset: Intel Wi-Fi 6E AX210
- Bluetooth: Bluetooth 5.3
- Compatibility: Windows 11 / Windows 10 (64-bit)
Usage Recommendations

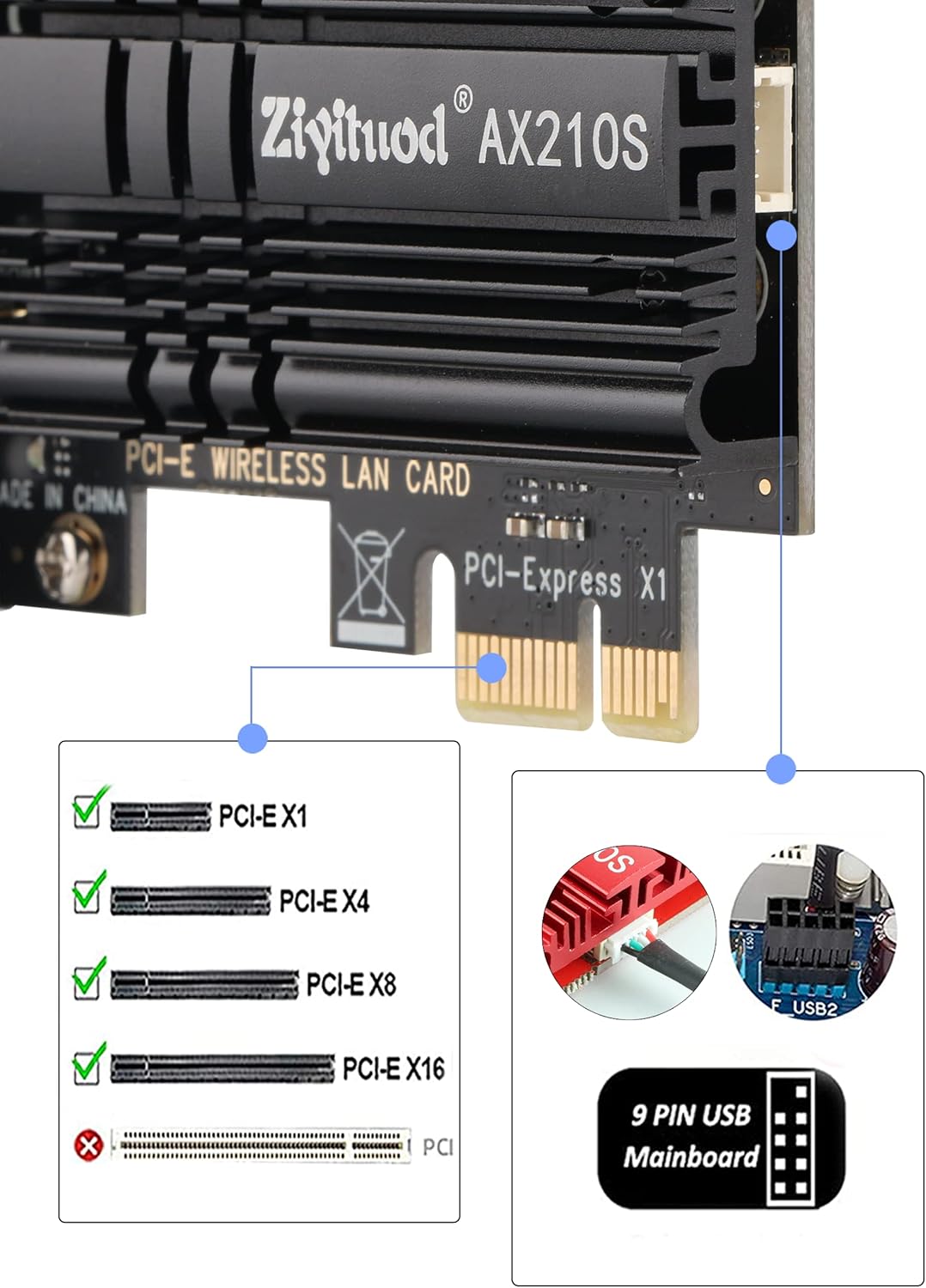

Install the card into a free PCI Express x1 or larger slot and connect the two external antennas for best performance. For access to the 6GHz band your router and local regulations must support WiFi 6E, and distances or walls may limit the effective range even with the included antennas. ⚠️
If you rely on the fastest throughput, place the PC to minimise obstructions between it and the router and download the latest Intel drivers to ensure updated feature support. For gaming, the reduced latency on the 6GHz band can help, however many networks still operate primarily on 5GHz or 2.4GHz, so expected gains will vary. 🎮
Consider that older motherboards may need BIOS updates to fully recognise PCIe devices without issues, and that device performance is influenced by the router capabilities and network environment.
