HUANUO Monitor Arm with Laptop Tray 17" 🖥

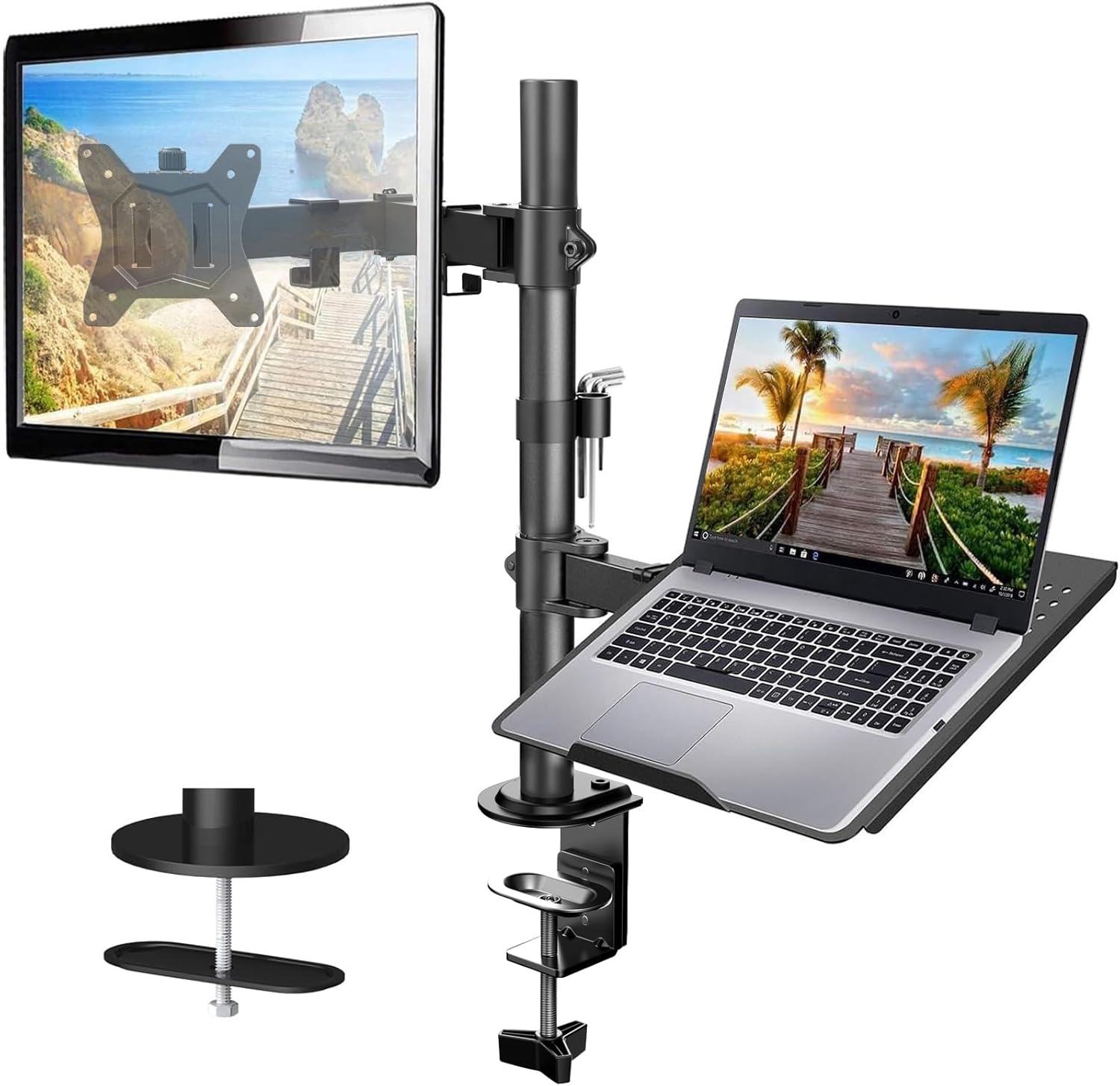

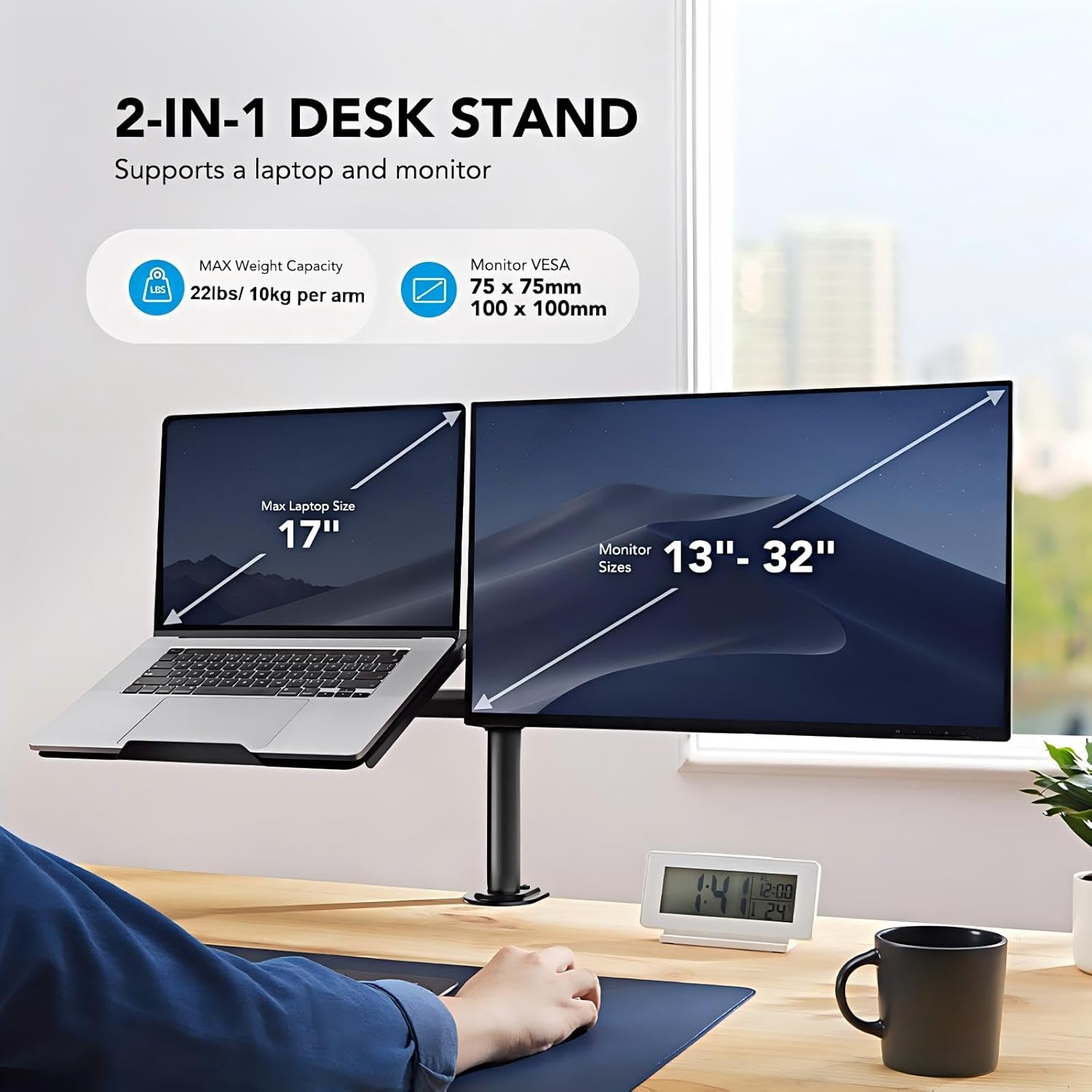

This dual monitor arm with detachable laptop tray brings a flexible workstation to compact desks, helping to lift screens to eye level and reduce neck strain while freeing desktop space. It supports a single monitor of 13 to 32 inches together with a laptop up to 17 inches, making it useful for multitasking, casual gaming and home office setups.

Key Points

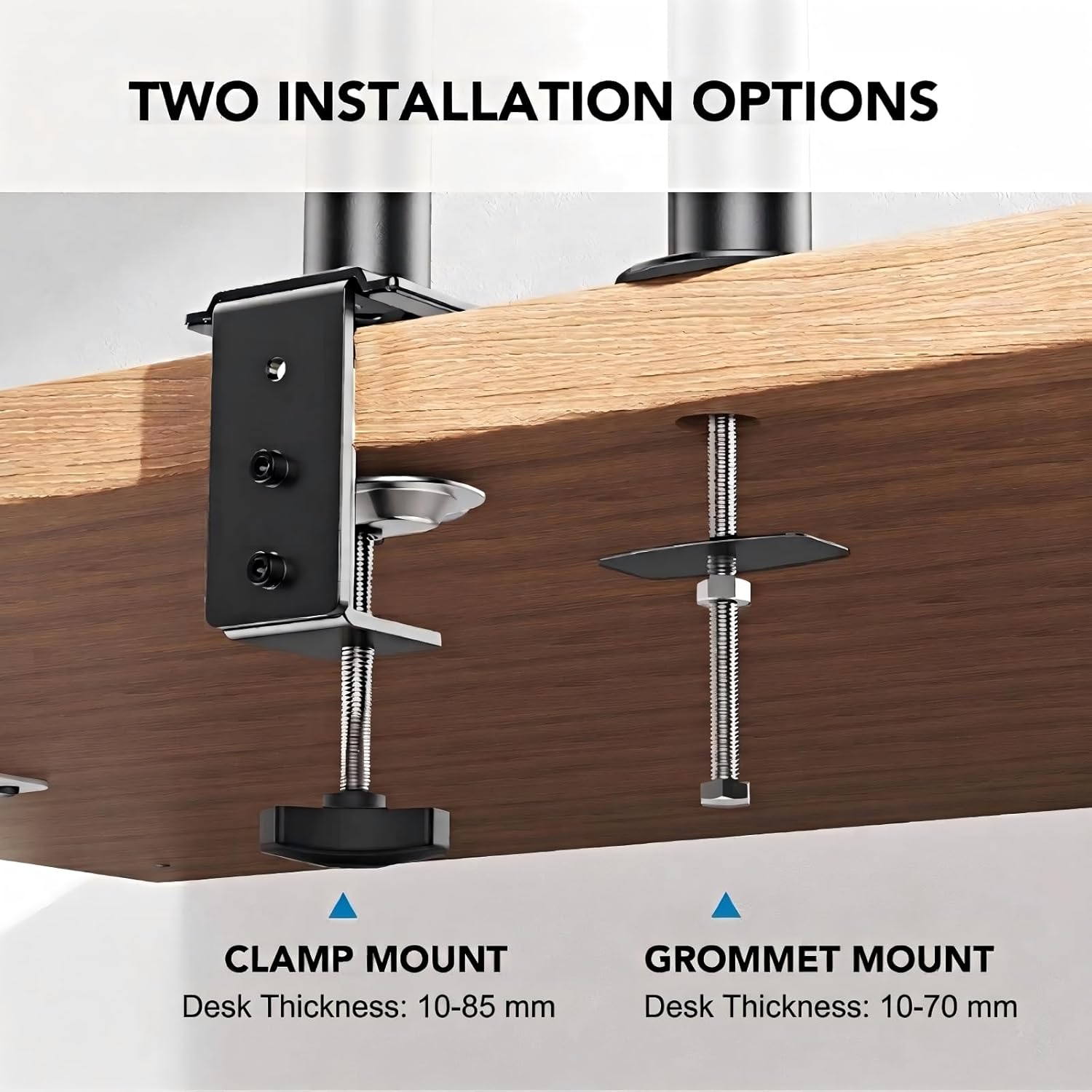

The arm accepts VESA 75 x 75 mm and 100 x 100 mm mounts and can carry a monitor and a laptop tray at the same time, or be converted to hold two monitors by removing the tray. Height is adjustable with a VESA-to-desk range from 0 to 43.4 cm, and horizontal reach can extend up to 81.2 cm when arms are aligned. According to the manufacturer the arm supports a maximum load of 10 kg. Two mounting options are included, a C-clamp and a grommet kit, to suit desks up to 10 cm thick with the clamp or up to 7 mm for the grommet.

Technical Specifications

• Name: HUANUO Monitor Arm with Laptop Tray
• Screen compatibility: 13–32 inch monitor (diagonal 33–68.5 cm)
• Laptop tray size: fits up to 17 inch notebook, tray dimensions approximately 35.5 cm by 30 cm
• VESA: 75 x 75 mm and 100 x 100 mm
• Maximum load: 10 kg

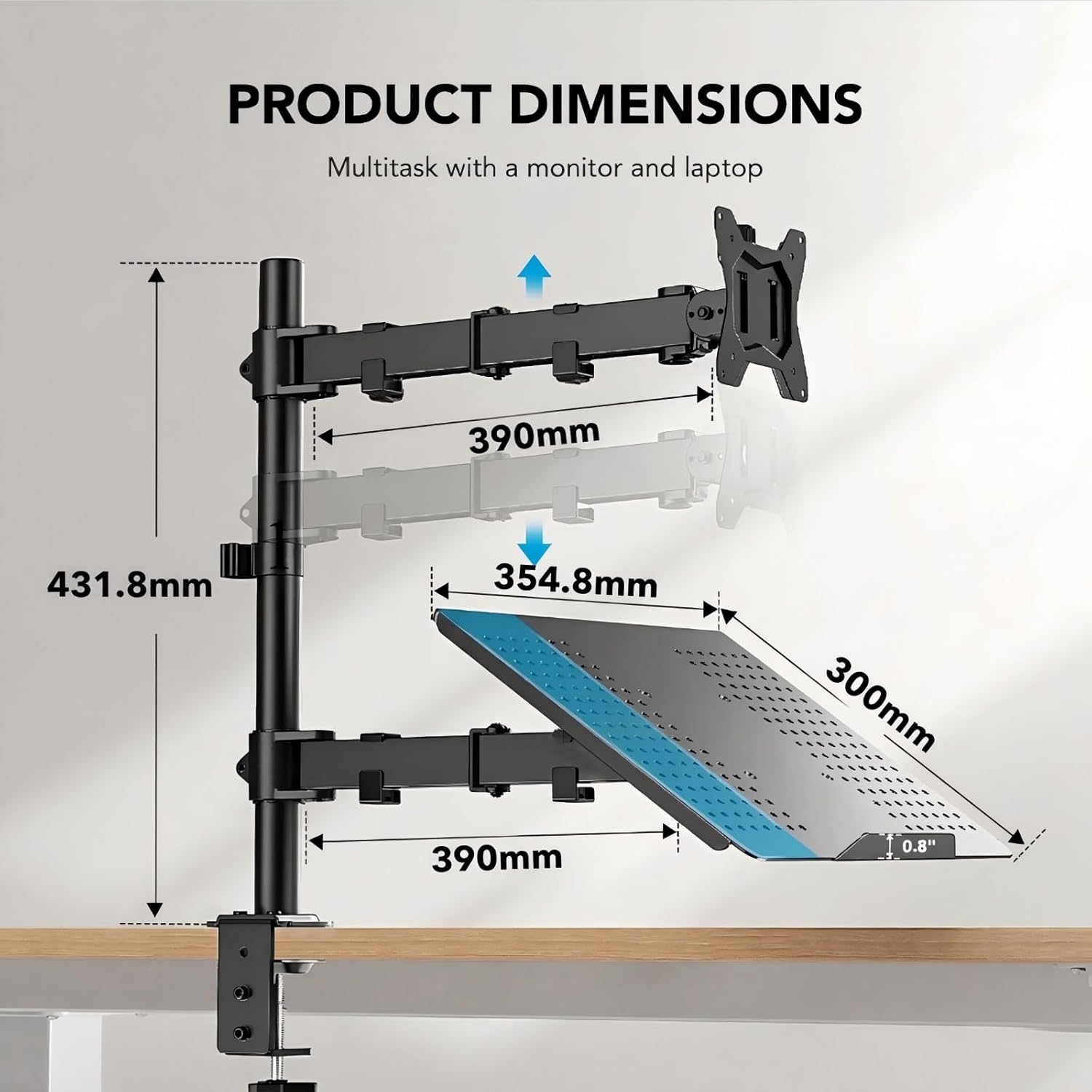

• Vertical adjustment: 0–43.4 cm
• Maximum horizontal reach: up to 81.2 cm

Usage Recommendations

Place the monitor plate at or slightly below eye level to minimise neck flexion and reduce visual fatigue during long sessions. The laptop tray can be positioned higher or lower than the monitor to create a comfortable two-screen angle for editing documents and reference material simultaneously. If you prefer two monitors, simply remove the laptop tray and mount a second display using the same arms.

Practical Tips

Adjust the arm joints gradually to balance the screens and avoid sudden movements. Cable management is integrated along the column and arms, which helps keep the desk tidy and reduces the risk of cables pulling on ports. Consider the desk thickness and the diameter of any existing grommet hole before choosing the mounting method, and note that the grommet option requires a hole of approximately 10 mm in diameter.
