Wire Ferrule Connectors, 16AWG

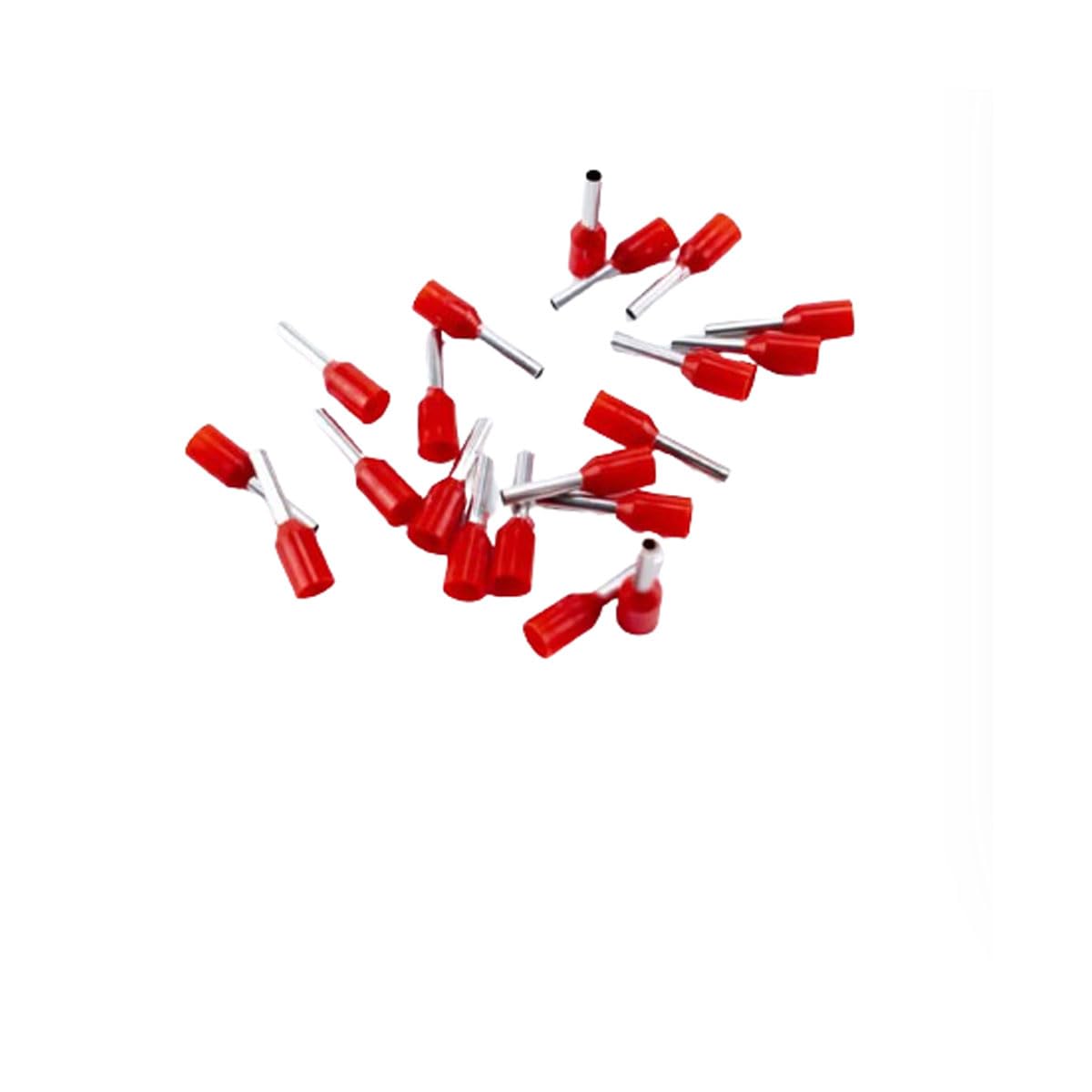

The tinned-copper conductors and nylon insulating sleeves give these red wire ferrules two useful jobs: providing a conductive crimp termination and covering the wire end. They’re sized for 16 AWG (1.5 mm²) wire, so the key buying decision is whether that matches the wire you’re working with. With 1,000 pieces in the kit, they’re aimed at repeat wiring tasks rather than someone who only needs a few terminals for a one-off repair.

Technical details

The kit contains 1,000 red ferrule connectors for 16 AWG, 1.5 mm² wire. The conductive part is described as tinned copper, while the insulating sleeves are nylon. The listed benefits include conductivity, corrosion resistance, insulation, and flame retardance, these are material claims, not a substitute for choosing a ferrule that matches the wire and application.

The size is the main constraint. This listing identifies one wire range, not an assortment of ferrules for different gauges. If your project uses several wire sizes, a mixed-size kit or separately sized terminals may be a better fit than buying a large quantity of one size.

Requirements

A ferrule crimping tool is recommended to make the terminals work as intended. A standard pair of pliers isn’t identified as a replacement, so plan on using a suitable crimper if you don’t already have one. The listing doesn’t specify the crimper model or provide detailed tool compatibility, so this set is easiest to assess when you already know what tool you’ll use.

Usage tips

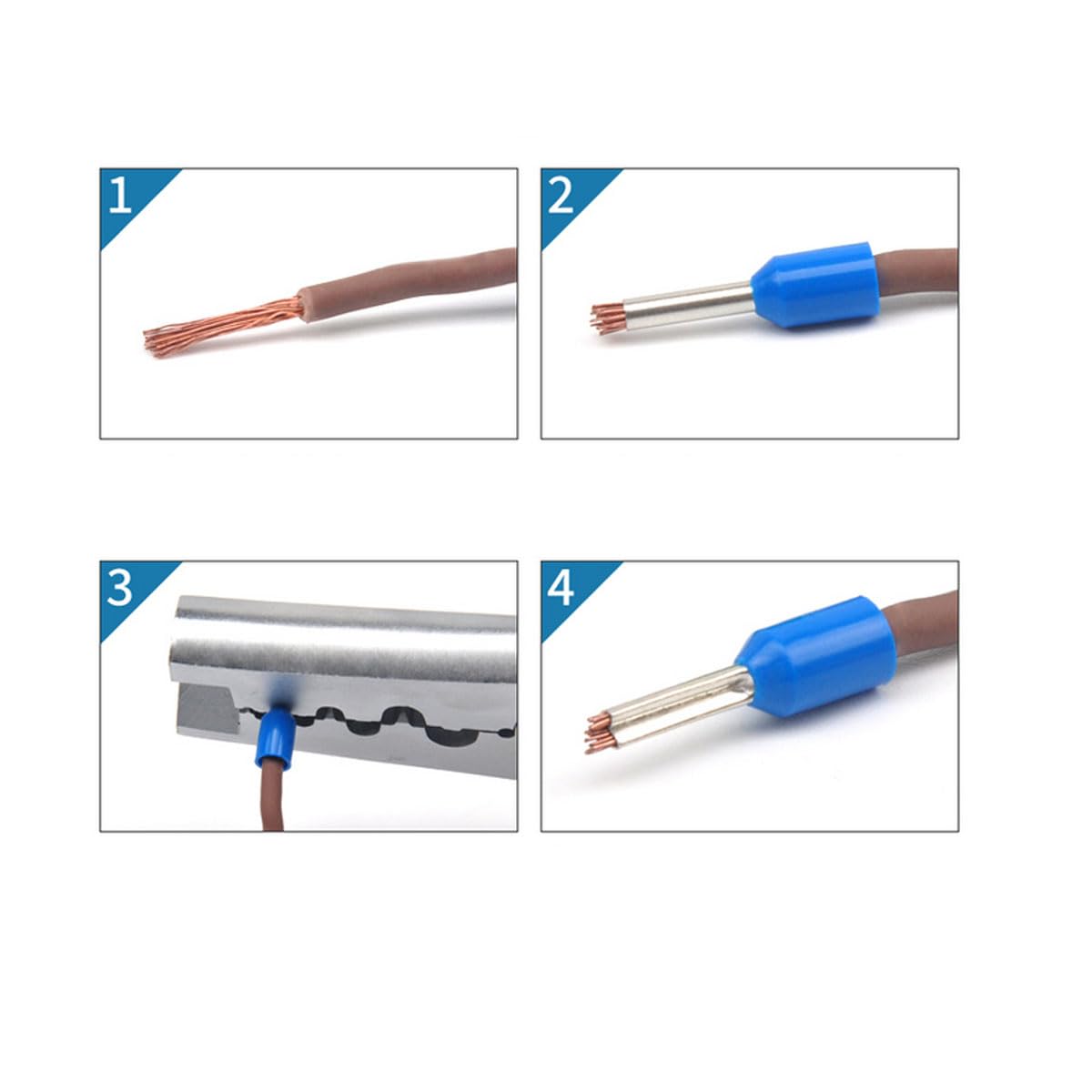

Match the ferrule to the wire size before starting. Strip the wire, insert the conductor fully into the sleeve, and crimp it with a ferrule crimper. For a practical panel-wiring job, that means preparing each stranded wire end, crimping the ferrule, then making the intended connection. Check that the strands are contained and the crimp is secure before installing it. The ferrule is a termination component, it doesn’t replace the connector or equipment terminal used in the finished circuit.

Questions before you buy

What wire size are these ferrules for? They’re listed for 16 AWG, or 1.5 mm². The product details don’t give other supported sizes.

What are the terminals made from? The conductor is tinned copper, and the insulating sleeves are nylon.

Do I need a special tool? The listing recommends professional ferrule crimping pliers. Without having tried it, the practical takeaway is to have an appropriate crimper available rather than assuming the terminals can be fitted reliably by hand.

When it makes sense

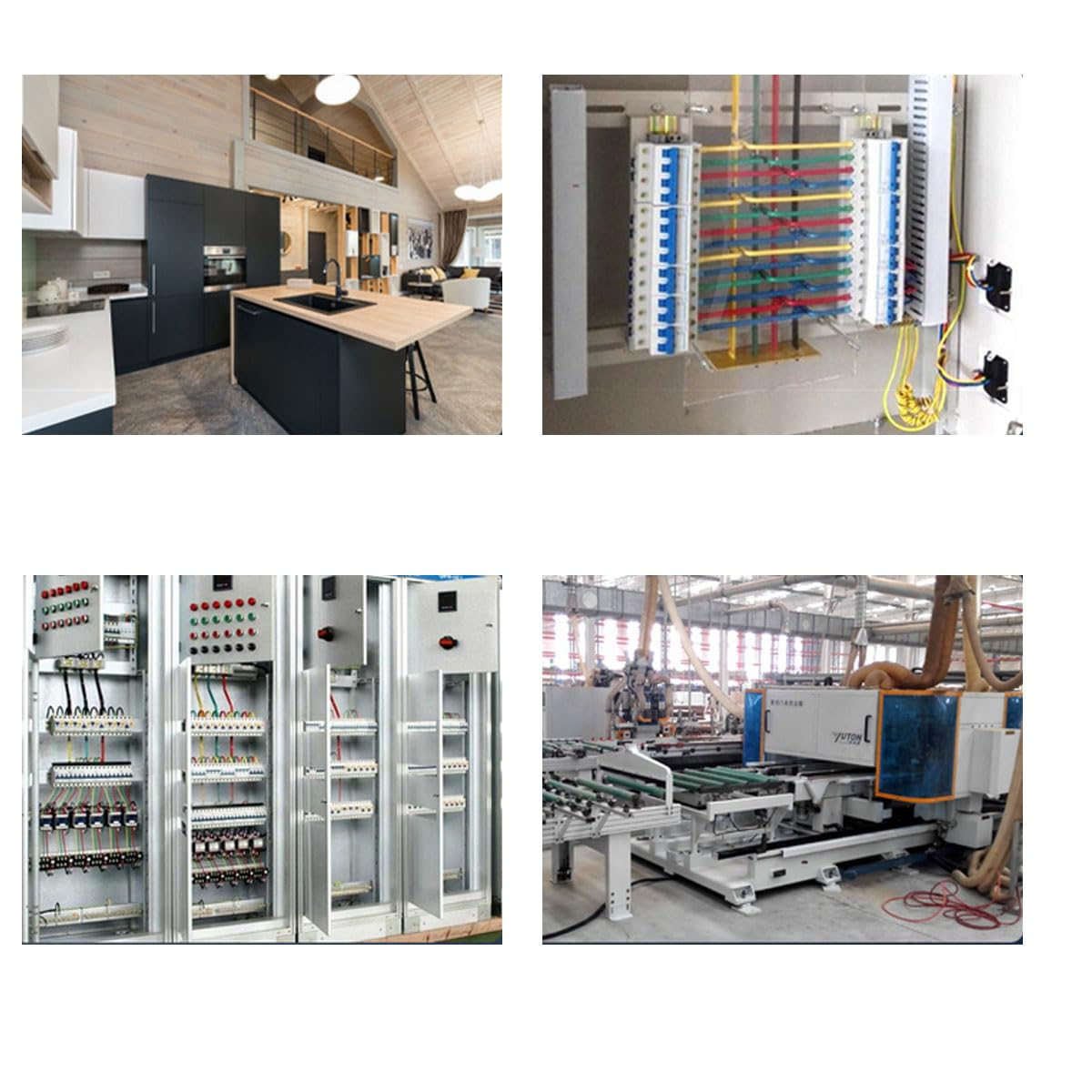

It makes sense if you regularly terminate 16 AWG stranded wire and want a large supply of one ferrule size for electrical, electronic, lighting, or control-system work. Compared with buying a small number of loose terminals for a single repair, the 1,000-piece count favors repeated jobs. Not the best choice if you need multiple wire gauges, a crimping tool is not part of your setup, or the listing’s limited detail on exact dimensions and tool compatibility matters to your project.
