TKDMR Heat Shrink Tubing Kit 5:1

For a wiring repair exposed to moisture or rough handling, heat-shrink tubing can add insulation and cover a connection without replacing the whole cable. The TKDMR kit pairs a 5:1 shrink ratio with an adhesive-lined inner wall, so it is intended to fit over a range of connection sizes and seal as it shrinks.

That makes it more specialized than plain heat-shrink tubing: the adhesive layer is meant to help close gaps around the joint, while the outer polyolefin layer provides insulation and abrasion protection.

Key specifications

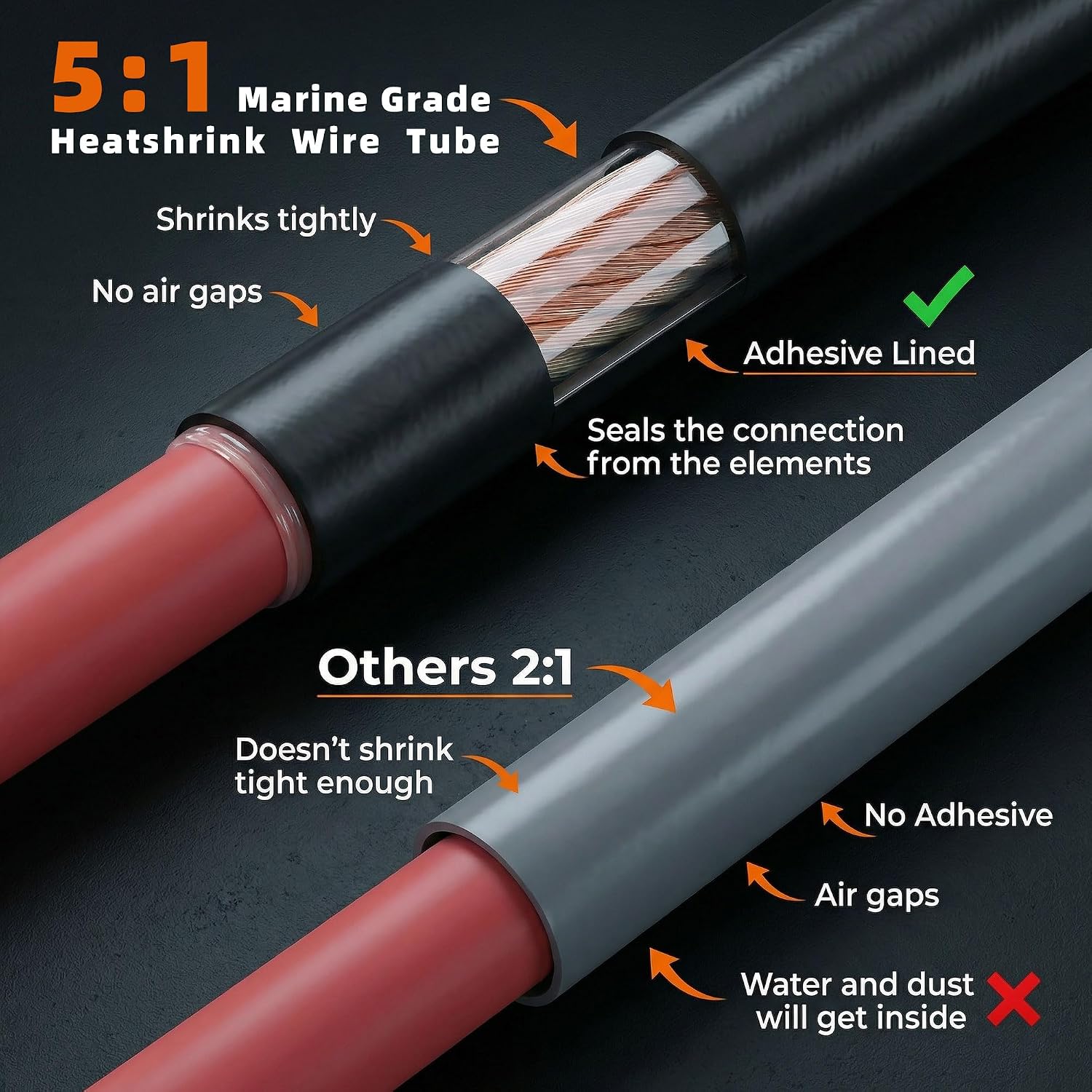

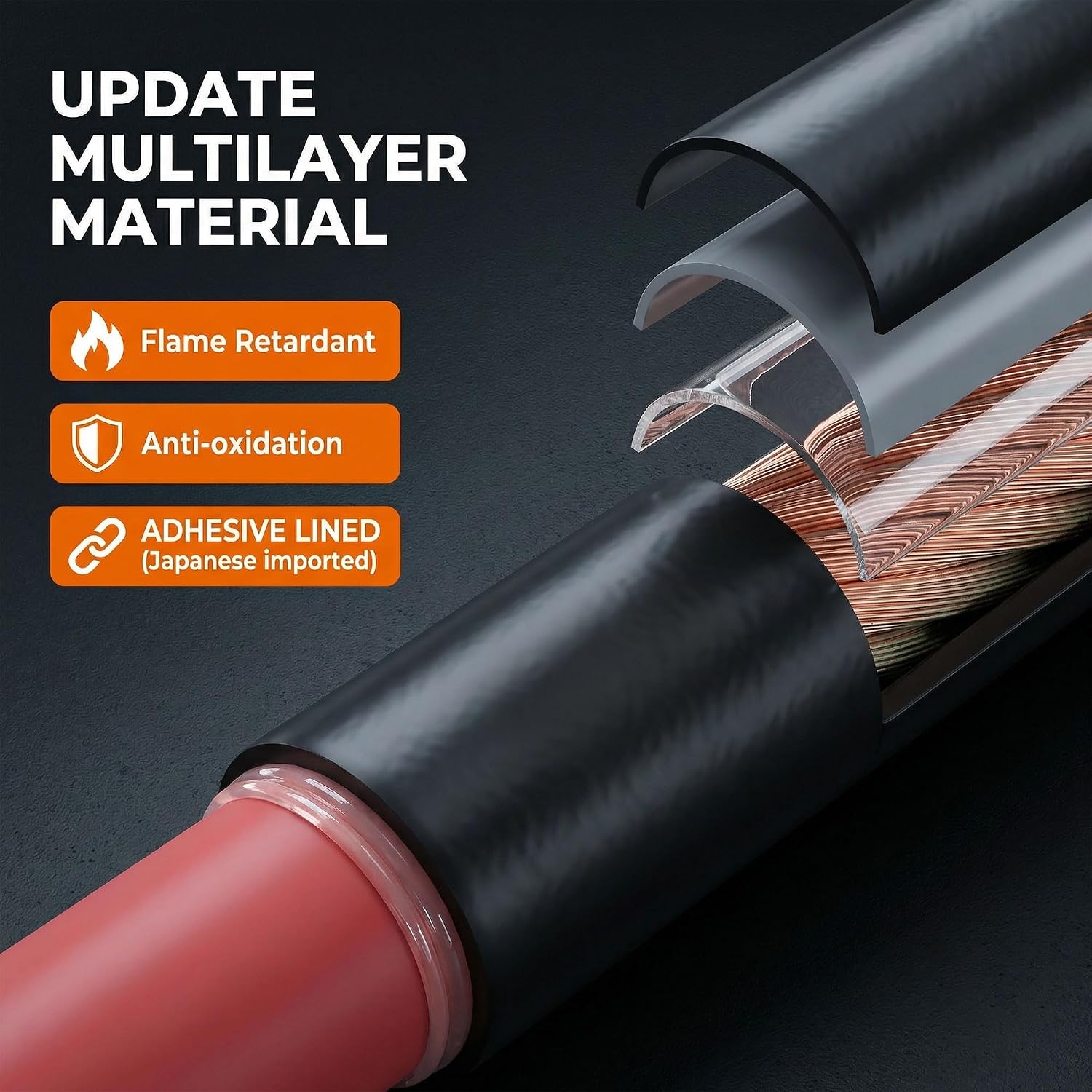

This is a marine-grade heat-shrink assortment with a dual-wall construction: a polyolefin outer layer and a hot-melt adhesive liner. The stated 5:1 ratio means the tubing can shrink to one-fifth of its original diameter. That range can be useful when a connector is wider than the wire it joins, though the tubing still needs to fit over the largest part before heating.

The listed sizes are 3/4", 1/2", 3/8", 1/4", 3/16", 1/8", and 3/32". The quantities vary by size, with more pieces in the smaller diameters. The description also identifies the tubing as flame retardant and RoHS compliant. It does not provide a specific operating-temperature range, so there is no basis here for comparing that figure with another kit.

Who it’s for

It suits you if you handle occasional electrical repairs on cars, boats, motorcycles, outdoor wiring, or household electronics and want adhesive-lined tubing in several diameters. For example, after joining two wires, you can slide a suitable piece over the connection and heat it so the tubing contracts and the adhesive flows around the joint. The result is a covered connection, not a repair to a damaged conductor itself.

It might not be a great match if you only need a few pieces in one size, or if you need a documented temperature rating or a precise fit specification for a particular job. On the spec sheet, waterproof and corrosion-resistant protection are intended benefits of the adhesive seal, the listing does not give test conditions or a quantified rating to confirm performance in every environment.

In the box

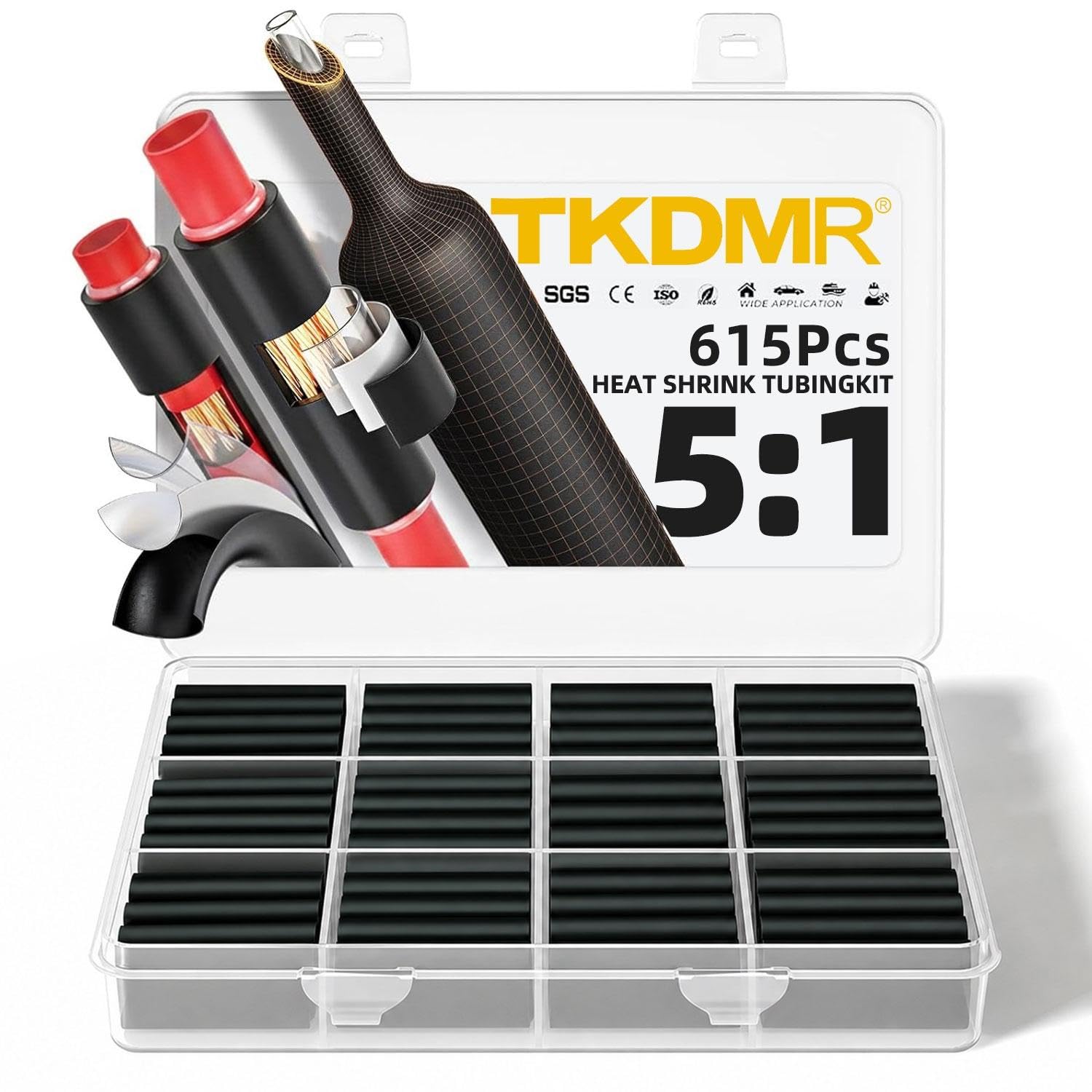

The product name says a storage box is included. The assortment lists 15 pieces of 3/4", 20 of 1/2", 70 of 3/8", 70 of 1/4", 80 of 3/16", 140 of 1/8", and 220 of 3/32" tubing. The smaller sizes make up most of the assortment, so check that the larger-diameter pieces suit the connectors you expect to cover. The description gives conflicting overall piece totals, so the individual size counts are the clearer reference.

Before you decide

Does the 5:1 ratio mean one piece fits any connection? No. It provides a wider shrink range, but the tubing still has to slide over the connection before it is heated and shrink enough to grip afterward.

Is this intended for wet or outdoor wiring? The adhesive lining is designed to form a moisture-resistant seal, and the product is presented for outdoor, automotive, and marine use. The listing does not specify an immersion rating or test conditions.

Can it replace a damaged wire? No. It covers and insulates a repair area, it does not restore a broken or unsafe conductor.

When it makes sense

Choose this kit when you want multiple tubing sizes and an adhesive-lined design for covering repaired connections that may face moisture or abrasion. A basic, non-adhesive assortment may be a simpler fit for indoor jobs where a moisture seal is unnecessary, this kit’s added liner is more relevant when sealing the joint is part of the task. If your work depends on a precise temperature rating, a documented waterproof standard, or mostly one specific size, the available details may not be enough to make the call.
