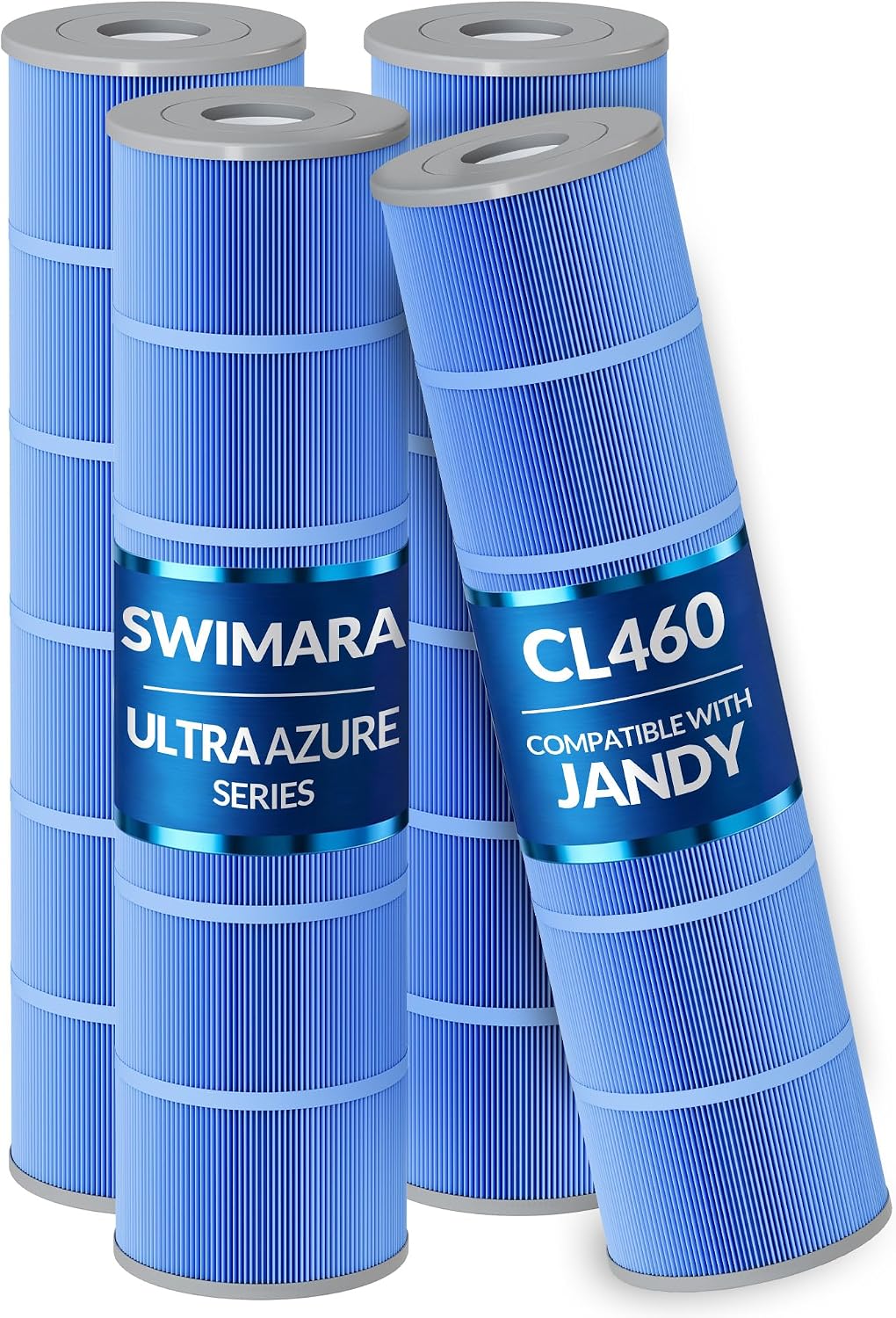

Swimara Jandy Filter Series Ultra Azure Pool Cartridges, 4-Pack for CL460/CV460

The four-cartridge set provides 460 sq ft of total filtration area, with 115 sq ft per cartridge. Its 5 oz/sq yd blue trilobal polyester media is designed for pool filtration where fine seasonal debris and heavier debris loads are part of the job.

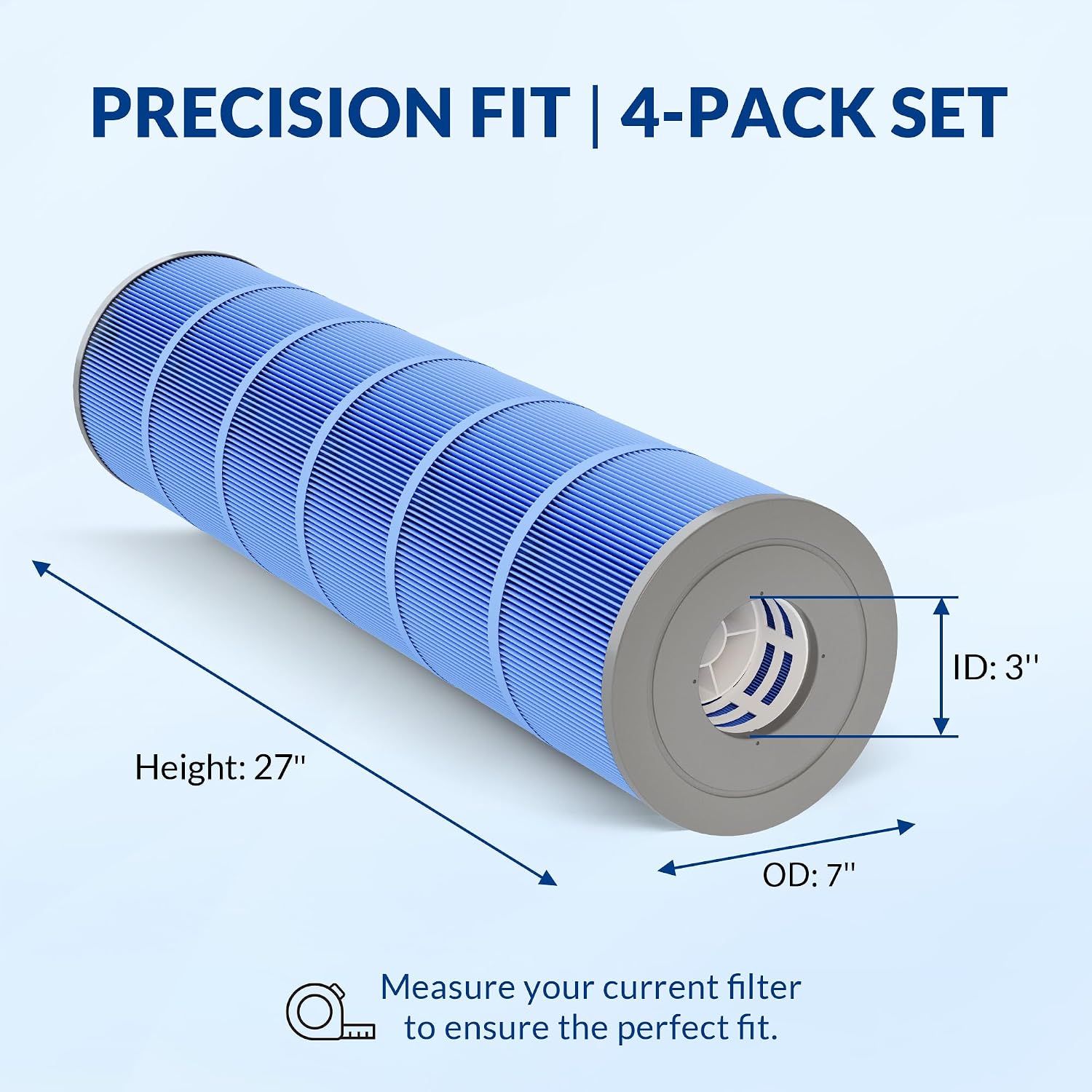

Each cartridge measures 7 in. OD x 27 in. L, with 3 in. open ends. The set is made for Jandy CL460/CV460 filters and replaces several listed cartridge references, making fit and dimensions useful checks when choosing a replacement.

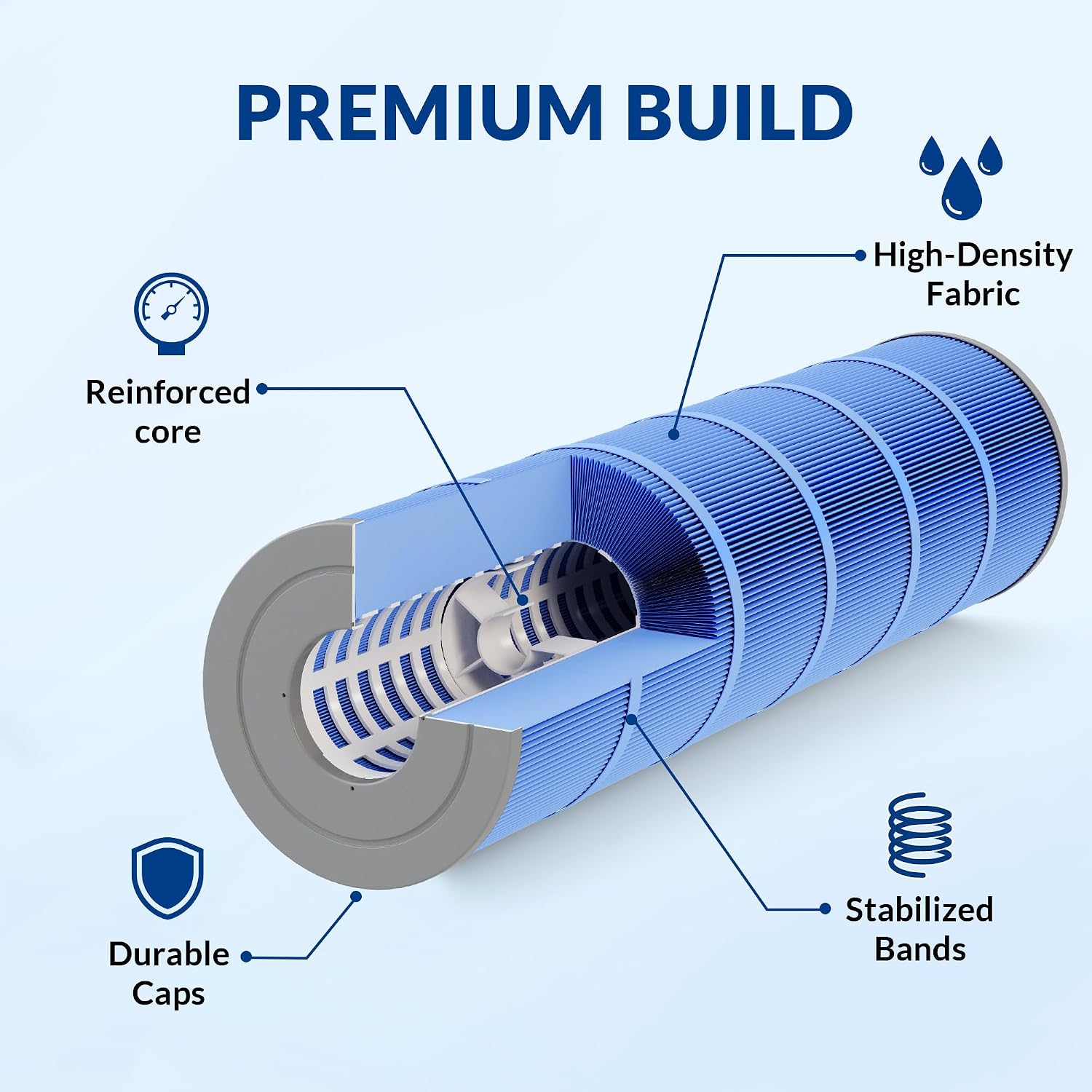

Molded polyurethane end caps, a reinforced polypropylene core, and retaining bands support the pleated media and help maintain even spacing between pleats during filtration and rinsing.

What you’ll notice day to day

The 5 oz/sq yd media uses blue, three-lobed polyester fibers to capture particles as small as 10 microns. That filtration detail is useful when a pool sees fine seasonal debris, while the 460 sq ft combined area gives the four-cartridge set its specified filtration surface for high-use residential pools.

The construction is designed around both filtration and routine rinsing: the core supports the pleat pack, and the retaining bands help keep pleats evenly spaced so water can pass through the media. For a practical replacement, match the filter model and cartridge dimensions before installation rather than relying on a reference number alone.

What to know

This 4-pack fits Jandy CL460 and CV460 filters. Listed replacement references include R0554600, A0558000, PJAN115, PJAN115-PAK4, C-7468, C-7468-4, FC-0810, and FC-6410. Each cartridge is 7 in. OD x 27 in. L with 3 in. open ends, check those measurements against your existing setup.

The cartridges use polyurethane end caps, a polypropylene core, and blue trilobal polyester media. The product is certified to NSF/ANSI 50. If you are comparing replacement approaches, the key distinction here is the specified 5 oz/sq yd media and its stated particle capture down to 10 microns, alongside compatibility with the CL460/CV460 filter family.

Maintenance

Before servicing the filter, depressurize the system and follow the filter manual. Rinse the cartridges from top to bottom, and inspect them more often during periods of heavy use or seasonal debris. For Jandy CL460/CV460 systems, clean when pressure reaches 10–12 PSI above the clean starting pressure, follow the applicable system manual for other setups.

Before you decide

Which filters do these cartridges fit? They are designed for Jandy CL460 and CV460 filters. Confirm the filter model and the cartridge dimensions—7 in. OD x 27 in. L with 3 in. open ends—when selecting replacements.

How much filtration area does the set provide? The four cartridges provide 460 sq ft total, with 115 sq ft of filtration area per cartridge.

How should I rinse and clean them? Depressurize the system first, then rinse from top to bottom. For CL460/CV460 filters, use the clean starting pressure as your reference and clean at 10–12 PSI above it.

Should you buy it?

This Swimara set suits pool owners replacing cartridges in a Jandy CL460 or CV460 system who want four cartridges with 5 oz/sq yd trilobal media and a clearly stated 460 sq ft total filtration area. Its defined fit, dimensions, and cleaning guidance make it a practical choice for routine filtration in high-use residential pools and seasonal fine-debris conditions.
