Ravinte JL114LS Soft-Close Cabinet Hinges, 3/8-Inch Overlay, 30 Pairs
Product description
Replacing hinges across a row of face-frame kitchen cabinets? Ravinte JL114LS hinges pair a concealed fit with a soft-close motion for a quieter finish to everyday use. The 30-pair pack is sized for a multi-door update. Does your project call for a 3/8-inch overlay?
Quick sizing guide
These hinges are specified for a 3/8-inch overlay and face-frame cabinet doors. Before choosing them for a replacement, compare that overlay with your cabinet door setup and check the cup and screw-hole measurements against the existing installation. The cup diameter is 35mm, the cup depth is 11.6mm, and the screw holes are 45mm apart. The hinge opens to 105 degrees.
The concealed design keeps the hinge out of view when the cabinet door is closed, supporting a clean look across kitchen cabinetry. For a project involving many doors, a 30-pair set offers a straightforward way to source hinges together rather than selecting individual pairs one at a time.
Why it makes sense

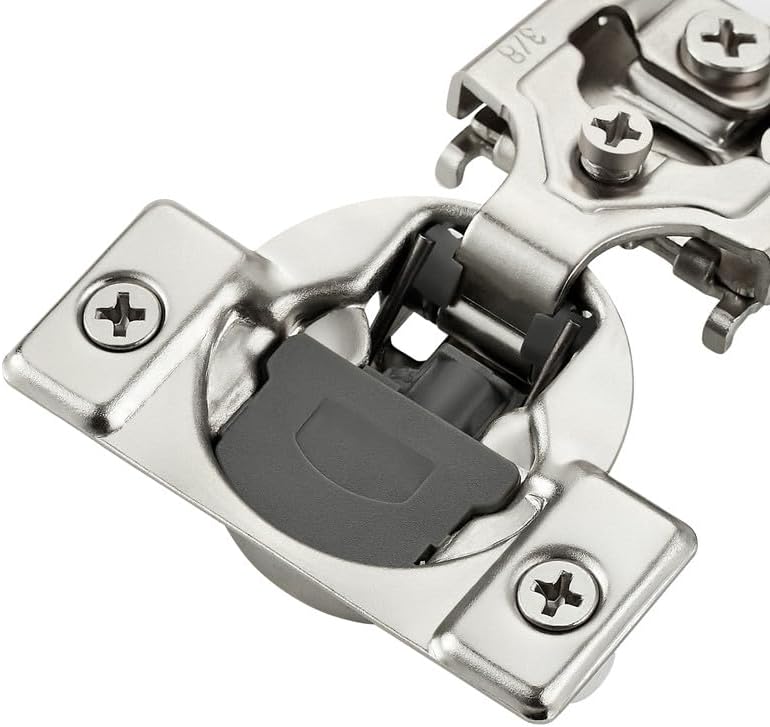

A soft-close mechanism lets each door move gently toward the closed position before it shuts completely. That controlled motion is useful in busy kitchens, where cabinet doors are opened and closed throughout the day. The satin nickel finish gives the hinges a coordinated look with other nickel-finish hardware, while the concealed installation keeps attention on the cabinet fronts.

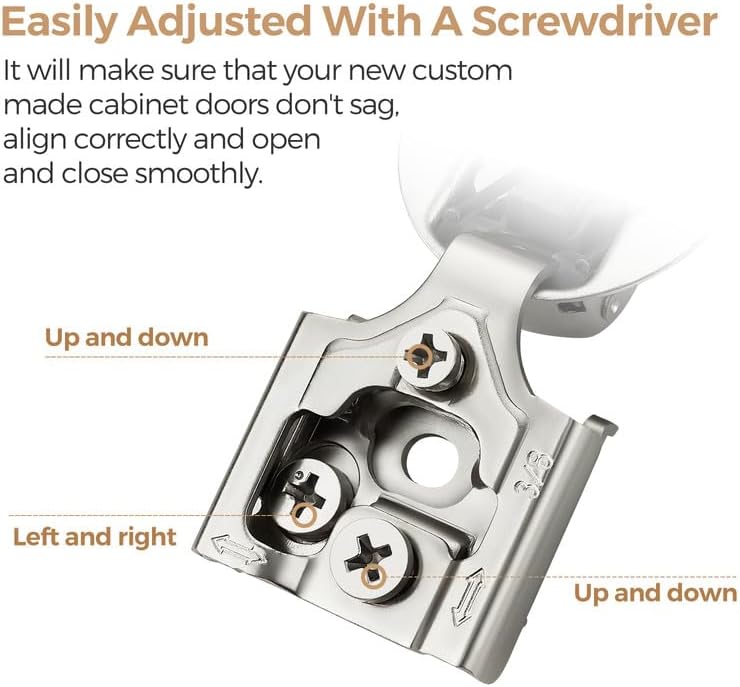

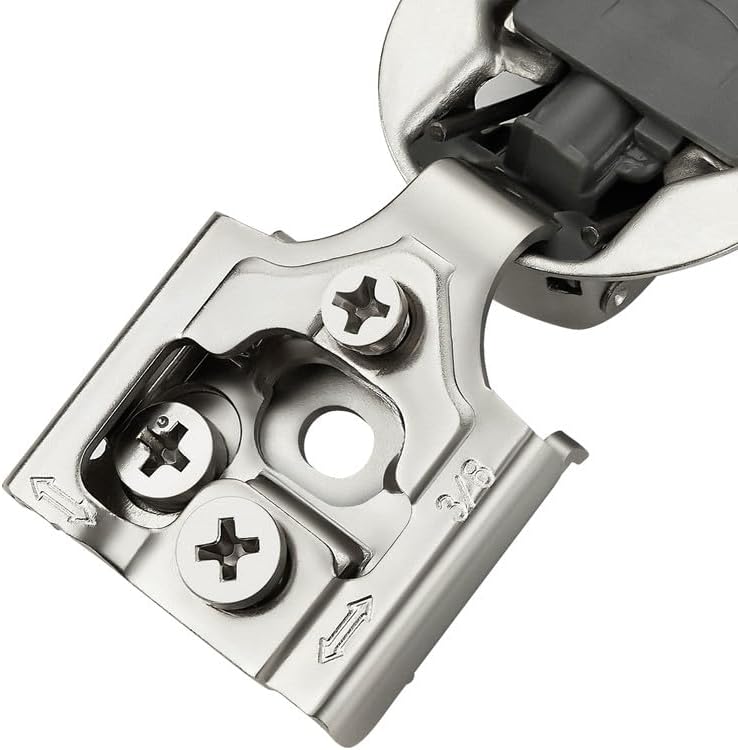

The three-way adjustment can be made with a screwdriver, giving you a way to fine-tune door position after installation. This is useful when setting up a new run of cabinet doors or adjusting their alignment during a refresh. Buyers report that installation and fit work well for many projects, including replacements using existing hinge locations. Feedback on soft-close speed and adjustment is mixed, so the actual feel and alignment may vary with the installation.
Worth considering if you’re updating several compatible face-frame doors and want concealed hinges with a soft-close mechanism in one bulk set. For a small repair, buying only the pairs needed may be a more suitable approach, this pack is geared toward covering a larger cabinet project.
Technical overview

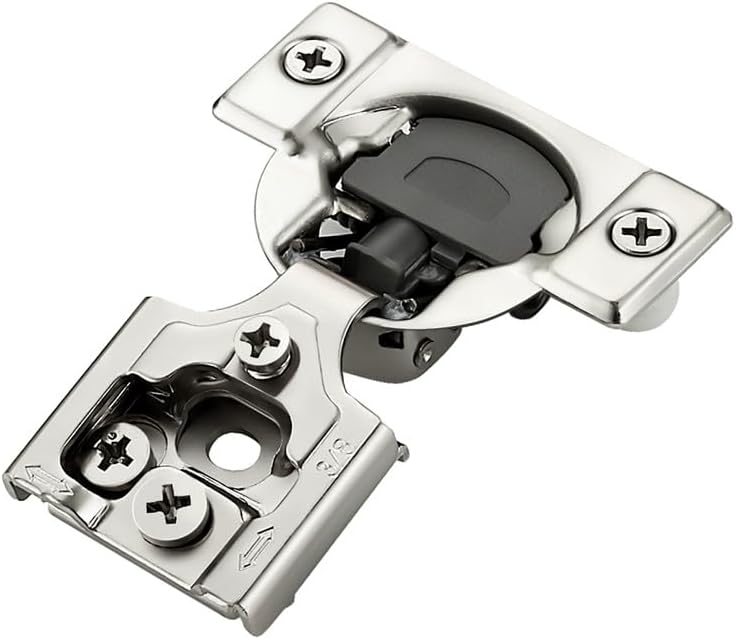

- Type: Concealed soft-close cabinet hinges
- Overlay: 3/8 inch
- Quantity: 60 hinges, or 30 pairs
- Material: Stainless steel
- Finish: Satin nickel
- Mounting: Door mount
- Cup diameter: 35mm
- Cup depth: 11.6mm
- Screw-hole distance: 45mm
- Opening angle: 105 degrees
- Adjustment: Three-way, with a screwdriver

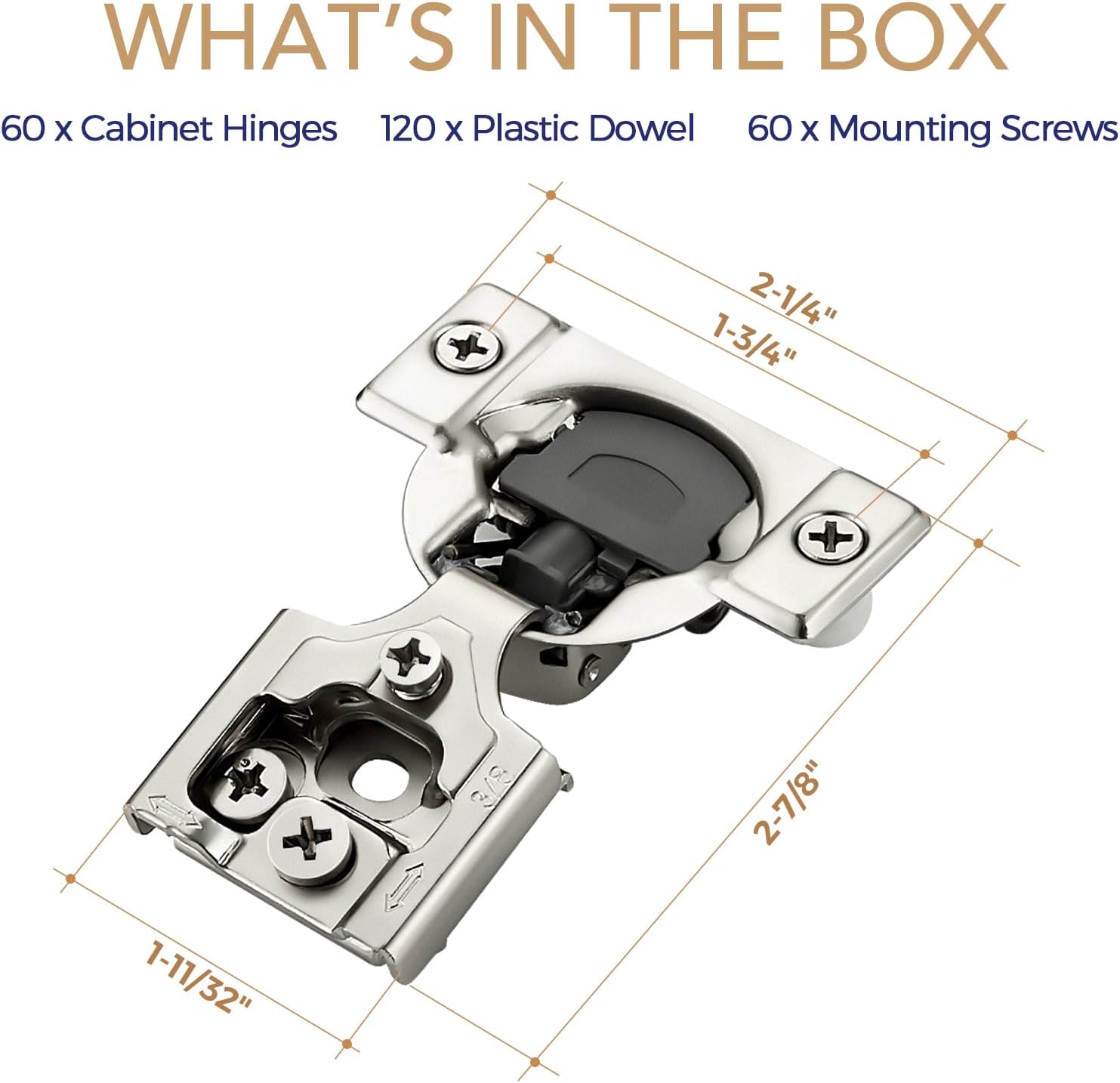

- What’s included: 60 hinges, 120 plastic dowels, and 60 mounting screws
Is it worth it?
For a face-frame cabinet update that uses a 3/8-inch overlay, the JL114LS combines a concealed appearance, soft-close motion, and three-way adjustment in a 30-pair set. Its stated cup and screw-hole measurements also give you practical points to compare with your current hinge layout before starting. Choose this set when you want to refresh multiple cabinet doors with matching satin nickel hinges and a gentler closing action.
