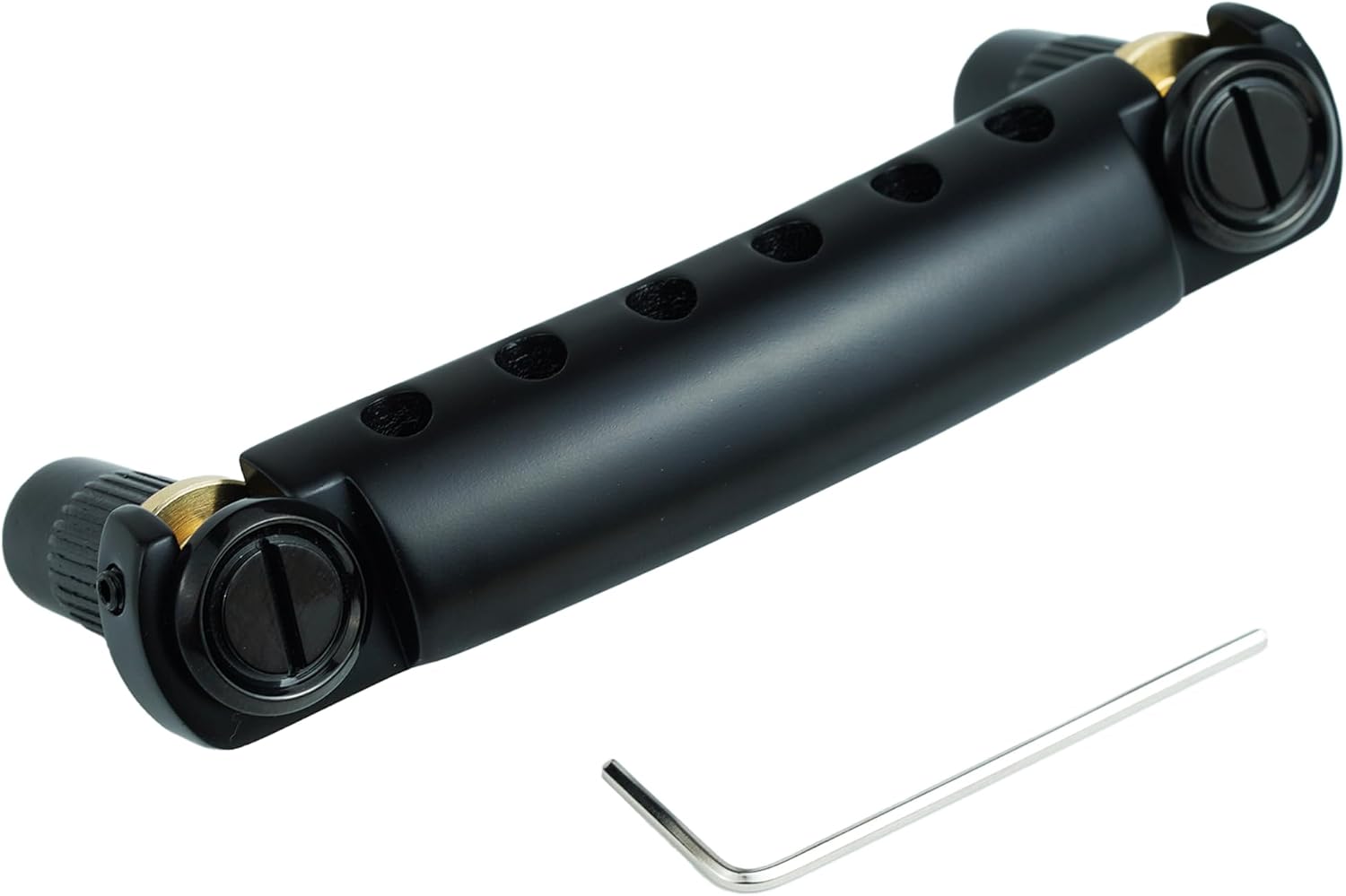

Guyker GSA001 Guitar Stop Bar Tailpiece, Aluminum Alloy, Black

Made from aluminum alloy, the Guyker GSA001 is a black stop-bar tailpiece for six-string LP-style electric guitars. Its listed dimensions give you concrete points to compare with the mounting hardware already on your instrument: the studs are spaced approximately 81.9 mm apart, and the tailpiece is approximately 101 mm long.

The package includes the tailpiece and two locking studs. Matching dimensions matter more than the guitar’s general shape, so this is best treated as a replacement or DIY part for an instrument whose existing hardware measurements line up.

Fit and sizing

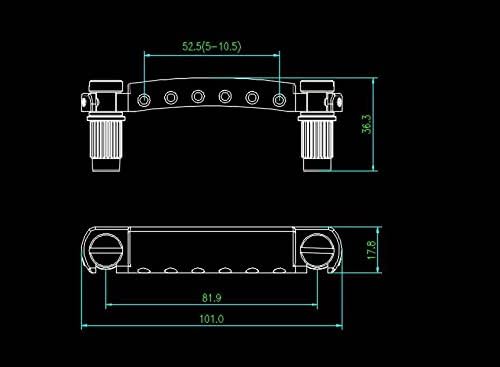

Guyker lists this part for LP-style six-string electric guitars, or similar instruments with matching hardware dimensions. Before choosing it, compare the stated stud spacing and string spacing with your guitar’s existing layout, the product description also directs buyers to check the parameter drawing. A familiar body style alone does not establish fit, especially when mounting dimensions differ.

The tailpiece string spacing is approximately 10.5 mm, while the full length is approximately 101 mm. These measurements help narrow down compatibility, but the available information does not specify a range of adjustment or fit for other bridge systems. If you are replacing an existing part, matching its layout is a more useful starting point than choosing by color or appearance alone.

What you’ll notice day to day

This is a focused hardware replacement, not a complete bridge setup. The aluminum-alloy construction and black finish suit a straightforward swap or custom-build project where those details fit the instrument. The lightweight design may also appeal to players or repairers looking to use an aluminum tailpiece, though the supplied details do not establish a particular change in tone or sustain.

For a practical example, a guitar repairer could compare the existing stud spacing with the listed 81.9 mm measurement before selecting this part for a replacement job. The two locking studs are included, which makes the package relevant to that hardware task. A solid pick if you need a stop-bar tailpiece for a six-string LP-style guitar and its dimensions match. Better avoided if the mounting layout is different or you need a complete bridge assembly rather than a tailpiece and studs.

Technical overview

• Type: Stop-tailpiece
• Material: Aluminum alloy
• Color: Black
• Compatibility: Six-string LP-style electric guitars or similar instruments with matching hardware dimensions
• Stud spacing: Approximately 81.9 mm (3.23 inches)
• Tailpiece length: Approximately 101 mm (3.98 inches)
• String spacing: Approximately 10.5 mm (0.41 inches)

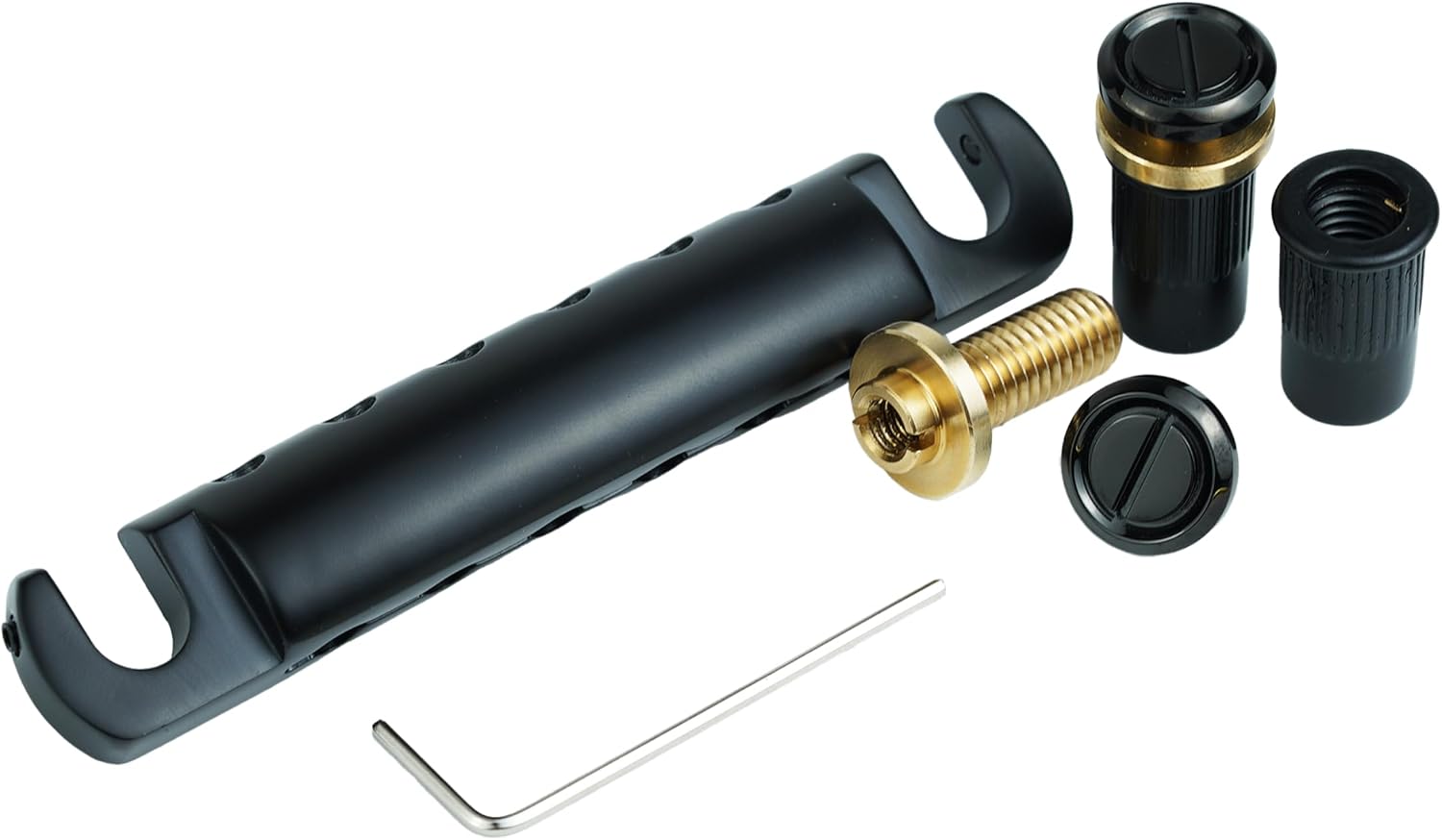

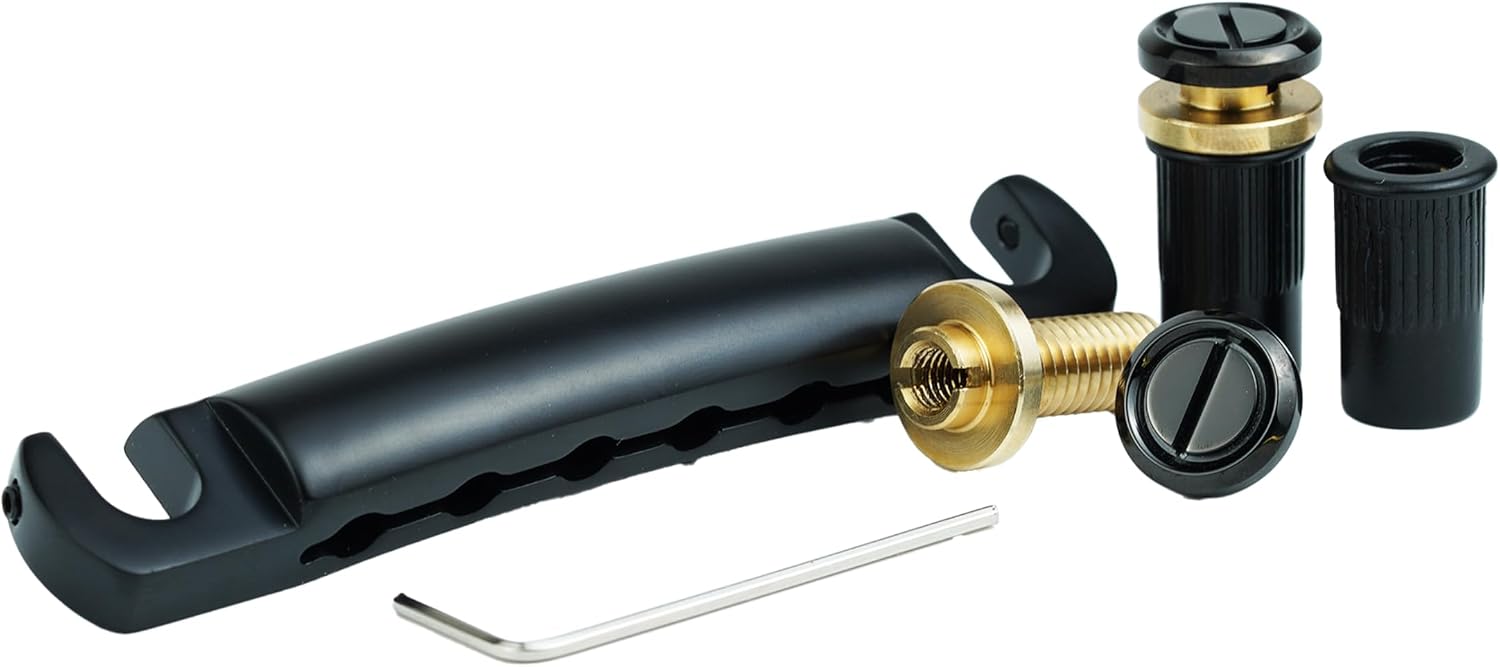

• What’s included: One tailpiece and two locking studs
• Model: GSA001

What to clarify

Will it fit every LP-style guitar? No universal fit is stated. The listing calls for matching hardware dimensions, so compare the existing layout with the measurements and parameter drawing.

Are the mounting studs included? Yes. The package is listed as one tailpiece with two locking studs.

Is this a complete bridge replacement? The listed contents are the stop-bar tailpiece and two studs. The product information does not identify a saddle bridge as part of the package.

Final verdict

The GSA001 is a specific replacement part for buyers who want a black aluminum-alloy stop tailpiece and can confirm that the mounting and string spacing suit their guitar. Its stated dimensions and included locking studs make the intended hardware use clear. If those measurements do not match, choosing a part based on the LP-style description alone leaves fit unresolved, look for a tailpiece specified for your instrument’s actual layout instead.
