Ravinte JL11LS2 Soft-Close Cabinet Hinges, 1/2-Inch Overlay, Satin Nickel, 50-Pack

Replacing hinges on face-frame cabinet doors? The Ravinte JL11LS2 set pairs a concealed fit with a soft-close mechanism, helping doors ease shut instead of closing abruptly. Its 1/2-inch overlay is suited to the listed face-frame application, and the satin nickel finish gives the hardware a consistent look across a cabinet run.

The 50-hinge pack provides 25 pairs for a multi-door update. Three-way adjustment with a screwdriver helps fine-tune door position after installation, while the included mounting screws and plastic dowels support the setup.

What to know

These hinges are made of stainless steel with a nickel-plated satin nickel finish. Their soft-close mechanism slows the door as it nears the closed position. The opening angle is 105 degrees, and the concealed design keeps the hinge out of view when the cabinet door is closed.

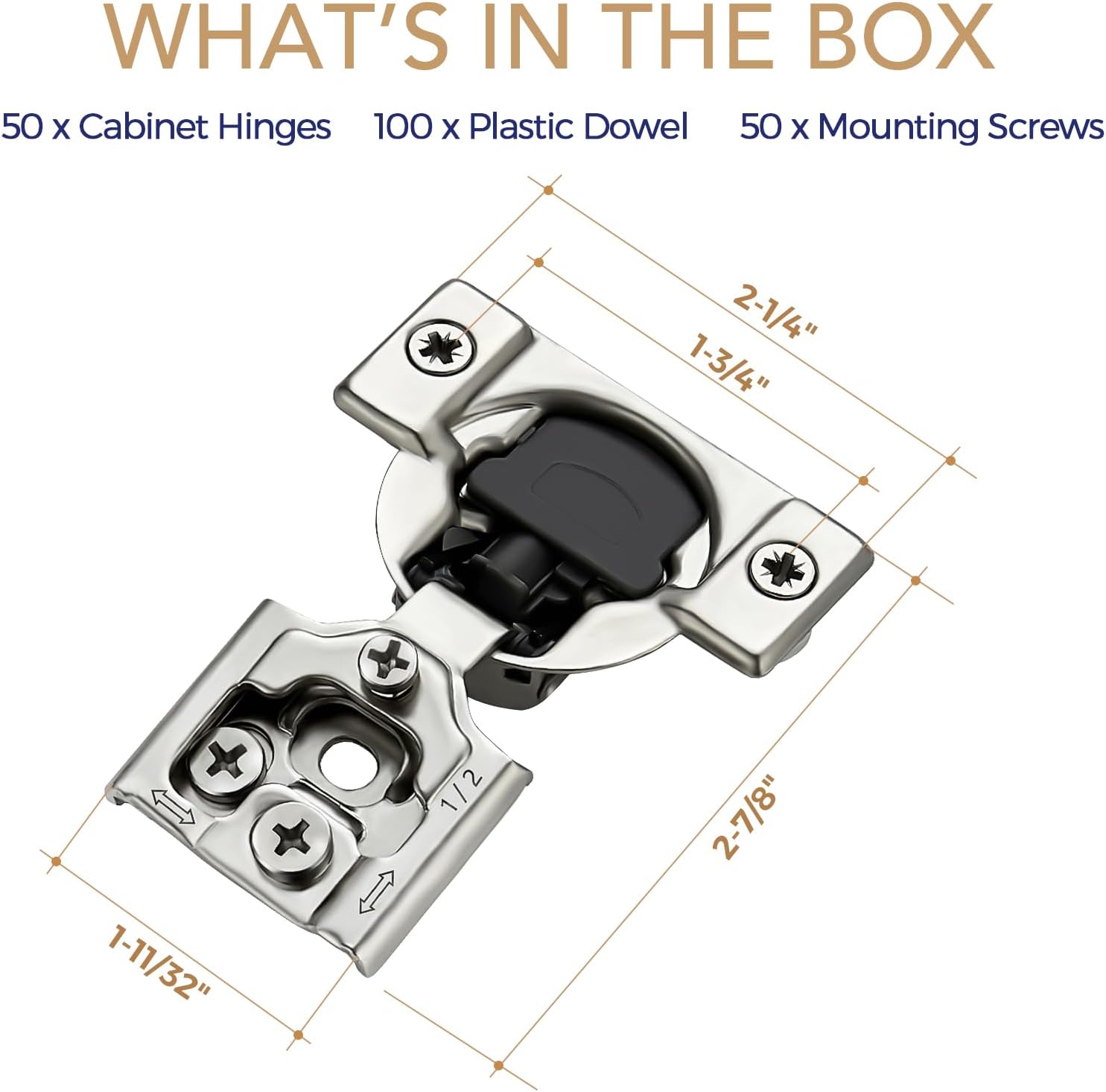

For fit, the listed measurements are a 35mm cup diameter, 11.6mm cup depth, and 45mm distance between screw holes. The hinge dimensions are 2.88 inches long by 2.25 inches wide. Check these measurements against the cabinet’s hinge preparation and match the 1/2-inch overlay to the door and face frame before fitting.

The package includes 50 hinges, 100 plastic dowels, and 50 mounting screws. Buyers often describe installation and fit positively, including use in existing hinge locations. Feedback on soft-close speed and adjustment is mixed, so the most useful approach is to make small screwdriver adjustments and assess door movement as you go.

Practical tips

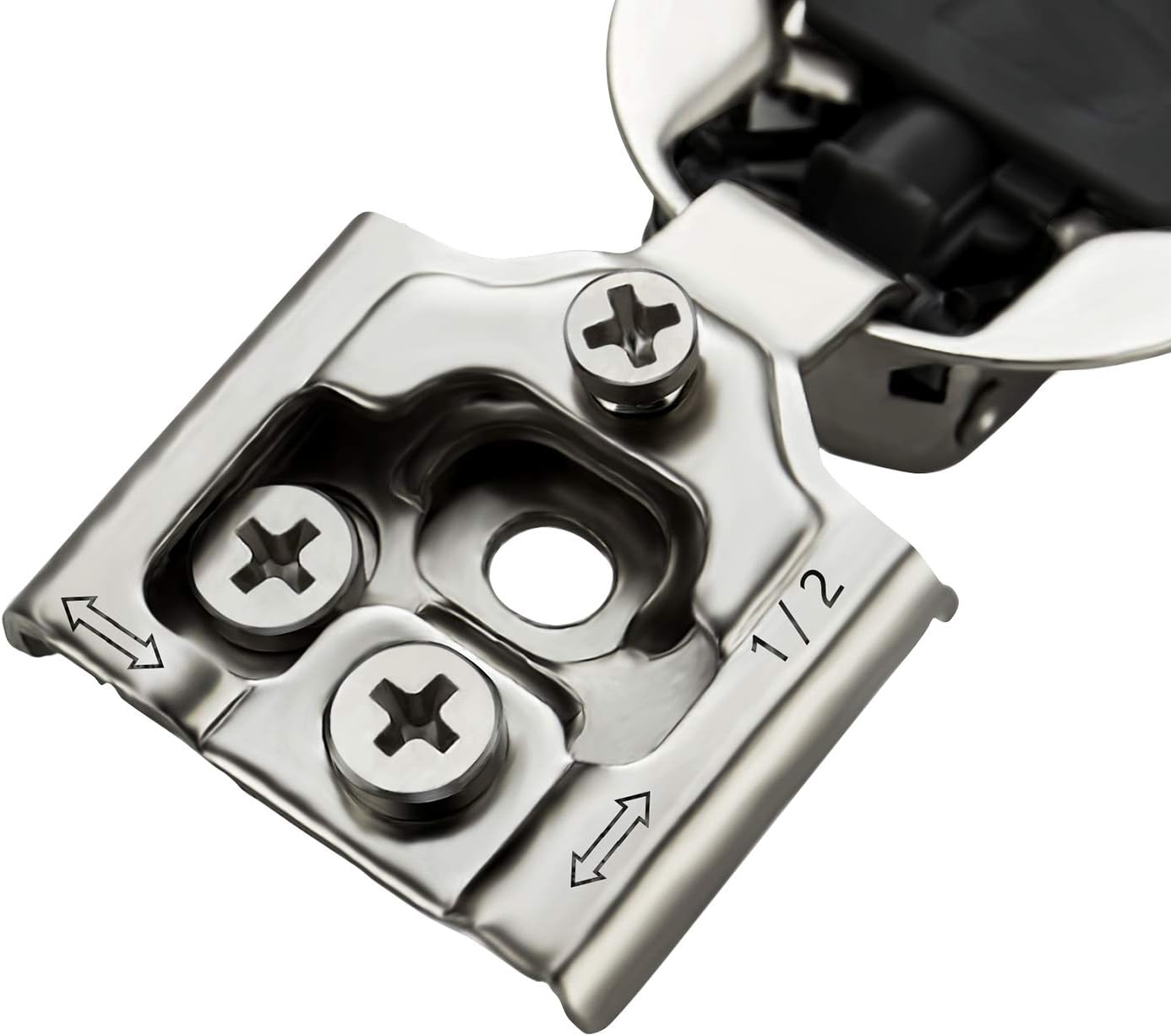

Start by confirming the cabinet uses a face-frame setup and that the overlay and cup dimensions match the existing door preparation. During installation, use the three-way adjustment to bring the doors into alignment, then check that each door opens and closes as intended. Keeping the hardware matched across a cabinet run can make a replacement project look more consistent.

The satin nickel finish and concealed format are practical choices when visible hardware would interrupt a clean cabinet-front look. Compared with choosing standard hinges without a soft-close feature, this set is aimed at buyers who want a gentler closing motion as part of the hinge replacement.

Best use cases

This set is suited to updating several face-frame kitchen cabinet doors at once, with 25 pairs available for a broader refresh. It can also serve as a replacement option when the cabinet’s existing hinge locations match the listed cup and screw-hole measurements. The three-way adjustment is useful for aligning doors after fitting, while the soft-close mechanism adds a controlled final movement during everyday use.

For a practical example, a kitchen refresh can use the hinges across a row of cabinet doors to combine a concealed appearance with a consistent soft-close action. The included mounting hardware helps supply the parts listed for installation in one package.

Buying verdict

Choose the Ravinte JL11LS2 when you need a bulk set of concealed, soft-close hinges for 1/2-inch-overlay face-frame cabinet doors. Its 25-pair quantity, satin nickel finish, specified cup measurements, and screwdriver-adjustable positioning make it a focused choice for cabinet replacement or a coordinated multi-door update.
