Nuoenx Wireless Backup Camera 7" Monitor for RVs
Product description

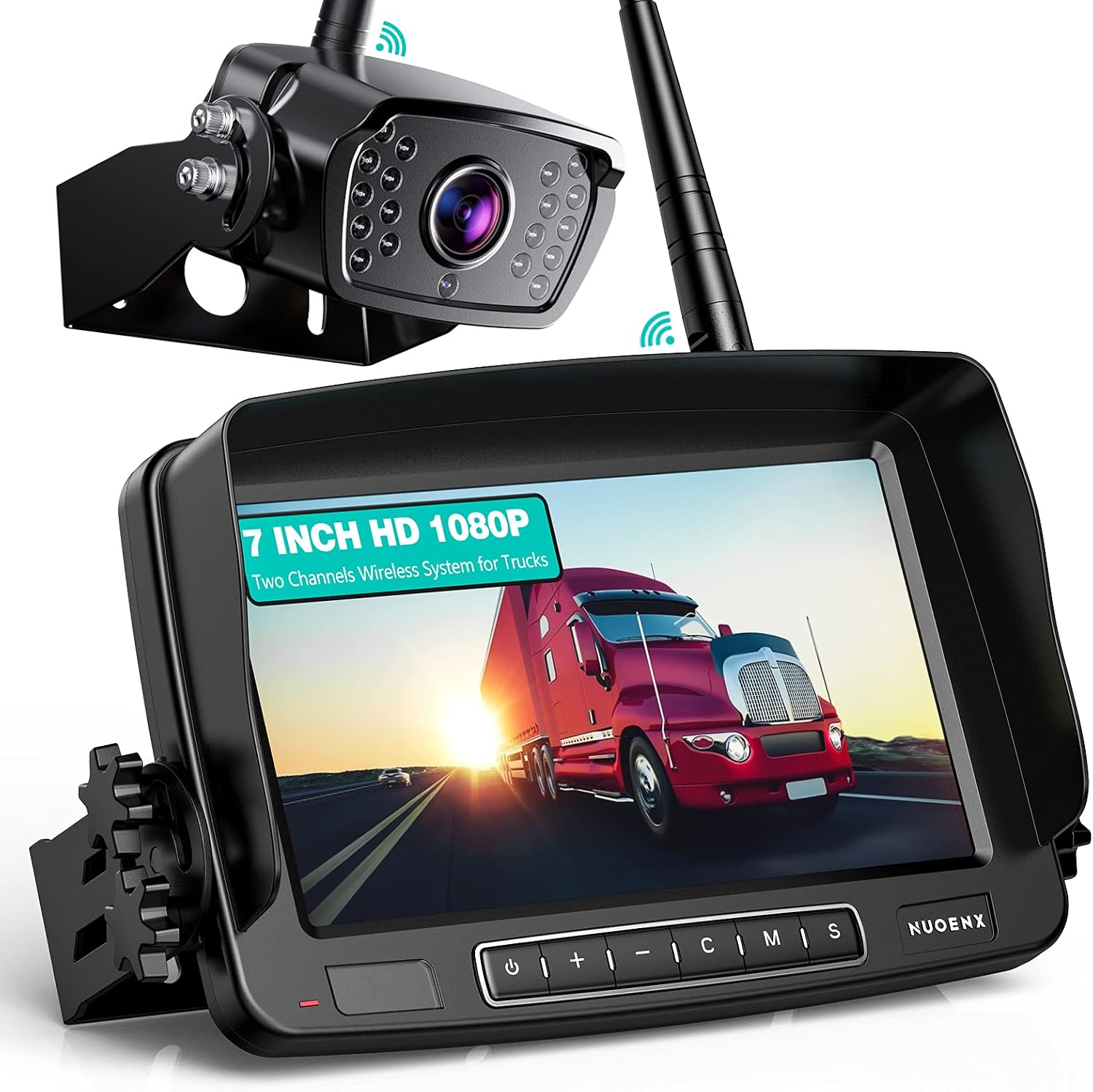

This 7 inch wireless monitor and rear view camera kit brings clearer reversing and monitoring for RVs, trailers, trucks and fifth wheels by combining a 7 inch LCD TFT display with an HD 1080p digital wireless feed. The wireless backup camera system for RVs and trailers offers a wide 152 degree view and IR night vision to help when you are maneuvering at night or in tight spots.
Key Points
The system uses a 2.4G digital wireless link that the manufacturer states delivers a stable, interference-free image even around other wireless signals like Bluetooth and radio. A suction cup mount lets you place the 7 inch monitor on the windshield or dash without drilling holes. The camera supports continuous power or trigger-by-reverse wiring to the vehicle’s reverse light, so you can choose between permanent monitoring or only activating while backing up. Note that a second wireless camera is supported but must be purchased separately.
Technical Specifications
- Name: Nuoenx Wireless Backup Camera
- Monitor size: 7 inch LCD TFT, monitor dimensions 19 x 12 cm
- Camera view angle: 152°, camera size 8.9 x 4.5 cm
- Waterproof rating: IP68K
- Night vision: 18 LED IR, visible range up to 60 feet according to the manufacturer
- Image format: HD 1080p via 2.4G wireless transmission
- Power requirements: 12 V–24 V, operating temperature -15.6 °C to 80.0 °C
Benefits
The wide-angle lens and high-resolution sensor give a broader field of view to reduce blind spots while reversing. The IR LEDs and low light performance allow extended visibility in dark conditions, which helps on night drives or when setting up at a campsite. The wireless link reduces cable routing work for trailers and fifth wheels and is useful when moving the camera between vehicles. A stable signal is especially helpful in busy RF environments where analog systems could show interference. 🚚🌙
Usage Recommendations

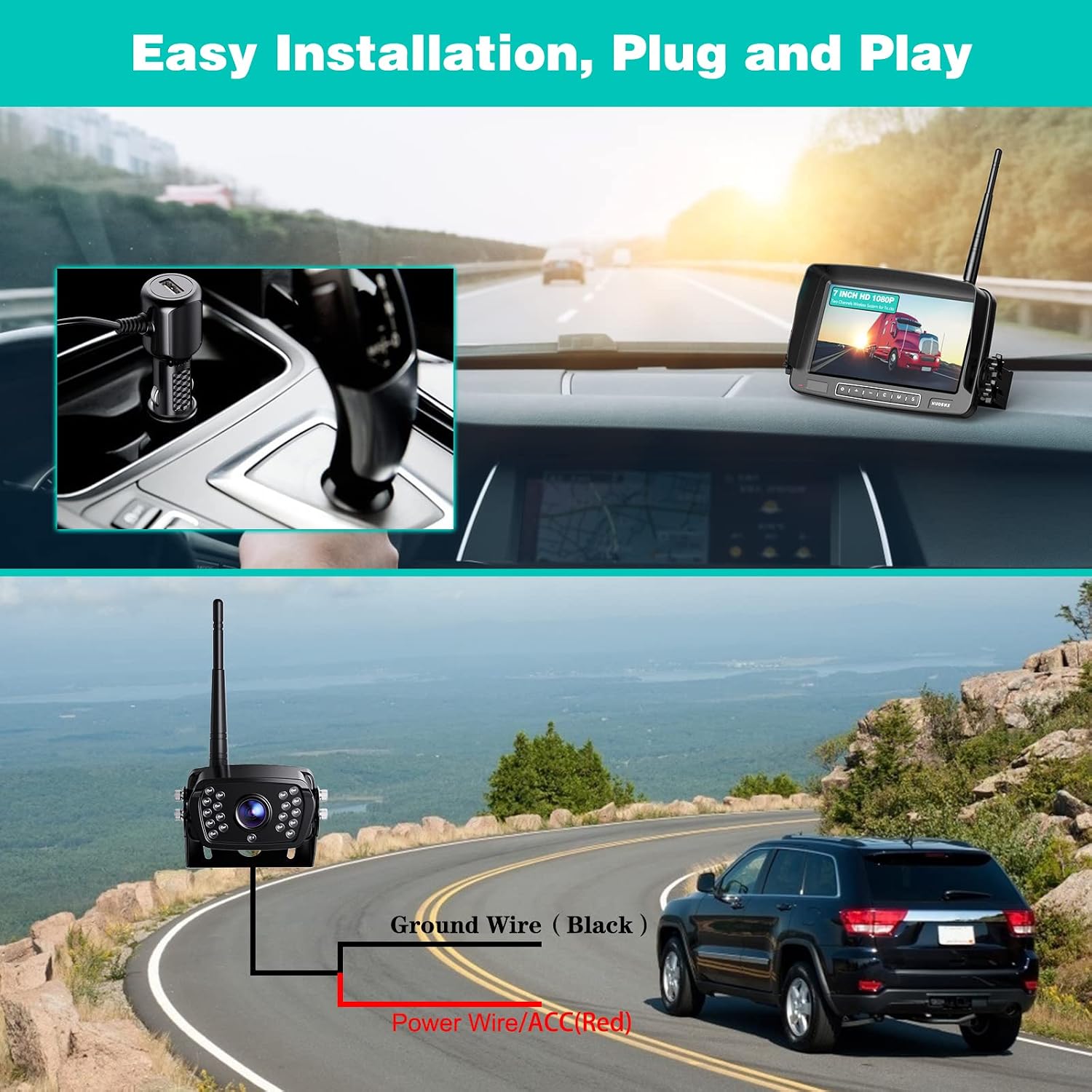

Install the monitor using the included suction base for temporary placement or wire it to an ACC or fuse box for a more permanent setup. For vehicle installation that relies on reverse-triggered power, connect the camera to the reverse light circuit so the view only appears when backing up. Consider the listed in-vehicle transmission ranges when mounting the camera on long trailers, since the effective range for reversing is shorter inside the vehicle than in open areas. 🔧
